headlight bulb CHRYSLER SEBRING 2010 3.G Owners Manual

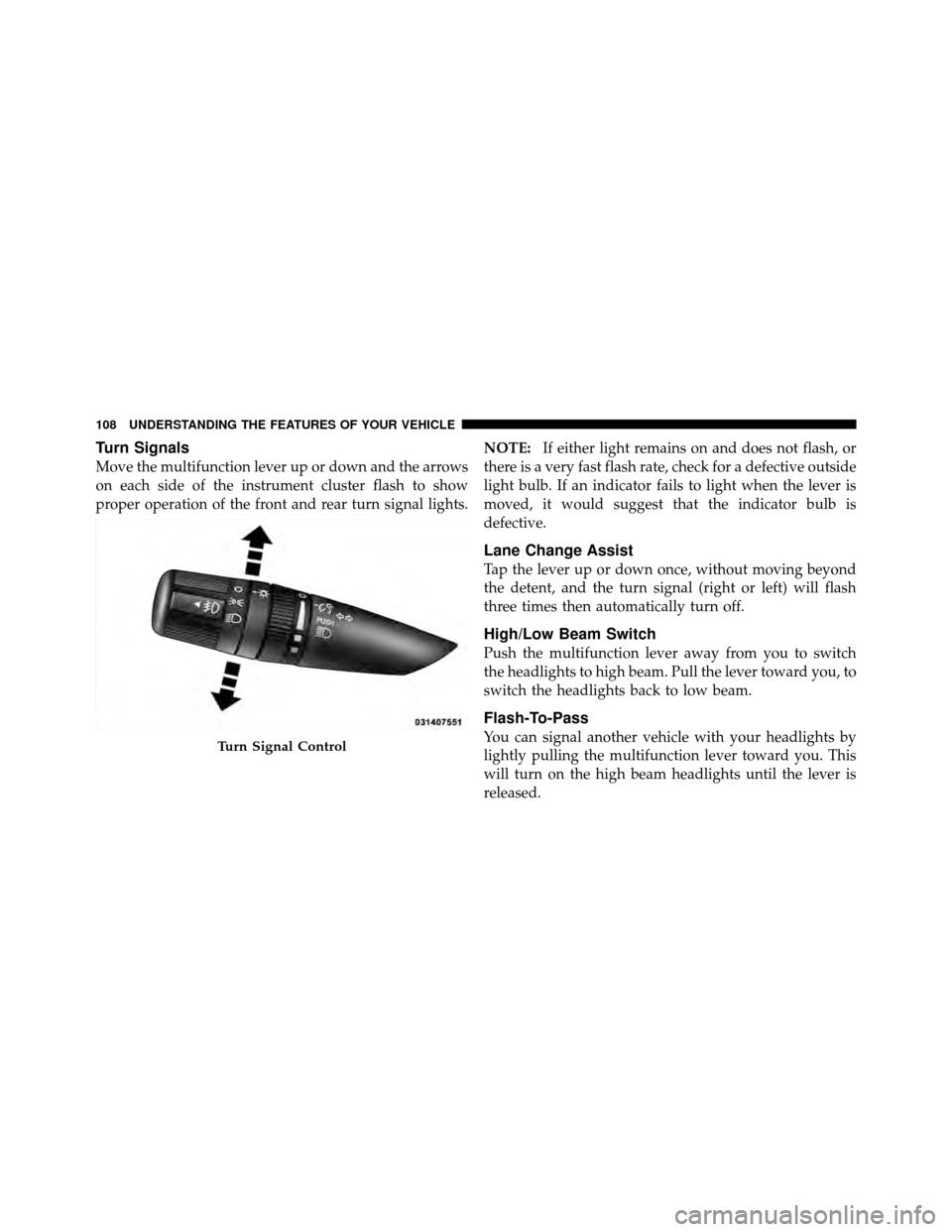

Turn Signals
Move the multifunction lever up or down and the arrows
on each side of the instrument cluster flash to show
proper operation of the front and rear turn signal lights.NOTE:
If either light remains on and does not flash, or
there is a very fast flash rate, check for a defective outside
light bulb. If an indicator fails to light when the lever is
moved, it would suggest that the indicator bulb is
defective.
Lane Change Assist
Tap the lever up or down once, without moving beyond
the detent, and the turn signal (right or left) will flash
three times then automatically turn off.
High/Low Beam Switch
Push the multifunction lever away from you to switch
the headlights to high beam. Pull the lever toward you, to
switch the headlights back to low beam.
Flash-To-Pass
You can signal another vehicle with your headlights by
lightly pulling the multifunction lever toward you. This
will turn on the high beam headlights until the lever is
released.Turn Signal Control
108 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

If the light is flashing when the engine is running you
may experience power loss, an elevated/rough idle, and
increased brake pedal effort, and your vehicle may
require towing. Immediate service is required.
The light will come on when the ignition switch is first
turned on and remain on approximately 15 seconds as a
bulb check. This is normal. If the light does not come on
during starting, have the system checked by an autho-
rized dealer.
18. Position Light Indicator — If EquippedThis indicator will illuminate when the park
lights or headlights are turned on. 19. Electronic Stability Control (ESC) OFF Indicator
Light — If Equipped
This light indicates the Electronic Stability Con-
trol system (ESC) has been turned off by the
driver.
20. Turn Signal Indicators The arrows will flash in unison with the exterior
turn signal, when using the turn signal lever.
21. Front Fog Light Indicator — If Equipped This indicator will illuminate when the front fog
lights are on.
22. Vehicle Security Light — If Equipped This light will flash rapidly for approximately
16 seconds when the alarm system is arming.
The light will begin to flash slowly indicating
that the system is armed. The light will stop
flashing when the vehicle is disarmed.
4
UNDERSTANDING YOUR INSTRUMENT PANEL 153

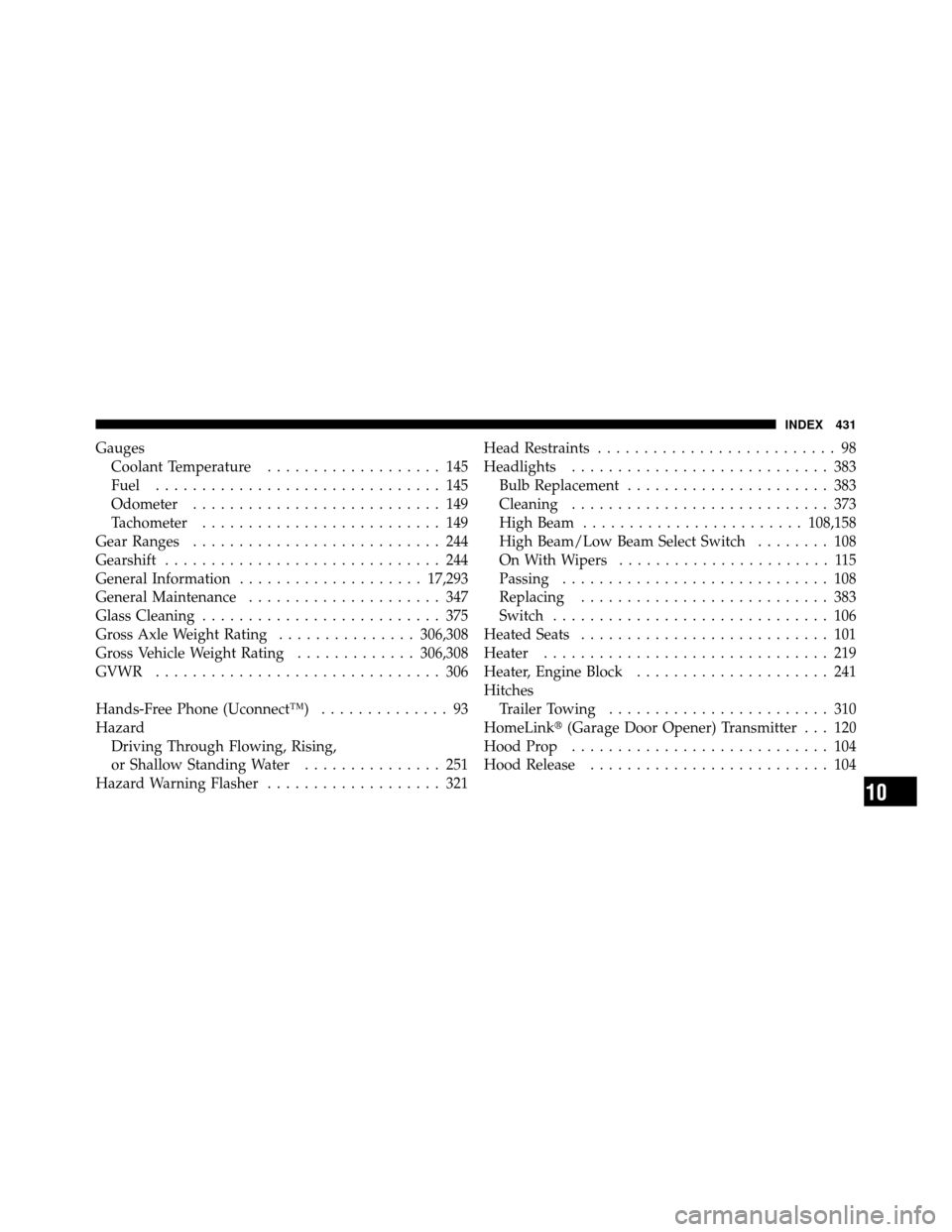

GaugesCoolant Temperature ................... 145
Fuel ............................... 145
Odometer ........................... 149
Tachometer .......................... 149
Gear Ranges ........................... 244
Gearshift .............................. 244
General Information .................... 17,293
General Maintenance ..................... 347
Glass Cleaning .......................... 375
Gross Axle Weight Rating ...............306,308
Gross Vehicle Weight Rating .............306,308
GVWR ............................... 306
Hands-Free Phone (Uconnect™) .............. 93
Hazard Driving Through Flowing, Rising,
or Shallow Standing Water ............... 251
Hazard Warning Flasher ................... 321 Head Restraints
.......................... 98
Headlights ............................ 383
Bulb Replacement ...................... 383
Cleaning ............................ 373
High Beam ........................ 108,158
High Beam/Low Beam Select Switch ........ 108
On With Wipers ....................... 115
Passing ............................. 108
Replacing ........................... 383
Switch .............................. 106
Heated Seats ........................... 101
Heater ............................... 219
Heater, Engine Block ..................... 241
Hitches Trailer Towing ........................ 310
HomeLink (Garage Door Opener) Transmitter . . . 120
Hood Prop ............................ 104
Hood Release .......................... 104
10
INDEX 431

LATCH
(Lower Anchors and Tether for CHildren)....... 75
Latches ................................ 84
Hood .............................. 104
Lead Free Gasoline ...................... 294
Leaks, Fluid ............................ 84
Life of Tires ............................ 282
Light Bulbs .......................... 84,382
Lights .............................. 84,105
Airbag ........................ 62,67,82,146
Back-Up ............................ 387
Brake Warning ........................ 147
Bulb Replacement ...................... 383
Center Mounted Stop ................... 391
Daytime Running ...................... 109
Electronic Stability Program (ESP) Indicator . . . 263
Engine Temperature Warning .............. 147
Exterior .............................. 84
Fog .......................... 109,153,385Headlight Switch
...................... 106
Headlights ........................... 106
Headlights On With Wipers ............... 115
High Beam Indicator .................... 158
Illuminated Entry ....................... 20
Instrument Cluster ..................... 106
Interior ............................. 111
License ............................. 390
Lights On Reminder .................... 110
Low Fuel ............................ 146
Malfunction Indicator (Check Engine) ........ 156
Map Reading ......................... 111
Oil Pressure .......................... 147
Passing ............................. 108
Rear Tail ............................ 387
Seat Belt Reminder ..................... 146
Security Alarm (Theft Alarm) .............. 18
Theft Alarm (Security Alarm) .............. 153
Tire Pressure Monitoring (TPMS) ........155,285
10
INDEX 433
