NOTE:
•During the 16 second arming period, if a door is
opened or the ignition switch is turned ON, the
Vehicle Security Alarm will automatically disarm.
•Once armed, the Vehicle Security Alarm disables the
unlock switch on the driver door trim panel and
passenger door trim panel, the trunk release button on
the instrument panel, and the HomeLink/Garage
Door Opener (if equipped).
To Disarm The System
Either press the UNLOCK button on the RKE transmitter
or insert a valid Sentry Keyinto the ignition lock
cylinder and turn the key to the ON/START position.
NOTE:
•The driver’s door key cylinder and the trunk button on
the RKE transmitter cannot arm or disarm the Vehicle
Security Alarm.
•The Vehicle Security Alarm remains armed during
trunk entry. Pressing the trunk button will not disarm
the Vehicle Security Alarm. If someone enters the
vehicle through the trunk and opens any door, the
alarm will sound.
The Vehicle Security Alarm is designed to protect your
vehicle; however, you can create conditions where the
Vehicle Security Alarm will give you a false alarm. If one
of the previously described arming sequences has oc-
curred, the Vehicle Security Alarm will arm regardless of
whether you are in the vehicle or not. If you remain in the
vehicle and open a door, the alarm will sound. If this
occurs, disarm the Vehicle Security Alarm.
If the Vehicle Security Alarm is armed and the battery
becomes disconnected the Vehicle Security Alarm will
remain armed when the battery is reconnected. The
exterior lights will flash, and the horn will sound. If this
occurs, disarm the Vehicle Security Alarm.
2
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19

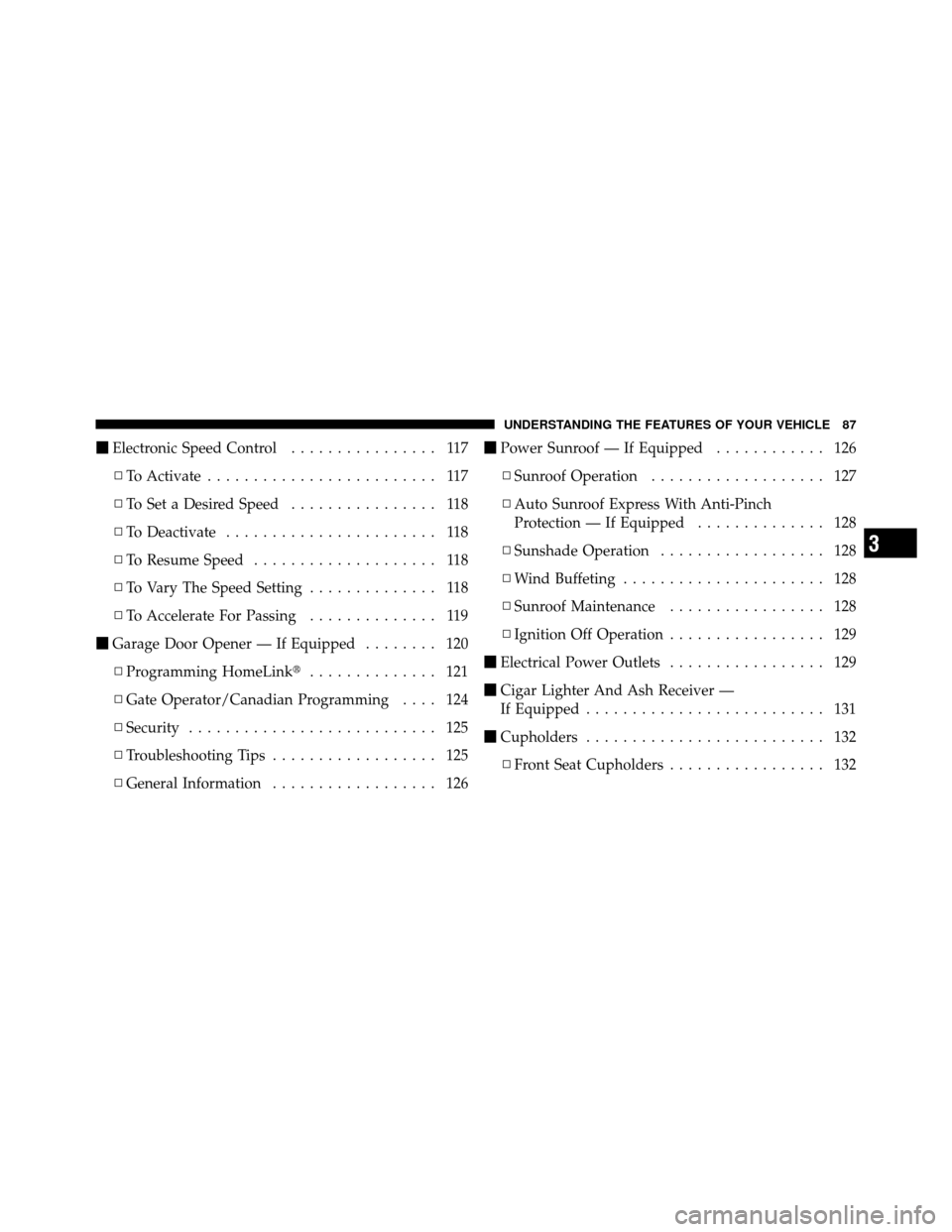

Electronic Speed Control ................ 117
▫ To Activate ......................... 117
▫ To Set a Desired Speed ................ 118
▫ To Deactivate ....................... 118
▫ To Resume Speed .................... 118
▫ To Vary The Speed Setting .............. 118
▫ To Accelerate For Passing .............. 119
 Garage Door Opener — If Equipped ........ 120
▫ Programming HomeLink .............. 121
▫ Gate Operator/Canadian Programming .... 124
▫ Security ........................... 125
▫ Troubleshooting Tips .................. 125
▫ General Information .................. 126
Power Sunroof — If Equipped ............ 126
▫ Sunroof Operation ................... 127
▫ Auto Sunroof Express With Anti-Pinch
Protection — If Equipped .............. 128
▫ Sunshade Operation .................. 128
▫ Wind Buffeting ...................... 128
▫ Sunroof Maintenance ................. 128
▫ Ignition Off Operation ................. 129
 Electrical Power Outlets ................. 129
 Cigar Lighter And Ash Receiver —
If Equipped .......................... 131
 Cupholders .......................... 132
▫ Front Seat Cupholders ................. 132
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 87

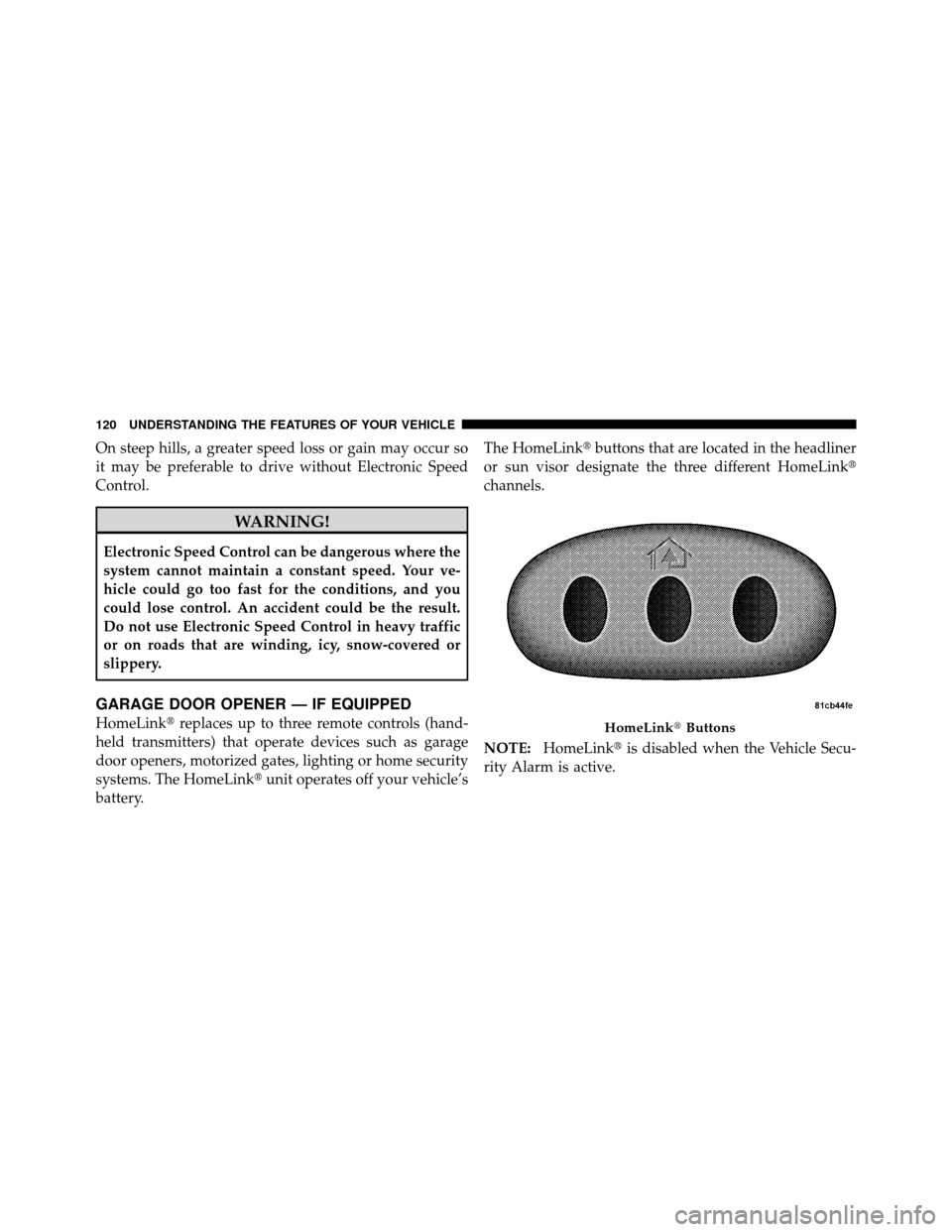

On steep hills, a greater speed loss or gain may occur so
it may be preferable to drive without Electronic Speed
Control.
WARNING!
Electronic Speed Control can be dangerous where the
system cannot maintain a constant speed. Your ve-
hicle could go too fast for the conditions, and you
could lose control. An accident could be the result.
Do not use Electronic Speed Control in heavy traffic
or on roads that are winding, icy, snow-covered or
slippery.
GARAGE DOOR OPENER — IF EQUIPPED
HomeLinkreplaces up to three remote controls (hand-
held transmitters) that operate devices such as garage
door openers, motorized gates, lighting or home security
systems. The HomeLink unit operates off your vehicle’s
battery. The HomeLink
buttons that are located in the headliner
or sun visor designate the three different HomeLink
channels.
NOTE: HomeLink is disabled when the Vehicle Secu-
rity Alarm is active.HomeLink Buttons
120 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

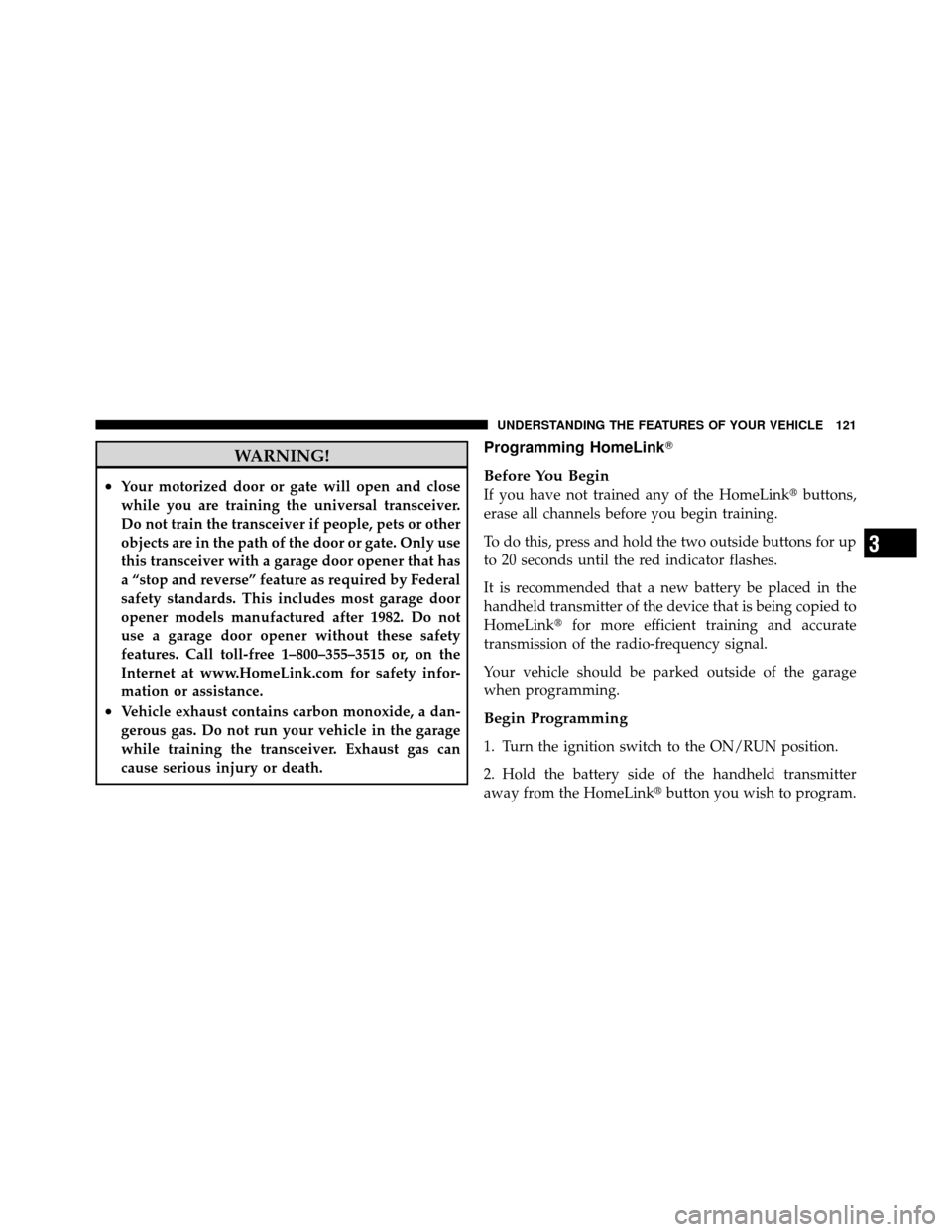

WARNING!
•Your motorized door or gate will open and close
while you are training the universal transceiver.
Do not train the transceiver if people, pets or other
objects are in the path of the door or gate. Only use
this transceiver with a garage door opener that has
a “stop and reverse” feature as required by Federal
safety standards. This includes most garage door
opener models manufactured after 1982. Do not
use a garage door opener without these safety
features. Call toll-free 1–800–355–3515 or, on the
Internet at www.HomeLink.com for safety infor-
mation or assistance.
•Vehicle exhaust contains carbon monoxide, a dan-
gerous gas. Do not run your vehicle in the garage
while training the transceiver. Exhaust gas can
cause serious injury or death.
Programming HomeLink
Before You Begin
If you have not trained any of the HomeLinkbuttons,
erase all channels before you begin training.
To do this, press and hold the two outside buttons for up
to 20 seconds until the red indicator flashes.
It is recommended that a new battery be placed in the
handheld transmitter of the device that is being copied to
HomeLink for more efficient training and accurate
transmission of the radio-frequency signal.
Your vehicle should be parked outside of the garage
when programming.
Begin Programming
1. Turn the ignition switch to the ON/RUN position.
2. Hold the battery side of the handheld transmitter
away from the HomeLink button you wish to program.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 121

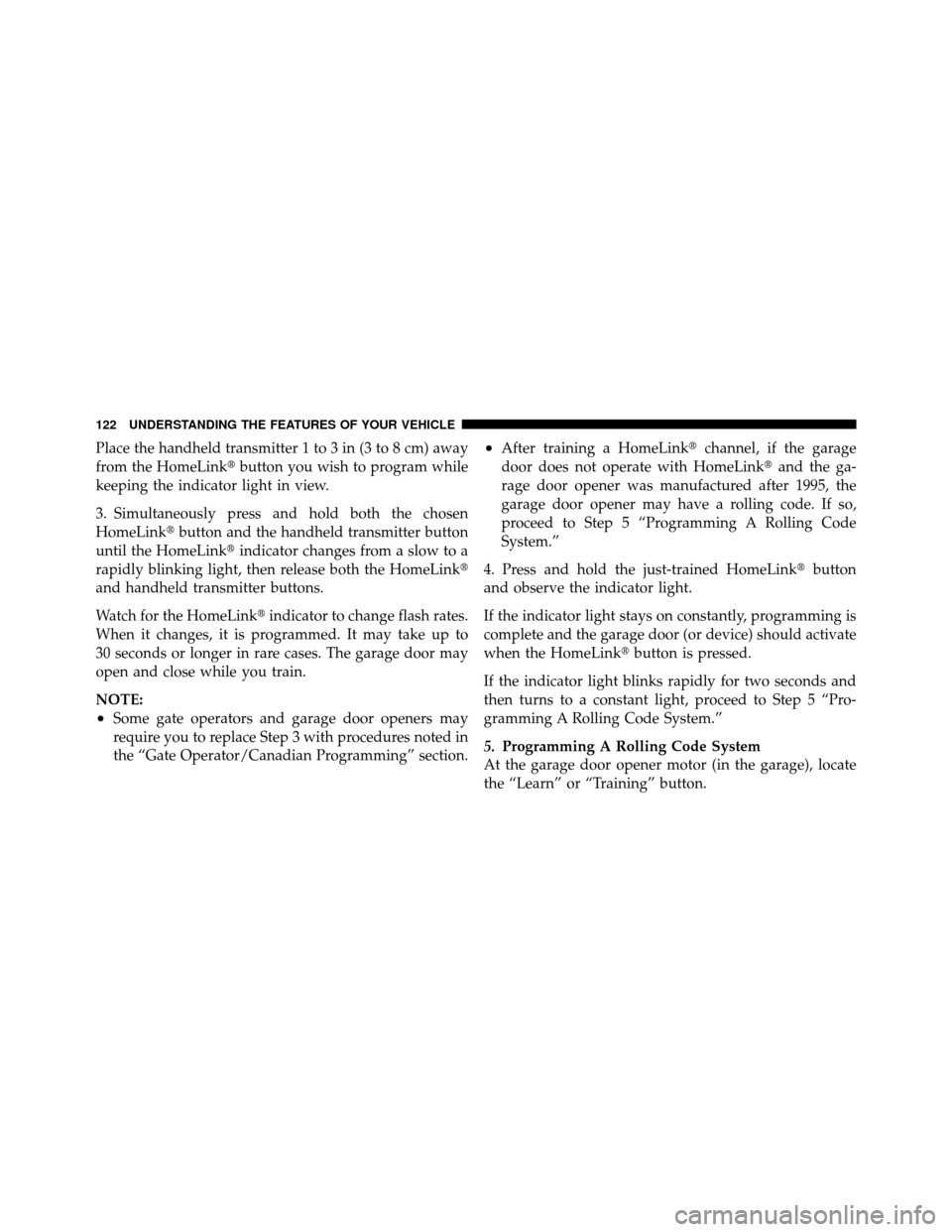

Place the handheld transmitter 1 to 3 in (3 to 8 cm) away
from the HomeLinkbutton you wish to program while
keeping the indicator light in view.
3. Simultaneously press and hold both the chosen
HomeLink button and the handheld transmitter button
until the HomeLink indicator changes from a slow to a
rapidly blinking light, then release both the HomeLink
and handheld transmitter buttons.
Watch for the HomeLink indicator to change flash rates.
When it changes, it is programmed. It may take up to
30 seconds or longer in rare cases. The garage door may
open and close while you train.
NOTE:
•Some gate operators and garage door openers may
require you to replace Step 3 with procedures noted in
the “Gate Operator/Canadian Programming” section.
•After training a HomeLink channel, if the garage
door does not operate with HomeLink and the ga-
rage door opener was manufactured after 1995, the
garage door opener may have a rolling code. If so,
proceed to Step 5 “Programming A Rolling Code
System.”
4. Press and hold the just-trained HomeLink button
and observe the indicator light.
If the indicator light stays on constantly, programming is
complete and the garage door (or device) should activate
when the HomeLink button is pressed.
If the indicator light blinks rapidly for two seconds and
then turns to a constant light, proceed to Step 5 “Pro-
gramming A Rolling Code System.”
5. Programming A Rolling Code System
At the garage door opener motor (in the garage), locate
the “Learn” or “Training” button.
122 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

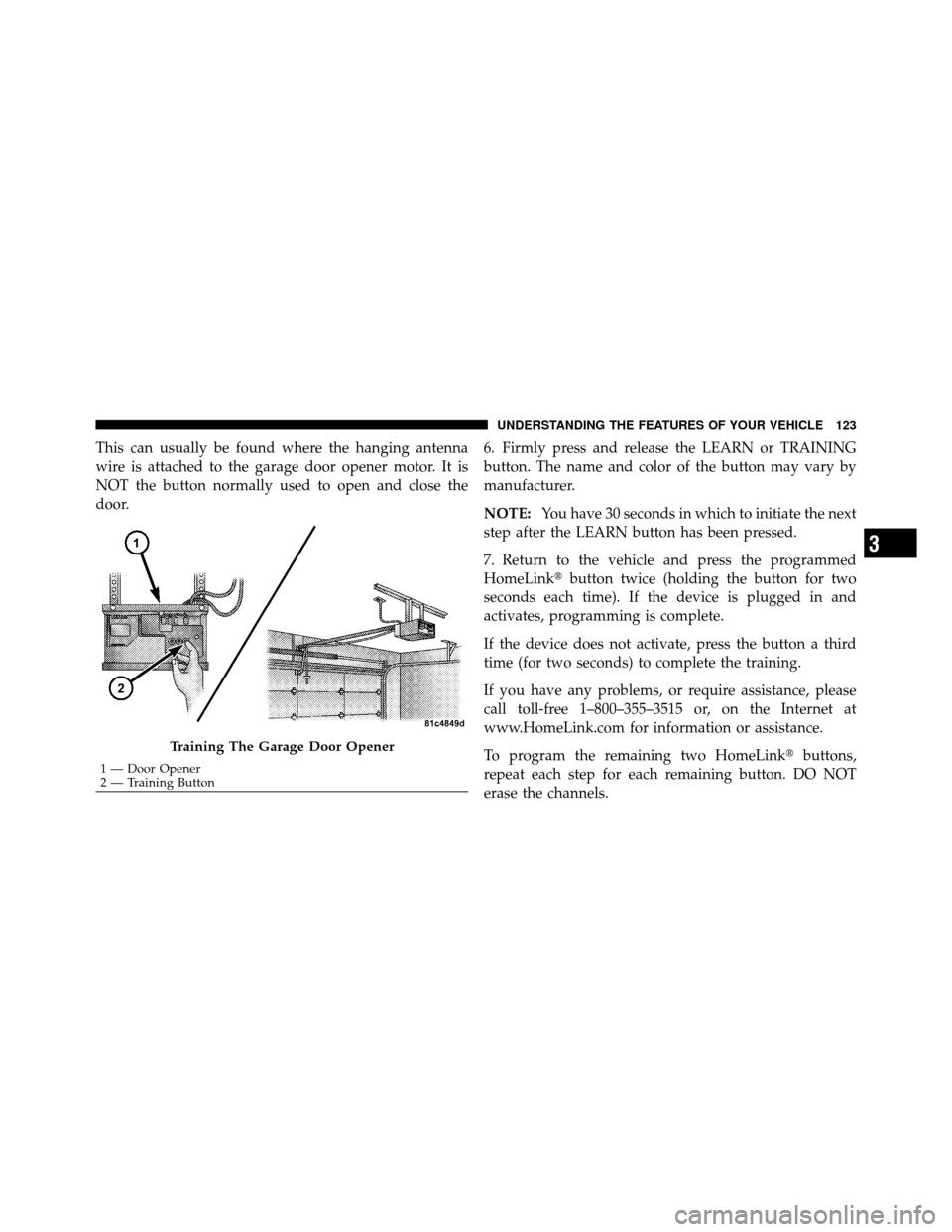

This can usually be found where the hanging antenna
wire is attached to the garage door opener motor. It is
NOT the button normally used to open and close the
door.6. Firmly press and release the LEARN or TRAINING
button. The name and color of the button may vary by
manufacturer.
NOTE:
You have 30 seconds in which to initiate the next
step after the LEARN button has been pressed.
7. Return to the vehicle and press the programmed
HomeLink button twice (holding the button for two
seconds each time). If the device is plugged in and
activates, programming is complete.
If the device does not activate, press the button a third
time (for two seconds) to complete the training.
If you have any problems, or require assistance, please
call toll-free 1–800–355–3515 or, on the Internet at
www.HomeLink.com for information or assistance.
To program the remaining two HomeLink buttons,
repeat each step for each remaining button. DO NOT
erase the channels.
Training The Garage Door Opener
1 — Door Opener
2 — Training Button
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 123

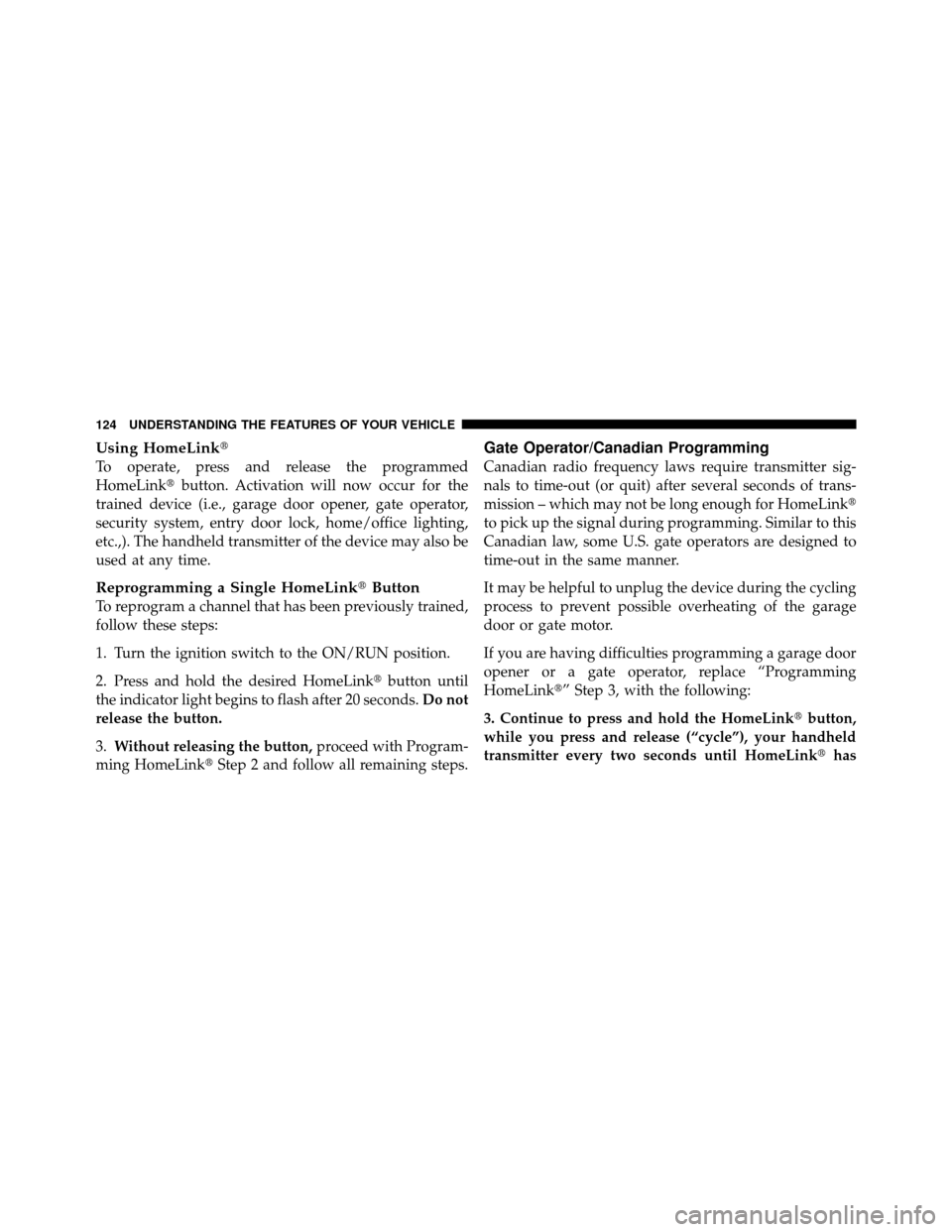

Using HomeLink
To operate, press and release the programmed
HomeLinkbutton. Activation will now occur for the
trained device (i.e., garage door opener, gate operator,
security system, entry door lock, home/office lighting,
etc.,). The handheld transmitter of the device may also be
used at any time.
Reprogramming a Single HomeLink Button
To reprogram a channel that has been previously trained,
follow these steps:
1. Turn the ignition switch to the ON/RUN position.
2. Press and hold the desired HomeLink button until
the indicator light begins to flash after 20 seconds. Do not
release the button.
3. Without releasing the button, proceed with Program-
ming HomeLink Step 2 and follow all remaining steps.
Gate Operator/Canadian Programming
Canadian radio frequency laws require transmitter sig-
nals to time-out (or quit) after several seconds of trans-
mission – which may not be long enough for HomeLink
to pick up the signal during programming. Similar to this
Canadian law, some U.S. gate operators are designed to
time-out in the same manner.
It may be helpful to unplug the device during the cycling
process to prevent possible overheating of the garage
door or gate motor.
If you are having difficulties programming a garage door
opener or a gate operator, replace “Programming
HomeLink” Step 3, with the following:
3. Continue to press and hold the HomeLink button,
while you press and release (“cycle”), your handheld
transmitter every two seconds until HomeLink has
124 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

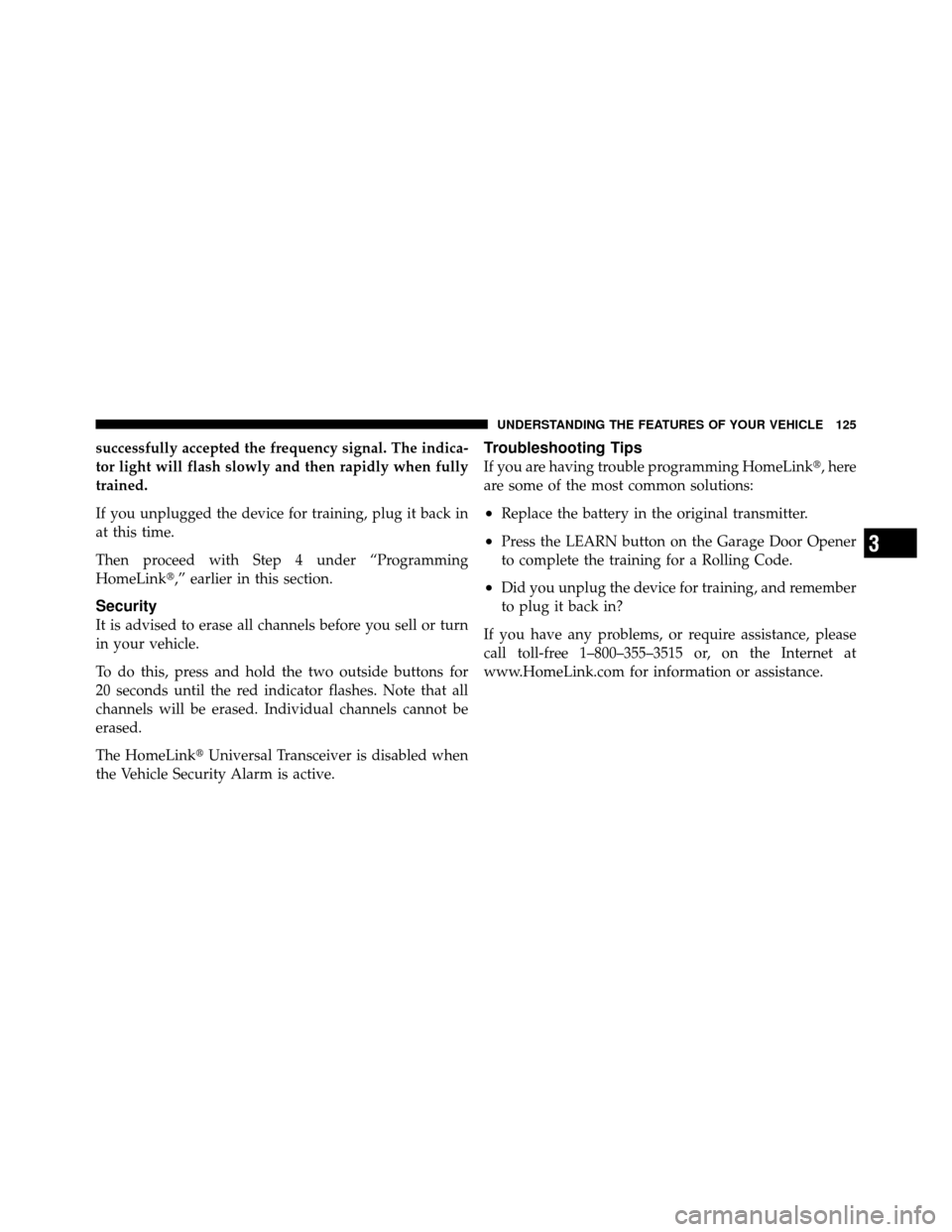

successfully accepted the frequency signal. The indica-
tor light will flash slowly and then rapidly when fully
trained.
If you unplugged the device for training, plug it back in
at this time.
Then proceed with Step 4 under “Programming
HomeLink,” earlier in this section.
Security
It is advised to erase all channels before you sell or turn
in your vehicle.
To do this, press and hold the two outside buttons for
20 seconds until the red indicator flashes. Note that all
channels will be erased. Individual channels cannot be
erased.
The HomeLinkUniversal Transceiver is disabled when
the Vehicle Security Alarm is active.
Troubleshooting Tips
If you are having trouble programming HomeLink , here
are some of the most common solutions:
•Replace the battery in the original transmitter.
•Press the LEARN button on the Garage Door Opener
to complete the training for a Rolling Code.
•Did you unplug the device for training, and remember
to plug it back in?
If you have any problems, or require assistance, please
call toll-free 1–800–355–3515 or, on the Internet at
www.HomeLink.com for information or assistance.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 125

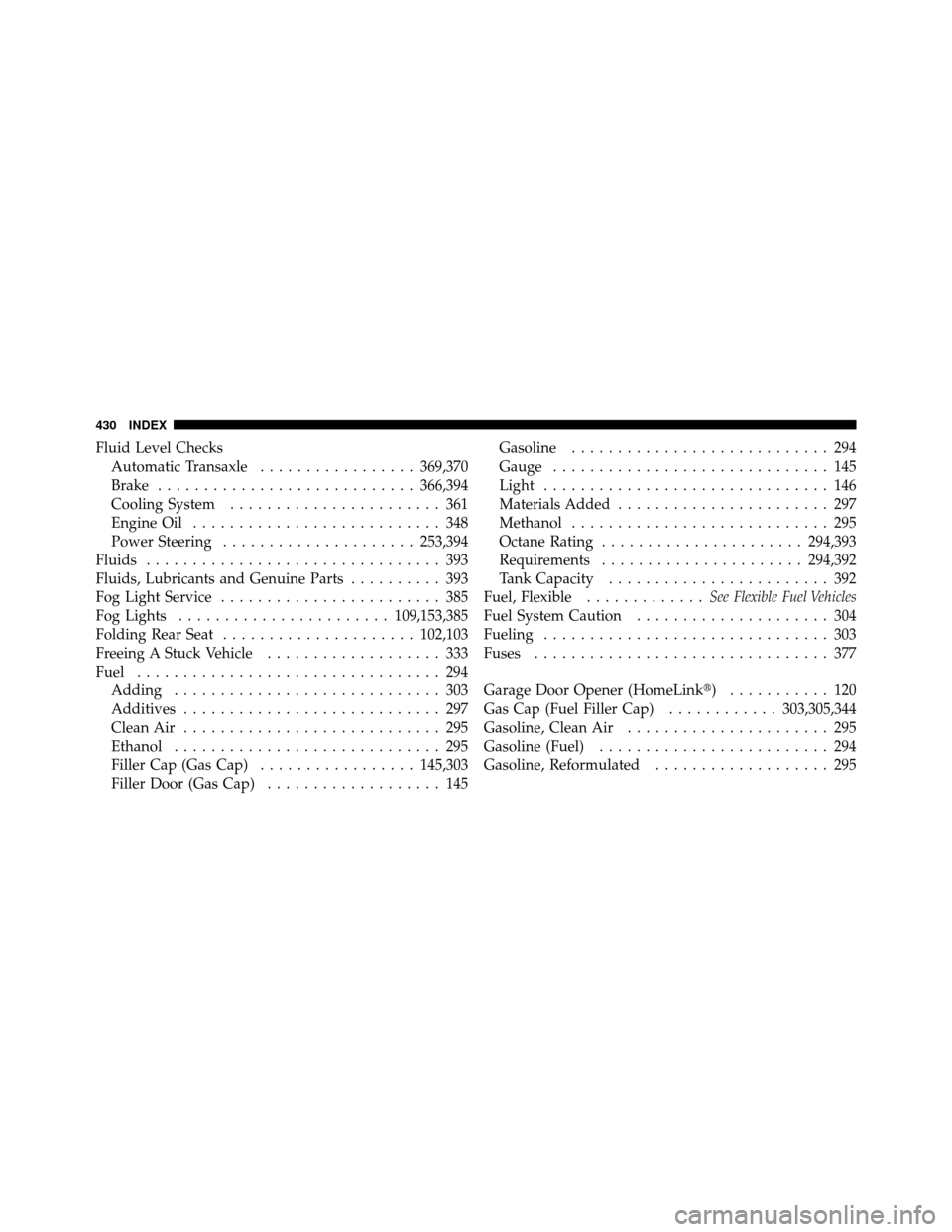

Fluid Level ChecksAutomatic Transaxle ................. 369,370
Brake ............................ 366,394
Cooling System ....................... 361
Engine Oil ........................... 348
Power Steering ..................... 253,394
Fluids ................................ 393
Fluids, Lubricants and Genuine Parts .......... 393
Fog Light Service ........................ 385
Fog Lights ....................... 109,153,385
Folding Rear Seat ..................... 102,103
Freeing A Stuck Vehicle ................... 333
Fuel ................................. 294
Adding ............................. 303
Additives ............................ 297
Clean Air ............................ 295
Ethanol ............................. 295
Filler Cap (Gas Cap) ................. 145,303
Filler Door (Gas Cap) ................... 145 Gasoline
............................ 294
Gauge .............................. 145
Light ............................... 146
Materials Added ....................... 297
Methanol ............................ 295
Octane Rating ...................... 294,393
Requirements ...................... 294,392
Tank Capacity ........................ 392
Fuel, Flexible ............. See Flexible Fuel Vehicles
Fuel System Caution ..................... 304
Fueling ............................... 303
Fuses ................................ 377
Garage Door Opener (HomeLink) ........... 120
Gas Cap (Fuel Filler Cap) ............303,305,344
Gasoline, Clean Air ...................... 295
Gasoline (Fuel) ......................... 294
Gasoline, Reformulated ................... 295
430 INDEX

GaugesCoolant Temperature ................... 145
Fuel ............................... 145
Odometer ........................... 149
Tachometer .......................... 149
Gear Ranges ........................... 244
Gearshift .............................. 244
General Information .................... 17,293
General Maintenance ..................... 347
Glass Cleaning .......................... 375
Gross Axle Weight Rating ...............306,308
Gross Vehicle Weight Rating .............306,308
GVWR ............................... 306
Hands-Free Phone (Uconnect™) .............. 93
Hazard Driving Through Flowing, Rising,
or Shallow Standing Water ............... 251
Hazard Warning Flasher ................... 321 Head Restraints
.......................... 98
Headlights ............................ 383
Bulb Replacement ...................... 383
Cleaning ............................ 373
High Beam ........................ 108,158
High Beam/Low Beam Select Switch ........ 108
On With Wipers ....................... 115
Passing ............................. 108
Replacing ........................... 383
Switch .............................. 106
Heated Seats ........................... 101
Heater ............................... 219
Heater, Engine Block ..................... 241
Hitches Trailer Towing ........................ 310
HomeLink (Garage Door Opener) Transmitter . . . 120
Hood Prop ............................ 104
Hood Release .......................... 104
10
INDEX 431
