To Enter Remote Start Mode
Press and release the REMOTE START button
on the RKE transmitter twice. The engine will
start and the vehicle will remain in the Remote
Start mode for a 15 minute cycle.
NOTE:
•For security, power window operation is disabled
when the vehicle is in the Remote Start mode.
•The engine can be started two consecutive times (two
15 minute cycles) with the RKE transmitter. However,
the ignition switch must be cycled to the ON position
before you can repeat the start sequence for a third
cycle.
To Exit Remote Start Mode without Driving the
Vehicle
Allow the engine to run for the entire 15 minute cycle.
To Exit Remote Start Mode and Drive the Vehicle
Before the end of the 15 minute cycle, press and release
the UNLOCK button on the RKE transmitter to unlock
the doors and disarm the Vehicle Security Alarm (if
equipped). Then, within 15 minutes, insert the key into
the ignition switch and turn the switch to the ON
position. Then, insert the key into the ignition switch and
turn the switch to the ON position, otherwise the engine
will shut off at the end of 15 minute cycle.
NOTE:The ignition switch must be in the ON position
in order to drive the vehicle.
To Turn Off the Engine While in Remote Start
Mode
Press and release the REMOTE START button one time.
NOTE:To avoid inadvertent shut downs, the system
will disable the one-time press of the remote start button
for two seconds after receiving a valid remote start
request.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29
2

Wind Buffeting
Wind buffeting can be described as the perception of
pressure on the ears or a helicopter type sound in the
ears. Your vehicle may exhibit wind buffeting with one
window down in certain open or partially open posi-
tions. This is a normal occurrence and can be minimized.
If the buffeting occurs with one window open, then open
both windows together to minimize the buffeting.
TRUNK LOCK AND RELEASE
To unlatch the trunk lid from inside the vehicle, press and
release the TRUNK RELEASE Button located on the
instrument panel to the left of the steering wheel.
NOTE:The convertible top must be either closed and
latched or open and latched.The trunk release button on the
dash will be disabled if the vehicle
is locked by pressing the power
door lock switch or by pressing
the LOCK button on the Remote
Keyless Entry (RKE) transmitter.
The trunk release button will be
enabled when the vehicle is un-
locked by the RKE or if the key is
inserted into the ignition and
turned to ON or START.
NOTE:This provides a locked area in the vehicle even
if the convertible top is open.
To unlatch the trunk lid from outside the vehicle, press
and release the TRUNK RELEASE button on the RKE
transmitter two times.
Trunk Release
Button
36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

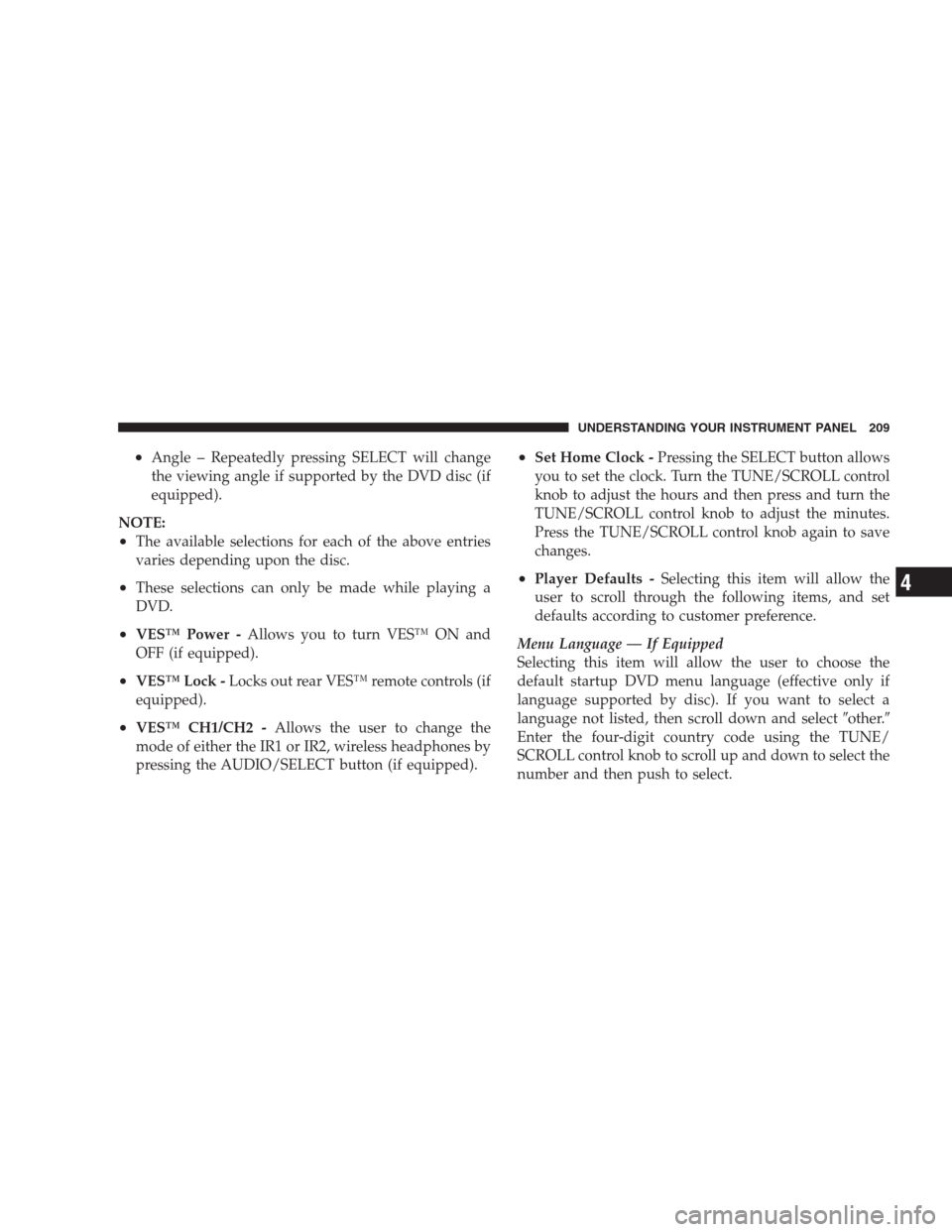

•Angle – Repeatedly pressing SELECT will change
the viewing angle if supported by the DVD disc (if
equipped).
NOTE:
•The available selections for each of the above entries
varies depending upon the disc.
•These selections can only be made while playing a
DVD.
•VES™ Power -Allows you to turn VES™ ON and
OFF (if equipped).
•VES™ Lock -Locks out rear VES™ remote controls (if
equipped).
•VES™ CH1/CH2 -Allows the user to change the
mode of either the IR1 or IR2, wireless headphones by
pressing the AUDIO/SELECT button (if equipped).
•Set Home Clock -Pressing the SELECT button allows
you to set the clock. Turn the TUNE/SCROLL control
knob to adjust the hours and then press and turn the
TUNE/SCROLL control knob to adjust the minutes.
Press the TUNE/SCROLL control knob again to save
changes.
•Player Defaults -Selecting this item will allow the
user to scroll through the following items, and set
defaults according to customer preference.
Menu Language — If Equipped
Selecting this item will allow the user to choose the
default startup DVD menu language (effective only if
language supported by disc). If you want to select a
language not listed, then scroll down and selectother.
Enter the four-digit country code using the TUNE/
SCROLL control knob to scroll up and down to select the
number and then push to select.
UNDERSTANDING YOUR INSTRUMENT PANEL 209
4

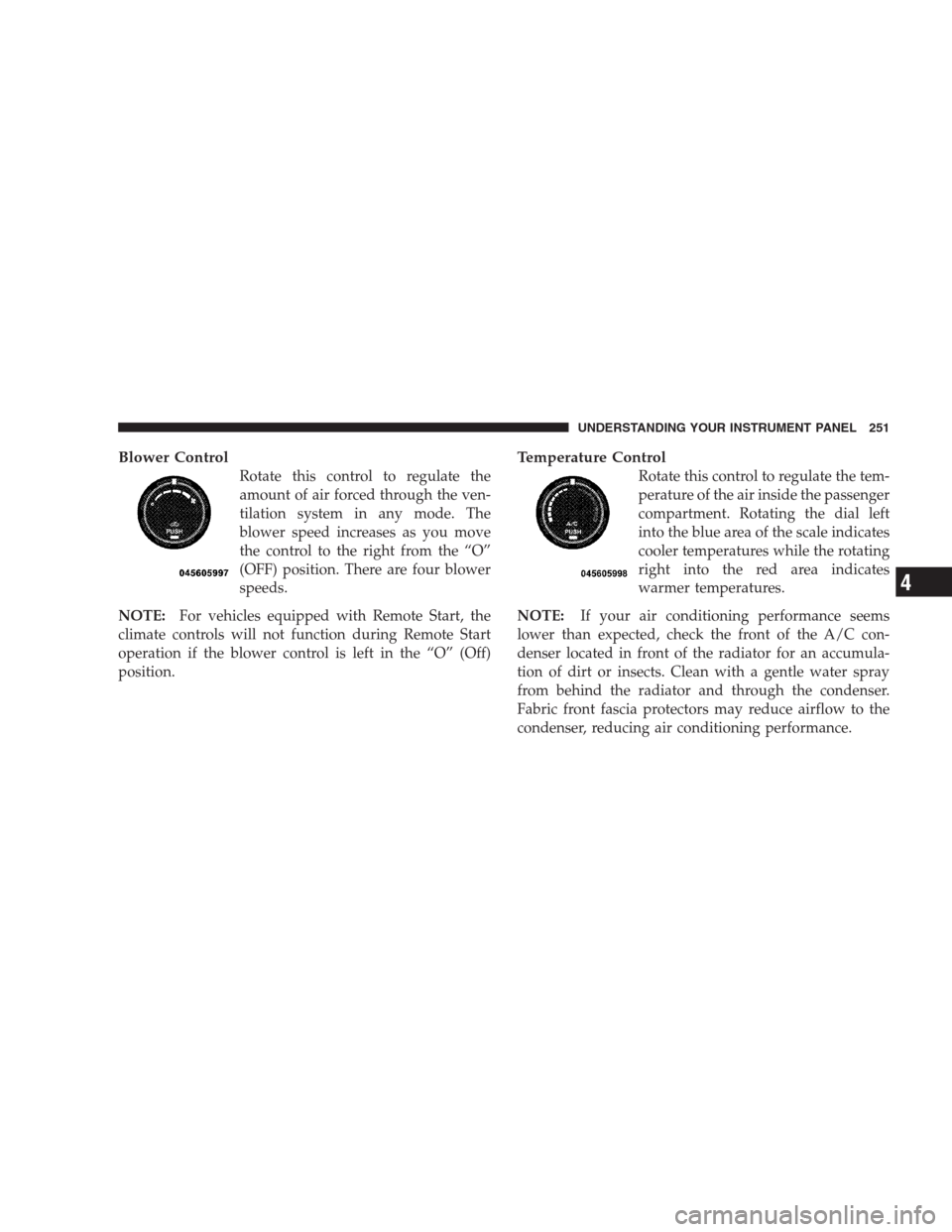

Blower Control
Rotate this control to regulate the
amount of air forced through the ven-
tilation system in any mode. The
blower speed increases as you move
the control to the right from the “O”
(OFF) position. There are four blower
speeds.
NOTE:For vehicles equipped with Remote Start, the
climate controls will not function during Remote Start
operation if the blower control is left in the “O” (Off)
position.
Temperature Control
Rotate this control to regulate the tem-
perature of the air inside the passenger
compartment. Rotating the dial left
into the blue area of the scale indicates
cooler temperatures while the rotating
right into the red area indicates
warmer temperatures.
NOTE:If your air conditioning performance seems
lower than expected, check the front of the A/C con-
denser located in front of the radiator for an accumula-
tion of dirt or insects. Clean with a gentle water spray
from behind the radiator and through the condenser.
Fabric front fascia protectors may reduce airflow to the
condenser, reducing air conditioning performance.
UNDERSTANDING YOUR INSTRUMENT PANEL 251
4

10. Place the deflated (flat) tire in the cargo area,have the
tire repaired or replaced as soon as possible.
11. Check the spare tire pressure as soon as possible.
Correct pressure as required.
JUMP-STARTING PROCEDURE
The battery is stored between the left front headlight
assembly and the left front wheel splash shield. Access is
through the splash shield.
Jump-starting remote battery terminals are located under
the hood.
WARNING!
•Take care to avoid the radiator cooling fan when-
ever the hood is raised. It can start anytime the
ignition switch is on. You can be hurt by the fan.
(Continued)
WARNING! (Continued)
•Do not attempt to push or tow your vehicle to get
it started. Vehicles equipped with an automatic
transaxle cannot be started this way. Unburned
fuel could enter the catalytic converter and once
the engine has started, ignite and damage the
converter and vehicle. If the vehicle has a dis-
charged battery, booster cables may be used to
obtain a start from another vehicle. This type of
start can be dangerous if done improperly, so
follow this procedure carefully.
•Do not use a booster battery or any other booster
source with an output that exceeds 12-Volts.
1. Wear eye protection and remove any metal jewelry
such as watchbands or bracelets that might make an
inadvertent electrical contact.
WHAT TO DO IN EMERGENCIES 361
6

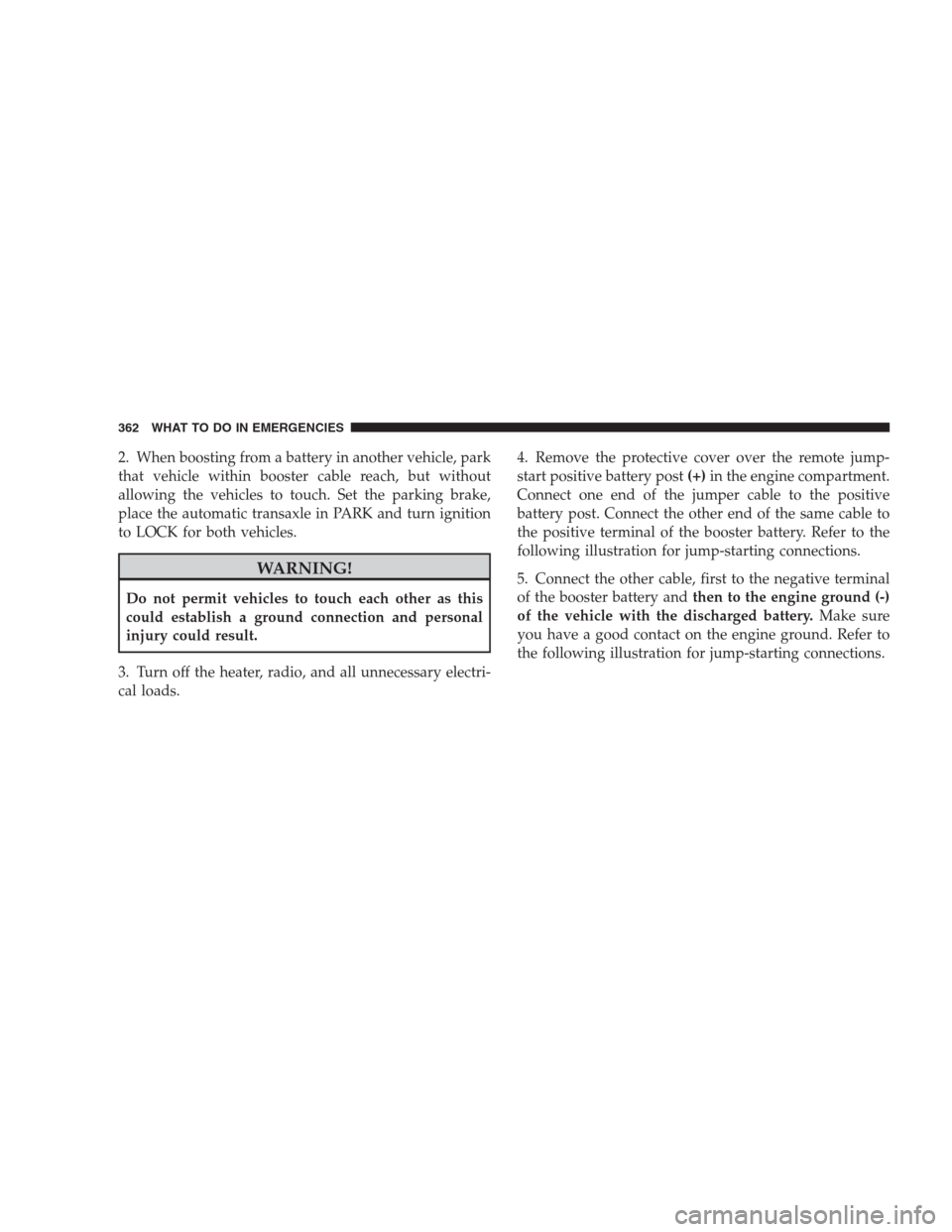

2. When boosting from a battery in another vehicle, park
that vehicle within booster cable reach, but without
allowing the vehicles to touch. Set the parking brake,
place the automatic transaxle in PARK and turn ignition
to LOCK for both vehicles.
WARNING!
Do not permit vehicles to touch each other as this
could establish a ground connection and personal
injury could result.
3. Turn off the heater, radio, and all unnecessary electri-
cal loads.4. Remove the protective cover over the remote jump-
start positive battery post(+)in the engine compartment.
Connect one end of the jumper cable to the positive
battery post. Connect the other end of the same cable to
the positive terminal of the booster battery. Refer to the
following illustration for jump-starting connections.
5. Connect the other cable, first to the negative terminal
of the booster battery andthen to the engine ground (-)
of the vehicle with the discharged battery.Make sure
you have a good contact on the engine ground. Refer to
the following illustration for jump-starting connections.
362 WHAT TO DO IN EMERGENCIES

6. If the vehicle is equipped with Sentry KeyImmobi-
lizer, turn the ignition switch to the ON position for three
seconds before moving the ignition switch to the START
position.7. Start the engine in the vehicle that has the booster
battery, let the engine idle a few minutes, and then start
the engine in the vehicle with the discharged battery.
8. When removing the jumper cables, reverse the se-
quence exactly. Be careful of the moving belts and fan.
9. Reinstall the protective cover over the remote jump-
start positive battery post.
WARNING!
During cold weather when temperatures are below
freezing point, electrolyte in a discharged battery
may freeze. Do not attempt jump-starting because
the battery could rupture or explode. The battery
temperature must be brought up above the freezing
point before attempting a jump-start.
Jump-Starting Location
WHAT TO DO IN EMERGENCIES 363
6

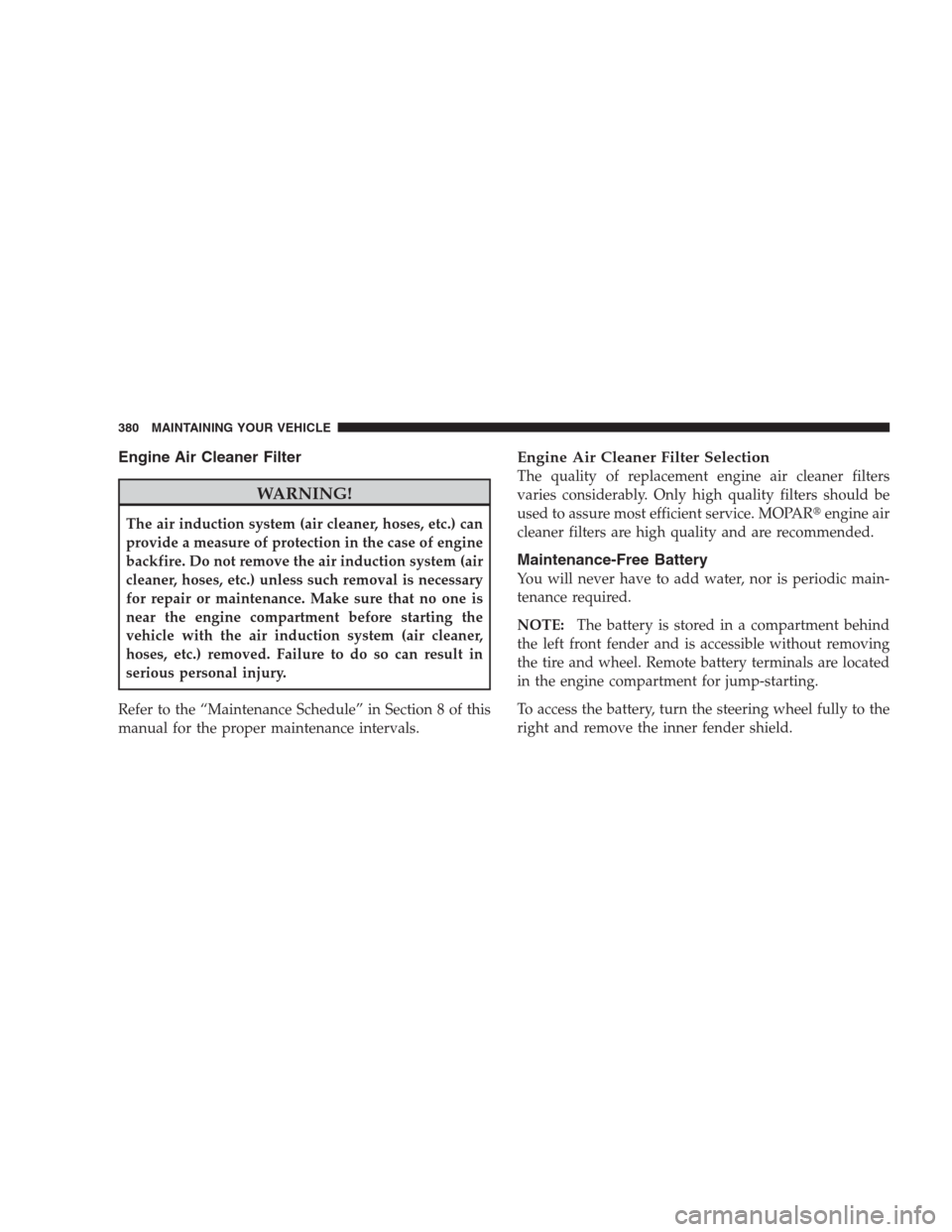

Engine Air Cleaner Filter
WARNING!
The air induction system (air cleaner, hoses, etc.) can
provide a measure of protection in the case of engine
backfire. Do not remove the air induction system (air
cleaner, hoses, etc.) unless such removal is necessary
for repair or maintenance. Make sure that no one is
near the engine compartment before starting the
vehicle with the air induction system (air cleaner,
hoses, etc.) removed. Failure to do so can result in
serious personal injury.
Refer to the “Maintenance Schedule” in Section 8 of this
manual for the proper maintenance intervals.
Engine Air Cleaner Filter Selection
The quality of replacement engine air cleaner filters
varies considerably. Only high quality filters should be
used to assure most efficient service. MOPARengine air
cleaner filters are high quality and are recommended.
Maintenance-Free Battery
You will never have to add water, nor is periodic main-
tenance required.
NOTE:The battery is stored in a compartment behind
the left front fender and is accessible without removing
the tire and wheel. Remote battery terminals are located
in the engine compartment for jump-starting.
To access the battery, turn the steering wheel fully to the
right and remove the inner fender shield.
380 MAINTAINING YOUR VEHICLE

Oil (Engine).......................... 376
Power Steering........................ 282
Disabled Vehicle Towing................... 365
Disposal
Antifreeze (Engine Coolant)............... 392
Engine Oil........................... 379
Door Locks............................. 30
Door Locks, Automatic.................... 31
Door Opener, Garage..................... 158
Driver’s Seat Back Tilt.................... 140
Driving
On Slippery Surfaces.................... 279
Through Flowing, Rising, or Shallow
Standing Water........................ 280
E-85 Fuel............................. 330
Electric Rear Window Defrost............... 173
Electric Remote Mirrors................... 100
Electrical Power Outlets................... 164Electronic Speed Control (Cruise Control)...... 155
Electronic Stability Program (ESP)............ 294
Electronic Vehicle Information Center (EVIC).... 193
Emergency Deck Lid Release................ 37
Emergency, In Case of
Hazard Warning Flasher................. 352
Jacking............................. 354
Jump Starting......................... 361
Overheating.......................... 352
Towing............................. 365
Emergency Trunk Release................... 37
Emission Control System Maintenance......373,424
Engine..........................369,370,371
Air Cleaner.......................... 380
Block Heater......................... 270
Break-In Recommendations................ 72
Checking Oil Level..................... 376
Coolant (Antifreeze).................388,421
Cooling............................. 388
456 INDEX

Deck Lid Release....................... 36
Door Locks........................... 31
Mirrors............................. 100
Outlet (Auxiliary Electrical Outlet).......... 164
Seats............................... 135
Steering............................. 282
Windows............................. 33
Pregnant Women and Seat Belts.............. 48
Preparation for Jacking.................... 354
Pretensioners
Seat Belts............................. 45
Programmable Electronic Features............ 200
Programming Transmitters
(Remote Keyless Entry).................... 21
Radial Ply Tires......................... 309
Radiator Cap (Coolant Pressure Cap).......... 391
Radio Operation........................ 250
Radio Remote Controls.................... 248Radio, Satellite.......................... 243
Rear Cupholder......................... 169
Rear Window Defroster................... 173
Rear Window Features.................... 173
Recorder, Event Data...................... 60
Recreational Towing...................... 349
Reformulated Gasoline.................... 327
Refrigerant............................ 382
Release, Hood.......................... 142
Reminder, Lights On..................... 146
Reminder, Seat Belt....................... 46
Remote Control
Security Alarm......................... 18
Starting System........................ 28
Remote Keyless Entry (RKE)................. 21
Remote Sound System (Radio) Controls........ 248
Remote Starting System.................... 28
Remote Trunk Release..................... 36
Replacement Bulbs....................... 411
INDEX 465
10
