▫Headlights With Wipers (Available With
Auto Headlights Only)................ 144
▫Headlight Time Delay — If Equipped...... 145
▫Daytime Running Lights (DRL) —
If Equipped........................ 145
▫Lights-On Reminder.................. 146
▫Fog Lights — If Equipped.............. 146
▫Turn Signals........................ 147
▫High Beam/Low Beam Select Switch...... 148
▫Flash-To-Pass....................... 148
▫Interior Lights...................... 148
Windshield Wipers And Washers.......... 151
▫Intermittent Wiper System.............. 152
▫Mist Feature........................ 153▫Headlights With Wipers (Available With
Auto Headlights Only)................ 153
▫Windshield Washers.................. 153
Tilt/Telescoping Steering Column.......... 154
Electronic Speed Control — If Equipped..... 155
▫To Activate......................... 156
▫To Set At A Desired Speed.............. 156
▫To Deactivate....................... 156
▫To Resume Speed.................... 157
▫To Vary The Speed Setting.............. 157
▫To Accelerate For Passing.............. 158
Garage Door Opener — If Equipped........ 158
▫Programming HomeLink.............. 159
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 79
3

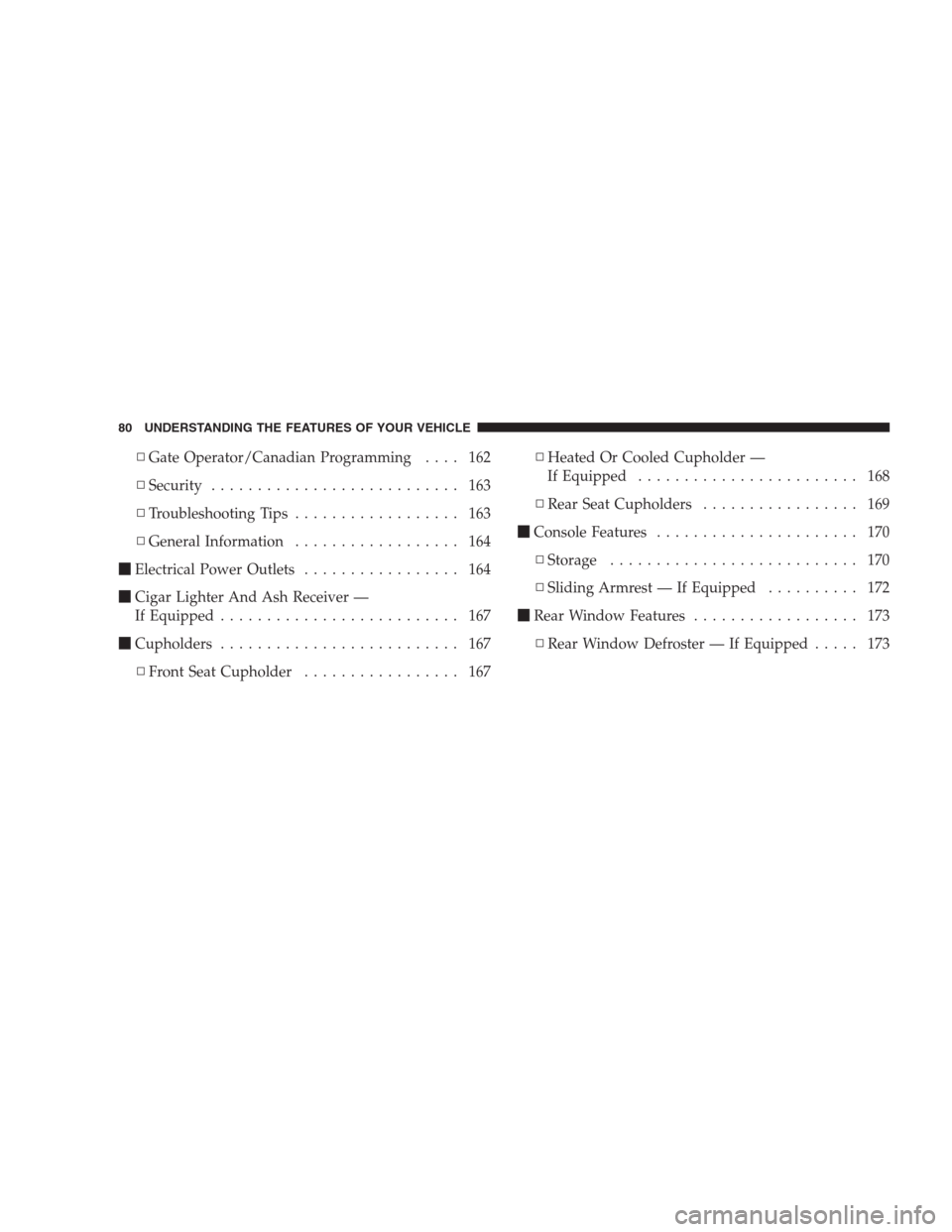

▫Gate Operator/Canadian Programming.... 162
▫Security........................... 163
▫Troubleshooting Tips.................. 163
▫General Information.................. 164
Electrical Power Outlets................. 164
Cigar Lighter And Ash Receiver —
If Equipped.......................... 167
Cupholders.......................... 167
▫Front Seat Cupholder................. 167▫Heated Or Cooled Cupholder —
If Equipped........................ 168
▫Rear Seat Cupholders................. 169
Console Features...................... 170
▫Storage........................... 170
▫Sliding Armrest — If Equipped.......... 172
Rear Window Features.................. 173
▫Rear Window Defroster — If Equipped..... 173
80 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

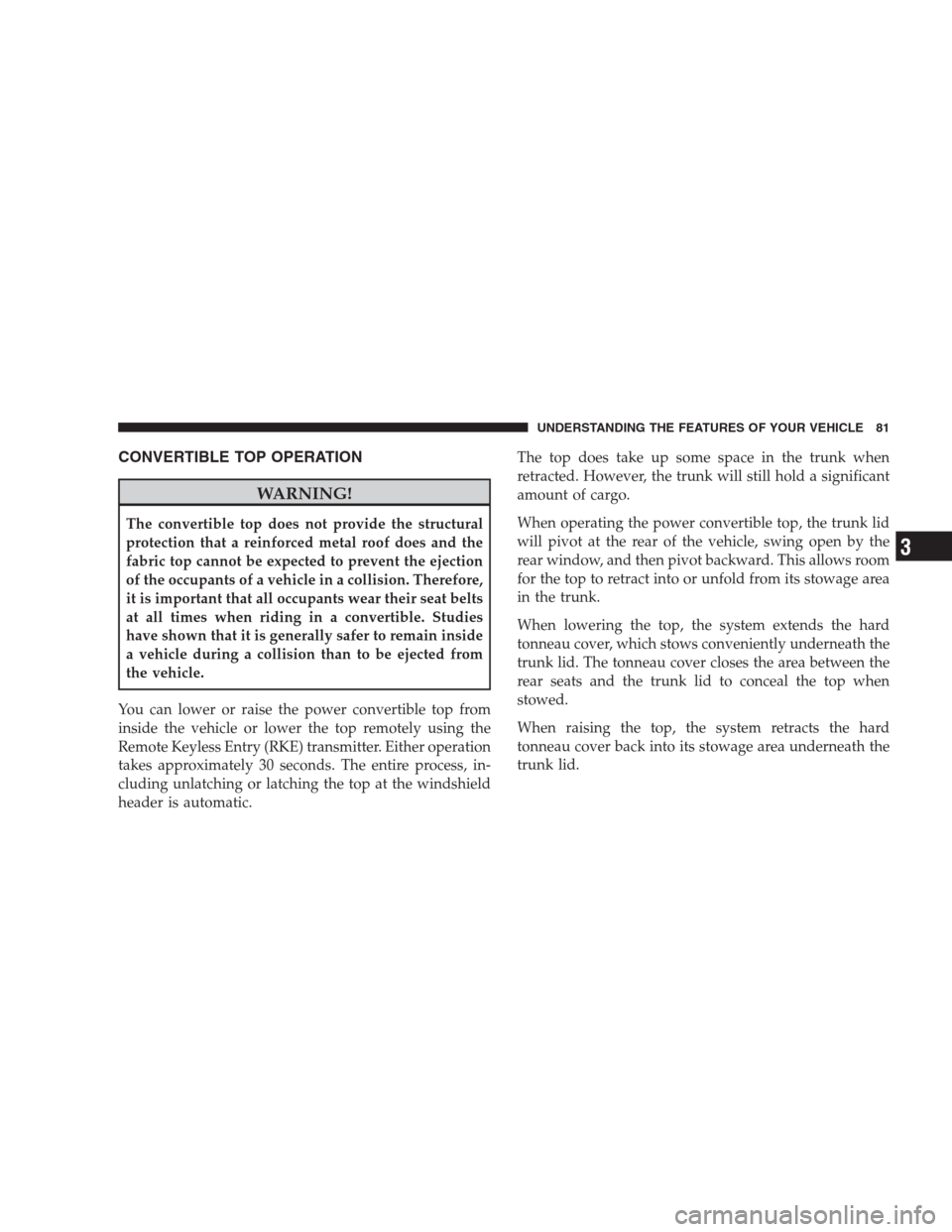

CONVERTIBLE TOP OPERATION
WARNING!
The convertible top does not provide the structural
protection that a reinforced metal roof does and the
fabric top cannot be expected to prevent the ejection
of the occupants of a vehicle in a collision. Therefore,
it is important that all occupants wear their seat belts
at all times when riding in a convertible. Studies
have shown that it is generally safer to remain inside
a vehicle during a collision than to be ejected from
the vehicle.
You can lower or raise the power convertible top from
inside the vehicle or lower the top remotely using the
Remote Keyless Entry (RKE) transmitter. Either operation
takes approximately 30 seconds. The entire process, in-
cluding unlatching or latching the top at the windshield
header is automatic.The top does take up some space in the trunk when
retracted. However, the trunk will still hold a significant
amount of cargo.
When operating the power convertible top, the trunk lid
will pivot at the rear of the vehicle, swing open by the
rear window, and then pivot backward. This allows room
for the top to retract into or unfold from its stowage area
in the trunk.
When lowering the top, the system extends the hard
tonneau cover, which stows conveniently underneath the
trunk lid. The tonneau cover closes the area between the
rear seats and the trunk lid to conceal the top when
stowed.
When raising the top, the system retracts the hard
tonneau cover back into its stowage area underneath the
trunk lid.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 81
3

To complete either operation, the trunk lid returns to its
normal position and then latches.
Spring-loaded flipper doors, which provide clearance for
the linkage, close off notches in the quarter trim panels
when the top is up.
Power Convertible Top Usage Precautions
NOTE:
•The convertible top will not operate unless the vehicle
is stationary, the cargo shield is positioned correctly,
and the trunk lid is closed and latched. In addition, the
system prohibits lowering the top when ambient tem-
perature is at 0°F (-18°C) or lower, However, the
system allows you to raise the top at ambient tempera-
tures as low as -40°F (-40°C).
•The power top Control Module (PTCM) monitors and
controls lowering and raising of the top. A series ofmicro-switches verify that operations are complete
before allowing the next stage of lowering or raising
operation.
•Opening and closing the top consecutively without the
engine running may run the battery down.
•If a fluttering noise is heard from the rear seat belts
while driving with the top down, safely bring the
vehicle to a stop and buckle the rear seat belts over the
empty seats. This will keep tension on the seat belts
and remove the fluttering condition.
CAUTION!
•Correctly position the cargo shield in the trunk
before stowing the top. Doing so closes a switch
that allows top operation (stowing) to proceed. If
the switch is not closed, a warning message dis-
plays in the instrument cluster to notify the driver.
(Continued)
82 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

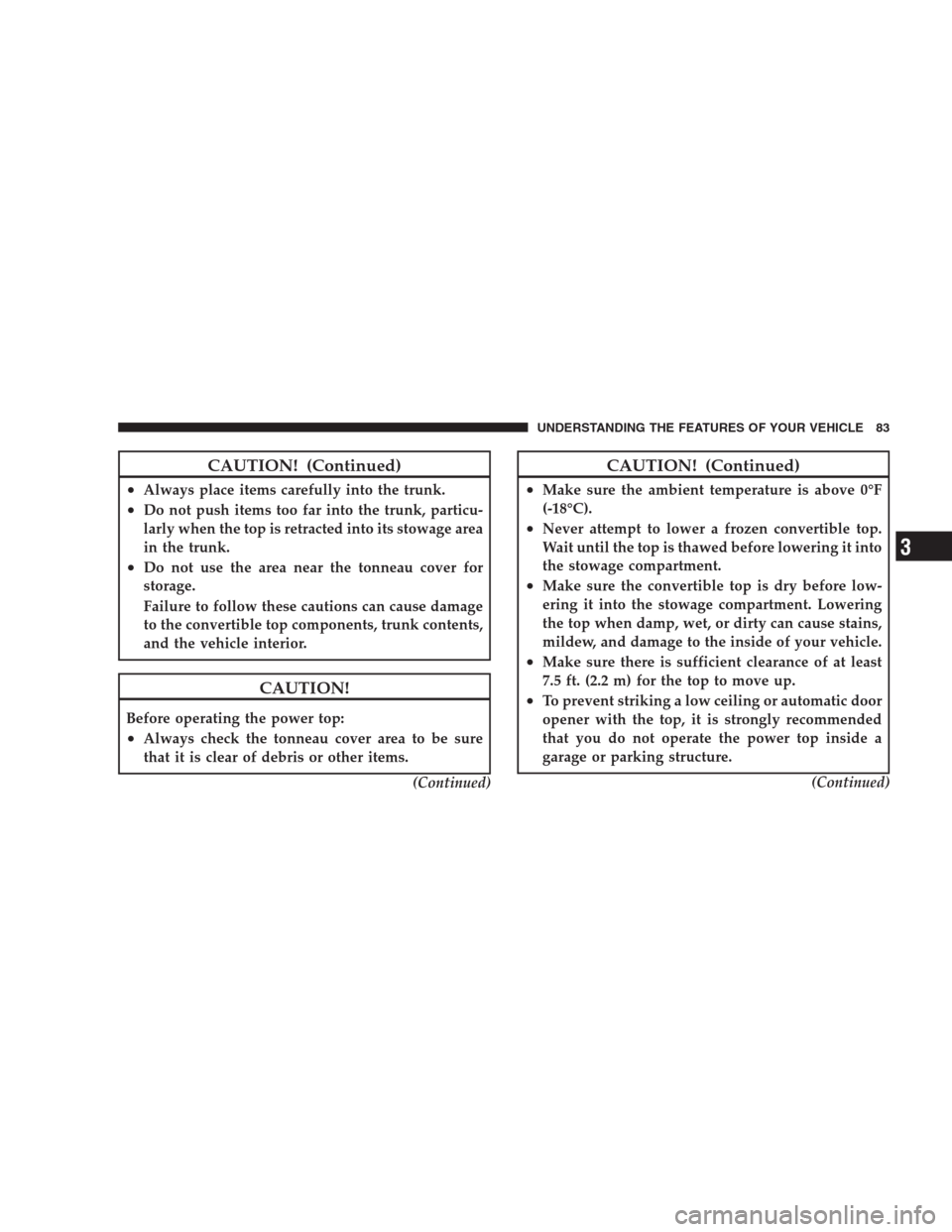

CAUTION! (Continued)
•Always place items carefully into the trunk.
•Do not push items too far into the trunk, particu-
larly when the top is retracted into its stowage area
in the trunk.
•Do not use the area near the tonneau cover for
storage.
Failure to follow these cautions can cause damage
to the convertible top components, trunk contents,
and the vehicle interior.
CAUTION!
Before operating the power top:
•Always check the tonneau cover area to be sure
that it is clear of debris or other items.
(Continued)
CAUTION! (Continued)
•Make sure the ambient temperature is above 0°F
(-18°C).
•Never attempt to lower a frozen convertible top.
Wait until the top is thawed before lowering it into
the stowage compartment.
•Make sure the convertible top is dry before low-
ering it into the stowage compartment. Lowering
the top when damp, wet, or dirty can cause stains,
mildew, and damage to the inside of your vehicle.
•Make sure there is sufficient clearance of at least
7.5 ft. (2.2 m) for the top to move up.
•To prevent striking a low ceiling or automatic door
opener with the top, it is strongly recommended
that you do not operate the power top inside a
garage or parking structure.
(Continued)
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 83
3

CAUTION! (Continued)
Failure to follow these cautions can cause damage to
the convertible top components, trunk contents, and
the vehicle interior.
CAUTION!
•Do not operate the power top with the hydraulic
pump valve open.
•Do not allow the top to remain in the suspended
position. After approximately 10 minutes in the
suspended position, the hydraulic pressure will
release, which will allow the top and the trunk lid
to lower. Pressing the power top switch will cancel
this operation.
(Continued)
CAUTION! (Continued)
•Always use a normal ice scraper to remove snow or
ice from the rear window. Use of a sharp object or
other tools could scratch the fabric or panels when
removing snow or ice.
•Always close the top when leaving your vehicle so
as not to leave the interior exposed to potentially
damaging outdoor conditions.
•Do not leave the top lowered for several weeks at
a time. Close it occasionally to prevent discolora-
tion in the folds of the fabric and to allow the
creases to smooth out. This is especially important
if the top was stowed when not completely dry.
Failure to follow these cautions can cause damage
to the convertible top components, trunk contents,
and the vehicle interior.
84 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

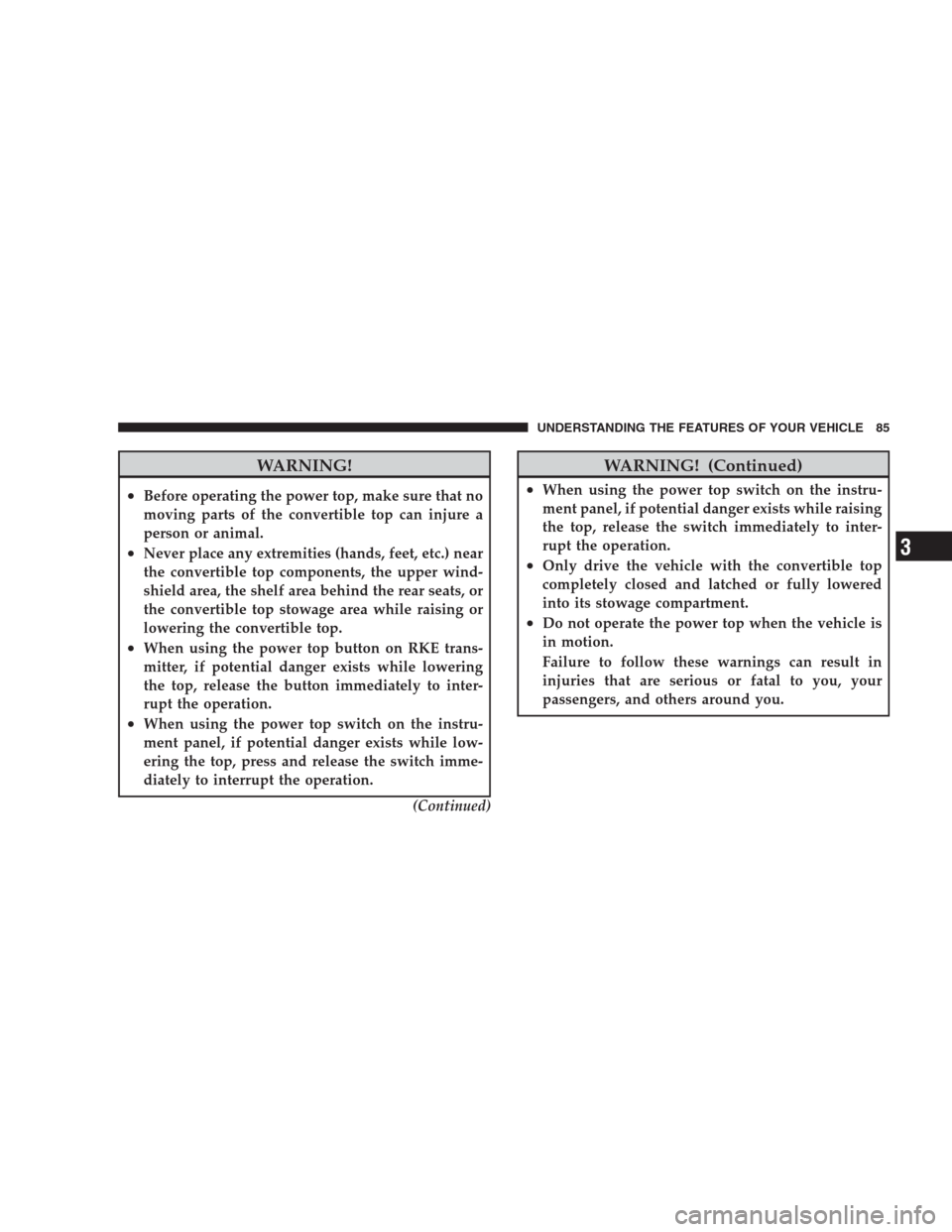

WARNING!
•Before operating the power top, make sure that no
moving parts of the convertible top can injure a
person or animal.
•Never place any extremities (hands, feet, etc.) near
the convertible top components, the upper wind-
shield area, the shelf area behind the rear seats, or
the convertible top stowage area while raising or
lowering the convertible top.
•When using the power top button on RKE trans-
mitter, if potential danger exists while lowering
the top, release the button immediately to inter-
rupt the operation.
•When using the power top switch on the instru-
ment panel, if potential danger exists while low-
ering the top, press and release the switch imme-
diately to interrupt the operation.
(Continued)
WARNING! (Continued)
•When using the power top switch on the instru-
ment panel, if potential danger exists while raising
the top, release the switch immediately to inter-
rupt the operation.
•Only drive the vehicle with the convertible top
completely closed and latched or fully lowered
into its stowage compartment.
•Do not operate the power top when the vehicle is
in motion.
Failure to follow these warnings can result in
injuries that are serious or fatal to you, your
passengers, and others around you.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 85
3

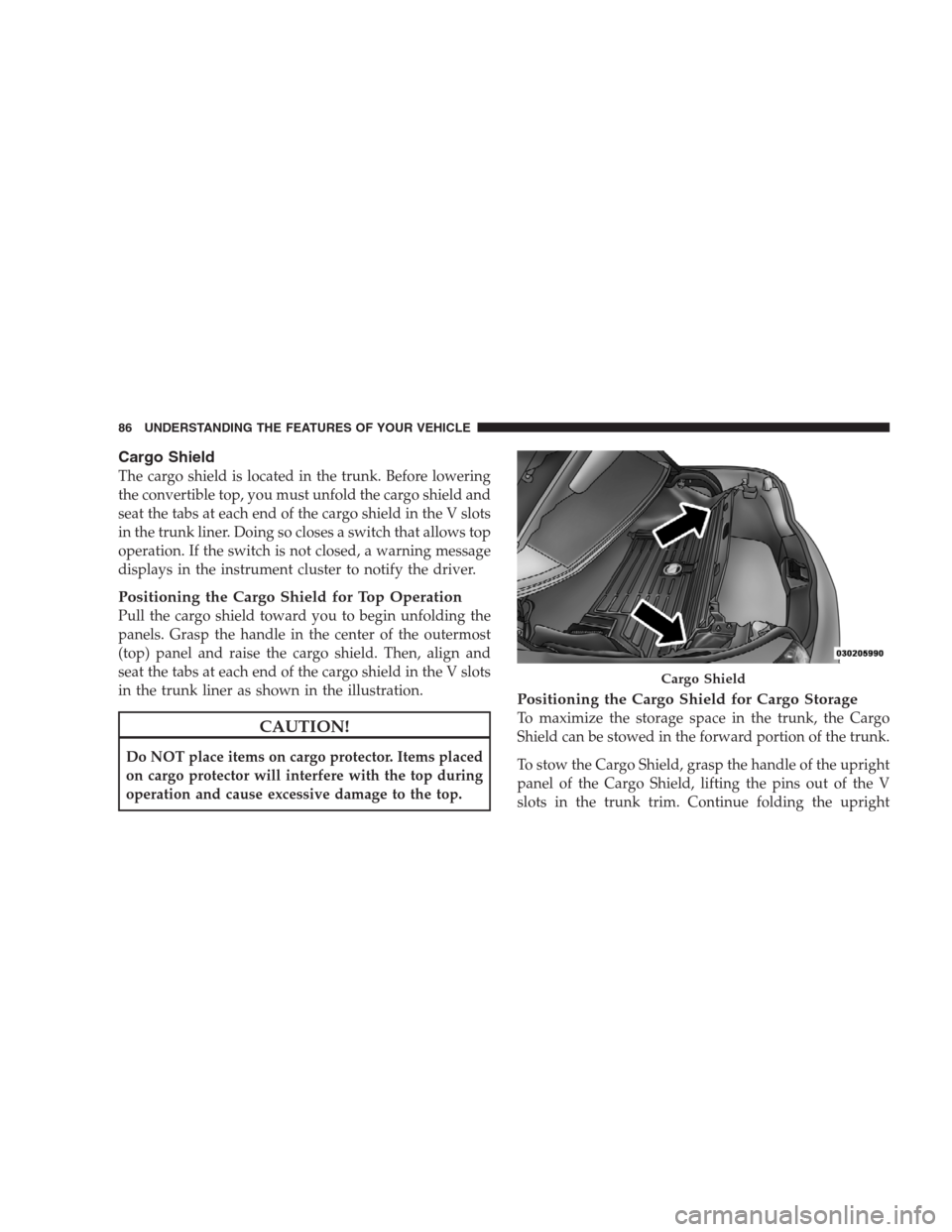

Cargo Shield
The cargo shield is located in the trunk. Before lowering
the convertible top, you must unfold the cargo shield and
seat the tabs at each end of the cargo shield in the V slots
in the trunk liner. Doing so closes a switch that allows top
operation. If the switch is not closed, a warning message
displays in the instrument cluster to notify the driver.
Positioning the Cargo Shield for Top Operation
Pull the cargo shield toward you to begin unfolding the
panels. Grasp the handle in the center of the outermost
(top) panel and raise the cargo shield. Then, align and
seat the tabs at each end of the cargo shield in the V slots
in the trunk liner as shown in the illustration.
CAUTION!
Do NOT place items on cargo protector. Items placed
on cargo protector will interfere with the top during
operation and cause excessive damage to the top.
Positioning the Cargo Shield for Cargo Storage
To maximize the storage space in the trunk, the Cargo
Shield can be stowed in the forward portion of the trunk.
To stow the Cargo Shield, grasp the handle of the upright
panel of the Cargo Shield, lifting the pins out of the V
slots in the trunk trim. Continue folding the upright
Cargo Shield
86 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

panel forward onto the horizontal panel, then grasp both
panels and lift them to the forward, upright position in
the trunk.
NOTE:The convertible top will NOT operate with the
Cargo Shield in the stowed position.Power Convertible Top Controls
The power top switch is located on the instrument panel
to the left of the steering column.
Stowed Cargo ShieldPower Top Switch
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 87
3

There is also a power top button on the Remote Keyless
Entry (RKE) transmitter for remotely lowering the power
convertible top.Lowering the Power Convertible Top
Using the Power Top Switch
NOTE:The power top switch will operate when the
ignition switch is turned to the ON or ACC position and
when in the power accessory delay.
There are two Top Down switch positions.
Press the switch to the first detent and release
it. The system will lower all fully raised win-
dows approximately 0.5 in (10 mm), lower the
top to its fully retracted position, and then raise the
windows. Press the switch to the second detent and
release it. The system will lower all four windows and the
top to their fully retracted positions.
Power Top Button
88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
