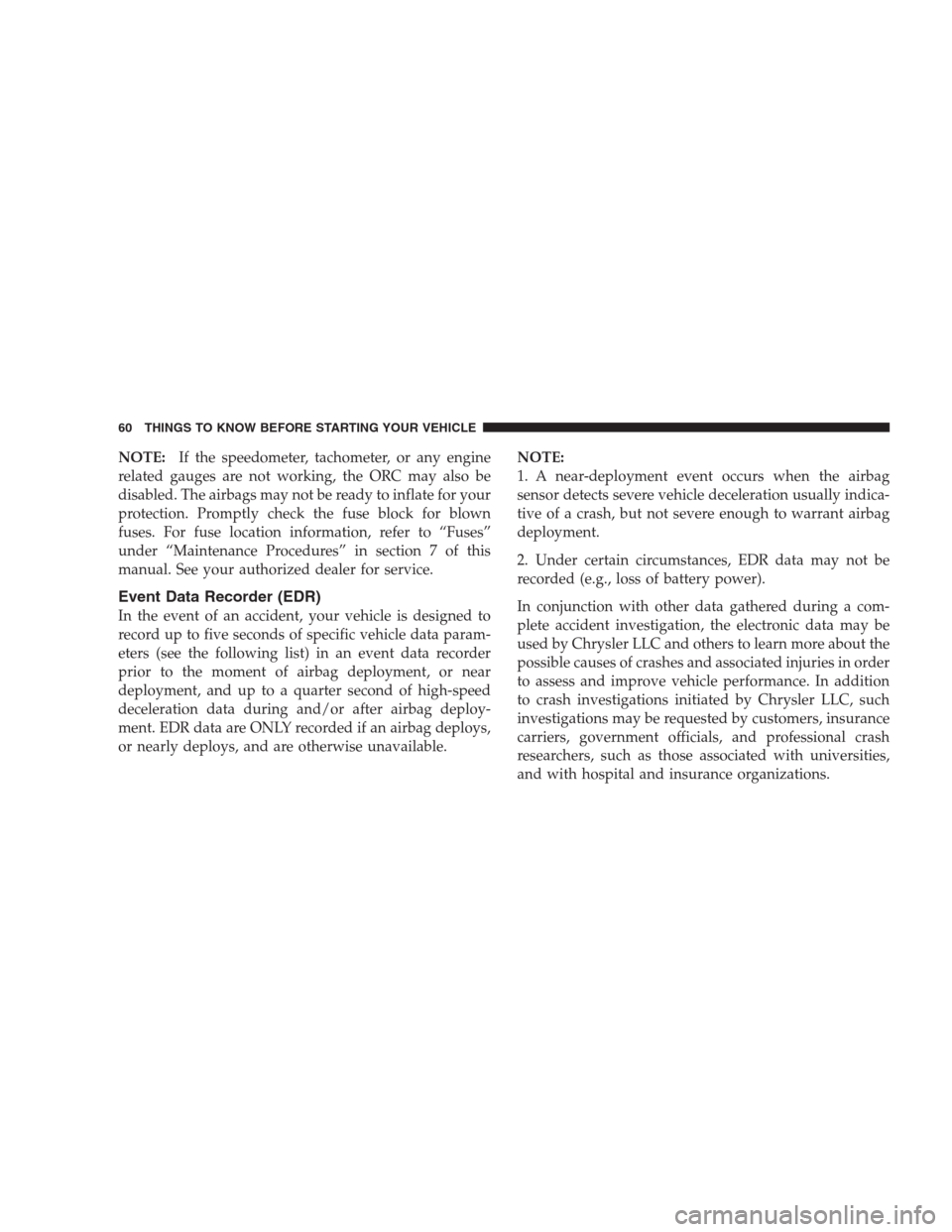

NOTE:If the speedometer, tachometer, or any engine
related gauges are not working, the ORC may also be
disabled. The airbags may not be ready to inflate for your
protection. Promptly check the fuse block for blown
fuses. For fuse location information, refer to “Fuses”
under “Maintenance Procedures” in section 7 of this
manual. See your authorized dealer for service.
Event Data Recorder (EDR)
In the event of an accident, your vehicle is designed to
record up to five seconds of specific vehicle data param-
eters (see the following list) in an event data recorder
prior to the moment of airbag deployment, or near
deployment, and up to a quarter second of high-speed
deceleration data during and/or after airbag deploy-
ment. EDR data are ONLY recorded if an airbag deploys,
or nearly deploys, and are otherwise unavailable.NOTE:
1. A near-deployment event occurs when the airbag
sensor detects severe vehicle deceleration usually indica-
tive of a crash, but not severe enough to warrant airbag
deployment.
2. Under certain circumstances, EDR data may not be
recorded (e.g., loss of battery power).
In conjunction with other data gathered during a com-
plete accident investigation, the electronic data may be
used by Chrysler LLC and others to learn more about the
possible causes of crashes and associated injuries in order
to assess and improve vehicle performance. In addition
to crash investigations initiated by Chrysler LLC, such
investigations may be requested by customers, insurance
carriers, government officials, and professional crash
researchers, such as those associated with universities,
and with hospital and insurance organizations.
60 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE

6. If the vehicle is equipped with Sentry KeyImmobi-
lizer, turn the ignition switch to the ON position for three
seconds before moving the ignition switch to the START
position.7. Start the engine in the vehicle that has the booster
battery, let the engine idle a few minutes, and then start
the engine in the vehicle with the discharged battery.
8. When removing the jumper cables, reverse the se-
quence exactly. Be careful of the moving belts and fan.
9. Reinstall the protective cover over the remote jump-
start positive battery post.
WARNING!
During cold weather when temperatures are below
freezing point, electrolyte in a discharged battery
may freeze. Do not attempt jump-starting because
the battery could rupture or explode. The battery
temperature must be brought up above the freezing
point before attempting a jump-start.
Jump-Starting Location
WHAT TO DO IN EMERGENCIES 363
6

Automatic Temperature Control (ATC)......... 254
Automatic Transaxle...................270,395
Adding Fluid...................396,397,422
Filter............................... 397
Fluid and Filter Changes................. 397
Fluid Level Check...................396,397
Interlock System....................272,273
Reset Mode.......................... 276
Selection Of Lubricant................... 422
Shifting............................. 270
Special Additives...................... 397
Autostick............................. 277
Back-Up Lights......................... 416
Battery............................... 380
Gas Caution.......................... 381
Keyless Transmitter Replacement (RKE)....... 26
Location............................ 380
Belts, Seat............................40,75Beverage Holder Cooled (Cupholder)......... 168
Beverage Holder Heated (Cupholder)......... 168
Body Mechanism Lubrication............... 384
B-Pillar Location........................ 302
Brake Assist System...................... 293
Brake, Parking.......................... 283
Brake System........................288,394
Anti-Lock (ABS)....................285,289
Fluid Check.......................394,422
Master Cylinder....................... 394
Parking............................. 283
Warning Light........................ 187
Brakes.............................288,394
Brake/Transaxle Interlock.................. 272
Break-In Recommendations, New Vehicle........ 72
Brightness, Interior Lights.................. 150
Bulb Replacement..................... 411,412
Bulbs, Light..........................76,411
