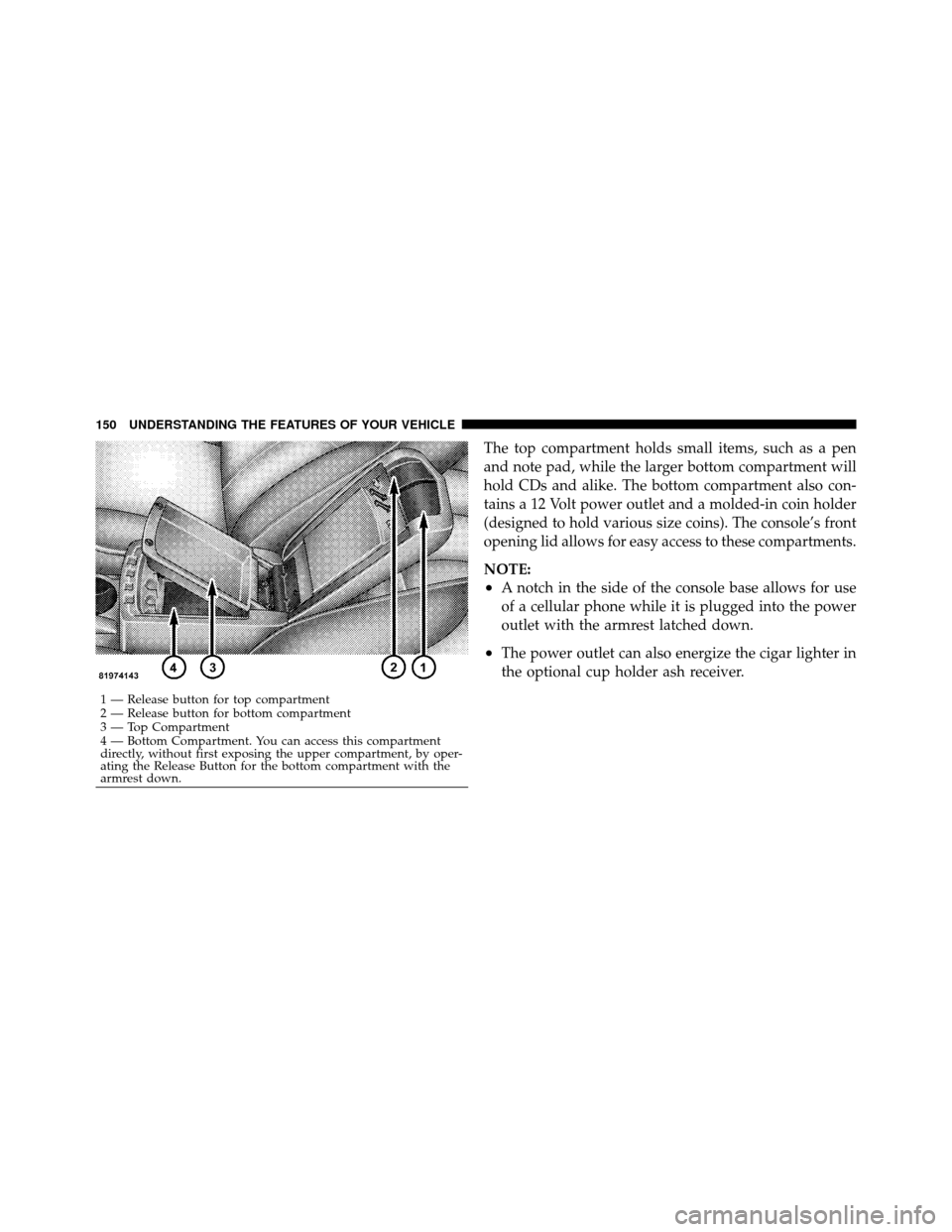

The top compartment holds small items, such as a pen
and note pad, while the larger bottom compartment will
hold CDs and alike. The bottom compartment also con-
tains a 12 Volt power outlet and a molded-in coin holder
(designed to hold various size coins). The console’s front
opening lid allows for easy access to these compartments.
NOTE:
•A notch in the side of the console base allows for use
of a cellular phone while it is plugged into the power
outlet with the armrest latched down.
•The power outlet can also energize the cigar lighter in
the optional cup holder ash receiver.
1 — Release button for top compartment
2 — Release button for bottom compartment
3 — Top Compartment
4 — Bottom Compartment. You can access this compartment
directly, without first exposing the upper compartment, by oper-
ating the Release Button for the bottom compartment with the
armrest down.
150 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

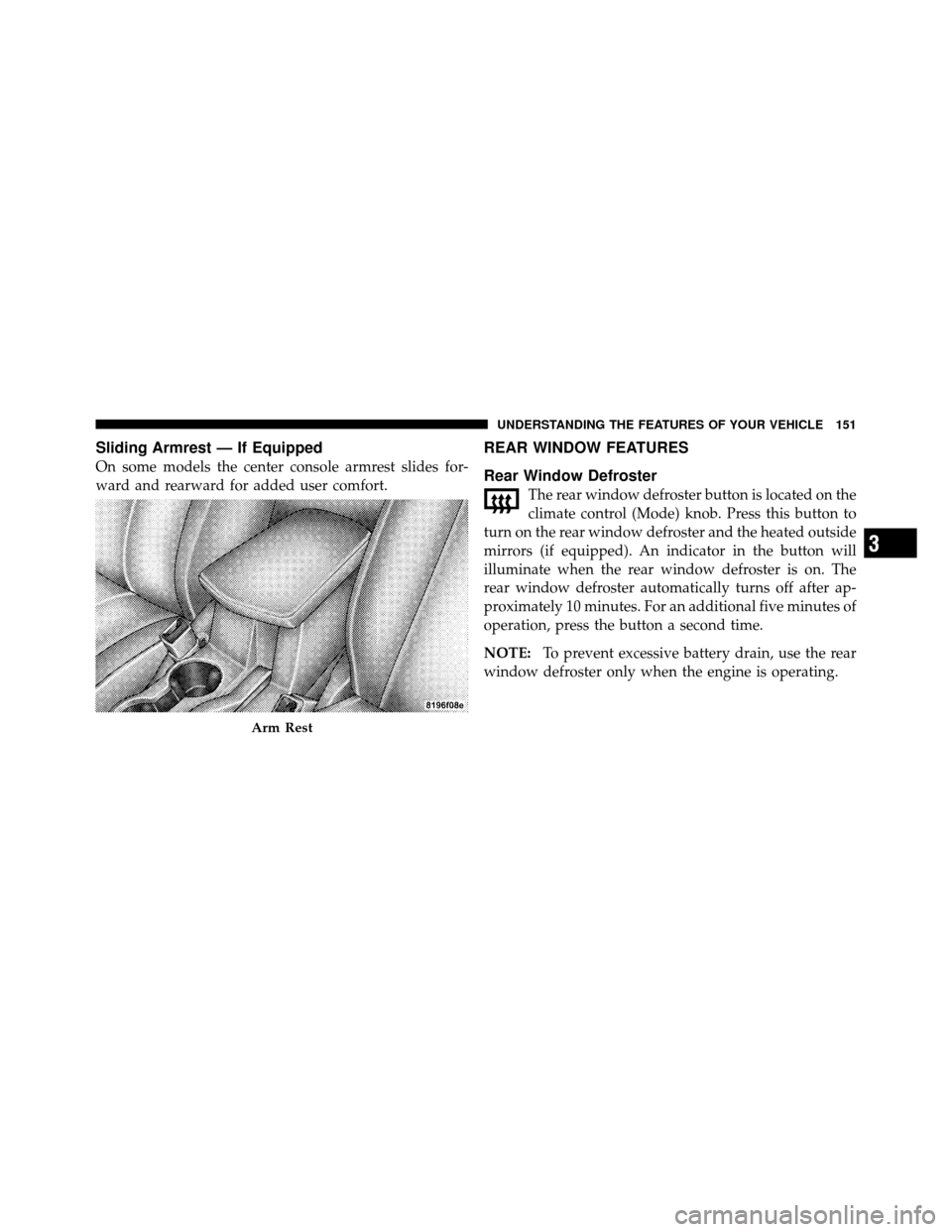

Sliding Armrest — If Equipped
On some models the center console armrest slides for-
ward and rearward for added user comfort.
REAR WINDOW FEATURES
Rear Window Defroster
The rear window defroster button is located on the
climate control (Mode) knob. Press this button to
turn on the rear window defroster and the heated outside
mirrors (if equipped). An indicator in the button will
illuminate when the rear window defroster is on. The
rear window defroster automatically turns off after ap-
proximately 10 minutes. For an additional five minutes of
operation, press the button a second time.
NOTE: To prevent excessive battery drain, use the rear
window defroster only when the engine is operating.
Arm Rest
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 151

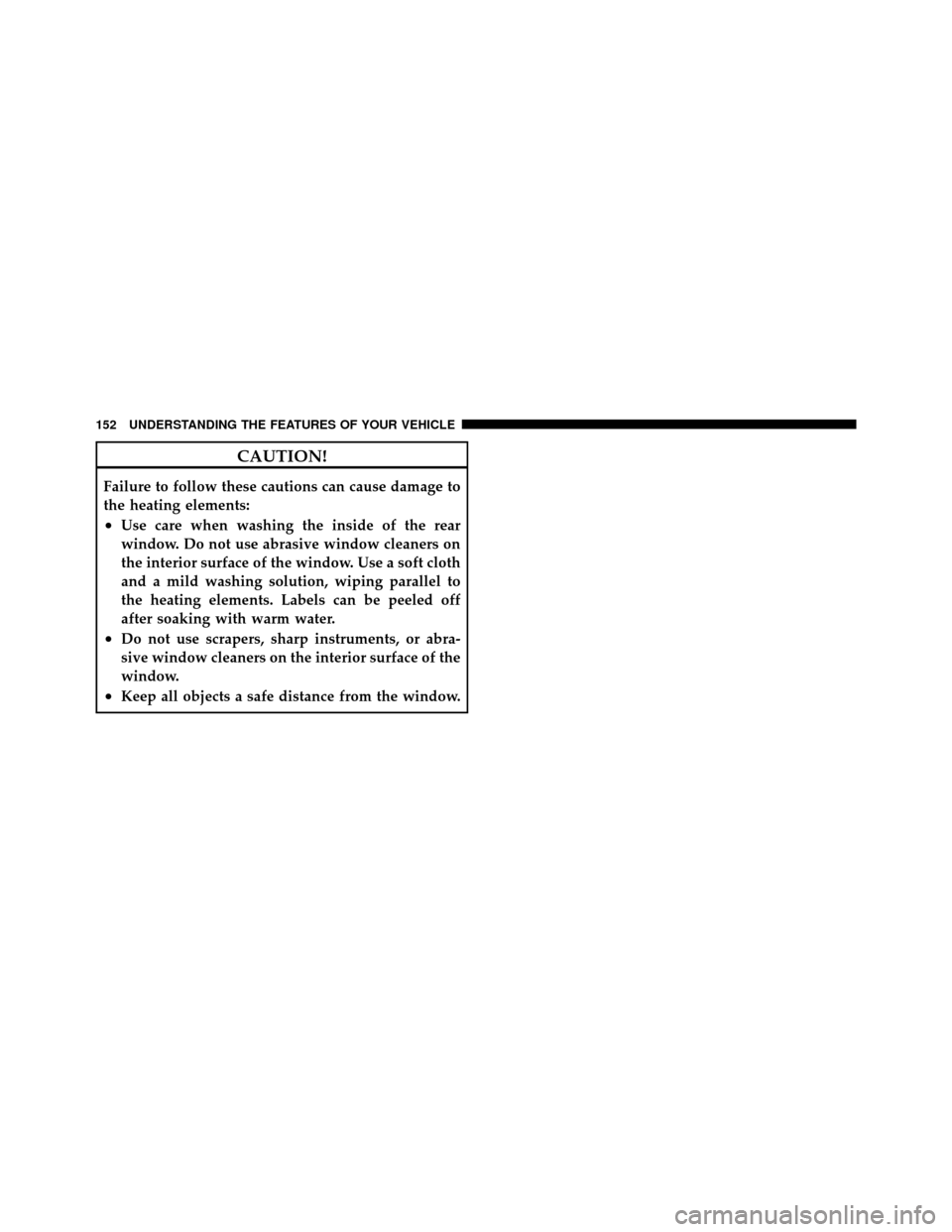

CAUTION!
Failure to follow these cautions can cause damage to
the heating elements:
•Use care when washing the inside of the rear
window. Do not use abrasive window cleaners on
the interior surface of the window. Use a soft cloth
and a mild washing solution, wiping parallel to
the heating elements. Labels can be peeled off
after soaking with warm water.
•Do not use scrapers, sharp instruments, or abra-
sive window cleaners on the interior surface of the
window.
•Keep all objects a safe distance from the window.
152 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

UNDERSTANDING YOUR INSTRUMENT PANEL
CONTENTS
Instrument Panel Features ............... 156
 Instrument Cluster .................... 157
 Instrument Cluster Descriptions ........... 158
 Electronic Vehicle Information Center (EVIC) –
If Equipped .......................... 172
▫ Electronic Vehicle Information Center (EVIC)
Displays ........................... 173
▫ Oil Change Required — If Equipped ...... 174
▫ Trip Functions ...................... 175
▫ Compass Display .................... 176 ▫
Personal Settings (Customer-Programmable
Features) .......................... 179
 Setting The Analog Clock ................ 182
 Media Center 230 (REQ) — AM/FM Stereo
Radio And 6–Disc CD/DVD Changer
(MP3/WMA AUX Jack) .................. 182
▫ Operating Instructions - Radio Mode ...... 183
▫ Operation Instructions - (Disc Mode For CD
And MP3/WMA Audio Play, DVD-Video) . . . 191
▫ Notes On Playing MP3/WMA Files ....... 193
4

▫List Button (Disc Mode For
MP3/WMA Play) .................... 195
▫ Info Button (Disc Mode For MP3/WMA
Play) ............................. 195
 Media Center 730N/430 (RER/REN/RBZ) —
AM/FM Stereo Radio And CD/DVD/HDD/
NAV — If Equipped .................... 198
▫ Operating Instructions — Voice Command
System — If Equipped ................. 198
▫ Operating Instructions — Uconnect™ Phone
— If Equipped ...................... 198
▫ Clock Setting Procedure — RBZ Radio ..... 198
▫ Clock Setting Procedure —
RER/REN Radio ..................... 200
 Media Center 130 (RES) — AM/FM Stereo
Radio With CD Player (MP3 AUX Jack) ....... 202▫
Operating Instructions — Radio Mode ..... 202
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 205
▫ Notes On Playing MP3 Files ............ 208
▫ Operation Instructions - Auxiliary Mode .... 210
 Media Center 130 (RES/RSC) — AM/FM
Stereo Radio With CD Player (MP3 AUX Jack)
And Sirius Radio ...................... 211
▫ Operating Instructions — Radio Mode ..... 211
▫ Operation Instructions — CD Mode For CD
And MP3 Audio Play ................. 217
▫ Notes On Playing MP3 Files ............ 219
▫ List Button (CD Mode For MP3 Play) ...... 222
▫ Info Button (CD Mode For MP3 Play) ...... 222
154 UNDERSTANDING YOUR INSTRUMENT PANEL

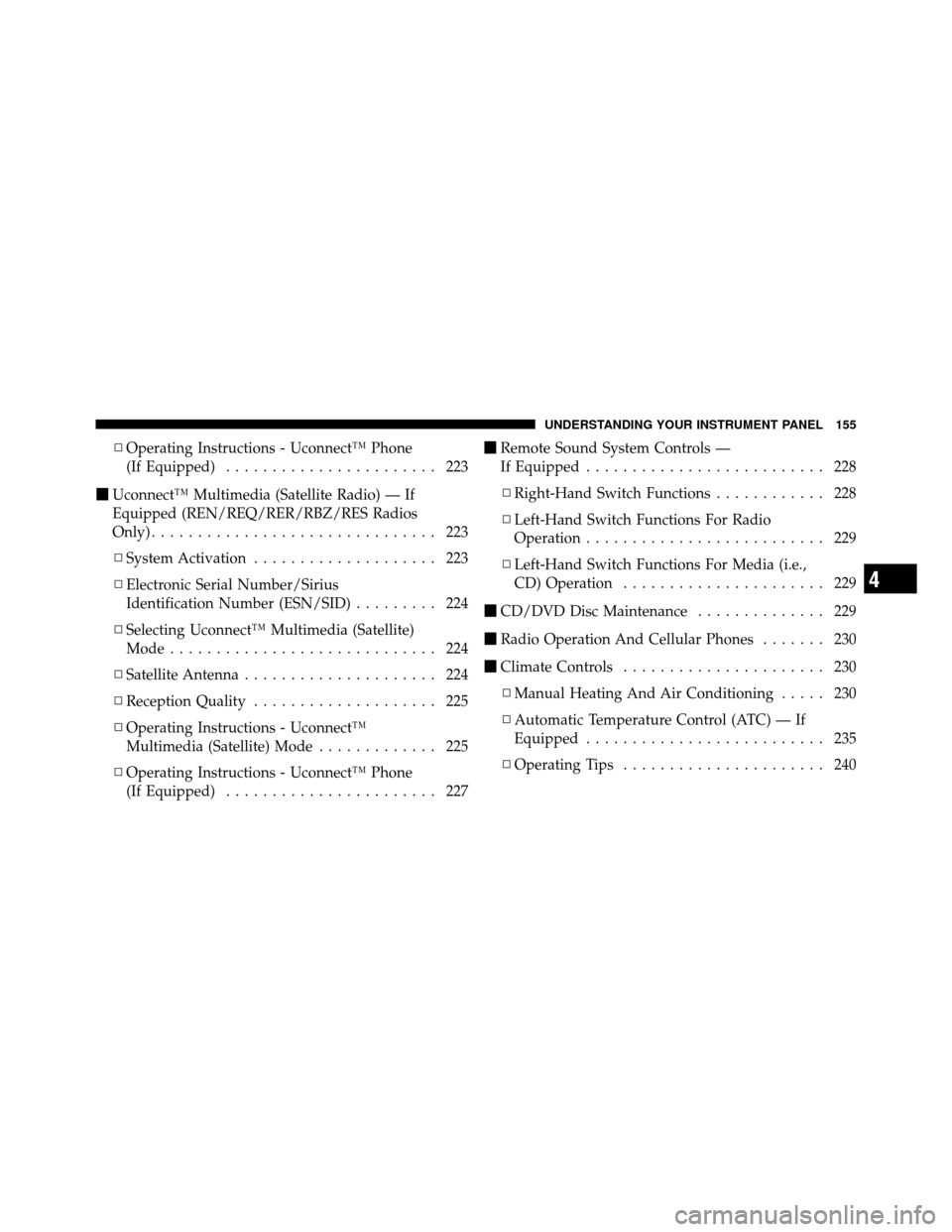

▫Operating Instructions - Uconnect™ Phone
(If Equipped) ....................... 223
 Uconnect™ Multimedia (Satellite Radio) — If
Equipped (REN/REQ/RER/RBZ/RES Radios
Only) ............................... 223
▫ System Activation .................... 223
▫ Electronic Serial Number/Sirius
Identification Number (ESN/SID) ......... 224
▫ Selecting Uconnect™ Multimedia (Satellite)
Mode ............................. 224
▫ Satellite Antenna ..................... 224
▫ Reception Quality .................... 225
▫ Operating Instructions - Uconnect™
Multimedia (Satellite) Mode ............. 225
▫ Operating Instructions - Uconnect™ Phone
(If Equipped) ....................... 227
Remote Sound System Controls —
If Equipped .......................... 228
▫ Right-Hand Switch Functions ............ 228
▫ Left-Hand Switch Functions For Radio
Operation .......................... 229
▫ Left-Hand Switch Functions For Media (i.e.,
CD) Operation ...................... 229
 CD/DVD Disc Maintenance .............. 229
 Radio Operation And Cellular Phones ....... 230
 Climate Controls ...................... 230
▫ Manual Heating And Air Conditioning ..... 230
▫ Automatic Temperature Control (ATC) — If
Equipped .......................... 235
▫ Operating Tips ...................... 240
4
UNDERSTANDING YOUR INSTRUMENT PANEL 155

INSTRUMENT PANEL FEATURES
1 — Air Outlet6 — Radio 11 — Hazard Switch
2 — Side Window Demister Outlet 7 — Passenger Airbag 12 — Storage Compartment
3 — Instrument Cluster 8 — Glove Compartment 13 — Climate Control
4 — Ignition Switch 9 — Heated Seat Switch – If Equipped 14 — Trunk Release Button
5 — Analog Clock 10 — Electronic Stability Control Off Button
– If Equipped 15 — Power Top Switch
156 UNDERSTANDING YOUR INSTRUMENT PANEL

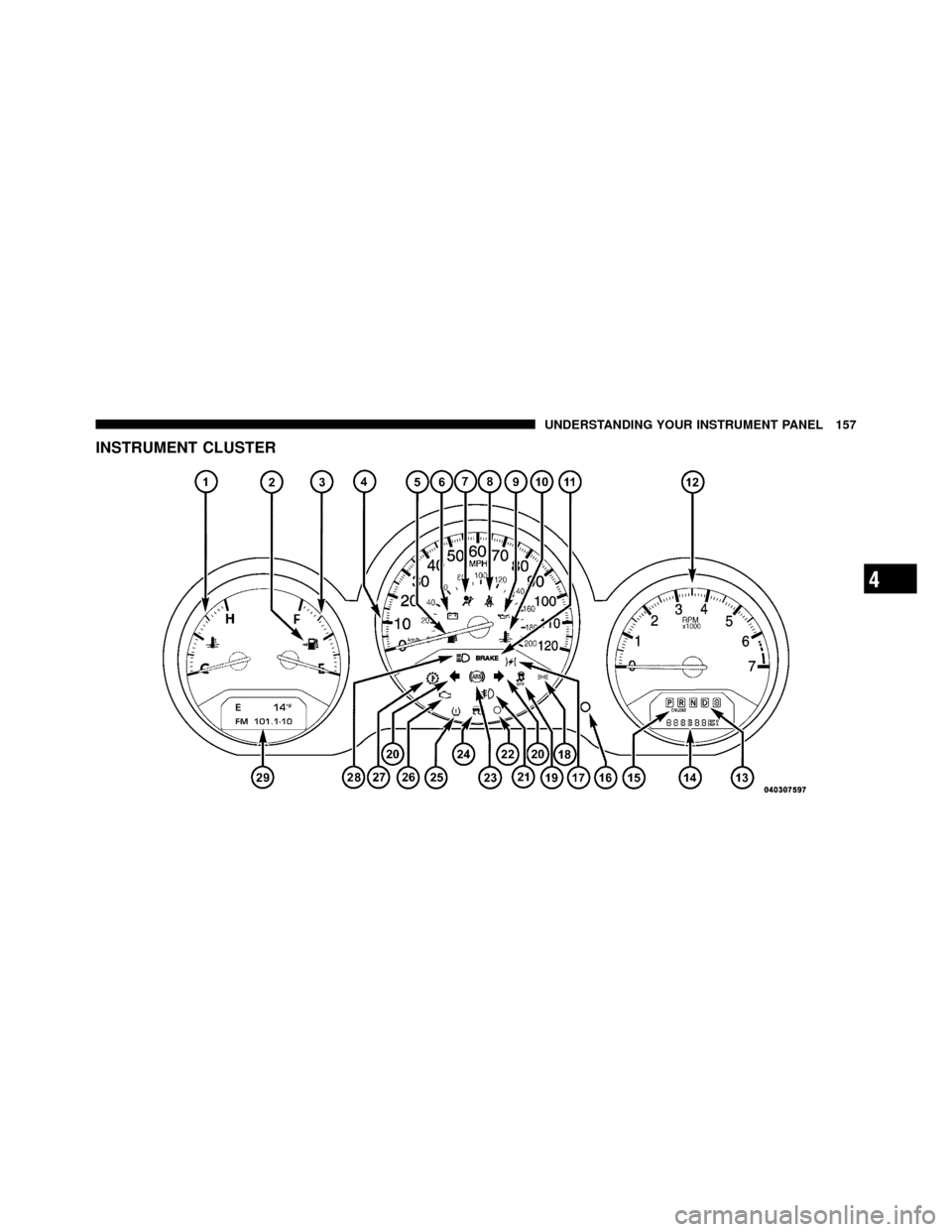

INSTRUMENT CLUSTER
4
UNDERSTANDING YOUR INSTRUMENT PANEL 157

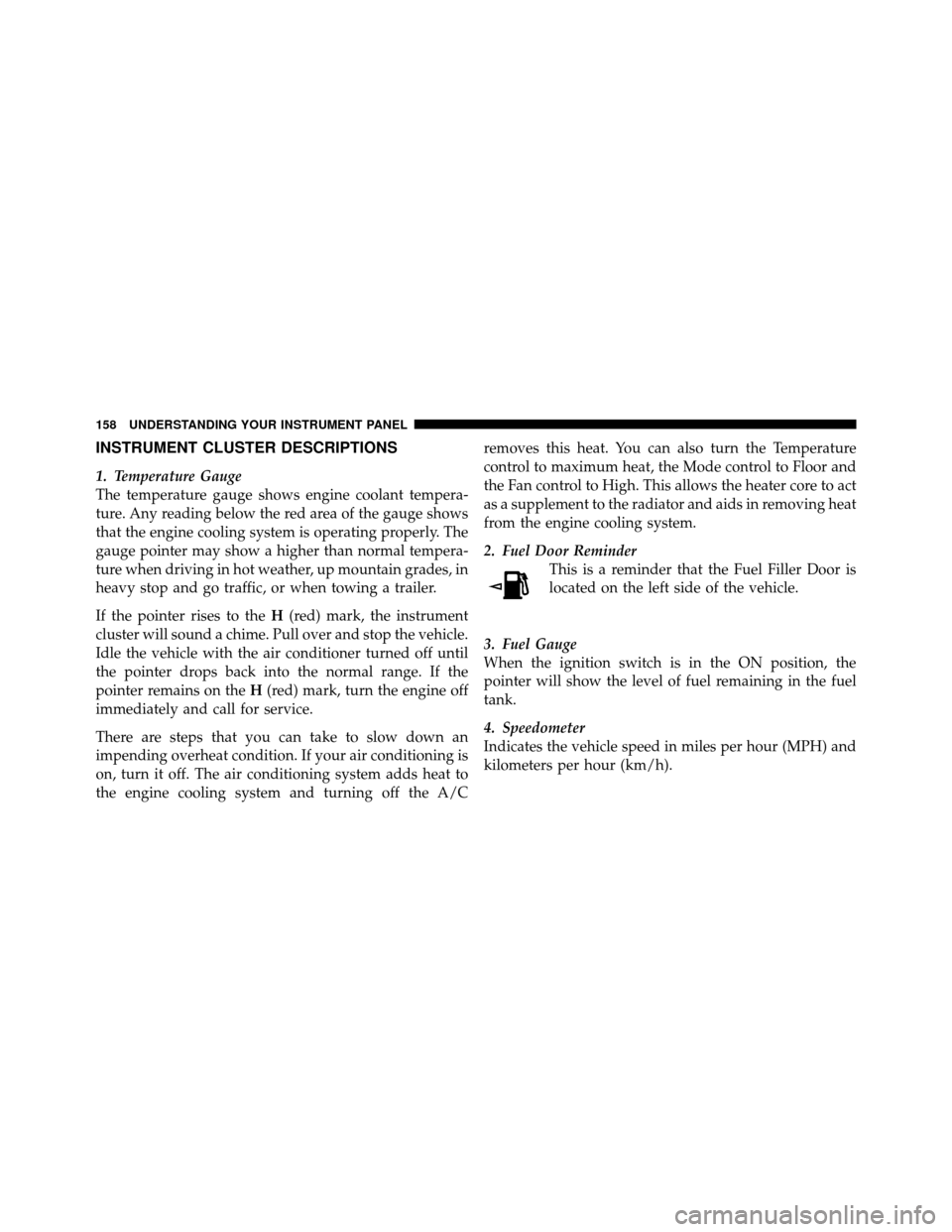

INSTRUMENT CLUSTER DESCRIPTIONS
1. Temperature Gauge
The temperature gauge shows engine coolant tempera-
ture. Any reading below the red area of the gauge shows
that the engine cooling system is operating properly. The
gauge pointer may show a higher than normal tempera-
ture when driving in hot weather, up mountain grades, in
heavy stop and go traffic, or when towing a trailer.
If the pointer rises to theH(red) mark, the instrument
cluster will sound a chime. Pull over and stop the vehicle.
Idle the vehicle with the air conditioner turned off until
the pointer drops back into the normal range. If the
pointer remains on the H(red) mark, turn the engine off
immediately and call for service.
There are steps that you can take to slow down an
impending overheat condition. If your air conditioning is
on, turn it off. The air conditioning system adds heat to
the engine cooling system and turning off the A/C removes this heat. You can also turn the Temperature
control to maximum heat, the Mode control to Floor and
the Fan control to High. This allows the heater core to act
as a supplement to the radiator and aids in removing heat
from the engine cooling system.
2. Fuel Door Reminder
This is a reminder that the Fuel Filler Door is
located on the left side of the vehicle.
3. Fuel Gauge
When the ignition switch is in the ON position, the
pointer will show the level of fuel remaining in the fuel
tank.
4. Speedometer
Indicates the vehicle speed in miles per hour (MPH) and
kilometers per hour (km/h).
158 UNDERSTANDING YOUR INSTRUMENT PANEL

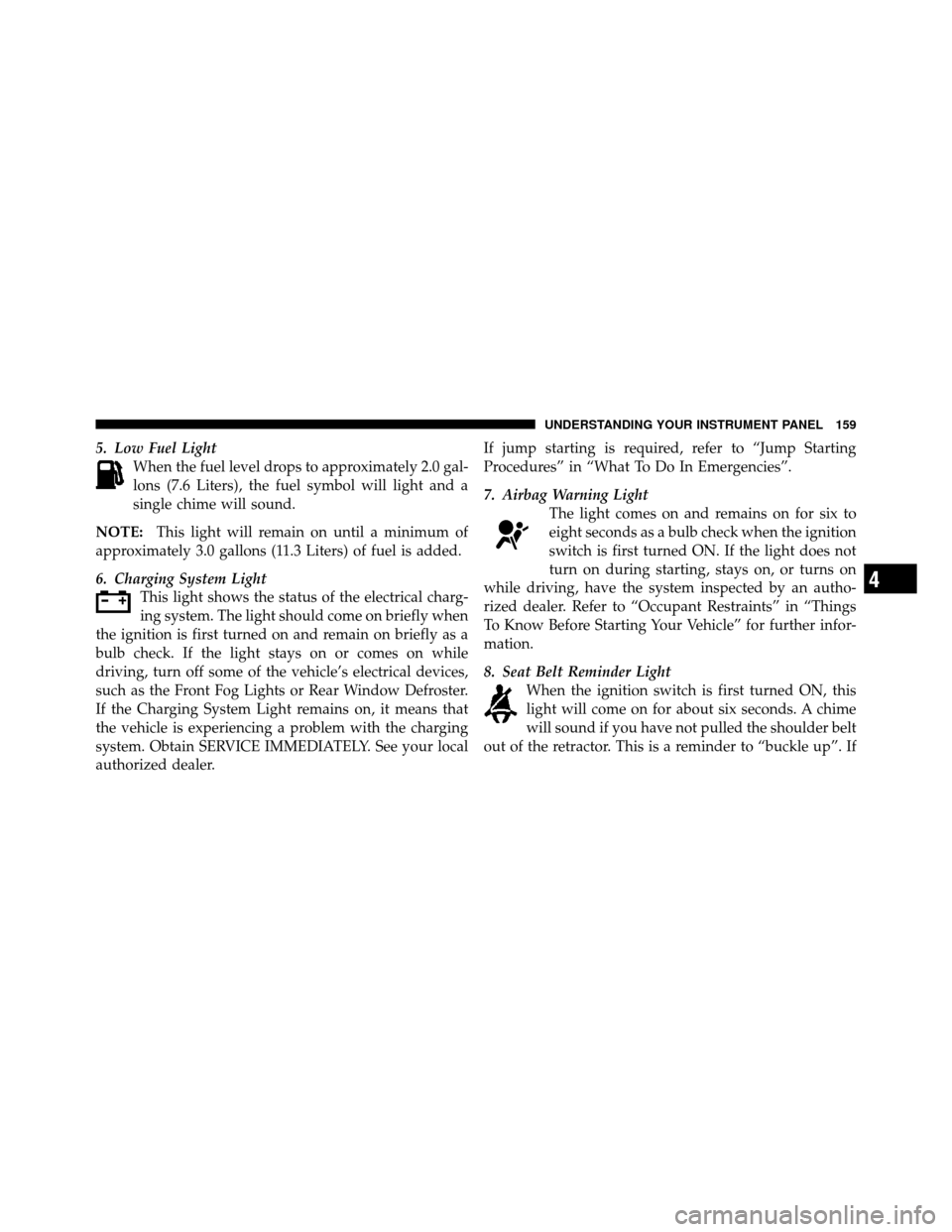

5. Low Fuel LightWhen the fuel level drops to approximately 2.0 gal-
lons (7.6 Liters), the fuel symbol will light and a
single chime will sound.
NOTE: This light will remain on until a minimum of
approximately 3.0 gallons (11.3 Liters) of fuel is added.
6. Charging System Light This light shows the status of the electrical charg-
ing system. The light should come on briefly when
the ignition is first turned on and remain on briefly as a
bulb check. If the light stays on or comes on while
driving, turn off some of the vehicle’s electrical devices,
such as the Front Fog Lights or Rear Window Defroster.
If the Charging System Light remains on, it means that
the vehicle is experiencing a problem with the charging
system. Obtain SERVICE IMMEDIATELY. See your local
authorized dealer. If jump starting is required, refer to “Jump Starting
Procedures” in “What To Do In Emergencies”.
7. Airbag Warning Light
The light comes on and remains on for six to
eight seconds as a bulb check when the ignition
switch is first turned ON. If the light does not
turn on during starting, stays on, or turns on
while driving, have the system inspected by an autho-
rized dealer. Refer to “Occupant Restraints” in “Things
To Know Before Starting Your Vehicle” for further infor-
mation.
8. Seat Belt Reminder Light When the ignition switch is first turned ON, this
light will come on for about six seconds. A chime
will sound if you have not pulled the shoulder belt
out of the retractor. This is a reminder to “buckle up”. If
4
