CavityCartridge
Fuse Mini
Fuse Description
13 —20 Amp
Yellow —
14 —10 Amp
Red Ignition Off Draw
(IOD) – Cabin
Compartment
Node (CCN)/
Interior Lighting
15 40 Amp
Green —Battery Feed – Ra-
diator Fan Relay
16 —15 Amp
Lt. Blue IGN Run/ACC –
Cigar Lighter/
PWR Sunroof
ModCavity
Cartridge
Fuse Mini
Fuse Description
17 — 10 Amp
Red Ignition Off Draw
(IOD) – Wireless
Control Module
(WCM)/Clock/
Steering Control
Module (SCM)
18 40 Amp
Green —Battery Feed –
Auto Shutdown
(ASD) Relay
19 —20 Amp
Yellow Ignition Off Draw
(IOD) – Power
AmpFeed2–If
Equipped
20 —15 Amp
Lt. Blue Ignition Off Draw
(IOD) – Radio
21 —10 Amp
Red —
390 MAINTAINING YOUR VEHICLE

CavityCartridge
Fuse Mini
Fuse Description
22 — 10 Amp
Red Ignition Run –
Climate Controls/
Hot Cupholder –
If Equipped
23 — 15 Amp
Lt. Blue Auto Shutdown
(ASD) Relay Feed
3
24 — 25 Amp
Natural Battery Feed —
PWR Sunroof
Feed
25 —10 Amp
Red Ignition Run —
Heated Mirrors -
If Equipped
26 —15 Amp
Lt. Blue Auto Shutdown
(ASD) Relay Feed
2Cavity
Cartridge
Fuse Mini
Fuse Description
27 — 10 Amp
Red Ignition Run –
Occupant Classifi-
cation Module
(OCM)/Occupant
Restraint Control-
ler (ORC)
28 — 10 Amp
Red Ignition Run —
Occupant Classifi-
cation Module
(OCM)/Occupant
Restraint Control-
ler (ORC)
29 — — Hot Car (No Fuse
Required)
30 —20 Amp
Yellow Ignition Run –
Heated Seats – If
Equipped
7
MAINTAINING YOUR VEHICLE 391

CavityCartridge
Fuse Mini
Fuse Description
31 —10 Amp
Red —
32 30 Amp
Pink —Auto Shutdown
(ASD) Relay Feed
1
33 —10 Amp
Red Battery Feed –
Switch Bank/
Diagnostic Link
Connector/
Powertrain Con-
trol Module
(PCM)Cavity
Cartridge
Fuse Mini
Fuse Description
34 30 Amp
Pink —Battery Feed –
Anti-Lock Brakes
(ABS) Module – If
Equipped/
Electronic Stability
Control (ESC)
Module – If
Equipped
35 40 Amp
Green —Battery Feed –
Anti-Lock Brakes
(ABS) Module – If
Equipped/
Electronic Stability
Control (ESC)
Module – If
Equipped
392 MAINTAINING YOUR VEHICLE

CavityCartridge
Fuse Mini
Fuse Description
36 30 Amp
Pink —Battery Feed –
Passenger Door
Module (PDM)/
Driver Door Mod-
ule (DDM)

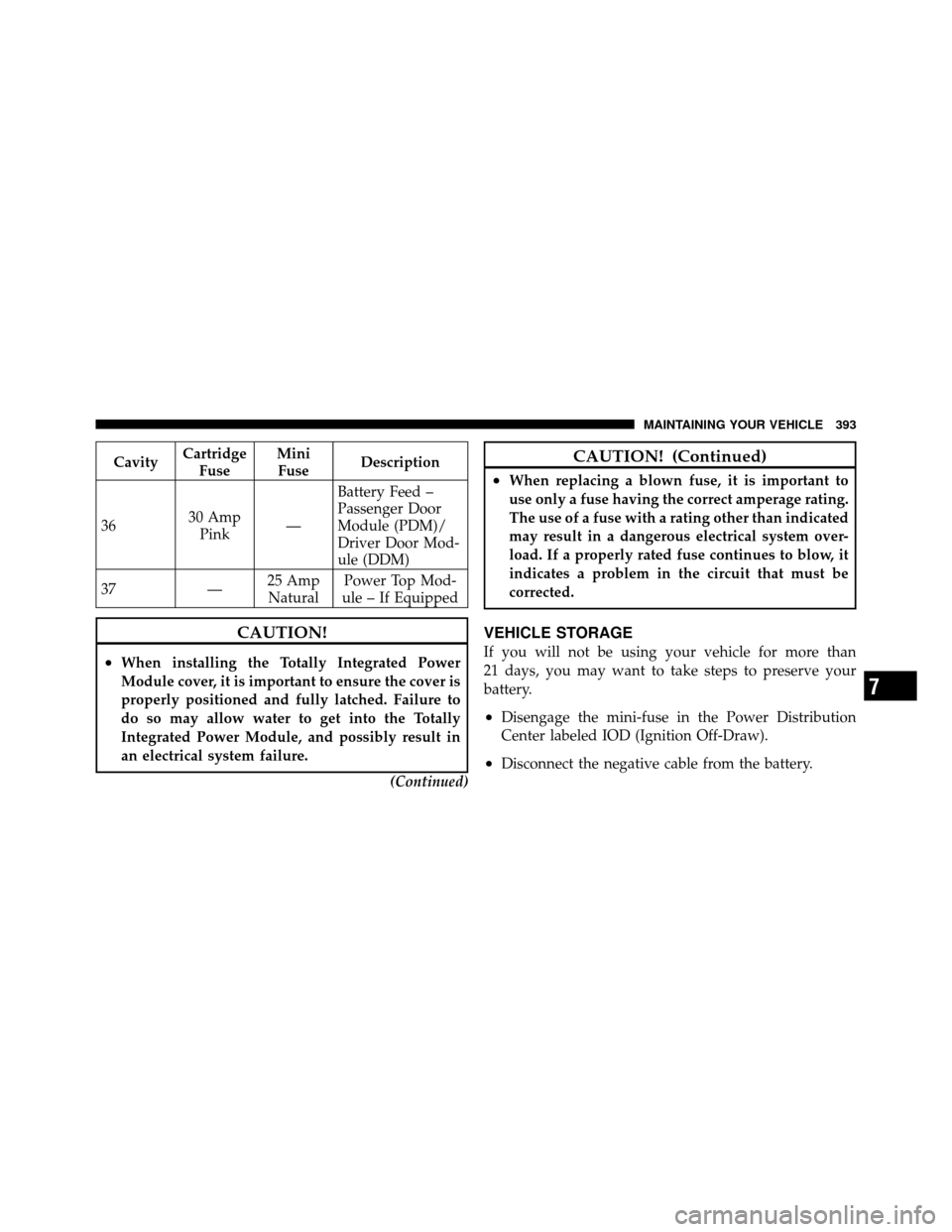

37 —25 Amp
Natural Power Top Mod-
ule – If Equipped
CAUTION!
•When installing the Totally Integrated Power
Module cover, it is important to ensure the cover is
properly positioned and fully latched. Failure to
do so may allow water to get into the Totally
Integrated Power Module, and possibly result in
an electrical system failure.
(Continued)
CAUTION! (Continued)
•When replacing a blown fuse, it is important to
use only a fuse having the correct amperage rating.
The use of a fuse with a rating other than indicated
may result in a dangerous electrical system over-
load. If a properly rated fuse continues to blow, it
indicates a problem in the circuit that must be
corrected.
VEHICLE STORAGE
If you will not be using your vehicle for more than
21 days, you may want to take steps to preserve your
battery.
•Disengage the mini-fuse in the Power Distribution
Center labeled IOD (Ignition Off-Draw).
•Disconnect the negative cable from the battery.
7
MAINTAINING YOUR VEHICLE 393

REPLACEMENT BULBS
All the inside bulbs are brass or glass wedge base.
Aluminum base bulbs are not approved and should not
be used for replacement.
LIGHT BULBS – Interior Bulb Number
Front Courtesy/Reading Lamps. . LED (Dealer Service)
Center Console Courtesy Lamp ..........578/W5W
Glove Box Lamp ......................... 194
Rear Compartment (Trunk) Lamp ............. 579
NOTE: For lighted switches, see your dealer for replace-
ment instructions.
LIGHT BULBS – Exterior Bulb No.
Low Beam Headlamp ..................... 9006
High Beam Headlamp .................... 9005
Front Park/Turn Signal/Side Marker Lamp . . . 3457AK
Front Fog Lamp ...................... PSX24WCenter High Mounted Stop Lamp
(CHMSL)
........................ W16W (921)
Rear Tail/Stop Lamp ..................... 3057
Rear Turn Signal Lamp .................... 3057
Backup Lamp .......................... 3157
License Lamp ..................... 168orW5W
BULB REPLACEMENT
Headlamp
1. Raise and prop open the hood. Locate the connector
behind the headlamp.
NOTE:It may be necessary to remove the air cleaner
filter housing and position the totally integrated power
module aside prior to replacing the low beam headlamp
on the driver’s side of the vehicle.
394 MAINTAINING YOUR VEHICLE

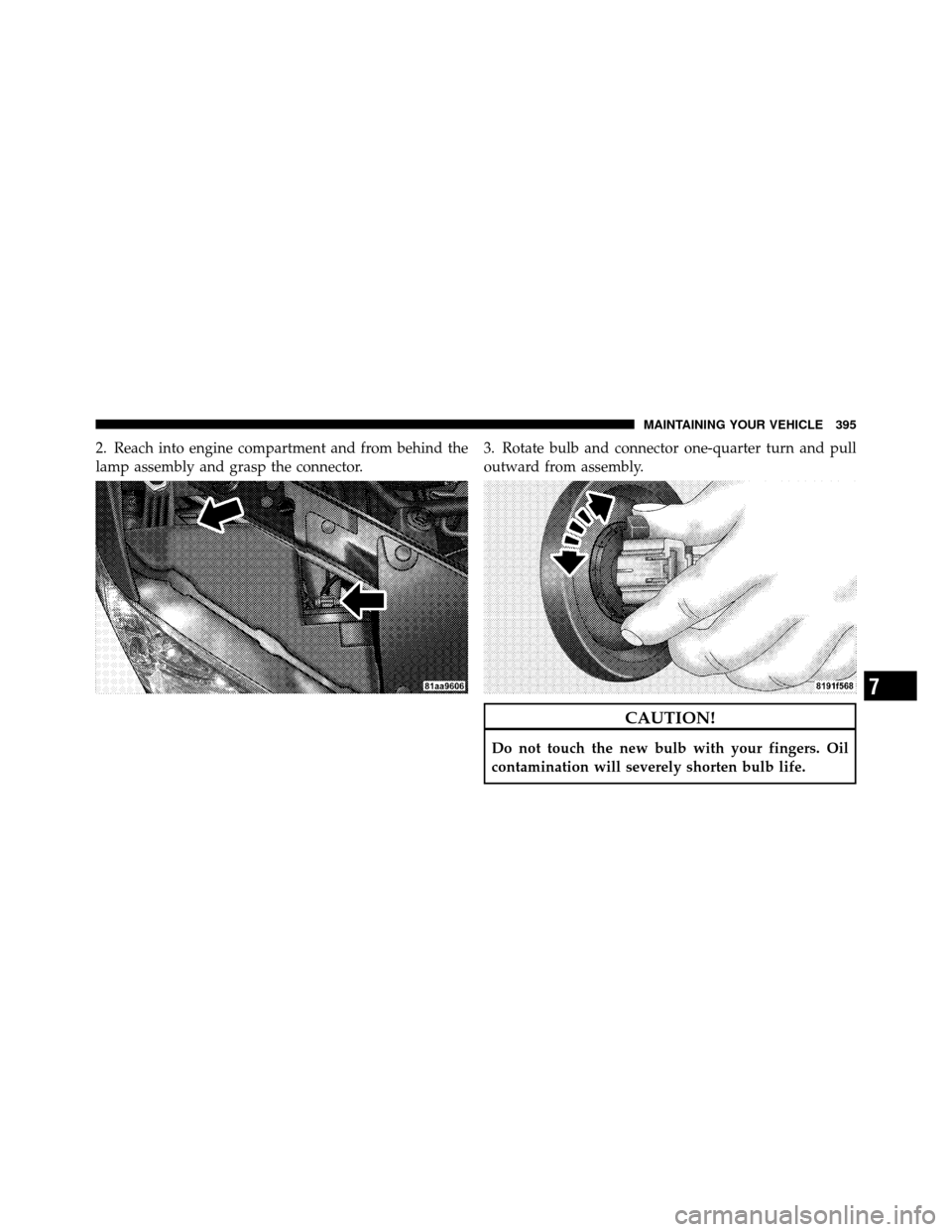

2. Reach into engine compartment and from behind the
lamp assembly and grasp the connector.3. Rotate bulb and connector one-quarter turn and pull
outward from assembly.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life.
7
MAINTAINING YOUR VEHICLE 395

4. Pull the bulb out of the socket and replace the bulb.
5. If the bulb comes in contact with any oily surface,
clean the bulb with rubbing alcohol.
6. Reinsert the bulb and socket assembly and rotate
clockwise one-quarter turn to secure.Front Turn Signal/Parking Lamp
1. Raise and prop open the hood.
2. Rotate the bulb’s electrical connector one-quarter turn
counterclockwise and remove it from the headlamp
housing.
396 MAINTAINING YOUR VEHICLE

3. Remove the bulb from the connector socket and install
the replacement bulb.
4. Install the bulb and connector assembly into the
headlamp housing and rotate the connector one-quarter
turn clockwise to lock it in place.
Front Fog Lamp
NOTE:Access to the lamps through the lower fascia
cutout is limited. We recommend you access the lamps by
turning the steering wheel to allow access and remove
the inner fender shield.
1. Rotate the bulb’s electrical connector one-quarter turn
counterclockwise and remove it from the fog lamp hous-
ing. 2. Remove the bulb from the connector socket and install
the replacement bulb.
7
MAINTAINING YOUR VEHICLE 397

CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol.
3. Install the bulb and connector assembly into the fog
lamp housing and rotate the connector one-quarter turn
clockwise to lock it in place.

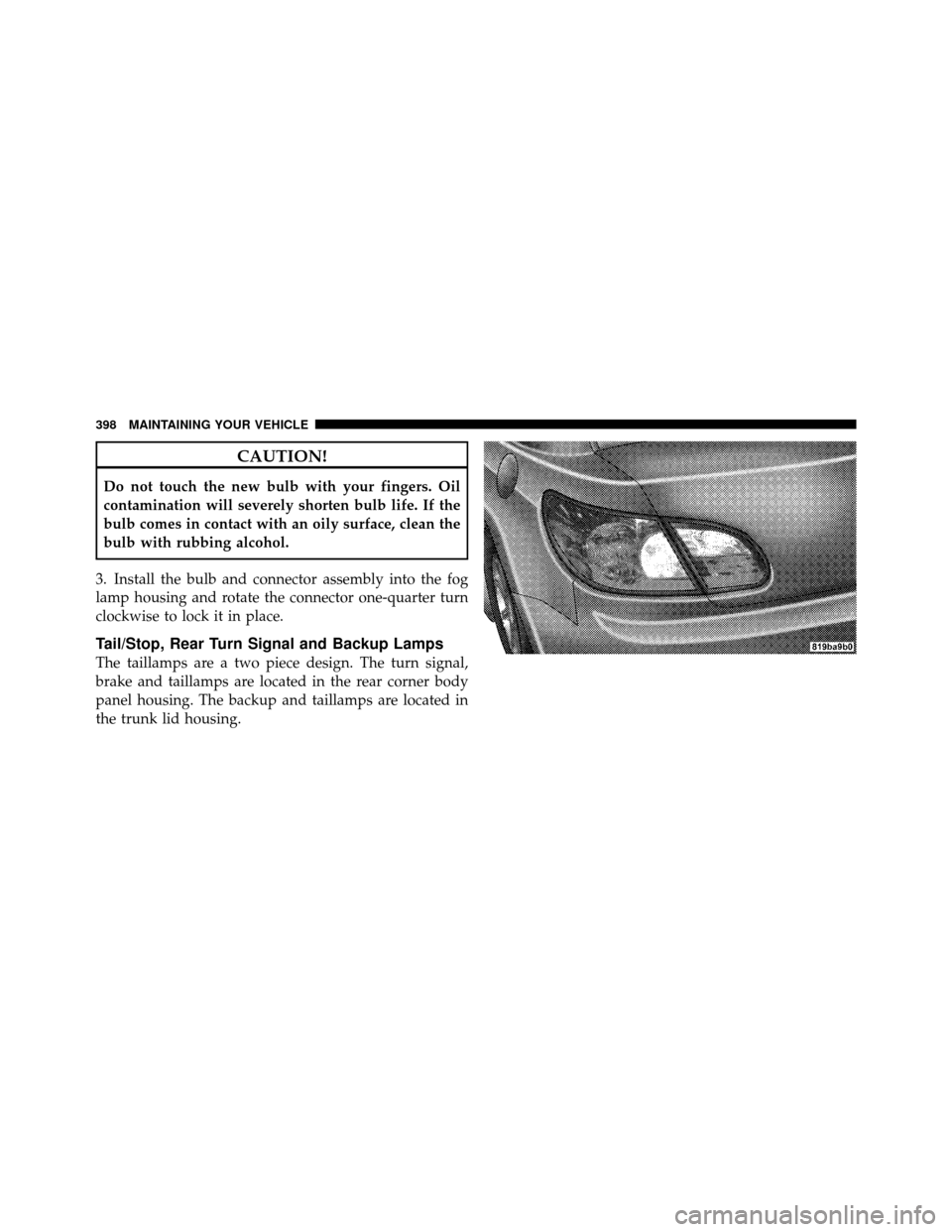

Tail/Stop, Rear Turn Signal and Backup Lamps
The taillamps are a two piece design. The turn signal,
brake and taillamps are located in the rear corner body
panel housing. The backup and taillamps are located in
the trunk lid housing.
398 MAINTAINING YOUR VEHICLE

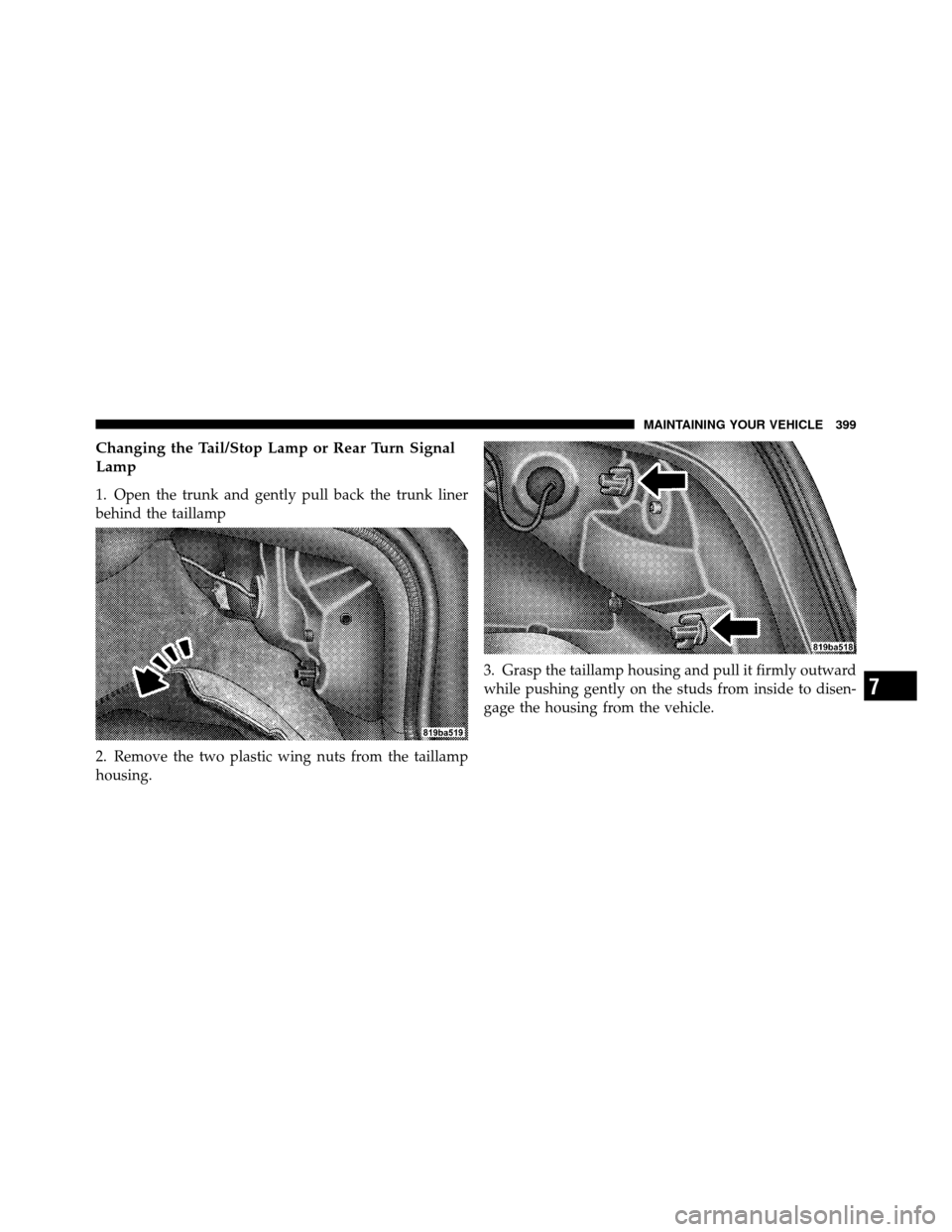

Changing the Tail/Stop Lamp or Rear Turn Signal
Lamp
1. Open the trunk and gently pull back the trunk liner
behind the taillamp
2. Remove the two plastic wing nuts from the taillamp
housing.3. Grasp the taillamp housing and pull it firmly outward
while pushing gently on the studs from inside to disen-
gage the housing from the vehicle.
7
