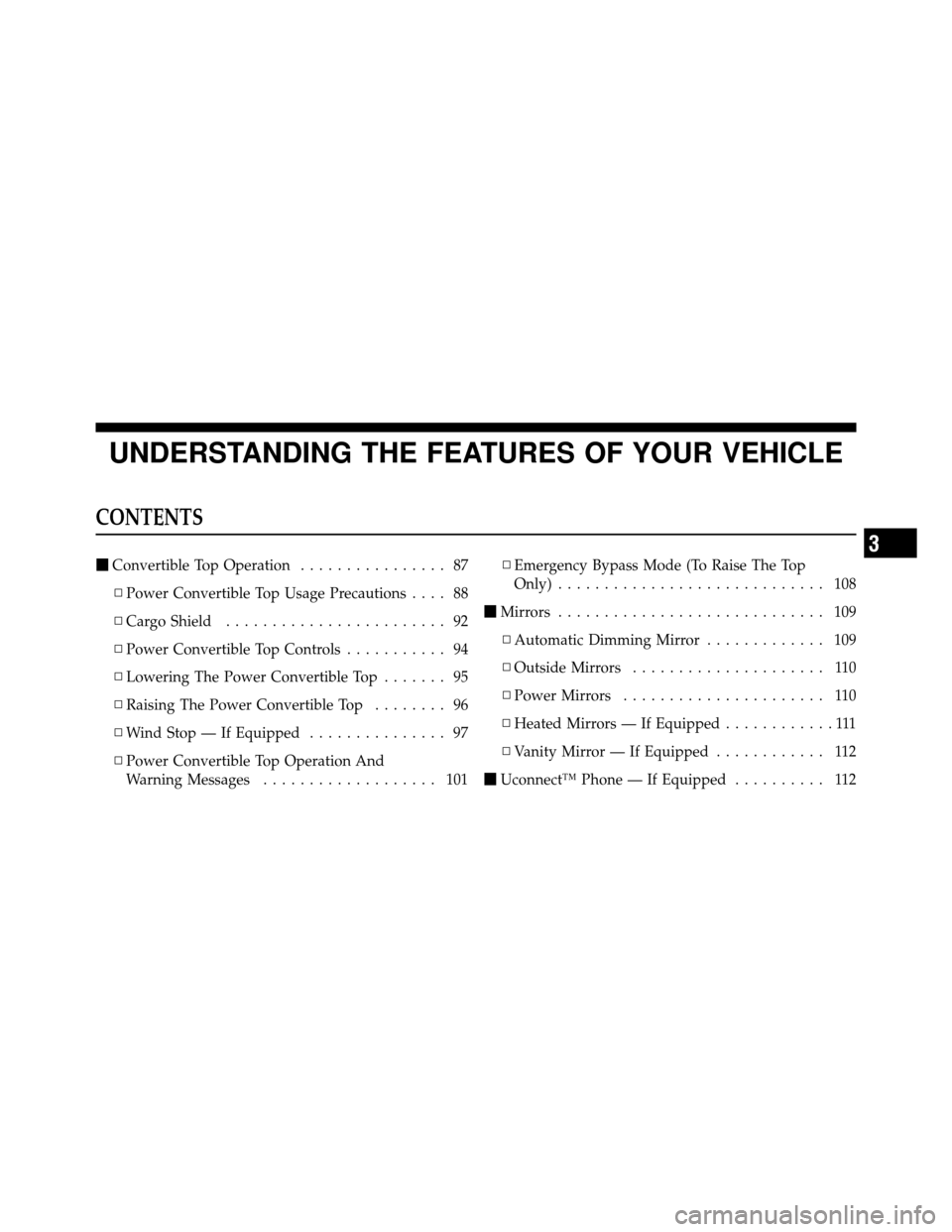

UNDERSTANDING THE FEATURES OF YOUR VEHICLE
CONTENTS
Convertible Top Operation ................ 87
▫ Power Convertible Top Usage Precautions .... 88
▫ Cargo Shield ........................ 92
▫ Power Convertible Top Controls ........... 94
▫ Lowering The Power Convertible Top ....... 95
▫ Raising The Power Convertible Top ........ 96
▫ Wind Stop — If Equipped ............... 97
▫ Power Convertible Top Operation And
Warning Messages ................... 101 ▫
Emergency Bypass Mode (To Raise The Top
Only) ............................. 108
 Mirrors ............................. 109
▫ Automatic Dimming Mirror ............. 109
▫ Outside Mirrors ..................... 110
▫ Power Mirrors ...................... 110
▫ Heated Mirrors — If Equipped ............111
▫ Vanity Mirror — If Equipped ............ 112
 Uconnect™ Phone — If Equipped .......... 112
3

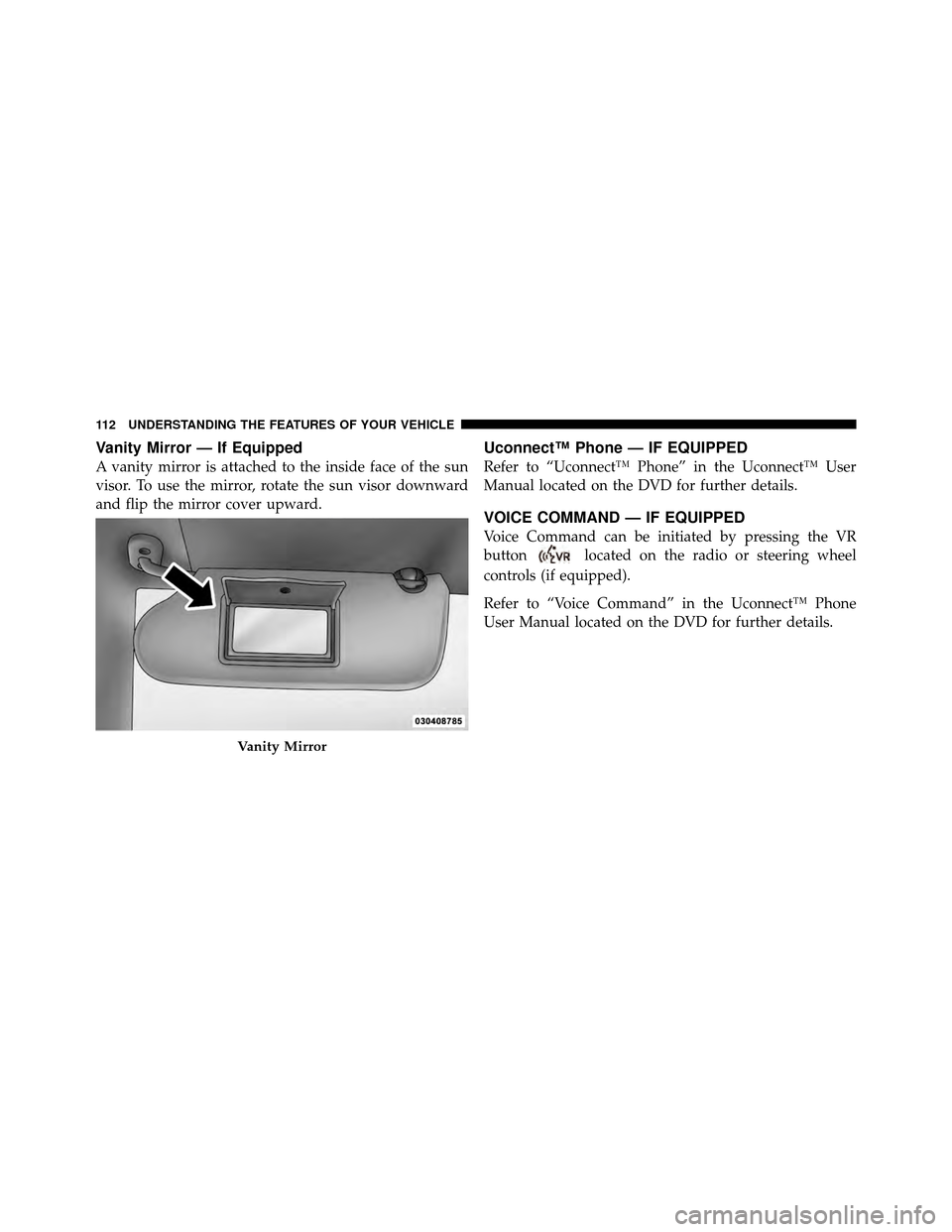

Vanity Mirror — If Equipped
A vanity mirror is attached to the inside face of the sun
visor. To use the mirror, rotate the sun visor downward
and flip the mirror cover upward.
Uconnect™ Phone — IF EQUIPPED
Refer to “Uconnect™ Phone” in the Uconnect™ User
Manual located on the DVD for further details.
VOICE COMMAND — IF EQUIPPED
Voice Command can be initiated by pressing the VR
button
located on the radio or steering wheel
controls (if equipped).
Refer to “Voice Command” in the Uconnect™ Phone
User Manual located on the DVD for further details.
Vanity Mirror
112 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

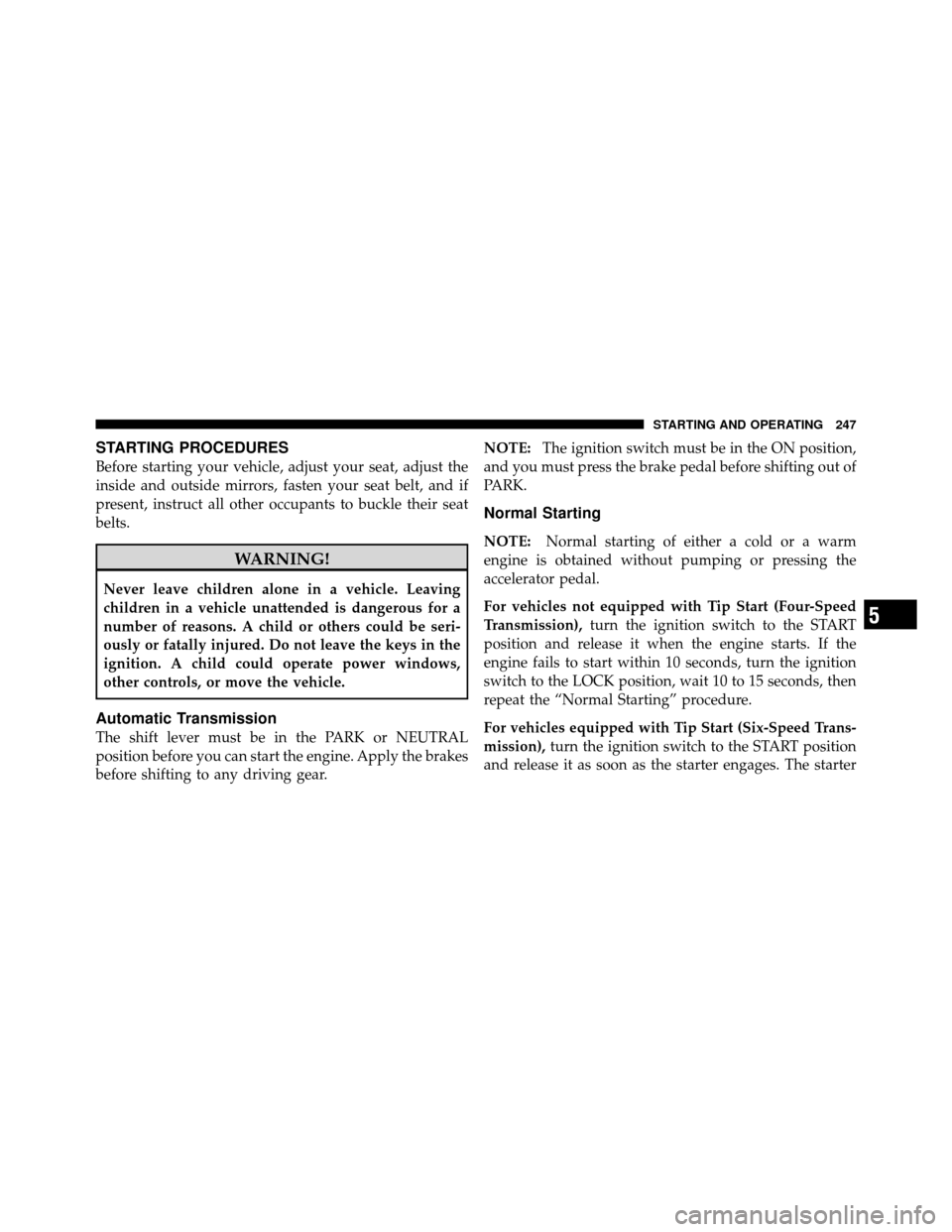

STARTING PROCEDURES
Before starting your vehicle, adjust your seat, adjust the
inside and outside mirrors, fasten your seat belt, and if
present, instruct all other occupants to buckle their seat
belts.
WARNING!
Never leave children alone in a vehicle. Leaving
children in a vehicle unattended is dangerous for a
number of reasons. A child or others could be seri-
ously or fatally injured. Do not leave the keys in the
ignition. A child could operate power windows,
other controls, or move the vehicle.
Automatic Transmission
The shift lever must be in the PARK or NEUTRAL
position before you can start the engine. Apply the brakes
before shifting to any driving gear.NOTE:
The ignition switch must be in the ON position,
and you must press the brake pedal before shifting out of
PARK.
Normal Starting
NOTE: Normal starting of either a cold or a warm
engine is obtained without pumping or pressing the
accelerator pedal.
For vehicles not equipped with Tip Start (Four-Speed
Transmission), turn the ignition switch to the START
position and release it when the engine starts. If the
engine fails to start within 10 seconds, turn the ignition
switch to the LOCK position, wait 10 to 15 seconds, then
repeat the “Normal Starting” procedure.
For vehicles equipped with Tip Start (Six-Speed Trans-
mission), turn the ignition switch to the START position
and release it as soon as the starter engages. The starter
5
STARTING AND OPERATING 247

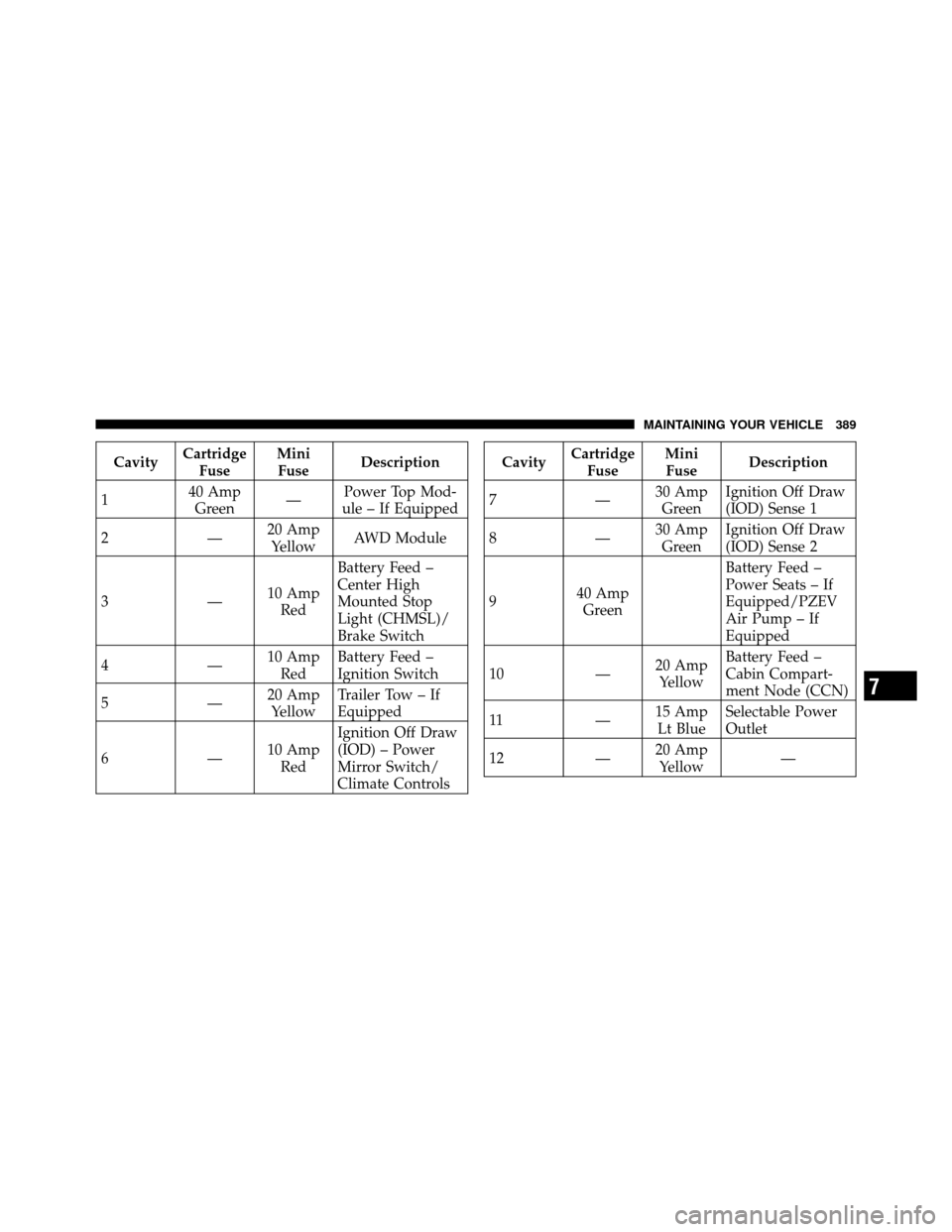

CavityCartridge
Fuse Mini
Fuse Description
1 40 Amp
Green —Power Top Mod-
ule – If Equipped
2— 20 Amp
Yellow AWD Module
3— 10 Amp
Red Battery Feed –
Center High
Mounted Stop
Light (CHMSL)/
Brake Switch
4— 10 Amp
Red Battery Feed –
Ignition Switch
5— 20 Amp
Yellow Trailer Tow – If
Equipped
6— 10 Amp
Red Ignition Off Draw
(IOD) – Power
Mirror Switch/
Climate ControlsCavity
Cartridge
Fuse Mini
Fuse Description
7— 30 Amp
Green Ignition Off Draw
(IOD) Sense 1
8— 30 Amp
Green Ignition Off Draw
(IOD) Sense 2
9 40 Amp
Green Battery Feed –
Power Seats – If
Equipped/PZEV
Air Pump – If
Equipped
10 —20 Amp
Yellow Battery Feed –
Cabin Compart-
ment Node (CCN)
11 —15 Amp
Lt Blue Selectable Power
Outlet
12 —20 Amp
Yellow —
7
MAINTAINING YOUR VEHICLE 389

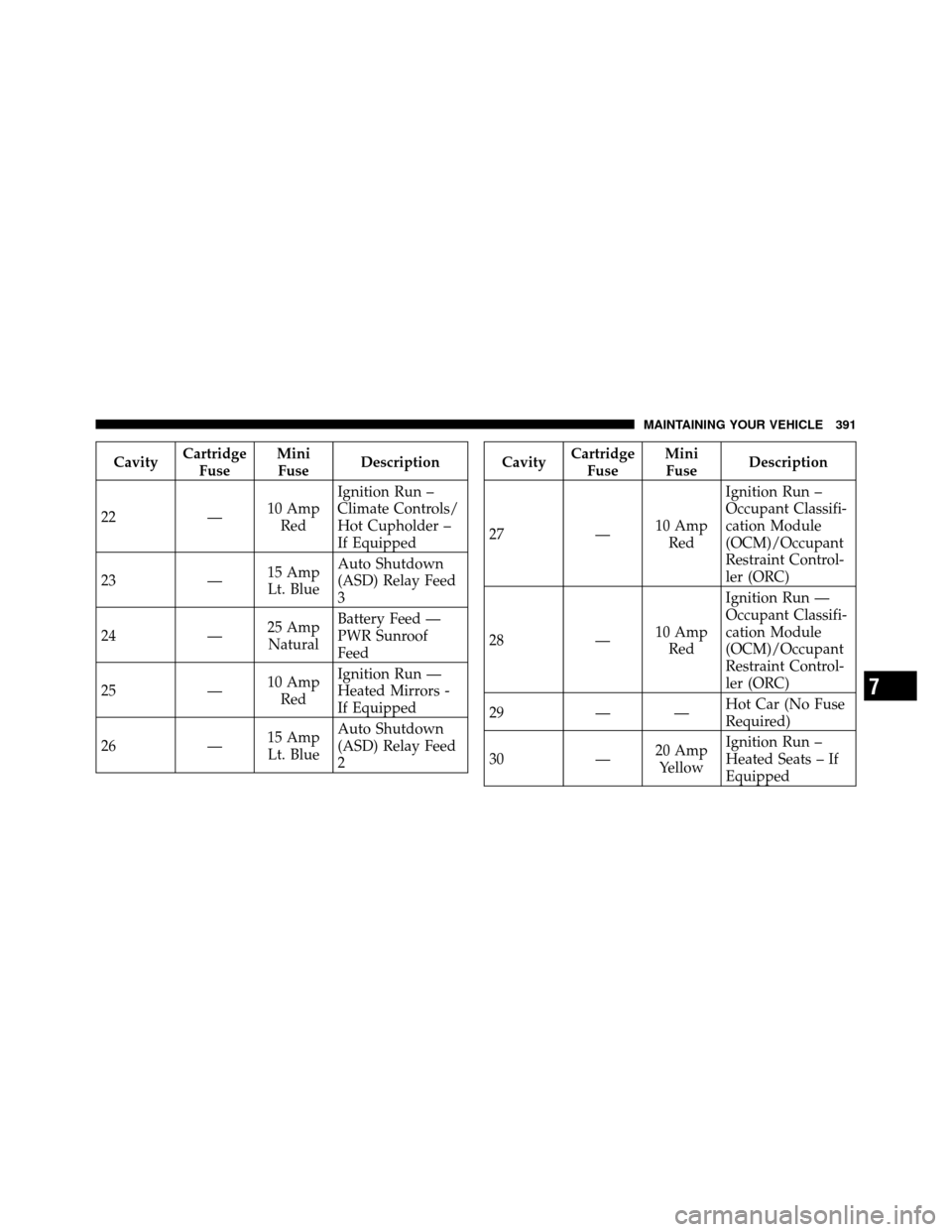

CavityCartridge
Fuse Mini
Fuse Description
22 — 10 Amp
Red Ignition Run –
Climate Controls/
Hot Cupholder –
If Equipped
23 — 15 Amp
Lt. Blue Auto Shutdown
(ASD) Relay Feed
3
24 — 25 Amp
Natural Battery Feed —
PWR Sunroof
Feed
25 —10 Amp
Red Ignition Run —
Heated Mirrors -
If Equipped
26 —15 Amp
Lt. Blue Auto Shutdown
(ASD) Relay Feed
2Cavity
Cartridge
Fuse Mini
Fuse Description
27 — 10 Amp
Red Ignition Run –
Occupant Classifi-
cation Module
(OCM)/Occupant
Restraint Control-
ler (ORC)
28 — 10 Amp
Red Ignition Run —
Occupant Classifi-
cation Module
(OCM)/Occupant
Restraint Control-
ler (ORC)
29 — — Hot Car (No Fuse
Required)
30 —20 Amp
Yellow Ignition Run –
Heated Seats – If
Equipped
7
MAINTAINING YOUR VEHICLE 391

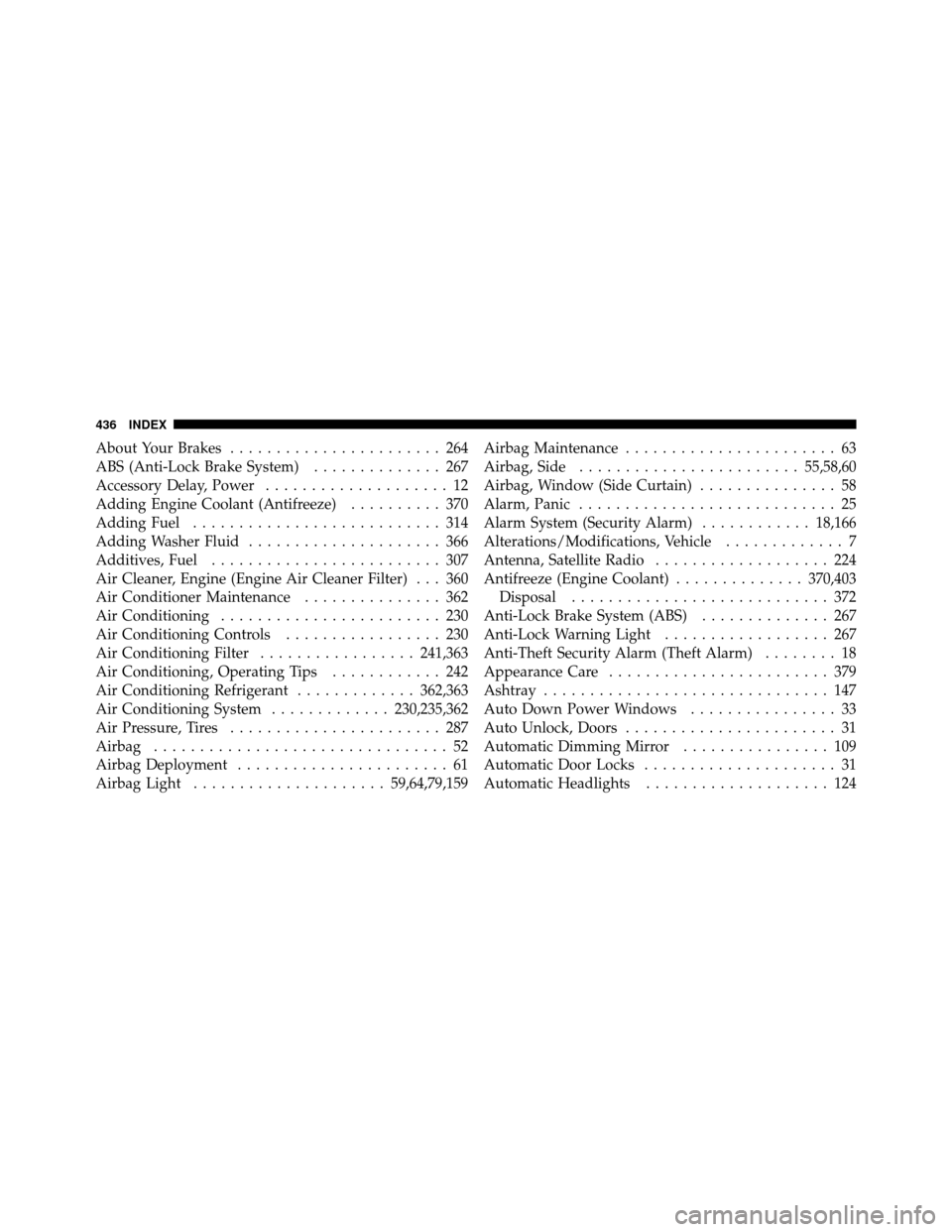

About Your Brakes....................... 264
ABS (Anti-Lock Brake System) .............. 267
Accessory Delay, Power .................... 12
Adding Engine Coolant (Antifreeze) .......... 370
Adding Fuel ........................... 314
Adding Washer Fluid ..................... 366
Additives, Fuel ......................... 307
Air Cleaner, Engine (Engine Air Cleaner Filter) . . . 360
Air Conditioner Maintenance ............... 362
Air Conditioning ........................ 230
Air Conditioning Controls ................. 230
Air Conditioning Filter .................241,363
Air Conditioning, Operating Tips ............ 242
Air Conditioning Refrigerant .............362,363
Air Conditioning System .............230,235,362
Air Pressure, Tires ....................... 287
Airbag ................................ 52
Airbag Deployment ....................... 61
Airbag Light ..................... 59,64,79,159Airbag Maintenance
....................... 63
Airbag, Side ........................ 55,58,60
Airbag, Window (Side Curtain) ............... 58
Alarm, Panic ............................ 25
Alarm System (Security Alarm) ............18,166
Alterations/Modifications, Vehicle ............. 7
Antenna, Satellite Radio ................... 224
Antifreeze (Engine Coolant) ..............370,403
Disposal ............................ 372
Anti-Lock Brake System (ABS) .............. 267
Anti-Lock Warning Light .................. 267
Anti-Theft Security Alarm (Theft Alarm) ........ 18
Appearance Care ........................ 379
Ashtray ............................... 147
Auto Down Power Windows ................ 33
Auto Unlock, Doors ....................... 31
Automatic Dimming Mirror ................ 109
Automatic Door Locks ..................... 31
Automatic Headlights .................... 124
436 INDEX

ShiftingAutomatic Transaxle .................... 250
Shoulder Belts ........................... 39
Side Airbag ............................. 60
Side View Mirror Adjustment ............... 110
Side Window Demisters (Defrosters) .......... 241
Signals, Turn ...................... 81,128,398
Slippery Surfaces, Driving On ............... 260
Snow Chains (Tire Chains) ................. 294
Snow Tires ............................ 294
Spare Tire .......................... 289,333
Specifications Oil ................................ 357
Speed Control (Cruise Control) ...........135,165
Speedometer ........................... 158
Starting ............................. 27,247
Engine Fails to Start .................... 248
Remote .............................. 27
Starting and Operating .................... 247 Starting Procedures
...................... 247
Steering Column Lock ......................... 134
Power ........................... 263,264
Tilt Column .......................... 134
Wheel, Tilt ........................... 134
Steering Wheel Mounted Sound
System Controls ......................... 228
Storage ............................ 149,393
Storage, Vehicle ......................... 240
Stuck, Freeing .......................... 342
Supplemental Restraint System - Airbag ........ 52
Synthetic Engine Oil ...................... 359
System, Remote Starting .................... 27
Tachometer ............................ 162
Taillights .............................. 398
Telescoping Steering Column ............... 134
Temperature Control, Automatic (ATC) ........ 235
10
INDEX 451
