CHRYSLER SEBRING SEDAN 2008 3.G Owners Manual

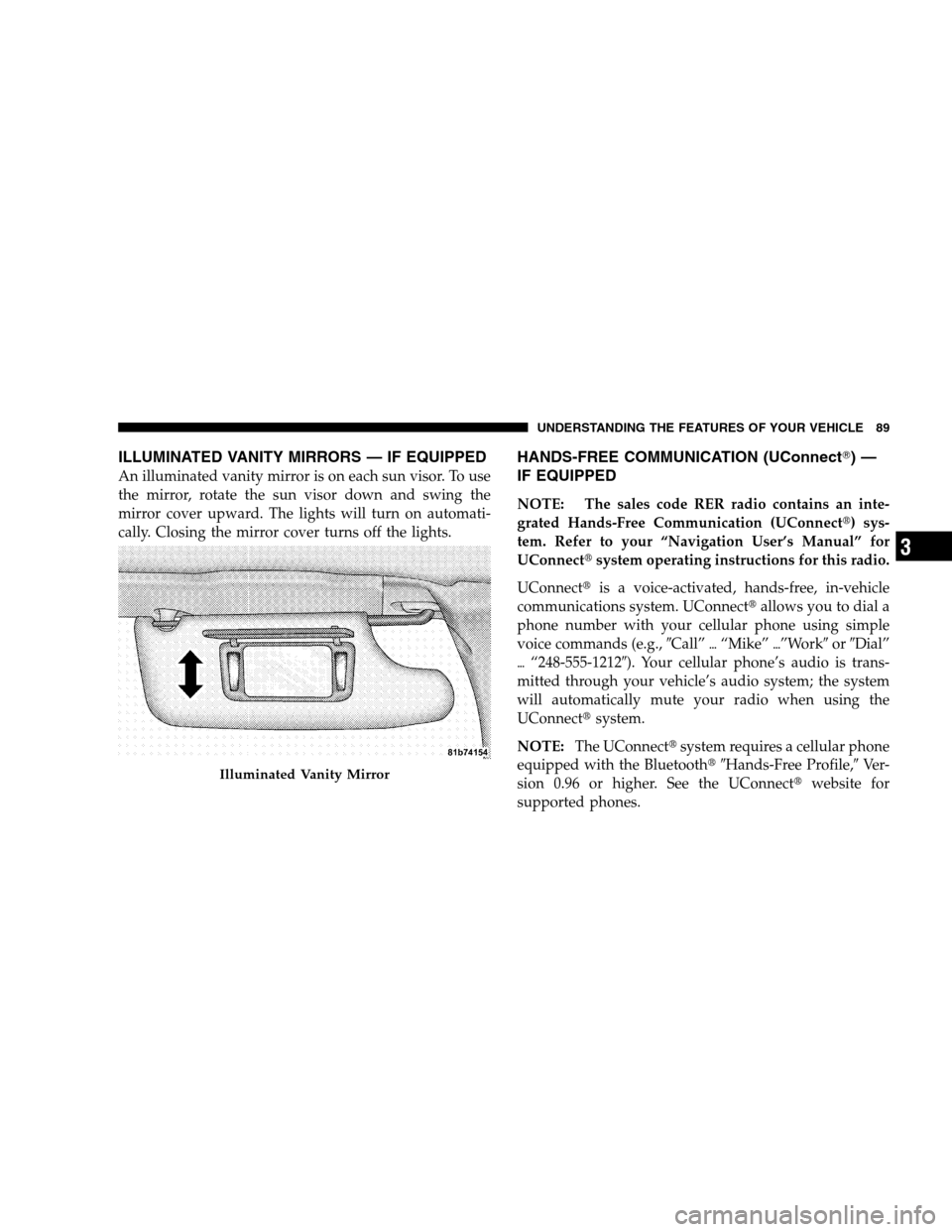

ILLUMINATED VANITY MIRRORS — IF EQUIPPED
An illuminated vanity mirror is on each sun visor. To use
the mirror, rotate the sun visor down and swing the
mirror cover upward. The lights will turn on automati-
cally. Closing the mirror cover turns off the lights.
HANDS-FREE COMMUNICATION (UConnect)—
IF EQUIPPED
NOTE: The sales code RER radio contains an inte-
grated Hands-Free Communication (UConnect) sys-
tem. Refer to your “Navigation User’s Manual” for
UConnectsystem operating instructions for this radio.
UConnectis a voice-activated, hands-free, in-vehicle
communications system. UConnectallows you to dial a
phone number with your cellular phone using simple
voice commands (e.g.,Call”“Mike””WorkorDial”
“248-555-1212). Your cellular phone’s audio is trans-
mitted through your vehicle’s audio system; the system
will automatically mute your radio when using the
UConnectsystem.
NOTE:The UConnectsystem requires a cellular phone
equipped with the BluetoothHands-Free Profile,Ve r -
sion 0.96 or higher. See the UConnectwebsite for
supported phones.
Illuminated Vanity Mirror
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 89
3

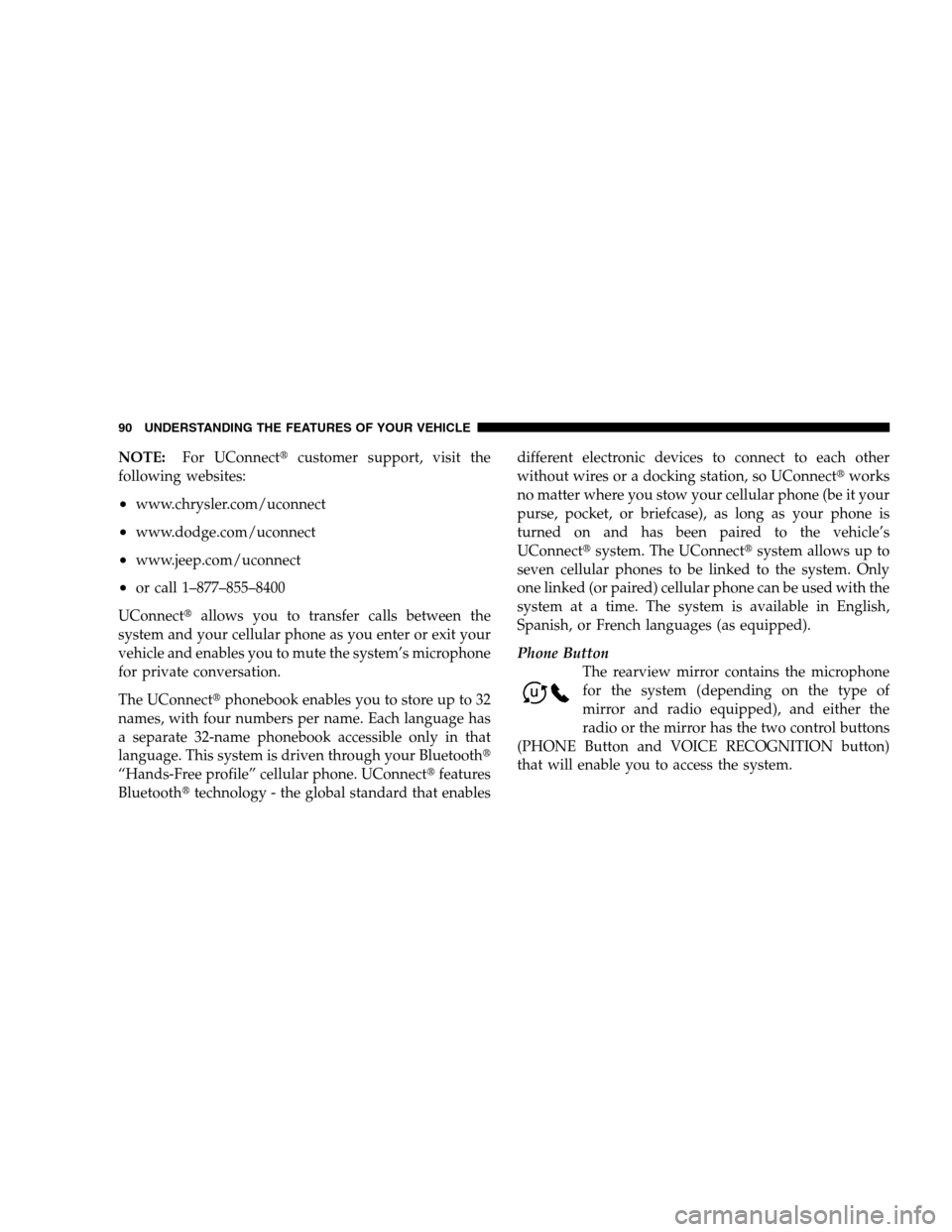

NOTE:For UConnectcustomer support, visit the
following websites:
•www.chrysler.com/uconnect
•www.dodge.com/uconnect
•www.jeep.com/uconnect
•or call 1–877–855–8400
UConnectallows you to transfer calls between the
system and your cellular phone as you enter or exit your
vehicle and enables you to mute the system’s microphone
for private conversation.
The UConnectphonebook enables you to store up to 32
names, with four numbers per name. Each language has
a separate 32-name phonebook accessible only in that
language. This system is driven through your Bluetooth
“Hands-Free profile” cellular phone. UConnectfeatures
Bluetoothtechnology - the global standard that enablesdifferent electronic devices to connect to each other
without wires or a docking station, so UConnectworks
no matter where you stow your cellular phone (be it your
purse, pocket, or briefcase), as long as your phone is
turned on and has been paired to the vehicle’s
UConnectsystem. The UConnectsystem allows up to
seven cellular phones to be linked to the system. Only
one linked (or paired) cellular phone can be used with the
system at a time. The system is available in English,
Spanish, or French languages (as equipped).
Phone Button
The rearview mirror contains the microphone
for the system (depending on the type of
mirror and radio equipped), and either the
radio or the mirror has the two control buttons
(PHONE Button and VOICE RECOGNITION button)
that will enable you to access the system.
90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

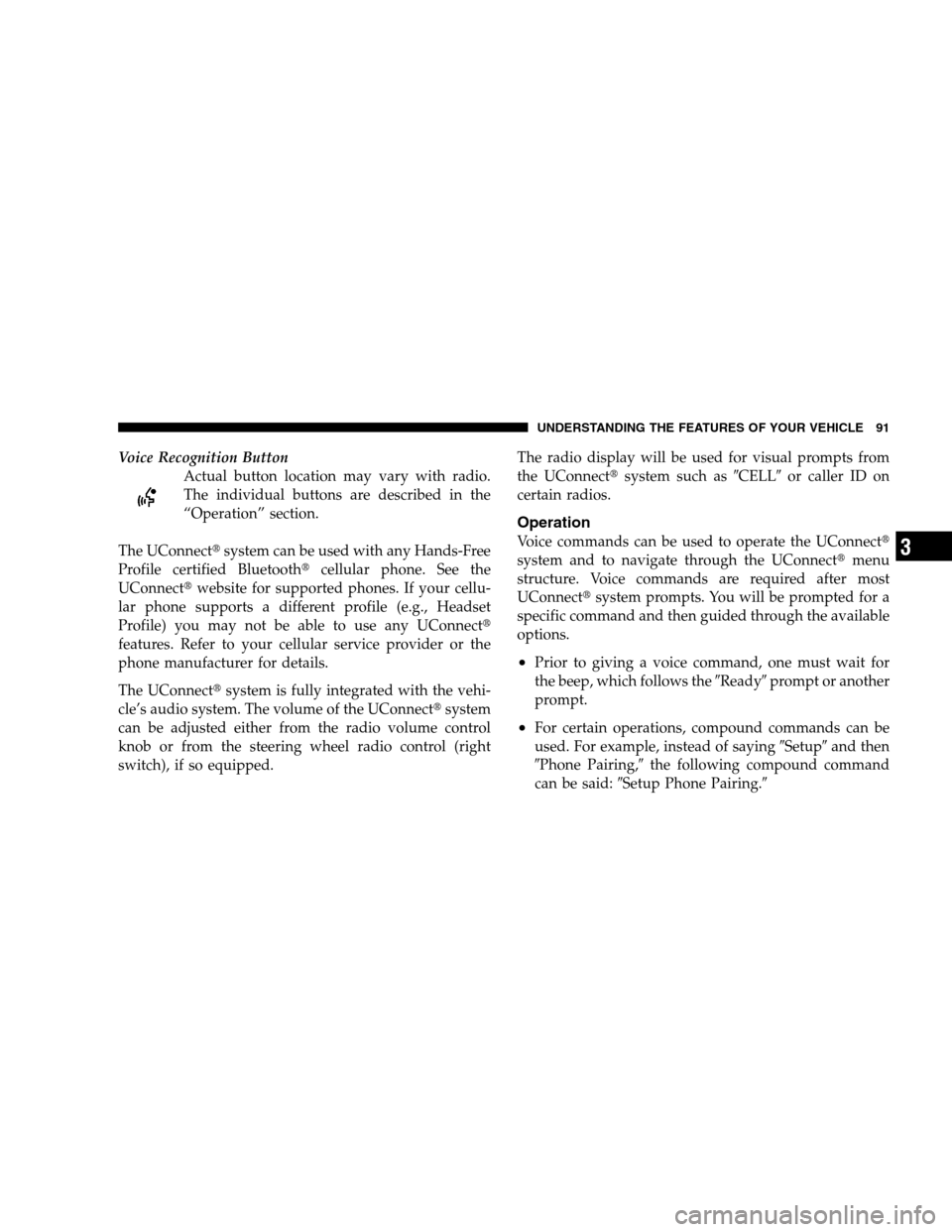

Voice Recognition Button
Actual button location may vary with radio.
The individual buttons are described in the
“Operation” section.
The UConnectsystem can be used with any Hands-Free
Profile certified Bluetoothcellular phone. See the
UConnectwebsite for supported phones. If your cellu-
lar phone supports a different profile (e.g., Headset
Profile) you may not be able to use any UConnect
features. Refer to your cellular service provider or the
phone manufacturer for details.
The UConnectsystem is fully integrated with the vehi-
cle’s audio system. The volume of the UConnectsystem
can be adjusted either from the radio volume control
knob or from the steering wheel radio control (right
switch), if so equipped.The radio display will be used for visual prompts from
the UConnectsystem such asCELLor caller ID on
certain radios.
Operation
Voice commands can be used to operate the UConnect
system and to navigate through the UConnectmenu
structure. Voice commands are required after most
UConnectsystem prompts. You will be prompted for a
specific command and then guided through the available
options.
•Prior to giving a voice command, one must wait for
the beep, which follows theReadyprompt or another
prompt.
•For certain operations, compound commands can be
used. For example, instead of sayingSetupand then
Phone Pairing,the following compound command
can be said:Setup Phone Pairing.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91
3

•For each feature explanation in this section, only the
combined form of the voice command is given. You
can also break the commands into parts and say each
part of the command when you are asked for it. For
example, you can use the combined form voice com-
mandPhonebook New Entry,or you can break the
combined form command into two voice commands:
PhonebookandNew Entry.Please remember, the
UConnectsystem works best when you talk in a
normal conversational tone, as if speaking to someone
sitting a few feet/meters away from you.
Voice Command Tree
Refer to “Voice Tree” in this section.
Help Command
If you need assistance at any prompt, or if you want to
know your options at any prompt, sayHelpfollowing
the beep. The UConnectsystem will play all the options
at any prompt if you ask for help.To activate the UConnectsystem from idle, simply press
the PHONE button and follow the audible prompts for
directions. All UConnectsystem sessions begin with a
press of the PHONE button on the radio control head.
Cancel Command
At any prompt, after the beep, you can sayCanceland
you will be returned to the main menu. However, in a
few instances the system will take you back to the
previous menu.
Pair (Link) UConnectSystem to a Cellular Phone
To begin using your UConnectsystem, you must pair
your compatible Bluetoothenabled cellular phone.
To complete the pairing process, you will need to refer-
ence your cellular phone Owner’s Manual. The
UConnectwebsite may also provide detailed instruc-
tions for pairing.
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

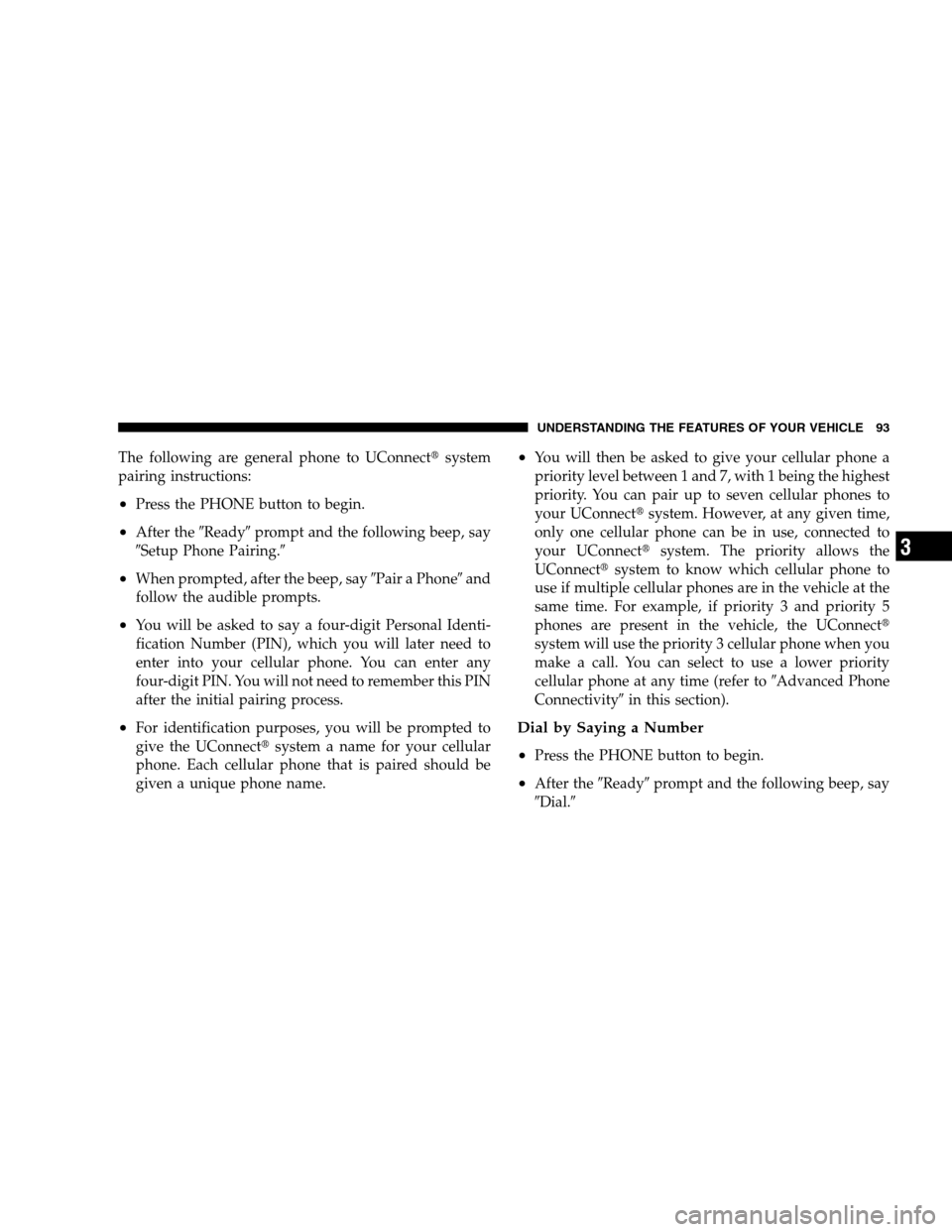

The following are general phone to UConnectsystem
pairing instructions:
•Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Setup Phone Pairing.
•When prompted, after the beep, sayPair a Phoneand
follow the audible prompts.
•You will be asked to say a four-digit Personal Identi-
fication Number (PIN), which you will later need to
enter into your cellular phone. You can enter any
four-digit PIN. You will not need to remember this PIN
after the initial pairing process.
•For identification purposes, you will be prompted to
give the UConnectsystem a name for your cellular
phone. Each cellular phone that is paired should be
given a unique phone name.
•You will then be asked to give your cellular phone a
priority level between 1 and 7, with 1 being the highest
priority. You can pair up to seven cellular phones to
your UConnectsystem. However, at any given time,
only one cellular phone can be in use, connected to
your UConnectsystem. The priority allows the
UConnectsystem to know which cellular phone to
use if multiple cellular phones are in the vehicle at the
same time. For example, if priority 3 and priority 5
phones are present in the vehicle, the UConnect
system will use the priority 3 cellular phone when you
make a call. You can select to use a lower priority
cellular phone at any time (refer toAdvanced Phone
Connectivityin this section).
Dial by Saying a Number
•
Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Dial.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93
3

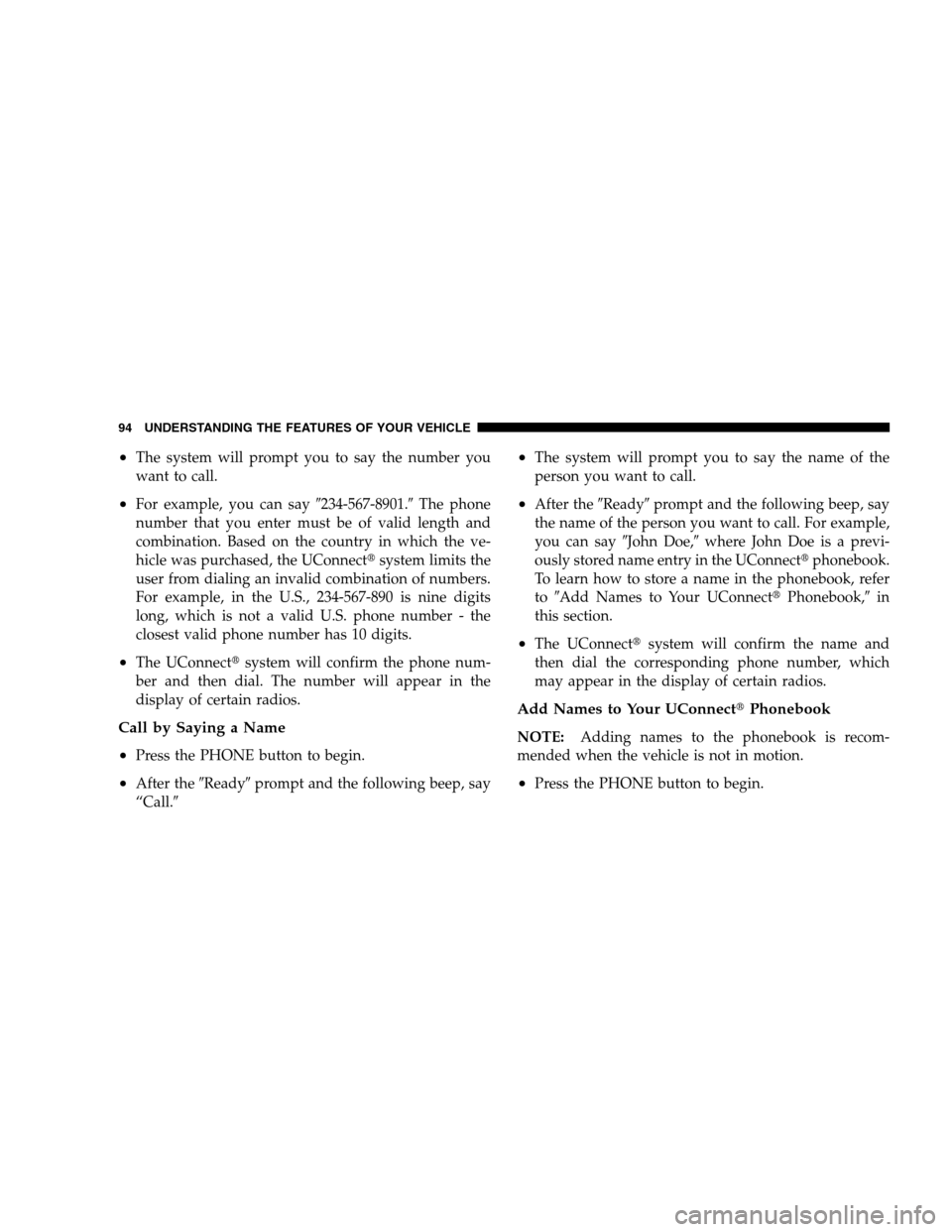

•The system will prompt you to say the number you
want to call.
•For example, you can say234-567-8901.The phone
number that you enter must be of valid length and
combination. Based on the country in which the ve-
hicle was purchased, the UConnectsystem limits the
user from dialing an invalid combination of numbers.
For example, in the U.S., 234-567-890 is nine digits
long, which is not a valid U.S. phone number - the
closest valid phone number has 10 digits.
•The UConnectsystem will confirm the phone num-
ber and then dial. The number will appear in the
display of certain radios.
Call by Saying a Name
•
Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
“Call.
•The system will prompt you to say the name of the
person you want to call.
•After theReadyprompt and the following beep, say
the name of the person you want to call. For example,
you can sayJohn Doe,where John Doe is a previ-
ously stored name entry in the UConnectphonebook.
To learn how to store a name in the phonebook, refer
toAdd Names to Your UConnectPhonebook,in
this section.
•The UConnectsystem will confirm the name and
then dial the corresponding phone number, which
may appear in the display of certain radios.
Add Names to Your UConnectPhonebook
NOTE:Adding names to the phonebook is recom-
mended when the vehicle is not in motion.
•Press the PHONE button to begin.
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

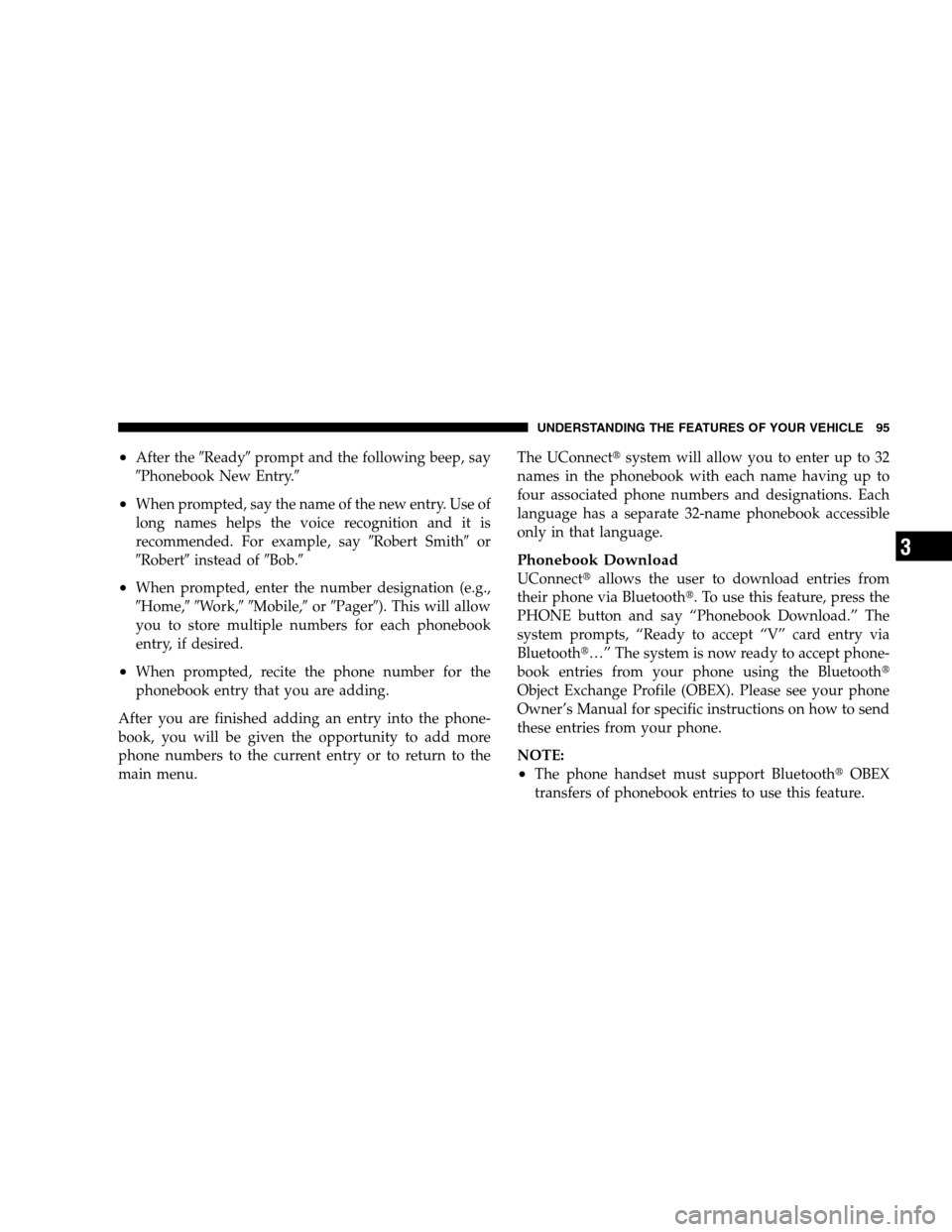

•After theReadyprompt and the following beep, say
Phonebook New Entry.
•When prompted, say the name of the new entry. Use of
long names helps the voice recognition and it is
recommended. For example, sayRobert Smithor
Robertinstead ofBob.
•When prompted, enter the number designation (e.g.,
Home,Work,Mobile,orPager). This will allow
you to store multiple numbers for each phonebook
entry, if desired.
•When prompted, recite the phone number for the
phonebook entry that you are adding.
After you are finished adding an entry into the phone-
book, you will be given the opportunity to add more
phone numbers to the current entry or to return to the
main menu.The UConnectsystem will allow you to enter up to 32
names in the phonebook with each name having up to
four associated phone numbers and designations. Each
language has a separate 32-name phonebook accessible
only in that language.
Phonebook Download
UConnectallows the user to download entries from
their phone via Bluetooth. To use this feature, press the
PHONE button and say “Phonebook Download.” The
system prompts, “Ready to accept “V” card entry via
Bluetooth…” The system is now ready to accept phone-
book entries from your phone using the Bluetooth
Object Exchange Profile (OBEX). Please see your phone
Owner’s Manual for specific instructions on how to send
these entries from your phone.
NOTE:
•The phone handset must support BluetoothOBEX
transfers of phonebook entries to use this feature.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95
3

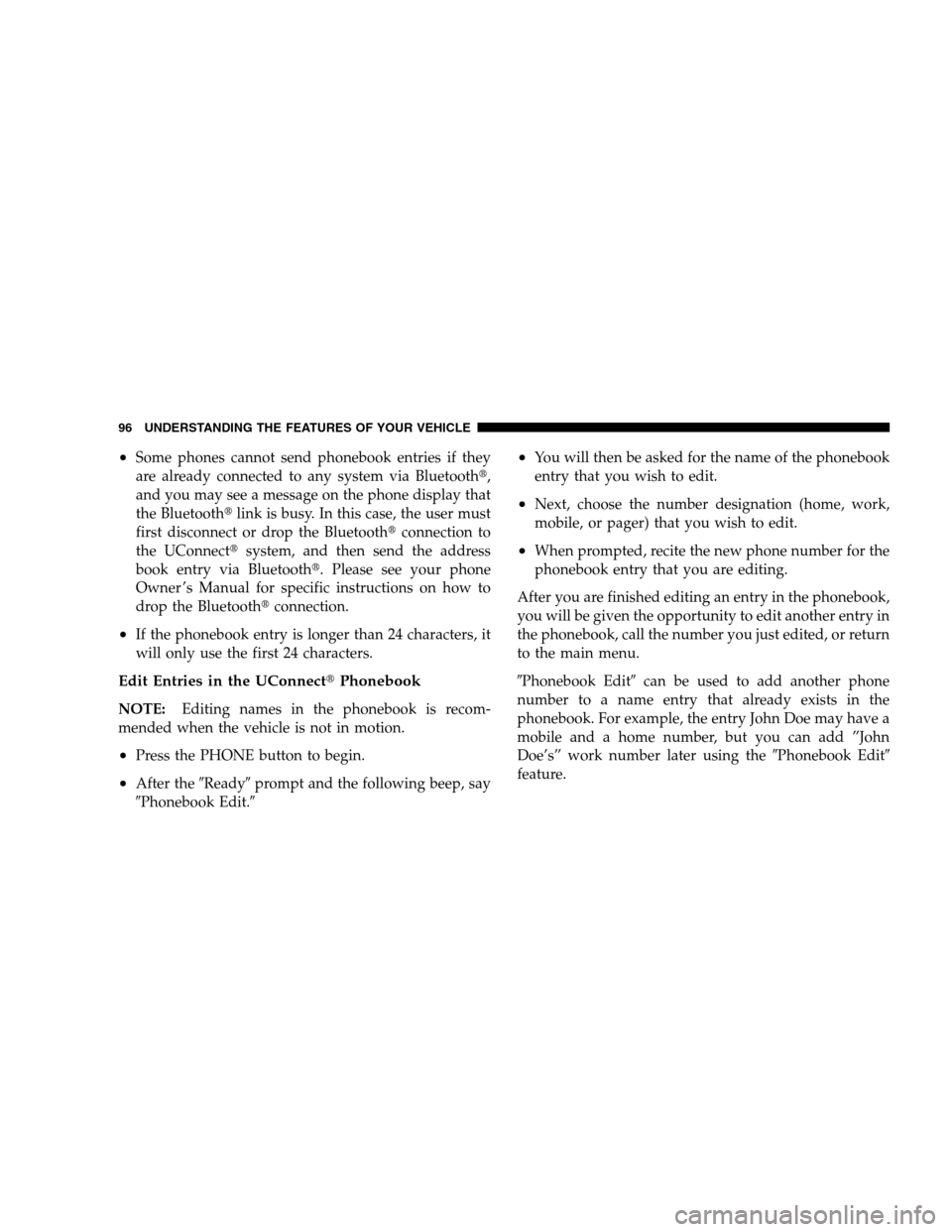

•Some phones cannot send phonebook entries if they
are already connected to any system via Bluetooth,
and you may see a message on the phone display that
the Bluetoothlink is busy. In this case, the user must
first disconnect or drop the Bluetoothconnection to
the UConnectsystem, and then send the address
book entry via Bluetooth. Please see your phone
Owner ’s Manual for specific instructions on how to
drop the Bluetoothconnection.
•If the phonebook entry is longer than 24 characters, it
will only use the first 24 characters.
Edit Entries in the UConnectPhonebook
NOTE:Editing names in the phonebook is recom-
mended when the vehicle is not in motion.
•Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Phonebook Edit.
•You will then be asked for the name of the phonebook
entry that you wish to edit.
•Next, choose the number designation (home, work,
mobile, or pager) that you wish to edit.
•When prompted, recite the new phone number for the
phonebook entry that you are editing.
After you are finished editing an entry in the phonebook,
you will be given the opportunity to edit another entry in
the phonebook, call the number you just edited, or return
to the main menu.
Phonebook Editcan be used to add another phone
number to a name entry that already exists in the
phonebook. For example, the entry John Doe may have a
mobile and a home number, but you can add ”John
Doe’s” work number later using thePhonebook Edit
feature.
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

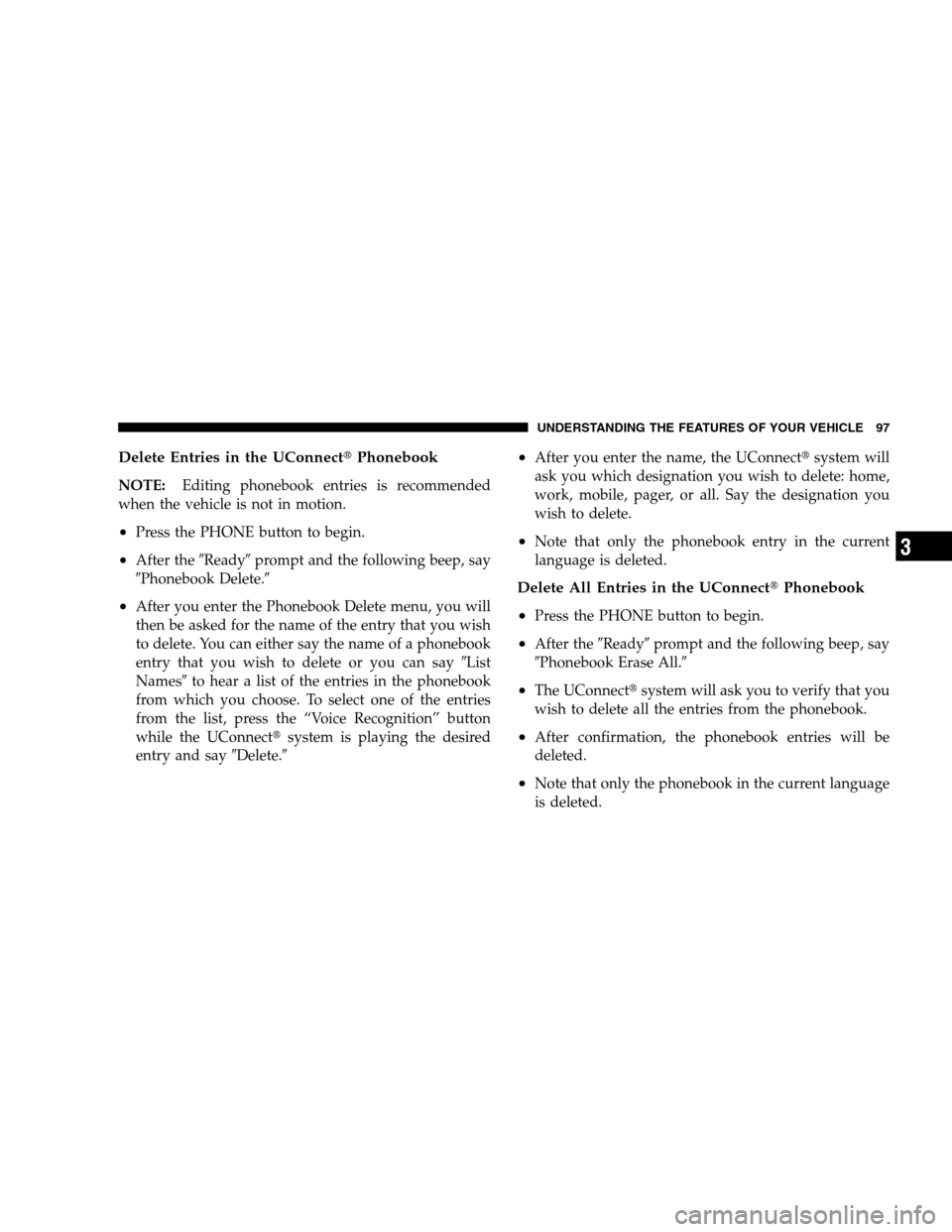

Delete Entries in the UConnectPhonebook
NOTE:Editing phonebook entries is recommended
when the vehicle is not in motion.
•Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Phonebook Delete.
•After you enter the Phonebook Delete menu, you will
then be asked for the name of the entry that you wish
to delete. You can either say the name of a phonebook
entry that you wish to delete or you can sayList
Namesto hear a list of the entries in the phonebook
from which you choose. To select one of the entries
from the list, press the “Voice Recognition” button
while the UConnectsystem is playing the desired
entry and sayDelete.
•After you enter the name, the UConnectsystem will
ask you which designation you wish to delete: home,
work, mobile, pager, or all. Say the designation you
wish to delete.
•Note that only the phonebook entry in the current
language is deleted.
Delete All Entries in the UConnectPhonebook
•
Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Phonebook Erase All.
•The UConnectsystem will ask you to verify that you
wish to delete all the entries from the phonebook.
•After confirmation, the phonebook entries will be
deleted.
•Note that only the phonebook in the current language
is deleted.
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97
3

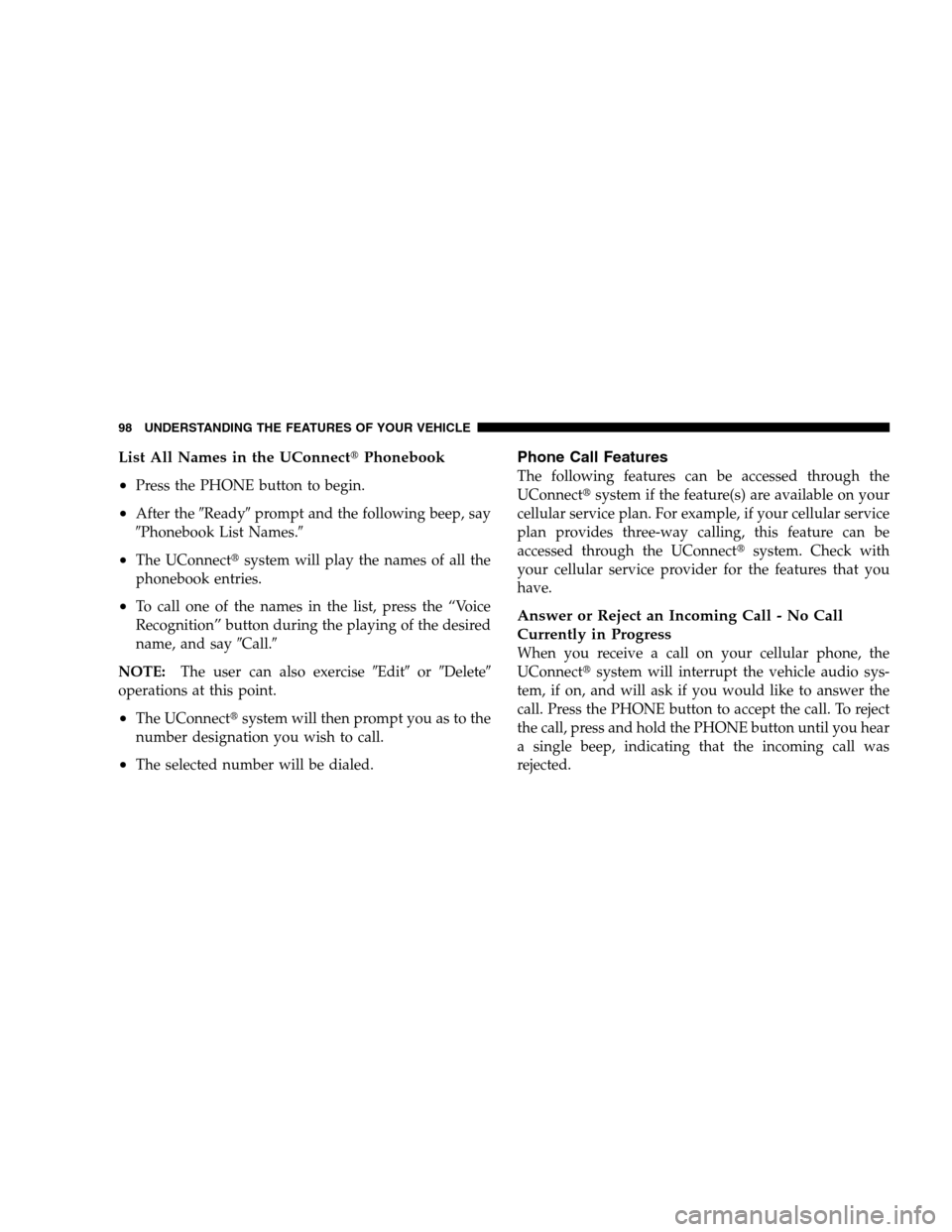

List All Names in the UConnectPhonebook
•
Press the PHONE button to begin.
•After theReadyprompt and the following beep, say
Phonebook List Names.
•The UConnectsystem will play the names of all the
phonebook entries.
•To call one of the names in the list, press the “Voice
Recognition” button during the playing of the desired
name, and sayCall.
NOTE:The user can also exerciseEditorDelete
operations at this point.
•The UConnectsystem will then prompt you as to the
number designation you wish to call.
•The selected number will be dialed.
Phone Call Features
The following features can be accessed through the
UConnectsystem if the feature(s) are available on your
cellular service plan. For example, if your cellular service
plan provides three-way calling, this feature can be
accessed through the UConnectsystem. Check with
your cellular service provider for the features that you
have.
Answer or Reject an Incoming Call - No Call
Currently in Progress
When you receive a call on your cellular phone, the
UConnectsystem will interrupt the vehicle audio sys-
tem, if on, and will ask if you would like to answer the
call. Press the PHONE button to accept the call. To reject
the call, press and hold the PHONE button until you hear
a single beep, indicating that the incoming call was
rejected.
98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE
