CHRYSLER SEBRING SEDAN 2008 3.G User Guide
Manufacturer: CHRYSLER, Model Year: 2008, Model line: SEBRING SEDAN, Model: CHRYSLER SEBRING SEDAN 2008 3.GPages: 494
Page 11 of 494

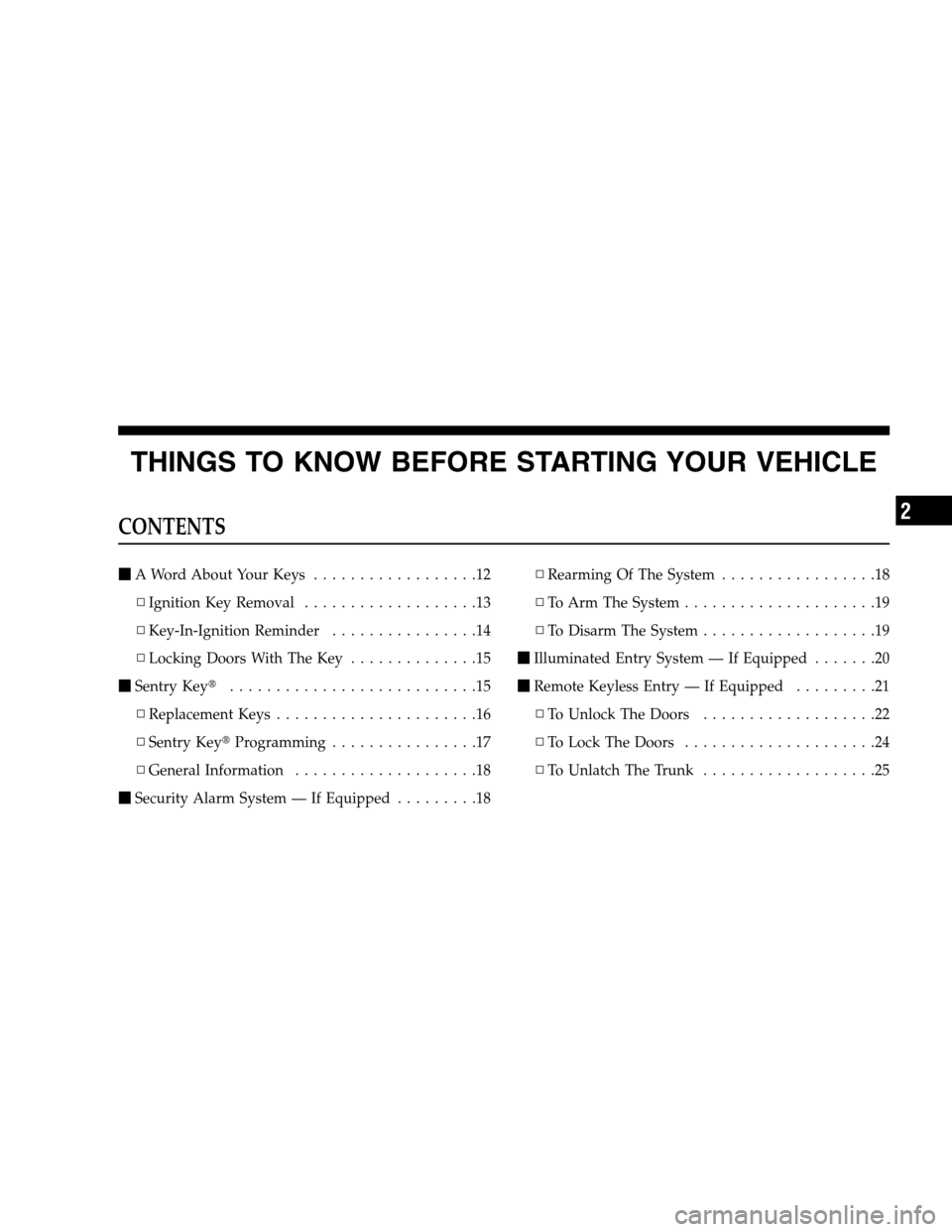

THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
CONTENTS
A Word About Your Keys..................12
▫Ignition Key Removal...................13
▫Key-In-Ignition Reminder................14
▫Locking Doors With The Key..............15
Sentry Key...........................15
▫Replacement Keys......................16
▫Sentry KeyProgramming................17
▫General Information....................18
Security Alarm System — If Equipped.........18▫Rearming Of The System.................18
▫To Arm The System.....................19
▫To Disarm The System...................19
Illuminated Entry System — If Equipped.......20
Remote Keyless Entry — If Equipped.........21
▫To Unlock The Doors...................22
▫To Lock The Doors.....................24
▫ToUnlatchTheTrunk ...................25
2
Page 12 of 494

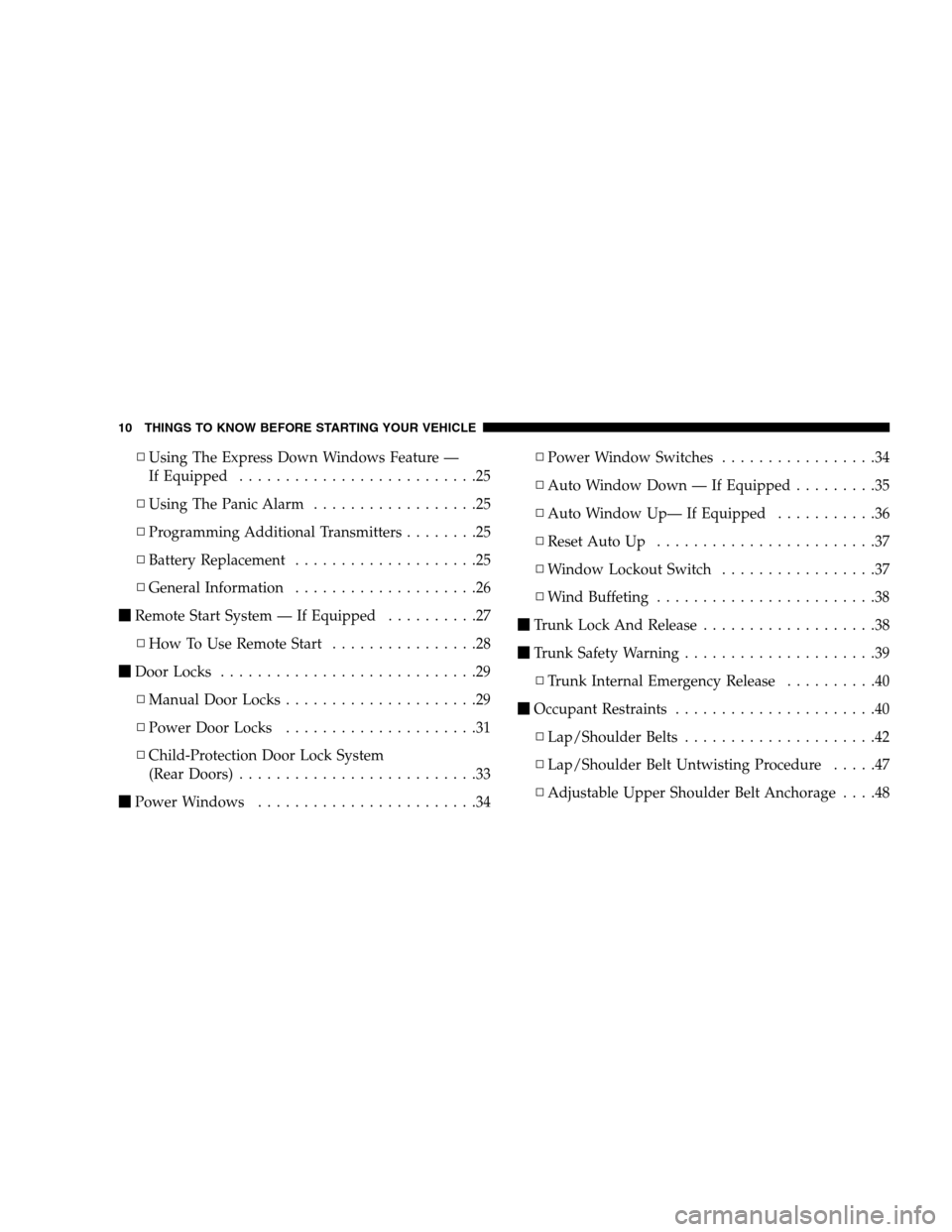

▫Using The Express Down Windows Feature —
If Equipped..........................25
▫Using The Panic Alarm..................25
▫Programming Additional Transmitters........25
▫Battery Replacement....................25
▫General Information....................26
Remote Start System — If Equipped..........27
▫How To Use Remote Start................28
Door Locks............................29
▫Manual Door Locks.....................29
▫Power Door Locks.....................31
▫Child-Protection Door Lock System
(Rear Doors)..........................33
Power Windows........................34▫Power Window Switches.................34
▫Auto Window Down — If Equipped.........35
▫Auto Window Up— If Equipped...........36
▫Reset Auto Up........................37
▫Window Lockout Switch.................37
▫Wind Buffeting........................38
Trunk Lock And Release...................38
Trunk Safety Warning.....................39
▫Trunk Internal Emergency Release..........40
Occupant Restraints......................40
▫Lap/Shoulder Belts.....................42
▫Lap/Shoulder Belt Untwisting Procedure.....47
▫Adjustable Upper Shoulder Belt Anchorage....48
10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 13 of 494

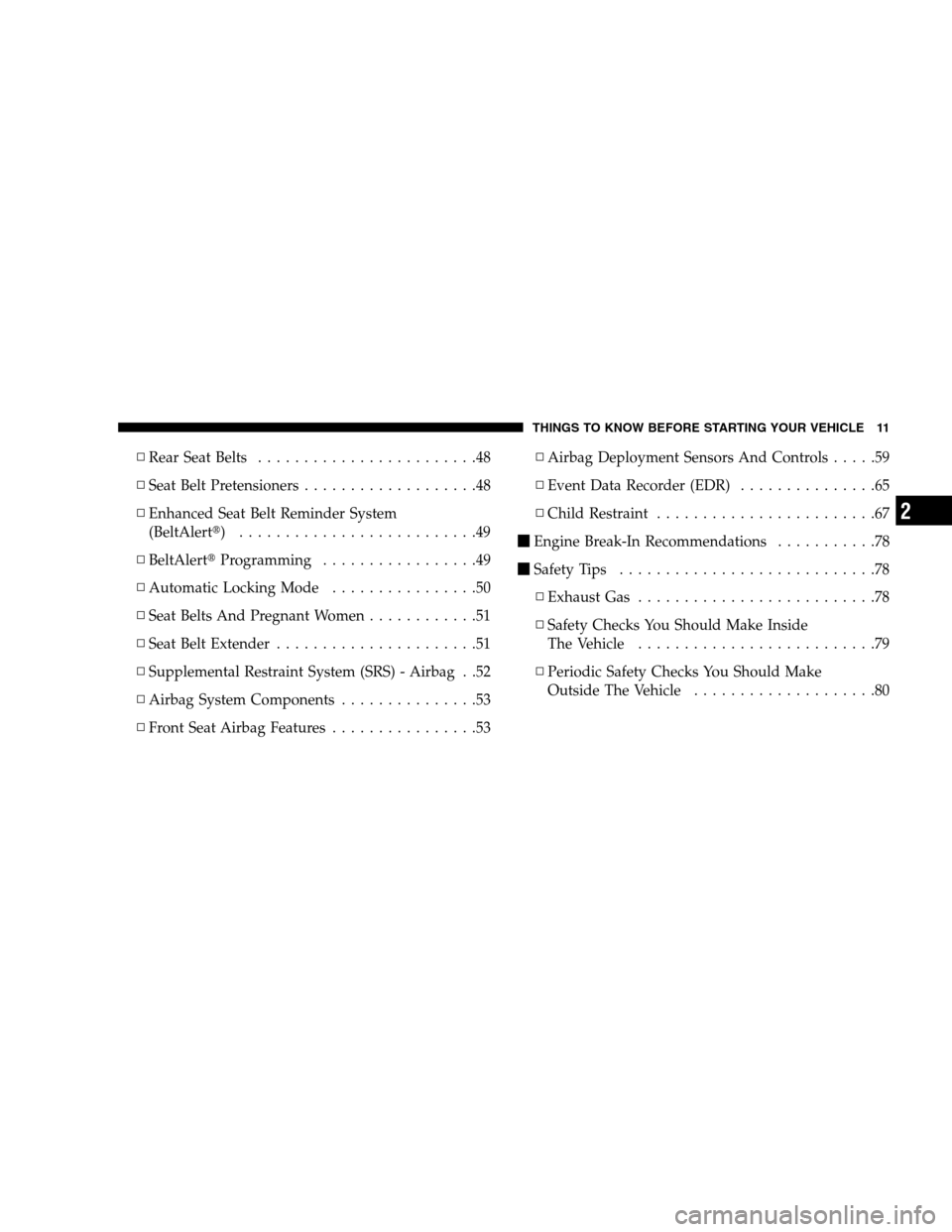

▫Rear Seat Belts........................48
▫Seat Belt Pretensioners...................48
▫Enhanced Seat Belt Reminder System
(BeltAlert) ..........................49
▫BeltAlertProgramming.................49
▫Automatic Locking Mode................50
▫Seat Belts And Pregnant Women............51
▫Seat Belt Extender......................51
▫Supplemental Restraint System (SRS) - Airbag . .52
▫Airbag System Components...............53
▫Front Seat Airbag Features................53▫Airbag Deployment Sensors And Controls.....59
▫Event Data Recorder (EDR)...............65
▫Child Restraint........................67
Engine Break-In Recommendations...........78
SafetyTips ............................78
▫Exhaust Gas..........................78
▫Safety Checks You Should Make Inside
TheVehicle ..........................79
▫Periodic Safety Checks You Should Make
Outside The Vehicle....................80
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11
2
Page 14 of 494

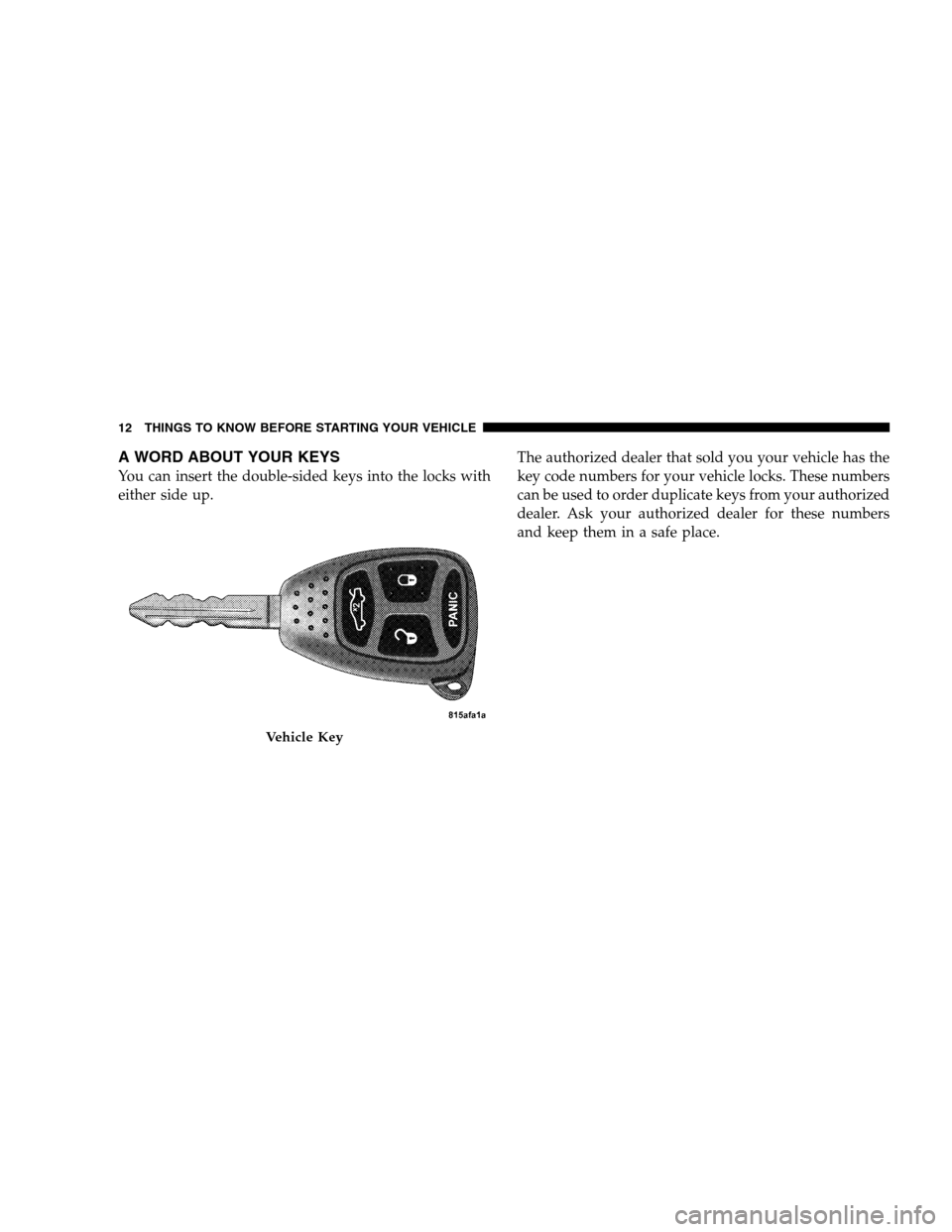

A WORD ABOUT YOUR KEYS
You can insert the double-sided keys into the locks with
either side up.The authorized dealer that sold you your vehicle has the
key code numbers for your vehicle locks. These numbers
can be used to order duplicate keys from your authorized
dealer. Ask your authorized dealer for these numbers
and keep them in a safe place.
Vehicle Key
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 15 of 494

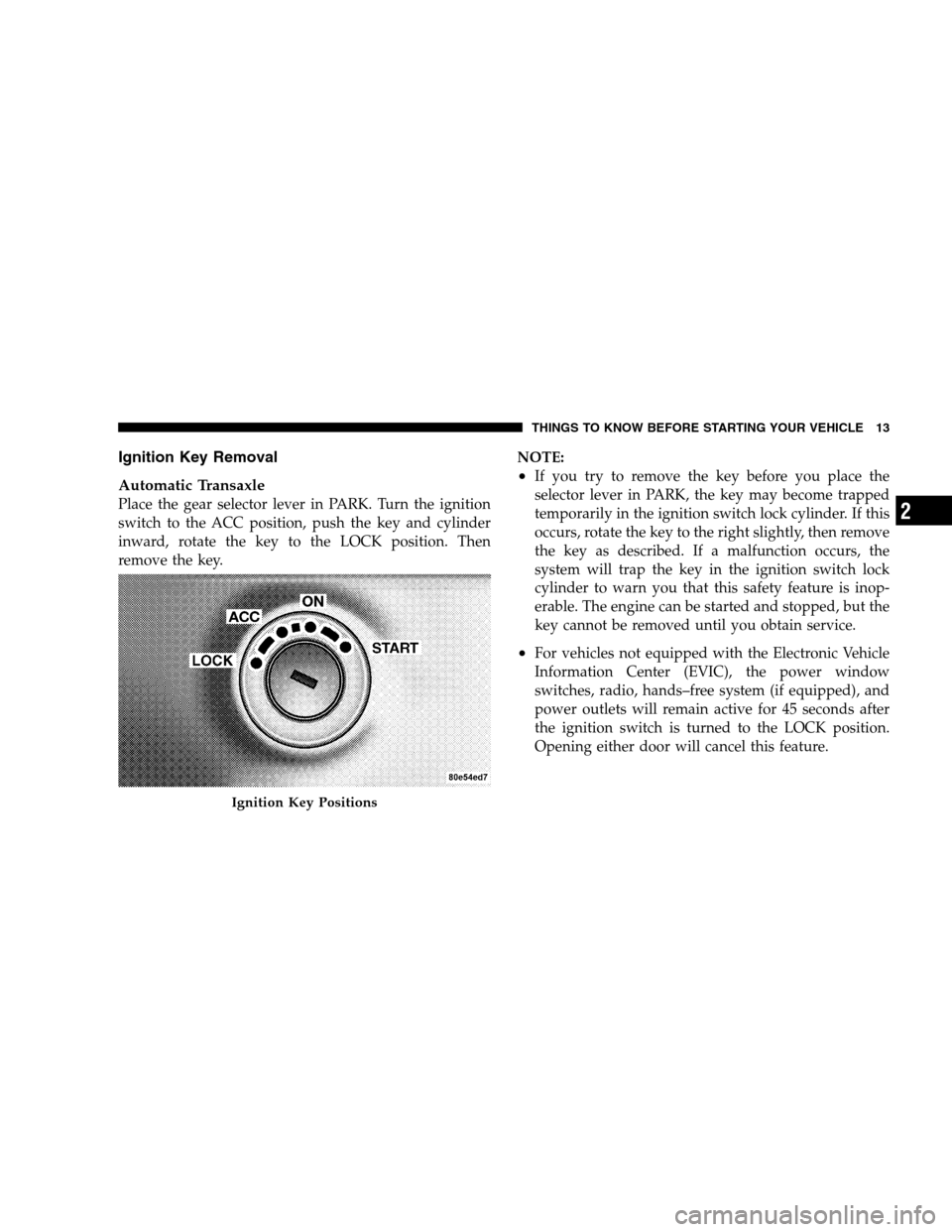

Ignition Key Removal
Automatic Transaxle
Place the gear selector lever in PARK. Turn the ignition
switch to the ACC position, push the key and cylinder
inward, rotate the key to the LOCK position. Then
remove the key.NOTE:
•If you try to remove the key before you place the
selector lever in PARK, the key may become trapped
temporarily in the ignition switch lock cylinder. If this
occurs, rotate the key to the right slightly, then remove
the key as described. If a malfunction occurs, the
system will trap the key in the ignition switch lock
cylinder to warn you that this safety feature is inop-
erable. The engine can be started and stopped, but the
key cannot be removed until you obtain service.
•For vehicles not equipped with the Electronic Vehicle
Information Center (EVIC), the power window
switches, radio, hands–free system (if equipped), and
power outlets will remain active for 45 seconds after
the ignition switch is turned to the LOCK position.
Opening either door will cancel this feature.
Ignition Key Positions
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13
2
Page 16 of 494

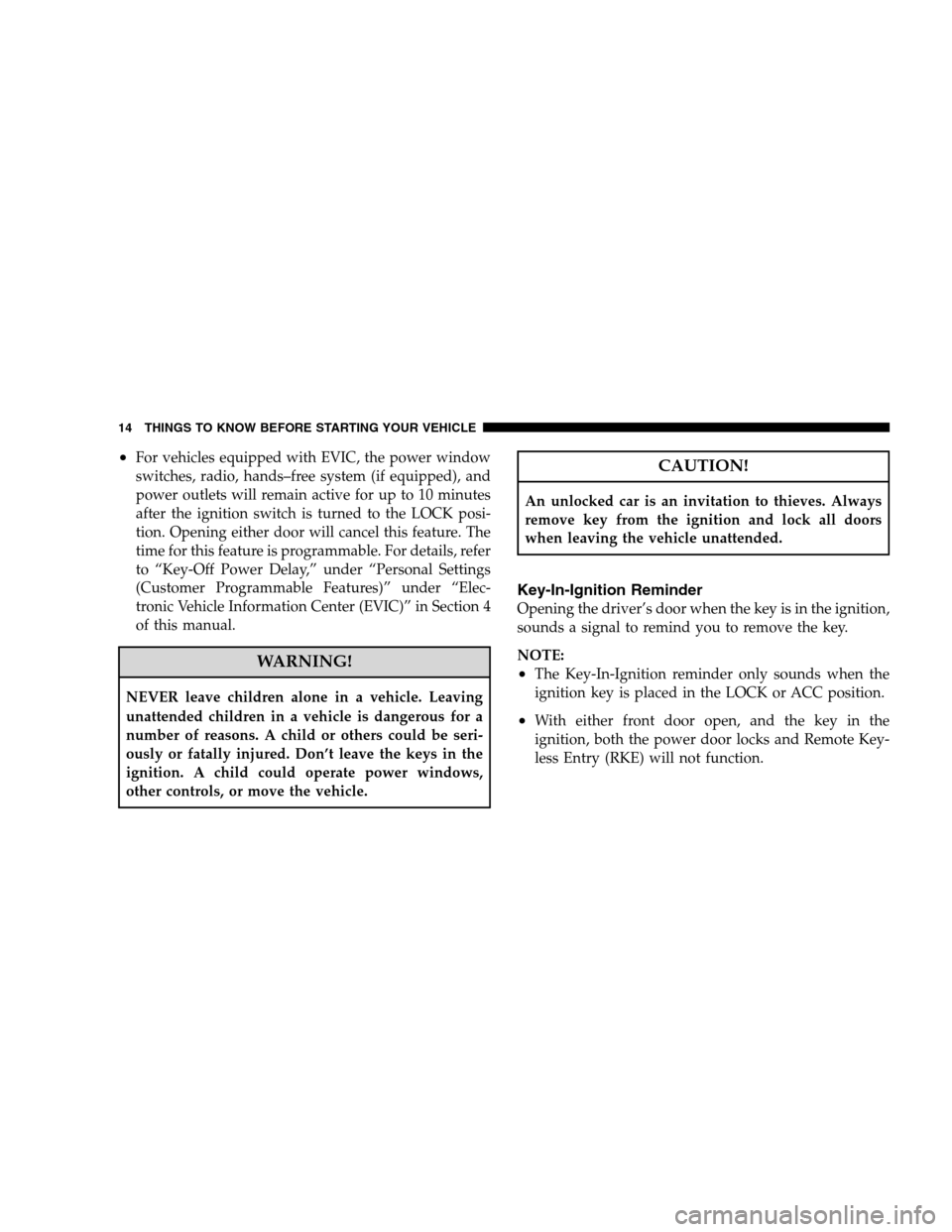

•For vehicles equipped with EVIC, the power window
switches, radio, hands–free system (if equipped), and
power outlets will remain active for up to 10 minutes
after the ignition switch is turned to the LOCK posi-
tion. Opening either door will cancel this feature. The
time for this feature is programmable. For details, refer
to “Key-Off Power Delay,” under “Personal Settings
(Customer Programmable Features)” under “Elec-
tronic Vehicle Information Center (EVIC)” in Section 4
of this manual.
WARNING!
NEVER leave children alone in a vehicle. Leaving
unattended children in a vehicle is dangerous for a
number of reasons. A child or others could be seri-
ously or fatally injured. Don’t leave the keys in the
ignition. A child could operate power windows,
other controls, or move the vehicle.
CAUTION!
An unlocked car is an invitation to thieves. Always
remove key from the ignition and lock all doors
when leaving the vehicle unattended.
Key-In-Ignition Reminder
Opening the driver’s door when the key is in the ignition,
sounds a signal to remind you to remove the key.
NOTE:
•The Key-In-Ignition reminder only sounds when the
ignition key is placed in the LOCK or ACC position.
•With either front door open, and the key in the
ignition, both the power door locks and Remote Key-
less Entry (RKE) will not function.
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 17 of 494

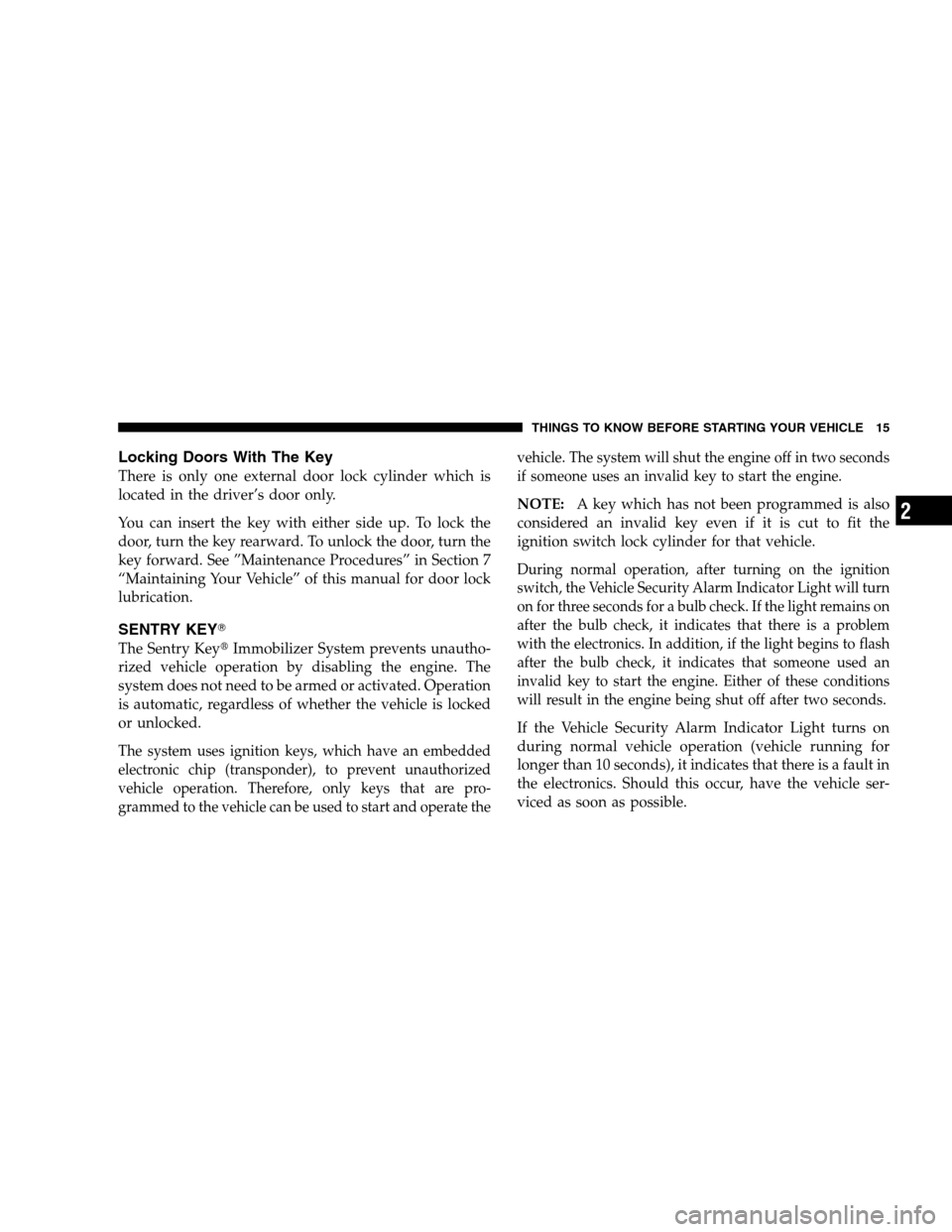

Locking Doors With The Key
There is only one external door lock cylinder which is
located in the driver’s door only.
You can insert the key with either side up. To lock the
door, turn the key rearward. To unlock the door, turn the
key forward. See ”Maintenance Procedures” in Section 7
“Maintaining Your Vehicle” of this manual for door lock
lubrication.
SENTRY KEY
The Sentry KeyImmobilizer System prevents unautho-
rized vehicle operation by disabling the engine. The
system does not need to be armed or activated. Operation
is automatic, regardless of whether the vehicle is locked
or unlocked.
The system uses ignition keys, which have an embedded
electronic chip (transponder), to prevent unauthorized
vehicle operation. Therefore, only keys that are pro-
grammed to the vehicle can be used to start and operate thevehicle. The system will shut the engine off in two seconds
if someone uses an invalid key to start the engine.
NOTE:A key which has not been programmed is also
considered an invalid key even if it is cut to fit the
ignition switch lock cylinder for that vehicle.
During normal operation, after turning on the ignition
switch, the Vehicle Security Alarm Indicator Light will turn
on for three seconds for a bulb check. If the light remains on
after the bulb check, it indicates that there is a problem
with the electronics. In addition, if the light begins to flash
after the bulb check, it indicates that someone used an
invalid key to start the engine. Either of these conditions
will result in the engine being shut off after two seconds.
If the Vehicle Security Alarm Indicator Light turns on
during normal vehicle operation (vehicle running for
longer than 10 seconds), it indicates that there is a fault in
the electronics. Should this occur, have the vehicle ser-
viced as soon as possible.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15
2
Page 18 of 494

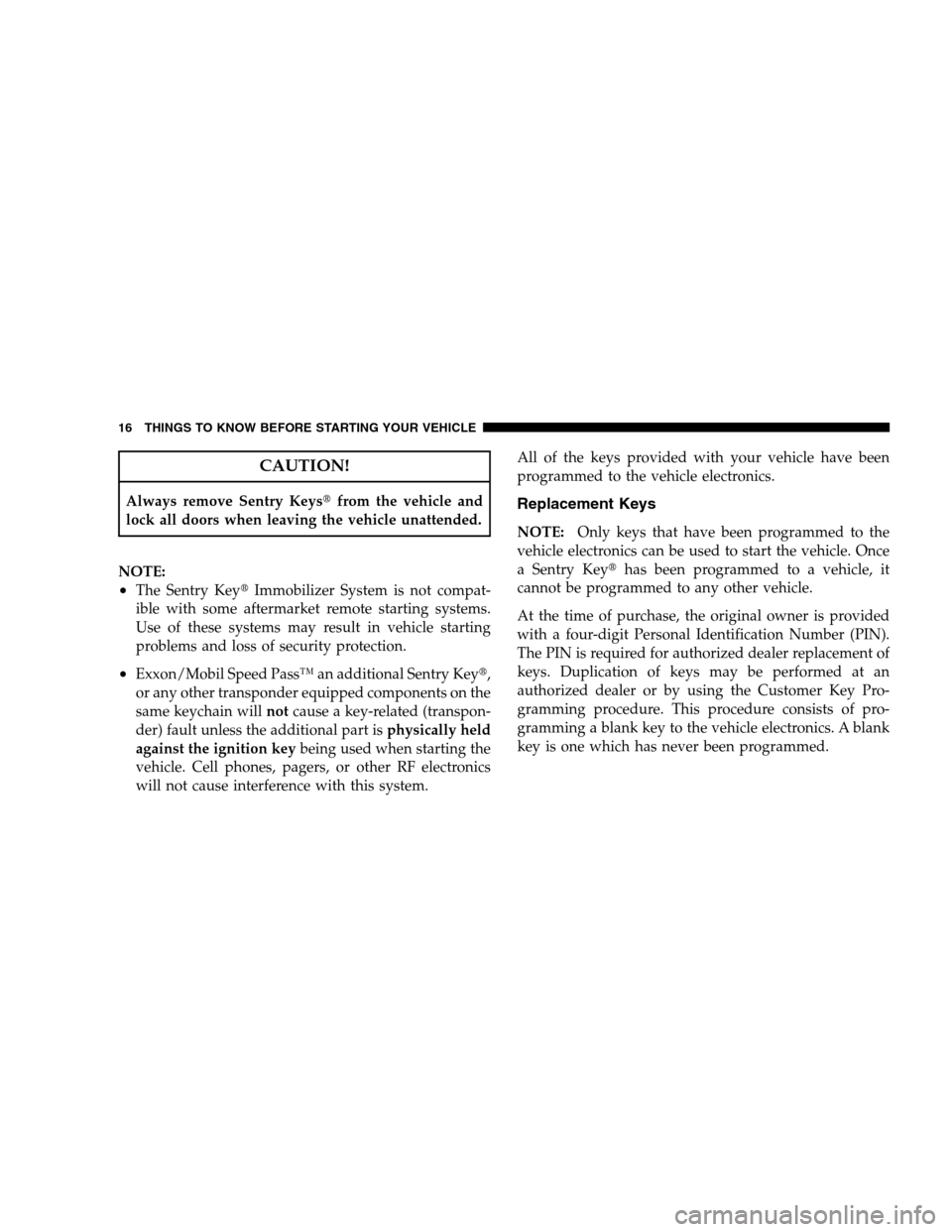

CAUTION!
Always remove Sentry Keysfrom the vehicle and
lock all doors when leaving the vehicle unattended.
NOTE:
•The Sentry KeyImmobilizer System is not compat-
ible with some aftermarket remote starting systems.
Use of these systems may result in vehicle starting
problems and loss of security protection.
•Exxon/Mobil Speed Pass™ an additional Sentry Key,
or any other transponder equipped components on the
same keychain willnotcause a key-related (transpon-
der) fault unless the additional part isphysically held
against the ignition keybeing used when starting the
vehicle. Cell phones, pagers, or other RF electronics
will not cause interference with this system.All of the keys provided with your vehicle have been
programmed to the vehicle electronics.
Replacement Keys
NOTE:Only keys that have been programmed to the
vehicle electronics can be used to start the vehicle. Once
a Sentry Keyhas been programmed to a vehicle, it
cannot be programmed to any other vehicle.
At the time of purchase, the original owner is provided
with a four-digit Personal Identification Number (PIN).
The PIN is required for authorized dealer replacement of
keys. Duplication of keys may be performed at an
authorized dealer or by using the Customer Key Pro-
gramming procedure. This procedure consists of pro-
gramming a blank key to the vehicle electronics. A blank
key is one which has never been programmed.
16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 19 of 494

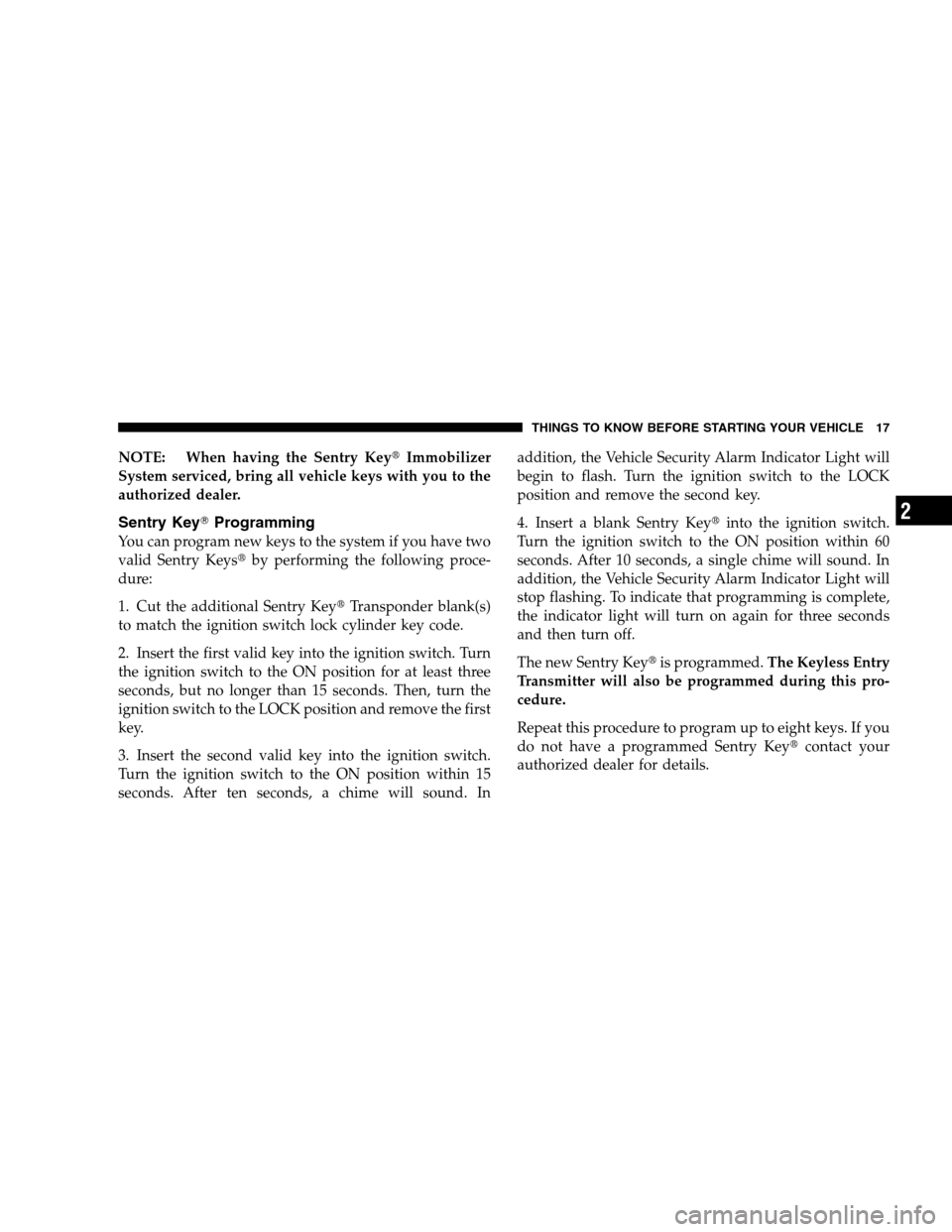

NOTE: When having the Sentry KeyImmobilizer
System serviced, bring all vehicle keys with you to the
authorized dealer.
Sentry KeyProgramming
You can program new keys to the system if you have two
valid Sentry Keysby performing the following proce-
dure:
1. Cut the additional Sentry KeyTransponder blank(s)
to match the ignition switch lock cylinder key code.
2. Insert the first valid key into the ignition switch. Turn
the ignition switch to the ON position for at least three
seconds, but no longer than 15 seconds. Then, turn the
ignition switch to the LOCK position and remove the first
key.
3. Insert the second valid key into the ignition switch.
Turn the ignition switch to the ON position within 15
seconds. After ten seconds, a chime will sound. Inaddition, the Vehicle Security Alarm Indicator Light will
begin to flash. Turn the ignition switch to the LOCK
position and remove the second key.
4. Insert a blank Sentry Keyinto the ignition switch.
Turn the ignition switch to the ON position within 60
seconds. After 10 seconds, a single chime will sound. In
addition, the Vehicle Security Alarm Indicator Light will
stop flashing. To indicate that programming is complete,
the indicator light will turn on again for three seconds
and then turn off.
The new Sentry Keyis programmed.The Keyless Entry
Transmitter will also be programmed during this pro-
cedure.
Repeat this procedure to program up to eight keys. If you
do not have a programmed Sentry Keycontact your
authorized dealer for details.
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17
2
Page 20 of 494

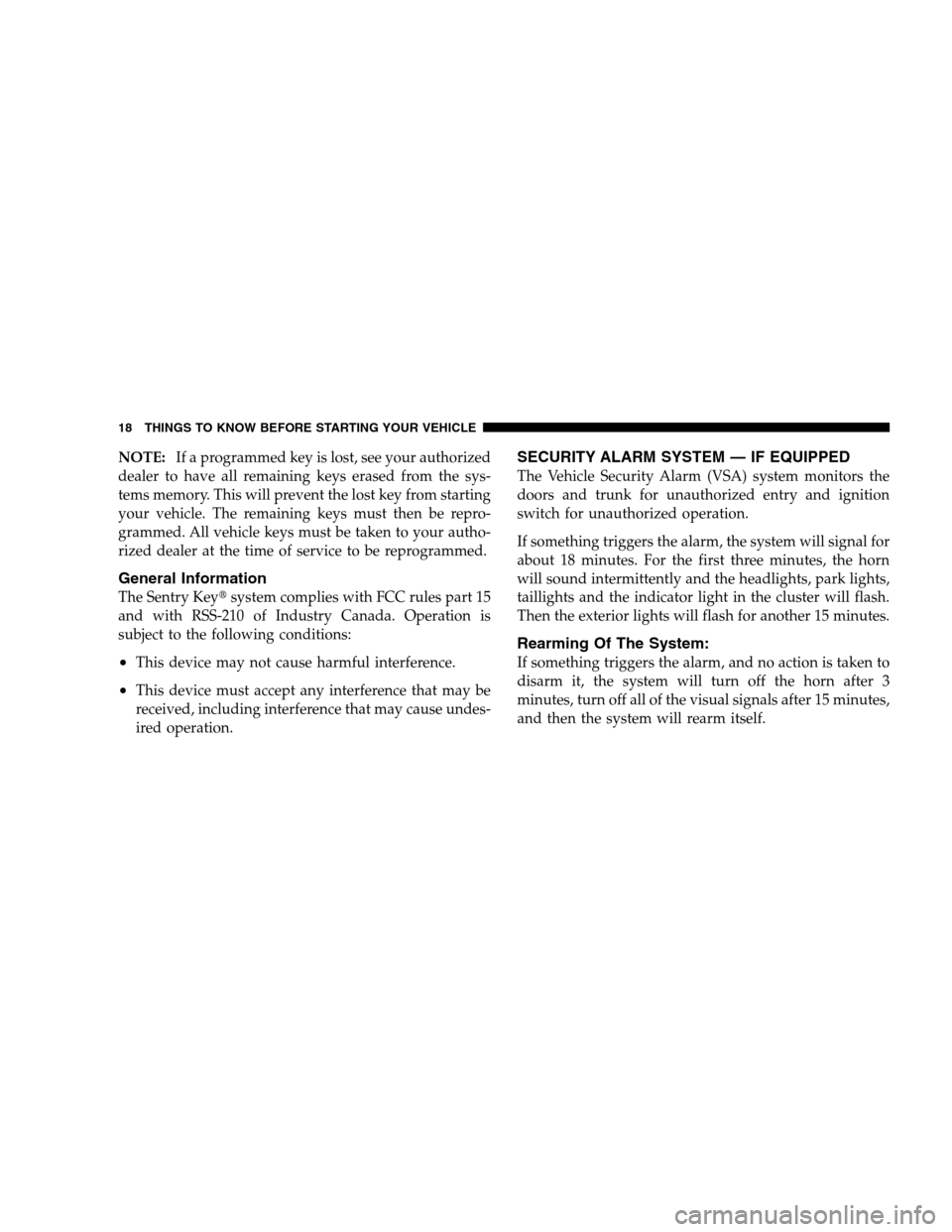

NOTE:If a programmed key is lost, see your authorized
dealer to have all remaining keys erased from the sys-
tems memory. This will prevent the lost key from starting
your vehicle. The remaining keys must then be repro-
grammed. All vehicle keys must be taken to your autho-
rized dealer at the time of service to be reprogrammed.
General Information
The Sentry Keysystem complies with FCC rules part 15
and with RSS-210 of Industry Canada. Operation is
subject to the following conditions:
•This device may not cause harmful interference.
•This device must accept any interference that may be
received, including interference that may cause undes-
ired operation.
SECURITY ALARM SYSTEM — IF EQUIPPED
The Vehicle Security Alarm (VSA) system monitors the
doors and trunk for unauthorized entry and ignition
switch for unauthorized operation.
If something triggers the alarm, the system will signal for
about 18 minutes. For the first three minutes, the horn
will sound intermittently and the headlights, park lights,
taillights and the indicator light in the cluster will flash.
Then the exterior lights will flash for another 15 minutes.
Rearming Of The System:
If something triggers the alarm, and no action is taken to
disarm it, the system will turn off the horn after 3
minutes, turn off all of the visual signals after 15 minutes,
and then the system will rearm itself.
18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
