CHRYSLER TOWN AND COUNTRY 2002 Service Manual

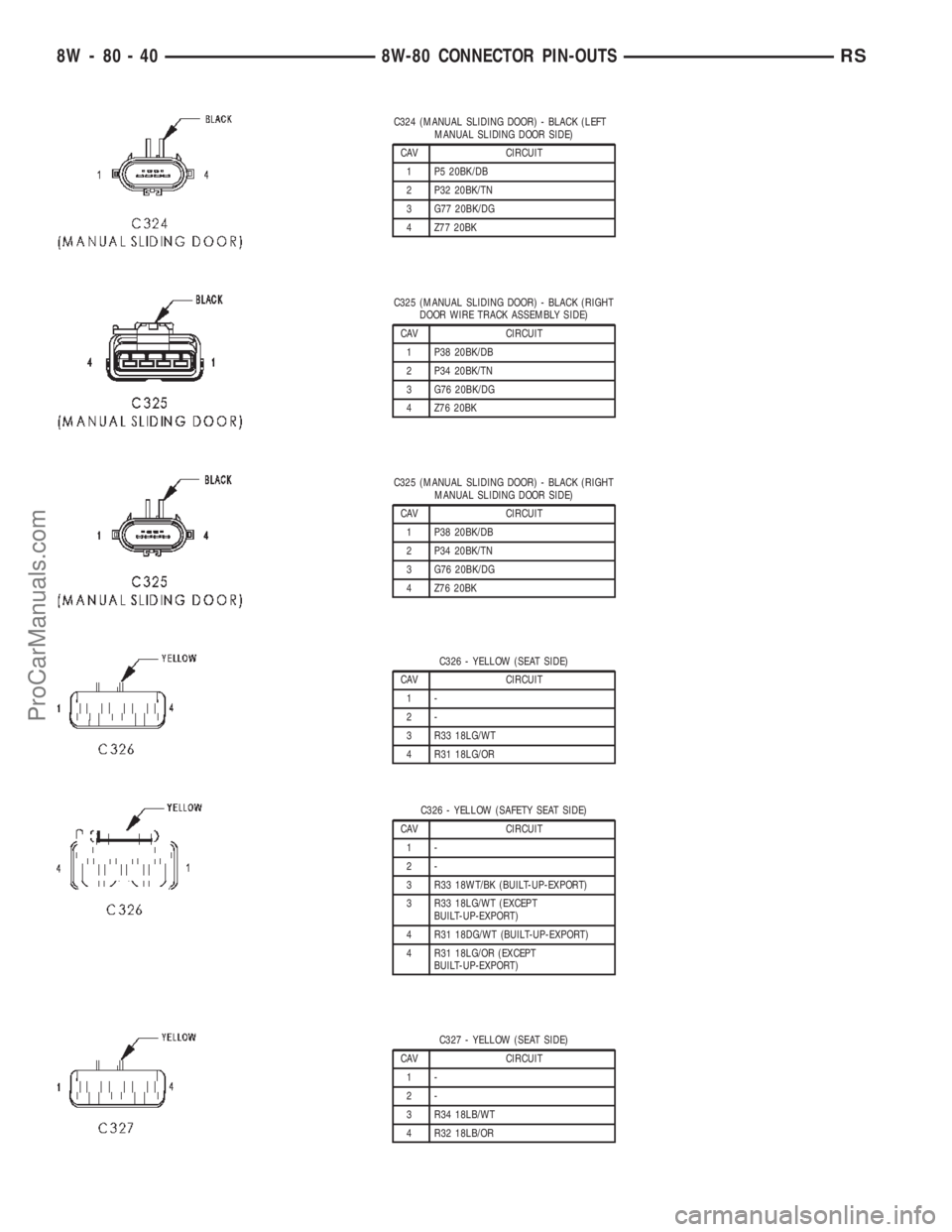

C324 (MANUAL SLIDING DOOR) - BLACK (LEFT
MANUAL SLIDING DOOR SIDE)
CAV CIRCUIT
1 P5 20BK/DB
2 P32 20BK/TN
3 G77 20BK/DG
4 Z77 20BK
C325 (MANUAL SLIDING DOOR) - BLACK (RIGHT
DOOR WIRE TRACK ASSEMBLY SIDE)
CAV CIRCUIT
1 P38 20BK/DB
2 P34 20BK/TN
3 G76 20BK/DG
4 Z76 20BK
C325 (MANUAL SLIDING DOOR) - BLACK (RIGHT
MANUAL SLIDING DOOR SIDE)
CAV CIRCUIT
1 P38 20BK/DB
2 P34 20BK/TN
3 G76 20BK/DG
4 Z76 20BK
C326 - YELLOW (SEAT SIDE)
CAV CIRCUIT
1-
2-
3 R33 18LG/WT
4 R31 18LG/OR
C326 - YELLOW (SAFETY SEAT SIDE)
CAV CIRCUIT
1-
2-
3 R33 18WT/BK (BUILT-UP-EXPORT)
3 R33 18LG/WT (EXCEPT
BUILT-UP-EXPORT)
4 R31 18DG/WT (BUILT-UP-EXPORT)
4 R31 18LG/OR (EXCEPT
BUILT-UP-EXPORT)
C327 - YELLOW (SEAT SIDE)
CAV CIRCUIT
1-
2-
3 R34 18LB/WT
4 R32 18LB/OR
8W - 80 - 40 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com

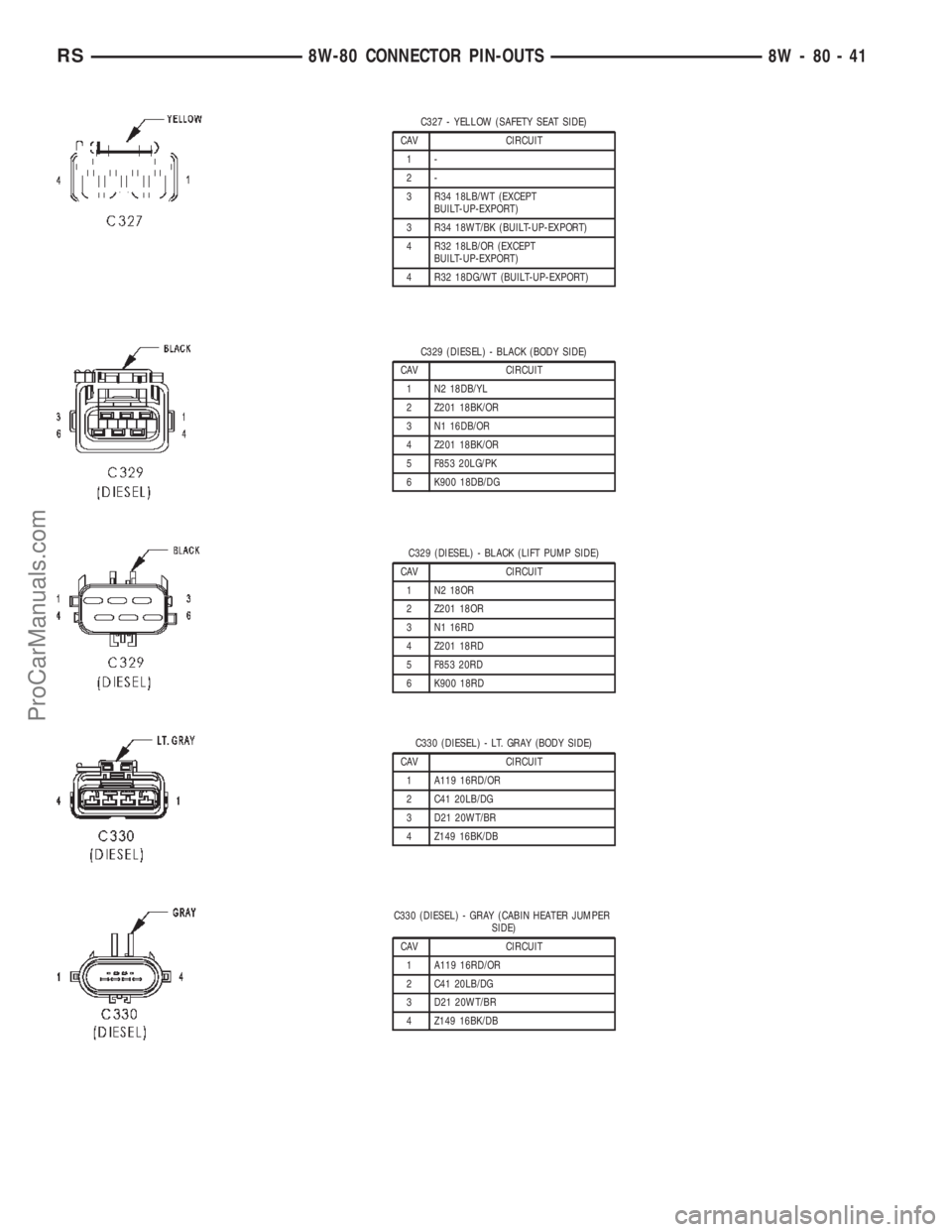

C327 - YELLOW (SAFETY SEAT SIDE)
CAV CIRCUIT
1-
2-
3 R34 18LB/WT (EXCEPT
BUILT-UP-EXPORT)
3 R34 18WT/BK (BUILT-UP-EXPORT)
4 R32 18LB/OR (EXCEPT
BUILT-UP-EXPORT)
4 R32 18DG/WT (BUILT-UP-EXPORT)
C329 (DIESEL) - BLACK (BODY SIDE)
CAV CIRCUIT
1 N2 18DB/YL
2 Z201 18BK/OR
3 N1 16DB/OR
4 Z201 18BK/OR
5 F853 20LG/PK
6 K900 18DB/DG
C329 (DIESEL) - BLACK (LIFT PUMP SIDE)
CAV CIRCUIT
1 N2 18OR
2 Z201 18OR
3 N1 16RD
4 Z201 18RD
5 F853 20RD
6 K900 18RD
C330 (DIESEL) - LT. GRAY (BODY SIDE)
CAV CIRCUIT
1 A119 16RD/OR
2 C41 20LB/DG
3 D21 20WT/BR
4 Z149 16BK/DB
C330 (DIESEL) - GRAY (CABIN HEATER JUMPER
SIDE)
CAV CIRCUIT
1 A119 16RD/OR
2 C41 20LB/DG
3 D21 20WT/BR
4 Z149 16BK/DB
RS8W-80 CONNECTOR PIN-OUTS8W-80-41
ProCarManuals.com

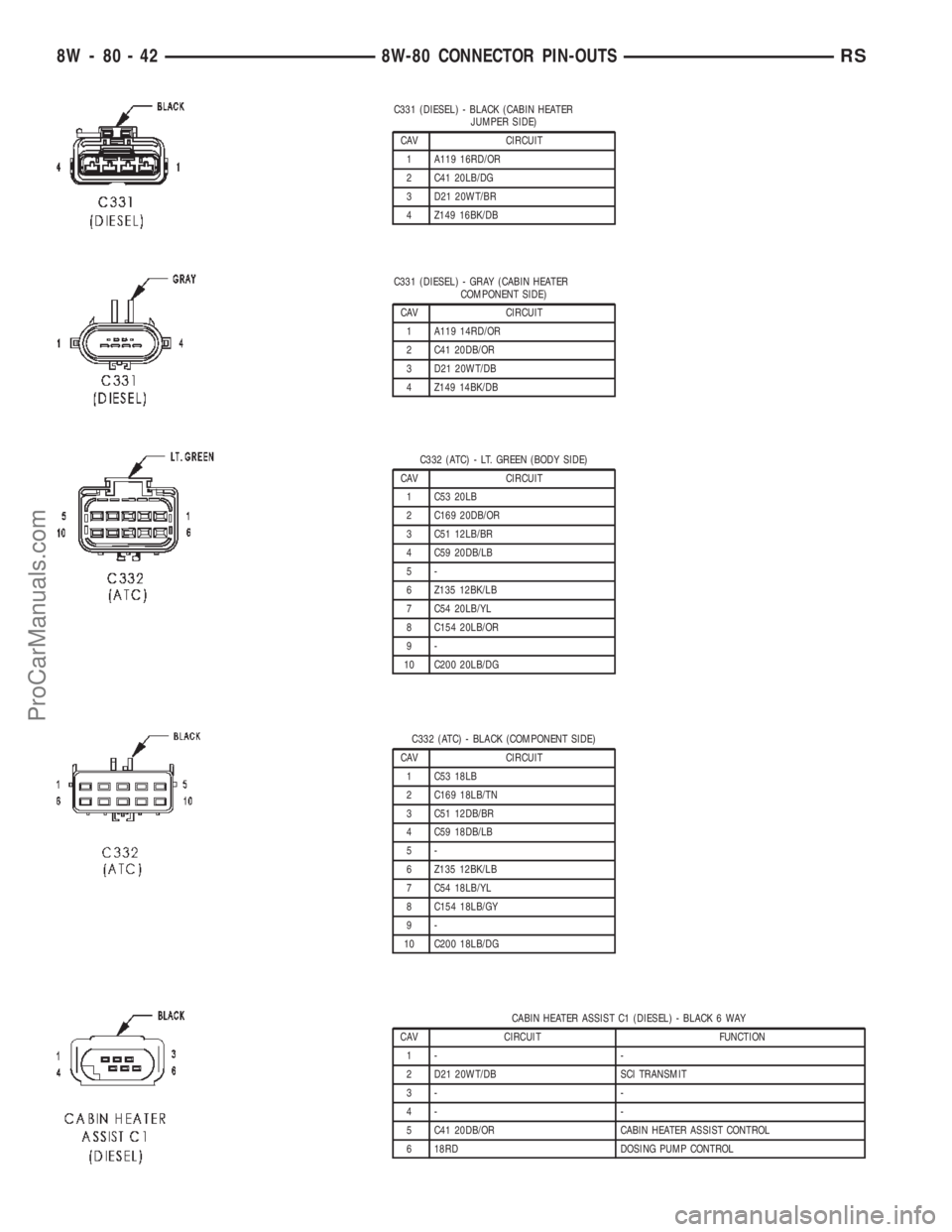

C331 (DIESEL) - BLACK (CABIN HEATER
JUMPER SIDE)
CAV CIRCUIT
1 A119 16RD/OR
2 C41 20LB/DG
3 D21 20WT/BR
4 Z149 16BK/DB
C331 (DIESEL) - GRAY (CABIN HEATER
COMPONENT SIDE)
CAV CIRCUIT
1 A119 14RD/OR
2 C41 20DB/OR
3 D21 20WT/DB
4 Z149 14BK/DB
C332 (ATC) - LT. GREEN (BODY SIDE)
CAV CIRCUIT
1 C53 20LB
2 C169 20DB/OR
3 C51 12LB/BR
4 C59 20DB/LB
5-
6 Z135 12BK/LB
7 C54 20LB/YL
8 C154 20LB/OR
9-
10 C200 20LB/DG
C332 (ATC) - BLACK (COMPONENT SIDE)
CAV CIRCUIT
1 C53 18LB
2 C169 18LB/TN
3 C51 12DB/BR
4 C59 18DB/LB
5-
6 Z135 12BK/LB
7 C54 18LB/YL
8 C154 18LB/GY
9-
10 C200 18LB/DG
CABIN HEATER ASSIST C1 (DIESEL) - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1- -
2 D21 20WT/DB SCI TRANSMIT
3- -
4- -
5 C41 20DB/OR CABIN HEATER ASSIST CONTROL
6 18RD DOSING PUMP CONTROL
8W - 80 - 42 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com

CABIN HEATER ASSIST C2 (DIESEL) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 A119 14RD/OR FUSED B(+)
2 Z149 14BK/DB GROUND
CAMSHAFT POSITION SENSOR (DIESEL) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 K944 20BK/GY CAMSHAFT POSITION SENSOR GROUND
2 K44 20DB/GY CAMSHAFT POSITION SENSOR SIGNAL
3 K342 16BR/WT ECM/PCM RELAY OUTPUT
CAMSHAFT POSITION SENSOR (GAS) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 F888 18BR/PK 8 VOLT SUPPLY
2 K900 18DB/DG SENSOR GROUND
3 K44 18DB/GY CAMSHAFT POSITION SENSOR SIGNAL
CD CHANGER-8WAY
CAV CIRCUIT FUNCTION
1 X40 24GY/WT AUDIO OUT RIGHT
2 E14 18OR/TN PANEL LAMPS DRIVER
3 D25 20WT/VT (EXCEPT
BUILT-UP-EXPORT)PCI BUS
3 D25 20VT/YL (BUILT-UP-EXPORT) PCI BUS
4 X112 20RD IGNITION SWITCH OUTPUT
5 X41 20DG/WT AUDIO OUT LEFT
6 Z140 18BK/OR GROUND
7 Z141 18BK/TN GROUND
8 X160 20GY/YL B(+)
CENTER DOME LAMP (BASE/HIGH LINE) - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 M22 20YL/OR COURTESY LAMPS DRIVER
2 Z327 20BK/OR GROUND
3 M27 20YL/LB READING LAMPS DRIVER
RS8W-80 CONNECTOR PIN-OUTS8W-80-43
ProCarManuals.com

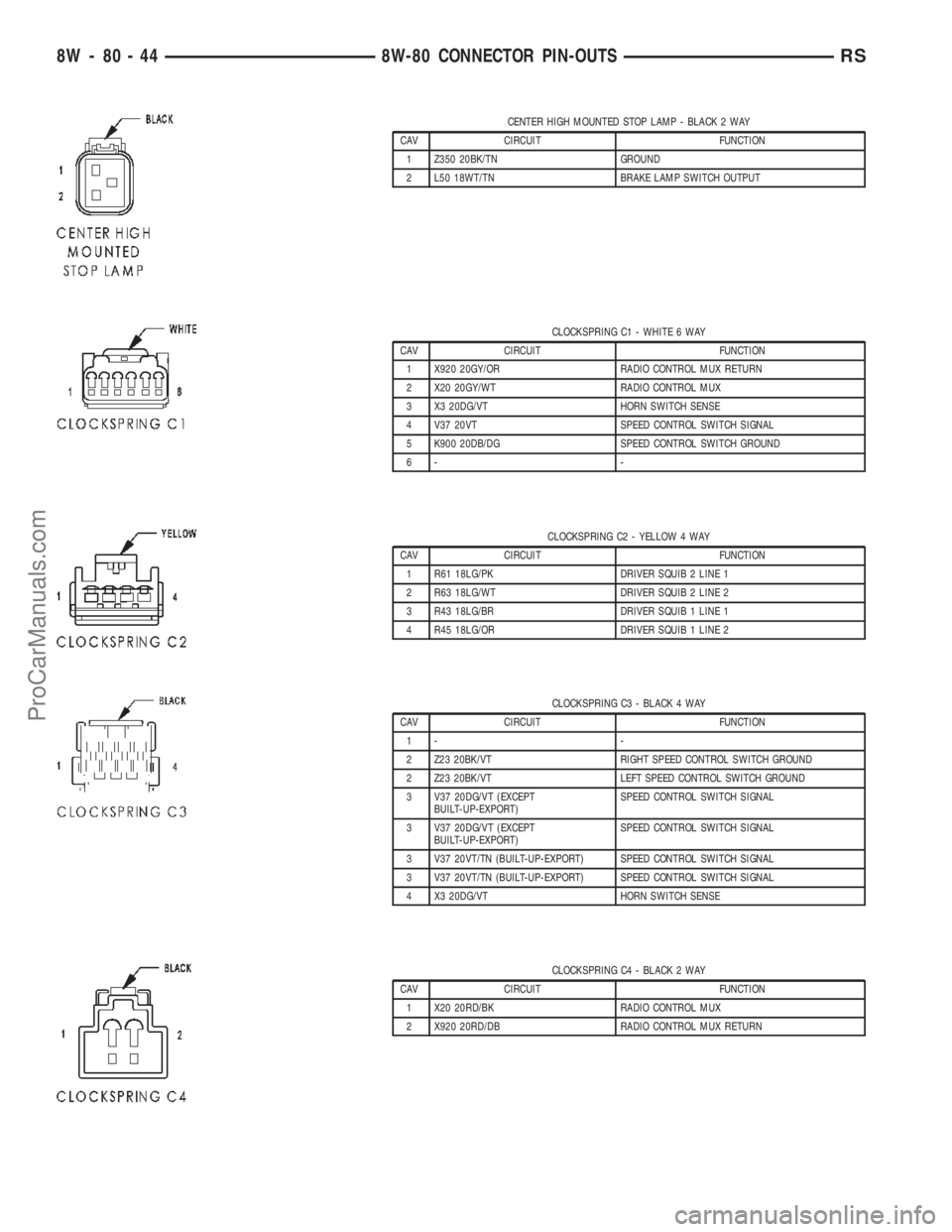

CENTER HIGH MOUNTED STOP LAMP - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z350 20BK/TN GROUND
2 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
CLOCKSPRING C1 - WHITE 6 WAY
CAV CIRCUIT FUNCTION
1 X920 20GY/OR RADIO CONTROL MUX RETURN
2 X20 20GY/WT RADIO CONTROL MUX
3 X3 20DG/VT HORN SWITCH SENSE
4 V37 20VT SPEED CONTROL SWITCH SIGNAL
5 K900 20DB/DG SPEED CONTROL SWITCH GROUND
6- -
CLOCKSPRING C2 - YELLOW 4 WAY
CAV CIRCUIT FUNCTION
1 R61 18LG/PK DRIVER SQUIB 2 LINE 1
2 R63 18LG/WT DRIVER SQUIB 2 LINE 2
3 R43 18LG/BR DRIVER SQUIB 1 LINE 1
4 R45 18LG/OR DRIVER SQUIB 1 LINE 2
CLOCKSPRING C3 - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1- -
2 Z23 20BK/VT RIGHT SPEED CONTROL SWITCH GROUND
2 Z23 20BK/VT LEFT SPEED CONTROL SWITCH GROUND
3 V37 20DG/VT (EXCEPT
BUILT-UP-EXPORT)SPEED CONTROL SWITCH SIGNAL
3 V37 20DG/VT (EXCEPT
BUILT-UP-EXPORT)SPEED CONTROL SWITCH SIGNAL
3 V37 20VT/TN (BUILT-UP-EXPORT) SPEED CONTROL SWITCH SIGNAL
3 V37 20VT/TN (BUILT-UP-EXPORT) SPEED CONTROL SWITCH SIGNAL
4 X3 20DG/VT HORN SWITCH SENSE
CLOCKSPRING C4 - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 X20 20RD/BK RADIO CONTROL MUX
2 X920 20RD/DB RADIO CONTROL MUX RETURN
8W - 80 - 44 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com

CLOCKSPRING C5 - YELLOW 4 WAY
CAV CIRCUIT FUNCTION
1 R45 18OR/LB DRIVER SQUIB 1 LINE 2
2 R43 18BK/LB DRIVER SQUIB 1 LINE 1
3 R63 18TN/LB DRIVER SQUIB 2 LINE 2
4 R61 18OR/LB DRIVER SQUIB 2 LINE 1
CLUTCH PEDAL INTERLOCK SWITCH (MTX) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 T141 20YL/OR IGNITION SWITCH OUTPUT (START)
2 T751 20YL IGNITION SWITCH OUTPUT (START)
CLUTCH PEDAL INTERLOCK SWITCH JUMPER (ATX) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 T141 20YL/OR IGNITION SWITCH OUTPUT (START)
2 T751 20YL IGNITION SWITCH OUTPUT (START)
CLUTCH PEDAL UPSTOP SWITCH (DIESEL) - RED 2 WAY
CAV CIRCUIT FUNCTION
1 K119 20DB/LG CLUTCH PEDAL UPSTOP SWITCH SENSE
2 Z150 20BK/LG GROUND
RS8W-80 CONNECTOR PIN-OUTS8W-80-45
ProCarManuals.com

CONTROLLER ANTILOCK BRAKE - BLACK 24 WAY
CAV CIRCUIT FUNCTION
1 Z107 12BK/DG GROUND
2 B1 18DG/OR RIGHT REAR WHEEL SPEED SENSOR SIGNAL
3 B2 18DG/LB RIGHT REAR WHEEL SPEED SENSOR 12 VOLT
SUPPLY
4- -
5 D25 18WT/VT PCI BUS
6 B6 18DG/WT RIGHT FRONT WHEEL SPEED SENSOR SIGNAL
7 B7 18DG/VT RIGHT FRONT WHEEL SPEED SENSOR 12 VOLT
SUPPLY
8- -
9 A111 12DG/RD FUSED B(+)
10 F500 18DG/PK FUSED IGNITION SWITCH OUTPUT (RUN)
11 - -
12 - -
13 - -
14 - -
15 - -
16 Z127 12BK/DG GROUND
17 - -
18 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
19 B3 18DG/YL LEFT REAR WHEEL SPEED SENSOR SIGNAL
20 B4 18DG/GY LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY
21 - -
22 B8 18DG/TN LEFT FRONT WHEEL SPEED SENSOR SIGNAL
23 B9 18DG/WT (3.3L/3.8L) LEFT FRONT WHEEL SPEED SENSOR 12 VOLT
SUPPLY
23 B9 18DG/LG (EXCEPT 3.3L/3.8L) LEFT FRONT WHEEL SPEED SENSOR 12 VOLT
SUPPLY
24 A107 12TN/RD FUSED B(+)
CRANK CASE VENTILATION HEATER (DIESEL) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z153 18BK/GY GROUND
2 N1 18DB/OR FUEL HEATER RELAY OUTPUT
CRANKSHAFT POSITION SENSOR (DIESEL) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 K24 20BR/LB CRANKSHAFT POSITION SENSOR SIGNAL NO. 2
2 K3 20BR/OR CRANKSHAFT POSITION SENSOR SIGNAL NO. 1
3 Z122 18WT GROUND (DRAIN)
8W - 80 - 46 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com

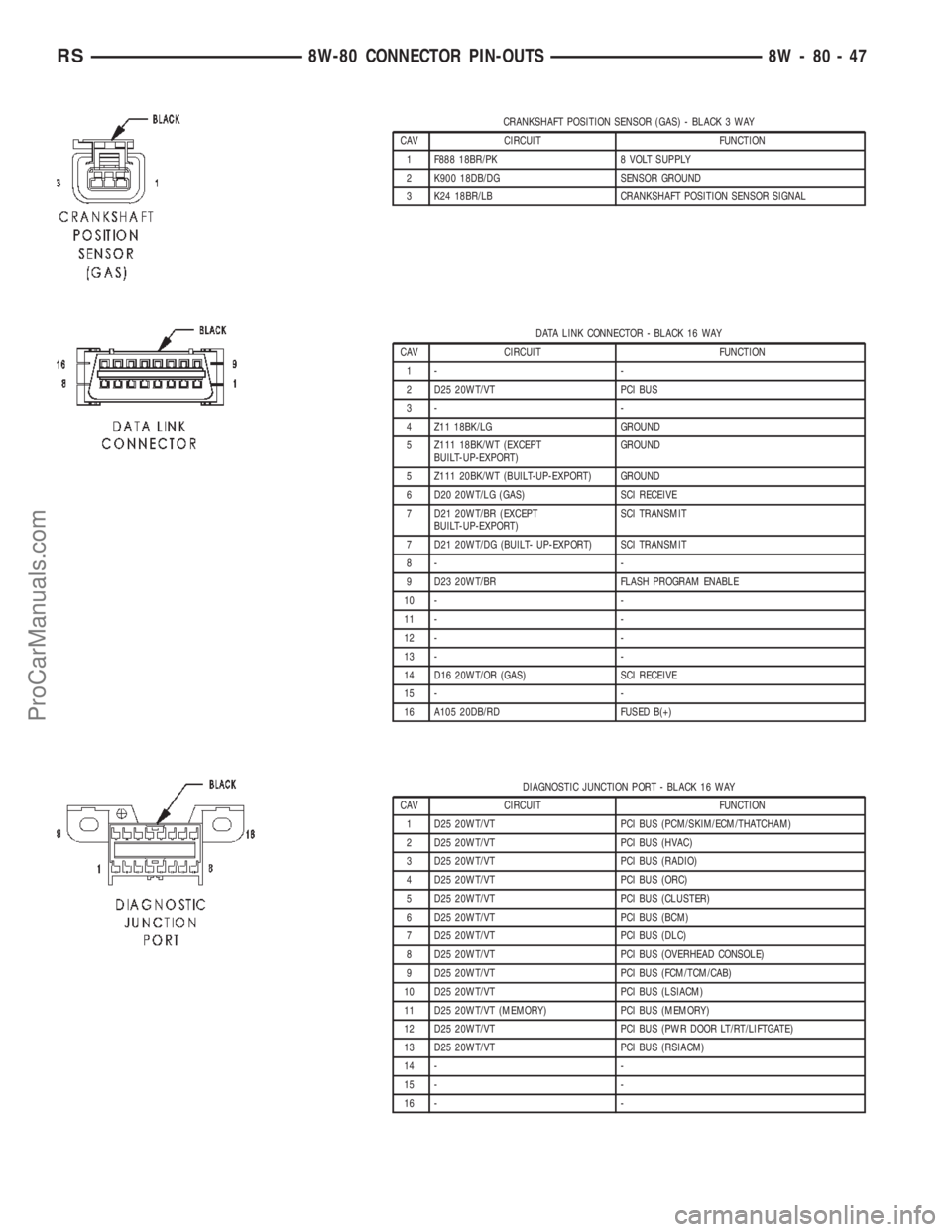

CRANKSHAFT POSITION SENSOR (GAS) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 F888 18BR/PK 8 VOLT SUPPLY
2 K900 18DB/DG SENSOR GROUND
3 K24 18BR/LB CRANKSHAFT POSITION SENSOR SIGNAL
DATA LINK CONNECTOR - BLACK 16 WAY
CAV CIRCUIT FUNCTION
1- -
2 D25 20WT/VT PCI BUS
3- -
4 Z11 18BK/LG GROUND
5 Z111 18BK/WT (EXCEPT
BUILT-UP-EXPORT)GROUND
5 Z111 20BK/WT (BUILT-UP-EXPORT) GROUND
6 D20 20WT/LG (GAS) SCI RECEIVE
7 D21 20WT/BR (EXCEPT
BUILT-UP-EXPORT)SCI TRANSMIT
7 D21 20WT/DG (BUILT- UP-EXPORT) SCI TRANSMIT
8- -
9 D23 20WT/BR FLASH PROGRAM ENABLE
10 - -
11 - -
12 - -
13 - -
14 D16 20WT/OR (GAS) SCI RECEIVE
15 - -
16 A105 20DB/RD FUSED B(+)
DIAGNOSTIC JUNCTION PORT - BLACK 16 WAY
CAV CIRCUIT FUNCTION
1 D25 20WT/VT PCI BUS (PCM/SKIM/ECM/THATCHAM)
2 D25 20WT/VT PCI BUS (HVAC)
3 D25 20WT/VT PCI BUS (RADIO)
4 D25 20WT/VT PCI BUS (ORC)
5 D25 20WT/VT PCI BUS (CLUSTER)
6 D25 20WT/VT PCI BUS (BCM)
7 D25 20WT/VT PCI BUS (DLC)
8 D25 20WT/VT PCI BUS (OVERHEAD CONSOLE)
9 D25 20WT/VT PCI BUS (FCM/TCM/CAB)
10 D25 20WT/VT PCI BUS (LSIACM)
11 D25 20WT/VT (MEMORY) PCI BUS (MEMORY)
12 D25 20WT/VT PCI BUS (PWR DOOR LT/RT/LIFTGATE)
13 D25 20WT/VT PCI BUS (RSIACM)
14 - -
15 - -
16 - -
RS8W-80 CONNECTOR PIN-OUTS8W-80-47
ProCarManuals.com

DOSING PUMP (DIESEL) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 18RD DOSING PUMP CONTROL
2 Z149 18BK/DB GROUND
DRIVER AIRBAG C1 - BROWN 2 WAY
CAV CIRCUIT FUNCTION
1 R43 18BK/LB DRIVER SQUIB 1 LINE 1
2 R45 18OR/LB DRIVER SQUIB 1 LINE 2
DRIVER AIRBAG C2 - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 R61 18OR/LB DRIVER SQUIB 2 LINE 1
2 R63 18TN/LB DRIVER SQUIB 2 LINE 2
DRIVER BLEND DOOR ACTUATOR (ATC) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 C61 20DB/LG DRIVER BLEND DOOR DRIVER (A)
2 C161 20LB/WT DRIVER BLEND DOOR DRIVER (B)
DRIVER BLEND DOOR ACTUATOR (MTC) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 C61 20LB/WT (LHD) DRIVER BLEND DOOR DRIVER (A)
1 C34 20DB/LB (RHD) COMMON DOOR DRIVER (B)
2 C61 20LB/WT(RHD) DRIVER BLEND DOOR DRIVER (A)
2 C34 20DB/LB (LHD) COMMON DOOR DRIVER (B)
8W - 80 - 48 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com

DRIVER DOOR COURTESY LAMP - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 Z322 20BK/BR (RHD) GROUND
1 Z321 20BK/BR (LHD) GROUND
2- -
3 M21 20YL/BR COURTESY LAMPS DRIVER
DRIVER DOOR LOCK SWITCH - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 F304 16WT/PK (EXCEPT POWER
WINDOWS)FUSED ACCESSORY RELAY OUTPUT
1 F304 16WT/PK (POWER WINDOWS) FUSED WINDOW CIRCUIT BREAKER OUTPUT
2 G160 20VT/LG (RHD) RIGHT DOOR LOCK SWITCH MUX
2 G161 20VT/DG (LHD) LEFT DOOR LOCK SWITCH MUX
3 Z460 20BK/LG (RHD) GROUND
3 Z461 20BK/DG (LHD) GROUND
DRIVER HEATED SEAT BACK - GREEN 2 WAY
CAV CIRCUIT FUNCTION
1 S2 18BK (RHD) DRIVER SEAT BACK HEATER GROUND
1 S2 18DG (LHD) DRIVER SEAT BACK HEATER GROUND
2 S1 18RD (RHD) DRIVER SEAT BACK HEATER B(+) DRIVER
2 S1 18DB (LHD) DRIVER SEAT BACK HEATER B(+) DRIVER
DRIVER HEATED SEAT CUSHION - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 P87 16RD DRIVER SEAT CUSHION HEATER GROUND
2 P89 20GR SEAT SENSOR 5 VOLT SUPPLY
3 Z848 18BK/OR DRIVER SEAT TEMP SENSOR INPUT
4 P88 16GR DRIVER SEAT CUSHION HEATER B(+) DRIVER
DRIVER HEATED SEAT MODULE C1 - GRAY 4 WAY
CAV CIRCUIT FUNCTION
1 Z849 18BK GROUND
2 P7 20LG/DG DRIVER HEATED SEAT SWITCH MUX
3 F503 20WT/PK FUSED IGNITION SWITCH OUTPUT (RUN)
4 A210 14OR/RD FUSED B(+)
RS8W-80 CONNECTOR PIN-OUTS8W-80-49
