CHRYSLER TOWN AND COUNTRY 2002 Service Manual

REAR BLOWER MOTOR POWER MODULE C1 (ATC) - RED/BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 C51 18DB/BR FUSED REAR BLOWER MOTOR RELAY OUTPUT
1 C51 12DB/BR FUSED REAR BLOWER MOTOR RELAY OUTPUT
2 C59 18DB/LB BLOWER MOTOR CONTROL
3 Z135 12BK/LB GROUND
4- -
REAR BLOWER MOTOR POWER MODULE C2 (ATC) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 12BK GROUND
2 12DG POWER FEED
REAR BLOWER REAR CONTROL SWITCH C1 (3 ZONE HVAC) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 C153 12DB/BR REAR BLOWER MOTOR HIGH
2 C152 16LB/LG REAR BLOWER MOTOR MED
3 C151 18LB/DG REAR BLOWER MOTOR LOW
4 C50 12DB/OR REAR BLOWER FRONT CONTROL FEED
REAR BLOWER REAR CONTROL SWITCH C2 (3 ZONE HVAC) - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1- -
2 C22 20LB/DB REAR TEMPERATURE FEEDBACK SIGNAL
3 E10 20OR/DG PANEL LAMPS DRIVER
4 F850 20LB/PK 5 VOLT SUPPLY
5 C121 20DB/DG REAR TEMPERATURE RETURN
6 Z409 20BK/OR GROUND
REAR DOME LAMP (EXCEPT LUXURY) - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 M22 20YL/OR COURTESY LAMPS DRIVER
2 Z327 20BK/OR GROUND
3- -
8W - 80 - 100 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com

REAR MODE MOTOR (ATC) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 C154 18LB/GY REAR MODE DOOR DRIVER (B)
2 C53 18LB REAR MODE DOOR DRIVER (A)
REAR POWER OUTLET - RED 3 WAY
CAV CIRCUIT FUNCTION
1 F307 16LB/PK (ACCESSORY RELAY
POSITION)FUSED ACCESSORY RELAY OUTPUT
1 F307 16LB/PK (BATTERY POSITION) FUSED B(+)
2- -
3 Z737 16BK/LB GROUND
REAR TEMPERATURE MOTOR (ATC) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 C54 18LB/YL REAR BLEND DOOR DRIVER (A)
2 C169 18LB/TN REAR BLEND DOOR DRIVER (B)
REAR WASHER PUMP MOTOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 W20 18BR/YL REAR WASHER PUMP MOTOR CONTROL
2 F301 18VT/PK FUSED ACCESSORY RELAY OUTPUT
REAR WIPER MOTOR - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 Z213 18BK/LG GROUND
2 F302 18GY/PK FUSED ACCESSORY RELAY OUTPUT
3 W13 18BR/LG REAR WIPER MOTOR CONTROL
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 101
ProCarManuals.com

RECIRCULATION DOOR ACTUATOR (ATC) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 C132 20DB/YL RECIRCULATION DOOR DRIVER (B)
2 C32 20DB/TN RECIRCULATION DOOR DRIVER (A)
RECIRCULATION DOOR ACTUATOR (MTC) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 C32 20DB/TN (RHD) RECIRCULATION DOOR DRIVER (A)
1 C34 20DB/LB (LHD) COMMON DOOR DRIVER (B)
2 C34 20DB/LB (RHD) COMMON DOOR DRIVER (B)
2 C32 20DB/TN (LHD) RECIRCULATION DOOR DRIVER (A)
REMOTE KEYLESS ENTRY ANTENNA (JAPAN) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 D10 18WT REMOTE KEYLESS ENTRY ANTENNA (+)
2 D10 18WT/LB REMOTE KEYLESS ENTRY ANTENNA (-)
REMOTE KEYLESS ENTRY MODULE - BLACK/RED 6 WAY
CAV CIRCUIT FUNCTION
1 G96 20VT/DG REMOTE KEYLESS ENTRY INTERFACE
2 D9 20WT/GY RKE MODULE PROGRAM ENABLE
3 Z109 20BK/GY GROUND
4 D10 18WT (RHD) (JAPAN ONLY) REMOTE KEYLESS ENTRY ANTENNA (+)
5 D10 18WT/LB (RHD) (JAPAN ONLY) REMOTE KEYLESS ENTRY ANTENNA (-)
6 A114 20GY/RD FUSED B(+) (I.O.D.)
RIGHT B-PILLAR SWITCH (POWER SLIDING DOOR) - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 Z62 20BK/YL GROUND
2 F302 18GY/PK FUSED ACCESSORY RELAY OUTPUT
3 G42 20VT/YL (EXCEPT TOWN &
COUNTRY)RIGHT SLIDING DOOR PILLAR SWITCH MUX
3 G42 20VT/WT (TOWN & COUNTRY) RIGHT SLIDING DOOR PILLAR SWITCH MUX
8W - 80 - 102 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com

RIGHT CINCH/RELEASE MOTOR (POWER SLIDING DOOR) - GRAY 4 WAY
CAV CIRCUIT FUNCTION
1 Q46 18TN/GY RIGHT CINCH/RELEASE MOTOR LATCH DRIVER
2 Z248 18BK/WT GROUND
3 Q44 18OR/GY RIGHT CINCH/RELEASE MOTOR CLUTCH DRIVER
4 Q48 18TN/WT RIGHT CINCH/RELEASE MOTOR UNLATCH DRIVER
RIGHT COMBINATION RELAY (TRAILER TOW) - BLACK 5 WAY
CAV CIRCUIT FUNCTION
1 L62 18WT/BR RIGHT REAR TURN SIGNAL DRIVER
1 L62 18WT/BR RIGHT REAR TURN SIGNAL DRIVER
2 Z1 18BK/DG GROUND
3 L50 18WT/TN BRAKE LAMP SWITCH OUTPUT
4 L605 18DG RIGHT COMBINATION SIGNAL
5- -
RIGHT CYLINDER LOCK SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z462 20BK/WT GROUND
2 G162 20VT/WT RIGHT CYLINDER LOCK SWITCH MUX
RIGHT DOOR SPEAKER - BLACK/RED 6 WAY
CAV CIRCUIT FUNCTION
1 X154 20GY/YL (HIGH LINE) RIGHT FRONT INSTRUMENT PANEL SPEAKER (+)
2 X15 16GY/DG (HIGH LINE) AMPLIFIED SPEAKER GROUND
3 X156 20GY/LB (HIGH LINE) RIGHT FRONT INSTRUMENT PANEL SPEAKER (-)
4 X54 20GY RIGHT FRONT SPEAKER (+)
5 X13 16DG/GY (HIGH LINE) RADIO CHOKE OUTPUT
6 X56 20GY/BR RIGHT FRONT SPEAKER (-)
RIGHT FOG LAMP (BUILT-UP-EXPORT) - WHITE 2 WAY
CAV CIRCUIT FUNCTION
1 L90 18WT/OR FRONT FOG LAMP RELAY OUTPUT
2 Z348 18BK/OR GROUND
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 103
ProCarManuals.com

RIGHT FOG LAMP (EXCEPT BUILT-UP-EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
A L90 18WT/OR FRONT FOG LAMP RELAY OUTPUT
B Z348 18BK/OR GROUND
RIGHT FRONT DOOR AJAR SWITCH (BASE) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 G74 20VT/WT RIGHT FRONT DOOR AJAR SWITCH SENSE
2 Z74 20BK/WT GROUND
RIGHT FRONT DOOR LOCK MOTOR/AJAR SWITCH (EXCEPT BASE) - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 G74 20VT/WT RIGHT FRONT DOOR AJAR SWITCH SENSE
2 Z74 20BK/WT GROUND
3 P4 20TN/BR RIGHT FRONT DOOR UNLOCK DRIVER
4 P2 20TN/GY RIGHT FRONT DOOR LOCK DRIVER
RIGHT FRONT PARK/TURN SIGNAL LAMP (EXCEPT BUILT-UP-EXPORT) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 L60 16WT/TN RIGHT FRONT TURN SIGNAL DRIVER
2 L78 18WT/OR FUSED PARK LAMP RELAY OUTPUT (RIGHT)
3 Z378 18BK/TN GROUND
RIGHT FRONT WHEEL SPEED SENSOR - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 B7 18DG/VT RIGHT FRONT WHEEL SPEED SENSOR 12 VOLT
SUPPLY
2 B6 18DG/WT RIGHT FRONT WHEEL SPEED SENSOR SIGNAL
8W - 80 - 104 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com

RIGHT FULL OPEN SWITCH (POWER SLIDING DOOR) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Q52 20OR RIGHT FULL OPEN SWITCH SENSE
2 Z76 20BK/YL GROUND
RIGHT HEADLAMP (EXCEPT BUILT-UP-EXPORT) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 L44 16WT/TN RIGHT LOW BEAM DRIVER
2 Z344 16BK/TN GROUND
3 L34 16WT/GY RIGHT HIGH BEAM DRIVER
RIGHT HEADLAMP LEVELING MOTOR (BUILT-UP-EXPORT) - WHITE 3 WAY
CAV CIRCUIT FUNCTION
1 Z203 16BR GROUND
2 L78 16BK FUSED PARK LAMP RELAY OUTPUT (RIGHT)
3 L13 16RD HEADLAMP ADJUST SIGNAL
RIGHT HIGH BEAM LAMP (BUILT-UP-EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z344 16BR GROUND
1 Z344 16BR GROUND
2 L34 16GY RIGHT HIGH BEAM DRIVER
RIGHT INSTRUMENT PANEL SPEAKER - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 X154 20GY/YL RIGHT FRONT I/P SPEAKER (+)
2 X156 20GY/LB RIGHT FRONT I/P SPEAKER (-)
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 105
ProCarManuals.com

RIGHT LIFTGATE FLOOD LAMP - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 Z312 20BK/YL GROUND
2- -
3 M11 20YL/VT COURTESY LAMPS DRIVER
RIGHT LOW BEAM LAMP (BUILT-UP-EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z344 16BR GROUND
2 L44 16WT RIGHT LOW BEAM DRIVER
RIGHT MID READING LAMP (PREMIUM/LUXURY) - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 M22 20YL/OR COURTESY LAMPS DRIVER
2 Z327 20BK/OR GROUND
3 M27 20YL/LB READING LAMPS DRIVER
RIGHT PARK LAMP (BUILT-UP-EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z344 16BR GROUND
2 L78 16BK FUSED PARK LAMP RELAY OUTPUT (RIGHT)
RIGHT POWER MIRROR - BLACK 12 WAY
CAV CIRCUIT FUNCTION
1 P174 20TN/LB (BUILT-UP-EXPORT) RIGHT FOLDING MIRROR UNFOLD DRIVER
2- -
3- -
4 P68 20TN/YL (MEMORY) RIGHT MIRROR HORIZONTAL POSITION SIGNAL
5 P66 20TN/LG (MEMORY) RIGHT MIRROR SENSOR GROUND
6 P67 20TN/OR (MEMORY) RIGHT MIRROR VERTICAL POSITION SIGNAL
7 P159 20TN/DG (BUILT-UP-EXPORT/
RHD)DRIVER FOLDING MIRROR FOLD DRIVER
7 P160 20TN/LG (BUILT-UP-EXPORT/
LHD)PASSENGER FOLDING MIRROR RELAY OUTPUT
8 Z216 20BK/DB GROUND
9 C16 20DB/GY FUSED REAR WINDOW DEFOGGER RELAY OUTPUT
10 P70 20TN/LB RIGHT MIRROR COMMON DRIVER (RIGHT/DOWN)
11 P72 20TN/GY RIGHT MIRROR UP DRIVER
12 P74 20TN/DB RIGHT MIRROR LEFT DRIVER
8W - 80 - 106 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com

RIGHT REAR LAMP ASSEMBLY - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1 L62 18WT/BR (EXCEPT
BUILT-UP-EXPORT)RIGHT REAR TURN SIGNAL DRIVER
1 Z362 18BK/BR (BUILT-UP-EXPORT) GROUND
2 L62 18WT/BR (BUILT-UP-EXPORT) RIGHT REAR TURN SIGNAL DRIVER
3 L78 18WT/OR (EXCEPT
BUILT-UP-EXPORT)FUSED PARK LAMP RELAY OUTPUT (RIGHT)
3 L50 18WT/TN (BUILT-UP-EXPORT) BRAKE LAMP SWITCH OUTPUT
4 L1 18WT/LG BACK-UP LAMP DRIVER
5 Z362 18BK/BR (EXCEPT
BUILT-UP-EXPORT)GROUND
5 L38 20WT/YL (BUILT-UP-EXPORT) REAR FOG LAMP SWITCH OUTPUT
6 L50 18WT/TN (EXCEPT
BUILT-UP-EXPORT)PRIMARY BRAKE SWITCH SIGNAL
6 L78 18WT/OR (BUILT-UP-EXPORT) FUSED PARK LAMP RELAY OUTPUT (RIGHT)
RIGHT REAR PILLAR SPEAKER - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 X158 20GY/YL RIGHT REAR PILLAR SPEAKER (+)
2 X152 20GY/WT RIGHT REAR PILLAR SPEAKER (-)
RIGHT REAR READING LAMP (LUXURY) - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 M22 20YL/OR COURTESY LAMPS DRIVER
2 Z327 20BK/OR GROUND
3 M27 20YL/LB READING LAMPS DRIVER
RIGHT REAR SPEAKER - BLACK/RED 6 WAY
CAV CIRCUIT FUNCTION
1 X152 20GY/WT (HIGH LINE) RIGHT REAR PILLAR SPEAKER (-)
2 X15 16GY/DG (HIGH LINE) AMPLIFIED SPEAKER GROUND
3 X158 20GY/YL (HIGH LINE) RIGHT REAR PILLAR SPEAKER (+)
4 X52 20GY/DB RIGHT REAR SPEAKER (+)
5 X13 16DG/GY (HIGH LINE) RADIO CHOKE OUTPUT
6 X58 20GY/OR RIGHT REAR SPEAKER (-)
RIGHT REAR VENT MOTOR - NATURAL 3 WAY
CAV CIRCUIT FUNCTION
1- -
2 Q14 16OR/BR (LHD BUILT-UP-EXPORT) PASSENGER SIDE REAR WINDOW CLOSE
2 Q13 16OR/DB (RHD) DRIVER SIDE REAR WINDOW CLOSE
2 Q14 16OR/GY (LHD EXCEPT
BUILT-UP-EXPORT)PASSENGER SIDE REAR WINDOW CLOSE
3 Q23 16OR/LB (RHD) DRIVER SIDE REAR WINDOW OPEN
3 Q24 16OR/DG (LHD) PASSENGER SIDE REAR WINDOW OPEN
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 107
ProCarManuals.com

RIGHT REAR WHEEL SPEED SENSOR - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 B2 18DG/LB RIGHT REAR WHEEL SPEED SENSOR 12 VOLT
SUPPLY
2 B1 18DG/OR RIGHT REAR WHEEL SPEED SENSOR SIGNAL
RIGHT REMOTE RADIO SWITCH - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 X20 20RD/BK RADIO CONTROL MUX
2 X920 20RD/DB RADIO CONTROL MUX RETURN
RIGHT REPEATER LAMP (BUILT-UP-EXPORT) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 A701 18BR/RD FUSED B(+) (HAZARD)
2 L162 20WT/VT RIGHT SIDE REPEATER LAMP FEED
RIGHT SEAT AIRBAG - YELLOW 2 WAY
CAV CIRCUIT FUNCTION
1 R32 18LB/OR (EXCEPT
BUILT-UP-EXPORT)RIGHT SEAT SQUIB LINE 1
1 R34 18WT/BK (BUILT UP EXPORT) RIGHT SEAT SQUIB LINE 2
2 R34 18LB/WT (EXCEPT
BUILT-UP-EXPORT)RIGHT SEAT SQUIB LINE 2
2 R32 18DG/WT (BUILT UP EXPORT) RIGHT SEAT SQUIB LINE 1
RIGHT SIDE IMPACT AIRBAG CONTROL MODULE - YELLOW/RED 7 WAY
CAV CIRCUIT FUNCTION
1 R32 18LB/OR RIGHT SEAT SQUIB LINE 1
2 R34 18LB/WT RIGHT SEAT SQUIB LINE 2
3- -
4 D25 20WT/VT PCI BUS
5 F214 18PK/LG FCM OUTPUT (SIACM RUN-START DRIVER)
6- -
7 Z104 18BK/LG GROUND
8W - 80 - 108 8W-80 CONNECTOR PIN-OUTSRS
ProCarManuals.com

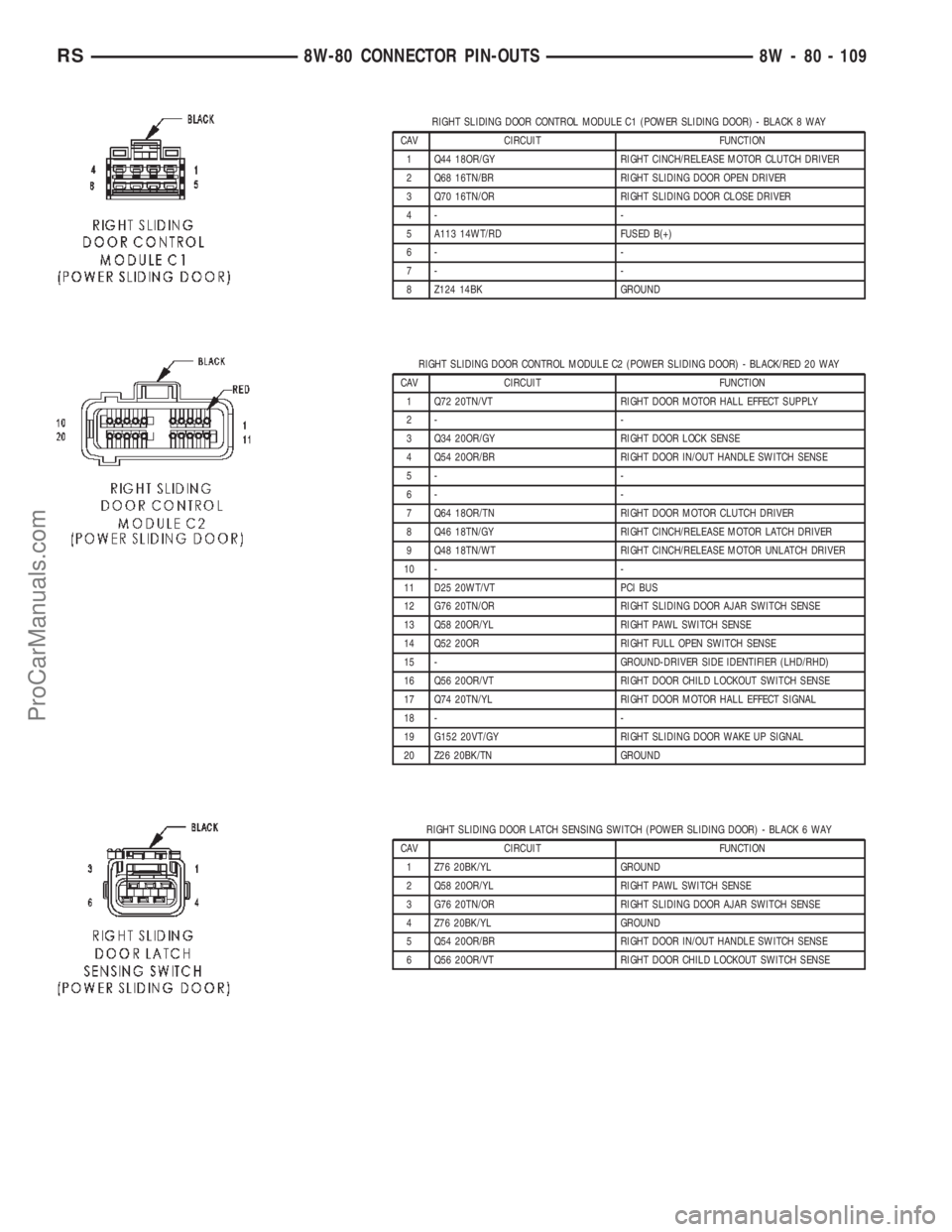

RIGHT SLIDING DOOR CONTROL MODULE C1 (POWER SLIDING DOOR) - BLACK 8 WAY
CAV CIRCUIT FUNCTION
1 Q44 18OR/GY RIGHT CINCH/RELEASE MOTOR CLUTCH DRIVER
2 Q68 16TN/BR RIGHT SLIDING DOOR OPEN DRIVER
3 Q70 16TN/OR RIGHT SLIDING DOOR CLOSE DRIVER
4- -
5 A113 14WT/RD FUSED B(+)
6- -
7- -
8 Z124 14BK GROUND
RIGHT SLIDING DOOR CONTROL MODULE C2 (POWER SLIDING DOOR) - BLACK/RED 20 WAY
CAV CIRCUIT FUNCTION
1 Q72 20TN/VT RIGHT DOOR MOTOR HALL EFFECT SUPPLY
2- -
3 Q34 20OR/GY RIGHT DOOR LOCK SENSE
4 Q54 20OR/BR RIGHT DOOR IN/OUT HANDLE SWITCH SENSE
5- -
6- -
7 Q64 18OR/TN RIGHT DOOR MOTOR CLUTCH DRIVER
8 Q46 18TN/GY RIGHT CINCH/RELEASE MOTOR LATCH DRIVER
9 Q48 18TN/WT RIGHT CINCH/RELEASE MOTOR UNLATCH DRIVER
10 - -
11 D25 20WT/VT PCI BUS
12 G76 20TN/OR RIGHT SLIDING DOOR AJAR SWITCH SENSE
13 Q58 20OR/YL RIGHT PAWL SWITCH SENSE
14 Q52 20OR RIGHT FULL OPEN SWITCH SENSE
15 - GROUND-DRIVER SIDE IDENTIFIER (LHD/RHD)
16 Q56 20OR/VT RIGHT DOOR CHILD LOCKOUT SWITCH SENSE
17 Q74 20TN/YL RIGHT DOOR MOTOR HALL EFFECT SIGNAL
18 - -
19 G152 20VT/GY RIGHT SLIDING DOOR WAKE UP SIGNAL
20 Z26 20BK/TN GROUND
RIGHT SLIDING DOOR LATCH SENSING SWITCH (POWER SLIDING DOOR) - BLACK 6 WAY
CAV CIRCUIT FUNCTION
1 Z76 20BK/YL GROUND
2 Q58 20OR/YL RIGHT PAWL SWITCH SENSE
3 G76 20TN/OR RIGHT SLIDING DOOR AJAR SWITCH SENSE
4 Z76 20BK/YL GROUND
5 Q54 20OR/BR RIGHT DOOR IN/OUT HANDLE SWITCH SENSE
6 Q56 20OR/VT RIGHT DOOR CHILD LOCKOUT SWITCH SENSE
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 109
ProCarManuals.com
