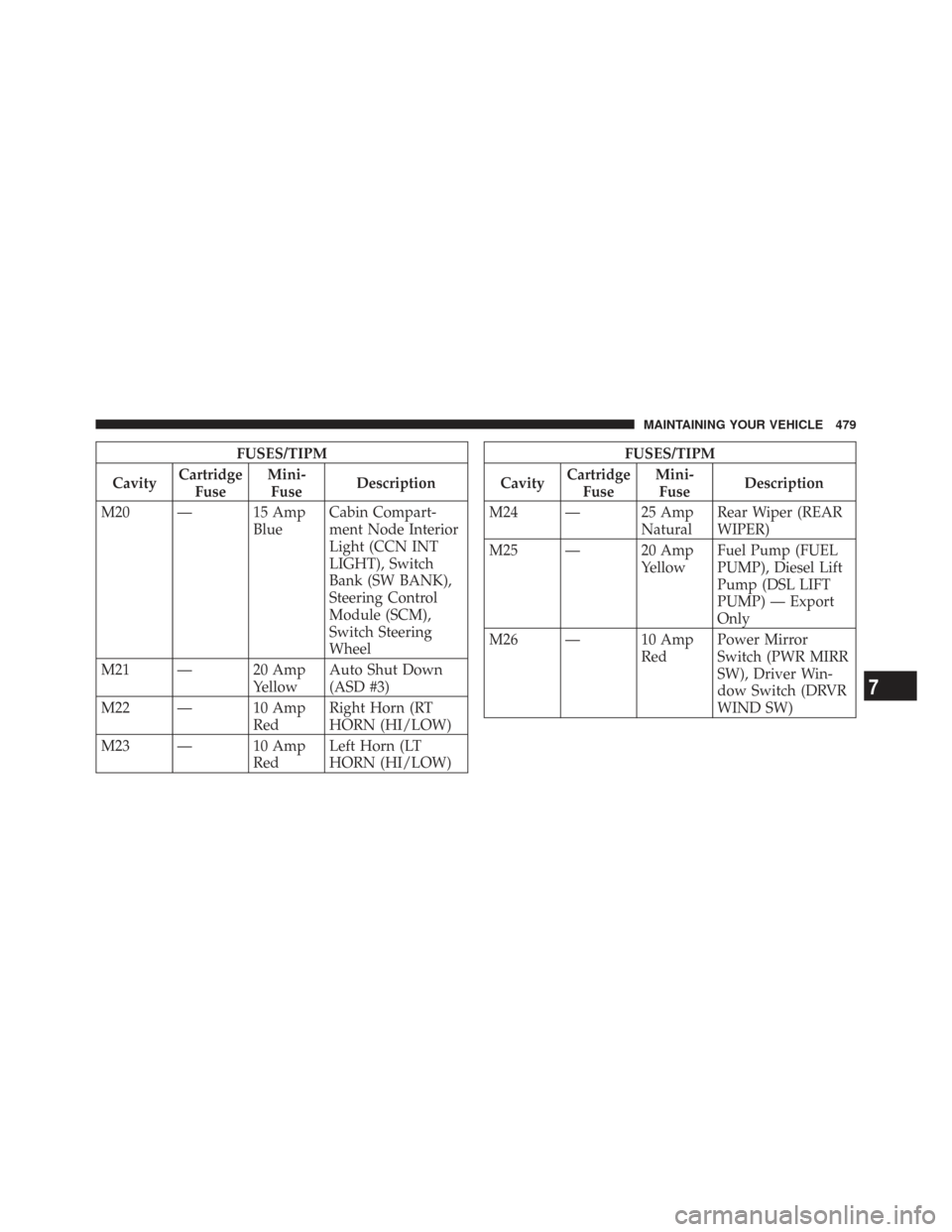

FUSES/TIPM
Cavity Cartridge
Fuse Mini-
Fuse Description
M20 — 15 Amp BlueCabin Compart-
ment Node Interior
Light (CCN INT
LIGHT), Switch
Bank (SW BANK),
Steering Control
Module (SCM),
Switch Steering
Wheel
M21 — 20 Amp YellowAuto Shut Down
(ASD #3)
M22 — 10 Amp RedRight Horn (RT
HORN (HI/LOW)
M23 — 10 Amp RedLeft Horn (LT
HORN (HI/LOW)FUSES/TIPM
Cavity Cartridge
Fuse Mini-
Fuse Description
M24 — 25 Amp NaturalRear Wiper (REAR
WIPER)
M25 — 20 Amp YellowFuel Pump (FUEL
PUMP), Diesel Lift
Pump (DSL LIFT
PUMP) — Export
Only
M26 — 10 Amp RedPower Mirror
Switch (PWR MIRR
SW), Driver Win-
dow Switch (DRVR
WIND SW)
7
MAINTAINING YOUR VEHICLE 479

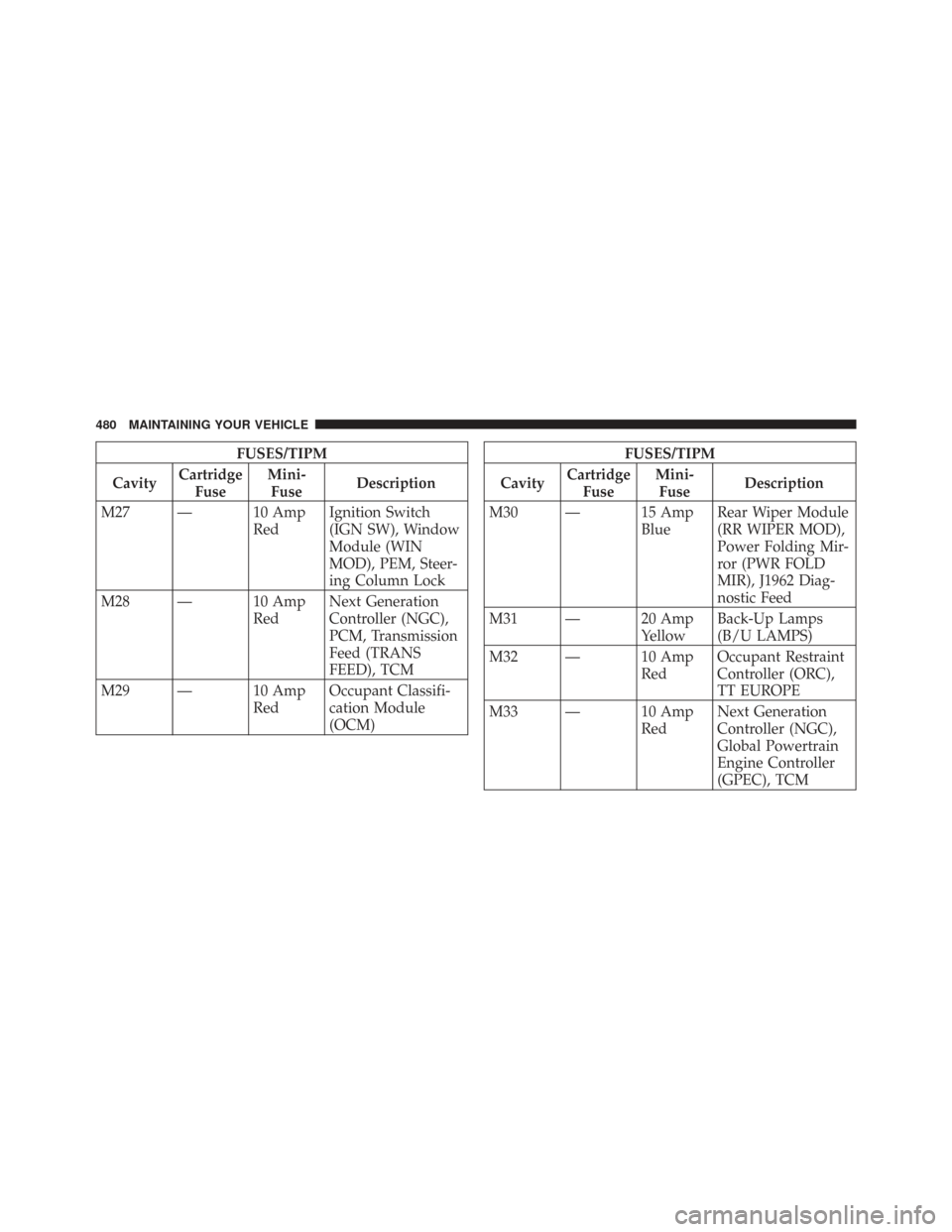

FUSES/TIPM
Cavity Cartridge
Fuse Mini-
Fuse Description
M27 — 10 Amp RedIgnition Switch
(IGN SW), Window
Module (WIN
MOD), PEM, Steer-
ing Column Lock
M28 — 10 Amp RedNext Generation
Controller (NGC),
PCM, Transmission
Feed (TRANS
FEED), TCM
M29 — 10 Amp RedOccupant Classifi-
cation Module
(OCM)FUSES/TIPM
Cavity Cartridge
Fuse Mini-
Fuse Description
M30 — 15 Amp BlueRear Wiper Module
(RR WIPER MOD),
Power Folding Mir-
ror (PWR FOLD
MIR), J1962 Diag-
nostic Feed
M31 — 20 Amp YellowBack-Up Lamps
(B/U LAMPS)
M32 — 10 Amp RedOccupant Restraint
Controller (ORC),
TT EUROPE
M33 — 10 Amp RedNext Generation
Controller (NGC),
Global Powertrain
Engine Controller
(GPEC), TCM
480 MAINTAINING YOUR VEHICLE

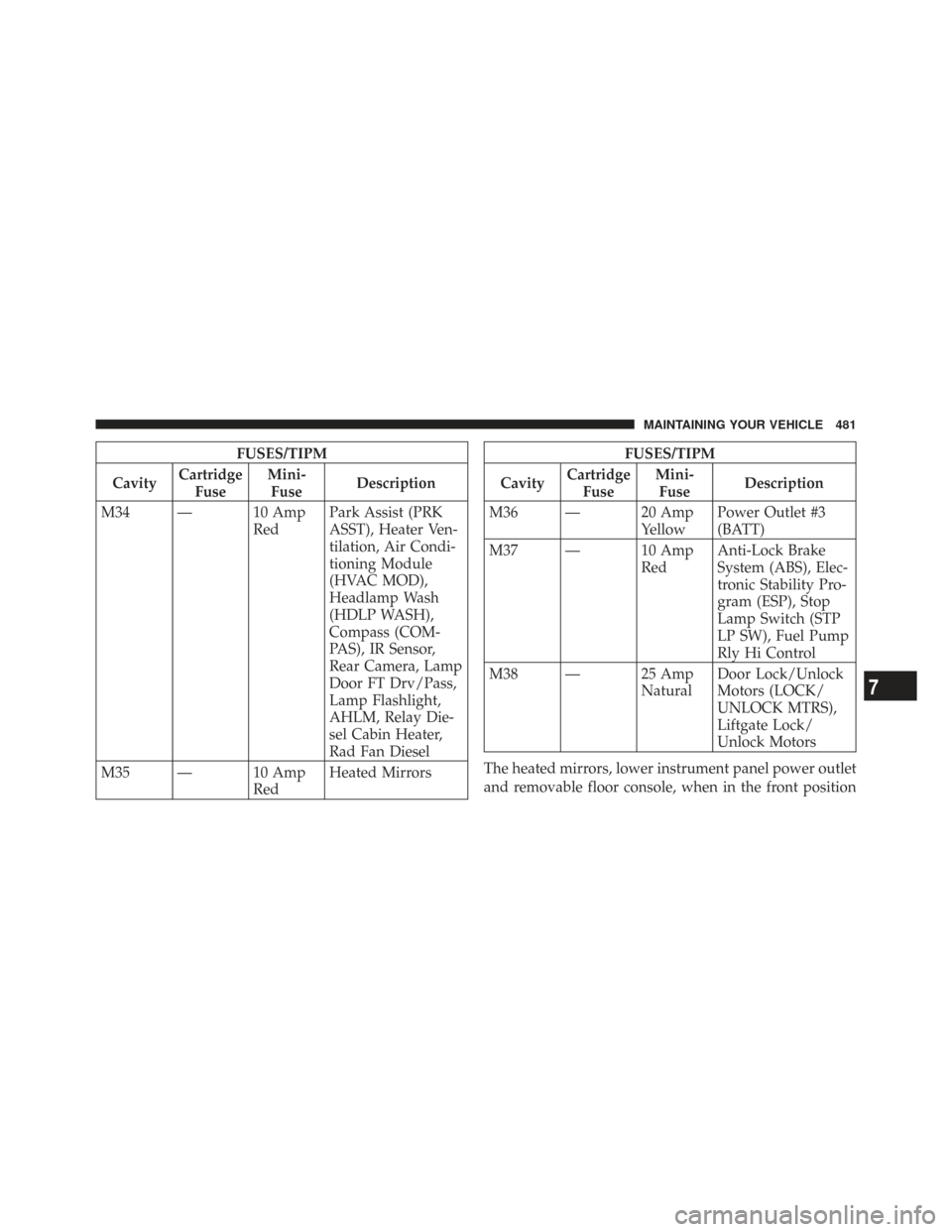

FUSES/TIPM
Cavity Cartridge
Fuse Mini-
Fuse Description
M34 — 10 Amp RedPark Assist (PRK
ASST), Heater Ven-
tilation, Air Condi-
tioning Module
(HVAC MOD),
Headlamp Wash
(HDLP WASH),
Compass (COM-
PAS), IR Sensor,
Rear Camera, Lamp
Door FT Drv/Pass,
Lamp Flashlight,
AHLM, Relay Die-
sel Cabin Heater,
Rad Fan Diesel
M35 — 10 Amp RedHeated MirrorsFUSES/TIPM
Cavity Cartridge
Fuse Mini-
Fuse Description
M36 — 20 Amp YellowPower Outlet #3
(BATT)
M37 — 10 Amp RedAnti-Lock Brake
System (ABS), Elec-
tronic Stability Pro-
gram (ESP), Stop
Lamp Switch (STP
LP SW), Fuel Pump
Rly Hi Control
M38 — 25 Amp NaturalDoor Lock/Unlock
Motors (LOCK/
UNLOCK MTRS),
Liftgate Lock/
Unlock Motors
The heated mirrors, lower instrument panel power outlet
and removable floor console, when in the front position
7
MAINTAINING YOUR VEHICLE 481

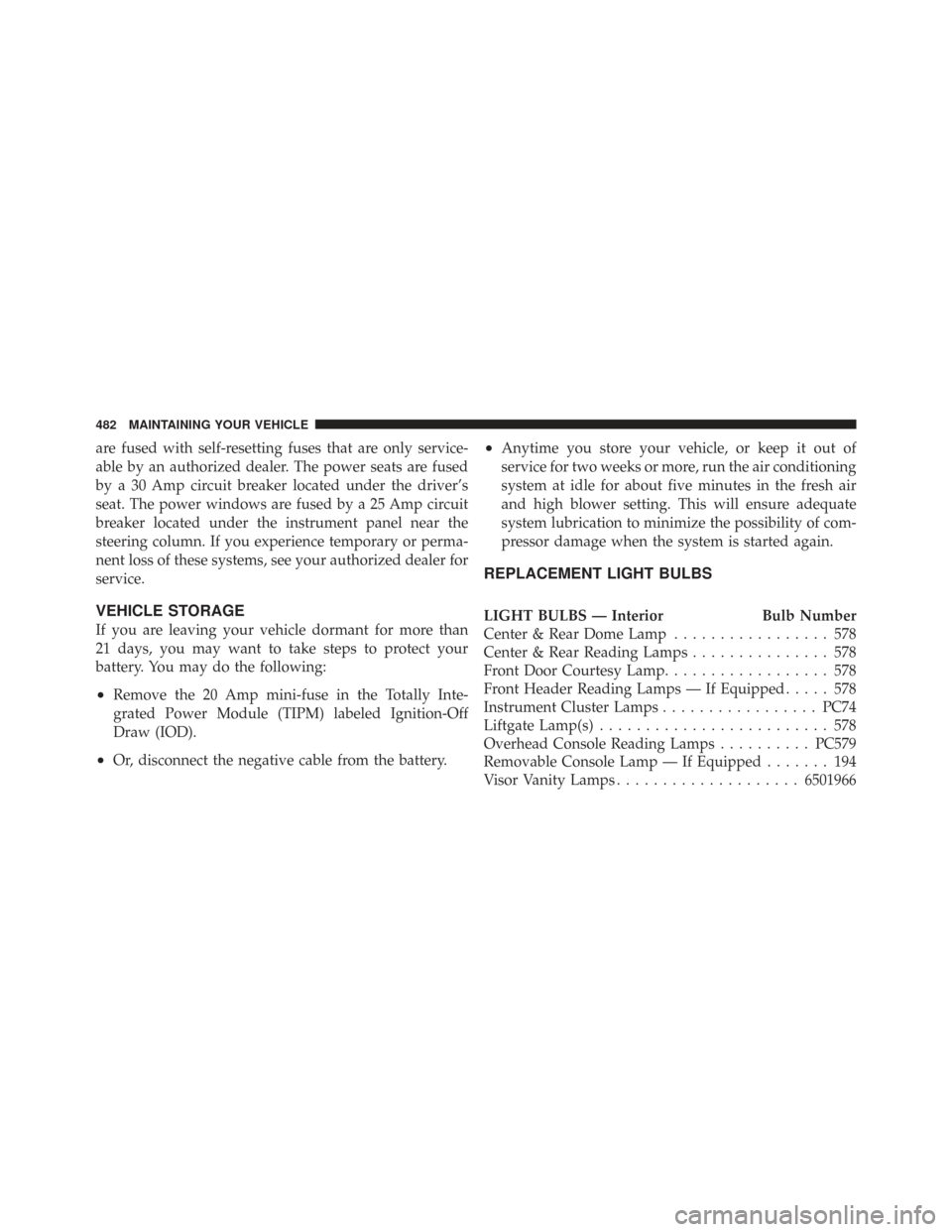

are fused with self-resetting fuses that are only service-
able by an authorized dealer. The power seats are fused
by a 30 Amp circuit breaker located under the driver’s
seat. The power windows are fused by a 25 Amp circuit
breaker located under the instrument panel near the
steering column. If you experience temporary or perma-
nent loss of these systems, see your authorized dealer for
service.
VEHICLE STORAGE
If you are leaving your vehicle dormant for more than
21 days, you may want to take steps to protect your
battery. You may do the following:
•Remove the 20 Amp mini-fuse in the Totally Inte-
grated Power Module (TIPM) labeled Ignition-Off
Draw (IOD).
•Or, disconnect the negative cable from the battery.
•Anytime you store your vehicle, or keep it out of
service for two weeks or more, run the air conditioning
system at idle for about five minutes in the fresh air
and high blower setting. This will ensure adequate
system lubrication to minimize the possibility of com-
pressor damage when the system is started again.
REPLACEMENT LIGHT BULBS
LIGHT BULBS — InteriorBulb Number
Center & Rear Dome Lamp ................. 578
Center & Rear Reading Lamps ............... 578
Front Door Courtesy Lamp .................. 578
Front Header Reading Lamps — If Equipped ..... 578
Instrument Cluster Lamps .................PC74
Liftgate Lamp(s) ......................... 578
Overhead Console Reading Lamps ..........PC579
Removable Console Lamp — If Equipped ....... 194
Visor Vanity Lamps .................... 6501966
482 MAINTAINING YOUR VEHICLE

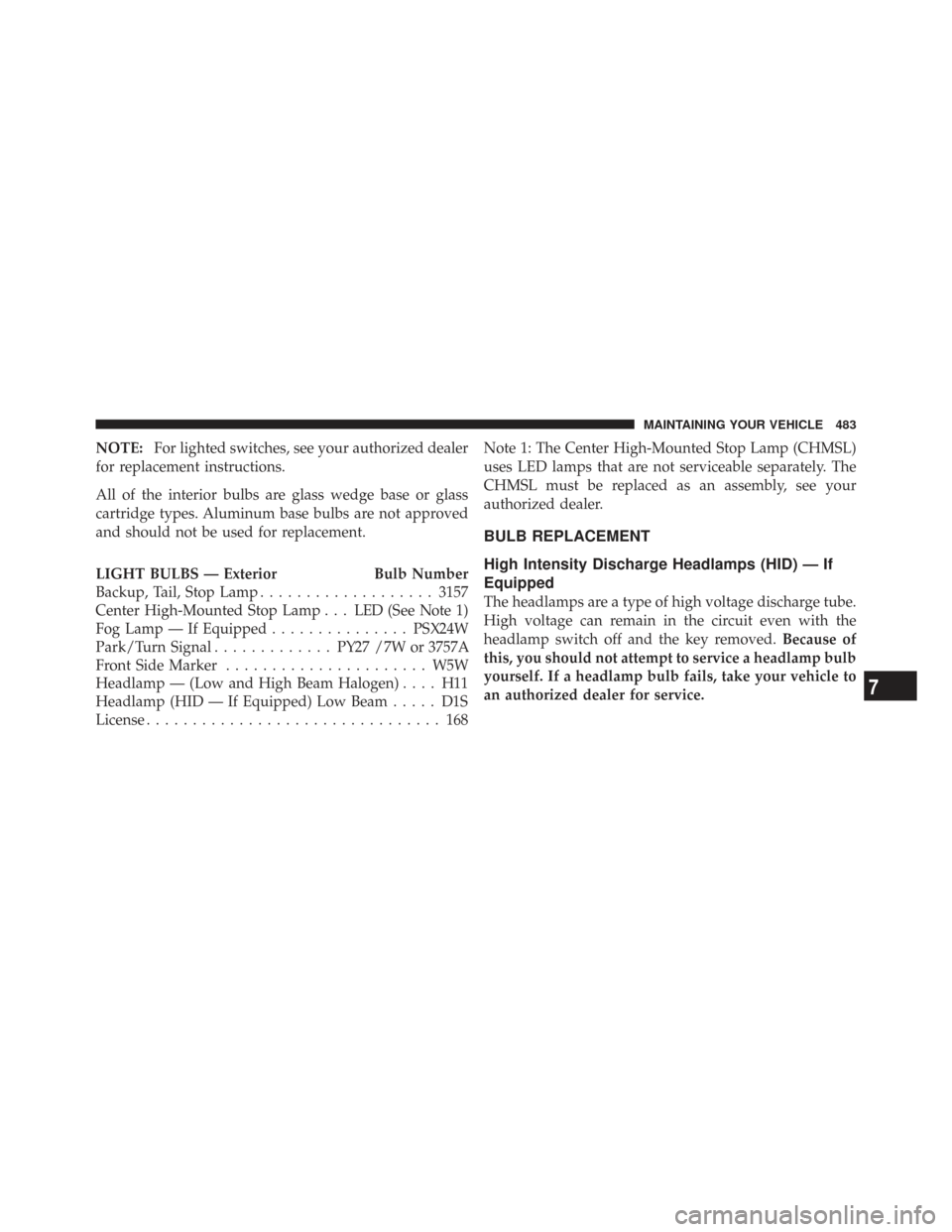

NOTE:For lighted switches, see your authorized dealer
for replacement instructions.
All of the interior bulbs are glass wedge base or glass
cartridge types. Aluminum base bulbs are not approved
and should not be used for replacement.
LIGHT BULBS — Exterior Bulb Number
Backup, Tail, Stop Lamp ................... 3157
Center High-Mounted Stop Lamp . . . LED (See Note 1)
Fog Lamp — If Equipped ...............PSX24W
Park/Turn Signal ............. PY27 / 7W or 3757A
Front Side Marker ...................... W5W
Headlamp — (Low and High Beam Halogen) .... H11
Headlamp (HID — If Equipped) Low Beam ..... D1S
License ................................ 168 Note 1: The Center High-Mounted Stop Lamp (CHMSL)
uses LED lamps that are not serviceable separately. The
CHMSL must be replaced as an assembly, see your
authorized dealer.
BULB REPLACEMENT
High Intensity Discharge Headlamps (HID) — If
Equipped
The headlamps are a type of high voltage discharge tube.
High voltage can remain in the circuit even with the
headlamp switch off and the key removed.
Because of
this, you should not attempt to service a headlamp bulb
yourself. If a headlamp bulb fails, take your vehicle to
an authorized dealer for service.
7
MAINTAINING YOUR VEHICLE 483

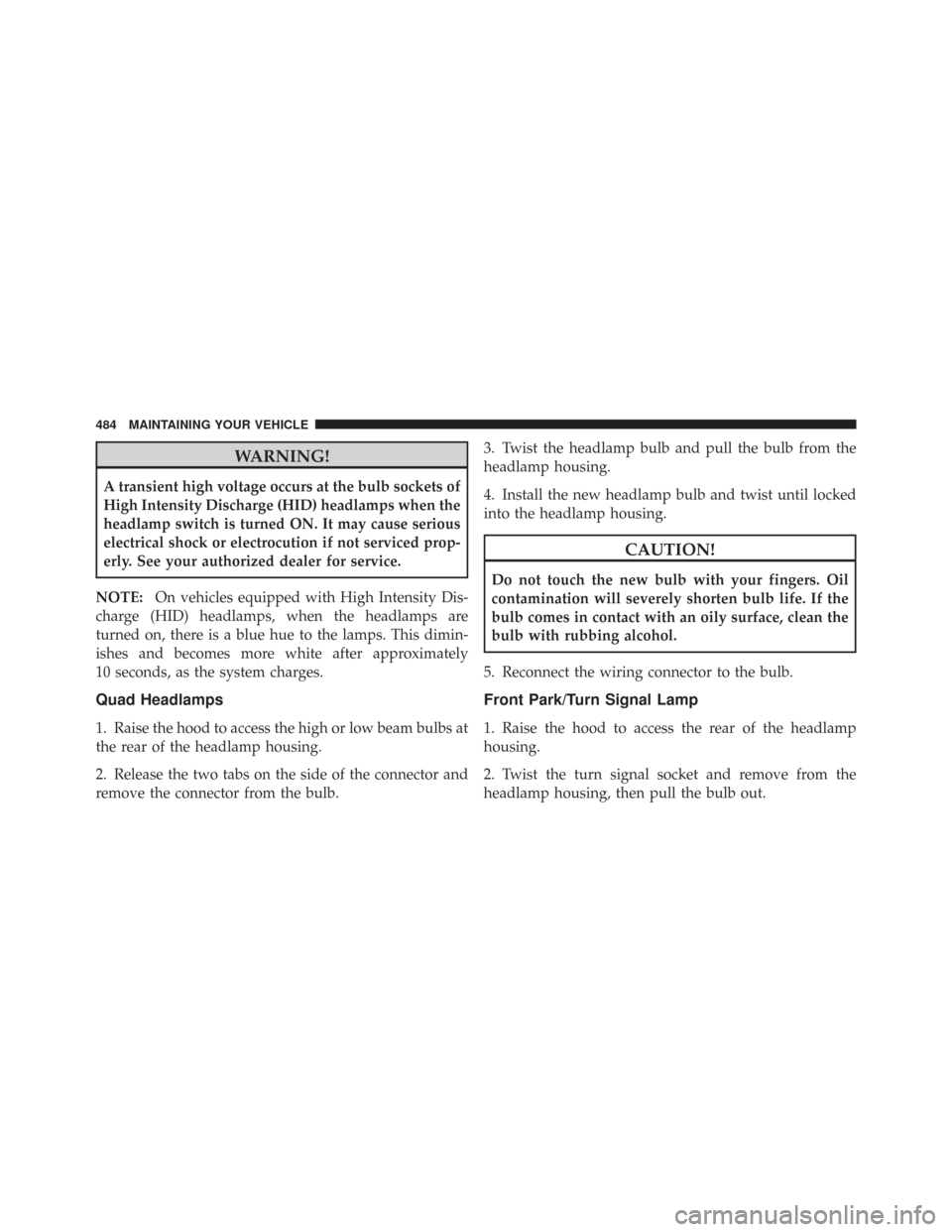

WARNING!
A transient high voltage occurs at the bulb sockets of
High Intensity Discharge (HID) headlamps when the
headlamp switch is turned ON. It may cause serious
electrical shock or electrocution if not serviced prop-
erly. See your authorized dealer for service.
NOTE: On vehicles equipped with High Intensity Dis-
charge (HID) headlamps, when the headlamps are
turned on, there is a blue hue to the lamps. This dimin-
ishes and becomes more white after approximately
10 seconds, as the system charges.
Quad Headlamps
1. Raise the hood to access the high or low beam bulbs at
the rear of the headlamp housing.
2. Release the two tabs on the side of the connector and
remove the connector from the bulb. 3. Twist the headlamp bulb and pull the bulb from the
headlamp housing.
4. Install the new headlamp bulb and twist until locked
into the headlamp housing.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol.
5. Reconnect the wiring connector to the bulb.
Front Park/Turn Signal Lamp
1. Raise the hood to access the rear of the headlamp
housing.
2. Twist the turn signal socket and remove from the
headlamp housing, then pull the bulb out.
484 MAINTAINING YOUR VEHICLE

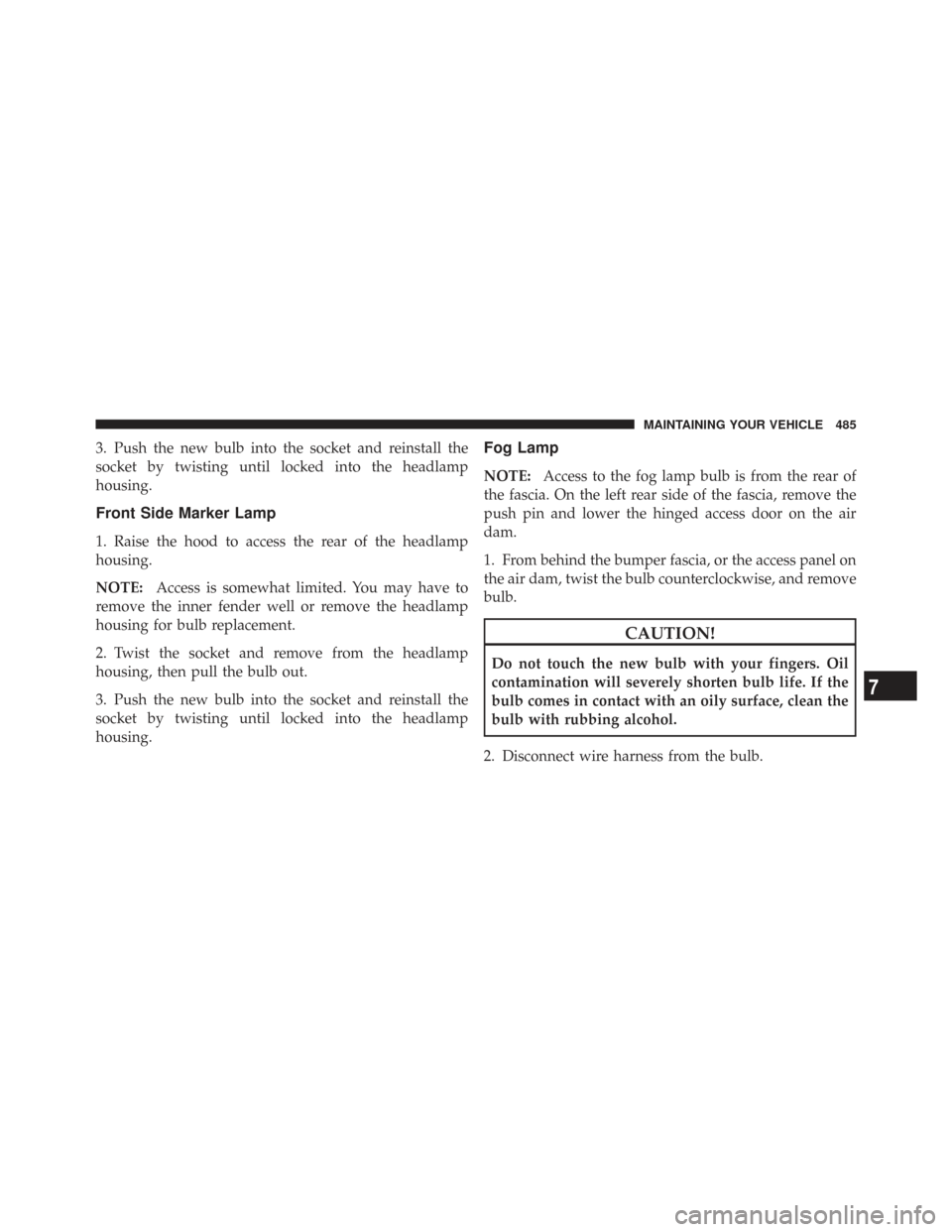

3. Push the new bulb into the socket and reinstall the
socket by twisting until locked into the headlamp
housing.
Front Side Marker Lamp
1. Raise the hood to access the rear of the headlamp
housing.
NOTE:Access is somewhat limited. You may have to
remove the inner fender well or remove the headlamp
housing for bulb replacement.
2. Twist the socket and remove from the headlamp
housing, then pull the bulb out.
3. Push the new bulb into the socket and reinstall the
socket by twisting until locked into the headlamp
housing.
Fog Lamp
NOTE: Access to the fog lamp bulb is from the rear of
the fascia. On the left rear side of the fascia, remove the
push pin and lower the hinged access door on the air
dam.
1. From behind the bumper fascia, or the access panel on
the air dam, twist the bulb counterclockwise, and remove
bulb.
CAUTION!
Do not touch the new bulb with your fingers. Oil
contamination will severely shorten bulb life. If the
bulb comes in contact with an oily surface, clean the
bulb with rubbing alcohol.
2. Disconnect wire harness from the bulb.
7
MAINTAINING YOUR VEHICLE 485

3. Reconnect the wiring harness to the new bulb and
reinstall the bulb by twisting clockwise.

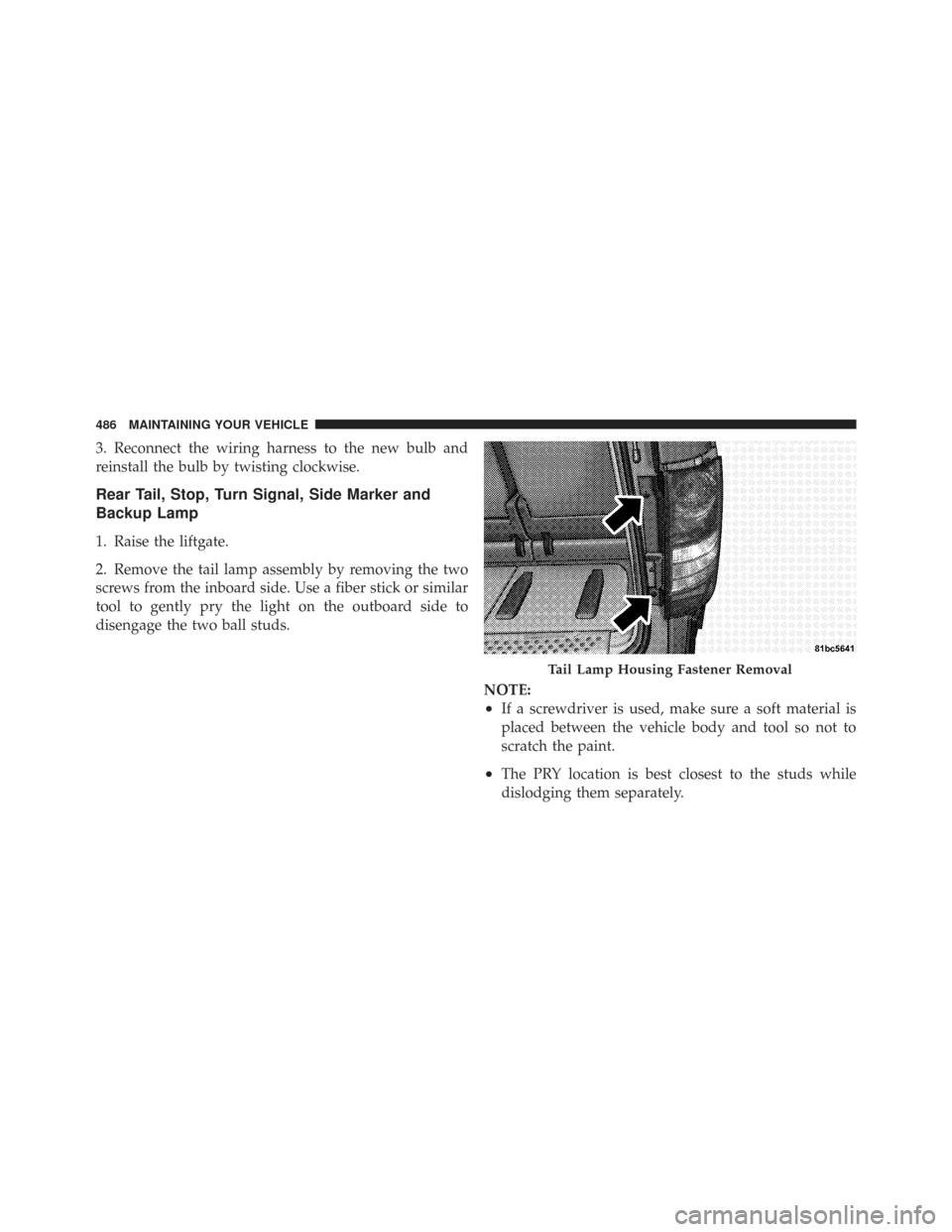

Rear Tail, Stop, Turn Signal, Side Marker and
Backup Lamp
1. Raise the liftgate.
2. Remove the tail lamp assembly by removing the two
screws from the inboard side. Use a fiber stick or similar
tool to gently pry the light on the outboard side to
disengage the two ball studs.NOTE:
•If a screwdriver is used, make sure a soft material is
placed between the vehicle body and tool so not to
scratch the paint.
•The PRY location is best closest to the studs while
dislodging them separately.
Tail Lamp Housing Fastener Removal
486 MAINTAINING YOUR VEHICLE

3. Twist the socket and remove it from the lamp assem-
bly.
4. Pull the bulb to remove it from the socket.5. Replace the bulb, reinstall the socket, and reattach the
lamp assembly.
Center High-Mounted Stop Lamp (CHMSL)
The CHMSL uses LED lamps that are not serviceable
separately. The CHMSL must be replaced as an assembly,
see your authorized dealer.
License Lamp
The license plate lamp is located under the tailgate light
bar and above the license plate.
1. Using a small screwdriver, press inward the locking
tab on the outboard side of the lamp assembly and pull
down on the lamp assembly for removal.
2. Twist and remove the socket from the lamp assembly
and pull the bulb out to remove.
3. Push the bulb into the socket, twist the socket into the
lamp assembly and reinstall the lamp assembly into place
ensuring the locking tab is secure.

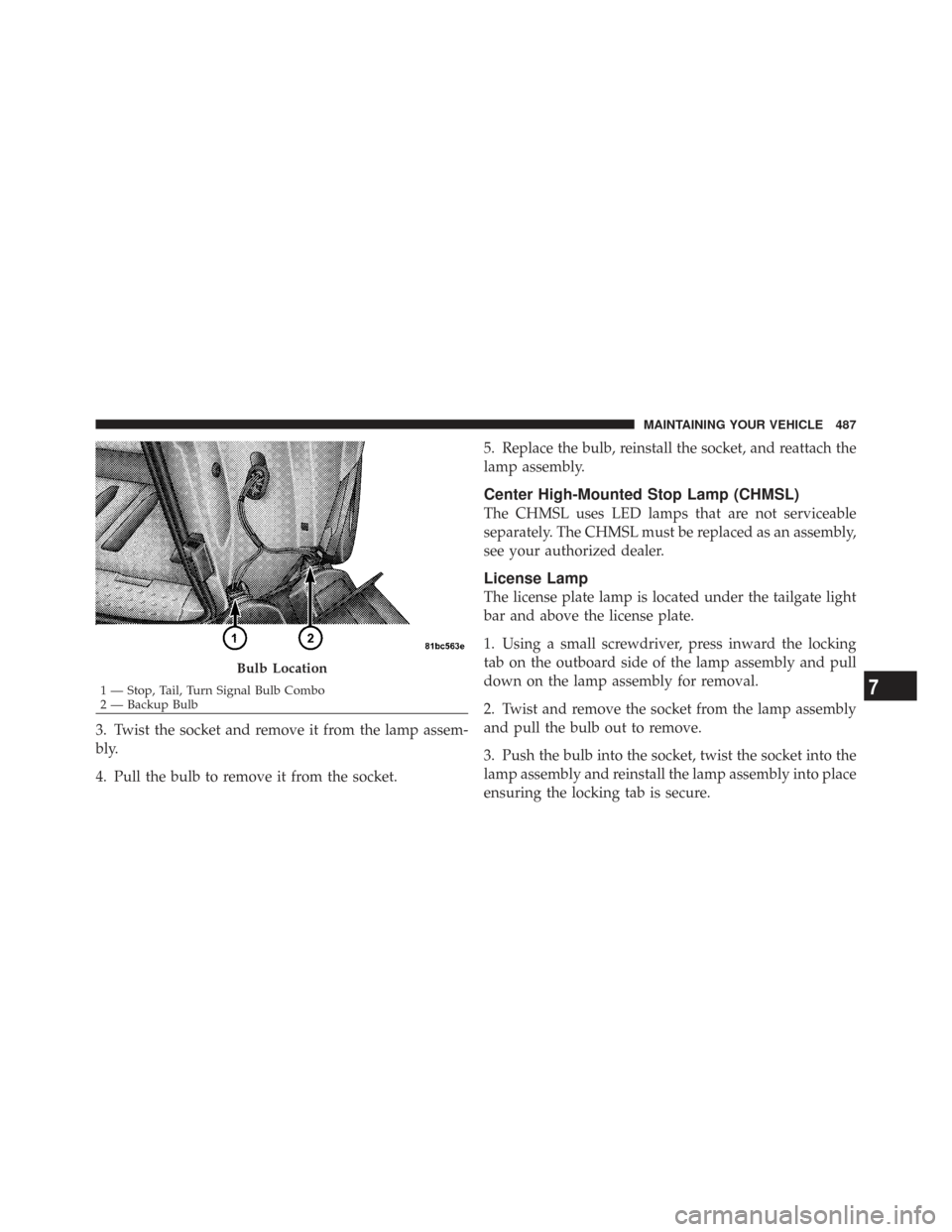

Bulb Location
1 — Stop, Tail, Turn Signal Bulb Combo
2 — Backup Bulb7
MAINTAINING YOUR VEHICLE 487

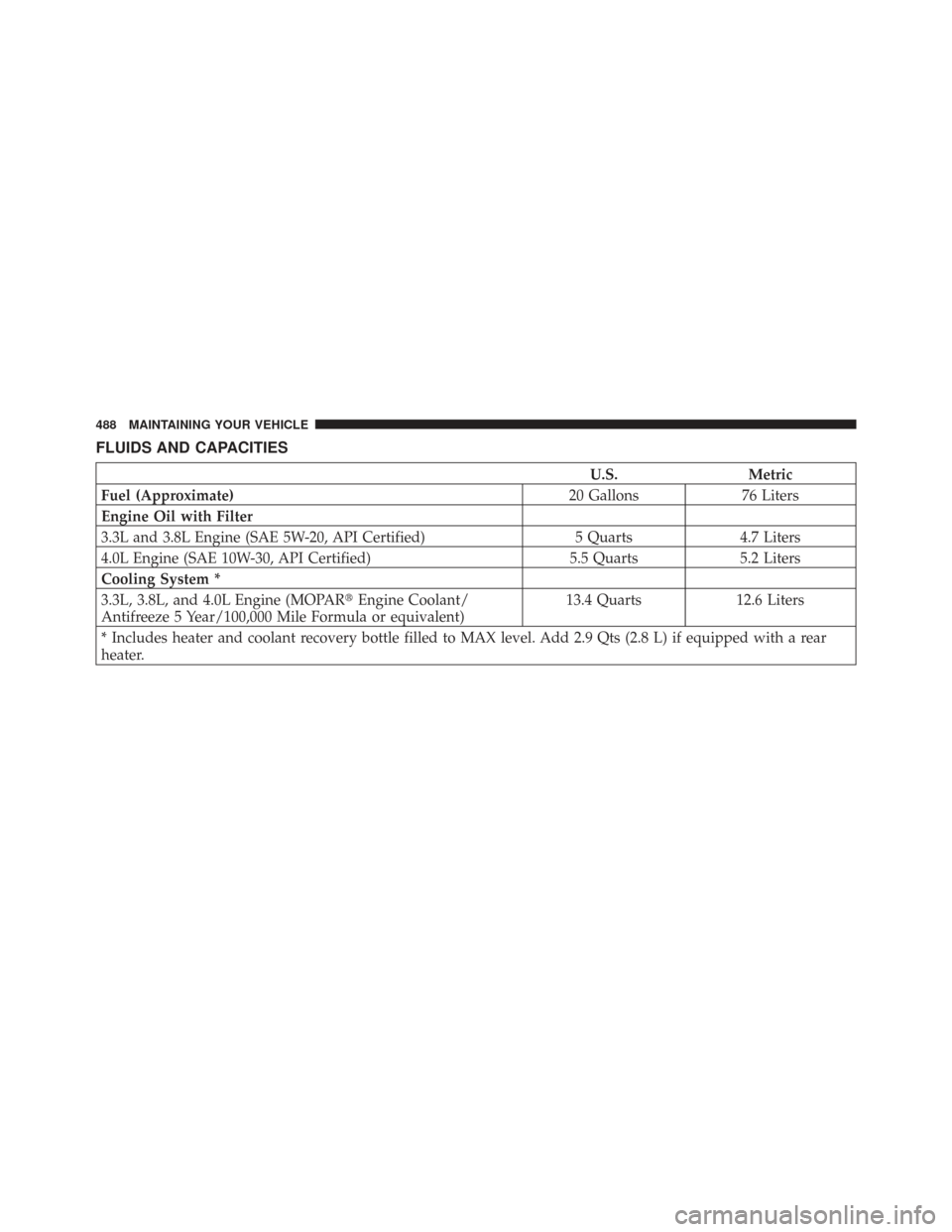

FLUIDS AND CAPACITIES
U.S.Metric
Fuel (Approximate) 20 Gallons76 Liters
Engine Oil with Filter
3.3L and 3.8L Engine (SAE 5W-20, API Certified) 5 Quarts4.7 Liters
4.0L Engine (SAE 10W-30, API Certified) 5.5 Quarts5.2 Liters
Cooling System *
3.3L, 3.8L, and 4.0L Engine (MOPAR Engine Coolant/
Antifreeze 5 Year/100,000 Mile Formula or equivalent) 13.4 Quarts
12.6 Liters
* Includes heater and coolant recovery bottle filled to MAX level. Add 2.9 Qts (2.8 L) if equipped with a rear
heater.
