Page 171 of 652

CHRYSLER TOWN AND COUNTRY 2012 5.G Owners Manual When the HIGH-level setting is selected, the heater will
provide a boosted heat level during the initial stages of
operation. Then, the heat output will drop to the normal
HIGH-level. If the HIGH-leve

Page 172 of 652

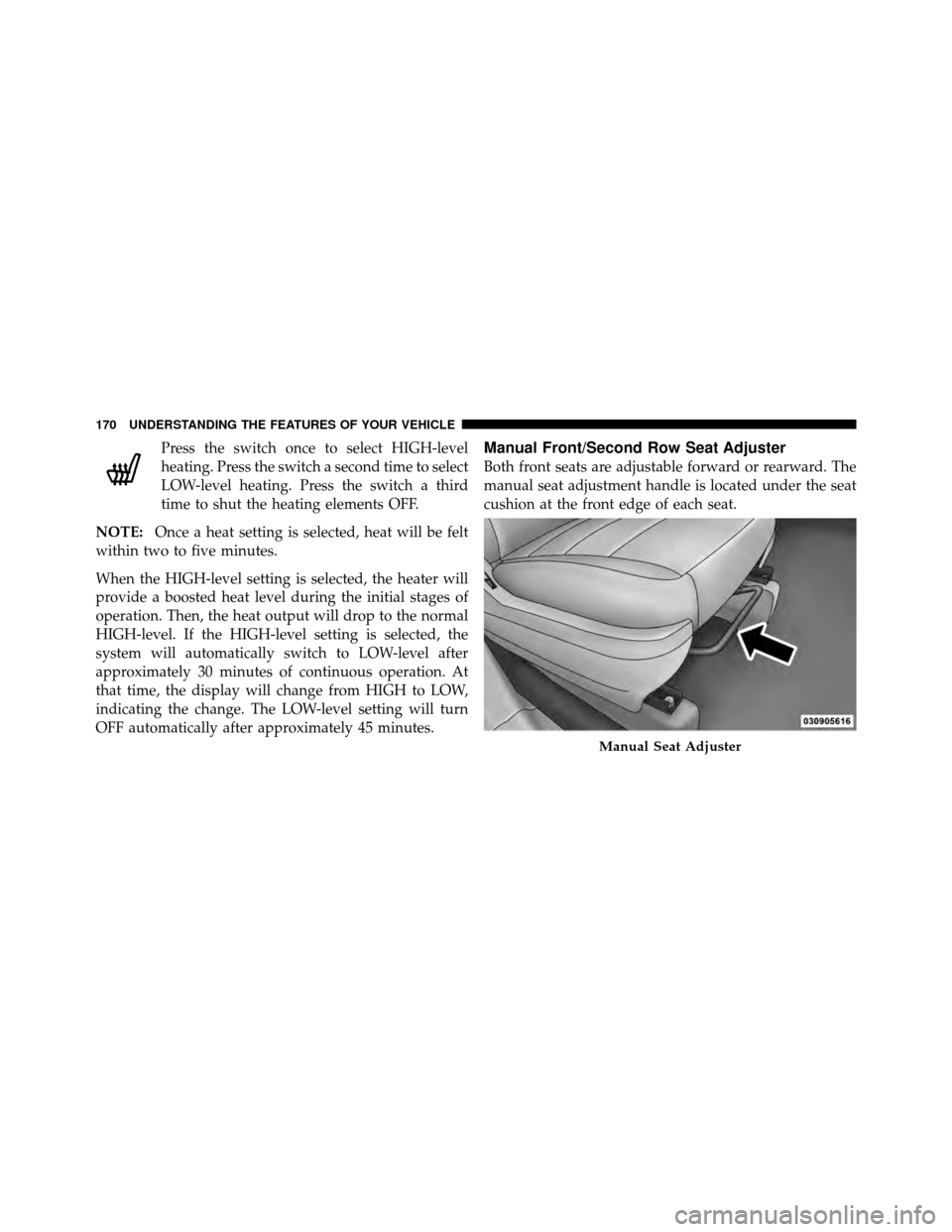

CHRYSLER TOWN AND COUNTRY 2012 5.G Owners Manual Press the switch once to select HIGH-level
heating. Press the switch a second time to select
LOW-level heating. Press the switch a third
time to shut the heating elements OFF.
NOTE: Once a heat settin

Page 173 of 652

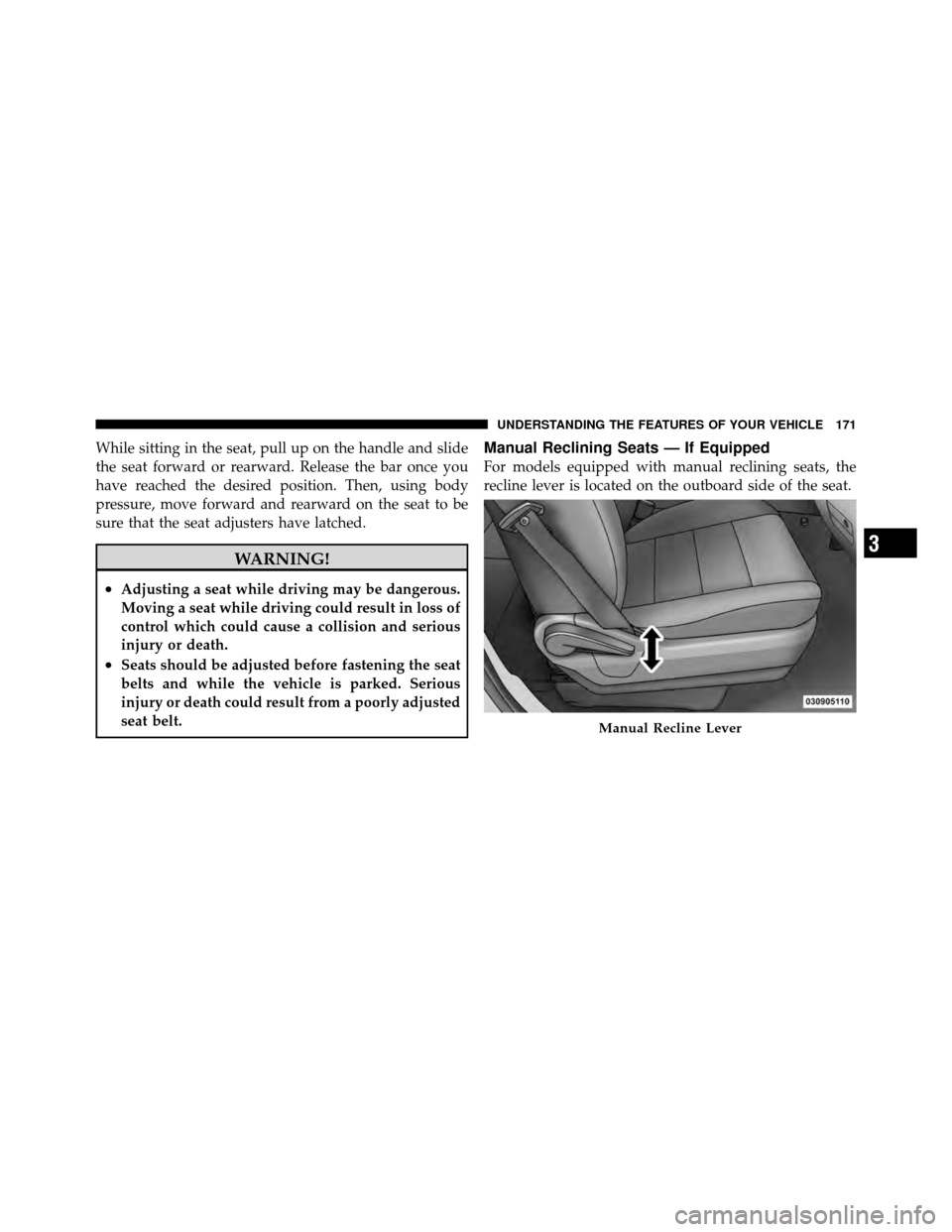

CHRYSLER TOWN AND COUNTRY 2012 5.G Owners Manual While sitting in the seat, pull up on the handle and slide
the seat forward or rearward. Release the bar once you
have reached the desired position. Then, using body
pressure, move forward and rearwar

Page 174 of 652

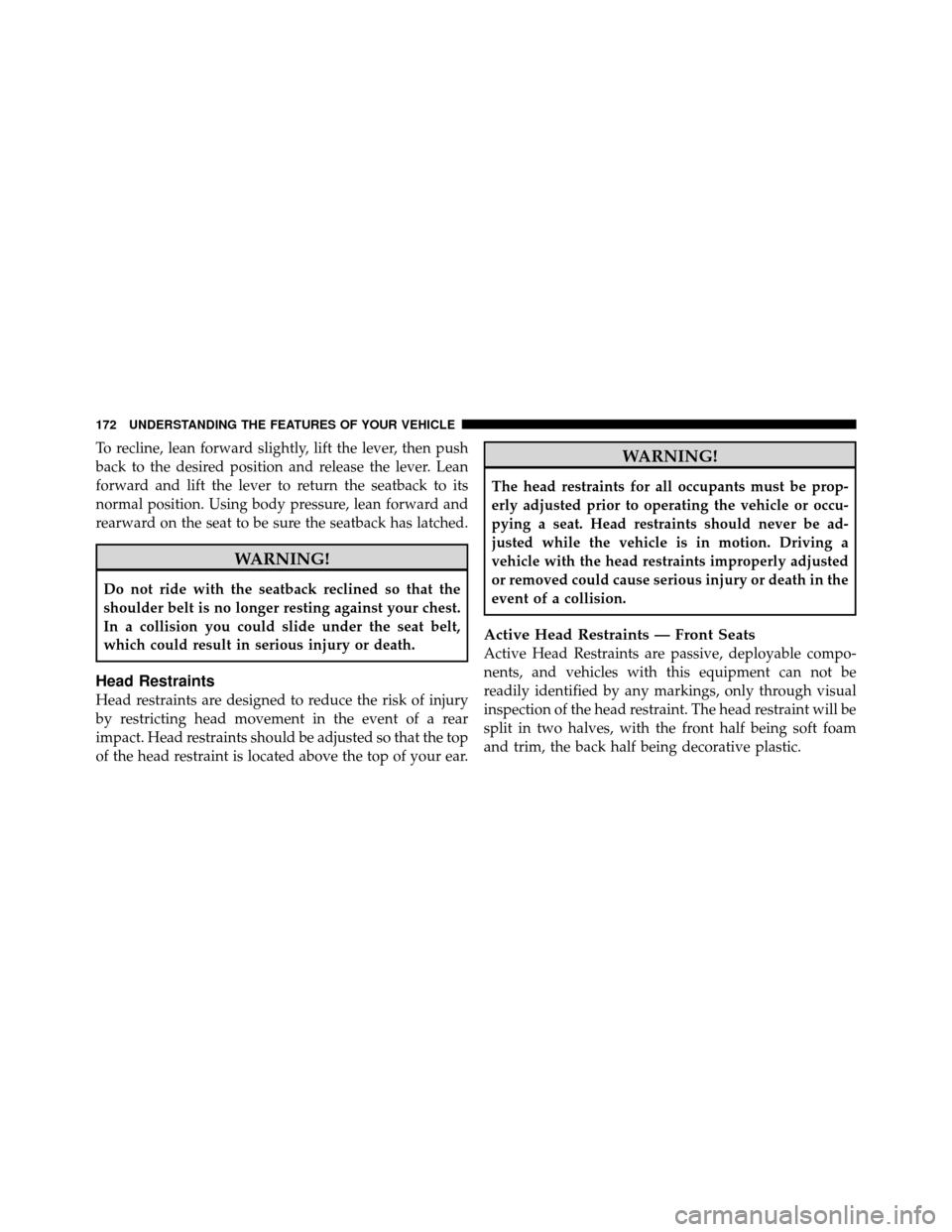

CHRYSLER TOWN AND COUNTRY 2012 5.G Owners Manual To recline, lean forward slightly, lift the lever, then push
back to the desired position and release the lever. Lean
forward and lift the lever to return the seatback to its
normal position. Using bo

Page 175 of 652

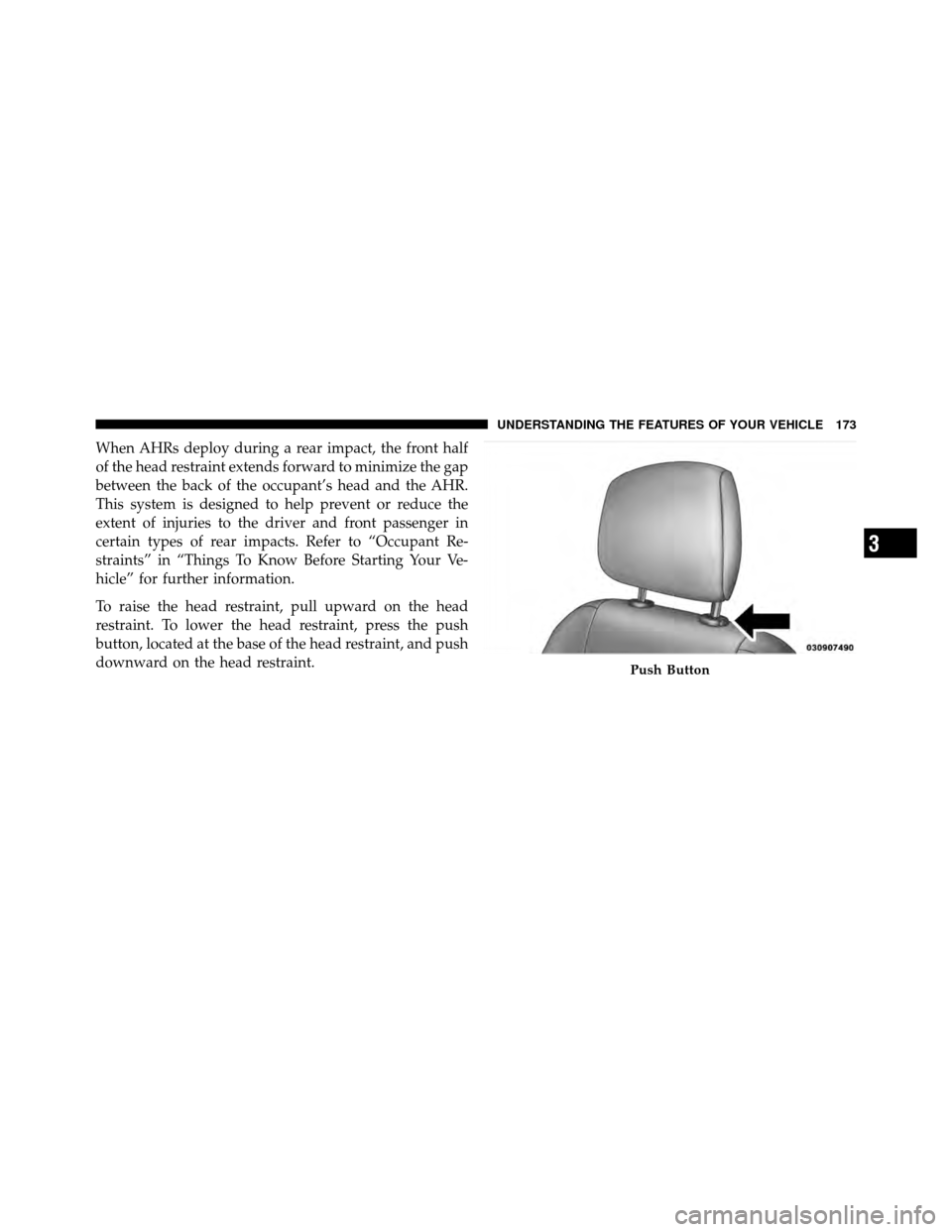

CHRYSLER TOWN AND COUNTRY 2012 5.G Owners Manual When AHRs deploy during a rear impact, the front half
of the head restraint extends forward to minimize the gap
between the back of the occupant’s head and the AHR.
This system is designed to help p

Page 176 of 652

CHRYSLER TOWN AND COUNTRY 2012 5.G Owners Manual For comfort the Active Head Restraints can be tilted
forward and rearward. To tilt the head restraint closer to
the back of your head, pull outward on the bottom of the
head restraint. Push rearward o

Page 177 of 652

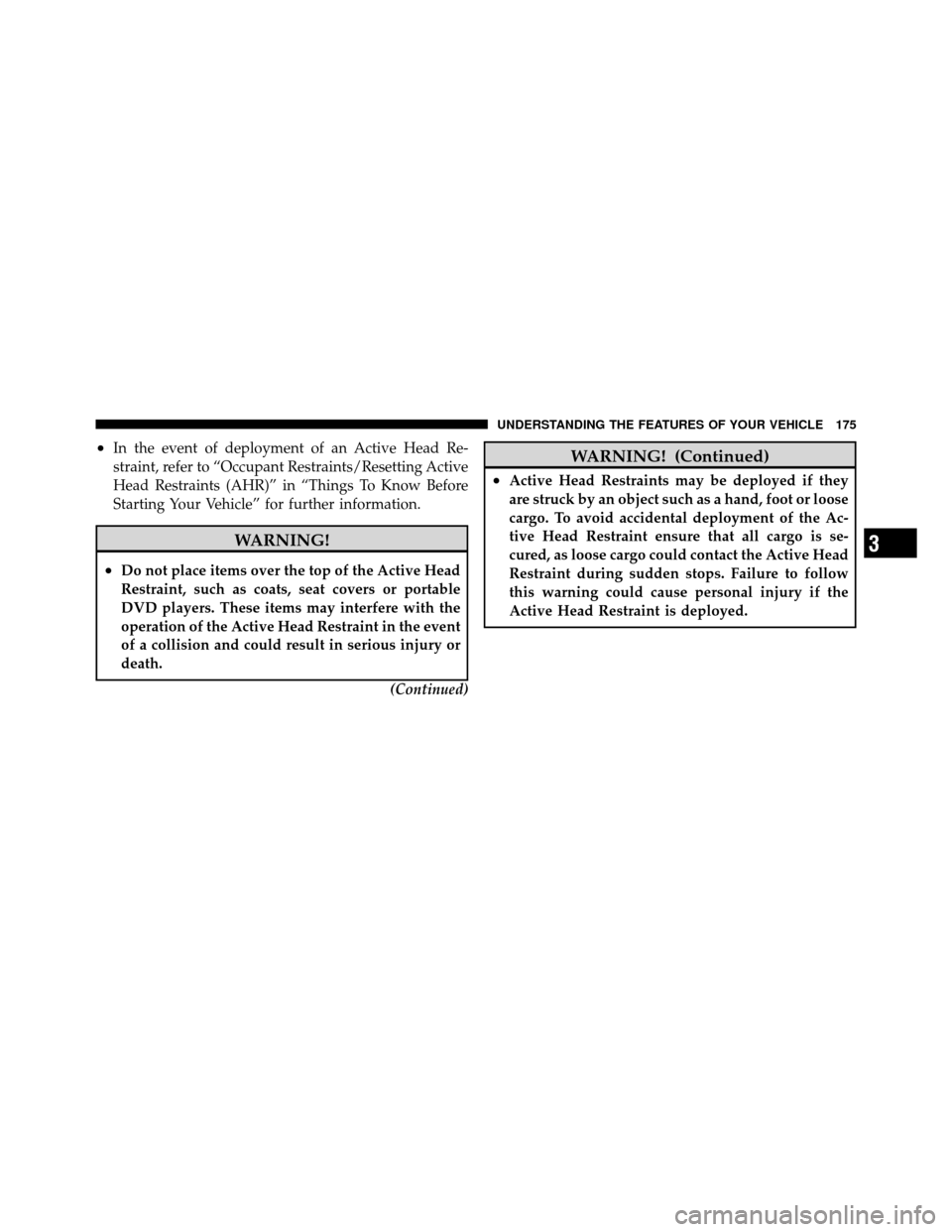

CHRYSLER TOWN AND COUNTRY 2012 5.G Owners Manual •In the event of deployment of an Active Head Re-
straint, refer to “Occupant Restraints/Resetting Active
Head Restraints (AHR)” in “Things To Know Before
Starting Your Vehicle” for further

Page 178 of 652

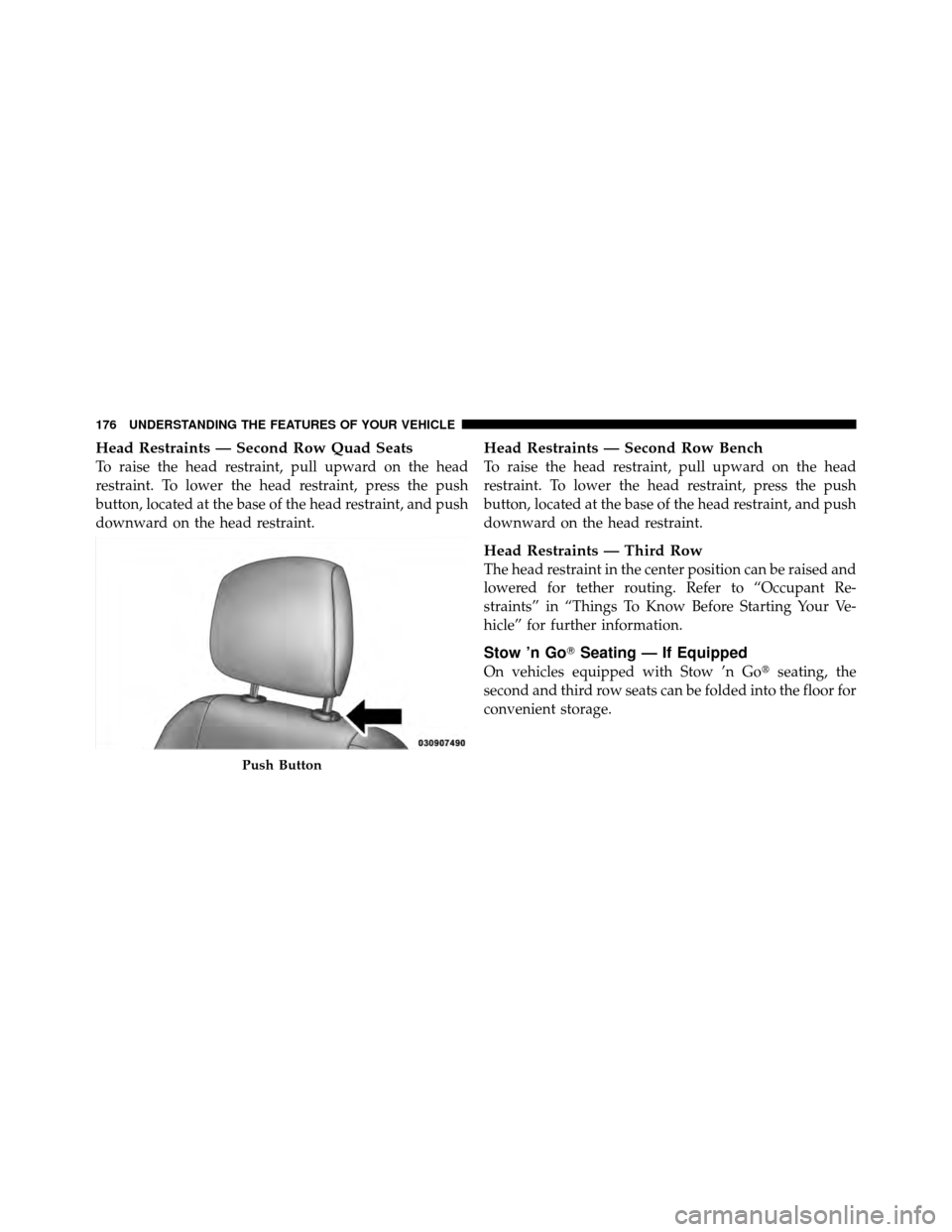

CHRYSLER TOWN AND COUNTRY 2012 5.G Owners Manual Head Restraints — Second Row Quad Seats
To raise the head restraint, pull upward on the head
restraint. To lower the head restraint, press the push
button, located at the base of the head restraint,

Page 179 of 652

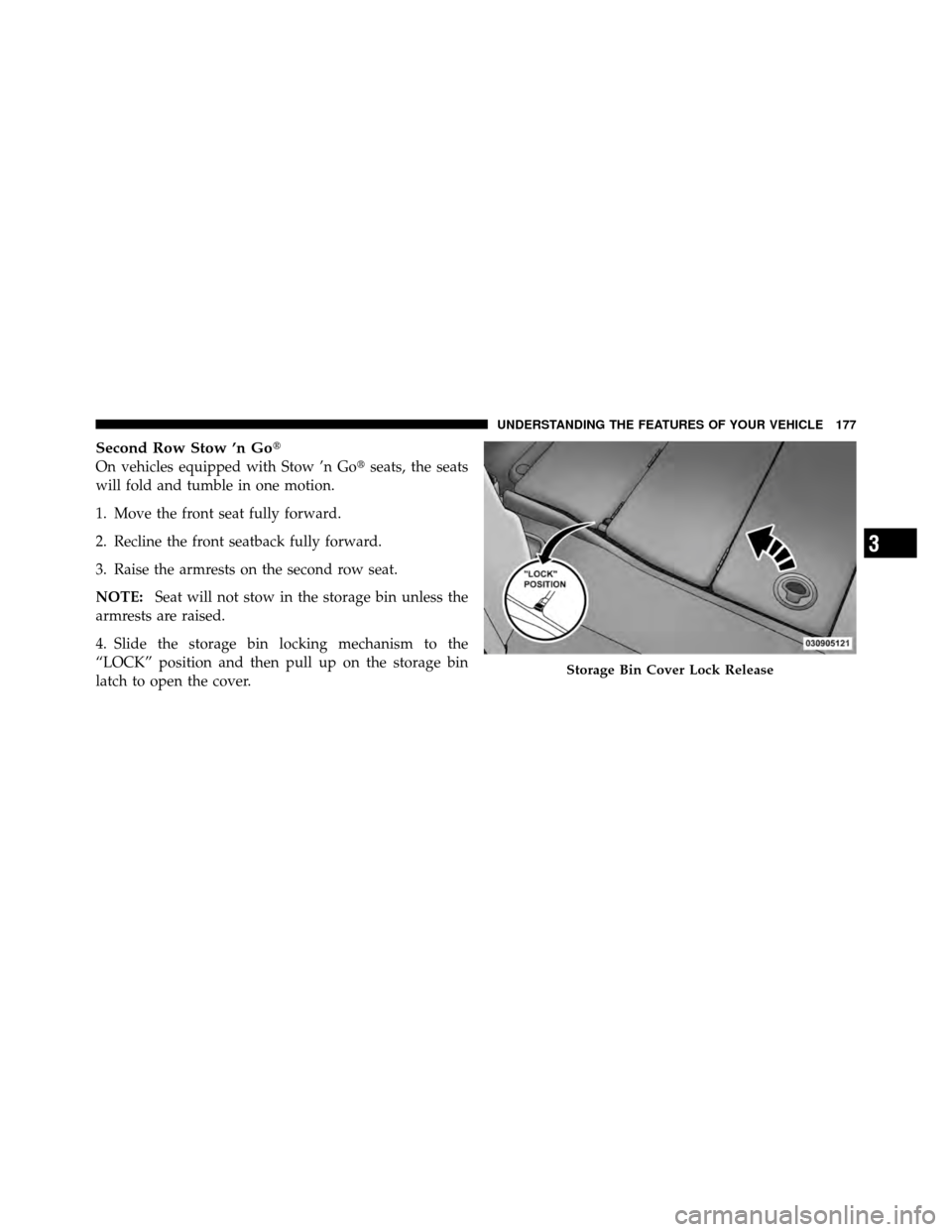

CHRYSLER TOWN AND COUNTRY 2012 5.G Owners Manual Second Row Stow ’n Go
On vehicles equipped with Stow ’n Goseats, the seats
will fold and tumble in one motion.
1. Move the front seat fully forward.
2. Recline the front seatback fully forward.

Page 180 of 652

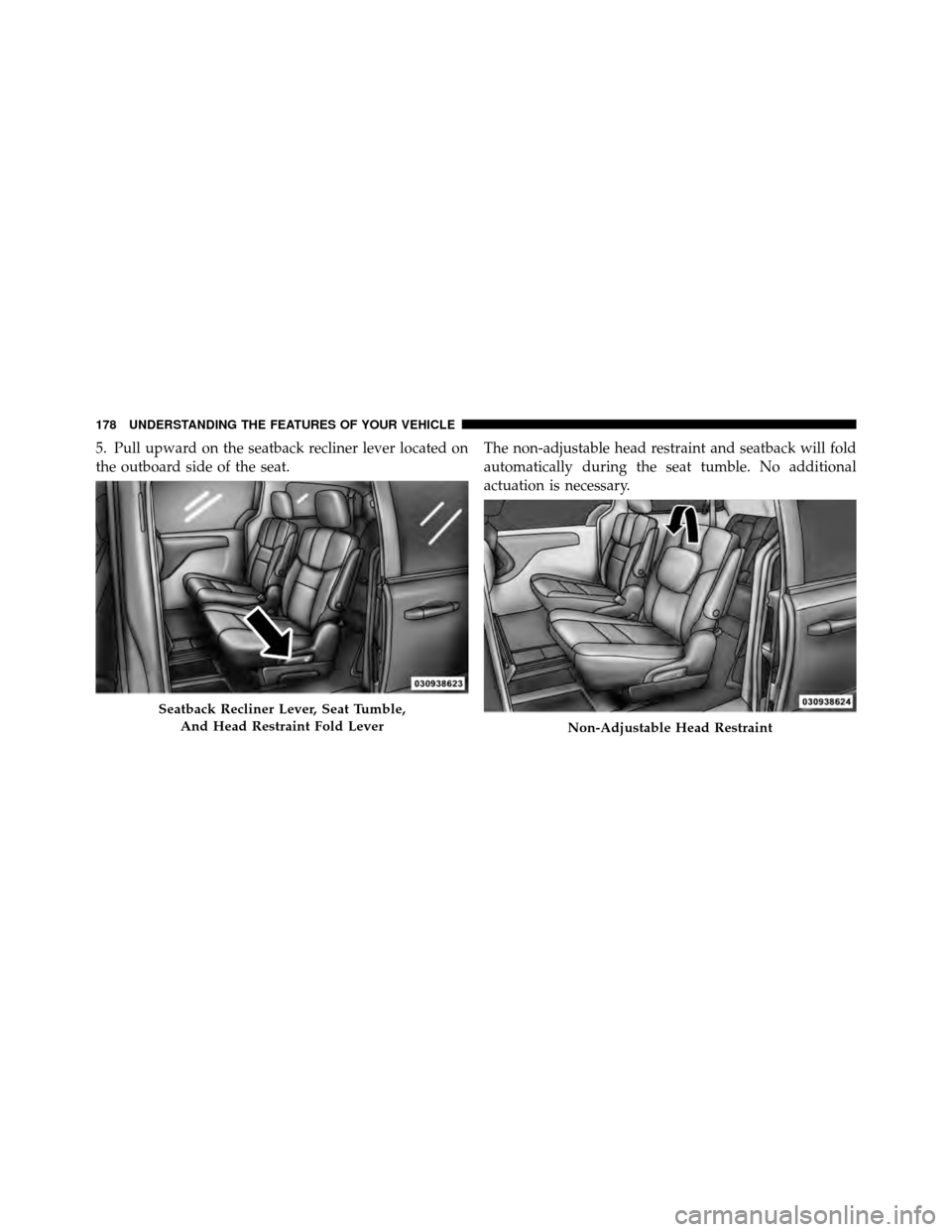

CHRYSLER TOWN AND COUNTRY 2012 5.G Owners Manual 5. Pull upward on the seatback recliner lever located on
the outboard side of the seat.The non-adjustable head restraint and seatback will fold
automatically during the seat tumble. No additional
actu
