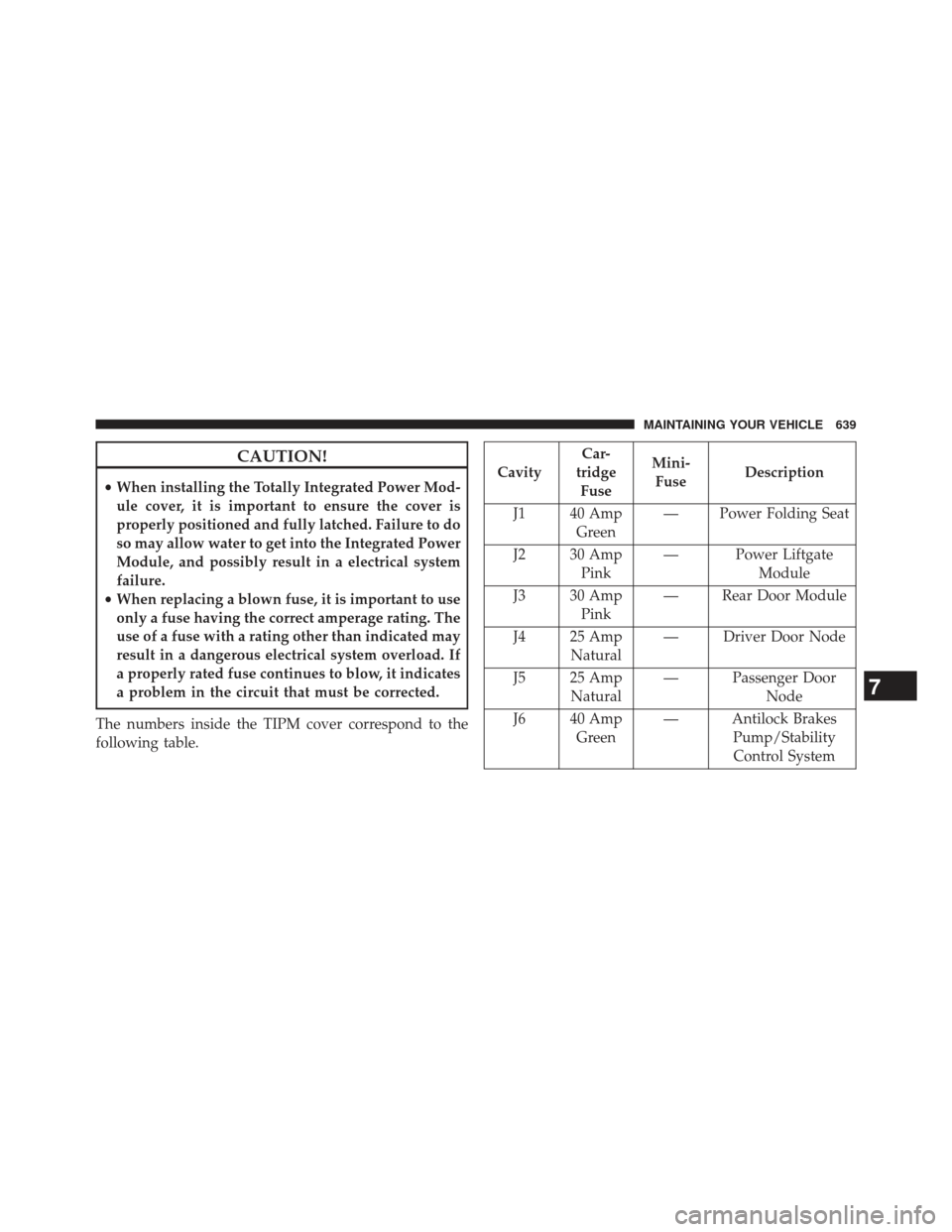

CAUTION!
•When installing the Totally Integrated Power Mod-
ule cover, it is important to ensure the cover is
properly positioned and fully latched. Failure to do
so may allow water to get into the Integrated Power
Module, and possibly result in a electrical system
failure.
• When replacing a blown fuse, it is important to use
only a fuse having the correct amperage rating. The
use of a fuse with a rating other than indicated may
result in a dangerous electrical system overload. If
a properly rated fuse continues to blow, it indicates
a problem in the circuit that must be corrected.
The numbers inside the TIPM cover correspond to the
following table.Cavity Car-
tridge Fuse Mini-
Fuse Description
J1 40 Amp Green — Power Folding Seat
J2 30 Amp Pink — Power Liftgate
Module
J3 30 Amp Pink — Rear Door Module
J4 25 Amp Natural — Driver Door Node
J5 25 Amp Natural — Passenger Door
Node
J6 40 Amp Green — Antilock Brakes
Pump/StabilityControl System
7
MAINTAINING YOUR VEHICLE 639

CavityCar-
tridge Fuse Mini-
Fuse Description

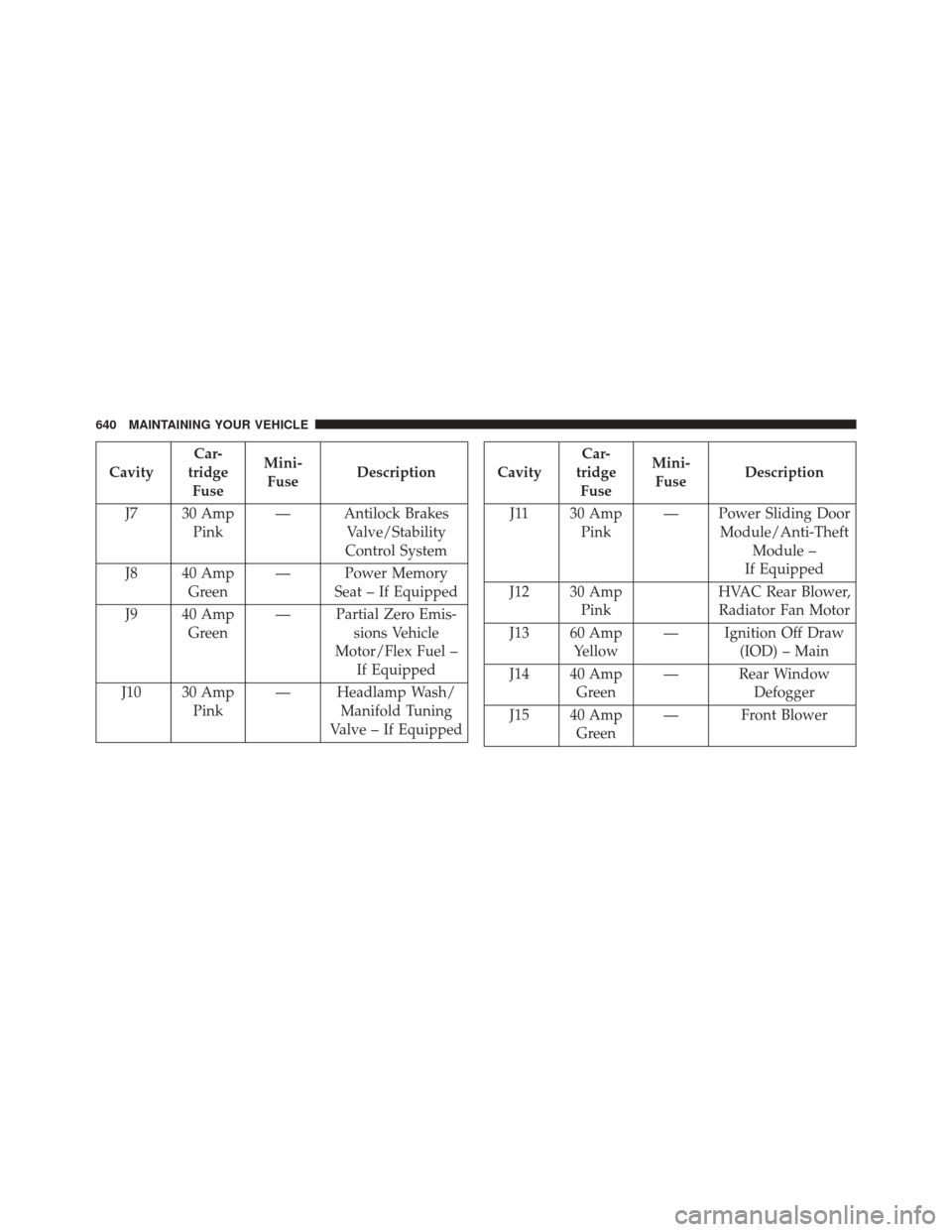

J7 30 Amp Pink — Antilock Brakes
Valve/Stability
Control System
J8 40 Amp Green — Power Memory
Seat – If Equipped
J9 40 Amp Green — Partial Zero Emis-
sions Vehicle
Motor/Flex Fuel – If Equipped
J10 30 Amp Pink — Headlamp Wash/
Manifold Tuning
Valve – If EquippedCavity Car-
tridge Fuse Mini-
Fuse Description
J11 30 Amp Pink — Power Sliding Door
Module/Anti-TheftModule –
If Equipped
J12 30 Amp Pink HVAC Rear Blower,
Radiator Fan Motor
J13 60 Amp Yellow — Ignition Off Draw
(IOD) – Main
J14 40 Amp Green — Rear Window
Defogger
J15 40 Amp Green — Front Blower
640 MAINTAINING YOUR VEHICLE

CavityCar-
tridge Fuse Mini-
Fuse Description

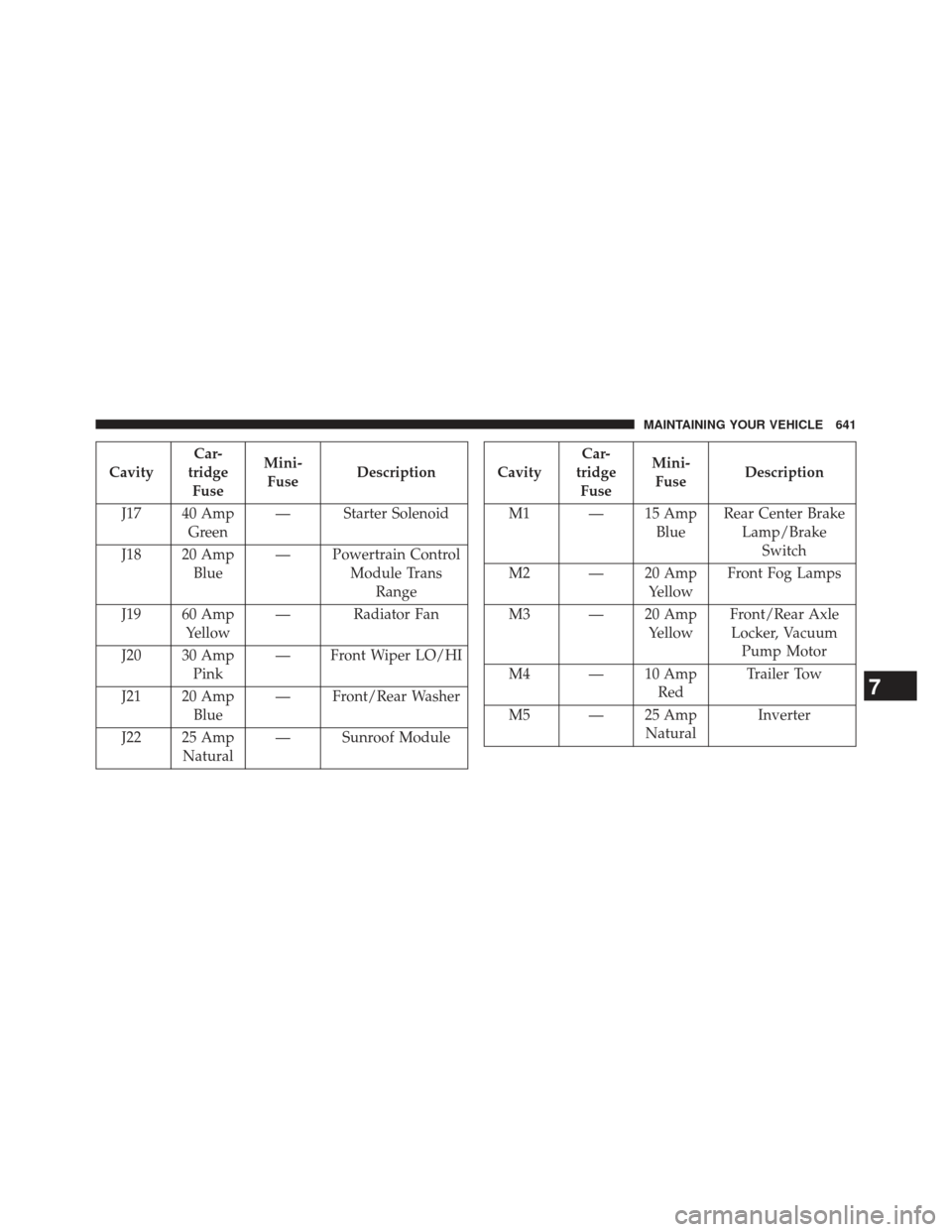

J17 40 Amp Green — Starter Solenoid
J18 20 Amp Blue — Powertrain Control
Module TransRange
J19 60 Amp Yellow — Radiator Fan
J20 30 Amp Pink — Front Wiper LO/HI
J21 20 Amp Blue — Front/Rear Washer
J22 25 Amp Natural — Sunroof ModuleCavityCar-
tridge Fuse Mini-
Fuse Description
M1 — 15 Amp BlueRear Center Brake
Lamp/Brake Switch
M2 — 20 Amp YellowFront Fog Lamps
M3 — 20 Amp YellowFront/Rear Axle
Locker, Vacuum Pump Motor
M4 — 10 Amp RedTrailer Tow
M5 — 25 Amp NaturalInverter
7
MAINTAINING YOUR VEHICLE 641

CavityCar-
tridge Fuse Mini-
Fuse Description
M6 — 20 Amp Yellow
Power Outlet #1
(ACC), Rain Sensor, Cigar Lighter
(Instrument Panel or with
Console Rear)
M7 — 20 Amp YellowPower Outlet #2
(BATT/ACC
SELECT) – Center Seat or with
Console Rear
M8 — 20 Amp YellowFront Heated Seat –
If Equipped

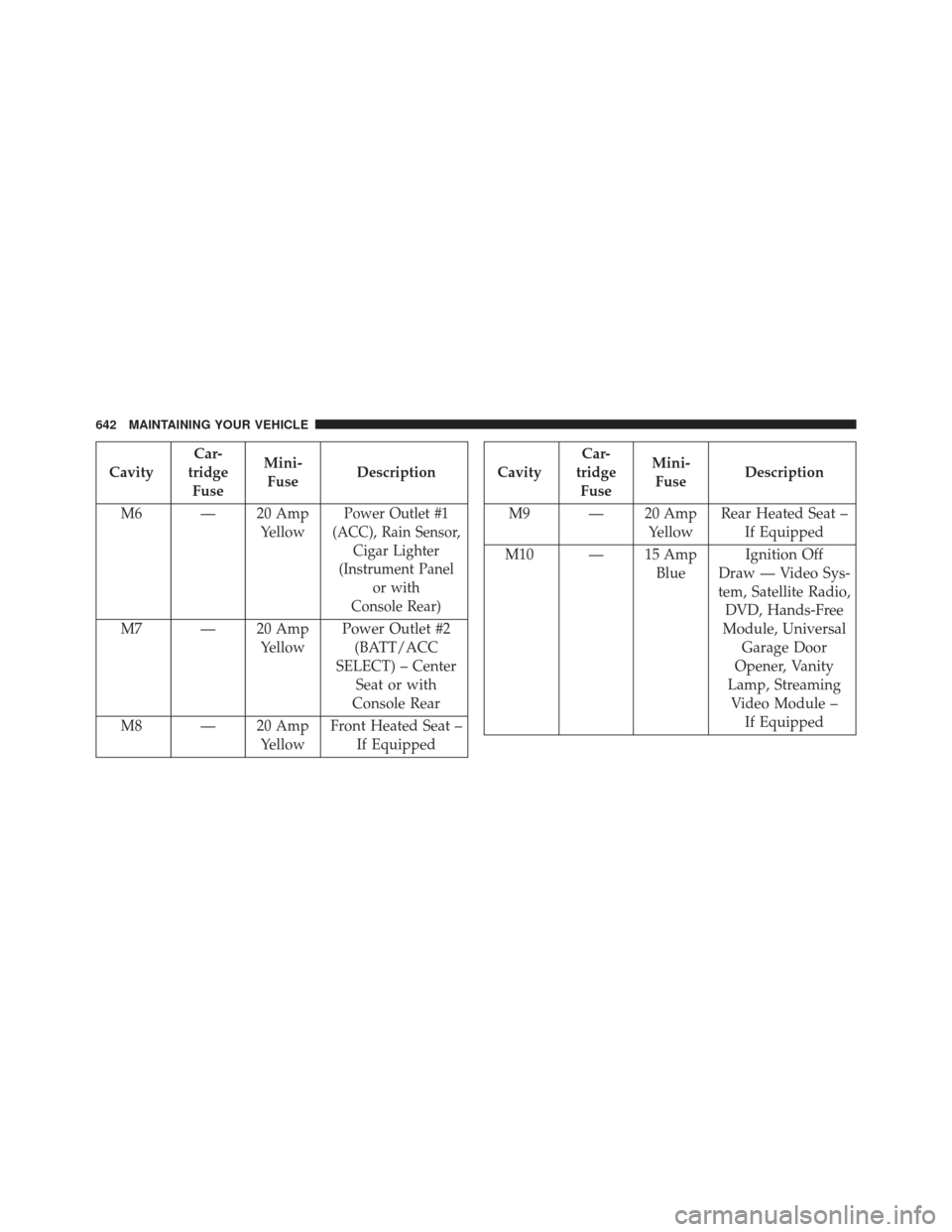

Cavity Car-
tridge Fuse Mini-
Fuse Description
M9 — 20 Amp YellowRear Heated Seat –
If Equipped
M10 — 15 Amp BlueIgnition Off
Draw — Video Sys-
tem, Satellite Radio, DVD, Hands-Free
Module, Universal Garage Door
Opener, Vanity
Lamp, Streaming Video Module – If Equipped
642 MAINTAINING YOUR VEHICLE

CavityCar-
tridge Fuse Mini-
Fuse Description

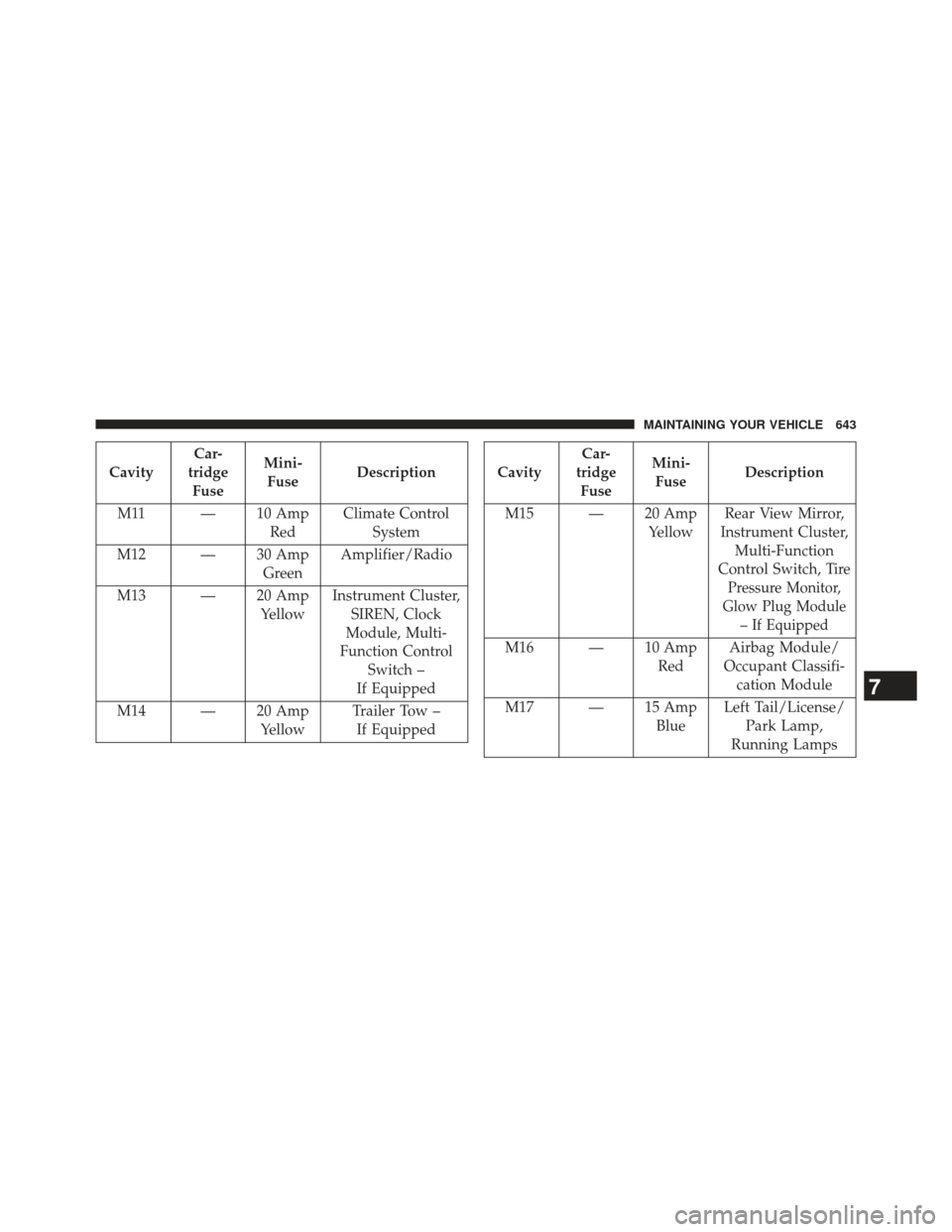

M11 — 10 Amp RedClimate Control
System
M12 — 30 Amp GreenAmplifier/Radio
M13 — 20 Amp YellowInstrument Cluster,
SIREN, Clock
Module, Multi-
Function Control Switch –
If Equipped
M14 — 20 Amp YellowTrailer Tow –
If EquippedCavity Car-
tridge Fuse Mini-
Fuse Description
M15 — 20 Amp YellowRear View Mirror,
Instrument Cluster, Multi-Function
Control Switch,
Ti re
Pressure Monitor,
Glow Plug Module – If Equipped
M16 — 10 Amp RedAirbag Module/
Occupant Classifi- cation Module
M17 — 15 Amp BlueLeft Tail/License/
Park Lamp,
Running Lamps
7
MAINTAINING YOUR VEHICLE 643

CavityCar-
tridge Fuse Mini-
Fuse Description
M18 — 15 Amp BlueRight Tail/Park/
Run Lamp
M19 — 25 Amp NaturalPowertrain
M20 — 15 Amp BlueInstrument Cluster
Interior Light,Switch Bank,
Steering Column Module, SwitchSteering Wheel
M21 — 20 Amp YellowPowertrain

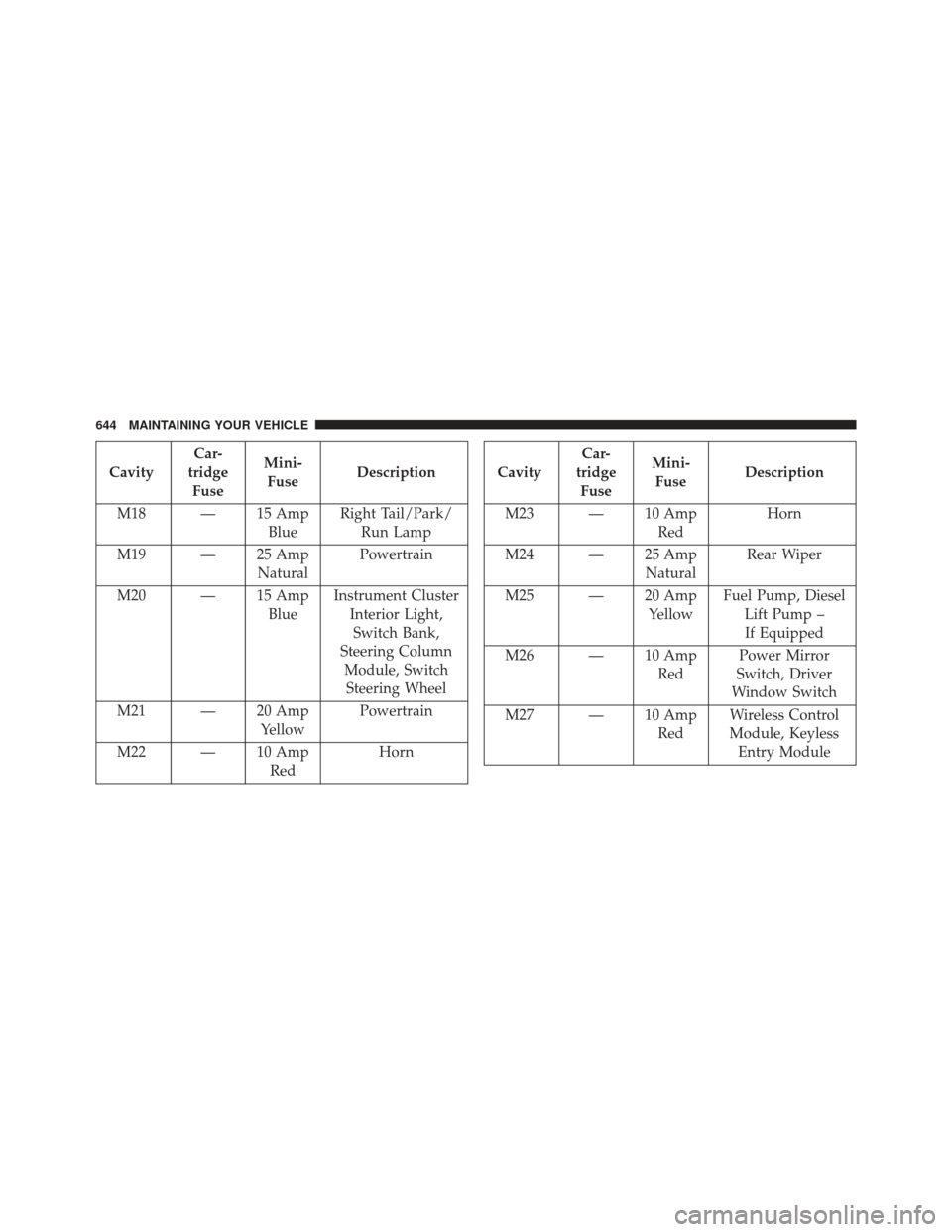

M22 — 10 Amp RedHornCavityCar-
tridge Fuse Mini-
Fuse Description
M23 — 10 Amp RedHorn
M24 — 25 Amp NaturalRear Wiper
M25 — 20 Amp YellowFuel Pump, Diesel
Lift Pump –If Equipped
M26 — 10 Amp RedPower Mirror
Switch, Driver
Window Switch
M27 — 10 Amp RedWireless Control
Module, Keyless Entry Module
644 MAINTAINING YOUR VEHICLE

CavityCar-
tridge Fuse Mini-
Fuse Description

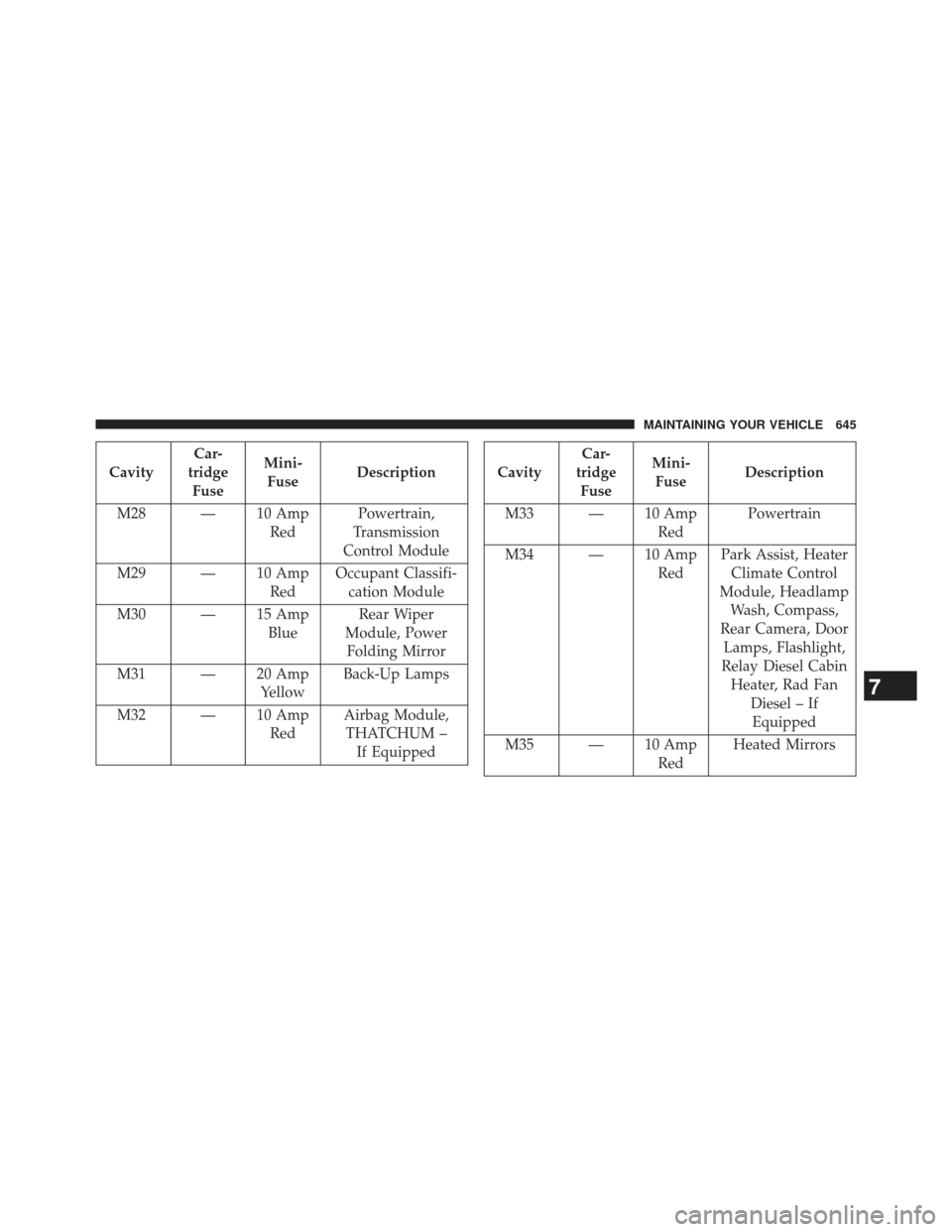

M28 — 10 Amp RedPowertrain,
Transmission
Control Module
M29 — 10 Amp RedOccupant Classifi-
cation Module
M30 — 15 Amp BlueRear Wiper
Module, Power Folding Mirror
M31 — 20 Amp YellowBack-Up Lamps
M32 — 10 Amp RedAirbag Module,
THATCHUM – If EquippedCavity Car-
tridge Fuse Mini-
Fuse Description
M33 — 10 Amp RedPowertrain
M34 — 10 Amp RedPark Assist, Heater
Climate Control
Module, Headlamp Wash, Compass,
Rear Camera, Door Lamps, Flashlight,
Relay Diesel Cabin Heater, Rad Fan Diesel – IfEquipped
M35 — 10 Amp RedHeated Mirrors
7
MAINTAINING YOUR VEHICLE 645

CavityCar-
tridge Fuse Mini-
Fuse Description

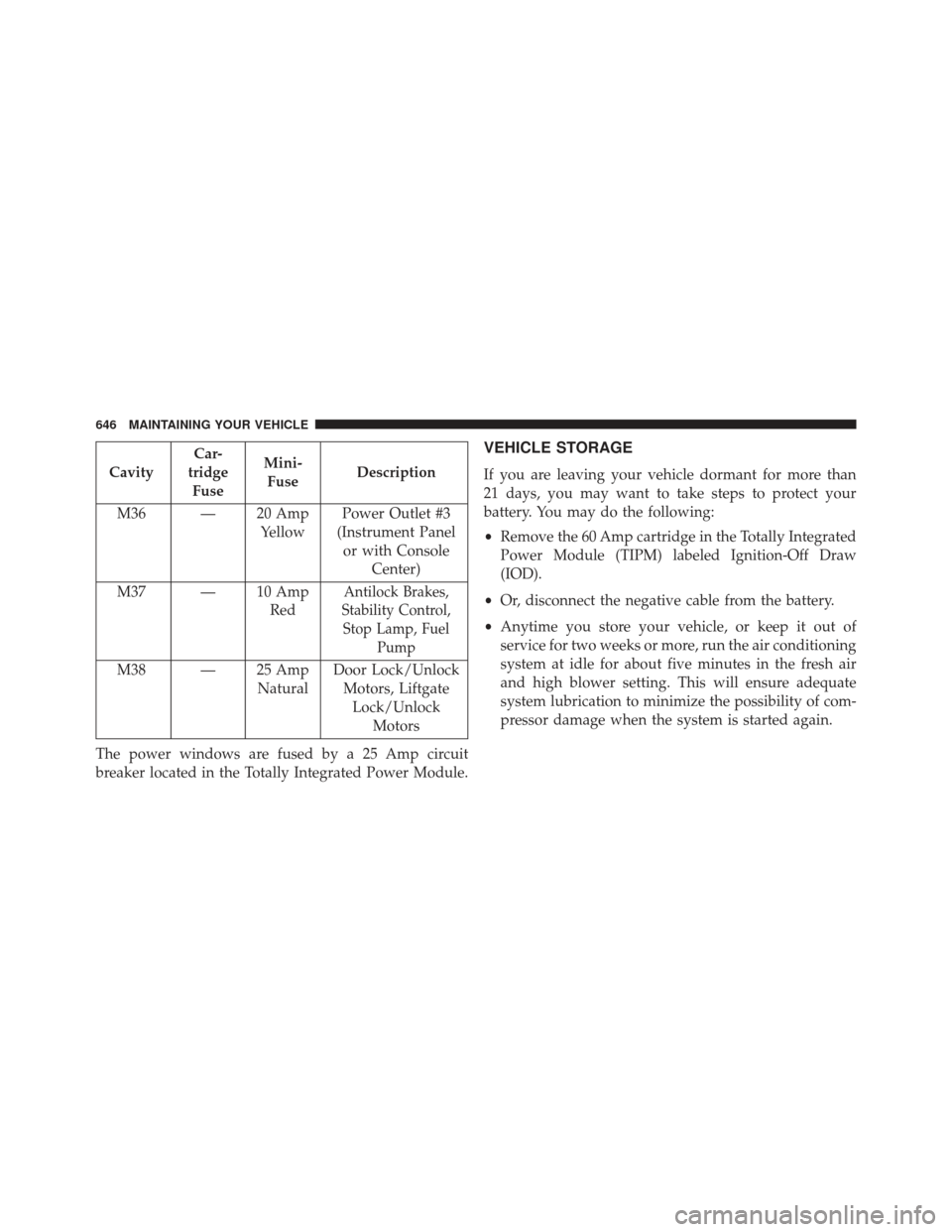

M36 — 20 Amp YellowPower Outlet #3
(Instrument Panel or with Console Center)
M37 — 10 Amp Red
Antilock Brakes,
Stability Control, Stop Lamp, Fuel Pump
M38 — 25 Amp NaturalDoor Lock/Unlock
Motors, LiftgateLock/Unlock Motors
The power windows are fused by a 25 Amp circuit
breaker located in the Totally Integrated Power Module.
VEHICLE STORAGE
If you are leaving your vehicle dormant for more than
21 days, you may want to take steps to protect your
battery. You may do the following:
• Remove the 60 Amp cartridge in the Totally Integrated
Power Module (TIPM) labeled Ignition-Off Draw
(IOD).
• Or, disconnect the negative cable from the battery.
• Anytime you store your vehicle, or keep it out of
service for two weeks or more, run the air conditioning
system at idle for about five minutes in the fresh air
and high blower setting. This will ensure adequate
system lubrication to minimize the possibility of com-
pressor damage when the system is started again.
646 MAINTAINING YOUR VEHICLE

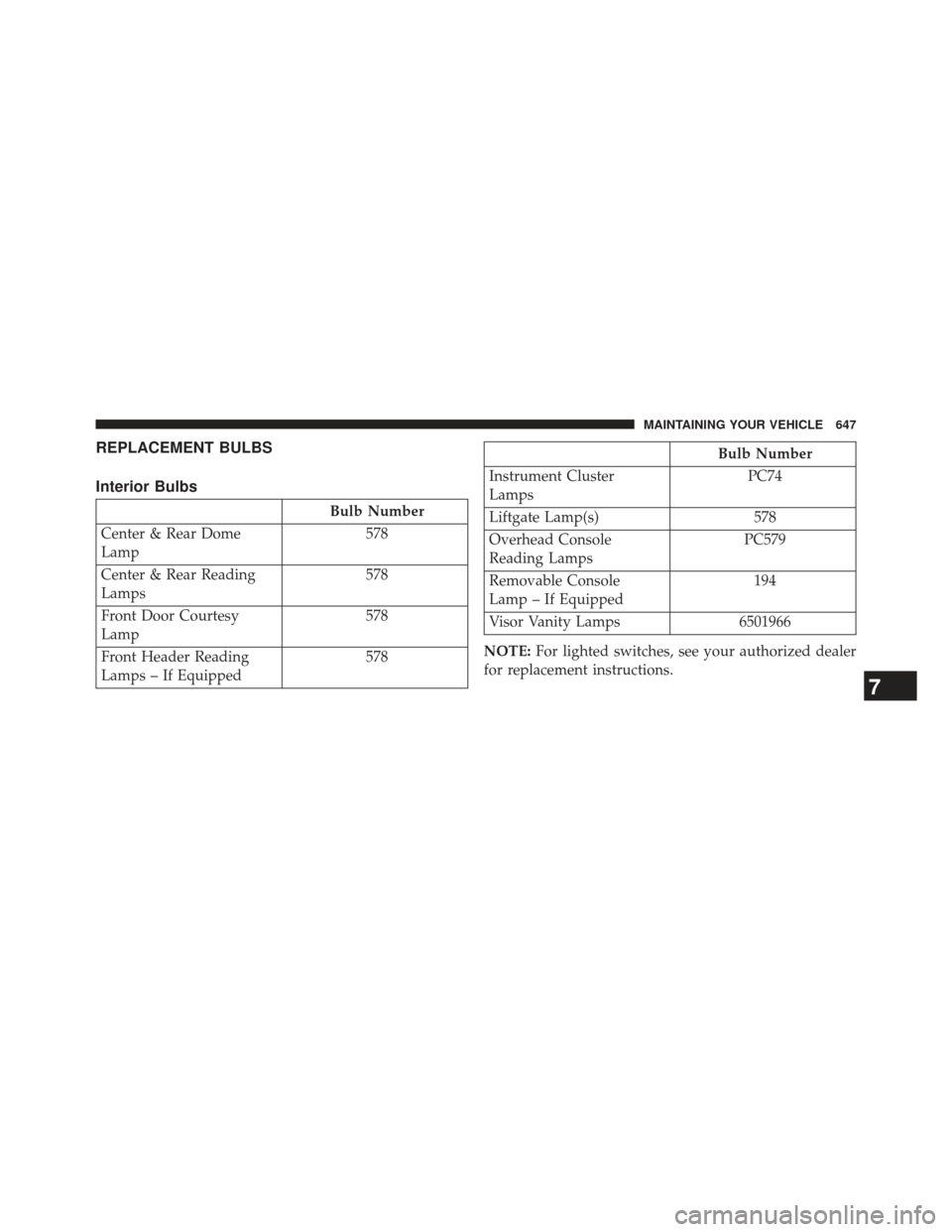

REPLACEMENT BULBS
Interior Bulbs
Bulb Number
Center & Rear Dome
Lamp 578
Center & Rear Reading
Lamps 578
Front Door Courtesy
Lamp 578
Front Header Reading
Lamps – If Equipped 578
Bulb Number
Instrument Cluster
Lamps PC74
Liftgate Lamp(s) 578
Overhead Console
Reading Lamps PC579
Removable Console
Lamp – If Equipped 194
Visor Vanity Lamps 6501966
NOTE: For lighted switches, see your authorized dealer
for replacement instructions.
7
MAINTAINING YOUR VEHICLE 647

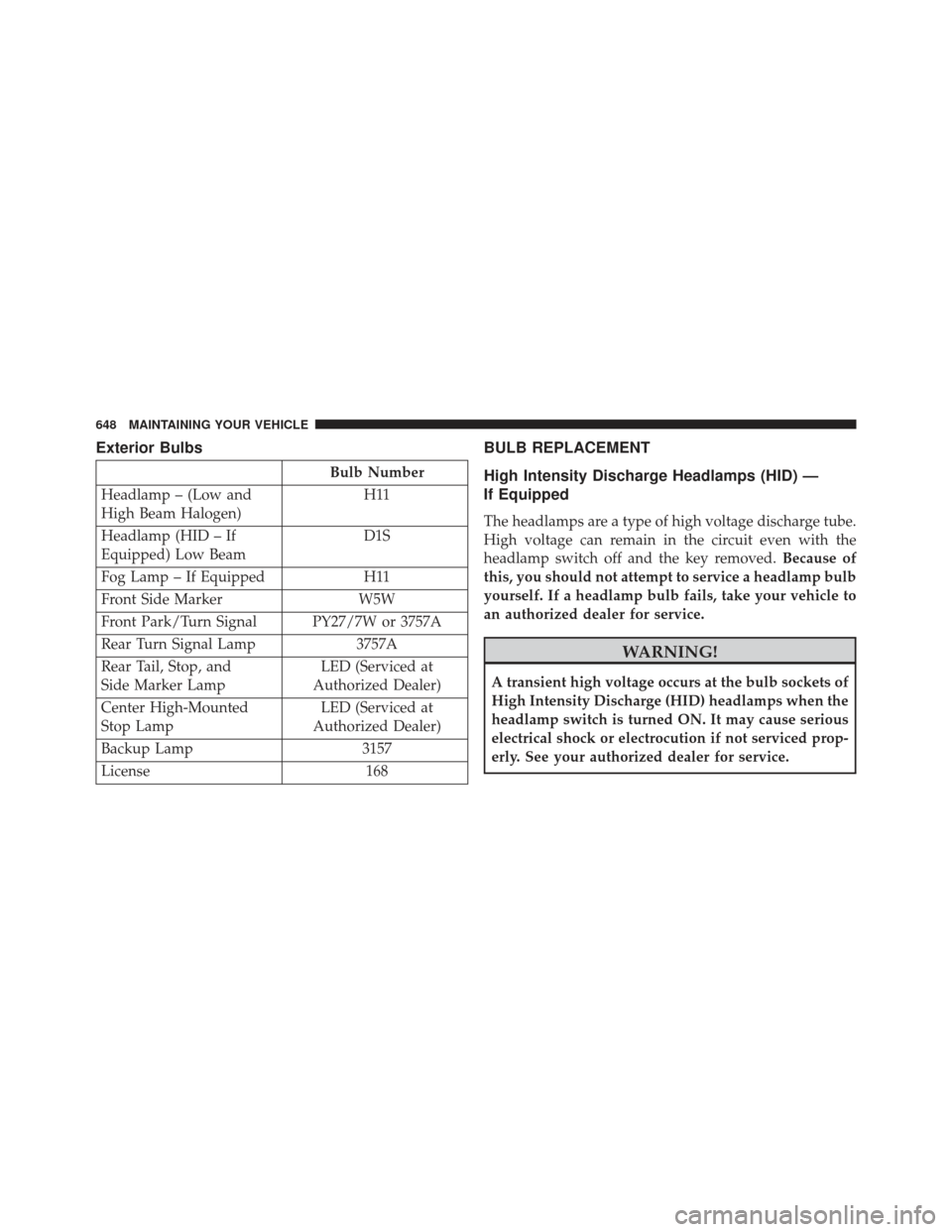

Exterior Bulbs
Bulb Number
Headlamp – (Low and
High Beam Halogen) H11
Headlamp (HID – If
Equipped) Low Beam D1S
Fog Lamp – If Equipped H11
Front Side Marker W5W
Front Park/Turn Signal PY27/7W or 3757A
Rear Turn Signal Lamp 3757A
Rear Tail, Stop, and
Side Marker Lamp LED (Serviced at
Authorized Dealer)
Center High-Mounted
Stop Lamp LED (Serviced at
Authorized Dealer)
Backup Lamp 3157
License 168
BULB REPLACEMENT
High Intensity Discharge Headlamps (HID) —
If Equipped
The headlamps are a type of high voltage discharge tube.
High voltage can remain in the circuit even with the
headlamp switch off and the key removed. Because of
this, you should not attempt to service a headlamp bulb
yourself. If a headlamp bulb fails, take your vehicle to
an authorized dealer for service.
WARNING!
A transient high voltage occurs at the bulb sockets of
High Intensity Discharge (HID) headlamps when the
headlamp switch is turned ON. It may cause serious
electrical shock or electrocution if not serviced prop-
erly. See your authorized dealer for service.
