Page 122 of 699

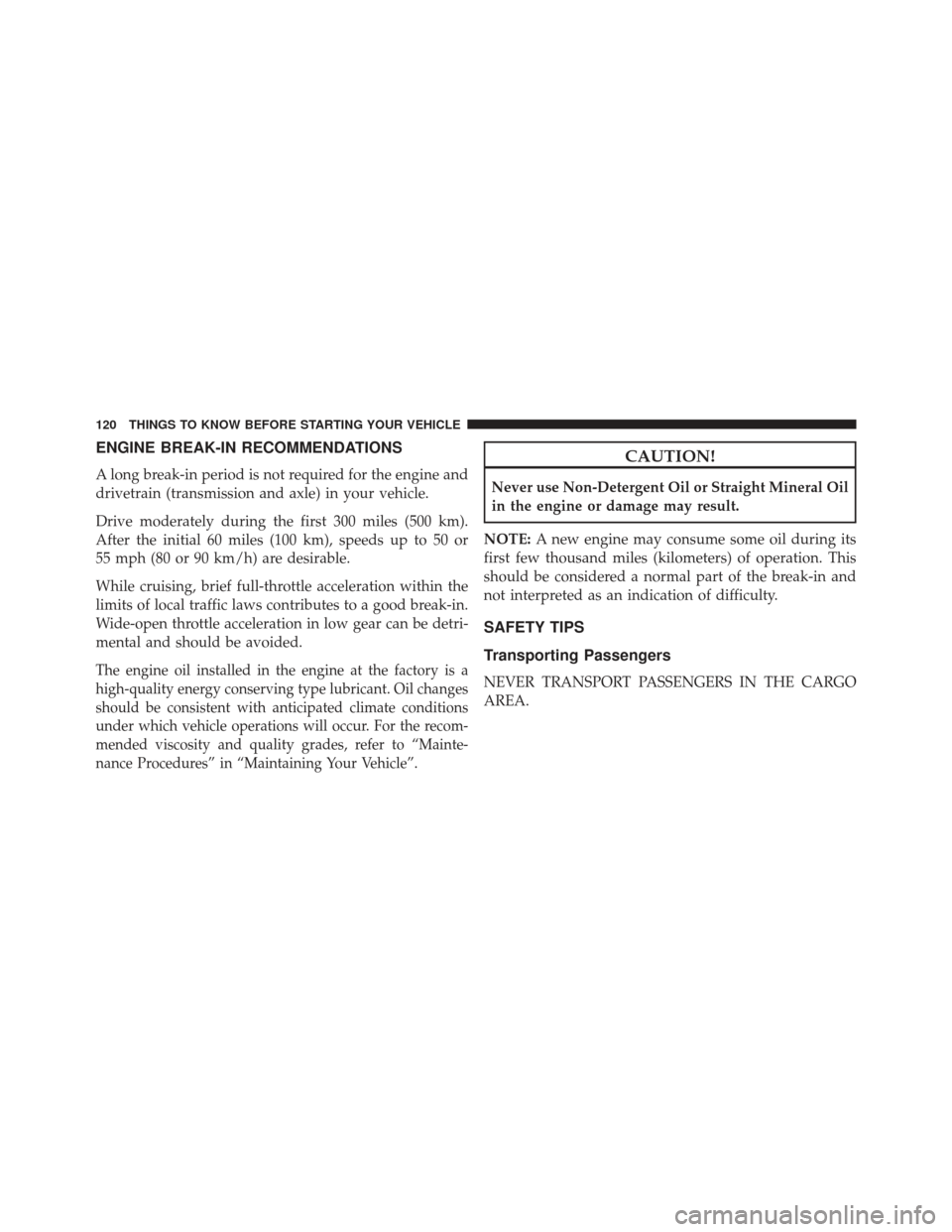

ENGINE BREAK-IN RECOMMENDATIONS
A long break-in period is not required for the engine and
drivetrain (transmission and axle) in your vehicle.
Drive moderately during the first 300 miles (500 km).
After the initial 60 miles (100 km), speeds up to 50 or
55 mph (80 or 90 km/h) are desirable.
While cruising, brief full-throttle acceleration within the
limits of local traffic laws contributes to a good break-in.
Wide-open throttle acceleration in low gear can be detri-
mental and should be avoided.
The engine oil installed in the engine at the factory is a
high-quality energy conserving type lubricant. Oil changes
should be consistent with anticipated climate conditions
under which vehicle operations will occur. For the recom-
mended viscosity and quality grades, refer to “Mainte-
nance Procedures” in “Maintaining Your Vehicle”.
CAUTION!
Never use Non-Detergent Oil or Straight Mineral Oil
in the engine or damage may result.
NOTE: A new engine may consume some oil during its
first few thousand miles (kilometers) of operation. This
should be considered a normal part of the break-in and
not interpreted as an indication of difficulty.
SAFETY TIPS
Transporting Passengers
NEVER TRANSPORT PASSENGERS IN THE CARGO
AREA.
120 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE
Page 612 of 699
Engine Oil Selection
For best performance and maximum protection under all
types of operating conditions, the manufacturer only
recommends engine oils that are API Certified and meet
the requirements of Chrysler Material Standard MS-6395.
American Petroleum Institute (API) Engine Oil
Identification Symbol
This symbol means that the oil has
been certified by the American
Petroleum Institute (API). The
manufacturer only recommends
API Certified engine oils.
CAUTION!
Do not use chemical flushes in your engine oil as the
chemicals can damage your engine. Such damage is
not covered by the New Vehicle Limited Warranty.
Engine Oil Viscosity – 3.6L Engine
SAE 5W-20 engine oil is recommended for all operating
temperatures. This engine oil improves low temperature
starting and vehicle fuel economy.
The engine oil filler cap also shows the recommended
engine oil viscosity for your engine. For information on
engine oil filler cap location, refer to the “Engine Com-
partment” illustration in this section.
NOTE:SAE 5W-30 engine oil approved to Fiat 9.55535-S1
or Fiat 9.55535-S3 may be used when SAE 5W-20 engine
oil meeting MS- 6395 is not available.
610 MAINTAINING YOUR VEHICLE
Page 684 of 699
Electrical Power Outlets.....................272
Electric Remote Mirrors .....................137
Electronic Brake Control System ...............494
Brake Assist System .....................496
Electronic Speed Control (Cruise Control) ........240
Electronic Stability Control (ESC) ..............497
Electronic Vehicle Information Center (EVIC) ......329
Emergency, In Case of Hazard Warning Flasher ..................570
Jacking .............................. .571
Jump Starting ......................... .592
Overheating .......................... .570
Emission Control System Maintenance ..........605
Engine Air Cleaner .......................... .612
Block Heater ......................... .472
Break-In Recommendations ................120
Checking Oil Level ..................... .609
Compartment ......................... .603Compartment Identification
................603
Coolant (Antifreeze) .....................621
Cooling ............................. .620
Exhaust Gas Caution .....................121
Fails to Start .......................... .470
Flooded, Starting ...................... .470
Fuel Requirements ..................... .538
Oil................................. .609
Oil Selection .......................... .610
Oil Synthetic ...........................611
Overheating .......................... .570
Starting ............................. .465
Temperature Gauge ..................... .325
Engine Oil Viscosity ...................... .610
Engine Oil Viscosity Chart ...................610
Enhanced Accident Response Feature ............90
Entry System, Illuminated ....................20
Ethanol ............................... .539
Event
Data Recorder ........................94
682 INDEX

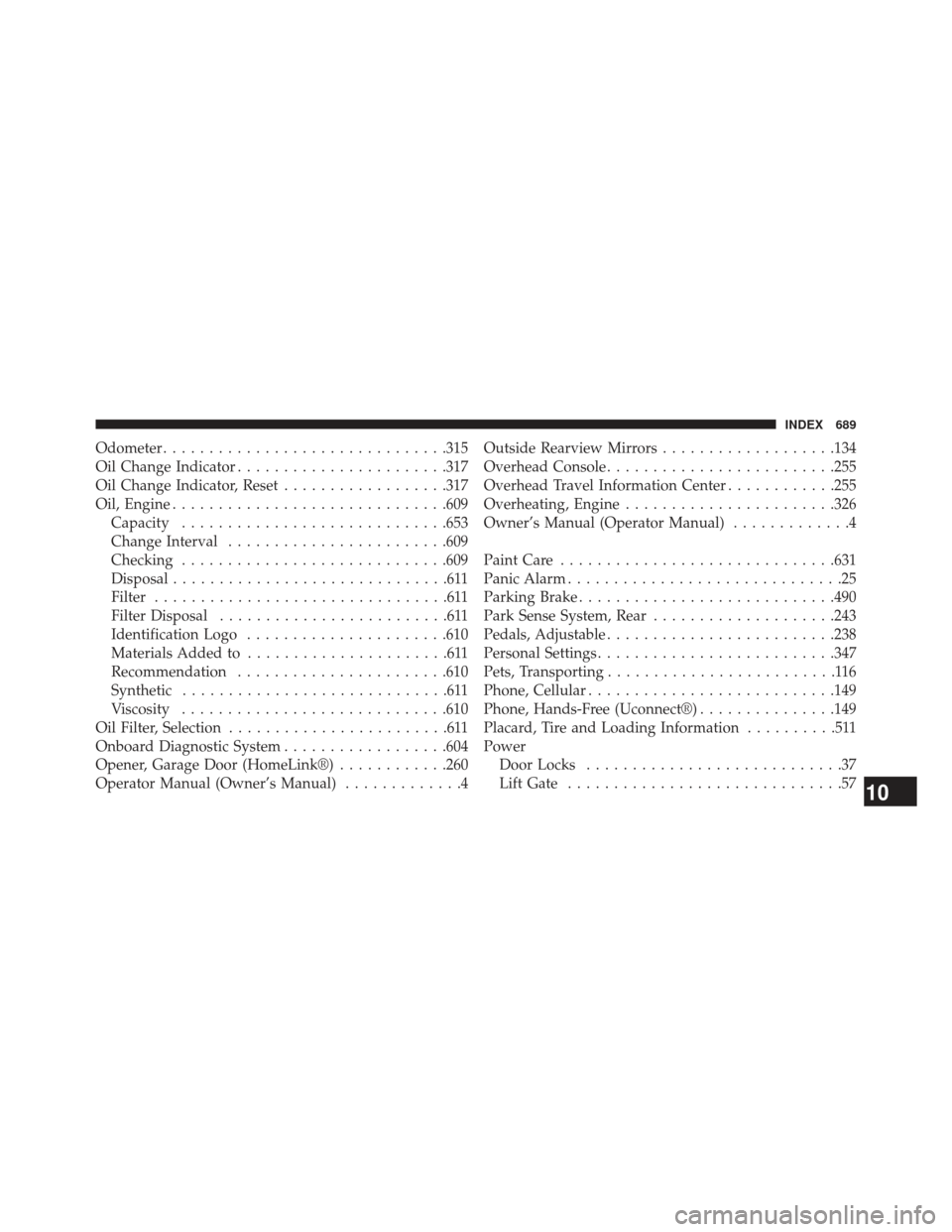

Page 691 of 699
Odometer.............................. .315
Oil Change Indicator ...................... .317
Oil Change Indicator, Reset ..................317
Oil, Engine ............................. .609
Capacity ............................ .653
Change Interval ....................... .609
Checking ............................ .609
Disposal ..............................611
Filter ................................611
Filter Disposal .........................611
Identification Logo ..................... .610
Materials Added to ......................611
Recommendation ...................... .610
Synthetic .............................611
Viscosity ............................ .610
Oil Filter, Selection ........................611
Onboard Diagnostic System ..................604
Opener, Garage Door (HomeLink®) ............260
Operator Manual (Owner’s Manual) .............4Outside Rearview Mirrors
...................134
Overhead Console ........................ .255
Overhead Travel Information Center ............255
Overheating, Engine ...................... .326
Owner’s Manual (Operator Manual) .............4
Paint Care ............................. .631
Panic Alarm ..............................25
Parking Brake ........................... .490
Park Sense System, Rear ....................243
Pedals, Adjustable ........................ .238
Personal Settings ......................... .347
Pets, Transporting .........................116
Phone, Cellular .......................... .149
Phone, Hands-Free (Uconnect®) ...............149
Placard, Tire and Loading Information ..........511
Power Door Locks ............................37
Lift Gate ..............................57
10
INDEX 689

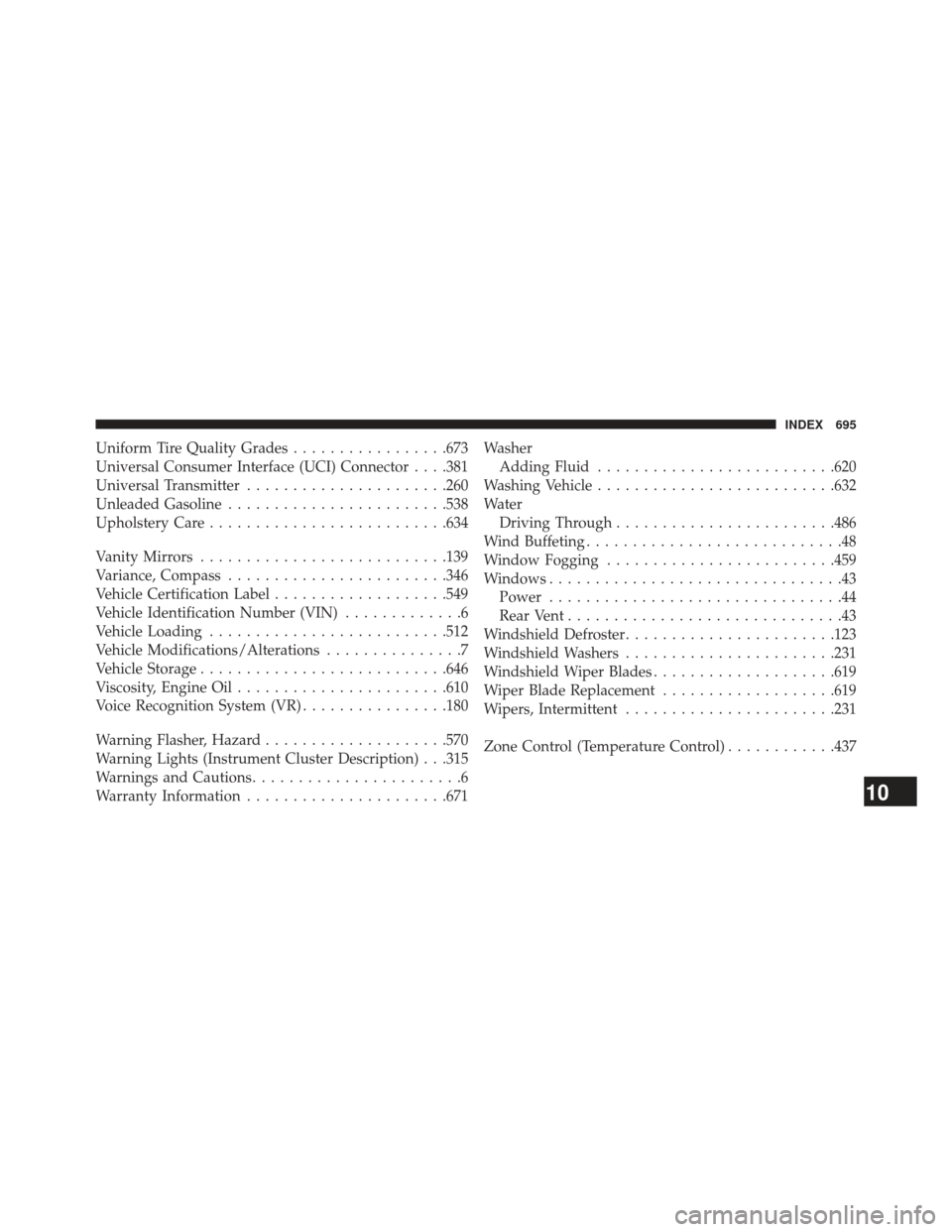

Page 697 of 699
Uniform Tire Quality Grades.................673
Universal Consumer Interface (UCI) Connector . . . .381
Universal Transmitter ..................... .260
Unleaded Gasoline ....................... .538
Upholstery Care ......................... .634
Vanity Mirrors .......................... .139
Variance, Compass ....................... .346
Vehicle Certification Label ...................549
Vehicle Identification Number (VIN) .............6
Vehicle Loading ......................... .512
Vehicle Modifications/Alterations ...............7
Vehicle Storage .......................... .646
Viscosity, Engine Oil ...................... .610
Voice Recognition System (VR) ................180
Warning Flasher, Hazard ....................570
Warning Lights (Instrument Cluster Description) . . .315
Warnings and Cautions .......................6
Warranty Information ..................... .671Washer
Adding Fluid ......................... .620
Washing Vehicle ......................... .632
Water Driving Through ....................... .486
Wind Buffeting ............................48
Window Fogging ........................ .459
Windows ................................43
Power ................................44
Rear Vent ..............................43
Windshield Defroster ...................... .123
Windshield Washers ...................... .231
Windshield Wiper Blades ....................619
Wiper Blade Replacement ...................619
Wipers, Intermittent ...................... .231
Zone Control (Temperature Control) ............437
10
INDEX 695
