CHRYSLER TOWN AND COUNTRY 2013 5.G User Guide INTRODUCTION/WELCOME
WELCOME FROM CHRYSLER
GROUPLLC ..................3
CONTROLS AT A GLANCE
DRIVER COCKPIT...............6
INSTRUMENT CLUSTER ...........8
GETTING STARTED
KEYFOB ....................1

Page 11 of 140

CHRYSLER TOWN AND COUNTRY 2013 5.G User Guide Indicators
- Turn Signal Indicators
- High Beam Indicator
- Front Fog Light Indicator
- Vehicle Security Indicator*
- Electronic Stability Control(ESC) Off Indicator*
- Electronic Speed Control ONIndi

Page 89 of 140

CHRYSLER TOWN AND COUNTRY 2013 5.G User Guide WARNING!
• To Avoid Serious Injury or Death DO NOT:• use a three-prong adaptor
• insert any objects into the receptacles
• touch with wet hands
Close the lid when not in use. If this outlet is

Page 90 of 140

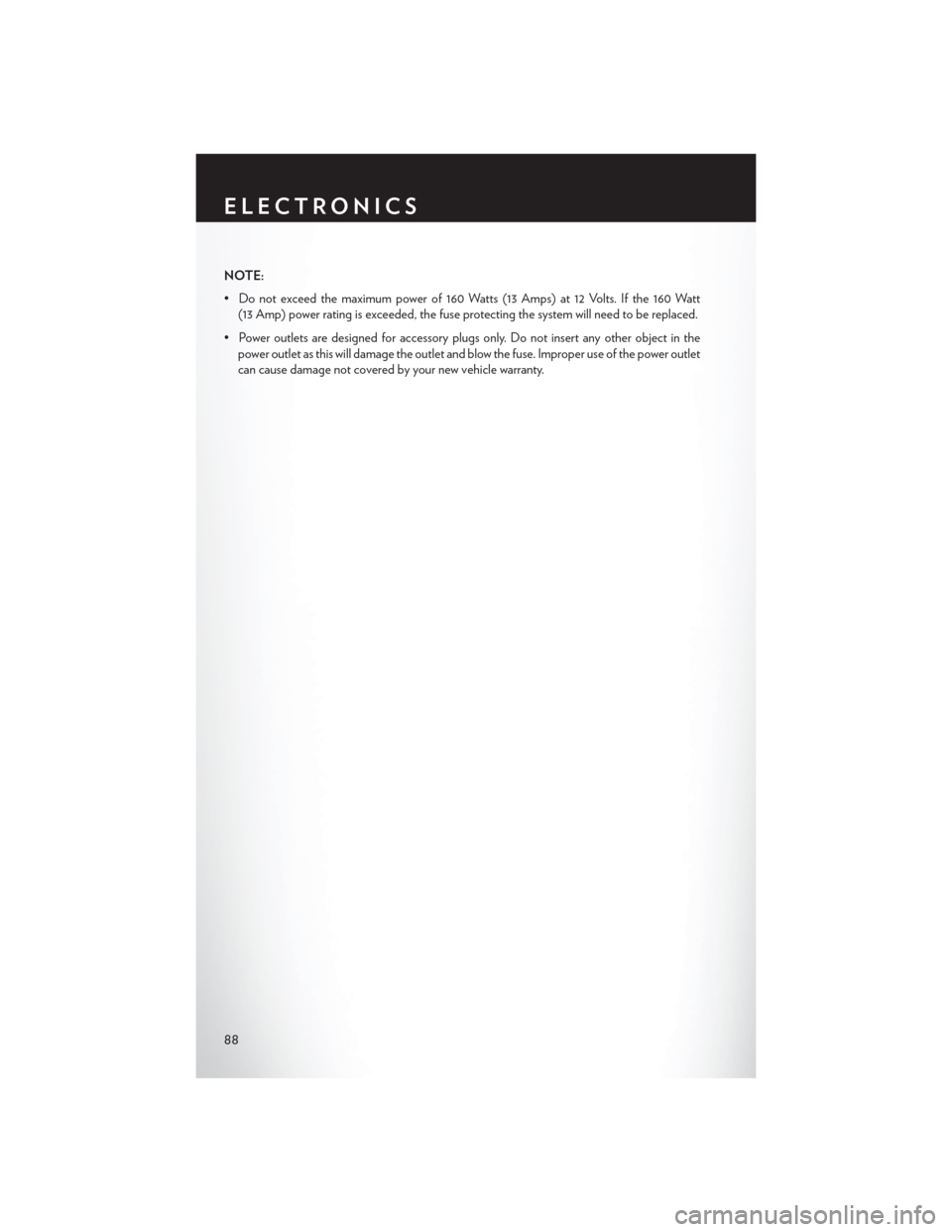

CHRYSLER TOWN AND COUNTRY 2013 5.G User Guide NOTE:
• Do not exceed the maximum power of 160 Watts (13 Amps) at 12 Volts. If the 160 Watt(13 Amp) power rating is exceeded, the fuse protecting the system will need to be replaced.
• Power outle

Page 121 of 140

CHRYSLER TOWN AND COUNTRY 2013 5.G User Guide FUSES
MAINTAINING YOUR VEHICLE
119

Page 122 of 140

CHRYSLER TOWN AND COUNTRY 2013 5.G User Guide Integrated Power Module (fuses)
• The Integrated Power Module (fuses) is located in the engine compartment near the battery.This center contains cartridge fuses, mini-fuses and relays.
Cavity Cartri

Page 123 of 140

CHRYSLER TOWN AND COUNTRY 2013 5.G User Guide Cavity Cartridge Fuse Mini-Fuse Description
M1015 Amp Blue Ignition Off Draw — Vehicle Entertainment
System (IOD-VES), Satellite Digital
Audio Receiver (SDARS), DVD, Hands-
Free Module (HFM), Univer

Page 124 of 140

CHRYSLER TOWN AND COUNTRY 2013 5.G User Guide Cavity Cartridge Fuse Mini-Fuse Description
M3015 Amp Blue Rear Wiper Module (RR WIPER MOD),
Power Folding Mirror (PWR FOLD MIR),
J1962 Diagnostic Feed
M31 20 Amp Yellow Back-Up Lamps (B/U LAMPS)
M32

Page 133 of 140

CHRYSLER TOWN AND COUNTRY 2013 5.G User Guide UTILITY
• How do I know how much I can tow with my Chrysler Town & Country? pg. 90
WHAT TO DO IN EMERGENCIES
• What do I do if my TPMS warning light is blinking? pg. 91
• How do I change a flat
