center console CHRYSLER TOWN AND COUNTRY 2015 5.G Owners Manual

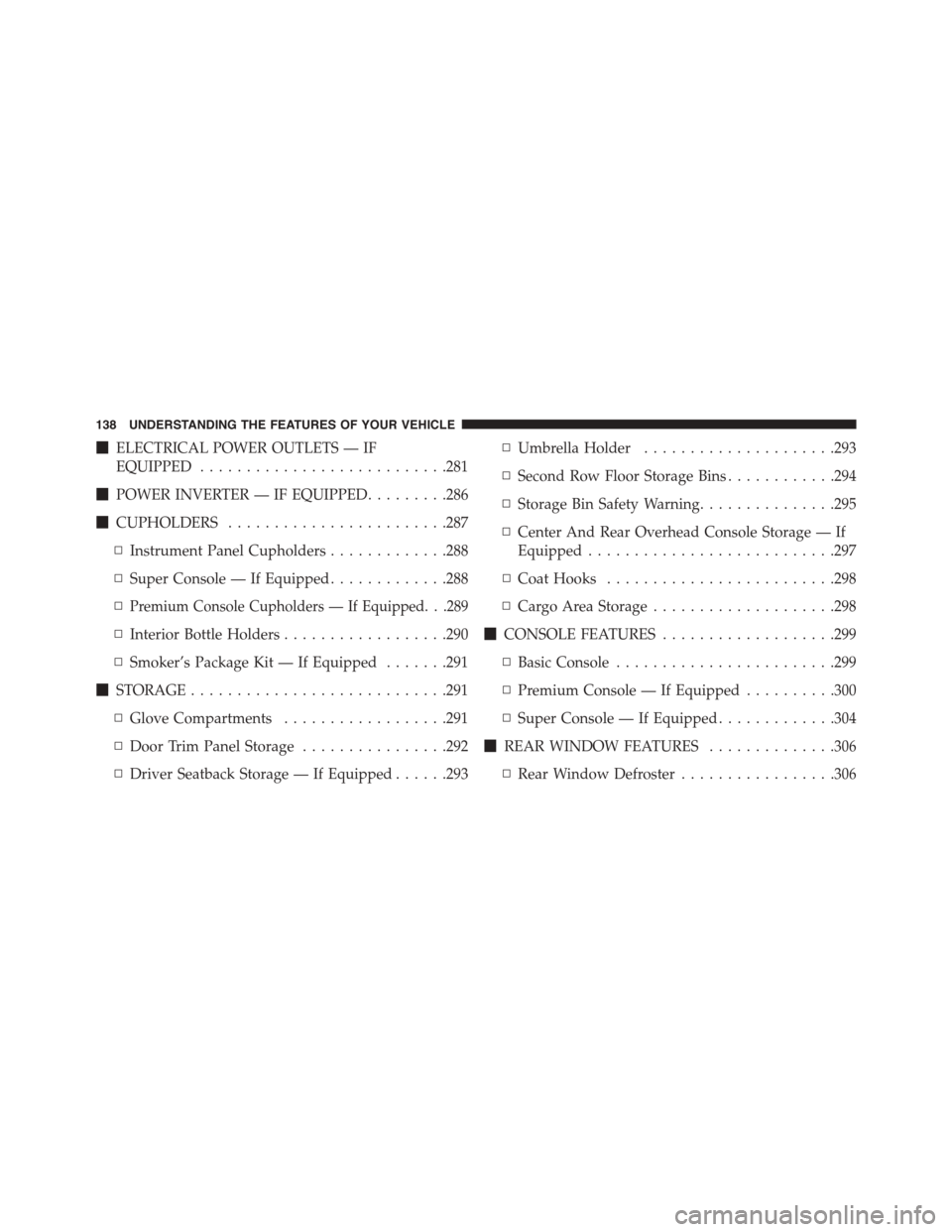

!ELECTRICAL POWER OUTLETS — IF
EQUIPPED...........................281
!POWER INVERTER — IF EQUIPPED.........286
!CUPHOLDERS........................287
▫Instrument Panel Cupholders.............288
▫Super Console — If Equipped.............288
▫Premium Console Cupholders — If Equipped. . .289
▫Interior Bottle Holders..................290
▫Smoker’s Package Kit — If Equipped.......291
!STORAGE............................291
▫Glove Compartments..................291
▫Door Trim Panel Storage................292
▫Driver Seatback Storage — If Equipped......293
▫Umbrella Holder.....................293
▫Second Row Floor Storage Bins............294
▫Storage Bin Safety Warning...............295
▫Center And Rear Overhead Console Storage — If
Equipped...........................297
▫Coat Hooks.........................298
▫Cargo Area Storage....................298
!CONSOLE FEATURES...................299
▫Basic Console........................299
▫Premium Console — If Equipped..........300
▫Super Console — If Equipped.............304
!REAR WINDOW FEATURES..............306
▫Rear Window Defroster.................306
138 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Rear Console Halo Lighting
The rear overhead console has recessed halo lighting
around the perimeter of the console base. This feature
provides additional lighting options while traveling and
is controlled by the headlight switch. Refer to “Lights/
Halo Lights — If Equipped” in “Understanding the
Features Of Your Vehicle” for further information.
GARAGE DOOR OPENER — IF EQUIPPED
HomeLink® replaces up to three remote controls (hand-
held transmitters) that operate devices such as garage
door openers, motorized gates, lighting or home security
systems. The HomeLink® unit operates off your vehicle’s
battery.
The HomeLink® buttons, located on either the overhead
console, headliner or sunvisor, designate the three differ-
ent HomeLink® channels. The HomeLink® indicator is
located above the center button.
Overhead Compartment Features
1—LCDScreen*5—Storage2—RearHVAC6—LCDScreen*3 — Interior Lights7 — Interior Lights4—Storage8—HaloLighting* If equipped, otherwise storage.
268 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

The outlet in the rear quarter panel near the liftgate and
the upper outlet in the instrument panel are both con-
trolled by the ignition switch. Each of these outlets can
support 160 Watts (13 Amps). Do not exceed 160 Watts
(13 Amps) for each of these outlets.
The power outlets include tethered caps, labeled with a
key or battery symbol indicating the power source. The
power outlet, located on the lower instrument panel, is
powered directly from the battery. Items plugged into
this power outlet may discharge the battery and/or
prevent the engine from starting.
Power Outlet Fuses
1 — M7 Fuse 20 A Yellow Power Outlet Center Seat (Opt) or withConsole Rear2 — M6 Fuse 20 A Yellow Cigar Lighter Instrument Panel or withConsole Front3 — M36 Fuse 20 A Yellow Power Outlet Instrument Panel orwith Console Center
284 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

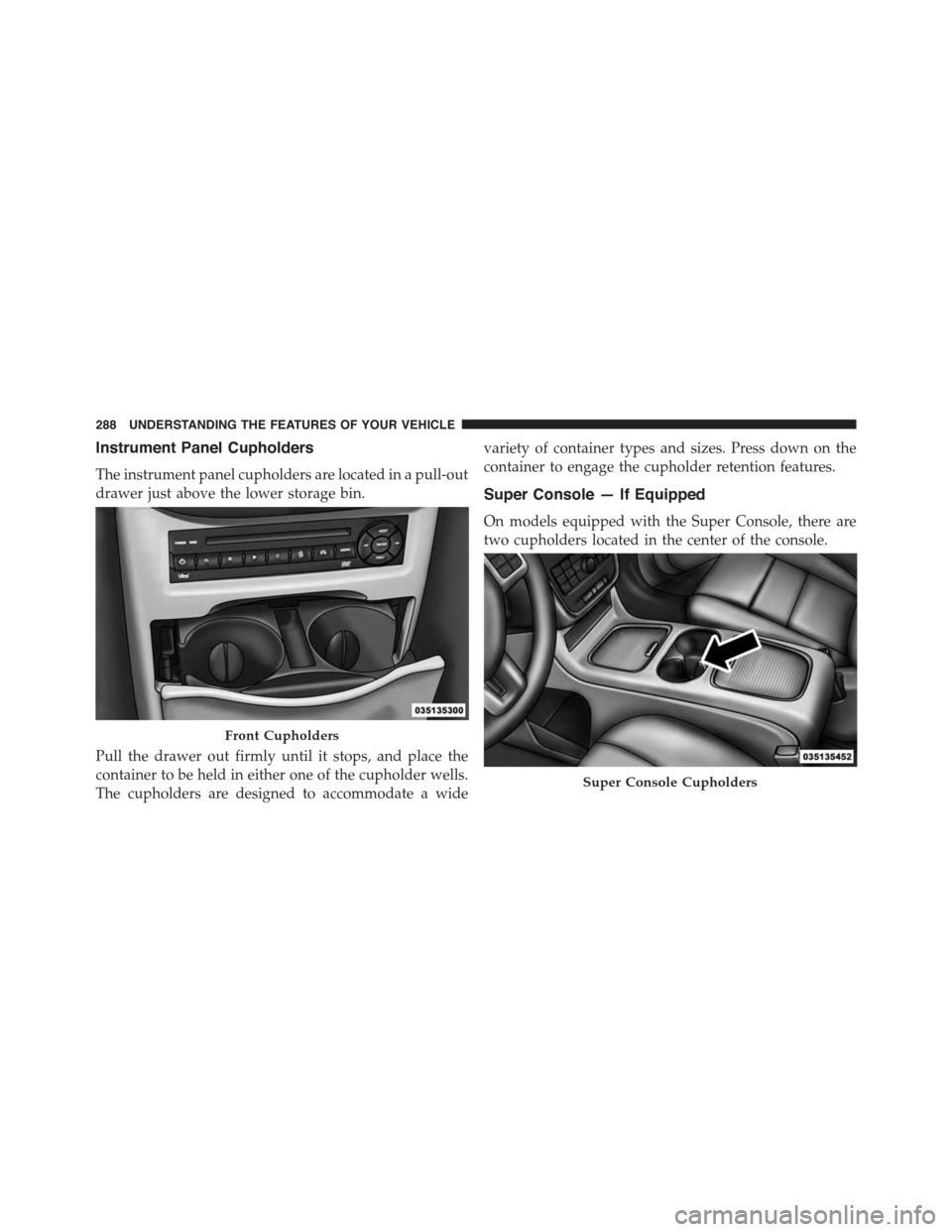

Instrument Panel Cupholders
The instrument panel cupholders are located in a pull-out
drawer just above the lower storage bin.
Pull the drawer out firmly until it stops, and place the
container to be held in either one of the cupholder wells.
The cupholders are designed to accommodate a wide
variety of container types and sizes. Press down on the
container to engage the cupholder retention features.
Super Console — If Equipped
On models equipped with the Super Console, there are
two cupholders located in the center of the console.
Front Cupholders
Super Console Cupholders
288 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

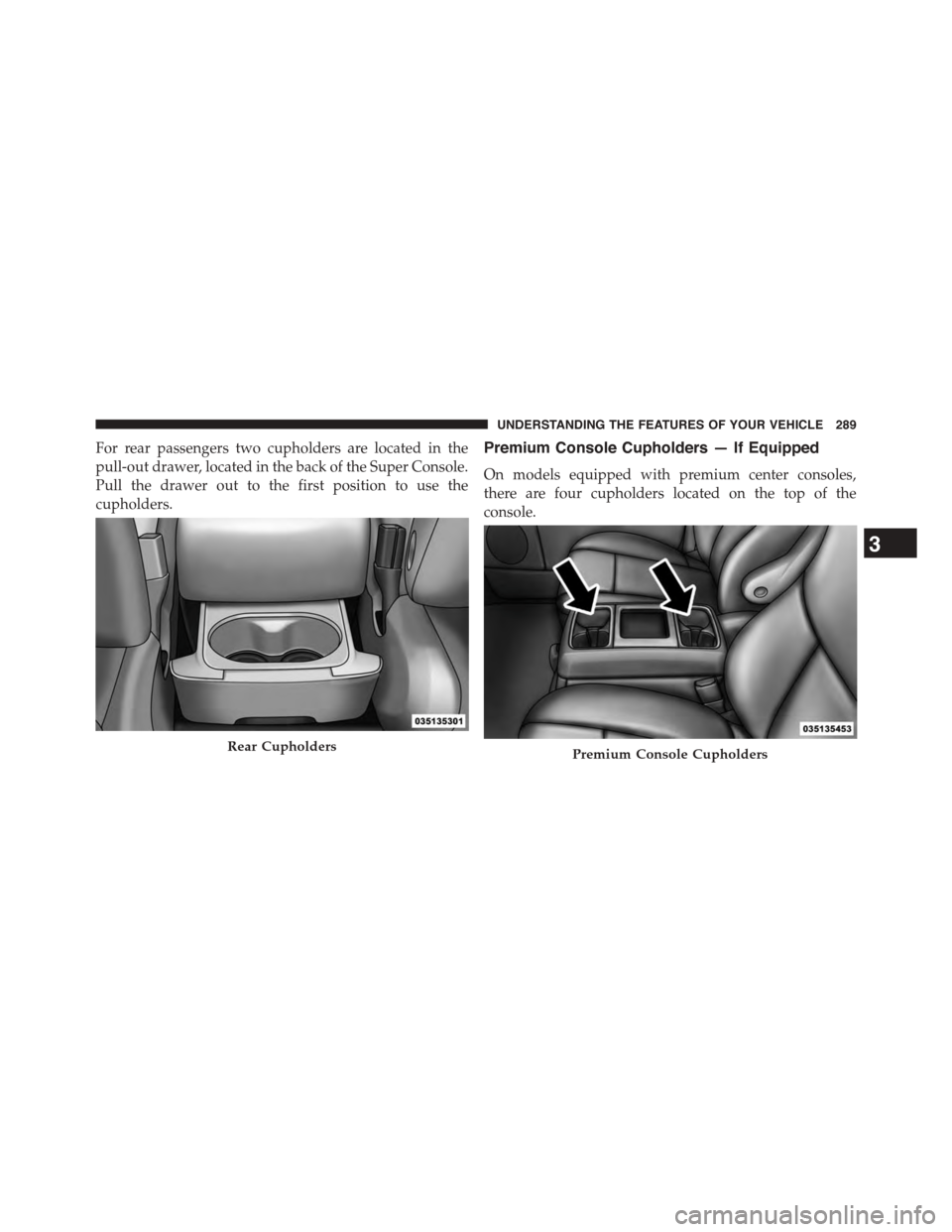

For rear passengers two cupholders are located in the
pull-out drawer, located in the back of the Super Console.
Pull the drawer out to the first position to use the
cupholders.
Premium Console Cupholders — If Equipped
On models equipped with premium center consoles,
there are four cupholders located on the top of the
console.
Rear CupholdersPremium Console Cupholders
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 289

NOTE:In the event of an individual being locked inside
the storage bin, the storage bin cover can be opened from
inside of the bin by pushing on the glow-in-the-dark
lever attached to the storage bin cover latching mecha-
nism.

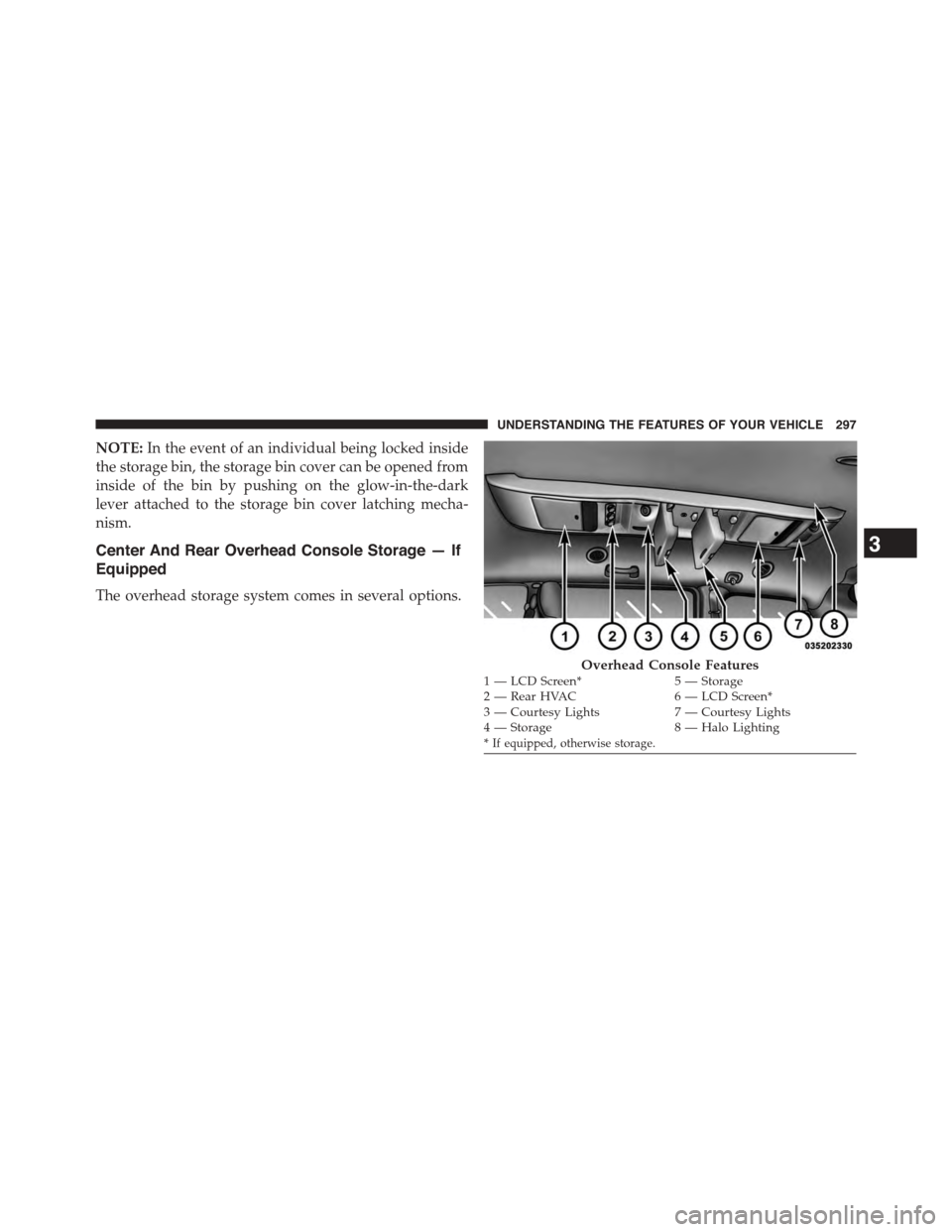

Center And Rear Overhead Console Storage — If
Equipped
The overhead storage system comes in several options.
Overhead Console Features1—LCDScreen*5—Storage2—RearHVAC6—LCDScreen*3 — Courtesy Lights7 — Courtesy Lights4 — Storage8 — Halo Lighting*If equipped, otherwise storage.
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 297

3. Align the console until the front anchor cup plug hole
is centered on the winch hole.
4. Reinstall the clip first and then while pushing down-
ward on the console with slight pressure, reinstall the
cover plug.
5. Pull up on the console to be sure it is firmly latched.
WARNING!
In an accident, serious injury could result if the
removable floor console is not properly installed.
Always be sure the removable floor console is fully
latched.
Premium Console — If Equipped
The three-compartment console with sliding storage bin,
sliding upper tray with storage and large console storage
bin offers multiple configurations.
•Four cupholders with dishwasher safe liners for clean-
ing. The cupholders can accept plastic bottles, large
cups or mugs with handles
•Top tray storage
•Upper storage bin can hold nine regular or 18 thin CDs
or other items
•Large console center storage will store headphones for
the available rear DVD entertainment system or other
items
300 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

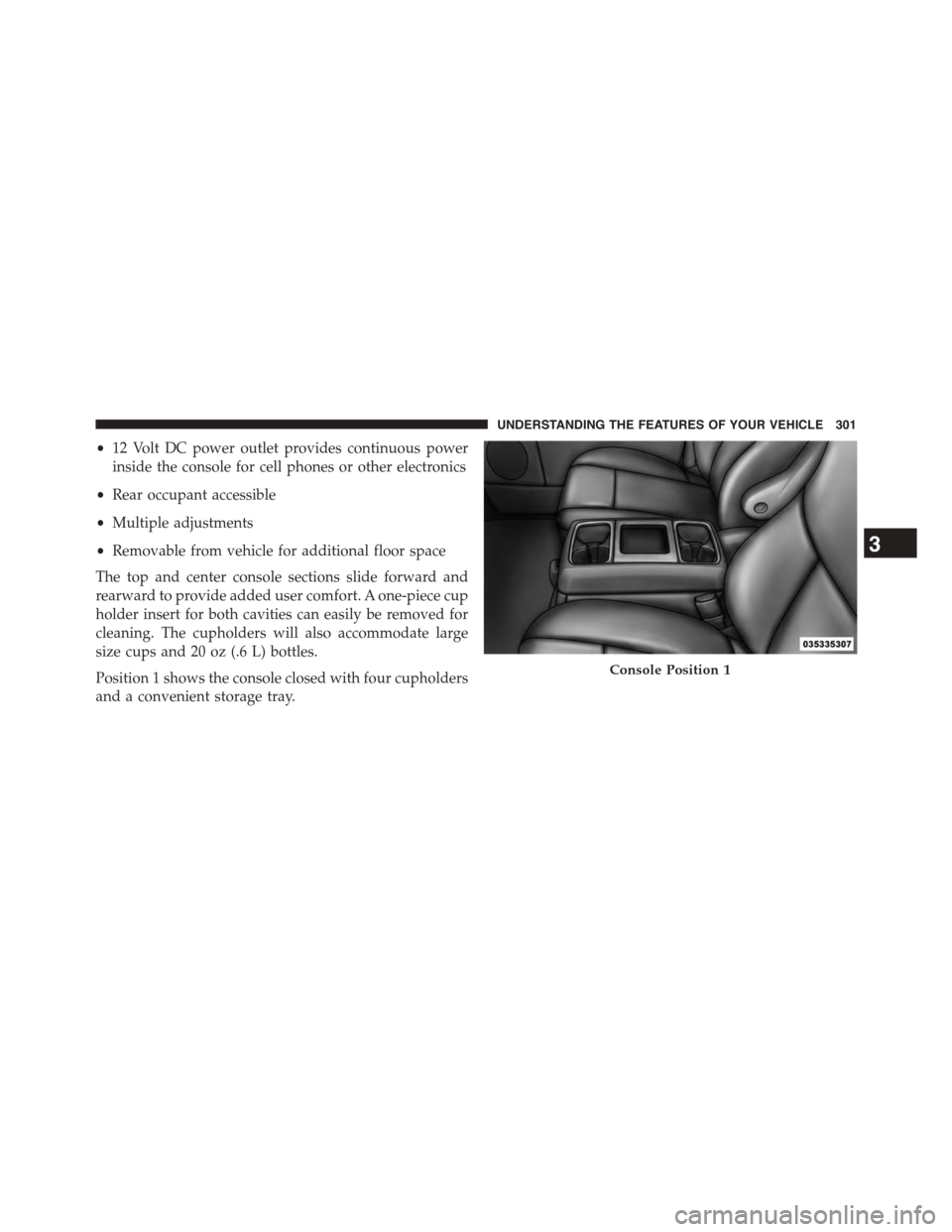

•12 Volt DC power outlet provides continuous power
inside the console for cell phones or other electronics
•Rear occupant accessible
•Multiple adjustments
•Removable from vehicle for additional floor space
The top and center console sections slide forward and
rearward to provide added user comfort. A one-piece cup
holder insert for both cavities can easily be removed for
cleaning. The cupholders will also accommodate large
size cups and 20 oz (.6 L) bottles.
Position 1 shows the console closed with four cupholders
and a convenient storage tray.
Console Position 1
3
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 301

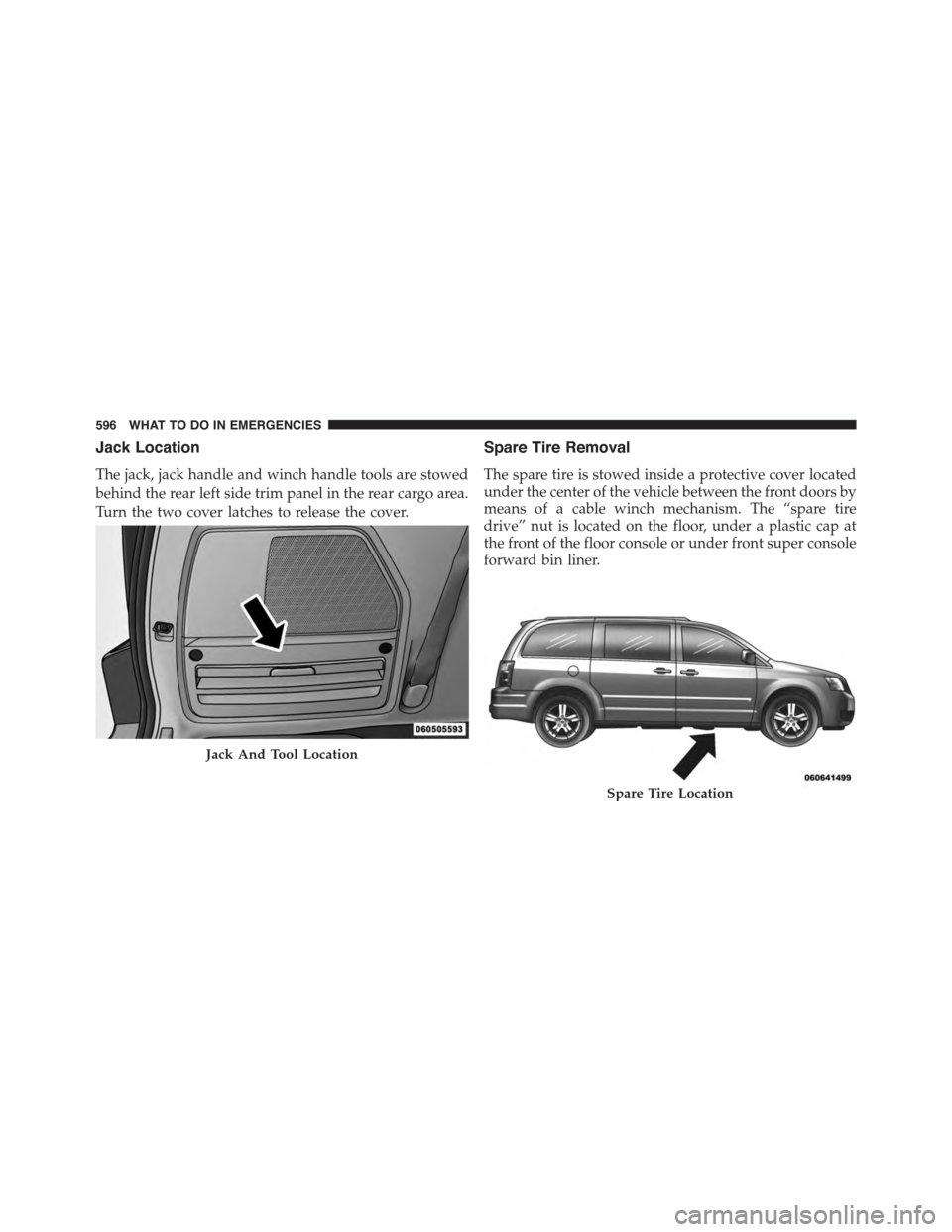

Jack Location
The jack, jack handle and winch handle tools are stowed
behind the rear left side trim panel in the rear cargo area.
Turn the two cover latches to release the cover.
Spare Tire Removal
The spare tire is stowed inside a protective cover located
under the center of the vehicle between the front doors by
means of a cable winch mechanism. The “spare tire
drive” nut is located on the floor, under a plastic cap at
the front of the floor console or under front super console
forward bin liner.
Jack And Tool Location
Spare Tire Location
596 WHAT TO DO IN EMERGENCIES

To Access Spare Tire Winch Drive Nut
To access the spare tire winch drive nut and lower the
spare tire, you will need to refer to one of the following
center console configurations.
Super Console
For vehicles equipped with the Super Console, the spare
tire winch assembly drive nut is located beneath the
console.
1. Pull the lower drawer out from the rear of the floor
console to gain clear access of the tire winch drive nut.
Super Console
1 — Lower Drawer2—FrontDrawer3—FrontDrawerLiner
6
WHAT TO DO IN EMERGENCIES 597
