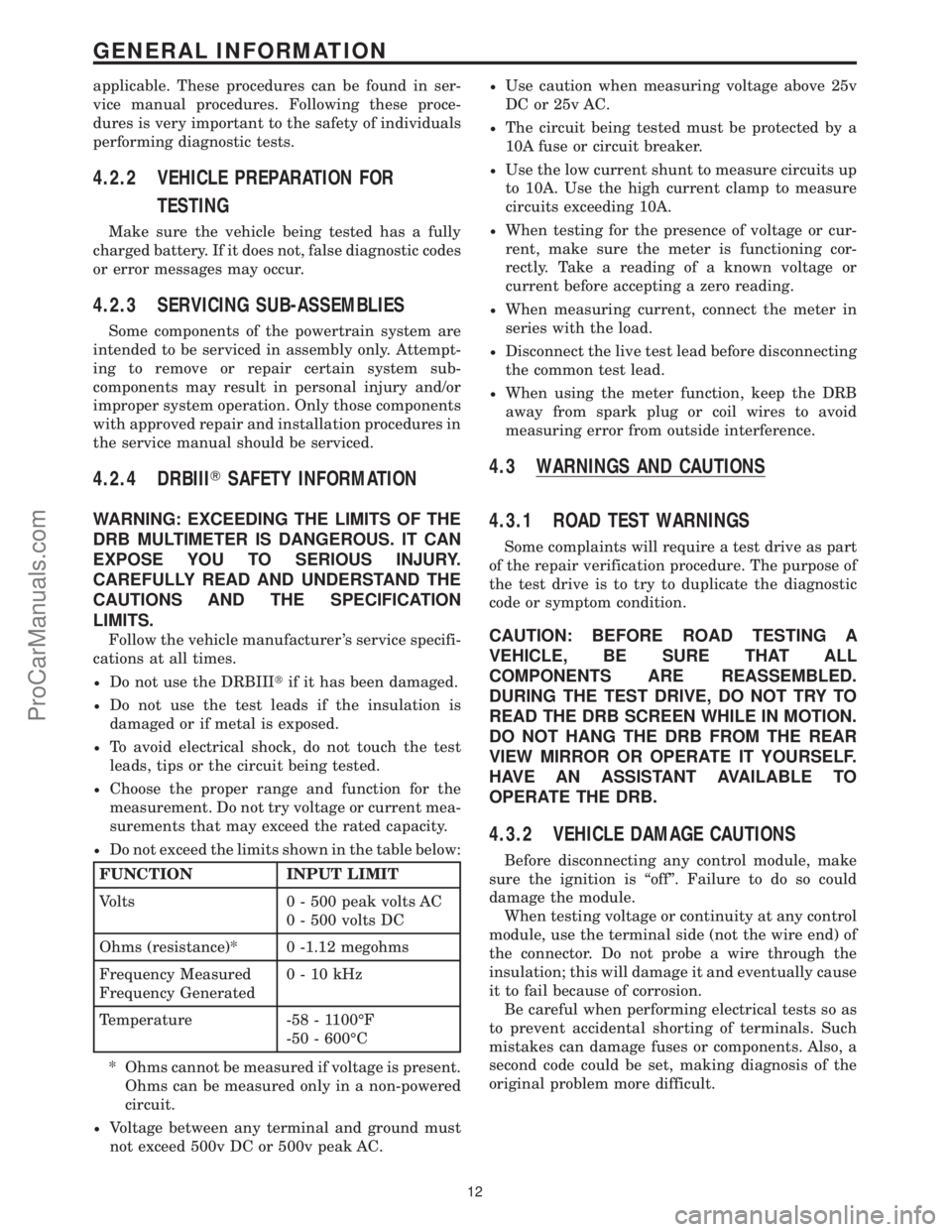

load capacity CHRYSLER VOYAGER 2000 Diagnostic Manual

applicable. These procedures can be found in ser-
vice manual procedures. Following these proce-
dures is very important to the safety of individuals
performing diagnostic tests.
4.2.2 VEHICLE PREPARATION FOR
TESTING
Make sure the vehicle being tested has a fully
charged battery. If it does not, false diagnostic codes
or error messages may occur.
4.2.3 SERVICING SUB-ASSEMBLIES
Some components of the powertrain system are
intended to be serviced in assembly only. Attempt-
ing to remove or repair certain system sub-
components may result in personal injury and/or
improper system operation. Only those components
with approved repair and installation procedures in
the service manual should be serviced.
4.2.4 DRBIIITSAFETY INFORMATION
WARNING: EXCEEDING THE LIMITS OF THE
DRB MULTIMETER IS DANGEROUS. IT CAN
EXPOSE YOU TO SERIOUS INJURY.
CAREFULLY READ AND UNDERSTAND THE
CAUTIONS AND THE SPECIFICATION
LIMITS.
Follow the vehicle manufacturer 's service specifi-
cations at all times.
²Do not use the DRBIIItif it has been damaged.
²Do not use the test leads if the insulation is
damaged or if metal is exposed.
²To avoid electrical shock, do not touch the test
leads, tips or the circuit being tested.
²Choose the proper range and function for the
measurement. Do not try voltage or current mea-
surements that may exceed the rated capacity.
²Do not exceed the limits shown in the table below:
FUNCTION INPUT LIMIT
Volts 0 - 500 peak volts AC
0 - 500 volts DC
Ohms (resistance)* 0 -1.12 megohms
Frequency Measured
Frequency Generated0-10kHz
Temperature -58 - 1100ÉF
-50 - 600ÉC
* Ohms cannot be measured if voltage is present.
Ohms can be measured only in a non-powered
circuit.
²Voltage between any terminal and ground must
not exceed 500v DC or 500v peak AC.
²Use caution when measuring voltage above 25v
DC or 25v AC.
²The circuit being tested must be protected by a
10A fuse or circuit breaker.
²Use the low current shunt to measure circuits up
to 10A. Use the high current clamp to measure
circuits exceeding 10A.
²When testing for the presence of voltage or cur-
rent, make sure the meter is functioning cor-
rectly. Take a reading of a known voltage or
current before accepting a zero reading.
²When measuring current, connect the meter in
series with the load.
²Disconnect the live test lead before disconnecting
the common test lead.
²When using the meter function, keep the DRB
away from spark plug or coil wires to avoid
measuring error from outside interference.
4.3 WARNINGS AND CAUTIONS
4.3.1 ROAD TEST WARNINGS
Some complaints will require a test drive as part
of the repair verification procedure. The purpose of
the test drive is to try to duplicate the diagnostic
code or symptom condition.
CAUTION: BEFORE ROAD TESTING A
VEHICLE, BE SURE THAT ALL
COMPONENTS ARE REASSEMBLED.
DURING THE TEST DRIVE, DO NOT TRY TO
READ THE DRB SCREEN WHILE IN MOTION.
DO NOT HANG THE DRB FROM THE REAR
VIEW MIRROR OR OPERATE IT YOURSELF.
HAVE AN ASSISTANT AVAILABLE TO
OPERATE THE DRB.
4.3.2 VEHICLE DAMAGE CAUTIONS
Before disconnecting any control module, make
sure the ignition is ªoffº. Failure to do so could
damage the module.
When testing voltage or continuity at any control
module, use the terminal side (not the wire end) of
the connector. Do not probe a wire through the
insulation; this will damage it and eventually cause
it to fail because of corrosion.
Be careful when performing electrical tests so as
to prevent accidental shorting of terminals. Such
mistakes can damage fuses or components. Also, a
second code could be set, making diagnosis of the
original problem more difficult.
12
GENERAL INFORMATION
ProCarManuals.com

POSSIBLE CAUSES
OTHER POSSIBLE CAUSES FOR MIS-FIRE
CAM, CRANK, VALVE TIMING, OR VACUUM PROBLEM
ELECTRONIC IGNITION COIL OUTPUT LOW
ENGINE MECHANICAL PROBLEM
SECONDARY IGNITION PATTERN IRREGULAR
FUEL CONTAMINATION
FUEL PRESSURE LEAK DOWN OUT OF SPECIFICATION
FUEL PUMP AMPERAGE OUT OF SPECIFICATION
FUEL PUMP CAPACITY OUT OF SPECIFICATION
FUEL PUMP PRESSURE OUT OF SPECIFICATION
MIS-FIRE DOES NOT REOCCUR
TEST ACTION APPLICABILITY
1 With the DRB, read the DTCs.
Is the MIS-FIRE GOOD TRIP counter displayed and equal to zero?All
Ye s®Go To 2
No®Go To 3
2 At this time the conditions that set this fault are present.
With the DRB, read the FREEZE FRAME and SIMILAR CONDITIONS WINDOWS.
Attempt to operate the vehicle in the similar conditions.
When the vehicle is operating in the SIMILAR CONDITIONS WINDOW, go to the
WHICH CYLINDER IS MISFIRING screen.
Is the DRB counting mis-fires at this time?All
Ye s®Go To 4
No®Go To 3
3 At this time the mis-fire does not exist or is an intermittent problem.
With the DRB, read the FREEZE FRAME and SIMILAR CONDITIONS WINDOW.
With these screens, attempt to duplicate the condition that has set this fault.
While using FREEZE FRAME pay particular attention to the fault setting condi-
tions, such as speed, temp, load, and map vacuum.
Does the mis-fire reoccur?All
Ye s®Go To 4
No®Mis-fire no longer exists.
Perform VERIFICATION TEST VER-5A2.
4 With the DRB, read the FREEZE FRAME DATA.
Use the freeze frame data and attempt to determine the cause.
In the FREEZE FRAME, are the adaptive fuel percentages greater than +/- 15%?All
Ye s®Go To 5
No®Go To 10
101
DRIVEABILITY
P-0300 MULTIPLE CYLINDER MIS-FIRE ÐContinued
ProCarManuals.com

TEST ACTION APPLICABILITY
5 With an appropriate container, obtain a fuel sample from the vehicle.
Is the fuel free from contamination?All
Ye s®Go To 6
No®Replace contaminated fuel and clean system.
Perform VERIFICATION TEST VER-5A2.
6 Perform Fuel Pressure Leak Down Test per service instructions.
Did the Fuel Pressure Leak Down Test pass?All
Ye s®Go To 7
No®Relieve fuel pressure and repair as necessary.
Perform VERIFICATION TEST VER-5A2.
7 Perform Fuel Pump Amperage Test per service instructions.
Did the Fuel Pump Amperage Test pass?All
Ye s®Go To 8
No®Relieve fuel pressure and repair as necessary.
Perform VERIFICATION TEST VER-5A2.
8 Perform Fuel Pump Capacity Test per service instructions.
Did the Fuel Pump Capacity Test pass?All
Ye s®Go To 9
No®Relieve fuel pressure and repair as necessary.
Perform VERIFICATION TEST VER-5A2.
9 Perform Fuel Pump Pressure Test per service instructions.
Did the Fuel Pump Pressure Test pass?All
Ye s®Go To 10
No®Relieve fuel pressure and repair as necessary.
Perform VERIFICATION TEST VER-5A2.
10 With the DRB, read the FREEZE FRAME DATA.
Use the freeze frame data and attempt to determine the cause.
In the FREEZE FRAME, is the LOAD VALUE over 50% and the temp normal
operating temp normal?All
Ye s®Go To 12
No®Go To 11
11 With the DRB, read the FREEZE FRAME window.
Use the freeze frame data and attempt to determine the cause.
In the FREEZE FRAME, is the ENGINE RPM over 3000 and the operating temp
normal?All
Ye s®Lab scope cam and crank sensor, check valve timing, running
vacuum test.
Perform VERIFICATION TEST VER-5A2.
No®Go To 14
102
DRIVEABILITY
P-0300 MULTIPLE CYLINDER MIS-FIRE ÐContinued
ProCarManuals.com

TEST ACTION APPLICABILITY
7 Perform Fuel Pump Amperage Test per service instructions.
Did the Fuel Pump Amperage Test pass?ENGINE - 3.0L V6
and/or ENGINE -
3.3L V6 and/or EN-
GINE - 3.8L V6
and/or ENGINE -
3.3L V6 FFV
Ye s®Go To 8
No®Relieve fuel pressure and repair as necessary.
Perform VERIFICATION TEST VER-5A2.
8 Perform Fuel Pump Capacity Test per service instructions.
Did the Fuel Pump Capacity Test pass?ENGINE - 3.0L V6
and/or ENGINE -
3.3L V6 and/or EN-
GINE - 3.8L V6
and/or ENGINE -
3.3L V6 FFV
Ye s®Go To 9
No®Relieve fuel pressure and repair as necessary.
Perform VERIFICATION TEST VER-5A2.
9 Perform Fuel Pump Pressure Test per service instructions.
Did the Fuel Pump Pressure Test pass?ENGINE - 3.0L V6
and/or ENGINE -
3.3L V6 and/or EN-
GINE - 3.8L V6
and/or ENGINE -
3.3L V6 FFV
Ye s®Go To 10
No®Relieve fuel pressure and repair as necessary.
Perform VERIFICATION TEST VER-5A2.
10 With the DRB, read the FREEZE FRAME DATA.
Use the freeze frame data and attempt to determine the cause of the misfire.
In the FREEZE FRAME, is the LOAD VALUE over 50% and the temp normal
operating temp?ENGINE - 3.0L V6
and/or ENGINE -
3.3L V6 and/or EN-
GINE - 3.8L V6
and/or ENGINE -
3.3L V6 FFV
Ye s®Go To 11
No®Go To 13
11 Engine Off.
Connect a suitable engine analyzer to the engine.
Allow the Engine to idle.
NOTE: If the Engine will not idle, maintain a constant RPM above idle.
NOTE: Set the scope to read display or parade pattern.
Remove any spark plug wire.
Observe the Secondary KV Line.
Is the open secondary voltage at least 25 KV?ENGINE - 3.0L V6
and/or ENGINE -
3.3L V6 and/or EN-
GINE - 3.8L V6
and/or ENGINE -
3.3L V6 FFV
Ye s®Go To 12
No®Replace the Electonic Ignition Coil.
Perform VERIFICATION TEST VER-5A2.
106
