TIRES/WHEELS
DIAGNOSIS AND TESTING - TIRE AND
WHEEL VIBRATION.....................1
STANDARD PROCEDURE
STANDARD PROCEDURE - TIRE AND
WHEEL BALANCE......................5
STANDARD PROCEDURE - TIRE AND
WHEEL MATCH MOUNTING..............7
STANDARD PROCEDURE - TIRE AND
WHEEL ROTATION.....................7
REMOVAL
REMOVAL - TIRE AND WHEEL ASSEMBLY
(ALUMINUM WHEEL)....................7
REMOVAL - TIRE AND WHEEL ASSEMBLY
(STEEL WHEEL).......................8
INSTALLATION
INSTALLATION - TIRE AND WHEEL
ASSEMBLY (ALUMINUM WHEEL)..........8
INSTALLATION - TIRE AND WHEEL
ASSEMBLY (STEEL WHEEL)..............8
TIRE PRESSURE MONITORING
DESCRIPTION..........................9
OPERATION............................9
SENSOR - TPM
DESCRIPTION.........................10
OPERATION...........................10
CAUTION.............................10
DIAGNOSIS AND TESTING - TIRE PRESSURE
SENSOR............................10
STANDARD PROCEDURE - TIRE PRESSURE
SENSOR RETRAIN....................10
REMOVAL.............................11
INSTALLATION.........................12
TIRES
DESCRIPTION
DESCRIPTION - TIRE..................13
DESCRIPTION - RADIAL-PLY TIRES.......14DESCRIPTION - REPLACEMENT TIRES....14
DESCRIPTION - SPARE TIRE
(TEMPORARY).......................14
DIAGNOSIS AND TESTING
DIAGNOSIS AND TESTING - TIRE NOISE . . . 14
DIAGNOSIS AND TESTING - TIRE/VEHICLE
LEAD...............................14
DIAGNOSIS AND TESTING - TIRE WEAR
PATTERNS..........................16
DIAGNOSIS AND TESTING - TREAD WEAR
INDICATORS.........................16
STANDARD PROCEDURE
STANDARD PROCEDURE - TIRE INFLATION
PRESSURES.........................16
STANDARD PROCEDURE - TIRE
PRESSURE FOR HIGH SPEED
OPERATION.........................17
STANDARD PROCEDURE - TIRE LEAK
REPAIRING..........................17
CLEANING - TIRES.....................17
WHEELS
DESCRIPTION - WHEEL..................18
DIAGNOSIS AND TESTING - WHEEL
INSPECTION.........................18
CLEANING - ALUMINUM WHEEL CARE......18
SPECIFICATIONS
WHEEL.............................19
WHEEL COVER
DESCRIPTION.........................19
REMOVAL.............................19
INSTALLATION.........................19
WHEEL MOUNTING STUDS - FRONT
REMOVAL.............................20
INSTALLATION.........................21
WHEEL MOUNTING STUDS - REAR
REMOVAL.............................21
INSTALLATION.........................22
TIRES/WHEELS
DIAGNOSIS AND TESTING - TIRE AND WHEEL
VIBRATION
Tire and wheel imbalance, runout and force varia-
tion can cause vehicles to exhibit steering wheel
vibration.
VISUAL INSPECTION
Visual inspection of the vehicle is recommended
prior to road testing or performing any other proce-
dure. Raise vehicle on a suitable hoist. (Refer to
LUBRICATION & MAINTENANCE/HOISTING -
STANDARD PROCEDURE)
Inspect for the following:
²Verify correct (OEM) wheel and tire, as well as
correct wheel weights. Aluminum wheels require
RSTIRES/WHEELS22-1
ProCarManuals.com

STANDARD PROCEDURE - TIRE AND WHEEL
MATCH MOUNTING
Wheels and tires are match mounted at the factory.
This means that the high spot of the tire is matched
to the low spot on the wheel rim. This technique is
used to reduce runout in the wheel and tire assem-
bly. The high spot on the tire is marked with a paint
mark or a bright colored adhesive label on the out-
board sidewall. The low spot on the wheel is identi-
fied with a label on the outside of the rim and a dot
or line in the drop well area of the rim (inside where
the tire mounts). If the outside label has been
removed, the tire will have to be removed to locate
the dot or line on the inside of the rim. The tire can
then be match mounted to the tire.
Information on match mounting the tire to the
wheel can be found in Tire and Wheel Runout/Match
Mounting, items (2) through (5), within Diagnosis
And Testing - Tire And Wheel Vibration. (Refer to 22
- TIRES/WHEELS - DIAGNOSIS AND TESTING)
STANDARD PROCEDURE - TIRE AND WHEEL
ROTATION
NON-DIRECTIONAL TREAD PATTERN TIRES
Tires on the front and rear axles operate at differ-
ent loads and perform different functions. For these
reasons, they wear at unequal rates, and tend to
develop irregular wear patterns. These effects can be
reduced by timely rotation of tires. The benefits of
rotation are especially worthwhile. Rotation will
increase tread life, help to maintain mud, snow, and
wet traction levels, and contribute to a smooth, quiet
ride.
The suggested rotation method is the forward-cross
tire rotation method (Fig. 11). This method takesadvantage of current tire industry practice which
allows rotation of radial-ply tires. Other rotation
methods may be used, but may not have all the ben-
efits of the recommended method.
NOTE: Only the 4 tire rotation method may be used
if the vehicle is equipped with a low mileage or tem-
porary spare tire.
DIRECTIONAL TREAD PATTERN TIRES
Some vehicles are fitted with special high-perfor-
mance tires having a directional tread pattern. These
tires are designed to improve traction on wet pave-
ment. To obtain the full benefits of this design, the
tires must be installed so that they rotate in the cor-
rect direction. This is indicated by arrows on the tire
sidewalls.
When wheels and tires are being installed, extra
care is needed to ensure that this direction of rota-
tion is maintained.
Refer to Owner's Manual for rotation schedule.
REMOVAL
REMOVAL - TIRE AND WHEEL ASSEMBLY
(ALUMINUM WHEEL)
(1) Raise the vehicle so the tire and wheel assem-
bly clears ground level.
(2) Remove the 5 wheel mounting nuts from the
studs.
(3) Remove the tire and wheel from the hub.

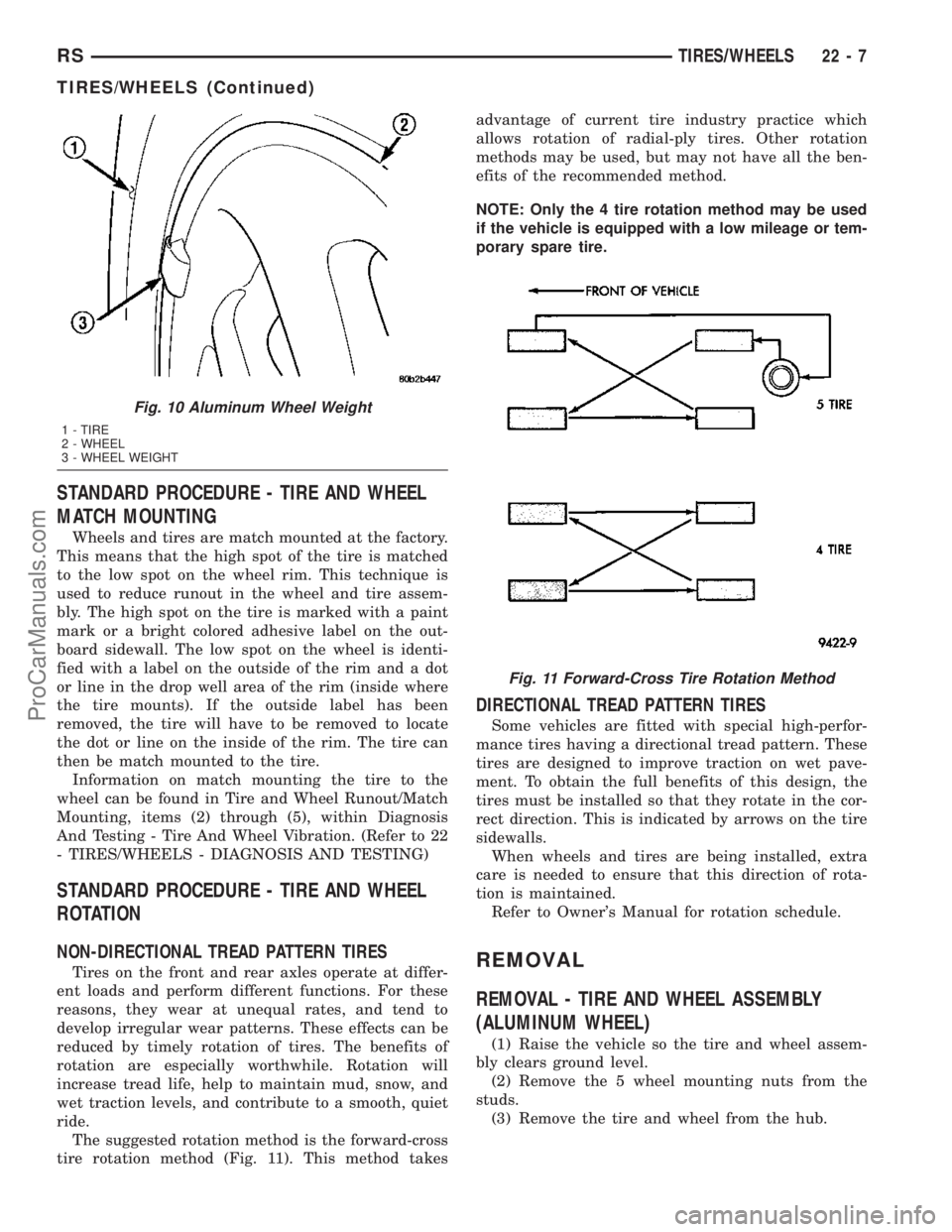

Fig. 10 Aluminum Wheel Weight
1 - TIRE
2 - WHEEL
3 - WHEEL WEIGHT
Fig. 11 Forward-Cross Tire Rotation Method
RSTIRES/WHEELS22-7
TIRES/WHEELS (Continued)
ProCarManuals.com

(4) Install andlightly tightenthe three remain-
ing wheel mounting nuts, securing the wheel cover in
place (Fig. 12).
(5) Progressively tighten all five wheel mounting
nuts in the proper sequence (Fig. 16). Tighten wheel
nuts to a torque of 135 N´m (100 ft. lbs.).
(6) Lower the vehicle.
TIRE PRESSURE MONITORING
DESCRIPTION
Some versions of this vehicle are equipped with a
Tire Pressure Monitoring (TPM) system. It monitors
air pressure in the four road tires (excludes spare).
Pressure in the spare tire is not monitored.
There is a sensor (transmitter) in each of the vehi-
cle's four road wheels. The system alerts the driver
when tire pressure falls outside predetermined
thresholds (pressure too low or too high). A message
is then displayed on the Electronic Vehicle Informa-
tion Center (EVIC) located in the overhead console.
For further information, refer to the Owners Man-
ual or the appropriate diagnostic information.
OPERATION
The Tire Pressure Monitoring (TPM) system uses
radio and sensor technology to monitor tire air pres-
sure levels. Sensors, mounted to each road wheel as
part of the valve stem, transmit tire pressure read-
ings to a receiver located in the overhead console.
These transmissions occur once every minute at
speeds over 20 mph (32 km/h). The Tire Pressure
Monitoring system remains active even if no tire
pressure related message is displayed in the EVIC.
If any road tire pressure has exceeded the low or
high pressure threshold (refer to chart below), the
TPM system will display a message in the EVIC and
sound a chime. This message will be displayed for
the rest of the ignition cycle, or until either the Low/
High Tire pressure condition has been corrected. If
the C/T, MENU, STEP or RESET button is pressed,
the message is replaced by the new message
requested; however, if the Low/High Tire condition
has not been corrected, the Low/High Tire pressure
message will again be displayed.
Fig. 14 TWO WHEEL MOUNTING NUTS INSTALLED
1 - WHEEL
2 - VALVE STEM
3 - HUB PILOT
4 - NUTS
Fig. 15 WHEEL COVER INSTALLATION OVER TWO
NUTS
1 - RETAINING TABS
2 - VALVE STEM
3 - BOLT-ON WHEEL COVER
Fig. 16 NUT TIGHTENING SEQUENCE
RSTIRES/WHEELS22-9
TIRES/WHEELS (Continued)
ProCarManuals.com

If a road tire is replaced by the spare, the TPM
system will detect the swap and the message9SPARE
TIRE IN USE? Y/N9(along with a chime) will be dis-
played.
For further information, refer to the Owners Man-
ual or the Appropriate Diagnostic Information.
TPM THRESHOLD PRESSURES
High Pressure ON Threshold 48 PSI (331 kPa)
High Pressure OFF Threshold 43 PSI (296 kPa)
Placard Pressure (Cold) 36 PSI (248 kPa)
Low Pressure OFF Threshold 33 PSI (228 kPa)
Low Pressure ON Threshold 28 PSI (193 kPa)
SENSOR - TPM
DESCRIPTION
On vehicles equipped with Tire Pressure Monitor-
ing, one tire pressure sensor is mounted to each
wheel (Fig. 19). Each sensor has an internal battery
that lasts up to 10 years. The battery is not service-
able. At the time of battery failure, the sensor must
be replaced. The serviceable components of the tire
pressure sensor are:
²Sensor-To-Wheel Grommet
²Valve Stem Cap
²Valve Stem Core
Valve stem caps and cores are specifically designed
for the tire pressure monitoring sensors. Although
similar to standard valve stem caps and cores, they
are different.
CAUTION: Do not use a standard valve stem cap or
core in a tire pressure sensor. Always use the orig-
inal equipment style sensor cap and core.
CAUTION: Do not reuse the Sensor-To Wheel Grom-
met. Always use a new grommet when installing a
pressure sensor and properly torque the sensor
nut.
CAUTION: Do not try to install a tire pressure sen-
sor in a steel wheel or aftermarket wheel. Use only
in original style factory wheels.
OPERATION
Tire pressure sensors are battery operated. They
transmit tire pressure data once every minute at
speeds above 20 mph (32 km/h) or up to once every
hour when stationary (parked). For additional infor-
mation, refer to Appropriate Diagnostic Information.
CAUTION
CAUTION: The use of tire sealants is strictly prohib-
ited for vehicles equipped with the Tire Pressure
Monitoring system. Tire sealants can clog tire pres-
sure sensors.
CAUTION: Tire pressure sensor valve stem caps
and cores are specially designed for the sensors.
Due to risk of corrosion, do not use a standard
valve stem cap or core in a tire pressure sensor in
place of the original equipment style sensor cap
and core.
CAUTION: Do not attempt to install a tire pressure
sensor in a steel wheel or aftermarket wheel. Use
tire pressure sensors in original style factory
wheels only.
NOTE: TPM thresholds have been established for
the original tire size equipped on the vehicle. Use
original size tires only to maintain system accuracy.
DIAGNOSIS AND TESTING - TIRE PRESSURE
SENSOR
NOTE: Tire pressure may increase from 2 to 6 psi
(14 to 41 kPa) during normal driving conditions. Do
NOT reduce this normal pressure build up.
If a fault in the system is detected, always check
air pressure in the tires first with a known accurate
air gauge and correct the inflation pressure. If any
tire is low, inspectalltires.
If gauge-read pressure in the tires does not reflect
the reading on the EVIC, retrain the sensors, then
reevaluate (Refer to 22 - TIRES/WHEELS/TIRE
PRESSURE MONITORING/SENSOR - STANDARD
PROCEDURE). Refer to the appropriate diagnostic
information for complete diagnosis of the Tire Pres-
sure Monitoring System.
STANDARD PROCEDURE - TIRE PRESSURE
SENSOR RETRAIN
WARNING: DEATH OR SERIOUS INJURY CAN
OCCUR IF MAGNETICALLY SENSITIVE DEVICES
ARE EXPOSED TO THE RELEARN MAGNET. MAG-
NETS CAN AFFECT PACEMAKERS.
22 - 10 TIRES/WHEELSRS
TIRE PRESSURE MONITORING (Continued)
ProCarManuals.com

RCONSTRUCTION
TYPER - RADIAL
B - BIAS BELTED
D - DIAGONAL (BIAS)
16WHEEL DIAMETER SHOWN IN INCHES
97LOAD INDEX *
TSPEED RATING *
* NOTE: Consult the tire manufacturer regarding
any questions on tire specifications or capabilities.
TIRE CHAINS
Refer to the owners manual supplied with the vehi-
cle to determine whether the use of tire chains is per-
mitted on this vehicle.
DESCRIPTION - RADIAL-PLY TIRES
Radial-ply tires improve handling, tread life, ride
quality and decrease rolling resistance.
Radial-ply tires must always be used in sets of four
and under no circumstances should they be used on
the front only. It is recommended that tires from dif-
ferent manufacturers NOT be mixed. They may be
mixed with a temporary spare tire when necessary. A
maximum speed of 80 km/h (50 mph) is recom-
mended while a temporary spare is in use.
Radial-ply tires have the same load-carrying capac-
ity as other types of tires of the same size. They also
use the same recommended inflation pressures.
DESCRIPTION - REPLACEMENT TIRES
WARNING: FAILURE TO EQUIP THE VEHICLE WITH
TIRES HAVING ADEQUATE SPEED CAPABILITY
CAN RESULT IN SUDDEN TIRE FAILURE.It is recommended that tires equivalent to the orig-
inal equipment tires be used when replacement is
needed.
Failure to use equivalent replacement tires may
adversely affect the safety and handling of the vehi-
cle.
The original equipment tires provide a proper com-
bination of many characteristics such as:
²Ride
²Noise
²Handling
²Durability
²Tread life
²Traction
²Rolling resistance
²Speed capability
The use of tires smaller than the minimum tire
size approved for the vehicle can result in tire over-
loading and failure.
Use tires that have the approved load rating for
the vehicle and never overload them. Failure to equip
the vehicle with tires having adequate speed capabil-
ity can result in sudden tire failure and loss of vehi-
cle control.
The use of oversize tires may cause interference
with vehicle components. Under extremes of suspen-
sion and steering travel, interference with vehicle
components may cause tire damage.
DESCRIPTION - SPARE TIRE (TEMPORARY)
The temporary (convenience) spare tire is designed
for emergency use only. The original tire should be
repaired and reinstalled, or replaced with a new, at
the first opportunity.
The temporary (convenience) spare tire should be
inflated to the pressure listed on its sidewall. Do not
exceed speeds of 80 km/h (50 mph) when the tempo-
rary spare tire is in use on the vehicle. Refer to the
Owner's Manual for more details.
DIAGNOSIS AND TESTING
DIAGNOSIS AND TESTING - TIRE NOISE
Unusual tire noise can be associated with tire and
wheel vibration or irregular tire wear. For vibration,
(Refer to 22 - TIRES/WHEELS - DIAGNOSIS AND
TESTING). For irregular tire wear, (Refer to 22 -
TIRES/WHEELS/TIRES - DIAGNOSIS AND TEST-
ING).
DIAGNOSIS AND TESTING - TIRE/VEHICLE
LEAD
Use the following Vehicle Lead Diagnosis And Cor-
rection Chart to diagnose and correct a vehicle lead
or drift problem.
Fig. 22 Tire Aspect Ratio
1 - SECTIONAL WIDTH
2 - SECTIONAL HEIGHT
22 - 14 TIRES/WHEELSRS
TIRES (Continued)
ProCarManuals.com

SHAFT - REAR - REMOVAL, HALF........3-13
SHAFT - REMOVAL, PROPELLER.........3-21
SHAFT - REMOVAL, ROCKER ARMS......9-109
SHAFT - RHD - INSTALLATION, PEDAL
TORQUE............................5-39
SHAFT - RHD - REMOVAL, PEDAL
TORQUE............................5-39
SHAFT - SPECIFICATIONS, PROPELLER....3-22
SHAFT COVER SEAL - INSTALLATION,
INPUT.............................21-14
SHAFT COVER SEAL - REMOVAL, INPUT . . 21-13
SHAFT END SEAL - INSTALLATION,
INPUT.............................21-16
SHAFT END SEAL - REMOVAL, INPUT....21-15
SHAFT INNER SEAL - INSTALLATION,
HALF..............................21-12
SHAFT INNER SEAL - REMOVAL, HALF . . . 21-12
SHAFT SEAL - INSTALLATION, INPUT.....21-18
SHAFT SEAL - INSTALLATION, OUTER
HALF..............................21-19
SHAFT SEAL - REMOVAL, INPUT........21-17
SHAFT SEAL - REMOVAL, OUTER HALF . . . 21-19
SHAFTS AND CARRIER ASSEMBLY -
DESCRIPTION, BALANCE................9-69
SHAFTS AND CARRIER ASSEMBLY -
INSTALLATION, BALANCE...............9-72
SHAFTS AND CARRIER ASSEMBLY -
OPERATION, BALANCE.................9-69
SHAFTS AND CARRIER ASSEMBLY -
REMOVAL, BALANCE...................9-69
SHIELD - INSTALLATION, FRONT
WHEELHOUSE SPLASH................23-54
SHIELD - NO CUP HOLDER -
INSTALLATION, QUAD BUCKET SEAT
SIDE..............................23-96
SHIELD - NO CUP HOLDER - REMOVAL,
QUAD BUCKET SEAT SIDE.............23-96
SHIELD - REMOVAL, FRONT
WHEELHOUSE SPLASH................23-54
SHIELD/CUP HOLDER - INSTALLATION,
QUAD BUCKET SEAT SIDE.............23-95
SHIELD/CUP HOLDER - REMOVAL, QUAD
BUCKET SEAT SIDE...................23-95
SHIELDS - DESCRIPTION, HEAT..........11-6
SHIELDS - INSTALLATION, HEAT.........11-7
SHIELDS - OPERATION, HEAT............11-7
SHIELDS - REMOVAL, HEAT.............11-7
SHIFT CABLE - INSTALLATION, GEAR....21-205
SHIFT CABLE - REMOVAL, GEAR.......21-204
SHIFT COVER - DESCRIPTION.........21-113
SHIFT FORK AND SHAFT - DESCRIPTION . 21-113
SHIFT INTERLOCK SOLENOID -
DESCRIPTION......................21-233
SHIFT INTERLOCK SOLENOID -
DIAGNOSIS AND TESTING, BRAKE/
TRANSMISSION.....................21-235
SHIFT INTERLOCK SOLENOID -
INSTALLATION......................21-236
SHIFT INTERLOCK SOLENOID -
OPERATION........................21-233
SHIFT INTERLOCK SOLENOID -
REMOVAL.........................21-235
SHIFT LEVER - INSTALLATION, GEAR.....19-21
SHIFT LEVER - REMOVAL, GEAR........19-21
SHIM SELECTION, ADJUSTMENTS -
OUTPUT FLANGE......................21-7
SHOCK ABSORBER - DESCRIPTION.......2-36
SHOCK ABSORBER - INSTALLATION......2-38
SHOCK ABSORBER - OPERATION.........2-36
SHOCK ABSORBER - REMOVAL..........2-36
SHOCK ABSORBER (UPPER BUSHING) -
ASSEMBLY..........................2-37
SHOCK ABSORBER (UPPER BUSHING) -
DISASSEMBLY........................2-36
SHOE LINING - INSPECTION, REAR
DRUM BRAKE........................5-22
SHOES - ADJUSTMENT, PARKING BRAKE . . 5-73
SHOES - ADJUSTMENT, REAR DRUM
BRAKE..............................5-23
SHOES - CLEANING, DISC BRAKE....5-16,5-18
SHOES - INSPECTION, DISC BRAKE
. . . 5-16,5-18
SHOES - INSTALLATION, REAR DISC
BRAKE
..............................5-19
SHOES - INSTALLATION, REAR DRUM
BRAKE
..............................5-22
SHOES - PARKING BRAKE -
INSTALLATION
........................5-72
SHOES - PARKING BRAKE - REMOVAL
....5-67SHOES - REMOVAL, REAR DISC BRAKE....5-17
SHOES - REMOVAL, REAR DRUM BRAKE . . 5-19
SHOES (DISC/DISC BRAKES) -
INSTALLATION, FRONT DISC BRAKE......5-16
SHOES (DISC/DISC BRAKES) -
REMOVAL, FRONT DISC BRAKE..........5-14
SHOES (DISC/DRUM BRAKES) -
INSTALLATION, FRONT DISC BRAKE......5-17
SHOES (DISC/DRUM BRAKES) -
REMOVAL, FRONT DISC BRAKE..........5-15
SHORT TO GROUND - STANDARD
PROCEDURE, TESTING FOR A........8W-01-9
SHORT TO GROUND ON FUSES
POWERING SEVERAL LOADS -
STANDARD PROCEDURE, TESTING
FOR A ..........................8W-01-10
SHROUD - LOWER - INSTALLATION......19-22
SHROUD - LOWER - REMOVAL.........19-21
SHROUD - UPPER - INSTALLATION......19-23
SHROUD - UPPER - REMOVAL..........19-23
SHUT DOWN RELAY - DESCRIPTION,
AUTO...............................8I-3
SHUT DOWN RELAY - OPERATION, AUTO . . . 8I-3
SIDE - INSTALLATION, LIFTGATE........23-43
SIDE - REMOVAL, LIFTGATE............23-43
SIDE COVER - INSTALLATION, FRONT
SEAT CUSHION......................23-93
SIDE COVER - REMOVAL, FRONT SEAT
CUSHION...........................23-93
SIDE GEAR END PLAY - ADJUSTMENT,
DIFFERENTIAL.......................21-70
SIDE IMPACT AIRBAG CONTROL
MODULE - DESCRIPTION..............8O-17
SIDE IMPACT AIRBAG CONTROL
MODULE - INSTALLATION.............8O-17
SIDE IMPACT AIRBAG CONTROL
MODULE - OPERATION................8O-17
SIDE IMPACT AIRBAG CONTROL
MODULE - REMOVAL.................8O-17
SIDE MOLDINGS - INSTALLATION, BODY . . 23-45
SIDE MOLDINGS - REMOVAL, BODY.....23-44
SIDE SHIELD - NO CUP HOLDER -
INSTALLATION, QUAD BUCKET SEAT.....23-96
SIDE SHIELD - NO CUP HOLDER -
REMOVAL, QUAD BUCKET SEAT.........23-96
SIDE SHIELD/CUP HOLDER -
INSTALLATION, QUAD BUCKET SEAT.....23-95
SIDE SHIELD/CUP HOLDER - REMOVAL,
QUAD BUCKET SEAT..................23-95
SIDE VIEW MIRROR - INSTALLATION.....23-57
SIDE VIEW MIRROR - REMOVAL........23-57
SIDE VIEW MIRROR GLASS -
INSTALLATION.......................23-58
SIDE VIEW MIRROR GLASS - REMOVAL . . 23-58
SIDEVIEW MIRROR - REMOVAL.........8N-49
SIGNAL LAMP - EXPORT -
INSTALLATION, PARK/TURN............8L-22
SIGNAL LAMP - EXPORT - REMOVAL,
PARK/TURN.........................8L-22
SIGNAL LAMP - INSTALLATION,
PARK/TURN.........................8L-21
SIGNAL LAMP - REMOVAL, PARK/TURN . . 8L-21
SIGNAL SYSTEM - DESCRIPTION, TURN . . 8L-21
SIGNAL SYSTEM - OPERATION, TURN....8L-21
SILL PLATE - INSTALLATION, LIFTGATE . . . 23-77
SILL PLATE - INSTALLATION, SLIDING
DOOR.............................23-80
SILL PLATE - REMOVAL, LIFTGATE.......23-77
SILL PLATE - REMOVAL, SLIDING DOOR . . 23-80
SILL TRIM PLATE - INSTALLATION,
DOOR
.............................23-76
SILL TRIM PLATE - REMOVAL, DOOR
....23-76
SINGLE ZONE - DESCRIPTION
...........24-1
SLAVE CYLINDER - INSTALLATION
........6-11
SLAVE CYLINDER - REMOVAL
...........6-11
SLEEVE - INSTALLATION, HEADREST
.....23-89
SLEEVE - REMOVAL, HEADREST
........23-89
SLIDING DOOR - INSTALLATION
.........23-29
SLIDING DOOR - REMOVAL
............23-29
SLIDING DOOR ADJUSTMENT -
STANDARD PROCEDURE
..............8N-28
SLIDING DOOR ADJUSTMENTS,
ADJUSTMENTS
......................23-30
SLIDING DOOR CONTROL MODULE -
DESCRIPTION
.......................8E-19
SLIDING DOOR CONTROL MODULE -
INSTALLATION
.......................8E-20SLIDING DOOR CONTROL MODULE -
OPERATION.........................8E-19
SLIDING DOOR CONTROL MODULE -
REMOVAL..........................8E-19
SLIDING DOOR GLASS - INSTALLATION . . 23-107
SLIDING DOOR GLASS - REMOVAL.....23-107
SLIDING DOOR LOCK MOTOR -
INSTALLATION......................8N-44
SLIDING DOOR LOCK MOTOR -
REMOVAL..........................8N-44
SLIDING DOOR MOTOR - DESCRIPTION . . 8N-30
SLIDING DOOR MOTOR - INSTALLATION . . 8N-31
SLIDING DOOR MOTOR - OPERATION....8N-30
SLIDING DOOR MOTOR - REMOVAL.....8N-30
SLIDING DOOR SILL PLATE -
INSTALLATION.......................23-80
SLIDING DOOR SILL PLATE - REMOVAL . . 23-80
SLIDING DOOR STOP BUMPER BEZEL -
INSTALLATION.......................23-25
SLIDING DOOR STOP BUMPER BEZEL -
REMOVAL..........................23-25
SLIDING DOOR SYSTEM - DESCRIPTION,
POWER............................8N-19
SLIDING DOOR SYSTEM - DIAGNOSIS
AND TESTING, POWER................8N-22
SLIDING DOOR SYSTEM - OPERATION,
POWER............................8N-21
SLIDING DOOR WEATHERSTRIP -
INSTALLATION......................23-112
SLIDING DOOR WEATHERSTRIP -
REMOVAL.........................23-112
SOCKET - INSTALLATION, STABILIZER....23-32
SOCKET - REMOVAL, STABILIZER.......23-32
SOLENOID - DESCRIPTION, EVAP/PURGE . 25-12
SOLENOID - DESCRIPTION, SHIFT
INTERLOCK........................21-233
SOLENOID - DIAGNOSIS AND TESTING,
BRAKE/TRANSMISSION SHIFT
INTERLOCK........................21-235
SOLENOID - INSTALLATION, EVAP/
PURGE.............................25-12
SOLENOID - INSTALLATION, SHIFT
INTERLOCK........................21-236
SOLENOID - OPERATION, EVAP/PURGE . . . 25-12
SOLENOID - OPERATION, SHIFT
INTERLOCK........................21-233
SOLENOID - REMOVAL, EVAP/PURGE.....25-12
SOLENOID - REMOVAL, SHIFT
INTERLOCK........................21-235
SOLENOID/PRESSURE SWITCH ASSY -
DESCRIPTION......................21-237
SOLENOID/PRESSURE SWITCH ASSY -
INSTALLATION......................21-239
SOLENOID/PRESSURE SWITCH ASSY -
OPERATION........................21-237
SOLENOID/PRESSURE SWITCH ASSY -
REMOVAL.........................21-238
SPARE TIRE (TEMPORARY) -
DESCRIPTION.......................22-14
SPARK PLUG CABLE - DESCRIPTION.....8I-10
SPARK PLUG CABLE RESISTANCE,
SPECIFICATIONS......................8I-2
SPARK PLUG, SPECIFICATIONS...........8I-2
SPEAKER - DIAGNOSIS AND TESTING....8A-14
SPEAKER - INSTALLATION.............8A-15
SPEAKER - REMOVAL.................8A-14
SPEED CONTROL - DESCRIPTION........8P-1
SPEED CONTROL (4 SPEED EATX ONLY)
- OPERATION, INTERACTIVE.............8P-2
SPEED OPERATION - STANDARD
PROCEDURE, TIRE PRESSURE FOR
HIGH..............................22-17
SPEED SENSOR - AWD - INSTALLATION,
REAR WHEEL........................5-80
SPEED SENSOR - AWD - REMOVAL,
REAR WHEEL........................5-80
SPEED SENSOR - DESCRIPTION, ENGINE . 14-25
SPEED SENSOR - FWD - INSTALLATION,
REAR WHEEL........................5-81
SPEED SENSOR - FWD - REMOVAL,
REAR WHEEL........................5-81
SPEED SENSOR - INPUT - DESCRIPTION
. 21-239
SPEED SENSOR - INPUT -
INSTALLATION
......................21-240
SPEED SENSOR - INPUT - OPERATION
. . 21-240
SPEED SENSOR - INPUT - REMOVAL
....21-240
SPEED SENSOR - INSTALLATION, FRONT
WHEEL
.............................5-80
30 INDEXRS
Description Group-Page Description Group-Page Description Group-Page
ProCarManuals.com

TEMPERATURE SENSOR - 3.3/3.8L -
INSTALLATION, ENGINE COOLANT........7-22
TEMPERATURE SENSOR - 3.3/3.8L -
REMOVAL, ENGINE COOLANT............7-21
TEMPERATURE SENSOR - DESCRIPTION,
BATTERY...........................8F-23
TEMPERATURE SENSOR - DESCRIPTION,
EVAPORATOR.......................24-22
TEMPERATURE SENSOR - DESCRIPTION,
INFRARED.....................24-23,24-35
TEMPERATURE SENSOR - DESCRIPTION,
INLET AIR..........................14-29
TEMPERATURE SENSOR - DIAGNOSIS
AND TESTING, AMBIENT..............8M-12
TEMPERATURE SENSOR -
INSTALLATION, EVAPORATOR...........24-23
TEMPERATURE SENSOR - OPERATION,
BATTERY...........................8F-23
TEMPERATURE SENSOR - OPERATION,
EVAPORATOR.......................24-23
TEMPERATURE SENSOR - OPERATION,
INFRARED.....................24-24,24-35
TEMPERATURE SENSOR - OPERATION,
INLET AIR..........................14-29
TEMPERATURE SENSOR - REMOVAL,
BATTERY...........................8F-23
TEMPERATURE SENSOR - REMOVAL,
EVAPORATOR.......................24-23
TEMPERATURE SENSOR -
SPECIFICATIONS, BATTERY.............8F-22
TEMPERATURE SENSOR CIRCUIT -
DIAGNOSIS AND TESTING, AMBIENT....8M-12
TENSION - STANDARD PROCEDURE,
CHECKING POWER STEERING BELT.........7-8
TENSION RELEASE - STANDARD
PROCEDURE, PARKING BRAKE
AUTOMATIC ADJUSTER................5-58
TENSION RESET - STANDARD
PROCEDURE, PARKING BRAKE
AUTOMATIC ADJUSTER................5-59
TENSION, SPECIFICATIONS -
ACCESSORY DRIVE BELT................7-5
TENSIONER - 2.4L - INSTALLATION,
BELT ...............................7-10
TENSIONER - 2.4L - REMOVAL, BELT......7-10
TENSIONER - 3.3/3.8L - INSTALLATION,
BELT ...............................7-12
TENSIONER - 3.3/3.8L - REMOVAL, BELT . . . 7-12
TENSIONER - DESCRIPTION, SEAT BELT . . 8O-16
TENSIONER - OPERATION, SEAT BELT....8O-16
TENSIONER & PULLEY - INSTALLATION,
TIMING BELT.........................9-69
TENSIONER & PULLEY - REMOVAL,
TIMING BELT.........................9-68
TERMINAL - INSTALLATION.........8W-01-14
TERMINAL - REMOVAL.............8W-01-14
TERMINAL REPAIR - STANDARD
PROCEDURE, GRID LINE...............8G-3
TEST - DIAGNOSIS AND TESTING, A/C
COOL DOWN.........................24-4
TEST - DIAGNOSIS AND TESTING, A/C
PERFORMANCE.......................24-5
TEST - DIAGNOSIS AND TESTING,
CONTROL CIRCUIT...................8F-30
TEST - DIAGNOSIS AND TESTING,
COOLING SYSTEM LEAK.................7-2
TEST - DIAGNOSIS AND TESTING,
CYLINDER COMBUSTION PRESSURE
LEAKAGE.........................9-83,9-9
TEST - DIAGNOSIS AND TESTING,
CYLINDER COMPRESSION PRESSURE . . 9-83,9-9
TEST - DIAGNOSIS AND TESTING, FEED
CIRCUIT............................8F-33
TEST - DIAGNOSIS AND TESTING, FEED
CIRCUIT RESISTANCE.................8F-32
TEST - DIAGNOSIS AND TESTING,
HEATED MIRROR.....................8G-5
TEST - DIAGNOSIS AND TESTING,
HEATER PERFORMANCE................24-6
TEST - DIAGNOSIS AND TESTING,
POWER STEERING SYSTEM FLOW
AND PRESSURE
......................19-1
TEST - DIAGNOSIS AND TESTING, ROAD
. . . 8P-3
TEST - DIAGNOSIS AND TESTING, ROAD
. 21-119
TEST - DIAGNOSIS AND TESTING,
STARTING SYSTEM
...................8F-28
TEST - DIAGNOSIS AND TESTING,
SYSTEM
............................8G-3TEST - STANDARD PROCEDURE,
IGNITION-OFF DRAW..................8F-13
TEST - STANDARD PROCEDURE,
OPEN-CIRCUIT VOLTAGE...............8F-13
TEST MODE, OPERATION - DRB IIIT
STATE DISPLAY.......................25-9
TESTS - DIAGNOSIS AND TESTING,
CLUTCH AIR PRESSURE..............21-122
TESTS - DIAGNOSIS AND TESTING,
HYDRAULIC PRESSURE..............21-120
THEFT SECURITY - DESCRIPTION,
VEHICLE............................8Q-1
THEFT SECURITY - OPERATION, VEHICLE . . 8Q-1
THEFT SECURITY SYSTEM - DIAGNOSIS
AND TESTING, VEHICLE................8Q-3
THERMOSTAT - 2.4L - INSTALLATION,
ENGINE COOLANT.....................7-23
THERMOSTAT - 2.4L - REMOVAL,
ENGINE COOLANT.....................7-23
THERMOSTAT - 3.3/3.8L -
INSTALLATION, ENGINE COOLANT........7-24
THERMOSTAT - 3.3/3.8L - REMOVAL,
ENGINE COOLANT.....................7-23
THERMOSTAT - DESCRIPTION, ENGINE
COOLANT............................7-22
THERMOSTAT - DIAGNOSIS AND
TESTING, ENGINE COOLANT.............7-23
THERMOSTAT - OPERATION, ENGINE
COOLANT............................7-22
THERMOWRAP - DESCRIPTION.........8F-19
THERMOWRAP - INSTALLATION.........8F-19
THERMOWRAP - OPERATION...........8F-19
THERMOWRAP - REMOVAL............8F-19
THIRD ROW - INSTALLATION, BENCH
SEAT RISER........................23-100
THIRD ROW - REMOVAL, BENCH SEAT
RISER............................23-100
THREAD REPAIR - DESCRIPTION, FRONT
CRADLE CROSSMEMBER...............13-9
THREAD REPAIR - STANDARD
PROCEDURE, MANIFOLD STRIPPED......9-145
THREADED HOLE REPAIR -
DESCRIPTION......................Intro.-5
THREADS - STANDARD PROCEDURE,
REPAIR OF DAMAGED OR WORN.....9-10,9-86
THREE PASSENGER BENCH -
INSTALLATION, SEAT BELT BUCKLE -
SECOND ROW.......................8O-14
THREE PASSENGER BENCH - REMOVAL,
SEAT BELT BUCKLE - SECOND ROW.....8O-14
THREE ZONE - DESCRIPTION, MANUAL....24-1
THREE ZONE - OPERATION, MANUAL.....24-3
THREE ZONE ATC - OPERATION..........24-3
THROTTLE BODY - DESCRIPTION........14-34
THROTTLE BODY - INSTALLATION.......14-35
THROTTLE BODY - OPERATION.........14-34
THROTTLE BODY - REMOVAL...........14-35
THROTTLE CONTROL CABLE -
INSTALLATION.......................14-35
THROTTLE CONTROL CABLE - REMOVAL . . 14-35
THROTTLE POSITION SENSOR -
DESCRIPTION.......................14-36
THROTTLE POSITION SENSOR -
OPERATION.........................14-36
TIE ROD - INSTALLATION, OUTER.......19-34
TIE ROD - REMOVAL, OUTER...........19-34
TIMING BELT - INSTALLATION...........9-65
TIMING BELT - REMOVAL
...............9-63
TIMING BELT COVER(S) - INSTALLATION
. . . 9-62
TIMING BELT COVER(S) - REMOVAL
......9-61
TIMING BELT TENSIONER & PULLEY -
INSTALLATION
........................9-69
TIMING BELT TENSIONER & PULLEY -
REMOVAL
...........................9-68
TIMING CHAIN AND CAMSHAFT
SPROCKET - INSTALLATION
............9-157
TIMING CHAIN AND CAMSHAFT
SPROCKET - REMOVAL
................9-156
TIMING CHAIN COVER - INSTALLATION
. . . 9-155
TIMING CHAIN COVER - REMOVAL
......9-153
TIMING CHAIN WEAR - STANDARD
PROCEDURE, MEASURING
.............9-153
TIMING VERIFICATION - STANDARD
PROCEDURE, VALVE
..................9-153
TIRE - DESCRIPTION
..................22-13
TIRE AND WHEEL ASSEMBLY
(ALUMINUM WHEEL) - INSTALLATION
.....22-8TIRE AND WHEEL ASSEMBLY
(ALUMINUM WHEEL) - REMOVAL........22-7
TIRE AND WHEEL ASSEMBLY (STEEL
WHEEL) - INSTALLATION...............22-8
TIRE AND WHEEL ASSEMBLY (STEEL
WHEEL) - REMOVAL...................22-8
TIRE AND WHEEL BALANCE -
STANDARD PROCEDURE................22-5
TIRE AND WHEEL MATCH MOUNTING -
STANDARD PROCEDURE................22-7
TIRE AND WHEEL ROTATION -
STANDARD PROCEDURE................22-7
TIRE AND WHEEL VIBRATION -
DIAGNOSIS AND TESTING..............22-1
TIRE INFLATION PRESSURES -
STANDARD PROCEDURE...............22-16
TIRE LEAK REPAIRING - STANDARD
PROCEDURE........................22-17
TIRE NOISE - DIAGNOSIS AND TESTING . . 22-14
TIRE PRESSURE FOR HIGH SPEED
OPERATION - STANDARD PROCEDURE . . . 22-17
TIRE PRESSURE MONITORING -
DESCRIPTION........................22-9
TIRE PRESSURE MONITORING -
OPERATION..........................22-9
TIRE PRESSURE SENSOR - DIAGNOSIS
AND TESTING.......................22-10
TIRE PRESSURE SENSOR RETRAIN -
STANDARD PROCEDURE...............22-10
TIRE (TEMPORARY) - DESCRIPTION,
SPARE .............................22-14
TIRE WEAR PATTERNS - DIAGNOSIS
AND TESTING.......................22-16
TIRES - CLEANING...................22-17
TIRES - DESCRIPTION, RADIAL-PLY......22-14
TIRES - DESCRIPTION, REPLACEMENT . . . 22-14
TIRE/VEHICLE LEAD - DIAGNOSIS AND
TESTING...........................22-14
TO CYLINDER BORE FITTING -
STANDARD PROCEDURE, PISTON........9-42
TO FILLER NECK SEAL - DIAGNOSIS
AND TESTING, RADIATOR CAP...........7-27
TO GROUND - STANDARD PROCEDURE,
TESTING FOR A SHORT.............8W-01-9
TO GROUND ON FUSES POWERING
SEVERAL LOADS - STANDARD
PROCEDURE, TESTING FOR A SHORT . 8W-01-10
TO USE WIRING DIAGRAMS -
DESCRIPTION, HOW................8W-01-1
TONE WHEEL - INSPECTION.............5-82
TONE WHEEL RUNOUT, SPECIFICATIONS . . . 5-79
TOOLS - 2.4L ENGINE, SPECIAL..........9-21
TOOLS - 3.3/3.8L ENGINE, SPECIAL.......9-95
TOOLS - 41TE AUTOMATIC TRANSAXLE,
SPECIAL..........................21-183
TOOLS - BASE BRAKE SYSTEM, SPECIAL . . 5-10
TOOLS - BATTERY SYSTEM SPECIAL
TOOLS, SPECIAL......................8F-7
TOOLS - BODY, SPECIAL...............23-13
TOOLS - COOLING SYSTEM, SPECIAL......7-6
TOOLS - EXHAUST SYSTEM, SPECIAL.....11-4
TOOLS - FRONT SUSPENSION, SPECIAL....2-3
TOOLS - FUEL, SPECIAL...........14-23,14-3
TOOLS - OVERHEAD CONSOLE, SPECIAL . . 8M-6
TOOLS - POWER DISTRIBUTION
SYSTEMS, SPECIAL................8W-97-2
TOOLS - POWER STEERING GEAR,
SPECIAL...........................19-34
TOOLS - POWER STEERING PUMP,
SPECIAL...........................19-43
TOOLS - POWER STEERING, SPECIAL.....19-9
TOOLS - REAR SUSPENSION, SPECIAL....2-28
TOOLS - SDP POWER TRANSFER UNIT,
SPECIAL............................21-8
TOOLS - WIRING/TERMINAL, SPECIAL . 8W-01-10
TOOLS, DIAGNOSIS AND TESTING -
SPECIAL............................3-34
TOOLS, SPECIAL TOOLS - BATTERY
SYSTEM SPECIAL.....................8F-7
TOOLS, SPECIFICATIONS - SPECIAL......8F-23
TOOLS, T850 TRANSAXLE - SPECIAL
.......6-6
TOOLS, T850 TRANSAXLE - SPECIAL
.....21-58
TOP COVER - INSTALLATION,
INSTRUMENT PANEL
..................23-67
TOP COVER - REMOVAL, INSTRUMENT
PANEL
.............................23-67
TOP PAD ASSEMBLY - INSTALLATION,
INSTRUMENT PANEL
..................23-70
RSINDEX33
Description Group-Page Description Group-Page Description Group-Page
ProCarManuals.com
