OPERATION
The Transfer Unit provides the power to the rear
wheels through a hypoid ring gear and pinion set.
DIAGNOSIS AND TESTING
SEAL IDENTIFICATION
For accurate seal diagnosis, repair seal name and
location is critical. Refer to (Fig. 1), (Fig. 2), (Fig. 3)
and (Fig. 4) for correct seal name and location.
FLUID LEAK DIAGNOSIS
When diagnosing fluid leaks on the Power Transfer
Unit two weep holes are provided to diagnose certain
seal leaks. These holes are located on the bottom side
of the assembly (Fig. 5).
If fluid leak is detected from either weep hole, seal
replacement is necessary.Do not attempt to repair
the leak by sealing weep holes,they must be kept
clear of sealants for proper seal operation.
If fluid is leaking from weep hole A (Fig. 5) the
type of fluid leaking will determine which seal needs
to be replaced. If the fluid leaking is red in color
(transmission fluid) this indicates that the Transmis-
sion differential carrier seal should be replaced. If
the fluid leaking is light brown (gear lube) this indi-
cates that the Power Transfer Unit input seal should
be replaced. For replacement of these seals refer to
Power Transfer Unit Service Procedures.

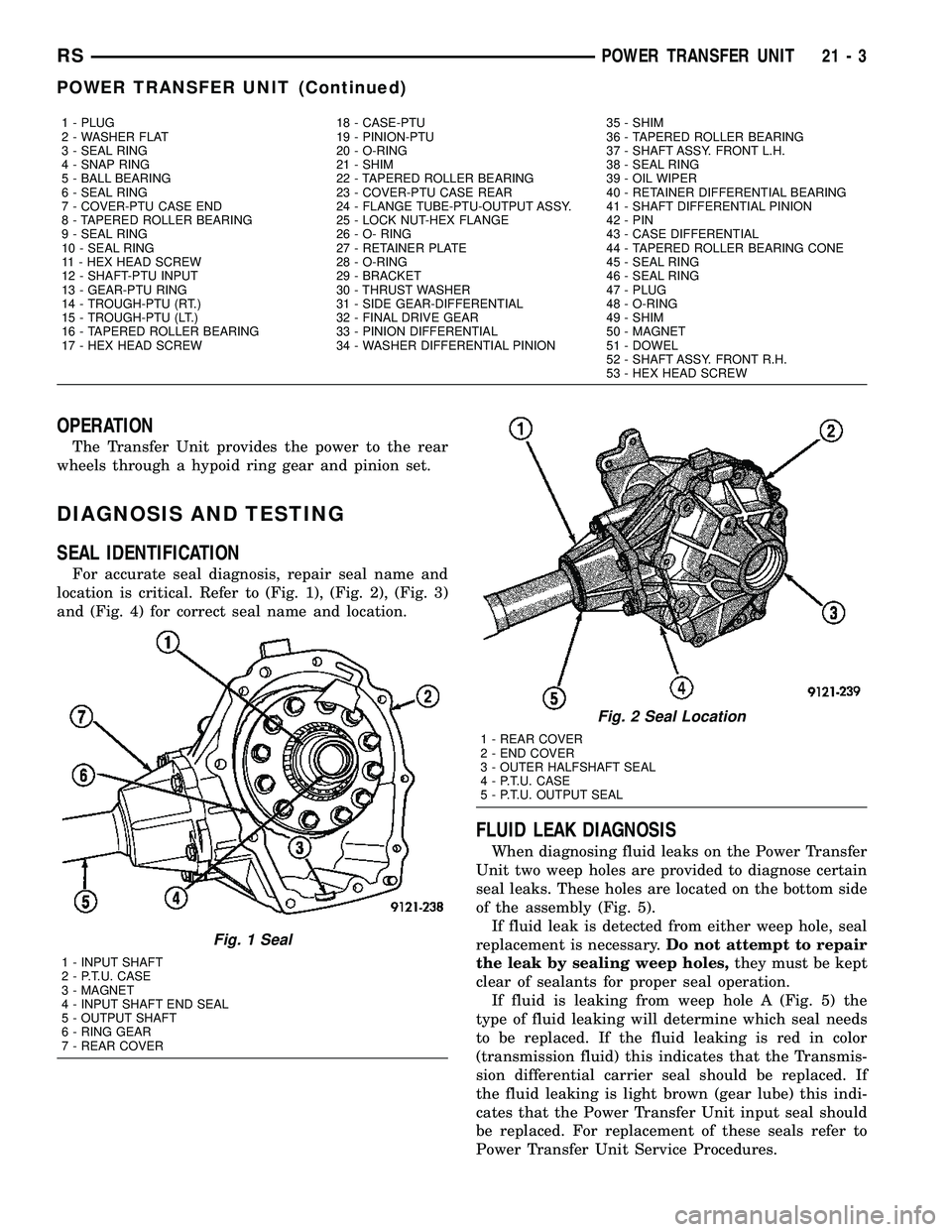

1 - PLUG 18 - CASE-PTU 35 - SHIM
2 - WASHER FLAT 19 - PINION-PTU 36 - TAPERED ROLLER BEARING
3 - SEAL RING 20 - O-RING 37 - SHAFT ASSY. FRONT L.H.
4 - SNAP RING 21 - SHIM 38 - SEAL RING
5 - BALL BEARING 22 - TAPERED ROLLER BEARING 39 - OIL WIPER
6 - SEAL RING 23 - COVER-PTU CASE REAR 40 - RETAINER DIFFERENTIAL BEARING
7 - COVER-PTU CASE END 24 - FLANGE TUBE-PTU-OUTPUT ASSY. 41 - SHAFT DIFFERENTIAL PINION
8 - TAPERED ROLLER BEARING 25 - LOCK NUT-HEX FLANGE 42 - PIN
9 - SEAL RING 26 - O- RING 43 - CASE DIFFERENTIAL
10 - SEAL RING 27 - RETAINER PLATE 44 - TAPERED ROLLER BEARING CONE
11 - HEX HEAD SCREW 28 - O-RING 45 - SEAL RING
12 - SHAFT-PTU INPUT 29 - BRACKET 46 - SEAL RING
13 - GEAR-PTU RING 30 - THRUST WASHER 47 - PLUG
14 - TROUGH-PTU (RT.) 31 - SIDE GEAR-DIFFERENTIAL 48 - O-RING
15 - TROUGH-PTU (LT.) 32 - FINAL DRIVE GEAR 49 - SHIM
16 - TAPERED ROLLER BEARING 33 - PINION DIFFERENTIAL 50 - MAGNET
17 - HEX HEAD SCREW 34 - WASHER DIFFERENTIAL PINION 51 - DOWEL
52 - SHAFT ASSY. FRONT R.H.
53 - HEX HEAD SCREW
Fig. 1 Seal
1 - INPUT SHAFT
2 - P.T.U. CASE
3 - MAGNET
4 - INPUT SHAFT END SEAL
5 - OUTPUT SHAFT
6 - RING GEAR
7 - REAR COVER
Fig. 2 Seal Location
1 - REAR COVER
2 - END COVER
3 - OUTER HALFSHAFT SEAL
4 - P.T.U. CASE
5 - P.T.U. OUTPUT SEAL
RSPOWER TRANSFER UNIT21-3
POWER TRANSFER UNIT (Continued)

If end play measurement indicates a thrust washer
change is necessary, the differential must be disas-
sembled. (Refer to 21 - TRANSMISSION/TRANS-
AXLE/MANUAL/DIFFERENTIAL - DISASSEMBLY)FLUID
STANDARD PROCEDURE
STANDARD PROCEDURE - FLUID LEVEL
CHECK
NOTE: For proper fluid level check intervals, (Refer
to LUBRICATION & MAINTENANCE/MAINTENANCE
SCHEDULES - DESCRIPTION)
The fluid required in this transaxle is Mopart
ATF+4. Use of substitute fluids may result in
improper transaxle operation and/or failure.
(1) Raise vehicle on hoist.
(2) Remove transaxle fill plug (Fig. 126).
(3) Inspect fluid level. Fluid should be within 3/16º
below fill hole. Add MopartATF+4 as neccessary.
(4) Install fill plug, ensuring it is properly seated.
(5) Lower vehicle.
STANDARD PROCEDURE - FLUID DRAIN AND
FILL
NOTE: For proper fluid change intervals, (Refer to
LUBRICATION & MAINTENANCE/MAINTENANCE
SCHEDULES - DESCRIPTION)
The fluid required in this transaxle is Mopart
ATF+4. Use of substitute fluids may result in
improper transaxle operation and/or failure.
Fig. 124 Side Gear End Play Measurement
1 - FEELER GAUGE
Fig. 125 Available Side Gear Thrust Washers
1 - (PLAIN) 0.79-0.84 mm (0.031-0.033 in.)
2 - ( TRIANGLE) 0.91-0.97 mm (0.036-0.038 in.)
3 - (SQUARE) 1.04-1.10 mm (0.041-0.043 in.)
4 - (DIAMOND) 1.17-1.22 mm (0.046-0.048 in.)
Fig. 126 Transaxle Fill Plug
1 - FILL PLUG
2 - END COVER
RST850 MANUAL TRANSAXLE21-71
DIFFERENTIAL (Continued)

OIL PUMP
DESCRIPTION
The oil pump is located in the pump housing inside
the bell housing of the transaxle case (Fig. 283). The
oil pump consists of an inner and outer gear, a hous-
ing, and a cover that also serves as the reaction shaft
support.
OPERATION
As the torque converter rotates, the converter hub
rotates the inner and outer gears. As the gears
rotate, the clearance between the gear teeth
increases in the crescent area, and creates a suction
at the inlet side of the pump. This suction draws
fluid through the pump inlet from the oil pan. As the
clearance between the gear teeth in the crescent area
decreases, it forces pressurized fluid into the pump
outlet and to the valve body.
DISASSEMBLY
When disassembling the transaxle it is necessary
to inspect the oil pump for wear and damage.
(1) Remove the reaction shaft support bolts.
(2) Remove reaction shaft support from pump
housing (Fig. 284).
(3) Remove the pump gears (Fig. 285) and check
for wear and damage on pump housing and gears.
(4) Re-install the gears and check clearances.
(5) Measure the clearance between the outer gear
and the pump pocket (Fig. 286). Clearance should be
0.089±0.202 mm (0.0035-0.0079 in.).
(6) Measure clearance between outer gear and
crescent. Clearance should be 0.060-0.298 mm
(0.0023-0.0117 in.).
(7) Measure clearance between inner gear and
crescent. Clearance should be 0.093-0.385 mm
(0.0036-0.0151 in.).
(8) Position an appropriate piece of Plastigage
across both pump gears.
Fig. 282 Overdrive/Underdrive Shafts
1 - OVERDRIVE SHAFT
2 - #3 THRUST PLATE (3 TABS)
3 - #3 THRUST WASHER (5 TABS)4 - UNDERDRIVE SHAFT
5 - #2 NEEDLE BEARING (3 TABS)
6 - INPUT CLUTCH ASSEMBLY
21 - 230 41TE AUTOMATIC TRANSAXLERS
INPUT CLUTCH ASSEMBLY (Continued)

STATOR
The stator assembly (Fig. 321) is mounted on a sta-
tionary shaft which is an integral part of the oil
pump. The stator is located between the impeller and
turbine within the torque converter case (Fig. 322).
The stator contains an over-running clutch, which
allows the stator to rotate only in a clockwise direc-
tion. When the stator is locked against the over-run-
ning clutch, the torque multiplication feature of the
torque converter is operational.
TORQUE CONVERTER CLUTCH (TCC)
The TCC (Fig. 323) was installed to improve the
efficiency of the torque converter that is lost to the
slippage of the fluid coupling. Although the fluid cou-
pling provides smooth, shock±free power transfer, it
is natural for all fluid couplings to slip. If the impel-
ler and turbine were mechanically locked together, a
zero slippage condition could be obtained. A hydraulic
piston was added to the turbine, and a friction mate-
rial was added to the inside of the front cover to pro-
vide this mechanical lock-up.
OPERATION
The converter impeller (Fig. 324) (driving member),
which is integral to the converter housing and bolted
to the engine drive plate, rotates at engine speed.
The converter turbine (driven member), which reacts
from fluid pressure generated by the impeller, rotates
and turns the transmission input shaft.
Fig. 321 Stator Components
1 - CAM (OUTER RACE)
2 - ROLLER
3 - SPRING
4 - INNER RACE
Fig. 322 Stator Location
1-STATOR
2 - IMPELLER
3 - FLUID FLOW
4 - TURBINE
Fig. 323 Torque Converter Clutch (TCC)
1 - IMPELLER FRONT COVER
2 - THRUST WASHER ASSEMBLY
3 - IMPELLER
4-STATOR
5 - TURBINE
6 - PISTON
7 - FRICTION DISC
RS41TE AUTOMATIC TRANSAXLE21 - 245
TORQUE CONVERTER (Continued)

STATOR
The stator assembly (Fig. 296) is mounted on a sta-
tionary shaft which is an integral part of the oil
pump. The stator is located between the impeller and
turbine within the torque converter case (Fig. 297).
The stator contains an over-running clutch, which
allows the stator to rotate only in a clockwise direc-
tion. When the stator is locked against the over-run-
ning clutch, the torque multiplication feature of the
torque converter is operational.
TORQUE CONVERTER CLUTCH (TCC)
The TCC (Fig. 298) was installed to improve the
efficiency of the torque converter that is lost to the
slippage of the fluid coupling. Although the fluid cou-
pling provides smooth, shock±free power transfer, it
is natural for all fluid couplings to slip. If the impel-
ler and turbine were mechanically locked together, a
zero slippage condition could be obtained. A hydraulic
piston was added to the turbine, and a friction mate-
rial was added to the inside of the front cover to pro-
vide this mechanical lock-up.
Fig. 296 Stator Components
1 - CAM (OUTER RACE)
2 - ROLLER
3 - SPRING
4 - INNER RACE
Fig. 297 Stator Location
1-STATOR
2 - IMPELLER
3 - FLUID FLOW
4 - TURBINE
Fig. 298 Torque Converter Clutch (TCC)
1 - IMPELLER FRONT COVER
2 - THRUST WASHER ASSEMBLY
3 - IMPELLER
4-STATOR
5 - TURBINE
6 - PISTON
7 - FRICTION DISC
RS 40TE AUTOMATIC TRANSAXLE21s - 147
TORQUE CONVERTER (Continued)

FILL/CHECK LOCATIONS - DESCRIPTION,
FLUID...............................0-7
FILLER CAP - DESCRIPTION, FUEL.......25-12
FILLER CAP - OPERATION, FUEL........25-12
FILLER NECK SEAL - DIAGNOSIS AND
TESTING, RADIATOR CAP TO............7-27
FILLER TUBE - INSTALLATION, FUEL
TANK ..............................14-13
FILLER TUBE - REMOVAL, FUEL TANK....14-12
FILLING - STANDARD PROCEDURE,
COOLING SYSTEM.....................7-5
FILLING - STANDARD PROCEDURE,
REAR HEATER CORE.................24-101
FILTER - DESCRIPTION, AIR............24-43
FILTER - DESCRIPTION, OIL.............9-53
FILTER - INSTALLATION, AIR...........24-44
FILTER - INSTALLATION, INLET..........14-13
FILTER - INSTALLATION, OIL.......9-139,9-53
FILTER - REMOVAL, AIR...............24-43
FILTER - REMOVAL, INLET.............14-13
FILTER - REMOVAL, OIL...........9-139,9-53
FILTER ADAPTER - INSTALLATION, OIL . . . 9-139
FILTER ADAPTER - REMOVAL, OIL.......9-139
FILTER CHANGE - STANDARD
PROCEDURE, ENGINE OIL..........9-137,9-53
FILTER SERVICE - STANDARD
PROCEDURE, FLUID..........21-203,21s-104
FINAL DRIVE - ASSEMBLY......21-195,21s-99
FINAL DRIVE - DESCRIPTION............21s-95
FINAL DRIVE - DISASSEMBLY....21-190,21s-96
FINAL DRIVE - OPERATION............21s-96
FINESSE SANDING/BUFFING &
POLISHING - DESCRIPTION............23-85
FINISH - DESCRIPTION, BASE
COAT/CLEARCOAT....................23-85
FIRING ORDER, SPECIFICATIONS.........8I-3
FIRST ROW - BENCH - INSTALLATION,
SEAT BELT BUCKLE..................8O-13
FIRST ROW - BENCH - REMOVAL, SEAT
BELT BUCKLE.......................8O-13
FIRST ROW - OUTBOARD -
INSTALLATION, SEAT BELT &
RETRACTOR........................8O-14
FIRST ROW - OUTBOARD - REMOVAL,
SEAT BELT & RETRACTOR.............8O-14
FIRST ROW INBOARD - QUAD BUCKET -
INSTALLATION, SEAT BELT BUCKLE......8O-12
FIRST ROW INBOARD - QUAD BUCKET -
REMOVAL, SEAT BELT BUCKLE.........8O-12
FITTING - CONNECTING ROD............9-45
FITTING - PISTON RING................9-45
FITTING - STANDARD PROCEDURE,
MAIN BEARING......................9-123
FITTING - STANDARD PROCEDURE,
PISTON RING.......................9-121
FITTING - STANDARD PROCEDURE,
PISTON TO CYLINDER BORE............9-42
FITTING CONNECTING RODS -
STANDARD PROCEDURE...............9-116
FITTING PISTONS - STANDARD
PROCEDURE........................9-117
FITTINGS - STANDARD PROCEDURE,
HANDLING TUBING...................24-70
FITTINGS - STANDARD PROCEDURE,
QUICK-CONNECT.....................14-14
FLANGE SEAL - INSTALLATION, INPUT....3-45
FLANGE SEAL - INSTALLATION, OUTPUT . . . 3-46
FLANGE SEAL - REMOVAL, INPUT
........3-44
FLANGE SEAL - REMOVAL, OUTPUT
.......3-45
FLANGE SHIM SELECTION,
ADJUSTMENTS - OUTPUT
...............21-7
FLAP AND SPRING ASSEMBLY -
INSTALLATION, QUAD BUCKET SEAT
SIDE SHIELD/CUPHOLDER
............23-107
FLAP AND SPRING ASSEMBLY -
REMOVAL, QUAD BUCKET SEAT SIDE
SHIELD/CUPHOLDER
.................23-107
FLEX DRIVE - DESCRIPTION
...........8N-36
FLEX DRIVE - INSTALLATION
...........8N-37
FLEX DRIVE - OPERATION
.............8N-36
FLEX DRIVE - REMOVAL
...............8N-37
FLEX PLATE - INSTALLATION
...........9-131
FLEX PLATE - REMOVAL
...............9-131
FLEXIBLE FUEL ENGINE OIL -
DESCRIPTION
.........................0-3
FLOOR CONSOLE TRAY - BRACKET
ASSEMBLY - INSTALLATION
............23-83FLOOR CONSOLE TRAY - BRACKET
ASSEMBLY - REMOVAL................23-83
FLOOR CONSOLE TRAY - INSTALLATION . . 23-83
FLOOR CONSOLE TRAY - REMOVAL......23-83
FLOOR DISTRIBUTION DUCTS -
INSTALLATION.......................24-50
FLOOR DISTRIBUTION DUCTS -
REMOVAL..........................24-50
FLOOR HEAT DUCT - INSTALLATION,
REAR..............................24-63
FLOOR HEAT DUCT - REMOVAL, REAR . . . 24-62
FLOOR MATS - INSTALLATION, CARPETS . 23-76
FLOOR MATS - REMOVAL, CARPETS.....23-75
FLOW AND PRESSURE TEST -
DIAGNOSIS AND TESTING, POWER
STEERING SYSTEM....................19-1
FLOW CHECK - DIAGNOSIS AND
TESTING, COOLING SYSTEM.............7-3
FLUID - DESCRIPTION, AUTOMATIC/
MANUAL TRANSAXLE...................0-4
FLUID - DESCRIPTION, AWD POWER
TRANSFER UNIT.......................0-6
FLUID AND FILTER SERVICE -
STANDARD PROCEDURE.......21-203,21s-104
FLUID CAPACITIES - SPECIFICATIONS......0-6
FLUID CHANGE - STANDARD
PROCEDURE, DIFFERENTIAL
ASSEMBLY..........................3-40
FLUID CHANGE - STANDARD
PROCEDURE, OVERRUNNING CLUTCH
HOUSING............................3-41
FLUID CHANGE - STANDARD
PROCEDURE, PTU......................21-5
FLUID CONTAMINATION - DIAGNOSIS
AND TESTING, BRAKE.............5-32,5s-31
FLUID COOLER - DESCRIPTION.........19-44
FLUID COOLER - INSTALLATION.........19-45
FLUID COOLER - OPERATION...........19-44
FLUID COOLER - REMOVAL............19-44
FLUID DRAIN AND FILL - STANDARD
PROCEDURE........................21-71
FLUID FILL/CHECK LOCATIONS -
DESCRIPTION.........................0-7
FLUID LEAK DIAGNOSIS, DIAGNOSIS
AND TESTING........................21-3
FLUID LEAKAGE - DIAGNOSIS AND
TESTING, TORQUE CONVERTER
HOUSING....................21-123,21s-31
FLUID LEVEL AND CONDITION CHECK,
STANDARD PROCEDURE.......21-201,21s-102
FLUID LEVEL CHECK - STANDARD
PROCEDURE........................21-71
FLUID LEVEL CHECKING - STANDARD
PROCEDURE, BRAKE..............5-32,5s-31
FLUID LEVEL CHECKING - STANDARD
PROCEDURE, POWER STEERING........19-44
FLUID LEVEL INSPECTION - STANDARD
PROCEDURE.........................21-4
FLUID LEVEL SWITCH - DESCRIPTION,
BRAKE..........................5-10,5s-9
FLUID LEVEL SWITCH - INSTALLATION,
BRAKE.........................5-11,5s-10
FLUID LEVEL SWITCH - INSTALLATION,
WASHER...........................8R-12
FLUID LEVEL SWITCH - OPERATION,
BRAKE..........................5-10,5s-9
FLUID LEVEL SWITCH - REMOVAL,
BRAKE
.........................5-11,5s-10
FLUID LEVEL SWITCH - REMOVAL,
WASHER
...........................8R-12
FLUID, SPECIFICATIONS - BRAKE
....5-33,5s-32
FLUIDS - DESCRIPTION, AWD REAR
DRIVELINE MODULE
....................0-6
FLUSH MEASUREMENTS -
SPECIFICATIONS, GAP
................23-124
FLYWHEEL - INSTALLATION
.............6-12
FLYWHEEL - REMOVAL
.................6-12
FOG LAMP - DIAGNOSIS AND TESTING,
FRONT
..............................8L-7
FOG LAMP - INSTALLATION, FRONT
.......8L-8
FOG LAMP - REMOVAL, FRONT
..........8L-8
FOG LAMP UNIT ALIGNMENT - EXPORT
- STANDARD PROCEDURE, FRONT
........8L-9
FOG LAMP UNIT ALIGNMENT -
STANDARD PROCEDURE, FRONT
.........8L-9
FOLDAWAY MIRROR SWITCH - EXPORT
- DESCRIPTION, POWER
..............8N-48FOLDAWAY MIRROR SWITCH - EXPORT
- INSTALLATION, POWER..............8N-49
FOLDAWAY MIRROR SWITCH - EXPORT
- OPERATION, POWER................8N-48
FOLDAWAY MIRROR SWITCH - EXPORT
- REMOVAL, POWER..................8N-48
FORK AND SHAFT - DESCRIPTION,
SHIFT.............................21-113
FORM-IN-PLACE GASKETS AND
SEALERS - STANDARD PROCEDURE . . 9-11,9-84
FRAME DIMENSIONS, SPECIFICATIONS....13-4
FRONT - DESCRIPTION, HALF SHAFT.......3-1
FRONT - INSTALLATION, CRANKSHAFT
OIL SEAL.......................9-127,9-40
FRONT - INSTALLATION, HALF SHAFT......3-4
FRONT - INSTALLATION, SEAT BELT &
RETRACTOR - OUTBOARD.............8O-14
FRONT - INSTALLATION, SPRING
MOUNTS............................2-44
FRONT - INSTALLATION, WHEEL
MOUNTING STUDS...................22-21
FRONT - REMOVAL, CRANKSHAFT OIL
SEAL..........................9-127,9-40
FRONT - REMOVAL, HALF SHAFT..........3-2
FRONT - REMOVAL, SEAT BELT &
RETRACTOR - OUTBOARD.............8O-14
FRONT - REMOVAL, SPRING MOUNTS.....2-43
FRONT - REMOVAL, WHEEL MOUNTING
STUDS.............................22-20
FRONT - SPECIFICATIONS, HALF SHAFT . . . 3-15,
3-6
FRONT BRAKE ROTOR - INSTALLATION.....5-54,
5s-57
FRONT BRAKE ROTOR - REMOVAL . . . 5-54,5s-57
FRONT BUMPER REINFORCEMENT -
INSTALLATION........................13-2
FRONT BUMPER REINFORCEMENT -
REMOVAL...........................13-2
FRONT BUSHING - INSTALLATION, LEAF
SPRING.............................2-30
FRONT BUSHING - REMOVAL, LEAF
SPRING.............................2-29
FRONT CABLE - INSTALLATION.....5-64,5s-67
FRONT CABLE - INSTALLATION,
PARKING BRAKE LEVER...........5-66,5s-69
FRONT CABLE - REMOVAL.........5-64,5s-67
FRONT CABLE - REMOVAL, PARKING
BRAKE LEVER...................5-65,5s-68
FRONT CONTROL MODULE -
DESCRIPTION........................8E-7
FRONT CONTROL MODULE - DIAGNOSIS
AND TESTING........................8E-7
FRONT CONTROL MODULE -
INSTALLATION........................8E-8
FRONT CONTROL MODULE - OPERATION . . 8E-7
FRONT CONTROL MODULE - REMOVAL....8E-8
FRONT CRADLE CROSSMEMBER -
DESCRIPTION........................13-9
FRONT CRADLE CROSSMEMBER
THREAD REPAIR - DESCRIPTION
.........13-9
FRONT CROSSMEMBER MOUNT
BUSHINGS - INSTALLATION
............13-12
FRONT CROSSMEMBER MOUNT
BUSHINGS - REMOVAL
................13-12
FRONT DISC BRAKE CALIPER ADAPTER
- INSTALLATION
.................5-31,5s-30
FRONT DISC BRAKE CALIPER ADAPTER
- REMOVAL
.....................5-31,5s-30
FRONT DISC BRAKE CALIPER
(CONTINENTAL TEVES BRAKES) -
INSTALLATION
.......................5s-26
FRONT DISC BRAKE CALIPER
(CONTINENTAL TEVES BRAKES) -
REMOVAL
..........................5s-23
FRONT DISC BRAKE CALIPER
(DISC/DISC BRAKES) - INSTALLATION
.....5-27
FRONT DISC BRAKE CALIPER
(DISC/DISC BRAKES) - REMOVAL
.........5-24
FRONT DISC BRAKE CALIPER
(DISC/DRUM BRAKES) -
INSTALLATION
........................5-27
FRONT DISC BRAKE CALIPER
(DISC/DRUM BRAKES) - REMOVAL
.......5-24
FRONT DISC BRAKE CALIPER (TRW
BRAKES) - INSTALLATION
..............5s-26
FRONT DISC BRAKE CALIPER (TRW
BRAKES) - REMOVAL
.................5s-23
14 INDEXRS
Description Group-Page Description Group-Page Description Group-Page

HEATED SEAT SWITCH - INSTALLATION,
DRIVER............................8G-10
HEATED SEAT SWITCH - INSTALLATION,
PASSENGER........................8G-14
HEATED SEAT SWITCH - OPERATION,
DRIVER.............................8G-8
HEATED SEAT SWITCH - OPERATION,
PASSENGER........................8G-12
HEATED SEAT SWITCH - REMOVAL,
DRIVER............................8G-10
HEATED SEAT SWITCH - REMOVAL,
PASSENGER........................8G-14
HEATED SEAT SYSTEM - DESCRIPTION....8G-7
HEATED SEAT SYSTEM - DIAGNOSIS
AND TESTING........................8G-8
HEATED SEAT SYSTEM - OPERATION.....8G-8
HEATER - DESCRIPTION, CABIN........24-112
HEATER - DESCRIPTION, ENGINE BLOCK . . . 7-20
HEATER - DIAGNOSIS AND TESTING,
DIESEL SUPPLEMENTAL CABIN........24-113
HEATER - INSTALLATION, ENGINE
BLOCK..............................7-20
HEATER - OPERATION, ENGINE BLOCK....7-20
HEATER - REMOVAL, ENGINE BLOCK......7-20
HEATER AND AIR CONDITIONER -
DESCRIPTION........................24-1
HEATER AND AIR CONDITIONER -
OPERATION..........................24-4
HEATER CONTROL - DESCRIPTION, A/C . . . 24-20
HEATER CONTROL - INSTALLATION, A/C . . 24-21
HEATER CONTROL - REMOVAL, A/C.......24-21
HEATER CORE - DESCRIPTION....24-101,24-83
HEATER CORE - INSTALLATION . . . 24-103,24-85
HEATER CORE - OPERATION......24-101,24-83
HEATER CORE - REMOVAL.......24-102,24-84
HEATER CORE FILLING - STANDARD
PROCEDURE, REAR..................24-101
HEATER CORE TUBES - INSTALLATION . . . 24-85
HEATER CORE TUBES - REMOVAL.......24-83
HEATER HOSES - INSTALLATION.......24-104
HEATER HOSES - REMOVAL...........24-103
HEATER INLET HOSE - INSTALLATION....24-86
HEATER INLET HOSE - REMOVAL........24-85
HEATER LINES - INSTALLATION, REAR . . 24-111
HEATER PERFORMANCE TEST -
DIAGNOSIS AND TESTING.............24-10
HEATER RETURN HOSE - INSTALLATION . . 24-87
HEATER RETURN HOSE - REMOVAL......24-86
HEATER TESTING - DIAGNOSIS AND
TESTING, ENGINE BLOCK...............7-20
HEATER TUBES - REMOVAL,
UNDERBODY.......................24-109
HEATER UNIT - INSTALLATION.........24-119
HEATER UNIT - REMOVAL.............24-118
HEATER WIRING - INSTALLATION,
SUPPLEMENTAL DIESEL..............24-119
HEATER WIRING - REMOVAL,
SUPPLEMENTAL DIESEL..............24-119
HEAVY DUTY, CARGO - INSTALLATION,
AWD ...............................2-36
HEAVY DUTY, CARGO - REMOVAL, AWD . . . 2-36
HEIGHT ADJUSTER-BORC-PILLAR -
INSTALLATION, SEAT BELT.............8O-13
HEIGHT ADJUSTER-BORC-PILLAR -
REMOVAL, SEAT BELT................8O-13
HEIGHT ADJUSTER KNOB -
INSTALLATION, SEAT BELT.............8O-14
HEIGHT ADJUSTER KNOB - REMOVAL,
SEAT BELT .........................8O-14
HEIGHT MEASUREMENT - STANDARD
PROCEDURE, CURB...................2-55
HIGH AND LOW LIMITS - DESCRIPTION . . . 25-8
HIGH MOUNTED STOP LAMP -
INSTALLATION, CENTER................8L-6
HIGH MOUNTED STOP LAMP -
REMOVAL, CENTER....................8L-6
HIGH MOUNTED STOP LAMP UNIT -
INSTALLATION, CENTER................8L-6
HIGH MOUNTED STOP LAMP UNIT -
REMOVAL, CENTER....................8L-6
HIGH PRESSURE RELIEF VALVE -
DESCRIPTION
.......................24-73
HIGH PRESSURE RELIEF VALVE -
OPERATION
.........................24-73
HIGH SPEED OPERATION - STANDARD
PROCEDURE, TIRE PRESSURE
.....22-17,22s-9
HINGE - INSTALLATION
......23-18,23-40,23-60
HINGE - INSTALLATION, CENTER
........23-24HINGE - INSTALLATION, LOWER........23-28
HINGE - INSTALLATION, UPPER.........23-36
HINGE - REMOVAL.........23-17,23-40,23-60
HINGE - REMOVAL, BENCH SEAT BACK . . 23-102
HINGE - REMOVAL, CENTER............23-24
HINGE - REMOVAL, LOWER............23-28
HINGE - REMOVAL, UPPER.............23-36
HINGE COVERS - QUAD BUCKET, 50/50
SPLIT, BENCH - INSTALLATION, SEAT
BACK.............................23-101
HINGE COVERS - QUAD BUCKET, 50/50
SPLIT, BENCH - REMOVAL, SEAT BACK . . 23-101
HOISTING - STANDARD PROCEDURE......0-27
HOLD OPEN LATCH - INSTALLATION.....23-25
HOLD OPEN LATCH - REMOVAL.........23-25
HOLD OPEN LATCH CABLE -
INSTALLATION.......................23-38
HOLD OPEN LATCH CABLE - REMOVAL . . . 23-38
HOLD OPEN LATCH STRIKER -
INSTALLATION.......................23-26
HOLD OPEN LATCH STRIKER -
REMOVAL..........................23-26
HOLDDOWN - DESCRIPTION, BATTERY . . . 8F-15
HOLDDOWN - INSTALLATION, BATTERY . . . 8F-16
HOLDDOWN - OPERATION, BATTERY.....8F-15
HOLDDOWN - REMOVAL, BATTERY . 8F-15,8F-16
HOLDER - INSTALLATION, CUP.........23-64
HOLDER - REMOVAL, CUP.............23-64
HOLDING CLUTCHES - DESCRIPTION . . . 21-207,
21s-106
HOLDING CLUTCHES - OPERATION.....21-207,
21s-106
HOLE REPAIR - DESCRIPTION,
THREADED........................Intro.-5
HONING - STANDARD PROCEDURE,
CYLINDER BORE.................9-112,9-35
HOOD - INSTALLATION................23-61
HOOD - REMOVAL....................23-60
HOOD AJAR SWITCH - EXPORT -
INSTALLATION.......................8Q-3
HOOD AJAR SWITCH - EXPORT -
REMOVAL...........................8Q-3
HORN - DIAGNOSIS AND TESTING.......8H-3
HORN - INSTALLATION.................8H-5
HORN - REMOVAL....................8H-4
HORN CHIRP PREFERENCE - STANDARD
PROCEDURE....................8N-42,8N-5
HORN SWITCH - DESCRIPTION..........8H-5
HORN SYSTEM - DESCRIPTION..........8H-1
HORN SYSTEM - DIAGNOSIS AND
TESTING............................8H-1
HORN SYSTEM - OPERATION............8H-1
HOSE - INSTALLATION, HEATER INLET....24-86
HOSE - INSTALLATION, HEATER RETURN . 24-87
HOSE - REMOVAL, HEATER INLET.......24-85
HOSE - REMOVAL, HEATER RETURN.....24-86
HOSE CLAMPS - DESCRIPTION...........7-1
HOSE CLAMPS - OPERATION.............7-2
HOSES - DESCRIPTION, BRAKE TUBES....5-14,
5s-13
HOSES - INSPECTION, BRAKE TUBES.....5-14,
5s-13
HOSES - INSTALLATION, HEATER.......24-104
HOSES - INSTALLATION, WASHER.......8R-13
HOSES - OPERATION, BRAKE TUBES . 5-14,5s-13
HOSES - REMOVAL, HEATER..........24-103
HOSES - REMOVAL, WASHER..........8R-13
HOSES AND CLAMP - STANDARD
PROCEDURE.........................14-7
HOUSING - INSTALLATION, AIR
CLEANER........................9-24,9-99
HOUSING - INSTALLATION, HVAC........24-61
HOUSING - INSTALLATION, LOCK
CYLINDER..........................19-19
HOUSING - REMOVAL, AIR CLEANER . . 9-24,9-99
HOUSING - REMOVAL, HVAC...........24-60
HOUSING - REMOVAL, LOCK CYLINDER . . 19-17
HOUSING FLUID CHANGE - STANDARD
PROCEDURE, OVERRUNNING CLUTCH.....3-41
HOUSING FLUID LEAKAGE - DIAGNOSIS
AND TESTING, TORQUE CONVERTER . . . 21-123,
21s-31
HOW TO USE WIRING DIAGRAMS -
DESCRIPTION
.....................8W-01-1
HUB / BEARING - DESCRIPTION
.......2-30,2-4
HUB / BEARING - INSTALLATION
......2-33,2-6
HUB / BEARING - OPERATION
........2-30,2-4
HUB / BEARING - REMOVAL
..........2-31,2-5HUB AND BEARING - DIAGNOSIS AND
TESTING.........................2-31,2-5
HVAC - LWB - INSTALLATION, SEAT
BELT & RETRACTOR - SECOND ROW -
RIGHT OUTBOARD WITH REAR.........8O-16
HVAC - LWB - REMOVAL, SEAT BELT &
RETRACTOR - SECOND ROW - RIGHT
OUTBOARD WITH REAR...............8O-16
HVAC HOUSING - INSTALLATION........24-61
HVAC HOUSING - REMOVAL............24-60
HVAC LOUVER - INSTALLATION, REAR . . . 23-81
HVAC LOUVER - REMOVAL, REAR.......23-81
HYDRAULIC CIRCUITS AND VALVES -
OPERATION..........................5-83
HYDRAULIC LASH ADJUSTER NOISE
DIAGNOSIS - DIAGNOSIS AND
TESTING............................9-34
HYDRAULIC LASH ADJUSTERS -
INSTALLATION........................9-34
HYDRAULIC LASH ADJUSTERS -
REMOVAL...........................9-34
HYDRAULIC LIFTERS - DIAGNOSIS AND
TESTING...........................9-113
HYDRAULIC LIFTERS (CAM IN BLOCK) -
DESCRIPTION.......................9-113
HYDRAULIC LIFTERS (CAM IN BLOCK) -
INSTALLATION.......................9-114
HYDRAULIC LIFTERS (CAM IN BLOCK) -
REMOVAL..........................9-114
HYDRAULIC PRESSURE TESTS -
DIAGNOSIS AND TESTING.......21-120,21s-28
HYDRAULIC SCHEMATICS, SCHEMATICS
AND DIAGRAMS - 41TE TRANSAXLE....21-169
HYDRAULIC SCHEMATICS, SCHEMATICS
AND DIAGRAMS - 4XTE TRANSAXLE....21s-75
HYDROSTATIC LOCKED ENGINE -
STANDARD PROCEDURE............9-10,9-85
ICU - ASSEMBLY......................5-94
ICU - DISASSEMBLY...................5-93
ICU (INTEGRATED CONTROL UNIT) -
DESCRIPTION........................5-89
ICU (INTEGRATED CONTROL UNIT) -
OPERATION..........................5-90
IDENTIFICATION - DESCRIPTION,
FASTENER.........................Intro.-2
IDENTIFICATION - DESCRIPTION,
VEHICLE............................23-1
IDENTIFICATION AND INFORMATION -
DESCRIPTION, SECTION.............8W-01-6
IDENTIFICATION, DIAGNOSIS AND
TESTING - SEAL......................21-3
IDENTIFICATION NUMBER -
DESCRIPTION, VEHICLE..............Intro.-9
IDLE AIR CONTROL MOTOR -
DESCRIPTION.......................14-28
IDLE AIR CONTROL MOTOR -
INSTALLATION.......................14-29
IDLE AIR CONTROL MOTOR -
OPERATION.........................14-28
IDLE AIR CONTROL MOTOR - REMOVAL . . 14-29
IGNITION COIL - DESCRIPTION...........8I-6
IGNITION COIL - OPERATION.............8I-7
IGNITION INTERLOCK - DESCRIPTION....19-17
IGNITION SENSE - PCM INPUT -
OPERATION.........................8E-15
IGNITION SWITCH - INSTALLATION......19-16
IGNITION SWITCH - REMOVAL..........19-14
IGNITION SYSTEM - DESCRIPTION........8I-1
IGNITION SYSTEM - OPERATION..........8I-1
IGNITION-OFF DRAW TEST - STANDARD
PROCEDURE........................8F-13
IIITSTATE DISPLAY TEST MODE,
OPERATION - DRB....................25-9
ILLUMINATION LAMPS - INSTALLATION,
CLUSTER...........................8L-21
ILLUMINATION LAMPS - REMOVAL,
CLUSTER...........................8L-21
IMMOBILIZER MODULE - DESCRIPTION,
SENTRY KEY
........................8E-18
IMMOBILIZER MODULE - INSTALLATION,
SENTRY KEY
........................8E-19
IMMOBILIZER MODULE - OPERATION,
SENTRY KEY
........................8E-18
IMMOBILIZER MODULE - REMOVAL,
SENTRY KEY
........................8E-18
INBOARD - 50/50 BENCH -
INSTALLATION, SEAT BELT BUCKLE -
SECOND ROW
.......................8O-13
RSINDEX17
Description Group-Page Description Group-Page Description Group-Page

LEVEL SENDING UNIT / SENSOR -
DESCRIPTION, FUEL...................14-5
LEVEL SENDING UNIT / SENSOR -
INSTALLATION, FUEL..................14-5
LEVEL SENDING UNIT / SENSOR -
OPERATION, FUEL.....................14-5
LEVEL SENDING UNIT / SENSOR -
REMOVAL, FUEL......................14-5
LEVEL SWITCH - DESCRIPTION, BRAKE
FLUID..........................5-10,5s-9
LEVEL SWITCH - INSTALLATION, BRAKE
FLUID..........................5-11,5s-10
LEVEL SWITCH - INSTALLATION,
WASHER FLUID.....................8R-12
LEVEL SWITCH - OPERATION, BRAKE
FLUID..........................5-10,5s-9
LEVEL SWITCH - REMOVAL, BRAKE
FLUID..........................5-11,5s-10
LEVEL SWITCH - REMOVAL, WASHER
FLUID.............................8R-12
LEVEL TEST - 2.5L DIESEL - DIAGNOSIS
AND TESTING, SYSTEM CHARGE........24-68
LEVEL TEST - GASOLINE ENGINES -
DIAGNOSIS AND TESTING, SYSTEM
CHARGE............................24-67
LEVER - INSTALLATION, GEAR SHIFT.....19-21
LEVER - PARKING BRAKE -
INSTALLATION...................5-65,5s-67
LEVER - PARKING BRAKE - REMOVAL....5-64,
5s-67
LEVER - REMOVAL, GEAR SHIFT........19-21
LEVER AND BEARING - INSTALLATION,
CLUTCH RELEASE......................6-7
LEVER AND BEARING - REMOVAL,
CLUTCH RELEASE......................6-6
LEVER AND FRONT CABLE -
INSTALLATION, PARKING BRAKE....5-66,5s-69
LEVER AND FRONT CABLE - REMOVAL,
PARKING BRAKE.................5-65,5s-68
LHD - INSTALLATION.....5-38,5-46,5-94,5s-37,
5s-49
LHD - INSTALLATION, MASTER
CYLINDER...........................6-10
LHD - REMOVAL....5-36,5-42,5-90,5s-35,5s-45
LHD - REMOVAL, MASTER CYLINDER......6-9
LHD GEAR - INSTALLATION............19-32
LHD GEAR - REMOVAL................19-27
LICENSE LAMP - INSTALLATION.........8L-17
LICENSE LAMP - REMOVAL............8L-17
LIFT GEAR & LINK ROD - DESCRIPTION . . 8N-16
LIFT GEAR & LINK ROD - INSTALLATION . 8N-16
LIFT GEAR & LINK ROD - OPERATION....8N-16
LIFT GEAR & LINK ROD - REMOVAL.....8N-16
LIFTERS - DIAGNOSIS AND TESTING,
HYDRAULIC.........................9-113
LIFTERS (CAM IN BLOCK) -
DESCRIPTION, HYDRAULIC.............9-113
LIFTERS (CAM IN BLOCK) -
INSTALLATION, HYDRAULIC............9-114
LIFTERS (CAM IN BLOCK) - REMOVAL,
HYDRAULIC.........................9-114
LIFTGATE - INSTALLATION.............23-42
LIFTGATE - REMOVAL.................23-42
LIFTGATE ADJUSTMENT - STANDARD
PROCEDURE.........................8N-9
LIFTGATE CONTROL MODULE -
DESCRIPTION, POWER................8E-10
LIFTGATE CONTROL MODULE -
INSTALLATION, POWER...............8E-11
LIFTGATE CONTROL MODULE -
OPERATION, POWER..................8E-11
LIFTGATE CONTROL MODULE -
REMOVAL, POWER...................8E-11
LIFTGATE LAMP - INSTALLATION
........8L-22
LIFTGATE LAMP - REMOVAL
............8L-22
LIFTGATE LEARN CYCLE - STANDARD
PROCEDURE, POWER
..................8N-9
LIFTGATE MOTOR - DESCRIPTION
.......8N-15
LIFTGATE MOTOR - INSTALLATION
......8N-15
LIFTGATE MOTOR - OPERATION
.........8N-15
LIFTGATE MOTOR - REMOVAL
..........8N-15
LIFTGATE SIDE - INSTALLATION
.........23-44
LIFTGATE SIDE - REMOVAL
............23-44
LIFTGATE SILL PLATE - INSTALLATION
. . . 23-79
LIFTGATE SILL PLATE - REMOVAL
.......23-79
LIFTGATE SPOILER - INSTALLATION
......23-42
LIFTGATE SPOILER - REMOVAL
.........23-42LIFTGATE SYSTEM - DESCRIPTION,
POWER.............................8N-2
LIFTGATE SYSTEM - DIAGNOSIS AND
TESTING, POWER.....................8N-4
LIFTGATE SYSTEM - OPERATION,
POWER.............................8N-3
LIMITS - DESCRIPTION, HIGH AND LOW . . . 25-8
LINE - DESCRIPTION, REFRIGERANT.....24-65
LINE - INSTALLATION, A/C DISCHARGE . . . 24-80
LINE - INSTALLATION, FUEL...........24-118
LINE - INSTALLATION, LIQUID....24-105,24-90
LINE - INSTALLATION, SUCTION . . . 24-107,24-95
LINE - REMOVAL, A/C DISCHARGE.......24-79
LINE - REMOVAL, FUEL...............24-117
LINE - REMOVAL, LIQUID........24-104,24-88
LINE - REMOVAL, SUCTION......24-106,24-94
LINE AND TERMINAL REPAIR -
STANDARD PROCEDURE, GRID..........8G-4
LINE EXTENSION - INSTALLATION, REAR
A/C EVAPORATOR....................24-99
LINE EXTENSION - REMOVAL, A/C
EVAPORATOR.......................24-98
LINES - DESCRIPTION, OIL COOLER.....9-138
LINES - DESCRIPTION, UNDERBODY....24-107
LINES - INSTALLATION, OIL COOLER.....9-138
LINES - INSTALLATION, REAR HEATER . . 24-111
LINES - INSTALLATION, TRANSMISSION
OIL COOLER.........................7-38
LINES - INSTALLATION, UNDERBODY
REFRIGERANT......................24-111
LINES - OPERATION, OIL COOLER.......9-138
LINES - OPERATION, REFRIGERANT......24-65
LINES - OPERATION, UNDERBODY......24-107
LINES - REMOVAL, OIL COOLER........9-138
LINES - REMOVAL, TRANSMISSION OIL
COOLER.............................7-38
LINES - REMOVAL, UNDERBODY
REFRIGERANT......................24-110
LINES/HOSES AND CLAMPS -
DESCRIPTION, FUEL...................14-6
LINING - INSPECTION, REAR DRUM
BRAKE SHOE....................5-22,5s-21
LINK - DESCRIPTION, TRD............21-249
LINK - INSTALLATION, FUEL FILL DOOR
BLOCKER LOCKOUT..................23-54
LINK - INSTALLATION, SEAT RISER
LATCH LOCKING....................23-106
LINK - OPERATION, TRD..............21-249
LINK - REMOVAL, FUEL FILL DOOR
BLOCKER LOCKOUT..................23-53
LINK - REMOVAL, SEAT RISER LATCH
LOCKING..........................23-106
LINK CONNECTOR - DESCRIPTION, DATA . . 8E-6
LINK CONNECTOR - OPERATION, DATA....8E-7
LINK ROD - DESCRIPTION, LIFT GEAR . . . 8N-16
LINK ROD - INSTALLATION, LIFT GEAR . . . 8N-16
LINK ROD - OPERATION, LIFT GEAR.....8N-16
LINK ROD - REMOVAL, LIFT GEAR.......8N-16
LINKAGE - INSTALLATION, WIPER.......8R-14
LINKAGE - REMOVAL, WIPER...........8R-14
LIQUID LINE - INSTALLATION.....24-105,24-90
LIQUID LINE - REMOVAL........24-104,24-88
LOADS - STANDARD PROCEDURE,
TESTING FOR A SHORT TO GROUND
ON FUSES POWERING SEVERAL.....8W-01-10
LOCATION - DESCRIPTION, CONNECTOR/
GROUND/SPLICE...................8W-91-1
LOCATIONS - DESCRIPTION, FLUID
FILL/CHECK...........................0-7
LOCATIONS - SPECIFICATIONS, BODY
SEALING..........................23-130
LOCATIONS - SPECIFICATIONS,
STRUCTURAL ADHESIVE..............23-156
LOCATIONS - SPECIFICATIONS, WELD . . . 23-166
LOCK ASSEMBLY - INSTALLATION,
LATCH .............................23-27
LOCK ASSEMBLY - REMOVAL, LATCH....23-26
LOCK CYLINDER - INSTALLATION . . 23-19,23-42
LOCK CYLINDER - REMOVAL......23-19,23-42
LOCK CYLINDER HOUSING -
INSTALLATION
.......................19-19
LOCK CYLINDER HOUSING - REMOVAL
. . . 19-17
LOCK MOTOR - DIAGNOSIS AND
TESTING, DOOR
.................8N-4,8N-41
LOCK MOTOR - INSTALLATION, SLIDING
DOOR
.........................8N-44,8N-6
LOCK MOTOR - REMOVAL, SLIDING
DOOR
.........................8N-44,8N-6LOCK SWITCH - DESCRIPTION, DOOR
CYLINDER..........................8N-40
LOCK SWITCH - DIAGNOSIS AND
TESTING, DOOR.................8N-4,8N-41
LOCK SWITCH - DIAGNOSIS AND
TESTING, DOOR CYLINDER............8N-40
LOCK SWITCH - EXPORT -
DESCRIPTION, DOOR CYLINDER.........8N-3
LOCK SWITCH - EXPORT - DIAGNOSIS
AND TESTING, DOOR CYLINDER.........8N-3
LOCK SWITCH - EXPORT -
INSTALLATION, DOOR CYLINDER.........8N-4
LOCK SWITCH - EXPORT - OPERATION,
DOOR CYLINDER.....................8N-3
LOCK SWITCH - EXPORT - REMOVAL,
DOOR CYLINDER.....................8N-3
LOCK SWITCH - INSTALLATION, DOOR....8N-4,
8N-42
LOCK SWITCH - INSTALLATION, DOOR
CYLINDER..........................8N-41
LOCK SWITCH - OPERATION, DOOR
CYLINDER..........................8N-40
LOCK SWITCH - REMOVAL, DOOR . . 8N-4,8N-42
LOCK SWITCH - REMOVAL, DOOR
CYLINDER..........................8N-41
LOCKED ENGINE - STANDARD
PROCEDURE, HYDROSTATIC.........9-10,9-85
LOCKING LINK - INSTALLATION, SEAT
RISER LATCH......................23-106
LOCKING LINK - REMOVAL, SEAT RISER
LATCH ............................23-106
LOCK/LATCH - INSTALLATION, UNDER
SEAT STORAGE BIN.................23-105
LOCK/LATCH - REMOVAL, UNDER SEAT
STORAGE BIN......................23-105
LOCKOUT LINK - INSTALLATION, FUEL
FILL DOOR BLOCKER.................23-54
LOCKOUT LINK - REMOVAL, FUEL FILL
DOOR BLOCKER.....................23-53
LOCKS - DESCRIPTION, POWER....8N-1,8N-38
LOCKS - OPERATION, POWER......8N-2,8N-39
LOUVER - INSTALLATION, REAR HVAC . . . 23-81
LOUVER - REMOVAL, REAR HVAC.......23-81
LOW LIMITS - DESCRIPTION, HIGH.......25-8
LOWER - CLEANING, INTAKE MANIFOLD . . 9-148
LOWER - INSPECTION, INTAKE
MANIFOLD......................9-148,9-60
LOWER - INSTALLATION, INTAKE
MANIFOLD...........................9-60
LOWER - INSTALLATION, SHROUD.......19-22
LOWER - REMOVAL, INTAKE MANIFOLD . . . 9-60
LOWER - REMOVAL, SHROUD..........19-21
LOWER BALL JOINT - DESCRIPTION......2-10
LOWER BALL JOINT - DIAGNOSIS AND
TESTING............................2-10
LOWER BALL JOINT - OPERATION........2-10
LOWER CONSOLE - INSTALLATION......23-69
LOWER CONSOLE - REMOVAL..........23-69
LOWER CONTROL ARM - DESCRIPTION . . . 2-12
LOWER CONTROL ARM - INSPECTION.....2-14
LOWER CONTROL ARM - INSTALLATION . . . 2-16
LOWER CONTROL ARM - OPERATION.....2-12
LOWER CONTROL ARM - REMOVAL......2-12
LOWER CONTROL ARM (REAR BUSHING
- HYDRO) - ASSEMBLY.................2-14
LOWER CONTROL ARM (REAR BUSHING
- HYDRO) - DISASSEMBLY..............2-14
LOWER CONTROL ARM (REAR BUSHING
- STANDARD) - ASSEMBLY..............2-14
LOWER CONTROL ARM (REAR BUSHING
- STANDARD) - DISASSEMBLY...........2-13
LOWER DRIVE UNIT - DESCRIPTION.....8N-32
LOWER DRIVE UNIT - INSTALLATION....8N-33
LOWER DRIVE UNIT - OPERATION.......8N-32
LOWER DRIVE UNIT - REMOVAL........8N-33
LOWER DRIVE UNIT TRACK & RACK -
DESCRIPTION.......................8N-34
LOWER DRIVE UNIT TRACK & RACK -
INSTALLATION......................8N-34
LOWER DRIVE UNIT TRACK & RACK -
OPERATION
.........................8N-34
LOWER DRIVE UNIT TRACK & RACK -
REMOVAL
..........................8N-34
LOWER EXTENSION TRIM -
INSTALLATION, A-PILLAR
..............23-74
LOWER EXTENSION TRIM - REMOVAL,
A-PILLAR
...........................23-74
LOWER HINGE - INSTALLATION
.........23-28
20 INDEXRS
Description Group-Page Description Group-Page Description Group-Page

MODULE - DESCRIPTION, MEMORY
SEAT/MIRROR.......................8E-10
MODULE - DESCRIPTION, POWER
LIFTGATE CONTROL..................8E-10
MODULE - DESCRIPTION, REAR
DRIVELINE...........................3-23
MODULE - DESCRIPTION, REMOTE
KEYLESS ENTRY.....................8N-43
MODULE - DESCRIPTION, SENTRY KEY
IMMOBILIZER.......................8E-18
MODULE - DESCRIPTION, SENTRY KEY
REMOTE ENTRY......................8Q-3
MODULE - DESCRIPTION, SLIDING
DOOR CONTROL.....................8E-19
MODULE - DESCRIPTION,
TRANSMISSION CONTROL.............8E-20
MODULE - DIAGNOSIS AND TESTING,
FRONT CONTROL.....................8E-7
MODULE - DIAGNOSIS AND TESTING,
HEATED SEAT ........................8E-9
MODULE - DIAGNOSIS AND TESTING,
MEMORY SEAT/MIRROR...............8E-10
MODULE - DIAGNOSIS AND TESTING,
REMOTE KEYLESS ENTRY.............8N-43
MODULE - DIAGNOSIS AND TESTING,
SENTRY KEY REMOTE ENTRY...........8Q-5
MODULE - EXPORT - DESCRIPTION,
ANTENNA...........................8A-6
MODULE - EXPORT - DIAGNOSIS AND
TESTING, ANTENNA...................8A-7
MODULE - EXPORT - INSTALLATION,
ANTENNA...........................8A-7
MODULE - EXPORT - OPERATION,
ANTENNA.............................8A-6
MODULE - EXPORT - REMOVAL,
ANTENNA...........................8A-7
MODULE - INSTALLATION, BODY
CONTROL............................8s-3
MODULE - INSTALLATION, BODY
CONTROL...........................8E-5
MODULE - INSTALLATION, FRONT
CONTROL...........................8E-8
MODULE - INSTALLATION, FUEL PUMP....14-9
MODULE - INSTALLATION, HEATED SEAT . . 8E-10
MODULE - INSTALLATION, INTEGRATED
POWER..........................8W-97-3
MODULE - INSTALLATION, MEMORY
SEAT/MIRROR.......................8E-10
MODULE - INSTALLATION, POWER
LIFTGATE CONTROL..................8E-11
MODULE - INSTALLATION, REMOTE
KEYLESS ENTRY.....................8N-44
MODULE - INSTALLATION, SENTRY KEY
IMMOBILIZER.......................8E-19
MODULE - INSTALLATION, SENTRY KEY
REMOTE ENTRY......................8Q-6
MODULE - INSTALLATION, SLIDING
DOOR CONTROL.....................8E-20
MODULE - INSTALLATION, WIPER.......8R-15
MODULE - OPERATION, BODY CONTROL . . . 8s-1
MODULE - OPERATION, BODY CONTROL . . . 8E-3
MODULE - OPERATION, FRONT
CONTROL...........................8E-7
MODULE - OPERATION, FUEL PUMP
......14-8
MODULE - OPERATION, HEATED SEAT
.....8E-9
MODULE - OPERATION, INTEGRATED
POWER
..........................8W-97-2
MODULE - OPERATION, MEMORY
SEAT/MIRROR
.......................8E-10
MODULE - OPERATION, POWER
LIFTGATE CONTROL
..................8E-11
MODULE - OPERATION, REAR
DRIVELINE
...........................3-23
MODULE - OPERATION, REMOTE
KEYLESS ENTRY
.....................8N-43
MODULE - OPERATION, SENTRY KEY
IMMOBILIZER
.......................8E-18
MODULE - OPERATION, SENTRY KEY
REMOTE ENTRY
......................8Q-4
MODULE - OPERATION, SLIDING DOOR
CONTROL
..........................8E-19
MODULE - OPERATION, TRANSMISSION
CONTROL
..........................8E-20
MODULE - REAR BLOWER MOTOR -
DESCRIPTION, POWER
................24-41
MODULE - REAR BLOWER MOTOR -
INSTALLATION, POWER
...............24-42MODULE - REAR BLOWER MOTOR -
OPERATION, POWER..................24-41
MODULE - REAR BLOWER MOTOR -
REMOVAL, POWER...................24-41
MODULE - REMOVAL, BODY CONTROL....8s-3
MODULE - REMOVAL, BODY CONTROL....8E-4
MODULE - REMOVAL, FRONT CONTROL . . . 8E-8
MODULE - REMOVAL, FUEL PUMP........14-8
MODULE - REMOVAL, HEATED SEAT......8E-9
MODULE - REMOVAL, INTEGRATED
POWER..........................8W-97-2
MODULE - REMOVAL, MEMORY
SEAT/MIRROR.......................8E-10
MODULE - REMOVAL, POWER LIFTGATE
CONTROL..........................8E-11
MODULE - REMOVAL, REMOTE KEYLESS
ENTRY.............................8N-44
MODULE - REMOVAL, SENTRY KEY
IMMOBILIZER.......................8E-18
MODULE - REMOVAL, SENTRY KEY
REMOTE ENTRY......................8Q-5
MODULE - REMOVAL, SLIDING DOOR
CONTROL..........................8E-19
MODULE - REMOVAL, WIPER...........8R-15
MODULE - SPECIFICATIONS, REAR
DRIVELINE...........................3-34
MODULE, BENCH SEAT - REMOVAL,
CHILD SEAT.........................23-87
MODULE FLUIDS - DESCRIPTION, AWD
REAR DRIVELINE......................0-6
MODULE LAMP REPLACEMENT -
STANDARD PROCEDURE.................8M-3
MODULE NOISE - DIAGNOSIS AND
TESTING, REAR DRIVELINE.............3-24
MODULE OPERATION - DIAGNOSIS AND
TESTING, REAR DRIVELINE.............3-26
MOLDING - INSTALLATION, FRONT
DOOR INNER BELT..................23-115
MOLDING - INSTALLATION, FRONT
DOOR OUTER BELT..................23-113
MOLDING - INSTALLATION, ROOF JOINT . . 23-58
MOLDING - REMOVAL, FRONT DOOR
INNER BELT........................23-115
MOLDING - REMOVAL, FRONT DOOR
OUTER BELT.......................23-113
MOLDING - REMOVAL, ROOF JOINT......23-58
MOLDINGS - INSTALLATION, BODY SIDE . . 23-46
MOLDINGS - REMOVAL, BODY SIDE.....23-45
MONITORED COMPONENT -
DESCRIPTION........................25-1
MONITORED SYSTEMS - DESCRIPTION....25-6
MONITORING - DESCRIPTION, TIRE
PRESSURE.....................22-9,22s-1
MONITORING - OPERATION, TIRE
PRESSURE.....................22-9,22s-1
MOTOR - DESCRIPTION, BLOWER . . 24-46,24-57
MOTOR - DESCRIPTION, IDLE AIR
CONTROL..........................14-28
MOTOR - DESCRIPTION, LIFTGATE......8N-15
MOTOR - DESCRIPTION, POWER
MODULE - BLOWER..................24-31
MOTOR - DESCRIPTION, POWER
MODULE - REAR BLOWER.............24-41
MOTOR - DESCRIPTION, SLIDING DOOR . . 8N-30
MOTOR - DIAGNOSIS AND TESTING,
BLOWER...........................24-47
MOTOR - DIAGNOSIS AND TESTING,
DOOR LOCK....................8N-4,8N-41
MOTOR - DIAGNOSIS AND TESTING,
RADIATOR FAN.......................7-29
MOTOR - DIAGNOSIS AND TESTING,
REAR BLOWER......................24-58
MOTOR - DIAGNOSIS AND TESTING,
VENT WINDOW......................8N-63
MOTOR - INSTALLATION, BLOWER . 24-49,24-58
MOTOR - INSTALLATION, FRONT
WASHER PUMP......................8R-8
MOTOR - INSTALLATION, FRONT WIPER . . . 8R-9
MOTOR - INSTALLATION, IDLE AIR
CONTROL..........................14-29
MOTOR - INSTALLATION, LIFTGATE
......8N-15
MOTOR - INSTALLATION, POWER
MODULE - BLOWER
..................24-32
MOTOR - INSTALLATION, POWER
MODULE - REAR BLOWER
.............24-42
MOTOR - INSTALLATION, REAR WASHER
PUMP
.............................8R-10
MOTOR - INSTALLATION, REAR WIPER
. . . 8R-11MOTOR - INSTALLATION, SLIDING DOOR . 8N-31
MOTOR - INSTALLATION, SLIDING DOOR
LOCK.........................8N-44,8N-6
MOTOR - INSTALLATION, SUNROOF.....23-121
MOTOR - INSTALLATION, VENT WINDOW . 8N-64
MOTOR - OPERATION, BLOWER....24-46,24-57
MOTOR - OPERATION, IDLE AIR
CONTROL..........................14-28
MOTOR - OPERATION, LIFTGATE........8N-15
MOTOR - OPERATION, POWER MODULE
- BLOWER..........................24-31
MOTOR - OPERATION, POWER MODULE
- REAR BLOWER.....................24-41
MOTOR - OPERATION, SLIDING DOOR . . . 8N-30
MOTOR - REMOVAL, BLOWER.....24-47,24-58
MOTOR - REMOVAL, FRONT WASHER
PUMP..............................8R-8
MOTOR - REMOVAL, FRONT WIPER......8R-9
MOTOR - REMOVAL, IDLE AIR CONTROL . . 14-29
MOTOR - REMOVAL, LIFTGATE.........8N-15
MOTOR - REMOVAL, POWER MODULE -
BLOWER...........................24-31
MOTOR - REMOVAL, POWER MODULE -
REAR BLOWER......................24-41
MOTOR - REMOVAL, REAR WASHER
PUMP.............................8R-10
MOTOR - REMOVAL, REAR WIPER......8R-11
MOTOR - REMOVAL, SLIDING DOOR.....8N-30
MOTOR - REMOVAL, SLIDING DOOR
LOCK...........................8N-44,8N-6
MOTOR - REMOVAL, SUNROOF........23-121
MOTOR - REMOVAL, VENT WINDOW.....8N-63
MOTOR - REMOVAL, WINDOW..........8N-64
MOTOR RELAY - DESCRIPTION,
BLOWER......................24-24,24-37
MOTOR RELAY - INSTALLATION,
BLOWER......................24-25,24-38
MOTOR RELAY - OPERATION, BLOWER . . 24-24,
24-37
MOTOR RELAY - REMOVAL, BLOWER....24-25,
24-38
MOTOR RESISTOR - DESCRIPTION,
BLOWER...........................24-38
MOTOR RESISTOR - INSTALLATION,
BLOWER...........................24-39
MOTOR RESISTOR - OPERATION,
BLOWER...........................24-38
MOTOR RESISTOR - REMOVAL,
BLOWER...........................24-39
MOTOR RESISTOR BLOCK -
DESCRIPTION, BLOWER...............24-26
MOTOR RESISTOR BLOCK - DIAGNOSIS
AND TESTING, BLOWER...............24-26
MOTOR RESISTOR BLOCK - DIAGNOSIS
AND TESTING, REAR BLOWER..........24-38
MOTOR RESISTOR BLOCK -
INSTALLATION, BLOWER..............24-27
MOTOR RESISTOR BLOCK - OPERATION,
BLOWER...........................24-26
MOTOR RESISTOR BLOCK - REMOVAL,
BLOWER...........................24-26
MOUNT - INSTALLATION, FRONT....9-131,9-49
MOUNT - INSTALLATION, LEFT......9-133,9-50
MOUNT - INSTALLATION, REAR.....9-134,9-50
MOUNT - INSTALLATION, RIGHT....9-135,9-51
MOUNT - REMOVAL, FRONT........9-131,9-49
MOUNT - REMOVAL, LEFT.........9-133,9-49
MOUNT - REMOVAL, REAR.........9-133,9-50
MOUNT - REMOVAL, RIGHT........9-135,9-51
MOUNT BUSHINGS - INSTALLATION,
FRONT CROSSMEMBER...............13-12
MOUNT BUSHINGS - REMOVAL, FRONT
CROSSMEMBER.....................13-12
MOUNTED STOP LAMP - INSTALLATION,
CENTER HIGH........................8L-6
MOUNTED STOP LAMP - REMOVAL,
CENTER HIGH........................8L-6
MOUNTED STOP LAMP UNIT -
INSTALLATION, CENTER HIGH...........8L-6
MOUNTED STOP LAMP UNIT -
REMOVAL, CENTER HIGH
...............8L-6
MOUNTING - DESCRIPTION, ENGINE
. 9-131,9-48
MOUNTING - STANDARD PROCEDURE,
TIRE AND WHEEL MATCH
...............22-7
MOUNTING BRACKET - 2.4L ENGINE -
INSTALLATION, A/C COMPRESSOR
.......24-76
MOUNTING BRACKET - 2.4L ENGINE -
REMOVAL, A/C COMPRESSOR
..........24-75
22 INDEXRS
Description Group-Page Description Group-Page Description Group-Page

POWER TRANSFER UNIT, SPECIAL
TOOLS - SDP........................21-8
POWER WINDOWS - DESCRIPTION......8N-62
POWER WINDOWS - DIAGNOSIS AND
TESTING...........................8N-62
POWER WINDOWS - OPERATION........8N-62
POWERING SEVERAL LOADS -
STANDARD PROCEDURE, TESTING
FOR A SHORT TO GROUND ON FUSES . 8W-01-10
PRECAUTIONS AND WARNINGS,
WARNING - SAFETY...................23-1
PRECAUTIONS, WARNING -
WINDSHIELD SAFETY................23-108
PREFERENCE - STANDARD PROCEDURE,
HORN CHIRP...................8N-42,8N-5
PRELOAD - ADJUSTMENT,
DIFFERENTIAL BEARING..............21-199
PRELOAD MEASUREMENT AND
ADJUSTMENT, ADJUSTMENTS -
DIFFERENTIAL BEARING.............21s-100
PREPARATION - STANDARD
PROCEDURE, ENGINE GASKET
SURFACE........................9-11,9-85
PRESSURE - DIAGNOSIS AND TESTING,
CHECKING ENGINE OIL.................9-52
PRESSURE - DIAGNOSIS AND TESTING,
ENGINE OIL.........................9-136
PRESSURE CAP - DESCRIPTION,
RADIATOR...........................7-26
PRESSURE CAP - OPERATION,
RADIATOR...........................7-27
PRESSURE CAP TESTING - DIAGNOSIS
AND TESTING, COOLING SYSTEM........7-27
PRESSURE FOR HIGH SPEED
OPERATION - STANDARD PROCEDURE,
TIRE..........................22-17,22s-9
PRESSURE LEAKAGE TEST - DIAGNOSIS
AND TESTING, CYLINDER
COMBUSTION.....................9-83,9-9
PRESSURE MONITORING -
DESCRIPTION, TIRE..............22-9,22s-1
PRESSURE MONITORING - OPERATION,
TIRE...........................22-9,22s-1
PRESSURE PLATE - 2.5L TD -
INSTALLATION, CLUTCH DISC...........6-12
PRESSURE PLATE - 2.5L TD - REMOVAL,
CLUTCH DISC........................6-11
PRESSURE REGULATOR -
INSTALLATION, FUEL..................14-7
PRESSURE REGULATOR - OPERATION,
FUEL...............................14-7
PRESSURE REGULATOR - REMOVAL,
FUEL...............................14-7
PRESSURE RELEASE PROCEDURE -
STANDARD PROCEDURE, FUEL
SYSTEM............................14-2
PRESSURE RELIEF VALVE -
DESCRIPTION, HIGH..................24-73
PRESSURE RELIEF VALVE -
INSTALLATION, OIL...................9-141
PRESSURE RELIEF VALVE - OPERATION,
HIGH..............................24-73
PRESSURE RELIEF VALVE - REMOVAL,
OIL
................................9-141
PRESSURE SENSOR - DIAGNOSIS AND
TESTING, TIRE
..................22-10,22s-2
PRESSURE SENSOR RETRAIN -
STANDARD PROCEDURE, TIRE
.....22-10,22s-2
PRESSURE, SPECIFICATIONS - FUEL
SYSTEM
............................14-3
PRESSURE SWITCH - DESCRIPTION, OIL
. 9-141
PRESSURE SWITCH - INSTALLATION,
OIL
...........................9-141,9-54
PRESSURE SWITCH - OPERATION, OIL
. . . 9-141
PRESSURE SWITCH - REMOVAL, OIL
....9-141,
9-54
PRESSURE TEST - DIAGNOSIS AND
TESTING, CYLINDER COMPRESSION
. . . 9-83,9-9
PRESSURE TEST - DIAGNOSIS AND
TESTING, POWER STEERING SYSTEM
FLOW
...............................19-1
PRESSURE TESTS - DIAGNOSIS AND
TESTING, CLUTCH AIR
.........21-122,21s-30
PRESSURE TESTS - DIAGNOSIS AND
TESTING, HYDRAULIC
..........21-120,21s-28
PRESSURE TRANSDUCER -
DESCRIPTION, A/C
...................24-21PRESSURE TRANSDUCER - DIAGNOSIS
AND TESTING, A/C...................24-22
PRESSURE TRANSDUCER -
INSTALLATION, A/C...................24-22
PRESSURE TRANSDUCER - OPERATION,
A/C................................24-21
PRESSURE TRANSDUCER - REMOVAL,
A/C................................24-22
PRESSURES - STANDARD PROCEDURE,
TIRE INFLATION.................22-16,22s-8
PROBLEM CAUSES - DIAGNOSIS AND
TESTING, COMMON..................21-30
PROGRAMING - STANDARD
PROCEDURE, RKE TRANSMITTER.......8N-43
PROGRAMMABLE COMMUNICATIONS
INTERFACE (PCI) BUS, OPERATION......14-21
PROGRAMMING - STANDARD
PROCEDURE, ELECTRONIC VEHICLE
INFORMATION CENTER................8M-7
PROGRAMMING - STANDARD
PROCEDURE, PCM/SKIM................8E-2
PROGRAMMING - STANDARD
PROCEDURE, REMOTE KEYLESS
ENTRY TRANSMITTER.................8N-5
PROGRAMMING - STANDARD
PROCEDURE, TRANSPONDER...........8Q-6
PROPELLER SHAFT - DESCRIPTION.......3-21
PROPELLER SHAFT - INSTALLATION......3-22
PROPELLER SHAFT - OPERATION........3-21
PROPELLER SHAFT - REMOVAL..........3-21
PROPELLER SHAFT - SPECIFICATIONS.....3-22
PROPORTIONING - DESCRIPTION,
ELECTRONIC VARIABLE BRAKE............5-75
PROPORTIONING - OPERATION,
ELECTRONIC VARIABLE BRAKE..........5-77
PROPORTIONING VALVE (HEIGHT
SENSING) - DESCRIPTION.........5-48,5s-51
PROPORTIONING VALVE (HEIGHT
SENSING) - DIAGNOSIS AND TESTING....5-49,
5s-52
PROPORTIONING VALVE (HEIGHT
SENSING) - INSTALLATION.........5-51,5s-53
PROPORTIONING VALVE (HEIGHT
SENSING) - OPERATION...........5-48,5s-51
PROPORTIONING VALVE (HEIGHT
SENSING) - REMOVAL............5-50,5s-53
PTU FLUID CHANGE - STANDARD
PROCEDURE.........................21-5
PULLEY - DESCRIPTION, GENERATOR
DECOUPLER....................8F-25,8F-27
PULLEY - DIAGNOSIS AND TESTING,
GENERATOR DECOUPLER.........8F-25,8F-27
PULLEY - INSTALLATION, GENERATOR
DECOUPLER....................8F-26,8F-28
PULLEY - INSTALLATION, TIMING BELT
TENSIONER..........................9-69
PULLEY - OPERATION, GENERATOR
DECOUPLER....................8F-25,8F-27
PULLEY - REMOVAL, GENERATOR
DECOUPLER....................8F-26,8F-28
PULLEY - REMOVAL, TIMING BELT
TENSIONER..........................9-68
PUMP - 2.4L - CLEANING, WATER........7-32
PUMP - 2.4L - DESCRIPTION, WATER.....7-31
PUMP - 2.4L - INSPECTION, WATER......7-32
PUMP - 2.4L - INSTALLATION, WATER.....7-32
PUMP - 2.4L - REMOVAL, WATER........7-31
PUMP - 3.3/3.8L - CLEANING, WATER.....7-34
PUMP - 3.3/3.8L - DESCRIPTION,
WATER .............................7-33
PUMP - 3.3/3.8L - INSPECTION, WATER . . . 7-34
PUMP - 3.3/3.8L - INSTALLATION,
WATER .............................7-34
PUMP - 3.3/3.8L - REMOVAL, WATER.....7-33
PUMP - ASSEMBLY, OIL...........9-143,9-56
PUMP - ASSEMBLY, OIL.......21-232,21s-132
PUMP - CLEANING, OIL...........9-142,9-56
PUMP - DESCRIPTION, FUEL............14-8
PUMP - DESCRIPTION, FUEL DOSING . . . 24-115
PUMP - DESCRIPTION, OIL.............9-142
PUMP - DESCRIPTION, OIL.....21-230,21s-131
PUMP - DISASSEMBLY, OIL........9-142,9-55
PUMP - DISASSEMBLY, OIL
....21-230,21s-131
PUMP - INSPECTION, OIL
..........9-142,9-56
PUMP - INSTALLATION, FUEL DOSING
. . . 24-116
PUMP - INSTALLATION, LEAK
DETECTION
.........................25-13
PUMP - INSTALLATION, OIL
........9-144,9-57PUMP - INSTALLATION, SEAL - OIL....21-233,
21s-133
PUMP - OPERATION, FUEL..............14-8
PUMP - OPERATION, FUEL DOSING.....24-115
PUMP - OPERATION, OIL......21-230,21s-131
PUMP - REMOVAL, FUEL DOSING......24-115
PUMP - REMOVAL, LEAK DETECTION....25-13
PUMP - REMOVAL, OIL............9-142,9-55
PUMP - REMOVAL, SEAL - OIL . . 21-232,21s-133
PUMP (2.4L ENGINE) - INSTALLATION....19-42
PUMP (2.4L ENGINE) - REMOVAL.......19-38
PUMP (2.4L/3.3L/3.8L ENGINE) -
DESCRIPTION.......................19-36
PUMP (2.5L DIESEL) - DESCRIPTION.....19-36
PUMP (2.5L DIESEL) - INSTALLATION....19-43
PUMP (2.5L DIESEL) - REMOVAL........19-40
PUMP (3.3L/3.8L ENGINE) -
INSTALLATION.......................19-43
PUMP (3.3L/3.8L ENGINE) - REMOVAL . . . 19-40
PUMP INITIAL OPERATION - STANDARD
PROCEDURE, POWER STEERING........19-37
PUMP INLET TUBE - 2.4L -
DESCRIPTION, WATER.................7-35
PUMP INLET TUBE - 2.4L -
INSTALLATION, WATER.................7-35
PUMP INLET TUBE - 2.4L - REMOVAL,
WATER .............................7-35
PUMP INLET TUBE - 3.3/3.8L -
INSTALLATION, WATER.................7-36
PUMP INLET TUBE - 3.3/3.8L -
REMOVAL, WATER....................7-36
PUMP MODULE - DESCRIPTION, FUEL....14-8
PUMP MODULE - INSTALLATION, FUEL....14-9
PUMP MODULE - OPERATION, FUEL......14-8
PUMP MODULE - REMOVAL, FUEL........14-8
PUMP MOTOR - INSTALLATION, FRONT
WASHER............................8R-8
PUMP MOTOR - INSTALLATION, REAR
WASHER...........................8R-10
PUMP MOTOR - REMOVAL, FRONT
WASHER............................8R-8
PUMP MOTOR - REMOVAL, REAR
WASHER...........................8R-10
PUMP (PULLEY) - ASSEMBLY..........19-41
PUMP (PULLEY) - DISASSEMBLY........19-41
PUMP RELAY - DESCRIPTION, FUEL.....14-28
PUMP RELAY - OPERATION, FUEL.......14-28
PUMP, SPECIAL TOOLS - POWER
STEERING..........................19-43
PUSH-PIN GROMMET REPLACEMENT -
STANDARD PROCEDURE..............8N-28
PUSHRODS - DESCRIPTION.......9-109,9s-26
PUSHRODS - OPERATION.........9-109,9s-26
QUAD BUCKET - INSTALLATION, BUCKET
SEAT BACK.........................23-99
QUAD BUCKET - INSTALLATION, SEAT
BELT BUCKLE - FIRST ROW INBOARD....8O-12
QUAD BUCKET - REMOVAL, BUCKET
SEAT BACK.........................23-98
QUAD BUCKET - REMOVAL, SEAT BELT
BUCKLE - FIRST ROW INBOARD........8O-12
QUAD BUCKET, 50/50 SPLIT, BENCH -
INSTALLATION, SEAT BACK HINGE
COVERS...........................23-101
QUAD BUCKET, 50/50 SPLIT, BENCH -
INSTALLATION, SEAT CUSHION COVER . . 23-100
QUAD BUCKET, 50/50 SPLIT, BENCH -
REMOVAL, SEAT BACK HINGE COVERS . . 23-101
QUAD BUCKET, 50/50 SPLIT, BENCH -
REMOVAL, SEAT CUSHION COVER......23-100
QUAD BUCKET SEAT RISER -
INSTALLATION.......................23-98
QUAD BUCKET SEAT RISER - REMOVAL . . 23-98
QUAD BUCKET SEAT SIDE SHIELD - NO
CUPHOLDER - INSTALLATION...........23-97
QUAD BUCKET SEAT SIDE SHIELD - NO
CUPHOLDER - REMOVAL..............23-97
QUAD BUCKET SEAT SIDE SHIELD/
CUPHOLDER - FLAP AND SPRING
ASSEMBLY - INSTALLATION
...........23-107
QUAD BUCKET SEAT SIDE SHIELD/
CUPHOLDER - FLAP AND SPRING
ASSEMBLY - REMOVAL
...............23-107
QUAD BUCKET SEAT SIDE SHIELD/
CUPHOLDER - INSTALLATION
...........23-96
QUAD BUCKET SEAT SIDE SHIELD/
CUPHOLDER - REMOVAL
..............23-96
QUAD CHILD SEAT - INSTALLATION
......23-89
26 INDEXRS
Description Group-Page Description Group-Page Description Group-Page
