32GETTING TO KNOW YOUR VEHICLE
NOTE:Seat can be removed easier with one outboard
seat stowed in the load floor.
To reinstall the seat, align the seat into the detent
positions on the floor. Tilt seat rearward to lock the
seatback into its original position.

In Floor Detent Guides
Fold-Flat — Quad Seats
To fold the seat, lift the recliner lever to the full
upward position and push the seatback forward
until it rests on the seat cushion.
Fold-Flat Seat Recline Lever

NOTE:
The seatback may lock into the fold-flat position.
Use the recline lever to unlock the seatback.
If equipped with Stow ‘n Go seating: when
returning the seat to the original position, the
headrest must be folded back to the original
position.
Stow ‘n Go Seating Head Restraint

Easy Entry
Easy Tilt Seat — With Or Without Child Seat
Installed
The second row seats can be tilted forward for easy
entry into the third row with or without a child seat
installed.

1. Located in the seatback of the second row
seat is a lever (or handle for Stow ‘n Go seats)
that provides easier access to the third row by
tilting the seat forward.

2. Slide the lever upwards, or if equipped, pull the handle forward, to unlock the seatback.
WARNING!
If not properly latched, the seat could become
loose. Personal injuries could result.

22_RUVG_OM_EN_USC_t.book Page 32

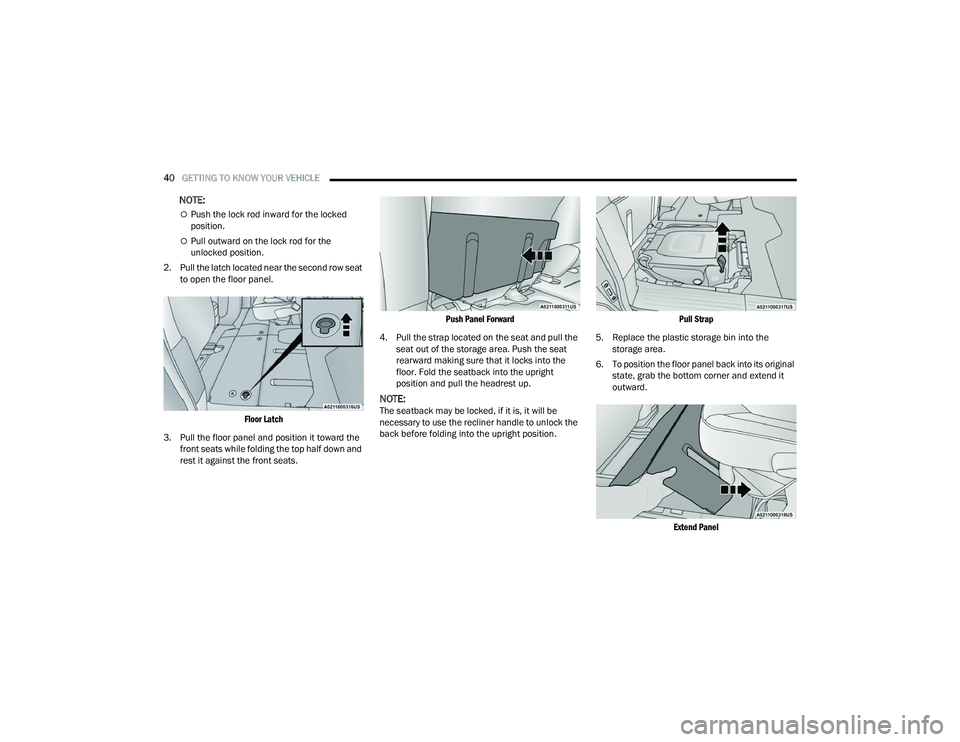

40GETTING TO KNOW YOUR VEHICLE
NOTE:
Push the lock rod inward for the locked
position.
Pull outward on the lock rod for the
unlocked position.
2. Pull the latch located near the second row seat to open the floor panel.

Floor Latch

3. Pull the floor panel and position it toward the front seats while folding the top half down and
rest it against the front seats.
Push Panel Forward

4. Pull the strap located on the seat and pull the seat out of the storage area. Push the seat
rearward making sure that it locks into the
floor. Fold the seatback into the upright
position and pull the headrest up.
NOTE:The seatback may be locked, if it is, it will be
necessary to use the recliner handle to unlock the
back before folding into the upright position.
Pull Strap

5. Replace the plastic storage bin into the storage area.
6. To position the floor panel back into its original state, grab the bottom corner and extend it
outward.

Extend Panel

22_RUVG_OM_EN_USC_t.book Page 40

204SAFETY

Car Seat With Head Restraint Folded

Locating The LATCH Anchorages
The lower anchorages are round bars
that are found at the rear of the seat
cushion where it meets the seatback,
below the anchorage symbols on the
seatback. They are just visible when you lean into
the rear seat to install the child restraint. You will
easily feel them if you run your finger along the gap
between the seatback and seat cushion.

LATCH Anchorages (Second Row Anchorages Shown) 7 Passenger Stow ‘n Go Seating LATCH Anchorages (Second Row Anchorages Shown)
8 Passenger Seating
LATCH Anchorages
(Second Row Bench Anchorages Shown) 7 Passenger Bench Seating
WARNING!
Always make sure the head restraint is in its
upright position when the seat is to be used by
an occupant who is not in a child restraint.
Sitting in a seat with the head restraint in its
lowered position could result in serious injury or
death in a collision.
1 — Folded Headrest
2 — Child Restraint

22_RUVG_OM_EN_USC_t.book Page 204

SAFETY209
NOTE:If the folding, non-adjustable head restraint inter -
feres with the installation of the child restraint, the
head restraint may be folded and the child seat
installed in front of it.

Car Seat With Head Restraint Folded

Can the rear head restraints be removed?
YesThe 2nd row head restraints on bench and the
center head restraint in the 8 passenger vehicle
can be removed if they interfere with the
installation of the child restraint. 2nd row Stow 'n
Go head restraints are not removable. The 3rd row
center head restraint is removable in all vehicles,
but the 3rd row outboard head restraints are not
removable
Úpage 44.
Can the buckle stalk be twisted to tighten the seat
belt against the belt path of the child restraint? NoDo not twist the buckle stalk in a seating position
with an ALR retractor.
Frequently Asked Questions
WARNING!
Always make sure the head restraint is in its
upright position when the seat is to be used by
an occupant who is not in a child restraint.
Sitting in a seat with the head restraint in its
lowered position could result in serious injury or
death in a collision.
1 — Folded Headrest
2 — Child Restraint
6
