2
INTRODUCTION
SYMBOLS KEY ....................................................................... 7
VEHICLE MODIFICATIONS/ALTERATIONS ......................... 7
SYMBOL GLOSSARY ............................................................. 7
GETTING TO KNOW YOUR VEHICLE
KEYS ....................................................................................10
Key Fob ........................................................................ 10
SENTRY KEY ........................................................................12
IGNITION SWITCH ...............................................................12 Keyless Enter ‘n Go™ Ignition .................................... 12
REMOTE START — IF EQUIPPED ......................................14 How To Use Remote Start .......................................... 14
To Exit Remote Start Mode ........................................ 14
Remote Start Front Defrost Activation —
If Equipped .................................................................. 15
Remote Start Comfort Systems — If Equipped.......... 15
Remote Start Windshield Wiper De-Icer Activation —
If Equipped .................................................................. 15
Remote Start Cancel Message .................................. 15
VEHICLE SECURITY SYSTEM — IF EQUIPPED ..................16 To Arm The System .................................................... 16
To Disarm The System ................................................ 16
Rearming Of The System ............................................ 16
Security System Manual Override.............................. 16
DOORS..................................................................................16 Manual Door Locks ..................................................... 16
Power Door Locks — If Equipped ............................... 17
Keyless Enter ‘n Go™ — Passive Entry ..................... 18
Automatic Unlock Doors On Exit — If Equipped......... 19
Manual Sliding Side Door ........................................... 20
Power Sliding Side Door — If Equipped ..................... 20
Child Protection Door Lock System — Rear Doors .... 21 STEERING WHEEL .............................................................. 22
Tilt/Telescoping Steering Column ..............................22
Heated Steering Wheel — If Equipped........................ 22
SEATS ................................................................................... 23 Manual Adjustment
(Front Seats) — If Equipped......................................... 23
Manual Adjustment (Rear Seats) ............................... 24
Power Adjustment (Front Seats) — If Equipped ......... 33
Heated Seats .............................................................. 34
Head Restraints .......................................................... 35
UCONNECT VOICE RECOGNITION —
IF EQUIPPED ........................................................................ 37 Introducing Voice Recognition .................................... 37
Basic Voice Commands............................................... 37
Get Started ................................................................... 37
Additional Information................................................. 37
MIRRORS ............................................................................. 38 Inside Rearview Mirror ................................................ 38
Illuminated Vanity Mirrors — If Equipped .................. 38
Outside Mirrors ........................................................... 38
Conversation Mirror ..................................................... 38
Power Mirrors — If Equipped ....................................... 39
Outside Mirrors Folding Feature ................................. 39
Heated Mirrors — If Equipped ..................................... 39
EXTERIOR LIGHTS............................................................... 39 Multifunction Lever......................................................39
Headlight Switch .......................................................... 39
Daytime Running Lights (DRLs) — If Equipped .......... 40
High/Low Beam Switch ............................................... 40
Flash-To-Pass ...............................................................40
Automatic Headlights — If Equipped .......................... 40
Headlight Time Delay — If Equipped........................... 41 Lights-On Reminder..................................................... 41
Turn Signals ................................................................. 41
Lane Change Assist — If Equipped ............................. 41
Battery Protection ....................................................... 41
INTERIOR LIGHTS .............................................................. 41 Interior Courtesy Lights .............................................. 41
WINDSHIELD WIPER AND WASHERS ............................ 42 Windshield Wiper Operation ....................................... 42
Rain Sensing Wipers — If Equipped ........................... 43
Rear Wiper And Washer .............................................. 44
CLIMATE CONTROLS ......................................................... 44 Manual Climate Control Descriptions And
Functions ..................................................................... 44
Climate Voice Commands........................................... 48
Operating Tips ............................................................ 48
INTERIOR STORAGE AND EQUIPMENT............................ 49 Storage ......................................................................... 49
USB/AUX Control ........................................................ 52
Power Outlets ............................................................. 52
WINDOWS ........................................................................... 54 Power Windows ........................................................... 54
Automatic Window Features....................................... 55
Reset Auto Up .............................................................. 55
Wind Buffeting ............................................................. 55
HOOD ................................................................................... 56 Opening ........................................................................ 56
Closing.......................................................................... 56
LIFTGATE ............................................................................. 56 To Unlock/Open The Liftgate...................................... 56
To Lock/Close The Liftgate ......................................... 57
Power Liftgate — If Equipped ...................................... 57
Cargo Area Features .................................................. 58

23_RUV_OM_EN_US_t.book Page 2

10
GETTING TO KNOW YOUR VEHICLE
KEYS
KEY FOB

Your vehicle is equipped with a key fob which supports Passive
Entry, Remote Keyless Entry (RKE), Keyless Enter ‘n Go™
(if equipped), and Remote Start (if equipped). The key fob
allows you to lock or unlock all doors and liftgate, as well as
activate the Panic Alarm from distances up to approximately
66 ft (20 m). The key fob does not need to be pointed at the
vehicle to activate the system. The key fob also contains an
emergency key, which is stored in the rear of the key fob.

The emergency key allows for entry into the vehicle should
the battery in the vehicle or the key fob become depleted.
The emergency key is also for locking/unlocking the glove
compartment. You can keep the emergency key with you
when valet parking.
NOTE:
The key fob’s wireless signal may be blocked if the key
fob is located next to a mobile phone, laptop, or other
electronic device. This may result in poor performance.
 A low key fob battery condition may be indicated by a
message in the instrument cluster display, or by the
LED light on the key fob. If the LED key fob light no
longer illuminates from key fob button pushes, then
the key fob battery requires replacement.
 The key fob LED light brightness is designed for indoor
light viewing, so the LED light may not be visible in
direct sunlight
Úpage 244.

Key Fob

To Lock/Unlock The Doors And Liftgate
Push and release the unlock button on the key fob once to
unlock the driver’s front door and sliding door or twice
within five seconds to unlock all doors and the liftgate.
Push and release the lock button on the key fob to lock all
doors and the liftgate.
When the doors are unlocked, the turn signals will flash
and the illuminated entry system will be activated. When
the doors are locked, the turn signals will flash and the
horn will chirp. Settings in the Uconnect system can
change to lights only, chirp only, or both.
Vehicles Equipped With Keyless Enter ‘n Go™ —
Passive Entry
If one or more doors are open, or the liftgate is open, the
doors can be locked. The doors will unlock again only if the
key fob is inside the passenger compartment.
All doors can be programmed to unlock on the first push
of the unlock button within the Uconnect system
Úpage 105.
1 — LED Light
2 — Unlock
3 — Liftgate
4 — Left Power Sliding Side Door
5 — Emergency Key
6 — Lock
7 — Remote Start
8 — Right Power Sliding Side Door
9 — Panic Alarm

23_RUV_OM_EN_US_t.book Page 10

12GETTING TO KNOW YOUR VEHICLE
Programming And Requesting Additional
Key Fobs
Programming the key fob may be performed by an
authorized dealer.
NOTE:
Once a key fob is programmed to a vehicle, it cannot be
repurposed and reprogrammed to another vehicle.
 Only key fobs that are programmed to the vehicle elec -
tronics can be used to start and operate the vehicle.
Duplication of key fobs may be performed at an authorized
dealer. This procedure consists of programming a blank
key fob to the vehicle electronics. A blank key fob is one
that has never been programmed.
NOTE:
 When having the Sentry Key Immobilizer system
serviced, bring all vehicle keys with you to an autho -
rized dealer.
 Keys must be ordered to the correct key cut to match
the vehicle locks.
SENTRY KEY
The Sentry Key Immobilizer system prevents unauthorized
vehicle operation by disabling the engine. The system
does not need to be armed or activated. Operation is
automatic, regardless of whether the vehicle is locked or
unlocked.
The system uses a key fob, keyless push button ignition
and a Radio Frequency (RF) receiver to prevent
unauthorized vehicle operation. Therefore, only key fobs
that are programmed to the vehicle can be used to start
and operate the vehicle. The system cannot reprogram a
key fob obtained from another vehicle.
After placing the ignition in the ON/RUN position, the
Vehicle Security Light will turn on for three seconds for a
bulb check. If the light remains on after the bulb check, it
indicates that there is a problem with the electronics. In
addition, if the light begins to flash after the bulb check, it
indicates that someone attempted to start the engine with
an invalid key fob. In the event that a valid key fob is used
to start the engine but there is an issue with the vehicle
electronics, the engine will start and shut off after two
seconds.
If the Vehicle Security Light turns on during normal vehicle
operation (vehicle running for longer than 10 seconds), it
indicates that there is a fault in the electronics. Should
this occur, have the vehicle serviced as soon as possible
by an authorized dealer. All of the key fobs provided with your new vehicle have
been programmed to the vehicle electronics
Úpage 244.
NOTE:A key fob that has not been programmed is also
considered an invalid key.
IGNITION SWITCH
KEYLESS ENTER ‘N GO™ IGNITION
This feature allows the driver to operate the ignition switch
with the push of a button as long as the key fob is in the
passenger compartment.
The START/STOP ignition button has four operating
positions; three of which are labeled and will illuminate
when in position. The three positions are OFF, ACC, and
ON/RUN. The fourth position is START. During START, RUN
will illuminate.
WARNING!

Always remove the key fobs from the vehicle and lock
all doors when leaving the vehicle unattended.
 For vehicles equipped with Keyless Enter ‘n Go™ Igni -
tion, always remember to place the ignition in the
OFF position when exiting the vehicle.
CAUTION!
The Sentry Key Immobilizer system is not compatible
with some aftermarket Remote Start systems. Use of
these systems may result in vehicle starting problems
and loss of security protection.

23_RUV_OM_EN_US_t.book Page 12

GETTING TO KNOW YOUR VEHICLE13
(Continued)

START/STOP Ignition Button

The push button ignition can be placed in the following
modes:
OFF
 The engine is stopped
 Some electrical devices (e.g. power locks, alarm, etc.)
are still available
ACC
 The engine is stopped
 Some electrical devices are available (e.g. power
windows)
ON/RUN
 Driving position
 All electrical devices are available (e.g. climate
controls, etc.) START

 The engine will start (when foot is on the brake pedal)
The engine only runs in the ON/RUN ignition position or
from a Remote Start request.

In case the ignition switch does not change with the push of
a button, the key fob may have a low or depleted battery.
In this situation, a backup method can be used to operate
the ignition switch. Put the nose side (side opposite of the
emergency key) of the key fob against the START/STOP
ignition button and push to operate the ignition switch.
Backup Starting Method
NOTE:
The key fob may not be detected by the vehicle Keyless
Enter ‘n Go™ system if it is located next to a mobile
phone, laptop or other electronic device; these devices
may block the key fob’s wireless signal and prevent the
Keyless Enter ‘n Go™ system from starting the vehicle.

 For the proper engine starting procedure, see

Ú
page 75.

1 — OFF
2 — ACC
3 — ON/RUN
WARNING!

When leaving the vehicle, always remove the key fob
from the vehicle and lock your vehicle.
 Never leave children alone in a vehicle, or with
access to an unlocked vehicle.
Allowing children to be in a vehicle unattended is
dangerous for a number of reasons. A child or others
could be seriously or fatally injured. Children should
be warned not to touch the parking brake, brake
pedal or the gear selector.
 Do not leave the key fob in or near the vehicle, or in
a location accessible to children, and do not leave
the Keyless Enter ‘n Go™ Ignition in the ON/RUN
position. A child could operate power windows, other
controls, or move the vehicle.
 Do not leave children or animals inside parked vehi -
cles in hot weather. Interior heat buildup may cause
serious injury or death.
CAUTION!
An unlocked car is an invitation. Always remove the key
fobs from the vehicle and lock all doors when leaving
the vehicle unattended.
WARNING!
2

23_RUV_OM_EN_US_t.book Page 13

14GETTING TO KNOW YOUR VEHICLE
REMOTE START — IF EQUIPPED
This system uses the key fob to start the engine
conveniently from outside the vehicle while still
maintaining security. The system has a range
of 328 ft (100 m).
Remote Start is used to defrost windows in cold weather
and to reach a comfortable climate in all ambient
conditions before the customer enters the vehicle.
NOTE:Obstructions between the vehicle and key fob may reduce
this range Úpage 244.
HOW TO USE REMOTE START
Push and release the Remote Start button on the key fob
twice within five seconds. The vehicle doors will lock, the
parking lights will flash, and the horn will chirp twice
(if programmed). Then, the engine will start, and the
vehicle will remain in the Remote Start mode for a
15 minute cycle. Pushing the Remote Start button a third time shuts the
engine off.
To drive the vehicle, push the unlock button and place the
ignition in the ON/RUN position.
NOTE:

With Remote Start, the engine will only run for
15 minutes.
 Remote Start can only be used twice.
 If an engine fault is present or fuel level is low, the
vehicle will start and then shut down in 10 seconds.
 The parking lights will turn on and remain on during
Remote Start mode.
 For security, power window operations are disabled
when the vehicle is in the Remote Start mode.
 The ignition must be placed in the ON/RUN position
before the Remote Start sequence can be repeated for
a third cycle.
All of the following conditions must be met before the
engine will Remote Start:
 Gear selector in PARK
 Doors closed
 Hood closed
 Liftgate closed
 Hazard switch off
 Brake switch inactive (brake pedal not pressed)
 Battery at an acceptable charge level
 Panic button not pushed
 System not disabled from previous Remote Start event 
Vehicle Security system indicator flashing
 Ignition in OFF position
 Fuel level meets minimum requirement
 Vehicle Security system is not signaling an intrusion
 Malfunction Indicator Light (MIL) is not illuminated
TO EXIT REMOTE START MODE

To drive the vehicle after starting the Remote Start system,
either push and release the unlock button on the key fob to
unlock the doors, or unlock the vehicle using Keyless Enter ‘n
Go™ — Passive Entry via the door handles, and disarm the
Vehicle Security system (if equipped). Then, prior to the end of
the 15 minute cycle, push and release the START/STOP ignition
button.

The Remote Start system will turn the engine off if the
Remote Start button on the key fob is pushed again, or if
the engine is allowed to run for the entire 15 minute cycle.
Once the ignition is placed in the ON/RUN position, the
climate controls will resume previously set operations
(temperature, blower control, etc.).
WARNING!
Do not start or run an engine in a closed garage
or confined area. Exhaust gas contains carbon
monoxide (CO) which is odorless and colorless.
Carbon monoxide is poisonous and can cause
serious injury or death when inhaled.
 Keep key fobs away from children. Operation of the
Remote Start system, windows, door locks or other
controls could cause serious injury or death.
WARNING!
Do not start or run an engine in a closed garage
or confined area. Exhaust gas contains carbon
monoxide (CO) which is odorless and colorless.
Carbon monoxide is poisonous and can cause
serious injury or death when inhaled.
 Keep key fobs away from children. Operation of the
Remote Start system, windows, door locks or other
controls could cause serious injury or death.

23_RUV_OM_EN_US_t.book Page 14

GETTING TO KNOW YOUR VEHICLE15
NOTE:
For vehicles equipped with the Keyless Enter ‘n Go™ —
Passive Entry feature, the message “Remote Start
Active — Push Start Button” will show in the instrument
cluster display until you push the START/STOP ignition
button.
 To avoid unintentional shutdowns, the system will
disable for two seconds after receiving a valid Remote
Start request.
REMOTE START FRONT DEFROST
A
CTIVATION — IF EQUIPPED
When Remote Start is active, and the outside ambient
temperature is 40°F (4.5°C) or below, the system will
automatically activate front defrost for 15 minutes or less.
The time is dependent on the ambient temperature. Once
the timer expires, the system will automatically adjust the
settings depending on ambient conditions. See “Remote
Start Comfort Systems — If Equipped” in the next section
for detailed operation.
REMOTE START COMFORT SYSTEMS —
I
F EQUIPPED
When Remote Start is activated, the front and rear defrost
will automatically turn on in cold weather. The heated
steering wheel and driver heated seat feature will also
turn on if programmed in the comfort menu screen within
Uconnect Settings
Úpage 105. In warm weather, the
driver vented seat feature will automatically turn on when
the Remote Start is activated, if programmed via the comfort menu screen. The vehicle will adjust the climate
control settings depending on the outside ambient
temperature.
Automatic Temperature Control (ATC) — If Equipped
The climate controls automatically adjust to an optimal
temperature and mode, dependent upon the outside
ambient temperature. When the ignition is placed in the
ON/RUN position, the climate controls will resume their
previous settings.
Manual Temperature Control (MTC) — If Equipped

In ambient temperatures of 40°F (4.5°C) or below, the
climate settings will default to maximum heat, with
fresh air entering the cabin. If the front defrost timer
expires, the vehicle will enter Mix Mode.
 In ambient temperatures from 40°F (4.5°C) to 78°F
(26°C), the climate settings will be based on the last
settings selected by the driver.
 In ambient temperatures of 78°F (26°C) or above, the
climate settings will default to MAX A/C, Bi-Level mode,
and Recirculation on.
For more information on ATC, MTC, and climate control
settings, see
Úpage 44.
NOTE:
These features will stay on through the duration of Remote
Start until the ignition is placed in the ON/RUN position.
The climate control settings will change, and exit automatic
operation, if manually adjusted by the driver while the vehicle is
in Remote Start mode. This includes the OFF button on the
climate controls, which will turn the system off.

REMOTE START WINDSHIELD WIPER
D
E-ICER ACTIVATION — IF EQUIPPED
When the Remote Start system is active and the outside
ambient temperature is less than 33°F (0.6°C), the
Windshield Wiper De-Icer will activate. Exiting Remote
Start will resume its previous operation. If the Windshield
Wiper De-Icer was active, the timer and operation will
continue.
REMOTE START CANCEL MESSAGE
One of the following messages will display in the
instrument cluster if the vehicle fails to remote start or
exits Remote Start prematurely:
 Remote Start Canceled — Door Open
 Remote Start Canceled — Hood Open
 Remote Start Canceled — Fuel Low
 Remote Start Canceled — Liftgate Open
 Remote Start Canceled — Too Cold
 Remote Start Canceled — Time Expired
 Remote Start Disabled — Start Vehicle To Reset
The message will stay active until the ignition is placed in
the ON/RUN position.
2

23_RUV_OM_EN_US_t.book Page 15

22GETTING TO KNOW YOUR VEHICLE
To avoid unintentional operation of the power sliding
door from the rear seats, push the Sliding Door Power
Off button, located in the overhead console. When the
overhead console power OFF LED is lit, the sliding door
may not be power opened or closed when pushing the
buttons just inside the sliding doors, or when pulling on
the handles.
To Disengage The Child Protection Door Lock

1. Open the sliding side door.

2. Slide the Child Protection Door Lock control outward (away from the vehicle) to disengage the Child
Protection Door Lock.
3. Repeat Steps 1 and 2 on the opposite sliding door.
NOTE:After disengaging (or engaging) the Child Protection Door
Lock, always test the inside door handle with the sliding
door closed to make certain the Child Protection Door
Lock is in the desired position. The inside door handle will
open the sliding door when the Child Protection Door Lock
is disengaged.
STEERING WHEEL
TILT/TELESCOPING STEERING COLUMN
This feature allows you to tilt the steering column upward
or downward. It also allows you to lengthen or shorten the
steering column. The tilt/telescoping lever is located left
of the steering wheel at the end of the steering column.

Tilt/Telescoping Lever

To unlock the steering column, push the lever downward
(toward the floor). To tilt the steering column, move the steering
wheel upward or downward as desired. To lengthen or shorten
the steering column, pull the steering wheel outward or push it
inward as desired. To lock the steering column in position, push
the lever upward until fully engaged.

HEATED STEERING WHEEL —
I
F EQUIPPED

The steering wheel contains a heating element that
helps warm your hands in cold weather. The heated
steering wheel has only one temperature setting.
Once the heated steering wheel has been turned
on, it will stay on for an average of 80 minutes before
automatically shutting off. This time will vary based on
environmental temperatures. The heated steering wheel can
shut off early or may not turn on when the steering wheel is
already warm.

The heated steering wheel button is located within the
Uconnect system. You can access the button through the
Comfort screen.
 Press the heated steering wheel button once to turn
the heating element on.
 Press the heated steering wheel button a second time
to turn the heating element off.
NOTE:The engine must be running for the heated steering wheel
to operate.
For information on use with the Remote Start system, see
Úpage 15.
WARNING!
Avoid trapping anyone in the vehicle in a collision.
Remember that the sliding doors cannot be opened
from the inside door handle when the Child Protection
Door Locks are engaged.
WARNING!
Do not adjust the steering column while driving.
Adjusting the steering column while driving or driving
with the steering column unlocked, could cause the
driver to lose control of the vehicle. Failure to follow this
warning may result in serious injury or death.

23_RUV_OM_EN_US_t.book Page 22

34GETTING TO KNOW YOUR VEHICLE
Tilting The Seat Up Or Down
The angle of the seat cushion can be adjusted in two
directions. Pull upward or push downward on the front of
the seat switch, the front of the seat cushion will move in
the direction of the switch. Release the switch when the
desired position has been reached.
Reclining The Seatback
The angle of the seatback can be adjusted forward or
rearward. Push the seatback switch forward or rearward,
the seat will move in the direction of the switch. Release
the switch when the desired position is reached.
Power Lumbar — If Equipped

Power Lumbar Switch Location

The front driver’s seat may be equipped with a four-way
lumbar adjustment. The power lumbar switch is located on
the outboard side of the equipped power seat. Push the
switch forward or rearward to increase or decrease the
lumbar support. Push the switch upward or downward to
raise or lower the lumbar support.
HEATED SEATS
Front Heated Seats — If Equipped
The front heated seats control buttons are
located in the touchscreen.
You can choose from HI, LO or off heat settings.
The indicator lights in each switch indicate the level of
heat in use. Two indicator lights will illuminate for HI, one
for LO and none for off.

Press the heated seat button once to turn the HI setting on.

 Press the heated seat button a second time to turn the
LO setting on.
 Press the heated seat button a third time to turn the
heating elements off.
The level of heat selected will stay on until the operator
changes it.
NOTE:
 Once a heat setting is selected, heat will be felt within
two to five minutes.
 The engine must be running for the heated seats to
operate.
For information on use with the Remote Start system, see
Úpage 15.
WARNING!
 Adjusting a seat while driving may be dangerous.
Moving a seat while driving could result in loss of
control which could cause a collision and serious
injury or death.

 Seats should be adjusted before fastening the seat belts
and while the vehicle is parked. Serious injury or death
could result from a poorly adjusted seat belt.

 Do not ride with the seatback reclined so that the
shoulder belt is no longer resting against your chest.
In a collision you could slide under the seat belt,
which could result in serious injury or death.
CAUTION!
Do not place any article under a power seat or impede
its ability to move as it may cause damage to the seat
controls. Seat travel may become limited if movement
is stopped by an obstruction in the seat's path.
WARNING!
Persons who are unable to feel pain to the skin
because of advanced age, chronic illness, diabetes,
spinal cord injury, medication, alcohol use, exhaus -
tion or other physical condition must exercise care
when using the seat heater. It may cause burns even
at low temperatures, especially if used for long
periods of time.
 Do not place anything on the seat or seatback that
insulates against heat, such as a blanket or cushion.
This may cause the seat heater to overheat. Sitting in
a seat that has been overheated could cause serious
burns due to the increased surface temperature of
the seat.

23_RUV_OM_EN_US_t.book Page 34

44GETTING TO KNOW YOUR VEHICLE


Neutral Wipe Inhibit
— The Rain Sensing feature will not
operate when the ignition is ON, when the transmission gear
selector is in the NEUTRAL position and the vehicle speed is
less than 3 mph (5 km/h), unless the wiper control on the
windshield wiper lever is moved, the vehicle speed is
greater than 3 mph (5 km/h) or the gear selector is moved
out of the NEUTRAL position.

 Remote Start Mode Inhibit — On vehicles equipped with
the Remote Start system, Rain Sensing wipers are not
operational when the vehicle is in the Remote Start
mode. Once the operator is in the vehicle and has
placed the ignition switch in the ON/RUN position, rain
sensing wiper operation can resume, if it has been
selected, and no other inhibit conditions (mentioned
previously) exist.
REAR WIPER AND WASHER
The rear wiper/washer is operated by rotating a switch,
located at the middle of the lever.
Rotate the center portion of the lever upward to
the first detent for intermittent operation and to
the second detent for continuous rear wiper
operation.
Rear Window Washer Operation Pushing the windshield wiper lever forward
activates the rear window washer. If the lever is
pushed while on the intermittent setting, the
wiper will turn on and operate for several wipe
cycles after the lever is released, and then resume the
intermittent interval previously selected. If the lever is
pushed while the wiper is in the off position, the wiper will
operate several wipe cycles, then turn off.
CLIMATE CONTROLS
MANUAL CLIMATE CONTROL
D
ESCRIPTIONS AND FUNCTIONS

Uconnect 5 With 7-inch Display Manual Temperature Controls
Uconnect 5/5 NAV With 10.1-inch Display Manual Temperature Controls

MAX A/C Button
Press and release the MAX A/C button to
change the current setting. The indicator
illuminates when MAX A/C is on. Performing
this function again will cause the MAX A/C
operation to switch into manual mode and the MAX A/C
indicator will turn off.
NOTE:The MAX A/C setting is only available on the touchscreen.
A/C Button
Press and release the A/C button to change the
current setting. The indicator illuminates when
A/C is on.
NOTE:
 For Manual Climate Controls, if the system is in Mix,
Floor or Defrost Mode, the A/C can be turned off, but
the A/C system shall remain active to prevent fogging
of the windows.
 If fog or mist appears on the windshield or side glass,
select Defrost mode, and increase blower speed if
needed.
 If your air conditioning performance seems lower than
expected, check the front of the A/C condenser
(located in front of the radiator), for an accumulation of
dirt or insects. Clean with a gentle water spray from the
front of the radiator and through the condenser.

23_RUV_OM_EN_US_t.book Page 44

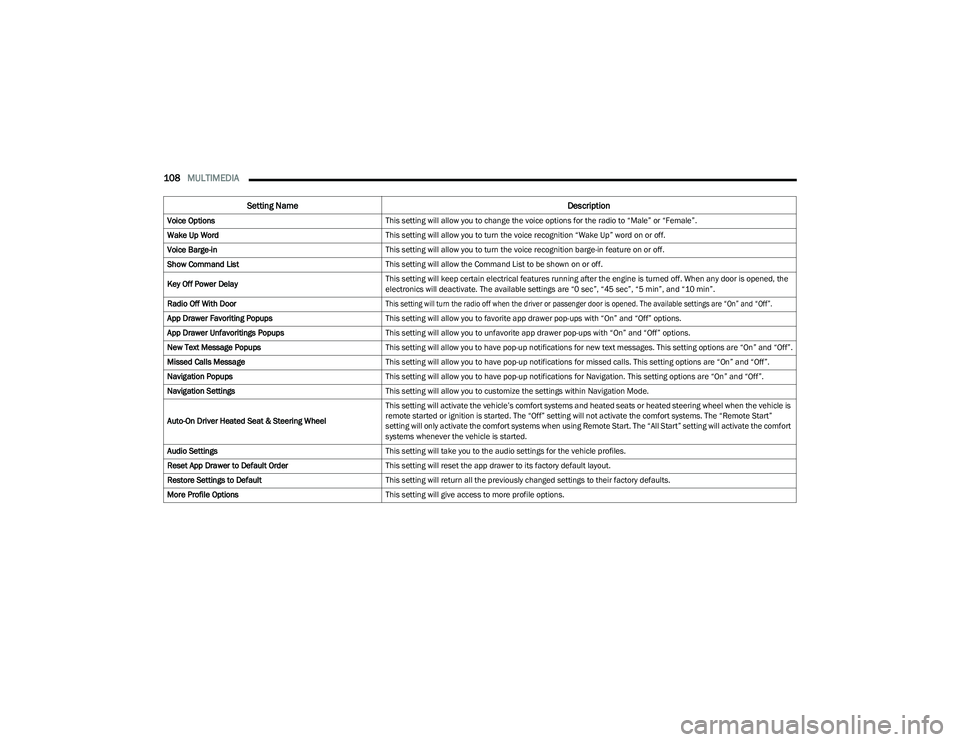

108MULTIMEDIA
Voice Options This setting will allow you to change the voice options for the radio to “Male” or “Female”.
Wake Up Word This setting will allow you to turn the voice recognition “Wake Up” word on or off.
Voice Barge-in This setting will allow you to turn the voice recognition barge-in feature on or off.
Show Command List This setting will allow the Command List to be shown on or off.
Key Off Power Delay This setting will keep certain electrical features running after the engine is turned off. When any door is opened, the
electronics will deactivate. The available settings are “0 sec”, “45 sec”, “5 min”, and “10 min”.
Radio Off With Door
This setting will turn the radio off when the driver or passenger door is opened. The available settings are “On” and “Off”.

App Drawer Favoriting Popups This setting will allow you to favorite app drawer pop-ups with “On” and “Off” options.
App Drawer Unfavoritings Popups This setting will allow you to unfavorite app drawer pop-ups with “On” and “Off” options.
New Text Message Popups This setting will allow you to have pop-up notifications for new text messages. This setting options are “On” and “Off”.
Missed Calls Message This setting will allow you to have pop-up notifications for missed calls. This setting options are “On” and “Off”.
Navigation Popups This setting will allow you to have pop-up notifications for Navigation. This setting options are “On” and “Off”.
Navigation Settings This setting will allow you to customize the settings within Navigation Mode.
Auto-On Driver Heated Seat & Steering Wheel This setting will activate the vehicle’s comfort systems and heated seats or heated steering wheel when the vehicle is
remote started or ignition is started. The “Off” setting will not activate the comfort systems. The “Remote Start”
setting will only activate the comfort systems when using Remote Start. The “All Start” setting will activate the comfort
systems whenever the vehicle is started.
Audio Settings This setting will take you to the audio settings for the vehicle profiles.
Reset App Drawer to Default Order This setting will reset the app drawer to its factory default layout.
Restore Settings to Default This setting will return all the previously changed settings to their factory defaults.
More Profile Options This setting will give access to more profile options.
Setting Name Description

23_RUV_OM_EN_US_t.book Page 108
