service schedule CHRYSLER VOYAGER 2023 Owners Manual

4
MULTIMEDIA
UCONNECT SYSTEMS ..................................................... 104
CYBERSECURITY ............................................................. 104
UCONNECT SETTINGS...................................................... 105
Customer Programmable Features ........................ 105
RADIO OPERATION AND MOBILE PHONES .................. 120 Regulatory And Safety Information .......................... 120
SAFETY
SAFETY FEATURES........................................................... 121Anti-Lock Brake System (ABS) ................................. 121Rear Seat Reminder Alert (RSRA) ............................ 121
Electronic Brake Control (EBC) System .................. 122
AUXILIARY DRIVING SYSTEMS ...................................... 126 Blind Spot Monitoring (BSM) — If Equipped ............ 126Forward Collision Warning (FCW) With
Mitigation — If Equipped ........................................... 129
Tire Pressure Monitoring
System (TPMS) .......................................................... 131
OCCUPANT RESTRAINT SYSTEMS ................................ 134 Occupant Restraint Systems Features ................... 134Important Safety Precautions .................................. 134Seat Belt Systems .................................................... 135
Supplemental Restraint Systems (SRS) .................. 143Child Restraints ......................................................... 153 SAFETY TIPS .................................................................... 167
Transporting Passengers ......................................... 167
Transporting Pets .................................................... 167
Connected Vehicles .................................................. 167Safety Checks You Should Make Inside
The Vehicle ............................................................... 167Periodic Safety Checks You Should Make
Outside The Vehicle .................................................. 168Exhaust Gas ............................................................. 169
Carbon Monoxide Warnings ..................................... 169IN CASE OF EMERGENCY
HAZARD WARNING FLASHERS ..................................... 170
SOS AND ASSIST MIRROR — IF EQUIPPED ................. 170
JACKING AND TIRE CHANGING —
IF EQUIPPED .................................................................... 173 Preparations For Jacking ......................................... 173
Jack And Spare Tire Location................................... 174Equipment Removal ................................................ 174
Jacking Instructions.................................................. 175Road Tire Installation ............................................... 178
Portable Air Compressor — If Equipped .................. 179
Return Inflatable Spare Tire..................................... 180
TIRE SERVICE KIT — IF EQUIPPED ................................. 180
JUMP STARTING............................................................... 185 Preparations For Jump Start .................................... 185Jump Starting Procedure.......................................... 186 REFUELING IN EMERGENCY – IF EQUIPPED ...............187
IF YOUR ENGINE OVERHEATS......................................... 187
MANUAL PARK RELEASE ...............................................188
FREEING A STUCK VEHICLE ........................................... 189
TOWING A DISABLED VEHICLE.......................................190
ENHANCED ACCIDENT RESPONSE
SYSTEM (EARS) ...............................................................191
EVENT DATA RECORDER (EDR)......................................191
SERVICING AND MAINTENANCE
SCHEDULED SERVICING ................................................. 192 Maintenance Plan ..................................................... 193
ENGINE COMPARTMENT ................................................. 195 3.6L Engine................................................................ 195
Checking Oil Level ..................................................... 196Adding Washer Fluid ................................................ 196
Maintenance-Free Battery ........................................ 196Pressure Washing ..................................................... 197
VEHICLE MAINTENANCE ................................................. 197 Engine Oil .................................................................. 197
Engine Oil Filter ......................................................... 197
Engine Air Cleaner Filter .......................................... 198
Accessory Drive Belt Inspection ............................... 198Air Conditioner Maintenance .................................... 199
Body Lubrication........................................................ 200
Windshield Wiper Blades .......................................... 201

23_RUV_OM_EN_US_t.book Page 4

STARTING AND OPERATING83
The following indicators should be used to ensure that you
have properly engaged the transmission into the PARK
position:
Look at the transmission gear position display and
verify that it indicates the PARK position (P), and is not
blinking.
 With the brake pedal released, verify that the gear
selector will not move out of PARK.
REVERSE (R)

This range is for moving the vehicle backward. Shift into
REVERSE only after the vehicle has come to a complete stop.

NEUTRAL (N)
Use this range when the vehicle is standing for prolonged
periods with the engine running. The engine may be
started in this range. Apply the parking brake and shift the
transmission into PARK if you must exit the vehicle.
DRIVE (D)

This range should be used for most city and highway driving. It
provides the smoothest upshifts and downshifts, and the best
fuel economy. The transmission automatically upshifts through
all forward gears. The DRIVE position provides optimum driving
characteristics under all normal operating conditions.
If the transmission temperature exceeds normal operating
limits, the transmission controller may modify the transmission
shift schedule, reduce engine torque, and/or expand the range
of torque converter clutch engagement. This is done to prevent
transmission damage due to overheating.
If the transmission becomes extremely hot, the
Transmission Temperature Warning Light will illuminate, a
warning message will appear in the instrument cluster,
and the transmission may operate differently until the
transmission cools down.

During cold temperatures, transmission operation may be
modified depending on engine and transmission temperature
as well as vehicle speed. This feature improves warm-up time
of the engine and transmission to achieve maximum efficiency.
Engagement of the torque converter clutch, and shifts into
EIGHTH or NINTH gear, are inhibited until the transmission fluid
is warm


Ú
page 84. Normal operation will resume once the
transmission temperature has risen to a suitable level.

LOW (L)
Use this range for engine braking when descending
very steep grades. In this range, the transmission will
downshift for increased engine braking. To access the
LOW position, push down on the gear selector and rotate
it fully clockwise.
Transmission Limp Home Mode
Transmission function is monitored electronically for
abnormal conditions. If a condition is detected that could
result in transmission damage, Transmission Limp Home
Mode is activated. In this mode, the transmission may
operate only in a fixed gear, or may remain in NEUTRAL.
The Malfunction Indicator Light (MIL) may be illuminated.
Limp Home Mode may allow the vehicle to be driven to an
authorized dealer for service without damaging the
transmission.
CAUTION!
 Before moving the transmission gear selector out of
PARK, you must start the engine, and also press the
brake pedal. Otherwise, damage to the gear selector
could result.
 DO NOT race the engine when shifting from PARK
or NEUTRAL into another gear range, as this can
damage the drivetrain.
WARNING!

Do not coast in NEUTRAL and never turn off the ignition to
coast down a hill. These are unsafe practices that limit your
response to changing traffic or road conditions. You might
lose control of the vehicle and have a collision.

CAUTION!
Towing the vehicle, coasting, or driving for any other
reason with the transmission in NEUTRAL can cause
severe transmission damage.
If Recreational Towing
Úpage 101.
If Towing A Disabled Vehicle
Úpage 190.
4

23_RUV_OM_EN_US_t.book Page 83

192
SERVICING AND MAINTENANCE
SCHEDULED SERVICING
Your vehicle is equipped with an automatic oil change
indicator system. The oil change indicator system will
remind you that it is time to take your vehicle in for
scheduled maintenance.
Based on engine operation conditions, the oil change
indicator message will illuminate. This means that service
is required for your vehicle. Operating conditions such as
frequent short-trips, trailer tow, extremely hot or cold
ambient temperatures will influence when the “Oil Change
Required” message is displayed. Have your vehicle
serviced as soon as possible, within the next 500 miles
(805 km).An authorized dealer will reset the oil change indicator
message after completing the scheduled oil change. If a
scheduled oil change is performed by someone other than
an authorized dealer Úpage 62.
NOTE:Under no circumstances should oil change intervals
exceed 10,000 miles (16,000 km), 12 months or
350 hours of engine run time, whichever comes first.
The 350 hours of engine run or idle time is generally
only a concern for fleet customers.
Once A Month Or Before A Long Trip:

Check engine oil level.
 Check windshield washer fluid level.

 Check tire pressure and look for unusual wear or damage.
Rotate tires at the first sign of irregular wear, even if it
occurs before the oil indicator system turns on.

 Check the fluid levels of the coolant reservoir and
brake master cylinder, fill as needed.
 Check function of all interior and exterior lights.

23_RUV_OM_EN_US_t.book Page 192

248 I
Ignition .............................................................................12 Switch .........................................................................12
Inside Rearview Mirror.......................................... 38
, 170
Instrument Cluster ...................................................60, 62
Descriptions ............................................................... 72
Display ........................................................................62
Display Controls .........................................................62
KeySense Message ...................................................64
Menu Items ................................................................64
Instrument Panel Lens Cleaning ................................. 234
Interior And Instrument Lights .......................................41
Interior Appearance Care ............................................ 233
Interior Lights ..................................................................41
JJack Location................................................................ 174
Jack Operation ............................................................. 173
Jacking And Tire Changing — If Equipped

b
........... 173
Jump Starting ............................................................... 185
KKey Fob ............................................................................10 Arm The System .........................................................16
Disarm The Alarm ...................................................... 16
Programming Additional Key Fobs ...........................12
Key Fob Battery Service (Remote Keyless Entry) .........11
Key Fob Programming (Remote Keyless Entry) ............ 12
Keyless Enter 'n Go™ ...................................................... 18 Passive Entry .............................................................. 18
Keys .................................................................................10
LLane Change And Turn Signals...................................... 39 Lane Change Assist ................................................. 39, 41
Lap/Shoulder Belts ...................................................... 135
Latches .......................................................................... 168 Hood ........................................................................... 56
Lead Free Gasoline....................................................... 236
Leaks, Fluid ...................................................................168
Life Of Tires ...................................................................226
Liftgate ............................................................................ 56 Power ......................................................................... 57
Light Bulbs .......................................................... 168
, 216
Lights .............................................................................168 Air Bag ..................................................... 67
, 143, 167
Battery Saver ............................................................. 41
Brake Assist Warning .............................................. 124 Brake Warning ........................................................... 68
Bulb Replacement......................................... 215
, 216
Cruise ......................................................................... 72
Daytime Running ....................................................... 39
Dimmer Switch, Headlight ........................................ 39
Engine Temperature Warning................................... 69
Exterior ........................................................... 168
, 216
Headlights ........................................................... 39, 40
High Beam/Low Beam Select .................................. 39
Instrument Cluster .................................................... 39
Intensity Control ........................................................ 42
Interior........................................................................ 41
Lights On Reminder............................................ 39
, 41
Malfunction Indicator (Check Engine)...................... 70
Park ............................................................................ 72 Passing ............................................................... 39
, 40
Reading...................................................................... 41
Seat Belt Reminder ................................................... 69
Security Alarm ........................................................... 70
Service ..................................................................... 215 Side Marker ............................................................. 216
Traction Control ....................................................... 124Turn Signals...................................... 39
, 72, 168, 216
Warning Instrument Cluster Descriptions ........ 69, 72
Load Floor, Cargo ........................................................... 58
Load Shed Battery Saver Mode..................................... 66
Load Shed Battery Saver On ......................................... 66 Load Shed Electrical Load Reduction ........................... 66Load Shed Intelligent Battery Sensor ........................... 66Loading Vehicle ....................................................... 58
, 93
Tires ......................................................................... 221
Locks Child Protection ......................................................... 16
Manual ....................................................................... 16
Power Door ................................................................ 16
Low Tire Pressure System............................................ 131
Lubrication, Body.......................................................... 200
Lug Nuts ........................................................................ 235
MMaintenance Free Battery ........................................... 196
Maintenance Schedule ................................................ 192
Malfunction Indicator Light (Check Engine) .......... 70
, 74
Manual Park Release ........................................................... 188
Service ..................................................................... 243

23_RUV_OM_EN_US_t.book Page 248

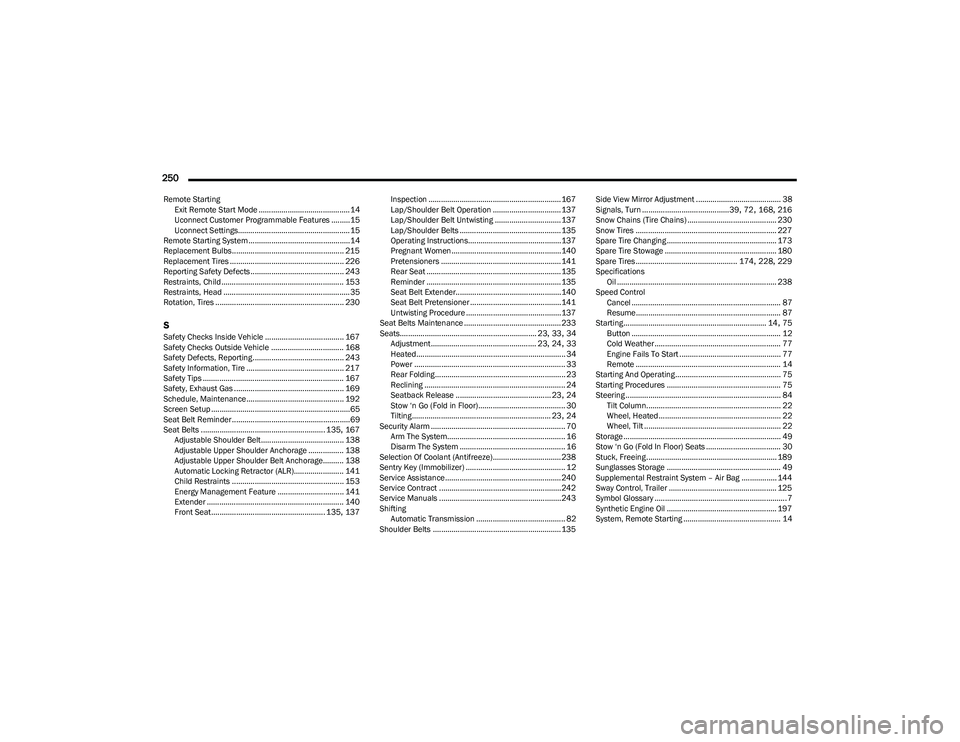

250
Remote StartingExit Remote Start Mode ............................................14
Uconnect Customer Programmable Features .........15
Uconnect Settings...................................................... 15
Remote Starting System.................................................14
Replacement Bulbs...................................................... 215
Replacement Tires ....................................................... 226
Reporting Safety Defects............................................. 243
Restraints, Child ........................................................... 153
Restraints, Head ............................................................. 35
Rotation, Tires .............................................................. 230
SSafety Checks Inside Vehicle ...................................... 167
Safety Checks Outside Vehicle ................................... 168
Safety Defects, Reporting............................................ 243
Safety Information, Tire ............................................... 217
Safety Tips .................................................................... 167
Safety, Exhaust Gas ..................................................... 169
Schedule, Maintenance............................................... 192
Screen Setup ...................................................................65
Seat Belt Reminder.........................................................69 Seat Belts ............................................................ 135
, 167
Adjustable Shoulder Belt........................................ 138
Adjustable Upper Shoulder Anchorage ................. 138
Adjustable Upper Shoulder Belt Anchorage.......... 138
Automatic Locking Retractor (ALR)........................ 141
Child Restraints ...................................................... 153
Energy Management Feature ................................ 141
Extender .................................................................. 140
Front Seat....................................................... 135
, 137 Inspection ................................................................ 167
Lap/Shoulder Belt Operation ................................. 137
Lap/Shoulder Belt Untwisting ................................ 137
Lap/Shoulder Belts ................................................. 135
Operating Instructions............................................. 137Pregnant Women..................................................... 140Pretensioners .......................................................... 141
Rear Seat ................................................................. 135
Reminder ................................................................. 135
Seat Belt Extender...................................................140
Seat Belt Pretensioner ............................................141
Untwisting Procedure .............................................. 137
Seat Belts Maintenance ............................................... 233
Seats.................................................................. 23
, 33, 34
Adjustment................................................... 23, 24, 33
Heated........................................................................ 34
Power ......................................................................... 33
Rear Folding............................................................... 23
Reclining .................................................................... 24
Seatback Release .............................................. 23
, 24
Stow ‘n Go (Fold in Floor).......................................... 30
Tilting ................................................................... 23
, 24
Security Alarm ................................................................. 70 Arm The System......................................................... 16
Disarm The System ................................................... 16
Selection Of Coolant (Antifreeze)................................. 238
Sentry Key (Immobilizer) ................................................ 12
Service Assistance........................................................ 240
Service Contract ...........................................................242
Service Manuals ...........................................................243
Shifting Automatic Transmission ........................................... 82
Shoulder Belts .............................................................. 135 Side View Mirror Adjustment ......................................... 38
Signals, Turn .......................................... 39
, 72, 168, 216
Snow Chains (Tire Chains) ........................................... 230
Snow Tires .................................................................... 227
Spare Tire Changing ..................................................... 173
Spare Tire Stowage ...................................................... 180
Spare Tires ................................................. 174
, 228, 229
Specifications Oil ............................................................................. 238
Speed Control Cancel ........................................................................ 87
Resume...................................................................... 87
Starting..................................................................... 14
, 75
Button ........................................................................ 12
Cold Weather............................................................. 77
Engine Fails To Start ................................................. 77
Remote ...................................................................... 14
Starting And Operating................................................... 75
Starting Procedures ....................................................... 75 Steering ........................................................................... 84 Tilt Column................................................................. 22
Wheel, Heated ........................................................... 22
Wheel, Tilt .................................................................. 22
Storage ............................................................................ 49 Stow ‘n Go (Fold In Floor) Seats .................................... 30
Stuck, Freeing............................................................... 189
Sunglasses Storage ....................................................... 49Supplemental Restraint System – Air Bag ................. 144
Sway Control, Trailer .................................................... 125
Symbol Glossary ................................................................7
Synthetic Engine Oil ..................................................... 197
System, Remote Starting ............................................... 14

23_RUV_OM_EN_US_t.book Page 250
