ENGINECHECKING AND SETTING THE VALVE TIMING
Engines: 6FZ - RFN
Checking the setting of the timing (continued).
A:Pegging on the manualgearbox.
B:Pegging on the automaticgearbox.
Turn the engine by means of the crankshaft pinion screw, to bring it to the pegging position.
Peg the crankshaft, using tool [2].
Peg the camshaft pulleys, using tool [3].
NOTE:The pegs[3]should go in without effort.
WARNING: If the pegs go in only with difficulty, repeat the operation for fitting and
tensioning the timing belt
(see corresponding operation).
Refitting.
Remove tools [2]and [3].
Complete the refitting in reverse order to removal.
B1BP2V3D
B1EP1BAC
XSARA - XSARA PICASSO
Angl.-t2-page135-239-2005 9/01/06 10:14 Page 218

Downloaded from www.Manualslib.com manuals search engine 270
ENGINECHECKING AND SETTING THE VALVE TIMING
Engines: RHY - RHZ
Remove:
- Tools [3]and [5], Screw (7)and the spacer.
Refit:
- The lower, intermediate and upper covers (5).
- Screw (7), tighten to 1,5 ± 0,1 m.daN.
- Screws (3), (4)and (6).
- The bracket (13).
Screws (11), tighten to 6,1 ± 0,5 m.daN.
The nut (12), tighten to 4,5 ± 0,5 m.daN.
Fit the bearing shell (10).
Take away the workshop hoist.
Clip the fuel delivery and return pipes.
Remove the tool [7].
Couple:
- The fuel delivery pipe (12).
- The fuel return pipe (1).
- Coat the screw (8)with loctite FRENETANCH.
Refit the tool [6]and the screw (8)with the washer (22), tighten to 7 ± 0,2 m.daN
and angular tighten to A= 60°±5°.
Refit the torque reaction rod on the lower engine support.
Remove the tool [6].
Reposition and reclip the cooling hose.
Complete the refitting of components in reverse order to removal.
B1EP1A7CB1BP2R4CB1EP1ADC
XSARA - XSARA PICASSO
Angl.-t2-page240-282-2005 9/01/06 10:16 Page 270

Downloaded from www.Manualslib.com manuals search engine 319
CLUTCH
GEARBOX
TRANSMISSION
TIGHTENING TORQUES: MA/5 GEARBOX
Engines: KFU - NFU
Tightening torques (m.daN).
(1)Gearbox fixings on engine: 4,5 ± 0,5
(2)Reverse gear switch: 2,5 ± 0,2
(3)Drain plug: 3,3 ± 0,3
(4)5th gear housing fixing: 2,2 ± 0,2
(5)Fixing of gearbox housing and clutch housing: 1,9 ± 0,2
B2CP3ZHD
C4
Angl.-t2-page306-360-2005 9/01/06 10:20 Page 319

Downloaded from www.Manualslib.com manuals search engine 323
CLUTCH
GEARBOX
TRANSMISSION
MA/5 GEARBOX SPECIFICATIONS
Engines: KFW - NFU
Tightening torques (m.daN).
(29) Top-up plug (x1): 2,5 ± 0,5
(30)Drain plug
(x1): 2,5 ± 0,5
(31)Reverse gear switch
(x1): 2,5 ± 0,5
B2CP169D
XSARA
Angl.-t2-page306-360-2005 9/01/06 10:20 Page 323

Downloaded from www.Manualslib.com manuals search engine 324
CLUTCH
GEARBOX
TRANSMISSION

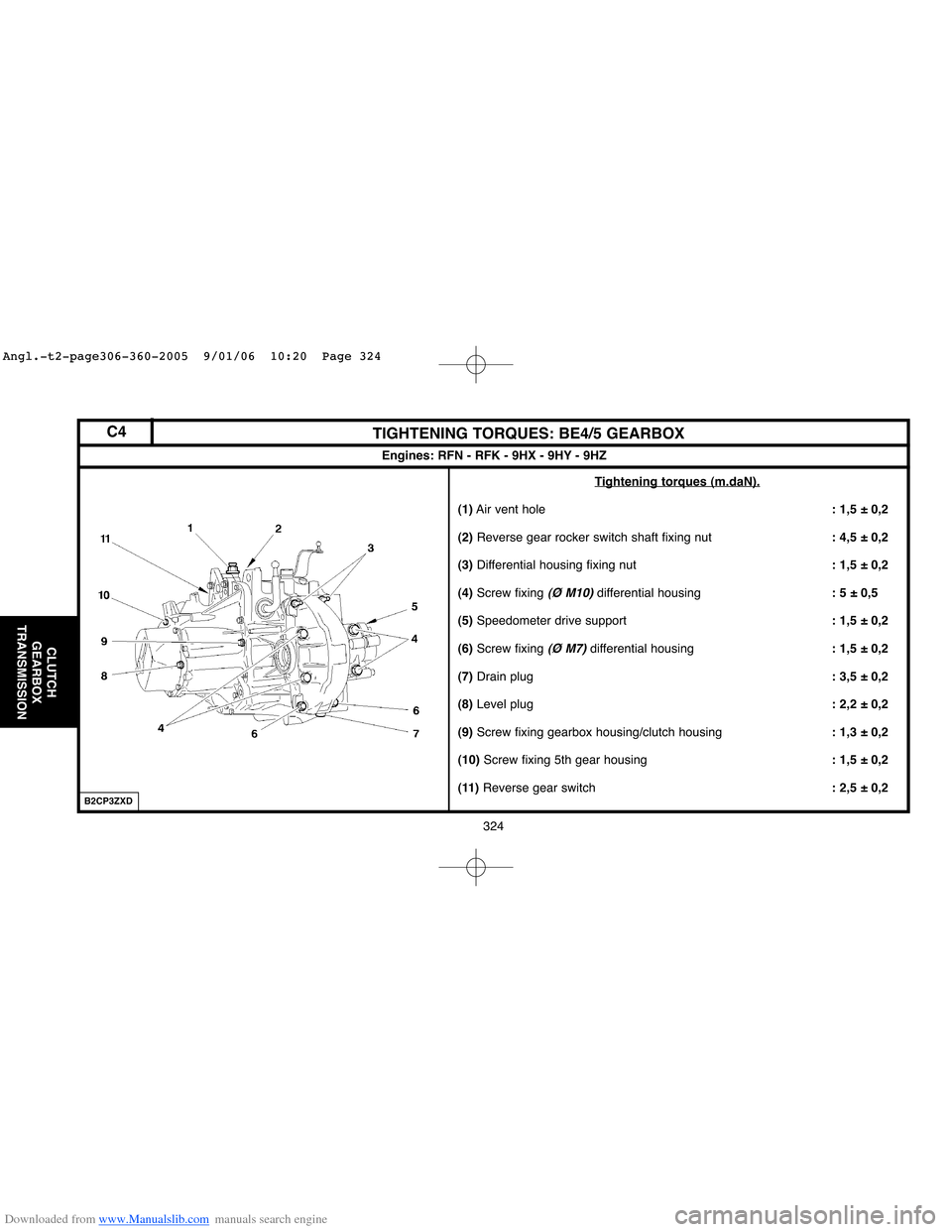

TIGHTENING TORQUES: BE4/5 GEARBOX
Engines: RFN - RFK - 9HX - 9HY - 9HZ
Tightening torques (m.daN).
(1)Air vent hole : 1,5 ± 0,2
(2)Reverse gear rocker switch shaft fixing nut: 4,5 ± 0,2
(3) Differential housing fixing nut: 1,5 ± 0,2
(4)Screw fixing
(Ø M10)differential housing: 5 ± 0,5
(5)Speedometer drive support: 1,5 ± 0,2
(6)Screw fixing
(Ø M7)differential housing: 1,5 ± 0,2
(7)Drain plug : 3,5 ± 0,2
(8)Level plug: 2,2 ± 0,2
(9)Screw fixing gearbox housing/clutch housing: 1,3 ± 0,2
(10) Screw fixing 5th gear housing: 1,5 ± 0,2
(11)Reverse gear switch: 2,5 ± 0,2
B2CP3ZXD
C4
Angl.-t2-page306-360-2005 9/01/06 10:20 Page 324

Downloaded from www.Manualslib.com manuals search engine 327
CLUTCH
GEARBOX
TRANSMISSION
TIGHTENING TORQUES: BE4/5 GEARBOX
Engines: 6FZ - RFN - WJY - 8HX - 8HZ - 9HY - 9HZ - RHY - RHZ
T
ightening torques (m.daN).
(23)Clutch bearing guide (3 screws): 1,25 ± 0,2
(24)Clutch housing
(13 screws): 1,3 ± 0,2
(25)Primary shaft nut
(1 screw): 7,25 ± 0,5
(26)Secondary shaft nut
(1 screw): 6,5 ± 0,5
(27)Yoke retaining screw
(2 screws): 1,5 ± 0,2
(28)Differential gearwheel screw
(2 screws): 6,5 ± 0,5
Reverse gear switch (1 screw): 2,5 ± 0,3
(29)Differential housing
(4 screws): 5 ± 0,5
(30)Breather pipe: 1,7 ± 0,2
(31)Rear housing cover screws
(7 screws): 1,25 ± 0,2
(32)Top-up plug
(1 screw): 2,2 ± 0,2
(33) Differential housing screws
(4 screws): 1,25 ± 0,2
(34)Drain plug
(1 screw): 3,5 ± 0,3
B2CP3BRD
XSARA - XSARA PICASSO
Angl.-t2-page306-360-2005 9/01/06 10:20 Page 327

Downloaded from www.Manualslib.com manuals search engine 329
CLUTCH
GEARBOX
TRANSMISSION
TIGHTENING TORQUES: ML6 GEARBOX
Engine: RHR
Tightening torques (m.daN).
(5)Reverse gear switch: 2,5 ± 0,5
(6)Level plug: 3 ± 0,2
(7)Drain plug: 3 ± 0,3
(8)Differential bearing stop plate screw: 3 ± 0,3
(9)Screw fixing gearbox housing / clutch housing: 3 ± 0,3
(10) 6thgear housing fixing screw: 2 ± 0,2
(11)Differential housing fixing
(screws M8): 1,8 ± 0,3
(12)Differential housing fixing
(screws M10): 4 ± 0,8
B2CP3ZMP
C4
Angl.-t2-page306-360-2005 9/01/06 10:20 Page 329

Downloaded from www.Manualslib.com manuals search engine 341
CLUTCH
GEARBOX
TRANSMISSION
ML6 GEARBOX CONTROLS
Engine: RHR
Gear controls.
(1)Gear engagement ball-joint Ø 10 mm
(2)Gear selection ball-joint Ø 10 mm
(3)Gear engagement control cable
(4)Gear control lever
(5)Gear selection control cable
(6)Reverse gear unlocking cable
(7)O-ring seal
(8)Reverse gear unlocking device
B2CP3ZPD
C4
Angl.-t2-page306-360-2005 9/01/06 10:20 Page 341

Downloaded from www.Manualslib.com manuals search engine 352
CLUTCH
GEARBOX
TRANSMISSION
AL4 GEARBOX CONTROLS
In passenger compartment.
The gear selector is guided by the shape of the stepped gate and by a retaining spring
which pulls it to the left hand side.
The gear selector control has 5 positions.
Position «P»: Park
(locking and immobilisation of the vehicle).
Position «R»: Reverse gear.
Position «N»: Neutral.
Position «D»: Drive
(use of the 4 gearsin their autoadaptive automatic function).
Position «M»: Manual (this position lets the driver select his own gears in sequential mode
by pulling the gear selector to «M-»or pushing it to «M+»).
NOTE:Only the positions «P»or «N»authorise the starting of the engine.
In position «M», selection is by an electronic sensor located close to the gear lever.
The variation of flux necessary to the movement of the sensor cells is obtained by a
magnet located on the lever itself. This enables the change of status.
Engines: KFV - RFN
XSARA PICASSO
B2CP3MUD
Angl.-t2-page306-360-2005 9/01/06 10:20 Page 352

Downloaded from www.Manualslib.com manuals search engine 354
CLUTCH
GEARBOX
TRANSMISSION
AL4 GEARBOX CONTROLS
In passenger compartment.
The selector control has 6 positions.
The gear selector is guided by the shape of the stepped gate and by a retaining spring
which pulls it to the left hand side.
Push the lever to the right to exit from position «P».
NOTE: The vehicle is equipped with the «shift lock»: you have to switch on the ignition
and press the brake pedal to unlock the selector lever from position «P».
P:Park
(system locked).
R:Reverse gear.
N:Neutral.
D:Automatic
(1st to 4th gear).
3:Automatic (1st to 3rd gear).
2:Automatic (1st to 2nd gear).
A switch located to the left of the gear control allows the driver to choose from these
programmes:
- Normal: Conventional use of the automatic gearbox.
- Sport:This programme favours performance.
- Snow:In position «D», starting is in 2ndgear for diesel and in 3rdgear for petrol.
NOTE:Only the positions «P»or «N»authorise the starting of the engine.
Engines: NFU - RFN - RHZ
XSARA
B2CP3ADC
