ENGINE
B1EP18UD
B1BP3ACD
AUXILIARY EQUIPMENT DRIVE BELT
Engines: 9HX - 9HY - 9HZ
Refitting.
WARNING: Belt to be re-used, mark the direction of fitting of the belt.
Refit the auxiliaries drive belt.
Compress the tensioner roller (1)by acting at «c»
(clockwise), using tool [1].
Remove tool [2].
IMPERATIVE: Make sure that the auxiliaries drive belt is correctly positioned in the grooves
of the various pulleys.
Refit:
- The front RH wheel.
- The sound-deadening under the engine.
- Reconnect the battery.
IMPERATIVE: Carry out the operations that are necessary following a reconnection of the
battery
(see corresponding operation).
C4
Angl.-t2-page135-239-2005 9/01/06 10:14 Page 168

Downloaded from www.Manualslib.com manuals search engine 264
ENGINECHECKING AND SETTING THE VALVE TIMING
Tools.
[1]Belt tension measuring equipment : 4122-T
[2]Tension lever: (-).0188.J2
[3]Engine flywheel peg: (-).0188.Y
[4] Belt clamp: (-).0188.AD
[5]Camshaft pulley peg: (-).0188.M
[6] Engine flywheel lock: (-).0188.F
[7] Set of blocking plugs: (-).0188.T
[8] Pulley extractor: (-).0188.P
[9] 2 mm Øpeg: (-).0188.Q2Removing.
IMPERATIVE: Respect the safety and cleanliness requirements
that are specific to high pressure diesel injection (HDi) engines.
Undo the front RH wheel bolts.
Raise and support the vehicle on the front RH side.
Disconnect the battery negative terminal.
Remove:
- The under-engine sound-deadening.
- The front RH wheel.
- The front RH splash-shield.
- The engine cover.
Unclip and move aside the cooling hose.
Remove the accessories drive belt
(see corresponding operation).
XSARA - XSARA PICASSO
Engines: RHY - RHZ
Angl.-t2-page240-282-2005 9/01/06 10:16 Page 264

Downloaded from www.Manualslib.com manuals search engine 271
ENGINE

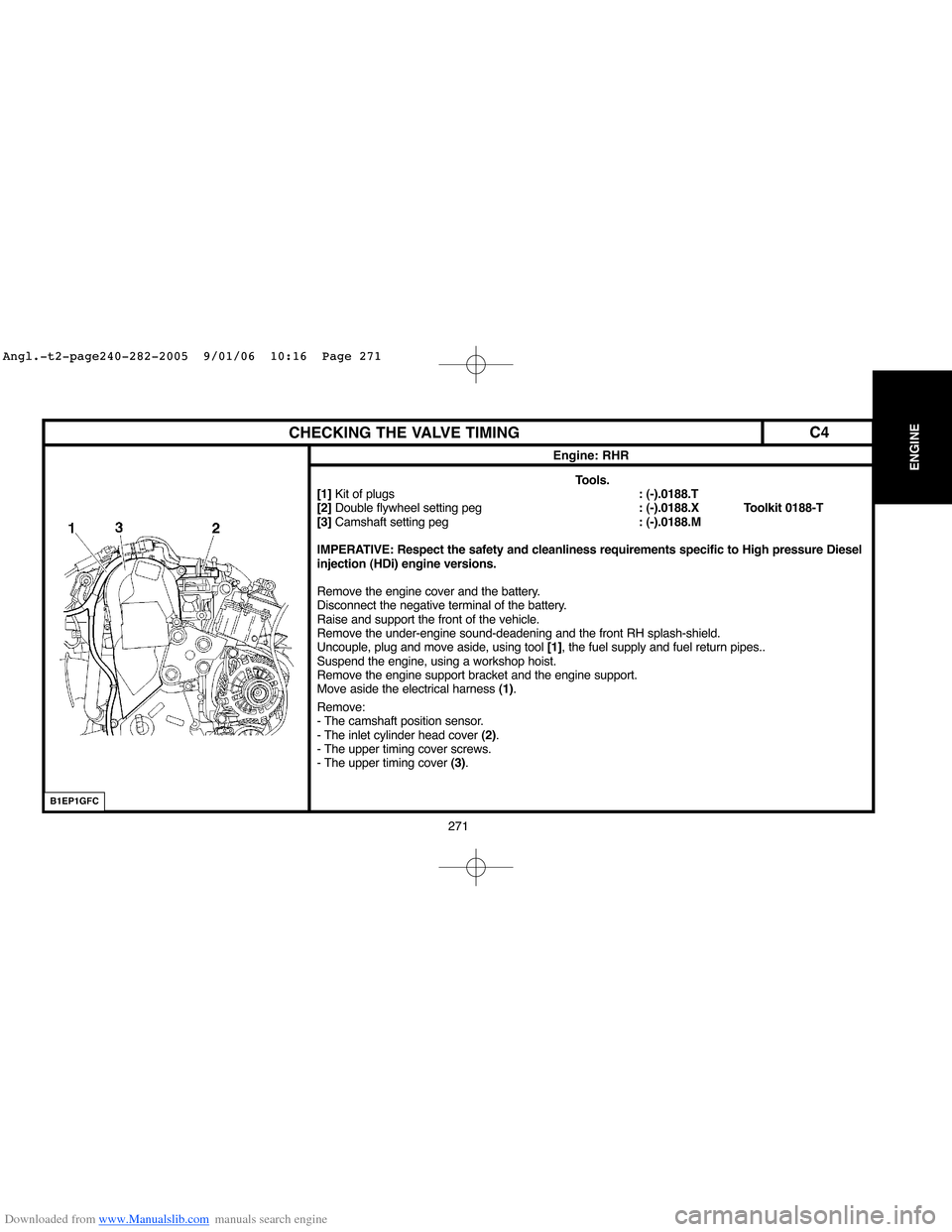

CHECKING THE VALVE TIMING
Engine: RHR
Tools.
[1] Kit of plugs: (-).0188.T
[2] Double flywheel setting peg: (-).0188.X Toolkit 0188-T
[3]Camshaft setting peg: (-).0188.M
IMPERATIVE: Respect the safety and cleanliness requirements specific to High pressure Diesel
injection (HDi) engine versions.
Remove the engine cover and the battery.
Disconnect the negative terminal of the battery.
Raise and support the front of the vehicle.
Remove the under-engine sound-deadening and the front RH splash-shield.
Uncouple, plug and move aside, using tool [1], the fuel supply and fuel return pipes..
Suspend the engine, using a workshop hoist.
Remove the engine support bracket and the engine support.
Move aside the electrical harness (1).
Remove:
- The camshaft position sensor.
- The inlet cylinder head cover (2).
- The upper timing cover screws.
- The upper timing cover (3).
B1EP1GFC
C4
Angl.-t2-page240-282-2005 9/01/06 10:16 Page 271

Downloaded from www.Manualslib.com manuals search engine 273
ENGINE
CHECKING AND SETTING THE VALVE TIMING
Engine: RHR
Tools.
[1]Kit of plugs: (-).0188.T
[2]Double flywheel setting peg: (-).0188.X
[3]Camshaft setting peg: (-).0188.M
[4]Belt clamp: (-).0188.AD
[5]Pinion centrer: (-).0188.AH
[6]Flywheel lock: (-).0188.F
[7]Pulley(-).0188.P
IMPERATIVE: Respect the safety and cleanliness requirements specific to High pressure Diesel injection (HDi) engine versions.
Removing.
Slacken the front RH wheel bolts.
Raise and support the front RH side of the vehicle.
Disconnect the negative terminal of the battery.
Remove:
- The under-engine sound-deadening.
- The front RH wheel.
- The front RH splash-shield.
- The engine cover.
Remove the auxiliaries drive belt
(see corresponding operation).
C4
