ENGINE
SPECIAL FEATURES - TIGHTENING TORQUES (m.daN)
Lubrication
16 Oil pump screw 1,6 ± 0,1
17 Piston skirt spray jet screw 1 ± 0,1
18 Drain plug 3,4 ± 0,4
Oil sump (length 40 mm )
19Pre-tightening1
Tightening1,6 ± 0,3
Oil sump (length 21 mm)
20Pre-tightening1
Tightening1,6 ± 0,3
21 Electric oil gauge 2,7 ± 0,2
Engine: RHR
B1CP0GPP
C4
Angl.-t2-page135-239-2005 9/01/06 10:13 Page 143

Downloaded from www.Manualslib.com manuals search engine 148
ENGINESPECIAL FEATURES - CYLINDER HEAD TIGHTENING
Engines all types
B1DP05BC
Cleaning to be carried out just prior to refitting the cylinder head.
WARNING: Clean the contact faces with the approved CITROËN cleaning product.
Do not use abrasives or cutting tools on the contact faces.
The contact faces must not bear any traces of impact or scratching.
Insert a tap in the threads of the holes in the cylinder block receiving the cylinder head bolts.
Brush the threads of the cylinder head bolts..
Oil the threads and under the heads of the bolts, usingMOLYKOTE G RAPID PLUS.
EnginesTightening Cylinder head bolts
(m.daN)(Max. reusable length in mm)
NFUTightening2 ± 0,2
Angular tightening260° ± 5°122 ± 0,3
Pre-tightening1,5 ± 0,2
KFUTightening2,5 ± 0,2 119
Angular tightening200° ± 5°
6FZ - RFNPre-tightening1,5 ± 0,1
147
Tightening5 ± 0,1
RFJAngular slackening360° ± 2° 127,5 ± 0,5
Tightening2 ± 0,75
RFKAngular tightening285° ± 5° 144,5 ± 0,5
NOTE: Tightening of the cylinder head after a repair is prohibited.
Angl.-t2-page135-239-2005 9/01/06 10:13 Page 148

Downloaded from www.Manualslib.com manuals search engine 149
ENGINE
SPECIAL FEATURES - CYLINDER HEAD TIGHTENING
Engines all types
B1DP05BC
Cleaning to be carried out just prior to refitting the cylinder head.
WARNING: Clean the contact faces with the approved CITROËN cleaning product.
Do not use abrasives or cutting tools on the contact faces.
The contact faces must not bear any traces of impact or scratching.
Insert a tap in the threads of the holes in the cylinder block receiving the cylinder head bolts.
Brush the threads of the cylinder head bolts..
Oil the threads and under the heads of the bolts, using MOLYKOTE G RAPID PLUS.
EnginesTightening Cylinder head bolts
(m.daN)(Max. reusable length in mm)
Pre-tightening2 ± 0,2
WJYTightening6 ± 0,6 125,5
Angular tightening180° ± 5°
Pre-tightening2 ± 0,2
RHY - RHZTightening6 ± 0,6 133,3
Angular tightening220° ± 5°
Pre-tightening2 ± 0,2
Tightening6 ± 0,6
RHRSlackening360° 134,5
Pre-tightening2 ± 0,2
Tightening6 ± 0,6
Angular tightening220° ± 5°
NOTE: Tightening of the cylinder head after a repair is prohibited.
Angl.-t2-page135-239-2005 9/01/06 10:13 Page 149

Downloaded from www.Manualslib.com manuals search engine 150
ENGINESPECIAL FEATURES - CYLINDER HEAD TIGHTENING
Engines all types
B1DP1CLC
Cleaning to be carried out just prior to refitting the cylinder head.
WARNING: Clean the contact faces with the approved CITROËN cleaning product.
Do not use abrasives or cutting tools on the contact faces.
The contact faces must not bear any traces of impact or scratching.
Insert a tap in the threads of the holes in the cylinder block receiving the cylinder head bolts.
Brush the threads of the cylinder head bolts. Oil the threads and under the heads of the bolts, using MOLYKOTE G RAPID PLUS.
EnginesTightening Cylinder head bolts
(m.daN)(Max. reusable length in mm)
Pre-tightening2 ± 0,2
KFW - NFV
Angular tightening240° ± 5°175,5
Pre-tightening2 ± 0,2
8HX - 8HZ
Tightening4 ± 0,4 149
8HY
Angular tightening230° ± 5°
Pre-tightening2 ± 0,2
9HY - 9HZ
Tightening4 ± 0,4 147
9HX
Angular tightening260° ± 5°
NOTE: Tightening of the cylinder head after a repair is prohibited.
B1BP10LC
Angl.-t2-page135-239-2005 9/01/06 10:13 Page 150

Downloaded from www.Manualslib.com manuals search engine 332
CLUTCH
GEARBOX
TRANSMISSION

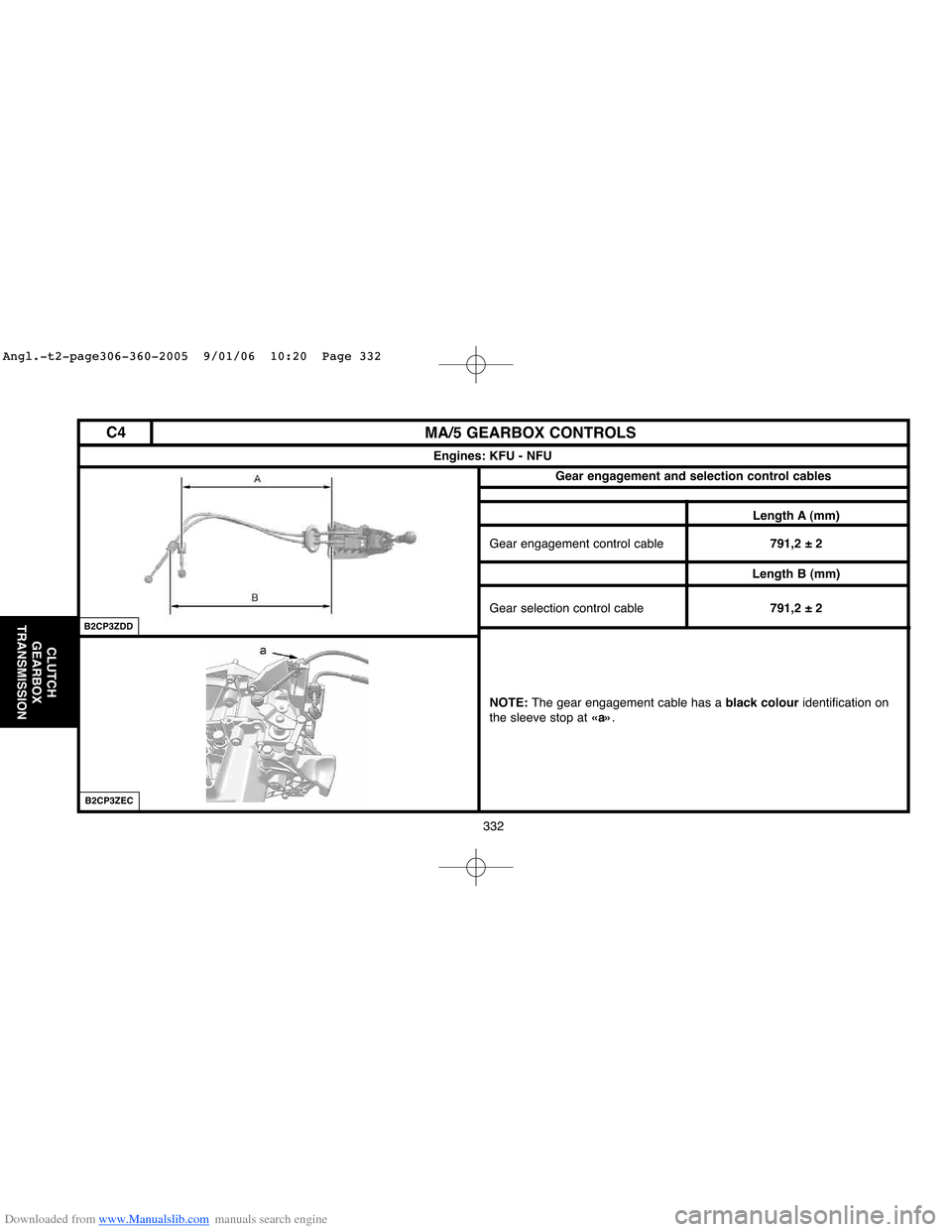

MA/5 GEARBOX CONTROLS
Engines: KFU - NFU
Length A (mm)
Gear engagement control cable791,2 ± 2
Length B (mm)
Gear selection control cable791,2 ± 2
NOTE: The gear engagement cable has a black colouridentification on
the sleeve stop at«a».
Gear engagement and selection control cables
B2CP3ZDD
B2CP3ZEC
C4
Angl.-t2-page306-360-2005 9/01/06 10:20 Page 332

Downloaded from www.Manualslib.com manuals search engine 336
CLUTCH
GEARBOX
TRANSMISSION
BE4/5 GEARBOX CONTROLS
Engines: NFU - RFN - RFK - 9HX - 9HY - 9HZ
Length A (mm)
Gear engagement control cable643 ± 2
Length B (mm)
Gear selection control cable670 ± 2
NOTE:The gear engagement cable has a black colouridentification
on the sleeve stop at «a».
B2CP3Z1CB2CP3Z2C
C4
Angl.-t2-page306-360-2005 9/01/06 10:20 Page 336

Downloaded from www.Manualslib.com manuals search engine 339
CLUTCH
GEARBOX
TRANSMISSION
CHECKS AND ADJUSTMENTS: BE4/5 GEARBOX CONTROLS
Principles of adjusting the gear controls.
WARNING: Cables should be adjusted each time the gearbox, gear controls or power unit are
removed.
Principles.
Lock the gear lever in neutral position, using tool: 9607-T.
Place the gearbox in neutral.
Couple the cables on the lever.
Fit the ball-joints on the gearbox lever.
Lock the cable lengths with the ball-joint locking keys.
WARNING: Do not use any tool to unclip the ball-joints.
To unlock the ball-joint, press at the centre «a», then pull the ball-joint upwards.
NOTE:Changing an individual ball-joint is possible as long as the locking key is removed.
Unclip at «b», using two small screwdrivers.
Engines: NFV - 6FZ - RFN - WJY - 8HX - 8HZ - 9HY - 9HZ - RHY - RHZ
XSARA - XSARA PICASSO
B2CP3BXC
B2CP3BYC
Angl.-t2-page306-360-2005 9/01/06 10:20 Page 339

Downloaded from www.Manualslib.com manuals search engine 340
CLUTCH
GEARBOX
TRANSMISSION
CHECKS AND ADJUSTMENTS: BE4/5 GEARBOX CONTROLS
Tools.
[1]Tool for positioning the gear lever: 9607-T
Adjustments.
WARNING: Cables should be adjusted each time
the gearbox, gear controls or power unit are
removed.
Inside the vehicle.
Remove the trim under the gear lever.
Lock the gear lever in neutral position, using tool [1].
Under the bonnet.
Remove the air filter assembly.
Unlock the ball-joint keys at «a».
Place the gear selection and control levers on neutral.
Lock the cable lengths with the ball-joint locking keys.Checks.
Remove the tool [1].
Check that all the gears engage without «tightness».
Check that the gear lever moves identically forwards
and backwards and to right and left.
If it does not, repeat the adjustment.
Refit the trim under the gear lever.
Refit the air filter assembly.
Adjusting the gear controls Engines: NFV - 6FZ - RFN - WJY - 8HX - 8HZ - 9HZ - 9HY - RHY - RHZ
XSARA - XSARA PICASSO
B2CP3C6CB2CP3C0C
Angl.-t2-page306-360-2005 9/01/06 10:20 Page 340

Downloaded from www.Manualslib.com manuals search engine 342
CLUTCH
GEARBOX
TRANSMISSION

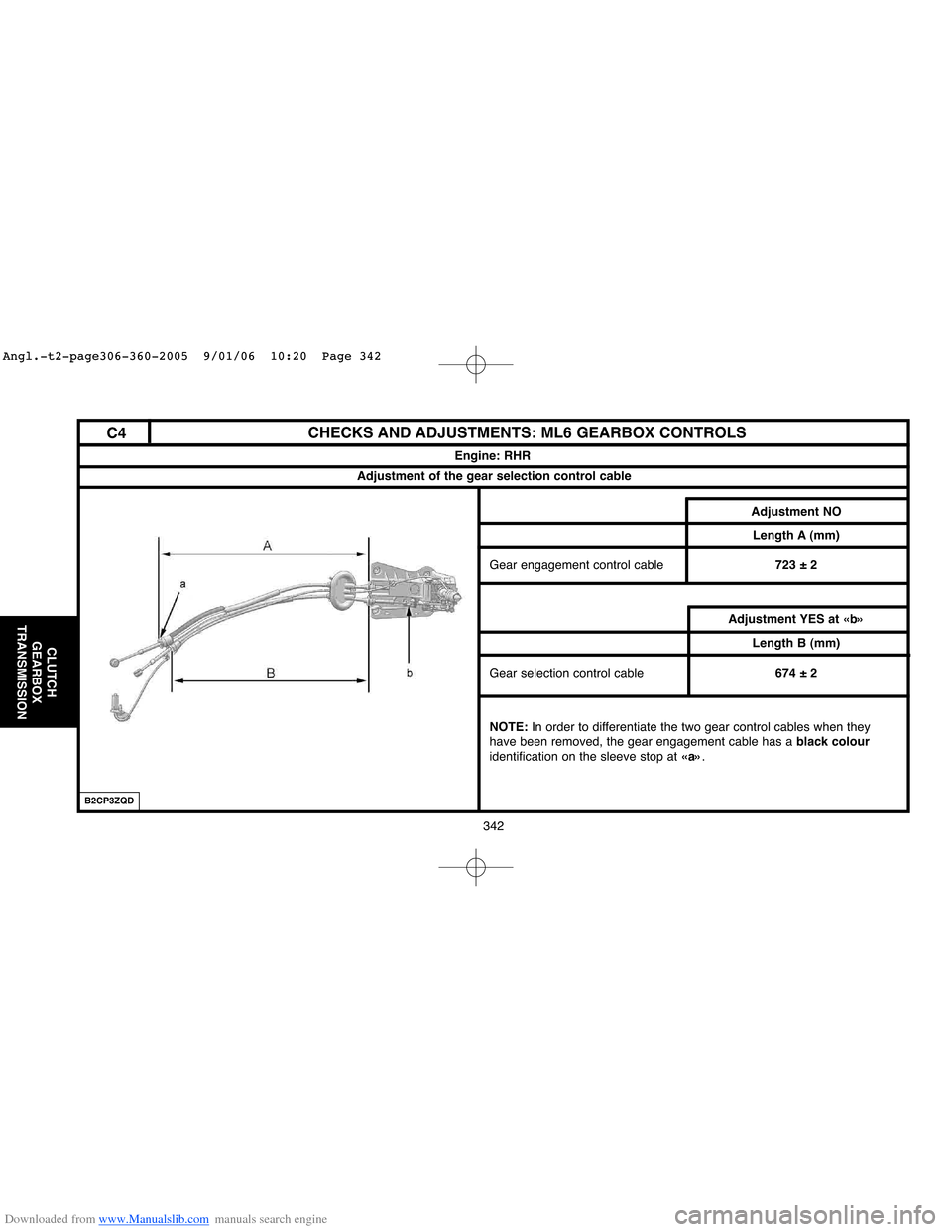

CHECKS AND ADJUSTMENTS: ML6 GEARBOX CONTROLS
Engine: RHR
B2CP3ZQD
Adjustment NO
Length A (mm)
Gear engagement control cable723 ± 2
Adjustment YES at «b»
Length B (mm)
Gear selection control cable674 ± 2
NOTE:In order to differentiate the two gear control cables when they
have been removed, the gear engagement cable has a black colour
identification on the sleeve stop at «a».
Adjustment of the gear selection control cable
C4
Angl.-t2-page306-360-2005 9/01/06 10:20 Page 342
