Page 131 of 153
126
Snow screen
6. REFITTING THE REPAIRED WHEEL
T h e w h e e l i s r e fi t t e d a s d e s c r i b e d i n
s t e p 5 , n o t f o r g e t t i n g t o r e fi t t h e w h e e l
trim.
R e f e r t o t h e " I n s t r u m e n t s a n d
c o n t r o l s " s e c t i o n o f c h a p t e r 2 ,
" T y r e u n d e r - i n fl a t i o n d e t e c t i o n "
p a r t , f o r r e c o m m e n d a t i o n s a f t e r
c h a n g i n g a w h e e l fi t t e d w i t h a t y r e
u n d e r - i n fl a t i o n d e t e c t i o n s e n s o r . R e f e r t o t h e " I d e n t i fi c a t i o n
f e a t u r e s " s e c t i o n o f c h a p t e r 9 t o
locate the tyre label.
REMOVABLE SNOW SCREEN
According to country, the removable
snow screen is installed on the lower
p a r t o f t h e f r o n t b u m p e r t o p r e v e n t t h e
accumulation of snow at the radiator
cooling fan.
Do not forget to remove the snow
s c r e e n w h e n t h e e x t e r i o r t e m p e r a t u r e
i s h i g h e r t h a n 1 0 ° C ( n o r i s k o f
snowfall) and when towing.
FITTING
REMOVAL
- Pass a screwdriver into the hole
l o c a t e d n e a r e a c h o f t h e c l i p s .
- Use the screwdriver as a lever to u n c l i p t h e f o u r c l i p s B in turn.
- O f f e r u p t h e s n o w s c r e e n f a c i n g i t s
c e n t r i n g p i n A o n t h e f r o n t b u m p e r .
- P u t i t i n p l a c e b y p r e s s i n g a t e a c h c l i p B located in the four corners.
T h e s p a r e w h e e l i s n o t d e s i g n e d
to be used over long distances.
Have the tightening of the bolts
a n d t h e t y r e p r e s s u r e c h e c k e d b y a
C I T R O Ë N d e a l e r a s s o o n a s p o s s i b l e .
A l s o , h a v e t h e o r i g i n a l w h e e l r e p a i r e d
a n d r e fi t t e d b y a C I T R O Ë N d e a l e r a s
s o o n a s p o s s i b l e .
Page 132 of 153
126
Snow screen
6. REFITTING THE REPAIRED WHEEL
T h e w h e e l i s r e fi t t e d a s d e s c r i b e d i n
s t e p 5 , n o t f o r g e t t i n g t o r e fi t t h e w h e e l
trim.
R e f e r t o t h e " I n s t r u m e n t s a n d
c o n t r o l s " s e c t i o n o f c h a p t e r 2 ,
" T y r e u n d e r - i n fl a t i o n d e t e c t i o n "
p a r t , f o r r e c o m m e n d a t i o n s a f t e r
c h a n g i n g a w h e e l fi t t e d w i t h a t y r e
u n d e r - i n fl a t i o n d e t e c t i o n s e n s o r . R e f e r t o t h e " I d e n t i fi c a t i o n
f e a t u r e s " s e c t i o n o f c h a p t e r 9 t o
locate the tyre label.
REMOVABLE SNOW SCREEN
According to country, the removable
snow screen is installed on the lower
p a r t o f t h e f r o n t b u m p e r t o p r e v e n t t h e
accumulation of snow at the radiator
cooling fan.
Do not forget to remove the snow
s c r e e n w h e n t h e e x t e r i o r t e m p e r a t u r e
i s h i g h e r t h a n 1 0 ° C ( n o r i s k o f
snowfall) and when towing.
FITTING
REMOVAL
- Pass a screwdriver into the hole
l o c a t e d n e a r e a c h o f t h e c l i p s .
- Use the screwdriver as a lever to u n c l i p t h e f o u r c l i p s B in turn.
- O f f e r u p t h e s n o w s c r e e n f a c i n g i t s
c e n t r i n g p i n A o n t h e f r o n t b u m p e r .
- P u t i t i n p l a c e b y p r e s s i n g a t e a c h c l i p B located in the four corners.
T h e s p a r e w h e e l i s n o t d e s i g n e d
to be used over long distances.
Have the tightening of the bolts
a n d t h e t y r e p r e s s u r e c h e c k e d b y a
C I T R O Ë N d e a l e r a s s o o n a s p o s s i b l e .
A l s o , h a v e t h e o r i g i n a l w h e e l r e p a i r e d
a n d r e fi t t e d b y a C I T R O Ë N d e a l e r a s
s o o n a s p o s s i b l e .
Page 133 of 153
127
TROUBLESHOOTING
8
Changing a bulb
CHANGING A BULB
Type B
B a y o n e t b u l b : p r e s s
on the bulb then turn it
a n t i c l o c k w i s e .
Type A
E n t i r e l y g l a s s b u l b : p u l l
g e n t l y a s i t i s fi t t e d b y
p r e s s u r e .
O p e n t h e b o n n e t . T o a c c e s s t h e b u l b s ,
r e a c h b e h i n d t h e h e a d l a m p u n i t .
C a r r y o u t t h e o p e r a t i o n s i n r e v e r s e
o r d e r t o r e fi t e a c h b u l b a n d c h e c k t h a t
the bonnet is closed securely.
Type C
Halogen bulb: release the
r e t a i n i n g s p r i n g f r o m i t s
housing.
Halogen bulbs must be changed
w i t h t h e h e a d l a m p o f f . W a i t a f e w
m i n u t e s ( r i s k o f s e r i o u s b u r n s ) .
Do not touch the bulb directly with your
fi n g e r s , u s e l i n t - f r e e c l o t h s .
It is normal for condensation to form
i n s i d e t h e h e a d l a m p s . R e g u l a r u s e o f
the vehicle eliminates this misting. T h e b u l b s m u s t b e c h a n g e d w i t h
the ignition off or with the battery
d i s c o n n e c t e d . W a i t a p p r o x i m a t e l y
3 m i n u t e s a f t e r c h a n g i n g t h e b u l b
before reconnecting the battery.
C h e c k t h a t t h e l i g h t s o p e r a t e c o r r e c t l y
a f t e r e a c h o p e r a t i o n .
High pressure washing
Types of bulb
V a r i o u s t y p e s o f b u l b a r e i n s t a l l e d o n
y o u r v e h i c l e . T o r e m o v e t h e m :
W h e n u s i n g t h i s t y p e o f w a s h i n g
o n s t u b b o r n d i r t , d o n o t p e r s i s t
o n t h e h e a d l a m p s , t h e l i g h t s a n d
their surround to avoid damaging their
coating and their seal.
Page 134 of 153
128
Changing a bulb
3. Direction indicators
Type B, PY 21 W - 21 W (amber)
- R e m o v e t h e c o v e r b y p u l l i n g t h e fl e x i b l e r u b b e r t a b .
- T u r n t h e b u l b h o l d e r a q u a r t e r t u r n a n t i c l o c k w i s e .
- R e m o v e t h e b u l b b y p r e s s i n g it lightly while turning it
a n t i c l o c k w i s e .
- C h a n g e t h e b u l b .
- E n s u r e t h a t t h e c o v e r i s r e fi t t e d c o r r e c t l y o v e r i t s e n t i r e p e r i p h e r y
to guarantee sealing.
2. Side lights
Type A, W 5 W - 5 W
- R e m o v e t h e c o v e r b y p u l l i n g t h e fl e x i b l e r u b b e r t a b .
- R e m o v e t h e b u l b h o l d e r fi t t e d b y p r e s s u r e b y p u l l i n g t h e c o n n e c t o r .
- C h a n g e t h e b u l b .
- E n s u r e t h a t t h e c o v e r i s r e fi t t e d c o r r e c t l y o v e r i t s e n t i r e p e r i p h e r y
to guarantee sealing.
FRONT LIGHTS
1. Dipped headlamps/Main beam
headlamps
Type C, H4 - 55 W
- R e m o v e t h e c e n t r e c o v e r b y p u l l i n g t h e fl e x i b l e r u b b e r t a b .
- Disconnect the electrical connector.
- R e l e a s e t h e r e t a i n i n g t a b .
- C h a n g e t h e b u l b t a k i n g c a r e t o a l i g n t h e m e t a l p a r t w i t h t h e
grooves on the light.
- R e p o s i t i o n t h e r e t a i n i n g t a b .
- E n s u r e t h a t t h e c o v e r i s r e fi t t e d c o r r e c t l y o v e r i t s e n t i r e p e r i p h e r y
to guarantee sealing.
Page 135 of 153
1 2 9
TROUBLESHOOTING
8
Changing a bulb
4. Fog lamps
Type C, H1 - 55 W
- R e m o v e t h e f o g l a m p b y r e m o v i n g
the bolt, which can be accessed via
t h e h o l e p r o v i d e d f o r t h i s p u r p o s e
i n t h e b u m p e r , u s i n g a T o r x ©
3 0
screwdriver.
- R e m o v e t h e t h r e e m u d g u a r d fi x i n g c l i p s , l o c a t e d b e l o w t h e b u m p e r .
- M o v e t h e m u d g u a r d u p w a r d s .
- U n c l i p t h e f o g l a m p b y s q u e e z i n g t h e c l i p t o r e l e a s e i t .
-
R e m o v e t h e f o g l a m p f r o m t h e o u t s i d e . - T u r n t h e y e l l o w c o v e r a 1 / 4 t u r n t o o p e n . - S e p a r a t e t h e c l i p s w h i c h s e c u r e the base of bulb on each side to
release the bulb.
- R e m o v e t h e b u l b b y p u l l i n g , k e e p i n g i t s t r a i g h t .
- Insert the new bulb, re-tighten the c l i p s a r o u n d t h e b a s e o f t h e b u l b
a n d c a r r y o u t t h e o p e r a t i o n s i n
r e v e r s e o r d e r t o p u t t h e l i g h t u n i t
a n d t h e b u m p e r b a c k i n p o s i t i o n . SIDE REPEATER
Type A, WY 5 W (amber)
- P u s h t h e r e p e a t e r t o w a r d s t h e r e a r a n d d i s e n g a g e i t b y p u l l i n g t h e f r o n t .
- C o n s u l t a C I T R O Ë N d e a l e r t o o b t a i n a n e w r e p e a t e r w h i c h i s a
f u l l y m o u l d e d p a r t .
- T o r e fi t , e n g a g e t h e r e p e a t e r towards the rear and bring it
towards the front.
Front/Rear
COURTESY LIGHTS
Type A, 12 V 5 W - 5 W
- U n c l i p t h e l e n s b y s l i d i n g a screwdriver in the slots on each
side of the courtesy light.
- Pull the bulb and change it.
- C l i p t h e l e n s i n i t s h o u s i n g a n d ensure that it is secured correctly.
Page 136 of 153
1 3 0
Changing a bulb
For further information concerning the
b u l b s , r e f e r t o t h e " T y p e s o f b u l b " .
1. Brake lights/side lights
Type B, P 2 1 / 5 W - 2 1 / 5 W
2. Direction indicators
Type B, PY 21 W - 21 W (amber)
3. Reversing lights
Type B, P21 W - 21 W
4. Fog lamps
Type B, P21 W - 21 W - I d e n t i f y t h e f a u l t y b u l b t h e n o p e n
the rear doors to 180°.
R e f e r t o t h e " A c c e s s e s " s e c t i o n o f c h a p t e r 2 .
- R e m o v e t h e t w o fi x i n g b o l t s u s i n g t h e s c r e w d r i v e r s t o r e d i n t h e t o o l k i t
under the right-hand seat.
- Pull the light unit from the outside.
- Holding the light, disconnect the electrical connector. - M o v e a s i d e t h e 4 t a b s t h e n e x t r a c t
the bulb holder.
- R e m o v e t h e f a u l t y b u l b b y p r e s s i n g i t l i g h t l y w h i l e t u r n i n g i t
a n t i c l o c k w i s e .
- C h a n g e t h e b u l b .
When removing the light unit:
- w i t h t a i l g a t e , p u l l t h e l i g h t u n i t
towards the centre of the vehicle,
- w i t h h i n g e d d o o r s , p u l l t h e l i g h t u n i t towards you.
W h e n r e fi t t i n g , t a k e c a r e t o
r e p o s i t i o n t h e t a b s a n d t h e s u p p l y
w i r e c o r r e c t l y t o a v o i d t r a p p i n g t h e
wire.
After changing the rear direction
indicator bulb, the reinitialisation time is
m o r e t h a n a p p r o x i m a t e l y 2 m i n u t e s .
REAR LIGHTS
High pressure washing
W h e n u s i n g t h i s t y p e o f w a s h i n g
o n s t u b b o r n d i r t , d o n o t p e r s i s t
o n t h e h e a d l a m p s , t h e l i g h t s a n d
their surround to avoid damaging their
coating and their seal.
Page 137 of 153
1 3 1
TROUBLESHOOTING
8
Changing a bulb
NUMBER PLATE LIGHTS
- Unscrew the two nuts.
- P u s h t h e p i n s .
- If necessary, disconnect the connector to remove the light.
- C h a n g e t h e b u l b .
With tailgate
- M o v e a s i d e t h e p l a s t i c l e n s u s i n g a
screwdriver.
- C h a n g e t h e b u l b .
- R e p l a c e t h e p l a s t i c l e n s a n d p r e s s on it.
THIRD BRAKE LIGHT
Type A, W 16 W - 16 W
With hinged doors
- U n c l i p t h e i n t e r i o r t r i m .
- Disconnect the connector by moving aside its tab.
- T u r n t h e b u l b h o l d e r a q u a r t e r t u r n a n t i c l o c k w i s e .
- C h a n g e t h e b u l b .
- P u t t h e b u l b h o l d e r b a c k i n p l a c e and reconnect the connector.
- P u t t h e t r i m b a c k i n p l a c e .
Type A, W 5 W - 5 W
Page 138 of 153
1 3 2
Changing a fuse

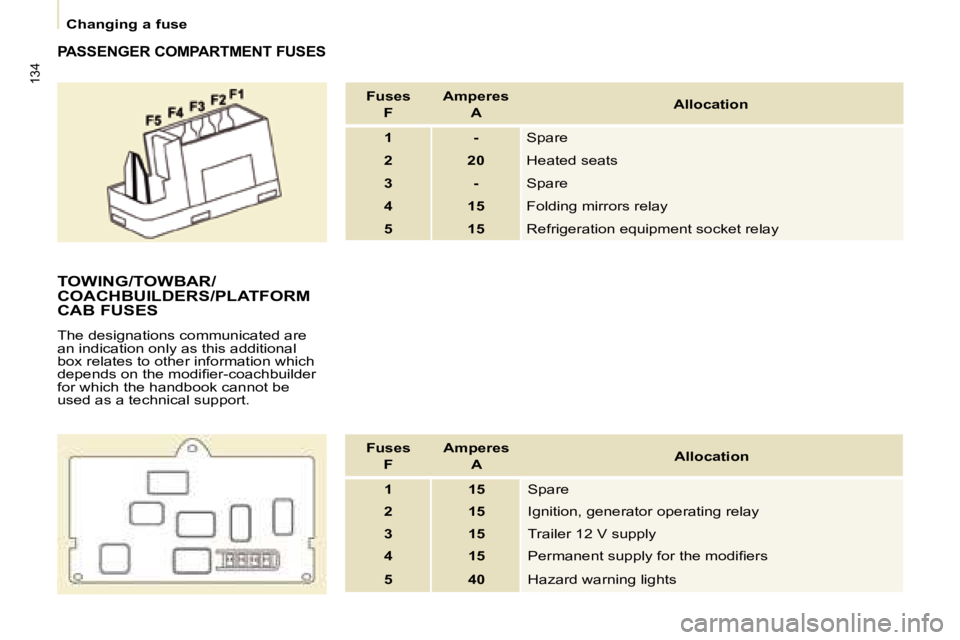

CHANGING A FUSE
T h e f u s e b o x e s a r e p l a c e d :
- i n t h e l o w e r p a r t o f t h e f a s c i a o n t h e left-hand side (behind the cover),
- under the bonnet (near the battery).
I f fi t t e d o n y o u r v e h i c l e , a n a d d i t i o n a l
f u s e b o x i s u s e d f o r t o w i n g , t h e
towbar and the connections for
t h e c o a c h b u i l d e r a n d p l a t f o r m c a b
m o d i fi c a t i o n s . I t i s l o c a t e d o n t h e r i g h t
b e h i n d t h e l o a d r e t a i n i n g p a r t i t i o n .
T h e i n d i c a t i o n s c o m m u n i c a t e d a r e o n l y
those fuses which can be changed
b y t h e u s e r u s i n g t h e p l i e r s a n d t h e
s p a r e f u s e s , l o c a t e d b e h i n d t h e f a s c i a
s t o r a g e c o m p a r t m e n t o n t h e r i g h t -
h a n d s i d e . F o r a n y o t h e r w o r k , v i s i t a
C I T R O Ë N d e a l e r .
Removing and fitting a fuse
Always replace a faulty fuse with a
fuse of the same rating.
C I T R O Ë N w i l l n o t a c c e p t r e s p o n s i b i l i t y
f o r t h e c o s t i n c u r r e d i n r e p a i r i n g
your vehicle or for rectifying the
malfunctions resulting from the
installation of accessories not
s u p p l i e d a n d n o t r e c o m m e n d e d b y t h e
C I T R O Ë N n e t w o r k a n d n o t i n s t a l l e d
in accordance with its instructions,
i n p a r t i c u l a r w h e n t h e c o m b i n e d
c o n s u m p t i o n o f a l l o f t h e a d d i t i o n a l
e q u i p m e n t c o n n e c t e d e x c e e d s
1 0 m i l l i a m p e r e s .
F o r p r o f e s s i o n a l s : f o r c o m p l e t e
information concerning the fuses
a n d r e l a y s , c o n s u l t t h e " M e t h o d s "
d i a g r a m v i a t h e N e t w o r k .
B e f o r e r e p l a c i n g a f u s e , t h e c a u s e
of the incident must be found and
r e c t i fi e d .
- U s e t h e p l i e r s .
Page 139 of 153
1 3 3
TROUBLESHOOTING
8
Changing a fuse
FASCIA FUSES
T i l t t h e c o v e r t o g a i n a c c e s s t o t h e
fuses. Fuses
F Amperes
A Allocation
1 15 R e a r w i p e r
2 - S p a r e
3 5 Air bag
4 10 A i r c o n d i t i o n i n g , d i a g n o s t i c s o c k e t , m i r r o r c o n t r o l ,
h e a d l a m p b e a m
5 30 Electric windows
6 30 L o c k s
7 5 R e a r c o u r t e s y l i g h t , f r o n t m a p r e a d i n g l i g h t ,
roof console
8 20 A u d i o e q u i p m e n t , C D c h a n g e r , d i s p l a y ,
t y r e u n d e r - i n fl a t i o n d e t e c t i o n , a l a r m a n d s i r e n
9 30 F r o n t a n d r e a r 1 2 V s o c k e t
10 15 C e n t r a l c o l u m n
11 15 Low current ignition switch
12 15 R a i n a n d b r i g h t n e s s s e n s o r , a i r b a g
13 5 I n s t r u m e n t p a n e l
14 15 P a r k i n g a s s i s t a n c e , a u t o m a t i c a i r c o n d i t i o n i n g
c o n t r o l s , h a n d s - f r e e k i t
15 30 L o c k s
16 - S p a r e
17 40 R e a r s c r e e n / m i r r o r s d e - i c i n g
Page 140 of 153
1 3 4
Changing a fuse
PASSENGER COMPARTMENT FUSES
Fuses F Amperes
A Allocation
1 - S p a r e
2 20 Heated seats
3 - S p a r e
4 15 Folding mirrors relay
5 15 R e f r i g e r a t i o n e q u i p m e n t s o c k e t r e l a y
TOWING/TOWBAR/
COACHBUILDERS/PLATFORM
CAB FUSES
T h e d e s i g n a t i o n s c o m m u n i c a t e d a r e
an indication only as this additional
b o x r e l a t e s t o o t h e r i n f o r m a t i o n w h i c h
d e p e n d s o n t h e m o d i fi e r - c o a c h b u i l d e r
f o r w h i c h t h e h a n d b o o k c a n n o t b e
u s e d a s a t e c h n i c a l s u p p o r t . Fuses F Amperes
A Allocation
1 15 S p a r e
2 15 I g n i t i o n , g e n e r a t o r o p e r a t i n g r e l a y
3 15 T r a i l e r 1 2 V s u p p l y
4 15 P e r m a n e n t s u p p l y f o r t h e m o d i fi e r s
5 40 H a z a r d w a r n i n g l i g h t s
