23
Accesses
READY TO GO
2
TAILGATE
From outside
Locking/unlocking is by means of the
remote control.
To open, press the control below the
trim then raise the tailgate.
A pull strap is available to close the
tailgate in the high position.
Guide the closing of the tailgate to the
balance point of its travel then apply
a fi n a l p r e s s o n t h e t a i l g a t e t o c l o s e i t
fully. From inside
Emergency control
In the event of a central unlocking
operating fault, this permits unlocking
of the tailgate from the inside.
Insert a small screwdriver in the
opening, between the door and the
fl o o r . T o u n l o c k t h e l o c k , m o v e t h e
catch to the left then push the tailgate.
Tailgate screen
The opening rear screen allows you to
access the rear of the vehicle directly,
without having to open the tailgate.
Opening
After unlocking the vehicle using the
remote control or the key, press the
control and raise the rear screen to
open it.
Closing
Close the rear screen by pressing
the centre of the glass until it is fully
closed.
The tailgate and tailgate screen cannot
both be open at the same time, to
prevent damage to the glass and the
screen itself.
Page 22 of 185
Accesses The control diode:
- fl a s h e s w h e n t h e d o o r s a r e l o c k e d with the vehicle stationary and the
engine off,
- comes on when the doors are locked and from the time the
ignition is switched on.
CENTRAL LOCKING
Cab and load space
Load space Locking while driving
When the vehicle moves off, as soon
a s y o u r e a c h a p p r o x i m a t e l y 6 m p h
(10 km/h), the system locks the doors.
A noise characteristic of central locking
is heard. The diode on the control on
the fascia central control panel
comes on.
During the journey, opening a door
results in complete unlocking of the
vehicle.
In the event of a serious impact, the
doors are unlocked automatically
to permit access by the emergency
services.
Protection against attack
An initial press permits
central locking of the front
and rear doors, when they
are closed.
A second press permits central
unlocking of the vehicle.
The control is inactive when the vehicle
has been locked using the remote
control or the key from the outside. Activating/deactivating the function
With the ignition on, press
and hold this button to
activate or deactivate the
function.
Door open warning light
If this warning light comes on,
check that all of your vehicle's
doors are closed correctly.
Press to lock/unlock the rear
doors without changing the
locking status of the cab.
The doors can still be opened
from the inside.
Page 23 of 185
Instruments and controls
READY TO GO
22
INSTRUMENTS AND CONTROLS
INSTRUMENT PANEL
Dials
1. Distance recorder in kilometres/
miles.
2. Display.
3. Fuel level, coolant temperature.
4. Rev counter.
5. Trip distance recorder/service
indicator zero reset.
6. Instrument panel lighting rheostat. Displays
- Speed limiter/cruise control.
- Kilometres/Miles travelled.
- Service indicator, engine oil level
indicator, total kilometres/miles.
- Presence of water in the diesel fi l t e r .
- Diesel pre-heating. Screens
The information is presented on board
the vehicle in different display formats
according to the vehicle's equipment.
Page 24 of 185
Instruments and controls
26
Centre console with display
Instrument panel without display
- turn to the right to increase the hours (hold the button to the right
for rapid scrolling),
- turn to the left: 24 H or 12 H is displayed,
- turn to the right to select 24 H or 12 H,
- turn to the left to complete the time adjustment.
A f t e r a p p r o x i m a t e l y 3 0 s e c o n d s
without any action, the display returns
to the normal display.
ADJUSTING THE TIME
To adjust the time and date
indicated on the display, refer to
the "Adjusting the date and time"
section of chapter 9.
Centre console without display
To adjust the time of the
clock, use the left-hand
button on the instrument
panel then carry out the
operations in the following
order:
- t u r n t o t h e l e f t : t h e m i n u t e s fl a s h ,
- turn to the right to increase the minutes (hold the button to the right
for rapid scrolling),
- t u r n t o t h e l e f t : t h e h o u r s fl a s h , The display - time sequence
is linked according to model
(version). The access to the
"Date" adjustment is only
active when the model version
offers a date in words.
Page 25 of 185
Instruments and controls
27
READY TO GO
22
WARNING LAMPS
Each time the vehicle is started: a series of warning lamps comes on applying a self-test check. They switch off almost
i m m e d i a t e l y . W h e n t h e e n g i n e i s r u n n i n g : t h e w a r n i n g l a m p b e c o m e s a w a r n i n g i f i t r e m a i n s o n c o n t i n u o u s l y o r fl a s h e s .
This initial warning may be accompanied by an audible signal and a message which appears on the display.
Do not ignore these warnings.
Warning lamp is indicates Solution - action
STOP lit, associated
with another
warning
lamp and
accompanied
by a message
on the display. major faults linked with
t h e " B r a k e fl u i d l e v e l " ,
"Engine oil pressure and
temperature", "Coolant
temperature", "Electronic
brake force distribution" and
"Power steering" warning
lights.
You must stop, park and switch off the
ignition. Have the fault checked by a CITROËN
dealer.
Handbrake/
B r a k e fl u i d
level/EBFD lit.
that the handbrake is applied
or has not been released fully. Releasing the handbrake switches off the warning
lamp.
lit. a l o w b r a k e fl u i d l e v e l . T o p u p u s i n g a fl u i d r e c o m m e n d e d b y C I T R O Ë N .
remaining on even
though the level
is correct and
associated with the
ABS warning lamp.
a failure of the electronic
brake force distribution.
You must stop, park and switch off the
ignition. Have the fault checked by a CITROËN
dealer.
Engine oil
pressure and
temperature lit while driving.
i n s u f fi c i e n t p r e s s u r e o r a
high temperature. Park and switch off the ignition then allow to
cool. Visually check the level. Chapter 6, "Levels"
section.
remaining on,
even though
the level is
correct. a major fault. Have the fault checked by a CITROËN dealer
.
Page 26 of 185
Instruments and controls
28
Warning lamp is indicates Solution - action
Coolant
temperature
and level lit with needle
in the red
zone.
an abnormal increase in
temperature.
Park and switch off the ignition then allow to cool.
Visually check the level.
fl a s h i n g . a drop in the coolant level. Chapter 6, "Levels" section. Consult a CITROËN
dealer.
Service lit temporarily. minor faults or warnings.
Consult the warnings log on the display or on
the screen. If your vehicle is equipped with a
trip computer or a screen: refer to the "Audio
equipment - Trip computer" section of chapter 9.
Consult a CITROËN dealer.
remaining on. major faults.
Driver's
seat belt not
fastened lit then
fl a s h i n g .
the driver has not fastened
his seat belt.
Pull the strap then insert the tongue in the buckle.
accompanied
by an audible
signal then
remains on. the vehicle is moving with
the driver's seat belt not
fastened.
Check that the seat belt is fastened by pulling the
strap. Chapter 4, "Seat belts" section.
Page 27 of 185
Instruments and controls
29
READY TO GO
22

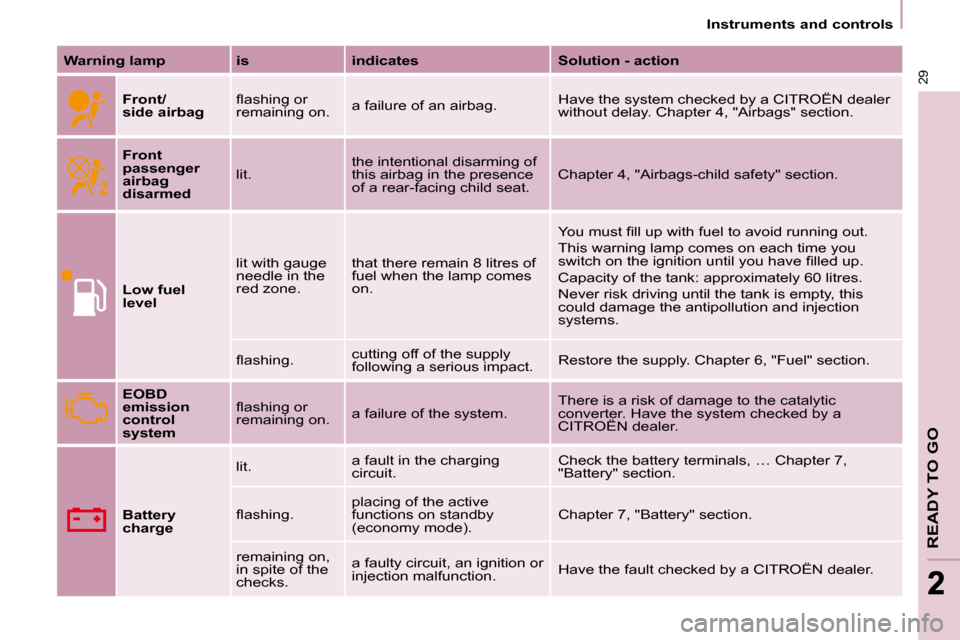

Warning lamp is indicates Solution - action
Front/
side airbag fl a s h i n g o r
remaining on.
a failure of an airbag. Have the system checked by a CITROËN dealer
without delay. Chapter 4, "Airbags" section.
Front
passenger
airbag
disarmed lit.
the intentional disarming of
this airbag in the presence
of a rear-facing child seat. Chapter 4, "Airbags-child safety" section.
Low fuel
level lit with gauge
needle in the
red zone.
that there remain 8 litres of
fuel when the lamp comes
on. Y o u m u s t fi l l u p w i t h f u e l t o a v o i d r u n n i n g o u t .
This warning lamp comes on each time you
s w i t c h o n t h e i g n i t i o n u n t i l y o u h a v e fi l l e d u p .
C a p a c i t y o f t h e t a n k : a p p r o x i m a t e l y 6 0 l i t r e s .
Never risk driving until the tank is empty, this
could damage the antipollution and injection
systems.
fl a s h i n g . cutting off of the supply
following a serious impact. Restore the supply. Chapter 6, "Fuel" section.
EOBD
emission
control
system fl a s h i n g o r
remaining on.
a failure of the system. There is a risk of damage to the catalytic
converter. Have the system checked by a
CITROËN dealer.
Battery
charge lit.
a fault in the charging
circuit. Check the battery terminals, … Chapter 7,
"Battery" section.
fl a s h i n g . placing of the active
functions on standby
(economy mode). Chapter 7, "Battery" section.
remaining on,
in spite of the
checks. a faulty circuit, an ignition or
injection malfunction.
Have the fault checked by a CITROËN dealer.
Page 28 of 185
ABS
Instruments and controls
30
Warning lamp is indicates Solution - action
Power
steering lit. a malfunction of the system. The vehicle retains conventional steering without
assistance. Have the system checked by a
CITROËN dealer.
Door open
detection lit and
accompanied
by a message
on the display. that a door is not closed
correctly.
Check that all of the doors are closed.
ABS remaining on. a failure of the anti-lock
braking system. The vehicle retains conventional braking.
Consult a CITROËN dealer.
ESP fl a s h i n g .
triggering of the ASR or
ESP regulation. The system optimises drive and permits
improvement of the directional stability of the
vehicle. Chapter 4, "Driving safety" section.
remaining on. a malfunction of the system.
E . g . : u n d e r - i n fl a t i o n o f t h e
tyres. E.g.: check the pressure of the tyres. Have the
system checked by a CITROËN dealer. (Wheel
speed sensor, hydraulic block, ...).
remaining on
with the diode
on the button
(on the fascia)
lit. deactivation of the system
at the request of the driver.
Operation of the system is deactivated.
Reactivation is automatic above 30 mph (50 km/h)
or after pressing the button (on the fascia).
Page 29 of 185
Instruments and controls
31
READY TO GO
22
Warning lamp is indicates Solution - action
Particle
e m i s s i o n fi l t e r lit. a malfunction of the particle
e m i s s i o n fi l t e r ( d i e s e l
additive level, risk of
clogging, ...). H a v e t h e fi l t e r c h e c k e d b y a C I T R O Ë N d e a l e r .
Chapter 6, "Levels" section.
Dipped
headlamps/
Daytime
lights
lit. a manual selection or
automatic lighting.
Turn the ring on the lights stalk to the second
position.
lighting of the dipped headlamps
from the time the ignition is
switched on: daytime lights
(depending on the country in
which the vehicle is sold).
Chapter 3, "Steering wheel controls" section.
Main beam
headlamps pulling of the stalk towards
you.
Pull the stalk to return to dipped headlamps.
Direction
indicators fl a s h i n g w i t h
buzzer. a change of direction via the
lights stalk, to the left of the
steering wheel. To the Right: control to be pushed upwards.
To the Left: control to be pushed downwards.
Front fog
lamps lit. a manual selection. The fog lamps only operate if the side lights or
dipped headlamps are on.
Rear fog
lamps lit. a manual selection. The fog lamps only operate if the side lights or
dipped headlamps are on. In conditions of normal
visibility, take care to switch them off to avoid
breaking the law. "This light is a dazzling red."
Page 30 of 185
Instruments and controls
32
Warning lamp on the
display
is indicates Solution - action
Cruise
control lit. cruise control selected. Manual selection. Chapter 3, "Steering wheel
controls" section.
Speed limiter lit. speed limiter selected. Manual selection. Chapter 3, "Steering wheel
controls" section.
Diesel
pre-heating lit. climatic conditions requiring
pre-heating. Wait until the warning light is switched off before
operating the starter.
Presence of
water in the
d i e s e l fi l t e r lit and
accompanied
by a message
on the display.
w a t e r i n t h e d i e s e l fi l t e r .
H a v e t h e fi l t e r b l e d b y a C I T R O Ë N d e a l e r w i t h o u t
delay. Chapter 6, "Checks" section.
According to country.
Service
spanner lit. that a service will be due
shortly. Refer to the list of checks in the Maintenance and
Warranty Guide. Have the service carried out by
a CITROËN dealer.
Time fl a s h i n g . adjustment of the time. Use the left-hand button on the instrument panel.
Chapter 2, at the beginning of the "Instruments
and controls" section.
