Page 201 of 208
139
Exterior
VISUAL SEARCH
10
EXTERIOR
Remote control 17-18
Changing the battery,
reinitialisation 18
Key 17
Starting 46
Hill start assist 47
Central locking / unlocking 17, 26
Locking / unlocking the load
space 17, 26
Filler cap, fuel tank 111-112
Fuel cut-off, Diesel priming 112
Wiper blade 129
Door mirrors 78-79
Side repeater 122
Front lamps, foglamps, direction
indicators 48-49, 121-122
Headlamp beam height
adjustment 50
Changing front bulbs 120-122
Headlamp wash 52, 108
Snow cover 119
Front doors 20
Sliding side door 21
Key 17
Opening the bonnet 104
Infl ation, pressures 138
Towing, lifting 100-101, 130
Towbar 100-101
Rear parking sensors 82-83
Number plate lamp 124
Spare wheel, jack,
changing a wheel,
tools 115-119
Rear lamps, direction
indicators 48-49, 122-123
3rd brake lamp 124
Changing rear bulbs 123-124
Load space, opening 17, 26
Doors, tailgate 22-25
Accessories 101
Roof bars 77
Rear roof fl ap 24
Emergency control 25
Dimensions 132-136
Floor cab dimensions 136
Brakes, pads 81, 107, 109
Emergency braking 84
ABS, EBFD 84
ASR, ESP 85
"Grip control" 86-87
Tyre, pressures 138
Tyre under-infl ation detection 36
Page 202 of 208
140
Instruments and controls
ESP 85
Parking sensors 82-83
Electric mirrors 78
Headlamp beam height
adjustment 50
Stop & Start 43-45
Starter, ignition 46
Wipers control 51-52
Automatic wiping 51
Windscreen / headlamp
wash 52, 108
Trip computer Section 9
Cruise control 53-55
Speed limiter 56-58
Lighting controls 48-50
Automatic illumination of
headlamps 49-50
Foglamps 49
LED daytime runing lamps 49
INSTRUMENTS AND CONTROLS
Dashboard, passenger
compartment fuses 125-127
Opening the bonnet 104
Parking brake, handbrake 81
Instrument panels, screens,
dials 27-28
Warning lamps, indicator
lamps 29-34
Indicators, gauge 35, 37-38
Setting the time in the instrument
panel 28
Lighting dimmer 38
Gear shift indicator 39
Audio equipment steering
mounted controls Section 9
Steering wheel adjustment 42
Horn 81
Gearbox 39
Page 203 of 208
141

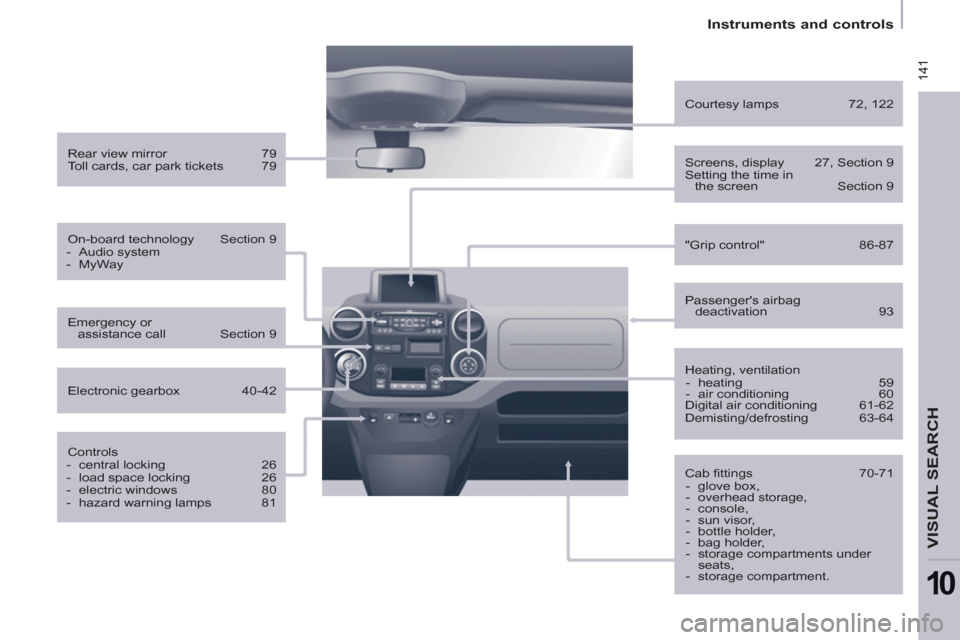

Instruments and controls
VISUAL SEARCH
10
Heating, ventilation
- heating 59
- air conditioning 60
Digital air conditioning 61-62
Demisting/defrosting 63-64
Rear view mirror 79
Toll cards, car park tickets 79
Passenger's airbag
deactivation 93
Courtesy lamps 72, 122
On-board technology Section 9
- Audio system
- MyWay
Controls
- central locking 26
- load space locking 26
- electric windows 80
- hazard warning lamps 81
Cab fi ttings 70-71
- glove box,
- overhead storage,
- console,
- sun visor,
- bottle holder,
- bag holder,
- storage compartments under
seats,
- storage compartment.
Screens, display 27, Section 9
Setting the time in
the screen Section 9
Emergency or
assistance call Section 9
Electronic gearbox 40-42
"Grip control" 86-87
Page 204 of 208
142

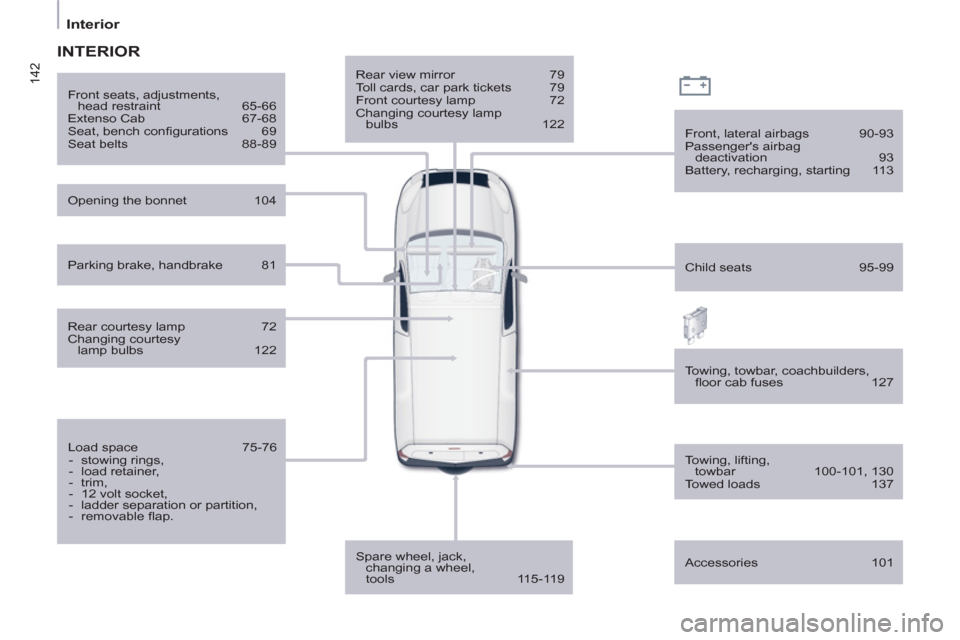

Interior
Rear view mirror 79
Toll cards, car park tickets 79
Front courtesy lamp 72
Changing courtesy lamp
bulbs 122
Spare wheel, jack,
changing a wheel,
tools 115-119
Front, lateral airbags 90-93
Passenger's airbag
deactivation 93
Battery, recharging, starting 113
Opening the bonnet 104
Towing, towbar, coachbuilders,
fl oor cab fuses 127
Front seats, adjustments,
head restraint 65-66
Extenso Cab 67-68
Seat, bench confi gurations 69
Seat belts 88-89
Accessories 101
INTERIOR
Rear courtesy lamp 72
Changing courtesy
lamp bulbs 122
Load space 75-76
- stowing rings,
- load retainer,
- trim,
- 12 volt socket,
- ladder separation or partition,
- removable fl ap.
Child seats 95-99
Parking brake, handbrake 81
Towing, lifting,
towbar 100-101, 130
Towed loads 137
Page 205 of 208
143
Technical data - Maintenance
VISUAL SEARCH
10
TECHNICAL DATA - MAINTENANCE
Identifi cation markings, serial
number, paint code, tyres 138
Windscreen / headlamp wash,
levels 108
Changing bulbs, lighting 120-124
Checks 109-110
- battery,
- gearbox,
- air/passenger compartment
fi lter,
- oil fi lter,
- particle emission fi lter,
- parking brake,
- brake pads,
- brake drums, discs.
Emissions controls 36
Engine fuses 125, 128
Under the bonnet
- Diesel 106
- petrol 105
Fuel cut-off, Diesel priming 112
Dimensions 132-135
Floor cab dimensions 136
Weights 137
Opening the bonnet, stay 104
Levels 107-108
- Diesel additive,
- dipstick,
- power steering fl uid,
- brake fl uid,
- coolant.
Bleeding water, Diesel fi lter 110
Warning lamps 29-34
Changing a wiper blade 129
Page 206 of 208
144

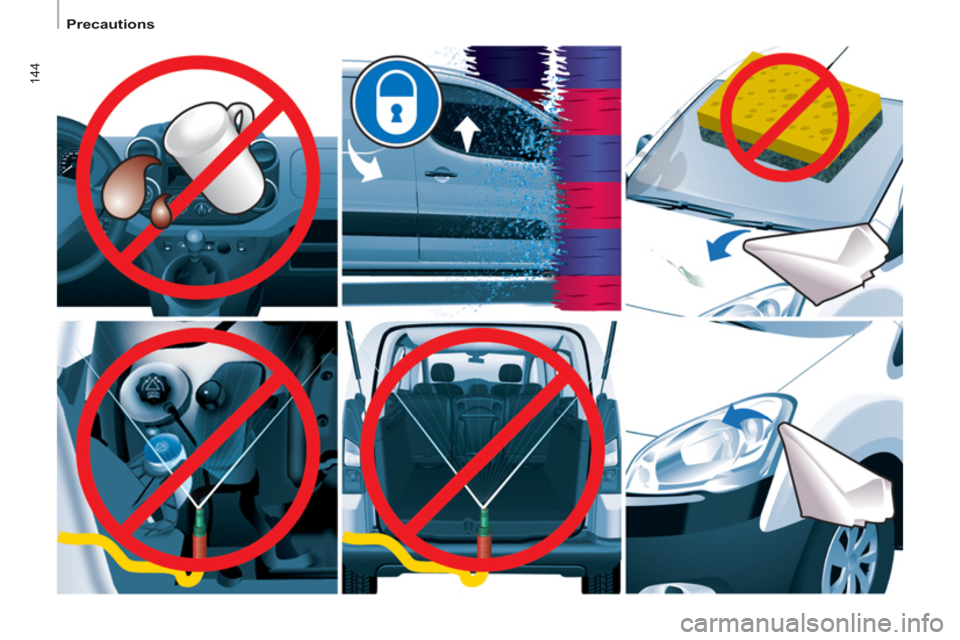

Precautions
Page 207 of 208

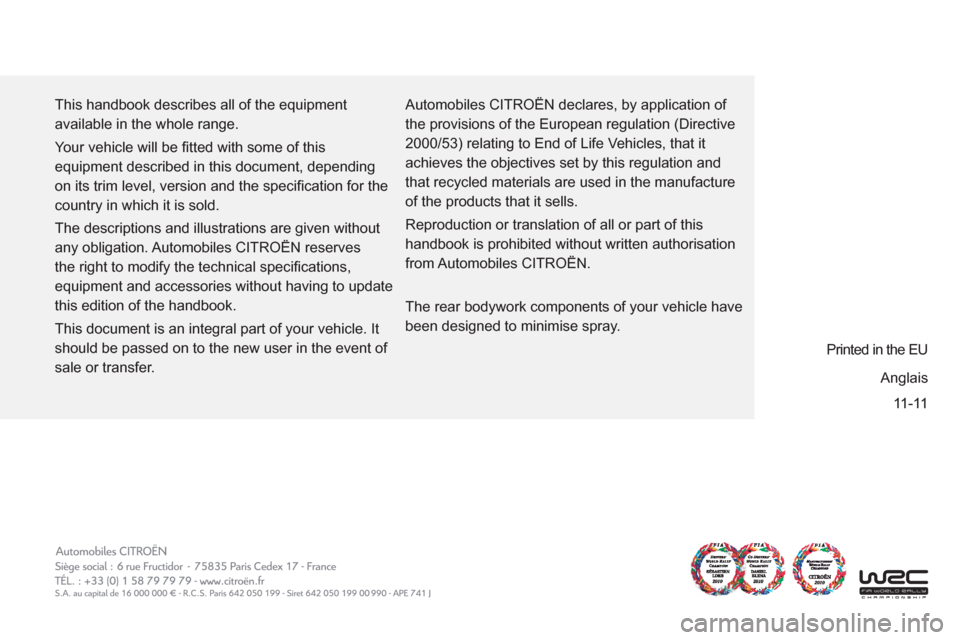

11-11 This handbook describes all of the equipment
available in the whole range.
Your vehicle will be fi tted with some of this
equipment described in this document, depending
on its trim level, version and the specifi cation for the
country in which it is sold.
The descriptions and illustrations are given without
any obligation. Automobiles CITROËN reserves
the right to modify the technical specifi cations,
equipment and accessories without having to update
this edition of the handbook.
This document is an integral part of your vehicle. It
should be passed on to the new user in the event of
sale or transfer. Automobiles CITROËN declares, by application of
the provisions of the European regulation (Directive
2000/53) relating to End of Life Vehicles, that it
achieves the objectives set by this regulation and
that recycled materials are used in the manufacture
of the products that it sells.
Reproduction or translation of all or part of this
handbook is prohibited without written authorisation
from Automobiles CITROËN.
Printed in the EU
Anglais
The rear bodywork components of your vehicle have
been designed to minimise spray.
Page 208 of 208
