62


Ventilation



Manual operation

You can, according to your requirements,
make a different selection from that
offered by the system by changing a
setting. The other functions will still be
controlled automatically. Pressing the
AUTO
button restores fully automatic
operation.

Air distribution
Pressing this button several
times in succession directs
the air fl ow towards:


- the windscreen,

- the windscreen and footwells,

- the footwells,

- the side vents, central vents and
footwells,

- the side vents and central vents.

Air fl ow
Press the small fan
button to
reduce the fl ow or the large
fan
button to increase the
fl ow.
On the display, the blades of the fan fi ll
when the fl ow is increased.

Switching the air
conditioning On/Off
Press this button, the A/C

symbol is displayed and the
air conditioning is activated.
Deactivating the system
Press the air fl ow small fan

button until the fan symbol
disappears from the display.
This action deactivates all of the
system's functions, with the exception
of the air recirculation and rear screen
demisting (if fi tted on your vehicle).
Your comfort setting is no longer
maintained and is switched off.
Intake of exterior air/
Recirculation of interior air
Press this button to
recirculate the interior air.
The recirculation symbol is
displayed.
For your comfort, do not
deactivate the system for
long periods. Pressing the
large fan
button or the AUTO

button reactivates the system
with the values set before it was
deactivated. Recirculation prevents exterior
odours and smoke from entering
the passenger compartment. Avoid
prolonged operation in interior
air recirculation mode (risk of
condensation, odour and humidity).
Pressing this button again activates the
intake of exterior air.
Pressing this button again switches off
the air conditioning.

The ventilation outlet, located
in the glove box, diffuses
cool air (if the air conditioning
is on) regardless of the reference
temperature requested in the
passenger compartment and
regardless of the exterior temperature.

70


Practical information

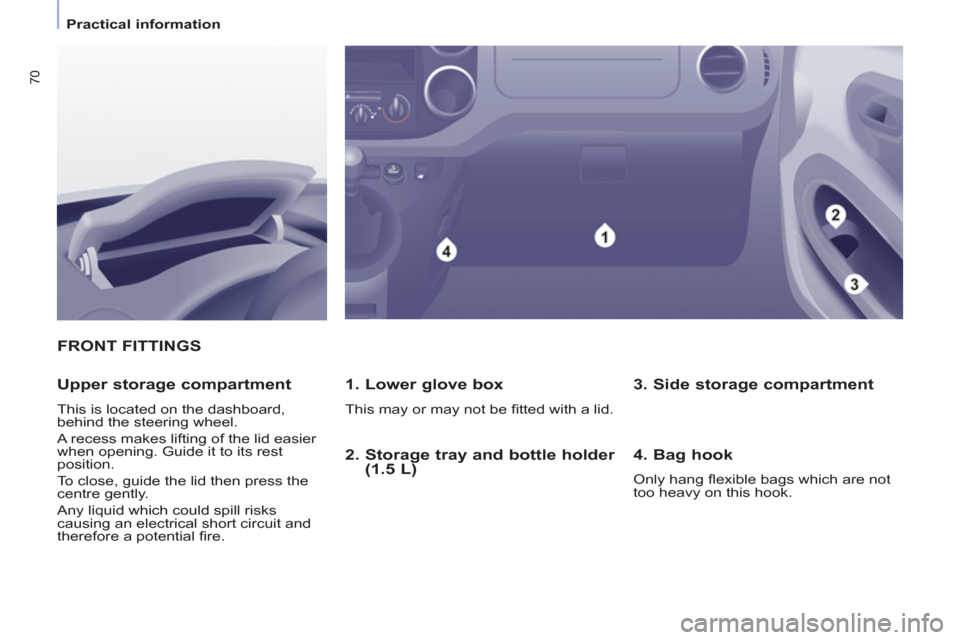

FRONT FITTINGS

1. Lower glove box

This may or may not be fi tted with a lid.


Upper storage compartment

This is located on the dashboard,
behind the steering wheel.
A recess makes lifting of the lid easier
when opening. Guide it to its rest
position.
To close, guide the lid then press the
centre gently.
Any liquid which could spill risks
causing an electrical short circuit and
therefore a potential fi re.


3. Side storage compartment

4. Bag hook

Only hang fl exible bags which are not
too heavy on this hook.


2. Storage tray and bottle holder
(1.5 L)

109
CHECK
S
6


Checks


CHECKS

Carbon filter and passenger
compartment filter
An access fl ap below the glove box
permits replacement of the fi lters.
The carbon fi lter permits continuous
and effective fi ltering of dust.
If the passenger compartment fi lter
becomes blocked, this may reduce the
performance of the air conditioning
system and generate unpleasant
odours.
We recommend the use of a combined
passenger compartment fi lter. By
means of its second special active
fi lter, it contributes to the purifi cation
of the air breathed by the occupants
and the cleanness of the passenger
compartment (reduction of allergic
symptoms, unpleasant odours and
greasy deposits).

Particle emission filter (Diesel)

maintenance of the particle emission
fi lter must be carried out by a
CITROËN dealer.
On acceleration after the vehicle has
been running for a prolonged period
at very low speed or at idle, you may,
in exceptional circumstances, notice
the emission of water vapour at the
exhaust. This water vapour does not
have any adverse effect on vehicle
handling or the environment.


Battery

At the start of winter, have your battery
checked by a CITROËN dealer or a
qualifi ed workshop.


Brake pads

Brake pad wear depends on the style
of driving, in particular for vehicles
which are used in town, over short
distances. It may be necessary to
check the thickness of the pads, even
between services.
Unless there is a leak on the circuit, a
drop in the brake fl uid level indicates
that the brake pads are worn.


Brake disc / drum wear

For information on checking the brake
disc / drum wear, consult a CITROËN
dealer.


Parking brake

Where the parking brake travel is too
great or there is a reduction in the
performance of the system, the parking
brake should be adjusted, even between
services.
Have the system checked by a CITROËN
dealer or a qualifi ed workshop.


Oil filter

Change the fi lter regularly in
accordance with the servicing
schedule. Refer to the servicing booklet for
the replacement interval for these
components.
Depending on the environment (dusty
atmosphere...) and the use of the
vehicle (urban driving...), change them
twice as often if necessary.

141


Instruments and controls

VISUAL SEARCH
10


Heating, ventilation


- heating 59

- air conditioning 60
Digital air conditioning 61-62
Demisting/defrosting 63-64
Rear view mirror 79
Toll cards, car park tickets 79

Passenger's airbag
deactivation 93
Courtesy lamps 72, 122

On-board technology Section 9


- Audio system

- MyWay


Controls


- central locking 26

- load space locking 26

- electric windows 80

- hazard warning lamps 81

Cab fi ttings 70-71


- glove box,

- overhead storage,

- console,

- sun visor,

- bottle holder,

- bag holder,

- storage compartments under
seats,

- storage compartment.


Screens, display 27, Section 9
Setting the time in
the screen Section 9

Emergency or
assistance call Section 9

Electronic gearbox 40-42
"Grip control" 86-87
