Page 121 of 236

Citroen BERLINGO 2013 2.G Owners Manual

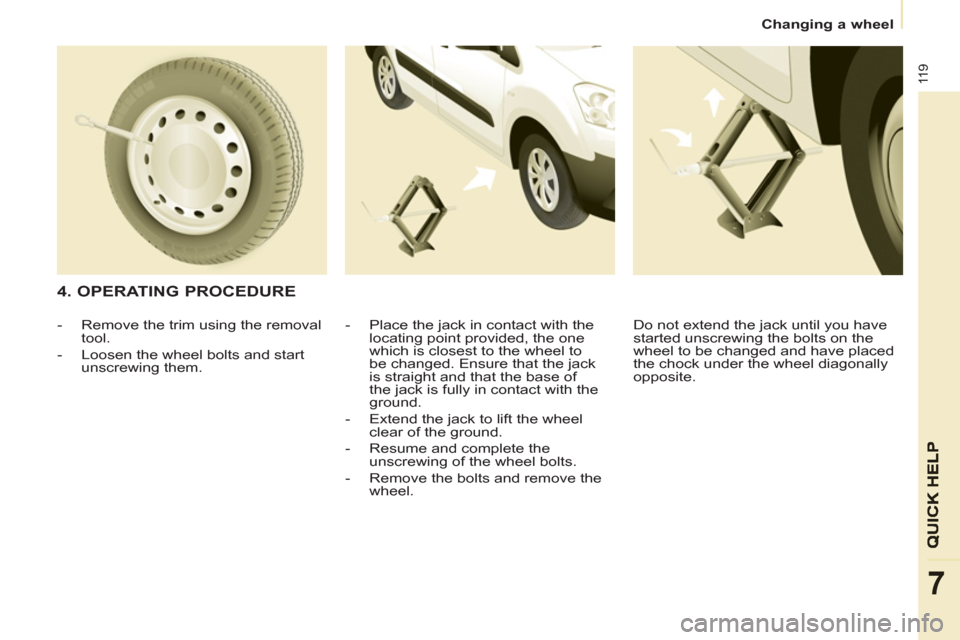

Changing a wheel

11 9
7


4. OPERATING PROCEDURE


-   Place the jack in contact with the
locating point provided, the one
which is closest to the wheel to
be changed. Ensure that th

Page 122 of 236

Citroen BERLINGO 2013 2.G Owners Manual

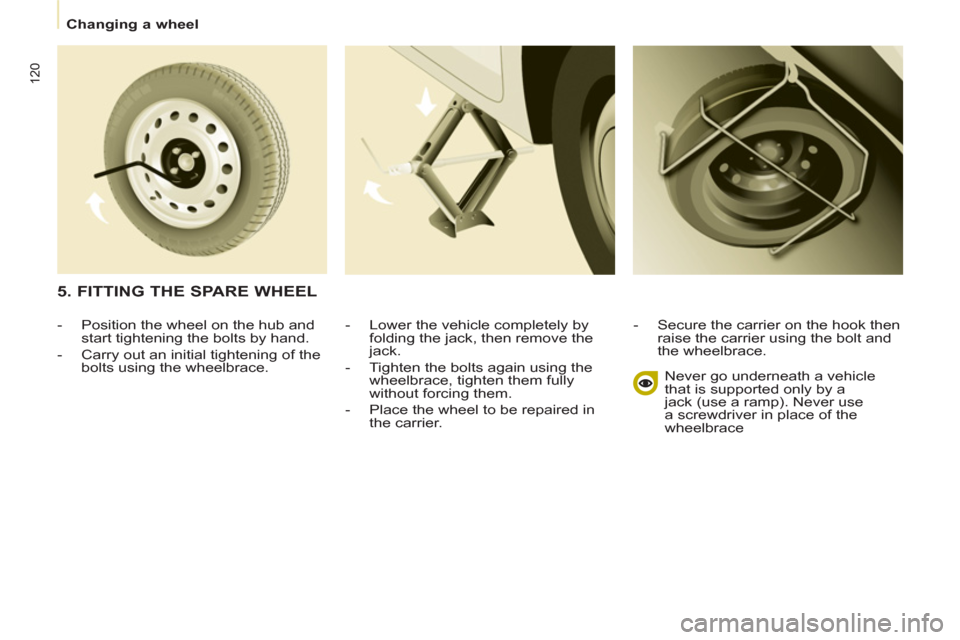

Changing a wheel

120


-   Lower the vehicle completely by
folding the jack, then remove the
jack.

-   Tighten the bolts again using the
wheelbrace, tighten them fully
without for

Page 123 of 236

Citroen BERLINGO 2013 2.G Owners Manual

Snow screen

121
QUICK HEL
P
7
REMOVABLE SNOW SCREEN

According to country, the removable
snow screen is installed on the lower
part of the front bumper to prevent the
accumulation of sno

Page 124 of 236

Citroen BERLINGO 2013 2.G Owners Manual

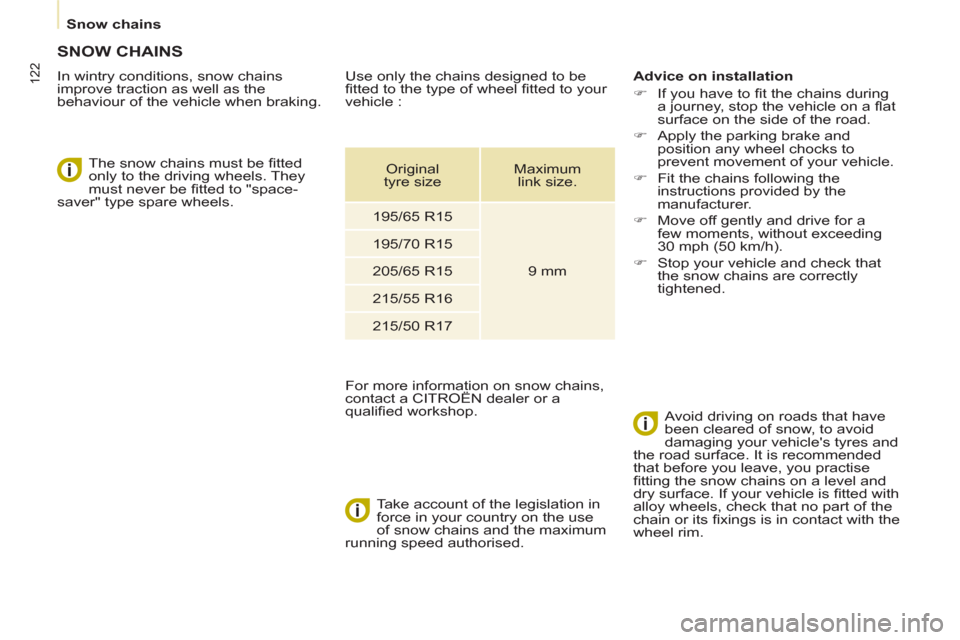

Snow chains

122
SNOW CHAINS


In wintry conditions, snow chains
improve traction as well as the
behaviour of the vehicle when braking.

The snow chains must be fi tted
only to the

Page 125 of 236

Citroen BERLINGO 2013 2.G Owners Manual

Changing a bulb

123
QUICK HELP
7

CHANGING A BULB


Ty p e  B

  Bayonet bulb: press
on the bulb then turn it
anticlockwise.
Ty p e  A

  All glass bulb: pull gently
as it is

Page 126 of 236

Citroen BERLINGO 2013 2.G Owners Manual

Changing a bulb

124


3.
  Direction indicators

    Type B
, PY21W - 21W (amber)


-   Remove the cover by pulling the
fl exible rubber tab.

-   Turn the bulb holder a q

Page 127 of 236

Citroen BERLINGO 2013 2.G Owners Manual

Changing a bulb

125
7


4.

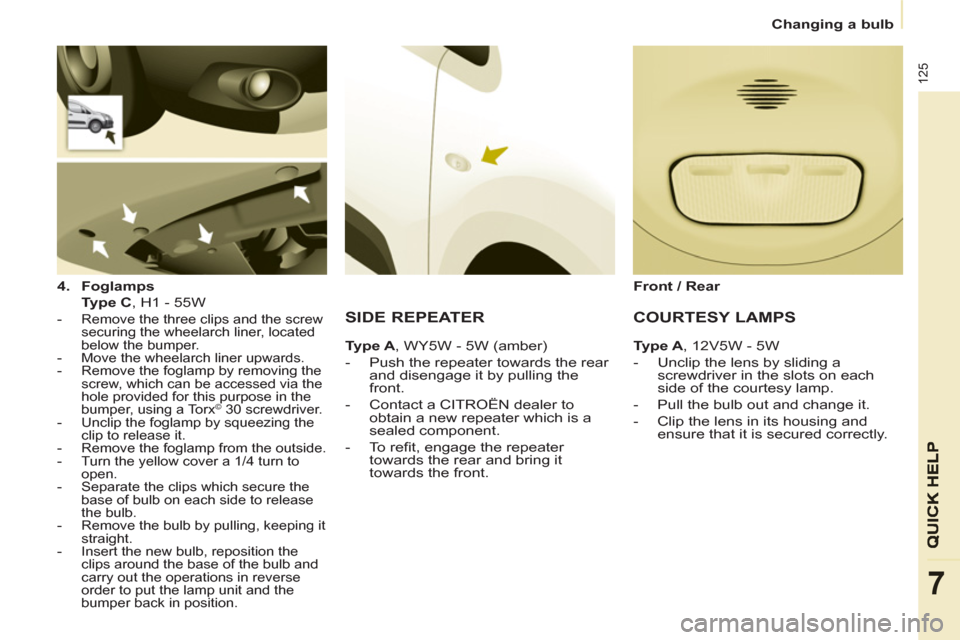

  Foglamps

    Type C
, H1 - 55W



-   Remove the three clips and the screw
securing the wheelarch liner, located
below the bumper.

-   Move

Page 128 of 236

Citroen BERLINGO 2013 2.G Owners Manual

Changing a bulb

126


For more information concerning the
bulbs, refer to the "Types of bulb".


1.
  Brake lamps / sidelamps

    Type B
, P21/5W - 21/5W

2.
  Direction

Page 129 of 236

Citroen BERLINGO 2013 2.G Owners Manual

Changing a bulb

127
7

NUMBER PLATE LAMPS




-   Unscrew the two nuts.

-   Push the pins.

-   If necessary, disconnect the
connector to remove the lamp.

-   Change the

Page 130 of 236

Citroen BERLINGO 2013 2.G Owners Manual

Changing a fuse

128
The fuseboxes are located:


-   in the lower dashboard on the left-
hand side (behind the cover),

-   under the bonnet (near the battery).
  If fi tted on
