Technical data -
Maintenance 148
9. TECHNOLOGY on
BOARD
5. ACCESSORIES
101-103
7. QUICK HELP
114-132
10. VISUAL SEARCH
141-148
6. CHECKS
104-113
8. TECHNICAL
D ATA133-140
The "Visual search" section
assists you in fi nding the
controls and functions
and their associated page
numbers on the schematic
outlines of the vehicle (visual
index).
The "Technology on board"
section presents the new
audio/navigation systems.
corresponds to a left
hand drive vehicle. corresponds to
a right hand drive
vehicle.

Equipment
103
ACCESSORIES
5
Audio equipment, hands-free kit,
speakers, CD changer, satellite navigation
system, USB Box, Video kit, ...
Regardless of the audio and telematic
equipment offered on the market, the
technical constraints associated with the
fi tting of equipment of these families of
products mean that the special features of
the equipment and its compatibility with the
capacities of the your vehicle's standard
equipment must be taken into account.
Please contact a CITROËN dealer for more
information before fi tting such equipment.
To prevent the mat from becoming
caught under the pedals:
- ensure that the mat and its fi xings are positioned correctly,
- never fi t one mat on top of another.
Maximum weights on bars
- Roof rack: 120 Kg.
- Transverse bars on roof: 100 Kg.
- Transverse bars on longitudinal bars: 75 Kg. Installation of radiocommunication
transmitters
Before installing accessory
radiocommunication transmitters with
an external aerial on your vehicle, you
are advised to contact a representative
of the CITROËN marque.
The CITROËN dealer network will
inform you of the specifi cations
(frequency band, maximum output
power, aerial position, specifi c
installation conditions) of the
transmitters which can be fi tted, in
accordance with the Motor Vehicle
Electromagnetic Compatibility Directive
(2004/104/CE).
Front mud fl aps, rear mud fl aps,
15/17 inch alloy wheels, wheelarch
trim, leather steering wheel, ...
Screenwash, interior and exterior
cleaning and maintenance products,
replacement bulbs, ... The fi tting of electrical equipment
or accessories which are not
recommended by Automobiles
CITROËN may result in the failure
of your vehicle's electronic system.
Please note this specifi c warning. You
are advised to contact a representative
of the Marque to be shown the range
of recommended equipment and
accessories.
Depending on the country in which
the vehicle is sold or operated, it is
compulsory to have a high visibility
safety jacket, warning triangle and
replacement bulbs available in the
vehicle.
"Active Fleet Data" Telematic unit
Connected directly to the heart of
the vehicle ("Full CAN" multiplexed
network), as part of a comprehensive
service, the telematic unit allows the
sending in real time of information such
as:
- distance travelled,
- distance remaining before the next service,
- warnings and faults (oil level, coolant level, oil temperature,
coolant temperature, etc...).
This enables Fleet managers
to optimise the monitoring and
management of their business
vehicles.
Availability according to country;
contact a CITROËN dealer for more
information.

133
TECHNICAL DATA
8
Dimensions

135
TECHNICAL DATA
8
Dimensions

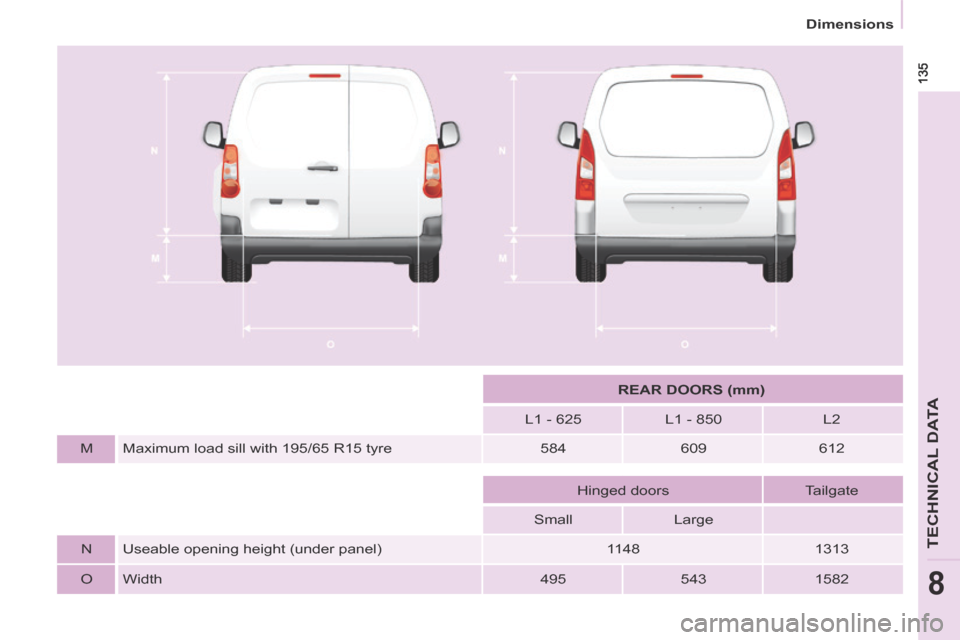

REAR DOORS (mm)
L1 - 625 L1 - 850 L2
M Maximum load sill with 195/65 R15 tyre 584 609 612

Hinged doors Tailgate
Small Large

N Useable opening height (under panel) 1148 1313
O Width 495 543 1582

137
TECHNICAL DATA
8
Dimensions

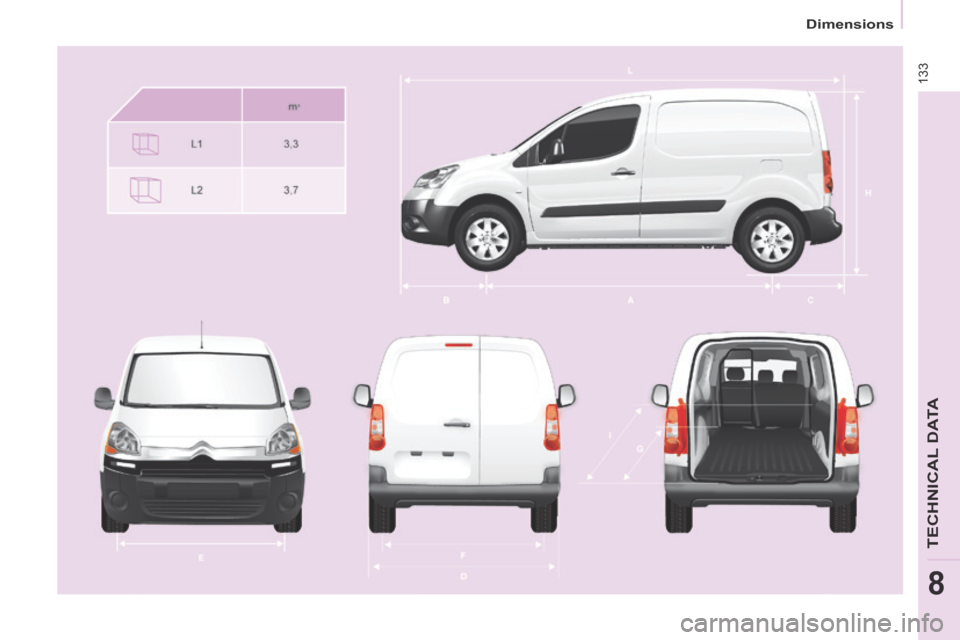

PLATFORM CAB (mm)
L Overall length 4237
H Overall height 1821-1822
A Wheelbase 2728
B Front overhang 925
C Rear overhang 584
D Width over panels (without mirrors) 1810
E Width of front track 1505
F Width of rear track 1554

Identification markings
139
TECHNICAL DATA
8

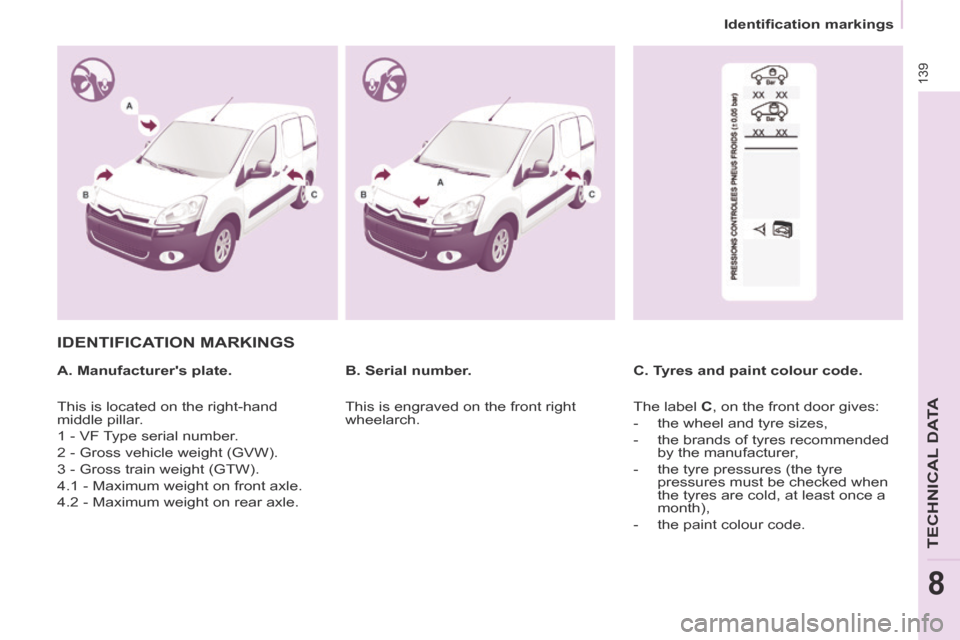

IDENTIFICATION MARKINGS
A. Manufacturer's plate. C. Tyres and paint colour code.
B. Serial number.
This is located on the right-hand
middle pillar.
1 - VF Type serial number.
2 - Gross vehicle weight (GVW).
3 - Gross train weight (GTW).
4.1 - Maximum weight on front axle.
4.2 - Maximum weight on rear axle. This is engraved on the front right
wheelarch.
The label
C , on the front door gives:
- the wheel and tyre sizes,
- the brands of tyres recommended by the manufacturer,
- the tyre pressures (the tyre pressures must be checked when
the tyres are cold, at least once a
month),
- the paint colour code.

148
Technical data - Maintenance
TECHNICAL DATA - MAINTENANCE
Identifi cation markings, serial number, paint code, tyres 139
Snow chains 121
Windscreen / headlamp wash, levels 109
Changing bulbs, lighting 122-126 Checks
110-111
- battery,
- gearbox,
- air/passenger compartment fi lter,
- oil fi lter,
- particle emission fi lter,
- parking brake,
- brake pads,
- brake drums, discs.
Emissions controls 34
Engine fuses
127, 130
Under the bonnet:
- Diesel 107
- petrol 106
Fuel cut-off, Diesel priming 113
Dimensions 133-136
Floor cab dimensions 137
Weights 138
Opening the bonnet, stay 105 Levels
108-109
- Diesel additive,
- dipstick,
- power steering fl uid,
- brake fl uid,
- coolant.
Bleeding water, Diesel fi lter 111
Warning lamps
27-32
