Seats
69
EASE OF U
SE and
COMFORT
3
Fully folded position
Example of operations for
the 1/3 section. They are identical for
the 2/3 section.
- Place the head restraints in the low position.
- If necessary, move the front seats forward.
- Press the grey control located on the upper part of the seat back.
- Fold the seat back onto the seat cushion. - Raise the grey control bar, located
at the rear of the seat cushion.
- Tilt the entire seat forward.
Putting back in place
Tilt the entire seat rearwards until it
locks.
Raise the seat back.
The seat is locked correctly when the
control (at the top of the seat back) is
no longer visible. Check that the seat is locked
on the fl oor securely when it is
returned to the sitting position.

Seats
70

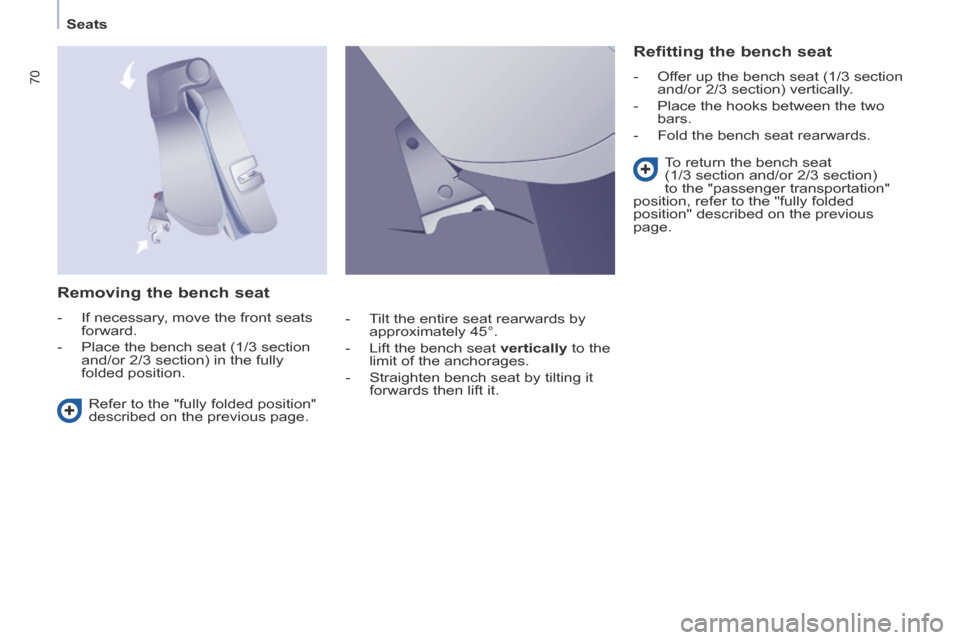

Removing the bench seat
- If necessary, move the front seats forward.
- Place the bench seat (1/3 section and/or 2/3 section) in the fully
folded position.
Refitting the bench seat
- Offer up the bench seat (1/3 section and/or 2/3 section) vertically.
- Place the hooks between the two bars.
- Fold the bench seat rearwards.
Refer to the "fully folded position"
described on the previous page. To return the bench seat
(1/3 section and/or 2/3 section)
to the "passenger transportation"
position, refer to the "fully folded
position" described on the previous
page.
- Tilt the entire seat rearwards by approximately 45°.
- Lift the bench seat vertically to the
limit of the anchorages.
- Straighten bench seat by tilting it forwards then lift it.

Seats
71
EASE OF U
SE and
COMFORT
3
REAR SEATS (5 SEAT VERSION)
Head restraint
High position: lift and raise the head
restraint.
Low position: press on the head
restraint to lower it.
To remove the head restraint, after
raising it press the tab and lift the head
restraint.
To install the head restraint, engage
the rods of the head restraint in the
holes keeping it in line with the seat
back.
Each seat can be removed individually.
Each time a seat is returned to the
sitting position or after removing then
refi tting a seat, check that it is locked
on the fl oor securely.
The three independent rear seats
are fi tted with "comma" shape head
restraints.
The back of the centre seat, folded
onto the seat cushion, has a shell
which serves as a table with cup
holder.

Seats
72
Adjusting the angle of the seat back
- Operate the control and adjust the angle of the seat back.
Placing the seat back in the
table position
- Pull the control to fold the seat back onto the seat cushion.
Do not place hard or heavy objects
on the table. They could become
dangerous projectiles in the event of
sharp braking or impact.
Returning the seat back to the
sitting position
- Release the seat back by pulling the control, then return it to its
original position.
When returning the seat back to the sitting
position, ensure that it is locked securely.
Placing the seat in the fully
folded position
- Pull the control to place the seat back in the table position.
- Raise the bar located behind the seat to release the rear anchoring
points.
- Tilt the entire seat forwards, until it locks.
Returning the seat to its original
position
- Push the red control.
- Fold back the seat to fi x the rear anchoring points.
- Raise the seat back by pulling the control.
Check that the entire seat is anchored
securely.

Seats
73
EASE OF U
SE and
COMFORT
3

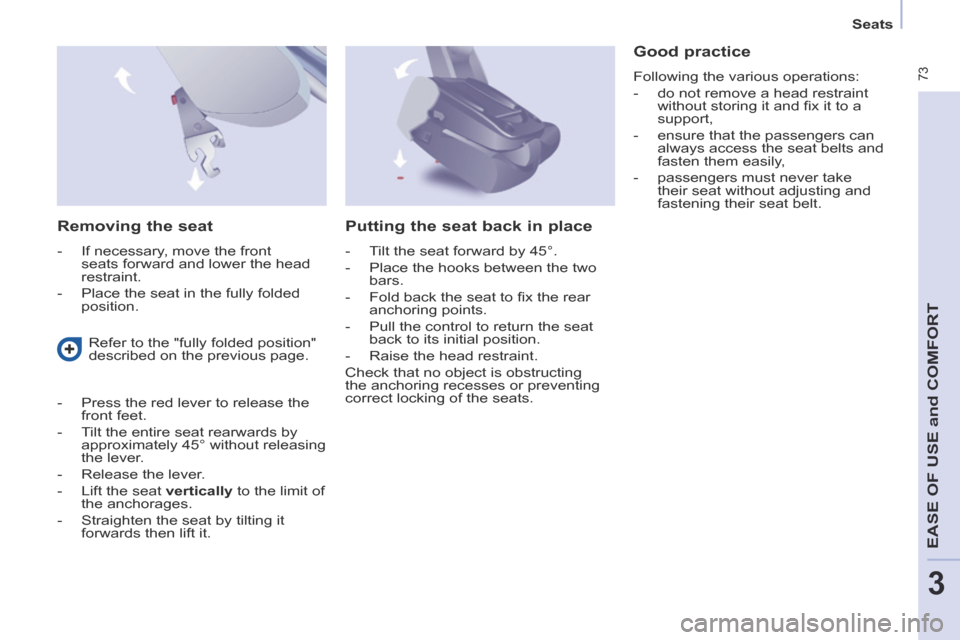

Removing the seat
- If necessary, move the front seats forward and lower the head
restraint.
- Place the seat in the fully folded position.
Good practice
Following the various operations:
- do not remove a head restraint without storing it and fi x it to a
support,
- ensure that the passengers can always access the seat belts and
fasten them easily,
- passengers must never take their seat without adjusting and
fastening their seat belt.
Refer to the "fully folded position"
described on the previous page.
- Press the red lever to release the front feet.
- Tilt the entire seat rearwards by approximately 45° without releasing
the lever.
- Release the lever.
- Lift the seat vertically to the limit of the anchorages.
- Straighten the seat by tilting it forwards then lift it.
Putting the seat back in place
- Tilt the seat forward by 45°.
- Place the hooks between the two bars.
- Fold back the seat to fi x the rear anchoring points.
- Pull the control to return the seat back to its initial position.
- Raise the head restraint.
Check that no object is obstructing
the anchoring recesses or preventing
correct locking of the seats.

Seats
74
Head restraint
This is of the "comma" shape type.
High position: press the tab, lift and
raise the head restraint.
Low position: push the tab and press
the top of the head restraint to lower it.
To remove the head restraint: place it in
the high position, lift it, then remove it.
Store it inside the vehicle, securing it
fi rmly.
To install the head restraint: engage
the rods of the head restraint in the
holes keeping it in line with the seat
back.
Each seat can be removed and must
be replaced in the specifi ed position,
indicated by a symbol on its label.
The seats of row 2 and row 3 are
independent and adjustable.
REAR SEATS (7 SEAT VERSION)

Seats
75
EASE OF U
SE and
COMFORT
3

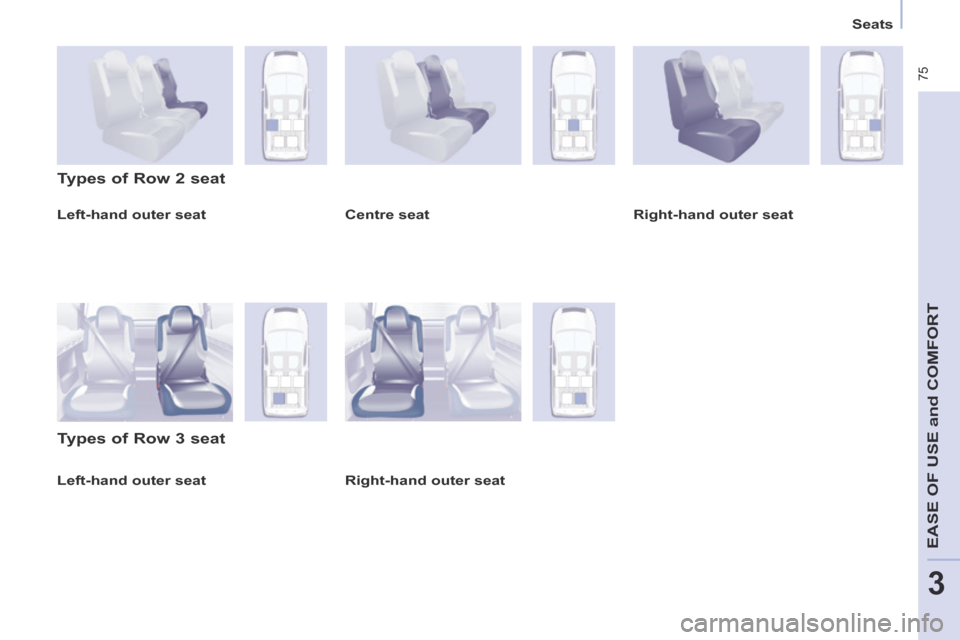

Left-hand outer seat
Types of Row 2 seat
Types of Row 3 seat
Centre seat Right-hand outer seat
Right-hand outer seat
Left-hand outer seat

Seats
76
Adjusting the angle of the seat back
- Operate the control and adjust the angle.
Placing the seat in the table position
- Lower the head restraint fully.
- Operate the control to fold the seat back onto the seat cushion. Returning the seat back to the
sitting position
- Release the seat back by pulling
the control, then return it to its
original position.
Ensure that the entire seat is anchored
securely.
Placing the seat in the fully folded
position
- Place the seat in the table position.
- Pull the red strap, located behind the seat, to release the feet of the
seat from their anchorage on the
fl oor.
- Tilt the entire seat forwards.
Row 2 seat adjustments Returning the seat to its original
position
- Fold back the entire seat.
Before folding the seat, ensure
that:
- in row 3, no passenger's foot is at one of the seat
anchorages on the fl oor,
- the seat is locked securely on the fl oor,
- the seat belt is available for the passenger.

Seats
77
EASE OF U
SE and
COMFORT
3
Row 3 seat adjustments
Placing the seat back in the table
position
- Lower the head restraint fully.
- Operate the control to fold the seat back onto the seat cushion.
Returning the seat back to the
sitting position
- Release the seat back by pulling the control, then return it to its
original position.
Ensure that the entire seat is anchored
securely. Returning the seat to its original
position
- Push the red control.
- Fold back the entire seat.
Placing the seat in the fully folded
position
- Place the seat in the table position.
- Raise the bar fi tted with a red
strap, located behind the seat, to
release feet of the seat from their
anchorage on the fl oor.
- Tilt the entire seat forwards. Ensure that:
- the seat is locked securely on
the fl oor,
- the seat belt is available for the passenger.

Seats
78

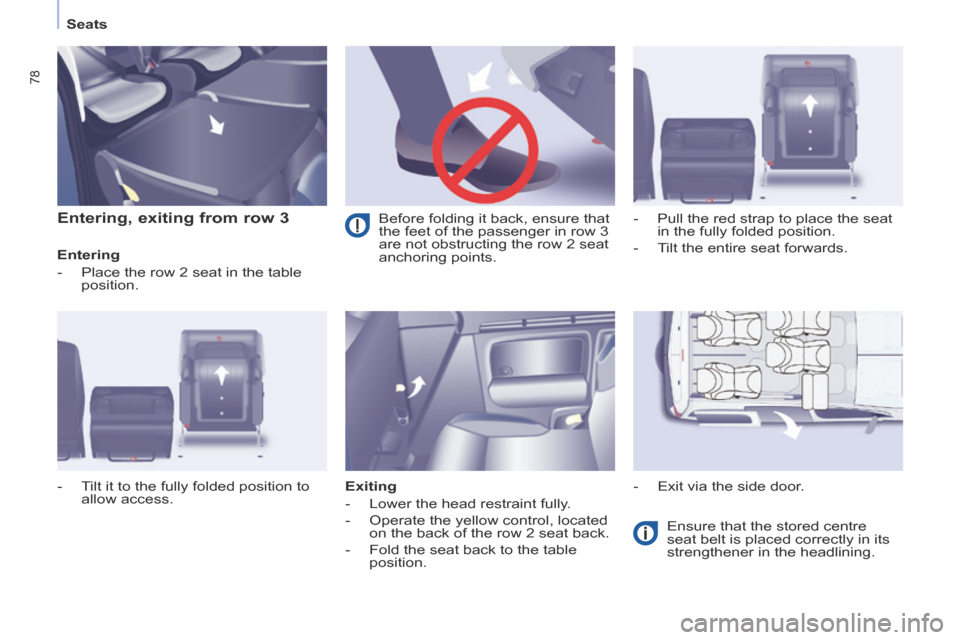

Entering, exiting from row 3
Entering
- Place the row 2 seat in the table position.
Exiting
- Lower the head restraint fully.
- Operate the yellow control, located on the back of the row 2 seat back.
- Fold the seat back to the table position. Ensure that the stored centre
seat belt is placed correctly in its
strengthener in the headlining.
- Tilt it to the fully folded position to
allow access. - Pull the red strap to place the seat
in the fully folded position.
- Tilt the entire seat forwards.
- Exit via the side door.
Before folding it back, ensure that
the feet of the passenger in row 3
are not obstructing the row 2 seat
anchoring points.
