Ventilation
63
EASE OF U
SE and
COMFORT
3
Manual operation
You can, according to your
requirements, make a different selection
from that offered by the system by
changing a setting. The other functions
will still be controlled automatically.
Pressing the AUTO button restores fully
automatic operation.
Air distribution
Pressing this button several
times in succession directs
the air fl ow towards:
- the windscreen,
- the windscreen and footwells,
- the footwells,
- the side vents, central vents and footwells,
- the side vents and central vents. Air fl ow
Press the
small fan button to
reduce the fl ow or the large
fan button to increase the
fl ow.
On the display, the blades of the fan fi ll
when the fl ow is increased.
Switching the air
conditioning On / Off
Press this button, the A/C
symbol is displayed and the
air conditioning is activated.
Deactivating the system
Press the air fl ow
small fan
button until the fan symbol
disappears from the display.
This action deactivates all
of the system's functions, with the
exception of the air recirculation and
rear screen demisting (if fi tted on your
vehicle). Your comfort setting is no
longer maintained and is switched off. Intake of exterior air /
Recirculation of interior air
Press this button to
recirculate the interior air.
The recirculation symbol is
displayed.
Pressing the large fan
button or the AUTO button
reactivates the system with
the values set before it was
deactivated. Recirculation prevents exterior
odours and smoke from entering
the passenger compartment. Avoid
prolonged operation in interior
air recirculation mode (risk of
condensation, odour and humidity).
Pressing this button again activates the
intake of exterior air.
Pressing this button again switches off
the air conditioning.
The ventilation outlet, located
in the glove box, diffuses cool
air (if the air conditioning is
on) regardless of the reference
temperature requested in the
passenger compartment and
regardless of the exterior temperature.
For your comfort, do not deactivate the
system for long periods.

Practical information
83
EASE OF U
SE and
COMFORT
3

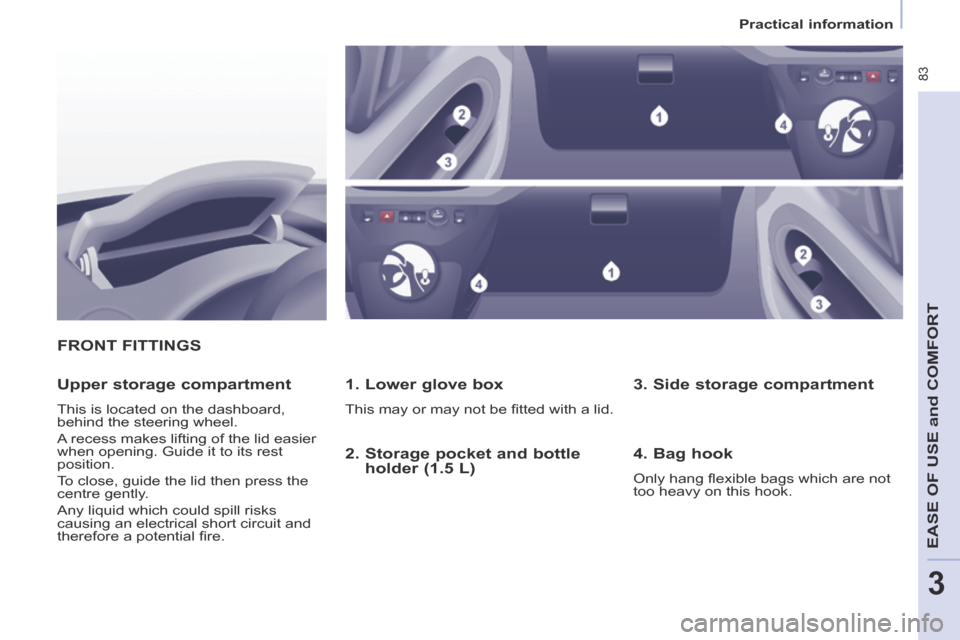

FRONT FITTINGS
1. Lower glove box
This may or may not be fi tted with a lid.
Upper storage compartment
This is located on the dashboard,
behind the steering wheel.
A recess makes lifting of the lid easier
when opening. Guide it to its rest
position.
To close, guide the lid then press the
centre gently.
Any liquid which could spill risks
causing an electrical short circuit and
therefore a potential fi re.
3. Side storage compartment
4. Bag hook
Only hang fl exible bags which are not
too heavy on this hook.
2. Storage pocket and bottle holder (1.5 L)

172

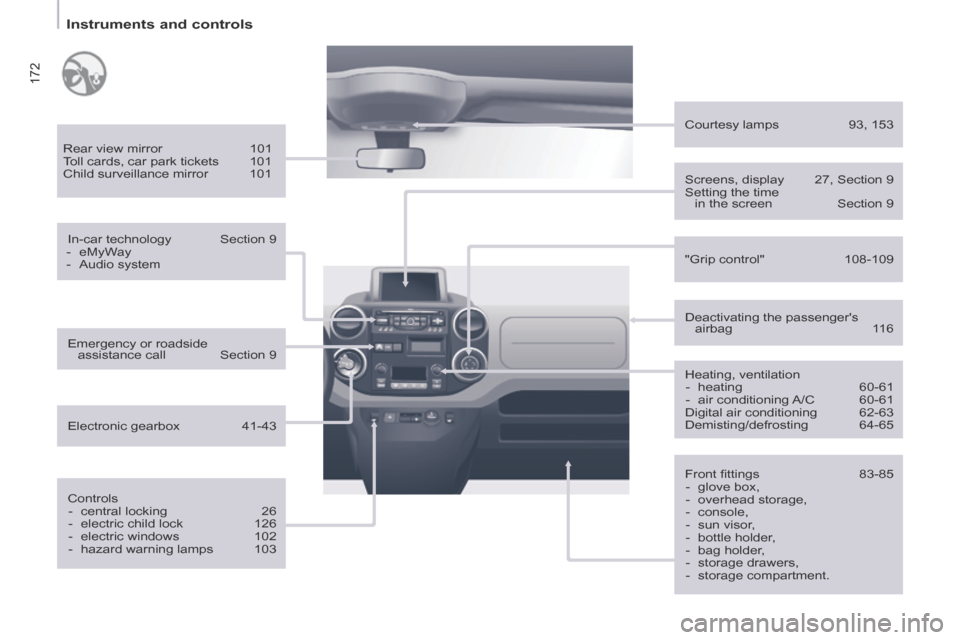

Instruments and controls
Rear view mirror 101
Toll cards, car park tickets 101
Child surveillance mirror 101
In-car technology Section 9
- eMyWay
- Audio system
Controls - central locking 26
- electric child lock 126
- electric windows 102
- hazard warning lamps 103
Emergency or roadside
assistance call Section 9
Electronic gearbox 41-43 Heating, ventilation
- heating 60-61
- air conditioning A/C 60-61
Digital air conditioning 62-63
Demisting/defrosting 64-65 Deactivating the passenger's airbag 116
Courtesy lamps 93, 153
Front fi ttings 83-85
- glove box,
- overhead storage,
- console,
- sun visor,
- bottle holder,
- bag holder,
- storage drawers,
- storage compartment.
Screens, display 27, Section 9
Setting the time
in the screen Section 9
"Grip control" 108-109

173

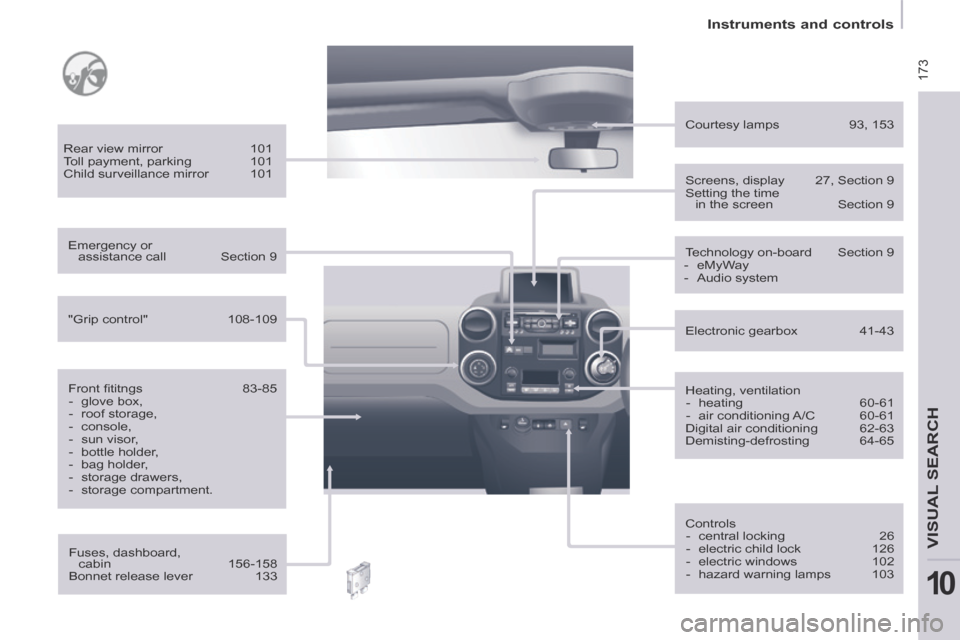

Instruments and controls
VISUAL SEARCH
10
Fuses, dashboard, cabin 156-158
Bonnet release lever 133
Rear view mirror
101
Toll payment, parking 101
Child surveillance mirror 101
Emergency or assistance call Section 9
Front fi titngs 83-85
- glove box,
- roof storage,
- console,
- sun visor,
- bottle holder,
- bag holder,
- storage drawers,
- storage compartment.
"Grip control"
108-109 Technology on-board Section 9
- eMyWay
- Audio system
Controls - central locking 26
- electric child lock 126
- electric windows 102
- hazard warning lamps 103
Electronic gearbox 41-43
Heating, ventilation - heating 60-61
- air conditioning A/C 60-61
Digital air conditioning 62-63
Demisting-defrosting 64-65
Courtesy lamps 93, 153
Screens, display 27, Section 9
Setting the time
in the screen Section 9
