technical data Citroen BERLINGO 2016 2.G Owner's Manual

12
Berlingo-2-VU_en_Chap01_vue-ensemble_ed01-2016
TECHNICAL DATA - M AINTENANCE
Identification markings, serial
number, paint code, tyres 168
Windscreen / headlamp wash, levels

128
Changing bulbs, lighting


148-153 Checks


129-130
-


battery
,
-

brake pads,
-


brake drums, discs.
-


parking brake,
-


carbon/passenger compartment filter,- oil filter,
- particle filter ,
-

gearbox.
Emissions controls


41
Engine fuses


154, 157
Under the bonnet: -

d iesel
126
-


petrol

125
Fuel cut-of

f, Diesel priming
132
AdBlue


133-139o

pening the bonnet, stay

124 Levels


127-128
-

dipstick,
-

brake fluid,
-

coolant.
-

power steering fluid,
-
d iesel additive,
Bleeding water, Diesel filter
130
W

arning lamps

32-39
Snow chains


147
Dimensions


162-165
Floor cab dimensions


166
Engines / W

eights

167
Location

163
Berlingo-2-VU_en_Chap09_Caract-technique_ed01-2016
Berlingo-2-VU_en_Chap09_Caract-technique_ed01-2016

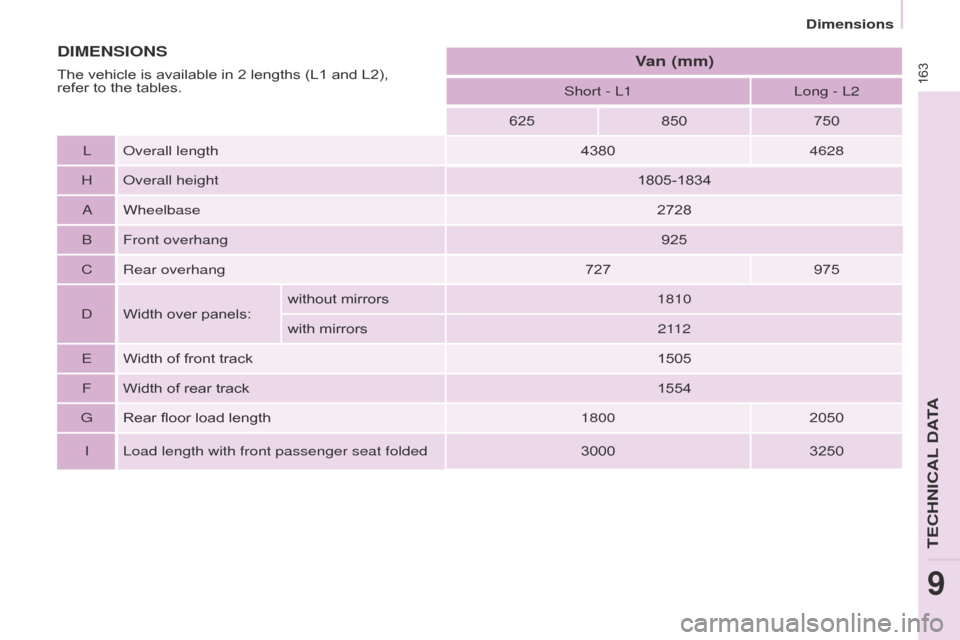

Short - L1Long - L2
625 850750
L
o

verall length 43804628
H
o

verall height 1805-1834
aWheelbase 2728
B Front overhang 925
C Rear overhang 727975
dWidth over panels:without mirrors
1810
with mirrors 21

12
E Width of front track 1505
F Width of rear track 1554
G Rear floor load length 18002050
I Load length with front passenger seat folded 30003250
DIMENSIONSV
an (mm)
The vehicle is available in 2 lengths (L1 and L2),
refer to the tables.
dimensions
TECHnICaL daTa
9

165
Berlingo-2-VU_en_Chap09_Caract-technique_ed01-2016
Berlingo-2-VU_en_Chap09_Caract-technique_ed01-2016

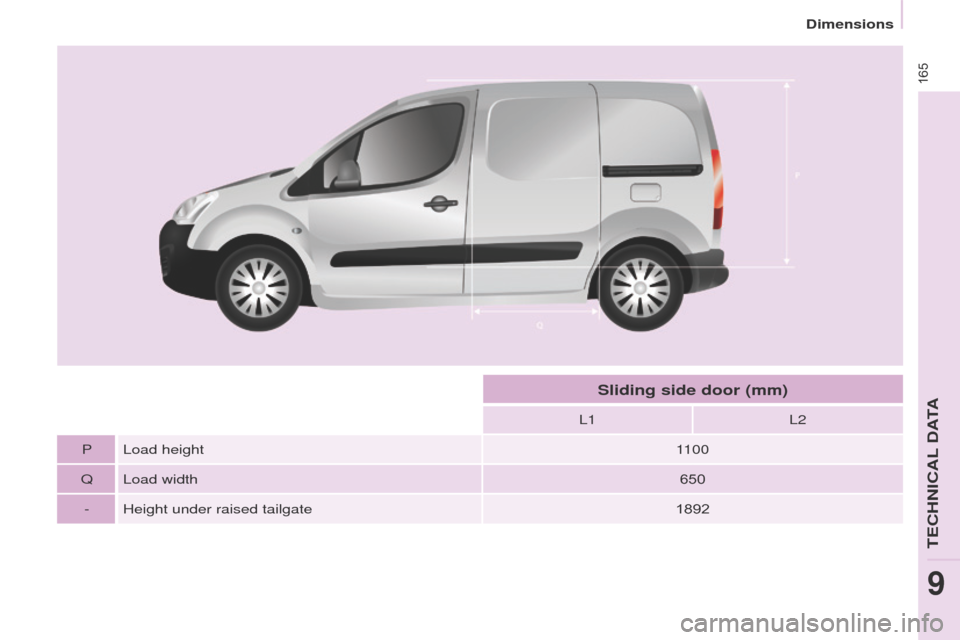

L1L2
P Load height 1100
Q Load width 650
- Height under raised tailgate 1892
Sliding side door (mm)
dimensions
TECHnICaL daTa
9

167
Berlingo-2-VU_en_Chap09_Caract-technique_ed01-2016Berlingo-2-VU_en_Chap09_Caract-technique_ed01-2016
WEIGHTS AND TOWED LOADS
These values, expressed in kg, can be
found on the manufacturer's VIN plate
or label.
The maximum weights and towed
loads for your vehicle can be found on
the vehicle's registration certificate. The recommended nose weight is
the downward force on the towball
(removable with or without tools).
In each country, it is imperative that
the maximum towed loads authorised
by local legislation are complied
with. To find out your vehicle's towing
capacities and its gross train weight,
consult a CITROËN dealer.
The kerb weight is equal to the weight
without load + driver (75 kg) + fuel tank
filled to 90%.
The GTW and towed load values
indicated are valid up to a maximum
altitude of 1000 metres. The value of
the towed load mentioned must be
reduced by 10 % for each additional
1000 metres.
With load transfer, the braked trailer
weight can be increased, on condition
that the equivalent of this load is
removed from the vehicle so that the
GTW is not exceeded. High ambient temperatures
may result in a reduction in the
performance of the vehicle in
order to protect the engine. When
the ambient temperature is higher
than 37 °C, limit the towed weight.
The location of the manufacturer's
plate is given in chapter 9,
"Identification markings" section.
ENGINE CHARACTERISTICS
The engine characteristics (capacity,
maximum power, maximum power
speed, fuel, C
o
2 emissions...) for your
vehicle are given in the registration
certificate.
These characteristics correspond to the
values type-approved on a test bed,
under conditions defined in European
legislation (Directive 1999/99/EC).
For more information, refer to the
manufacturer's website or sales
brochure for the model. Contact
a CITROËN dealer or a qualified
workshop. GVW: gross vehicle weight, the
maximum authorised weight.
GTW: gross train weight, the maximum
weight for vehicle plus trailer.
Towing with a lightly loaded
vehicle can adversely affect road
holding.
Towing a trailer increases braking
distances.
When towing, the maximum permitted
speed is reduced (comply with the
legislation in force in the country).
TECHNICAL DATA
9
Weights
