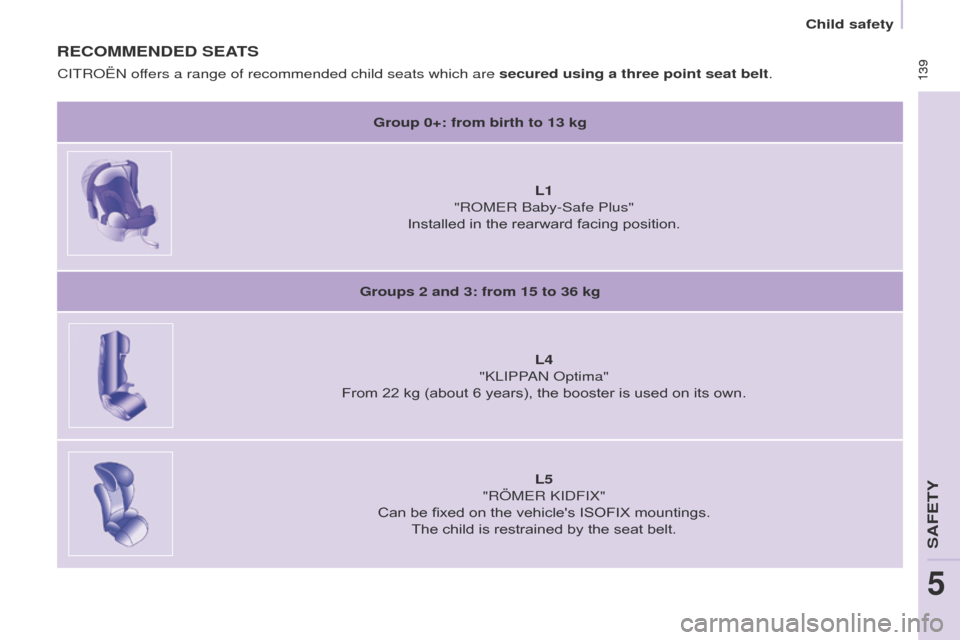

RECOMMENDED SEATS
Group 0+: from birth to 13 kgL1
"ROMER Baby-Safe Plus"
Installed
  in   the   rearward   facing   position.
Groups 2 and 3: from 15 to 36 kg L4
"KLIPPAN Optima"
From
  22 kg   (about   6   years),   the   booster   is   used   on   its   own.
L5
"RÖMER KIDFIX"
Can
  be   fixed   on   the   vehicle's   ISOFIX   mountings.
The
  child   is   restrained   by   the   seat   belt.
CITROËN offers a range of recommended child seats which are secured using a three point seat belt.
SAFETY
5
Child safety

140
Berlingo2VP_en_Chap05_Securite_ed02-2016
140
Berlingo2VP_en_Chap05_Securite_ed02-2016

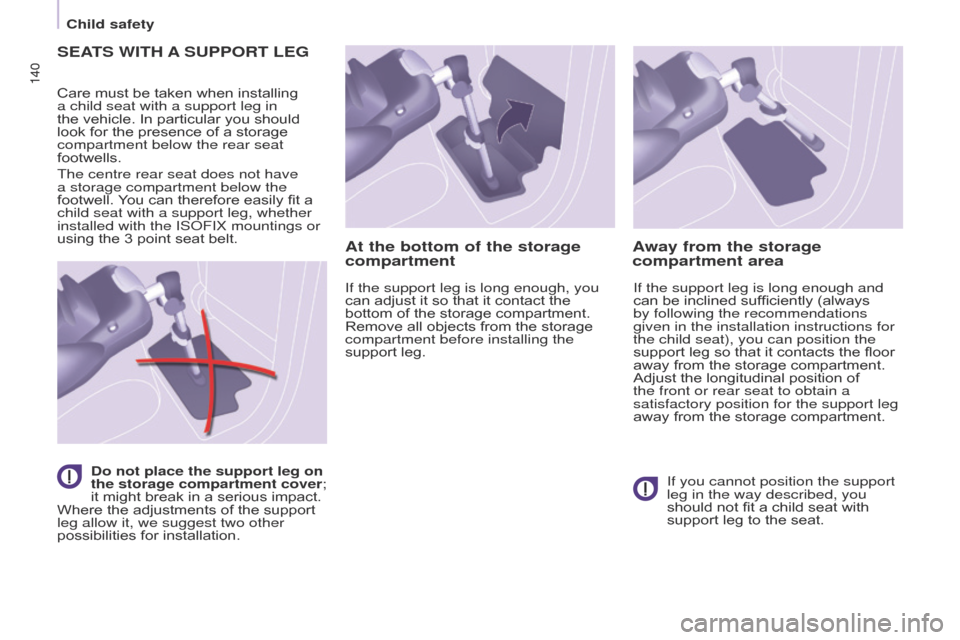

SEATS WITH A SUPPORT LEG
Care must be taken when installing a child seat with a support leg in
the
  vehicle.   In   particular   you   should
look

  for   the   presence   of   a   storage
compartment below the rear seat
footwells.
The centre rear seat does not have
a storage compartment below the
footwell.


Y
ou   can   therefore   easily   fit   a
child seat with a support leg, whether
installed with the ISOFIX mountings or
using

  the   3   point   seat   belt.
Do not place the support leg on
the storage compartment cover;
it
  might   break   in   a   serious   impact.
Where

  the   adjustments   of   the   support
leg allow it, we suggest two other
possibilities

  for   installation.
At the bottom of the storage
compartment
If the support leg is long enough, you
can  adjust   it   so   that   it   contact   the
bottom

  of   the   storage   compartment.
Remove

  all   objects   from   the   storage
compartment before installin

g the
support
  leg.
Away from the storage
compartment area
If the support leg is long enough and
can  be   inclined   sufficiently   (always
by following the recommendations
given in the installation instructions for
the child seat), you can position the
support

  leg   so   that   it   contacts   the   floor
away

  from   the   storage   compartment.
Adjust

  the   longitudinal   position   of
the front or rear seat to obtain a
satisfactory position for the support leg
away

  from   the   storage   compartment.
If you cannot position the support
leg in the way described, you
should

  not   fit   a   child   seat   with
support

  leg   to   the   seat.
Child safety

141
Berlingo2VP_en_Chap05_Securite_ed02-2016
141
Berlingo2VP_en_Chap05_Securite_ed02-2016

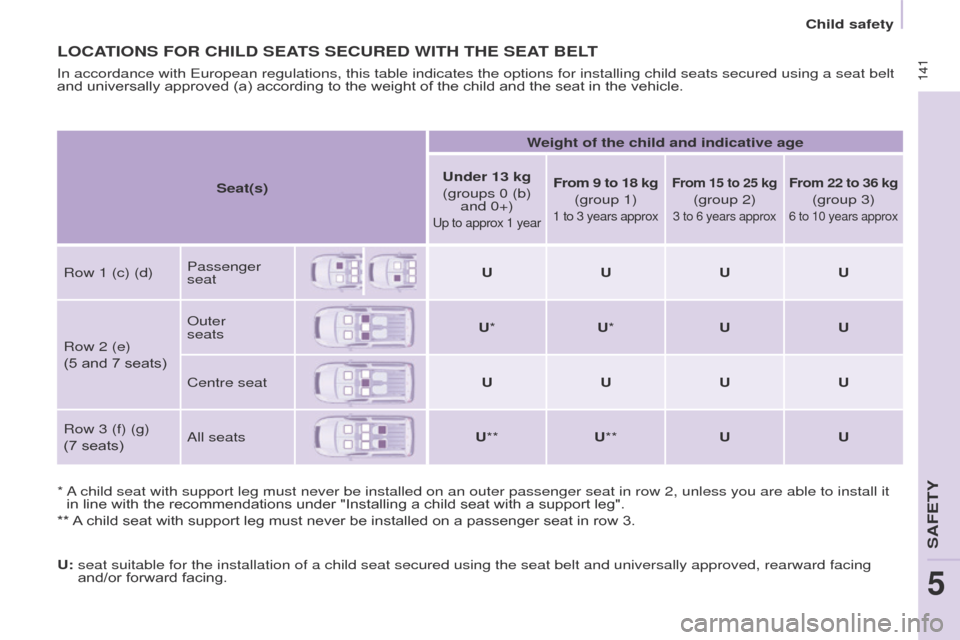

LOCATIONS FOR CHILD SEATS SECURED WITH THE SEAT BELT
* A child seat with support leg must never be installed on an outer passeng\
er seat in row 2, unless you are able to install it in   line   with   the   recommendations   under   "Installing   a   child   seat   with   a   support   leg".
**

A
child   seat   with   support   leg   must   never   be   installed   on   a   passenger   seat   in   row   3.
In accordance with European regulations, this table indicates the option\
s for installing child seats secured using a seat belt
and
  universally   approved   (a)   according   to   the   weight   of   the   child   and   the   seat   in   the   vehicle.
U:
seat suitable for the installation of a child seat secured using the sea\
t belt and universally approved, rearward facing
and/or

  forward   facing.Seat(s)
Weight of the child and indicative age
Under 13 kg
(groups 0 (b) and 0+)
Up to approx 1 year
From 9 to 18 kg
(group 1)
1 to 3 years approx
From 15 to 25 kg
(group 2)
3 to 6 years approx
From 22 to 36 kg
(group 3)
6 to 10 years approx
Row 1 (c) (d) Passenger
seat U
UUU
Row 2 (e)
(5
  and   7   seats) Outer
seats
U*
U* UU
Centre seat UUUU
Row 3 (f) (g)
(7
  seats) All seats
U**U** UU
SAFETY
5
Child safety

142
Berlingo2VP_en_Chap05_Securite_ed02-2016
142
Berlingo2VP_en_Chap05_Securite_ed02-2016

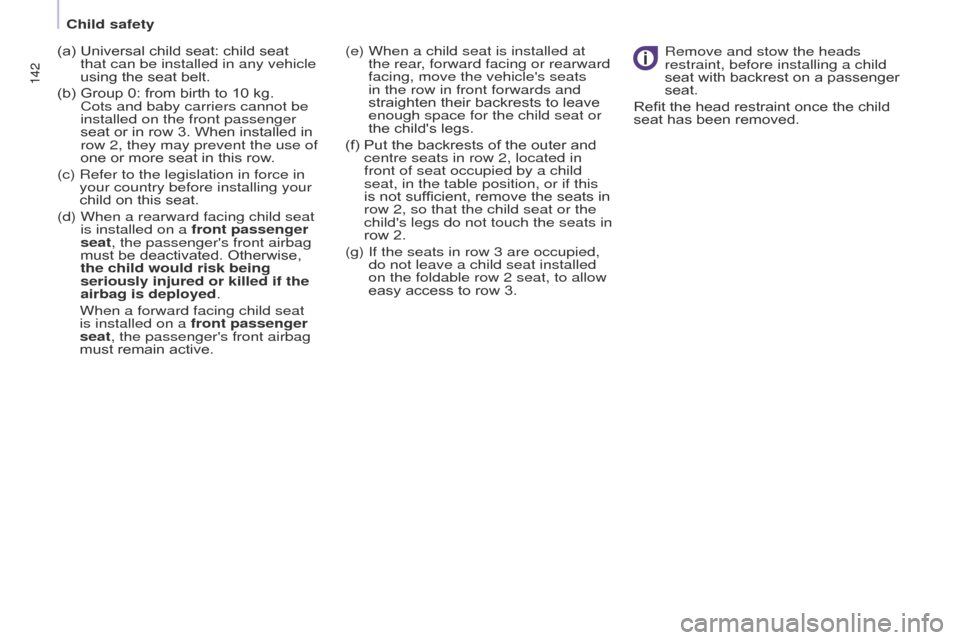

(a)  Universal  child   seat:   child   seat  that can be installed in any vehicle
using
  the   seat   belt.
(b)

Group
  0:   from   birth   to   10   kg.
Cots and baby carriers cannot be
installed on the front passenger
seat

  or   in   row   3.   When   installed   in
row 2, they may prevent the use of
one

  or   more   seat   in   this   row.
(c)

Refer to the legislation in force in
your country before installin

g your
child
  on   this   seat.
(d)

When a rearward facing child seat
is installed on a

front passenger
seat, the passenger's front airbag
must
  be   deactivated.   Otherwise,
the child would risk being
seriously injured or killed if the
airbag is deployed

.
When a forward facing child seat
is installed on a front passenger
seat, the passenger's front airbag
must
  remain   active. Remove and stow the heads
restraint, before installing a child
seat
  with   backrest   on   a   passenger
seat.
Refit

  the   head   restraint   once   the   child
seat

  has   been   removed.
(e)
When a child seat is installed at
the rear
, forward facing or rearward
facing, move the vehicle's seats
in the row in front forwards and
straighten
  their   backrests   to   leave
enough space for the child seat or
the

  child's   legs.
(f)

Put
  the   backrests   of   the   outer   and
centre seats in row 2, located in
front of seat occupied by a child
seat, in the table position, or if this
is

  not   sufficient,   remove   the   seats   in
row 2, so that the child seat or the
child's legs do not touch the seats in
row

  2.
(g)

If the seats in row 3 are occupied,
do not leave a child seat installed
on the foldable row 2 seat, to allow
easy

  access   to   row   3.
Child safety

143
Berlingo2VP_en_Chap05_Securite_ed02-2016
143
Berlingo2VP_en_Chap05_Securite_ed02-2016

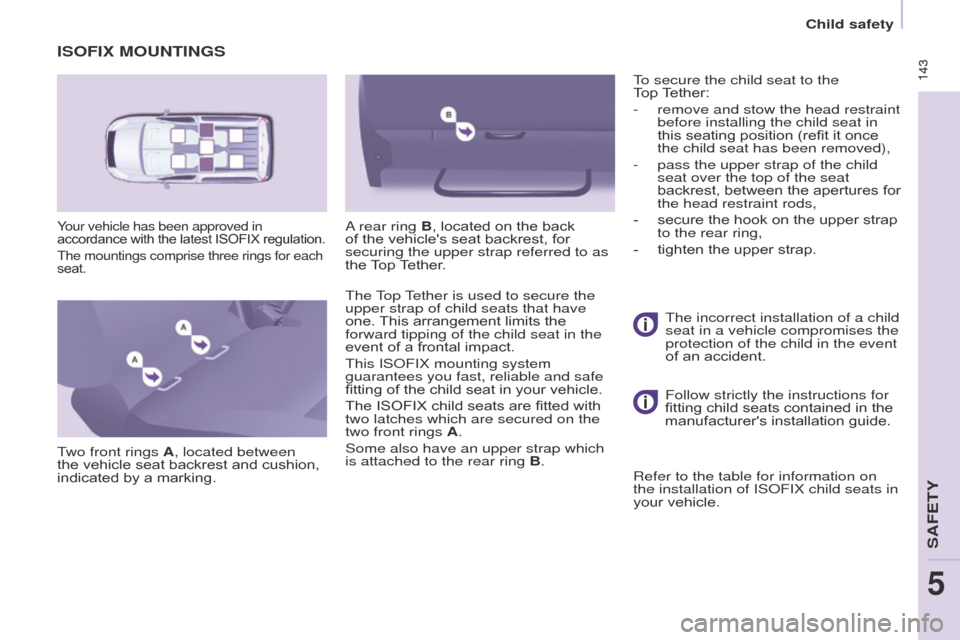

ISOFIx MOUNTINGS
Your vehicle has been approved in
accordance  with   the   latest   ISOFIX   regulation.
The mountings comprise three rings for each
seat.
Two front rings A, located between
the   vehicle   seat   backrest   and   cushion,
indicated

  by   a   marking. A rear ring B,
  located   on   the   back
of

  the   vehicle's   seat   backrest,   for
securing the upper strap referred to as
the


T
op
T
ether.
The Top Tether is used to secure the
upper strap of child seats that have
one.
This
  arrangement   limits   the
forward tipping of the child seat in the
event

  of   a   frontal   impact.
This ISOFIX mounting system
guarantees you fast, reliable and safe
fitting   of   the   child   seat   in   your   vehicle.
The   ISOFIX   child   seats   are   fitted   with
two latches which are secured on the
two front rings

A.
Some also have an upper strap which
is attached to the rear ring B. Follow strictly the instructions for
fitting
  child   seats   contained   in   the
manufacturer's

  installation   guide.
To secure the child seat to the
Top Tether:
-
remove and stow the head restraint
before installin

g the child seat in
this   seating   position   (refit   it   once
the child seat has been removed),
-

pass the upper strap of the child
seat over the top of the seat
backrest,

  between   the   apertures   for
the head restraint rods,
-

secure
  the   hook   on   the   upper   strap
to the rear ring,
-

tighten
  the   upper   strap.
The incorrect installation of a child
seat in a vehicle compromises the
protection of the child in the event
of   an   accident.
Refer to the table for information on
the installation of ISOFIX child seats in
your   vehicle.
SAFETY
5
Child safety

144
Berlingo2VP_en_Chap05_Securite_ed02-2016
144
Berlingo2VP_en_Chap05_Securite_ed02-2016
This child seat can also be used on seats which are not fitted with ISOFIX mountings.
In this case, it must be attached to the vehicle seat using the three po\
int
seat belt.
Follow the instructions for fitting the child seat given in the seat
manufacturer's installation guide.

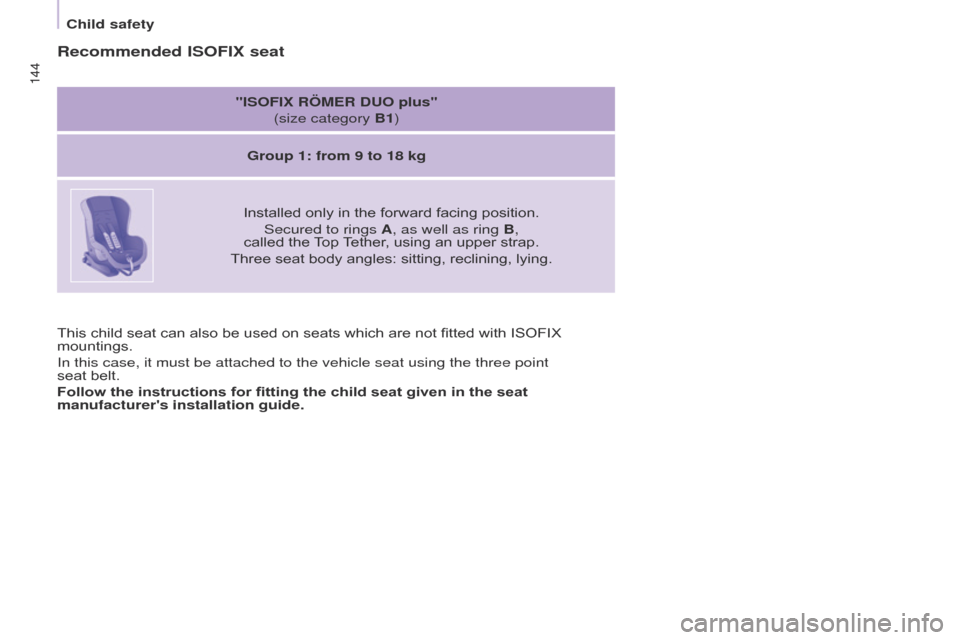

Recommended ISOFIx seat
"ISOFIx RÖMER DUO plus"
(size category B1)
Group 1: from 9 to 18 kg
Installed
  only   in   the   forward   facing   position.
Secured to rings A, as well as ring B,
called
  the
T
op
T
ether,   using   an   upper   strap.
Three
  seat   body   angles:   sitting,   reclining,   lying.
Child safety

145
Berlingo2VP_en_Chap05_Securite_ed02-2016
145
Berlingo2VP_en_Chap05_Securite_ed02-2016

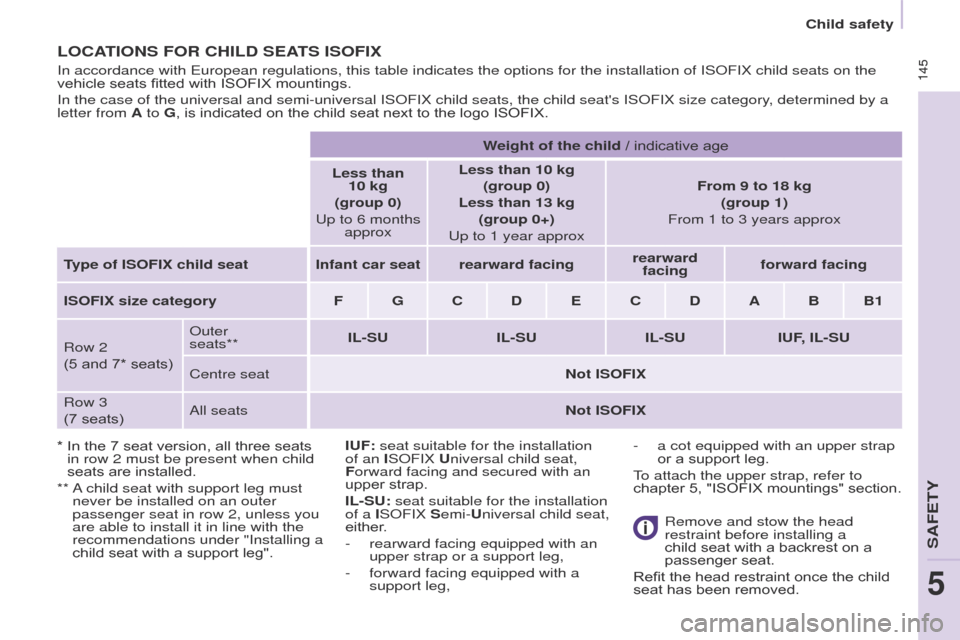

LOCATIONS FOR CHILD SEATS ISOFIx
*  In  the   7   seat   version,   all   three   seats  in row 2 must be present when child
seats
  are   installed.
**
A

child seat with support leg must
never be installed on an outer
passenger seat in row 2, unless you
are able to install it in line with the
recommendations under "Installing a
child
  seat   with   a   support   leg".
In accordance with European regulations, this table indicates the option\
s for the installation of ISOFIX child seats on the
vehicle
  seats   fitted   with   ISOFIX   mountings.
In the case of the universal and semi-universal ISOFIX child seats, the \
child seat's ISOFIX size category, determined by a
letter from A to G,   is   indicated   on   the   child   seat   next   to   the   logo   ISOFIX.
Weight of the child   /   indicative   age
Less than 10 kg
(group 0)
Up to 6 months approx Less than 10 kg
(group 0)
Less than 13 kg (group 0+)
Up to 1 year approx From 9 to 18 kg
(group 1)
From 1 to 3 years approx
Type of ISOFI x child seat Infant car seat rearward facing
rearward
facing forward facing
ISOFI x size category
F G C D E C D A B B1
Row 2
(5   and   7*   seats)
Outer
seats**
IL-SU
IL-SUIL-SUIUF, IL-SU
Centre seat Not ISOFI x
Row 3
(7

  seats)
All seats
Not ISOFI xIUF:
seat suitable for the installation
of an ISOFIX Universal child seat,
Forward facing and secured with an
upper
  strap.
IL-SU: seat suitable for the installation
of a ISOFIX Semi-Universal child seat,
either.
-

rearward facing equipped with an
upper strap or a support leg,
-


forward facing equipped with a
support leg, Remove and stow the head
restraint before installin

g a
child
  seat   with   a   backrest   on   a
passenger

  seat.
Refit
  the   head   restraint   once   the   child
seat

  has   been   removed.
-
a cot equipped with an upper strap
or
  a   support   leg.
To attach the upper strap, refer to
chapter
  5,   "ISOFIX   mountings"   section.
SAFETY
5
Child safety

146
Berlingo2VP_en_Chap05_Securite_ed02-2016
146
Berlingo2VP_en_Chap05_Securite_ed02-2016
ADVICE ON CHILD SEATS
At the rear, always leave sufficient space  between   the   front   seat   and:
-

a rearward facing child seat,
-


the feet of a child seated in a
forward

  facing   child   seat.
For this, move the front seat forward
and, if necessary, straighten its
backrest
  as   well.
The incorrect installation of a child seat
in a vehicle compromises the child's
protection
  in   the   event   of   an   accident.
Check   that   there   is   no   seat   belt   or   seat
belt

  buckle   under   the   child   seat,   as   this
could

  destabilise   the   seat.
Remember to fasten the seat belts or
the child seat harnesses keeping the
slack relative to the child's body to a
minimum,   even   for   short   journeys.
For the installation of a child seat using
the seat belt, ensure that the seat belt
is well tensioned on the child seat
and that it is holding the child seat
firmly   against   the   vehicle's   seat.   If   the
passenger

  seat   is   adjustable,   move   it
forward

  if   necessary. For the optimum installation of a
forward facing child seat, ensure that
the   back   of   the   child   seat   is   as   close   as
possible

  to   the   backrest   of   the   vehicle's
seat,

  or   in   contact   if   possible.
The head restraint must be removed
before installing a child seat with a
backrest   on   the   passenger   seat.
Ensure that the head restraint is
stowed or attached securely so that it
is not thrown around the vehicle in the
event   of   sharp   braking.
Refit   the   head   restraint   as   soon   as   the
child

  seat   is   removed.Children at the front
The legislation on carrying a child on
the
  front   passenger   seat   is   specific   to
each

  country.   Refer   to   the   legislation   in
force

  in   your   country.
Deactivate the passenger's airbag
when a rearward facing child seat is
installed
  on   the   front   seat.
Otherwise,
  the   child   would   risk   being
seriously

  injured   or   killed   if   the   airbag
were

  deployed.
Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without   touching   the   neck.
Ensure that the lap part of the seat belt
passes
  correctly   over   the   child's   thighs.
CITROËN recommends the use of a
booster
  seat   which   has   a   back,   fitted
with

  a   seat   belt   guide   at   shoulder   level.
As
  a   safety   precaution,   never   leave:
-

one or more children alone and
unsupervised in a vehicle,
-


a child or an animal in a vehicle
which is exposed to the sun, with
the windows closed,
-


the
  keys   within   reach   of   children
inside

  the   vehicle.
To prevent accidental opening of the
doors,
  use   the   "Child   Lock".
Take

care

not

to

open

the

rear

windows

by

  more   than   one   third.
To protect young children from the rays
of
  the   sun,   fit   side   blinds   to   the   rear
windows.
For an installation in row 3, put the
backrests


of

the

outer

and

centre
 seats in row 2 in the table position, or
remove these seats in row 2, so that
the child seat or the child's legs do not
touch

the

seats

in

row

2.
Child safety

 147
Berlingo2VP_en_Chap05_Securite_ed02-2016
 147
Berlingo2VP_en_Chap05_Securite_ed02-2016
CHILD LOCK
This prevents opening of the siding
side  doors   from   the   inside.
Manual Electric
With the ignition on, press
this button in the middle of
the
  dashboard.
Indicator lamp on = child
lock on.
Please

note:   this   system   is
independent

  of   the   central   locking
control.Always

  remove   the   ignition   key
when leaving the vehicle, even for
a


short   time.
It

is

advisable   to   check   the   state   of
the


child

lock   each   time   the   ignition   is
switched

  on.
In the event of a serious impact the
electric

child   lock   is   deactivated
automatically

.
A label indicates the position of the
lever

and

the

state

of

the

child

lock.
-

Open fully past the point of
resistance.
-


T

ilt the lever, located on the rear
section

of

the

door.
SAFETY
5
Child safety

148
Berlingo2VP_en_Chap06_Accessoire_ed02-2016
For more information about
weights and towed loads, refer to
chapter  9,   "Weights"   section.

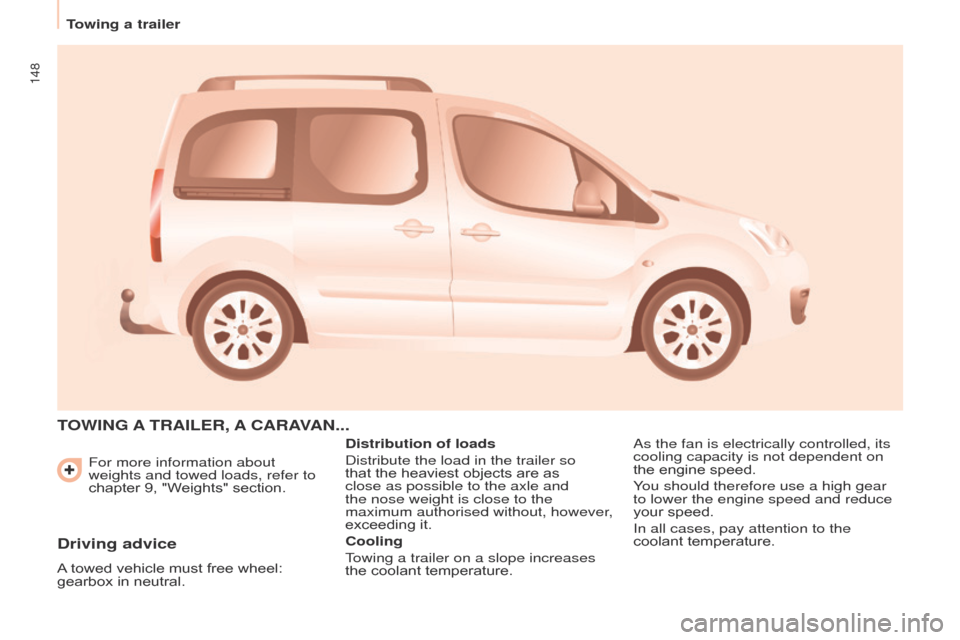

TOWING A TRAILER , A CARA VAN ...
Distribution of loads
Distribute the load in the trailer so
that
  the   heaviest   objects   are   as
close as possible to the axle and
the nose weight is close to the
maximum authorised without, however

,
exceeding
  it.
Cooling
Towing a trailer on a slope increases
the
  coolant   temperature. As the fan is electrically controlled, its
cooling capacity is not dependent on
the
  engine   speed.
You should therefore use a high gear
to lower the engine speed and reduce
your
  speed.
In all cases, pay attention to the
coolant
  temperature.
Driving advice
A towed   vehicle   must   free   wheel:  gearbox
  in   neutral.
Towing a trailer
