CITROEN BERLINGO 2023 Workshop Manual

49
Access
2Be aware of passengers and/or other persons
present when closing windows remotely using
the electronic key.
Do not put your head or arms through the
open windows when the vehicle is moving -
risk of serious injury!
Tilting rear door windows
Opening

► Turn the lever outwards.
► Push it fully to secure the window in the open
position.
Closing
► Pull the lever to release the window .
► T urn the lever fully inwards to secure the
window in the closed position.

50
Ease of use and comfort
General
recommendations for the
seats
For safety reasons, seat adjustments
must only be made when the vehicle is
stationary.
Folding or unfolding the seat backrests
must only be done with the vehicle
stationary.
Before moving the seat backwards,
ensure that there is no person or object
that might prevent the full travel of the seat.
There is a risk of trapping or pinching
passengers if present in the rear seats or of
jamming the seat if large objects are placed
on the floor behind the seat.
Do not place hard or heavy objects on
the backrests forming a table. They could
become dangerous projectiles in the event of
sudden braking or a collision.
–

Do not remove a head restraint without
stowing it; secure it to a support inside the
vehicle.
–


Check that the seat belts remain accessible
to the passenger and easy to fasten.
–


Passengers must never take their seat
without adjusting and fastening their seat belt.
– In row 3, be careful not to leave your feet
under the row 2 seat while it is being tilted.
–

When a row 3 seat is in the fully folded
position, ensure that the strap is correctly
hooked to the

Top Tether fixing of the row 2
backrest: risk of unexpected tipping of the
seat.
Before carrying out the manoeuvres,
check that nothing and no one is
obstructing the moving elements and their
locking.
To avoid sudden folding, take care to hold the
backrest and support it until it is horizontal.
Never put your hand underneath the seat
cushion to guide the seat downwards or
upwards, you could get your fingers trapped.
Place your hand on the grip/strap (depending
on equipment) at the top of the seat cushion.
Please note: an incorrectly latched
backrest compromises the safety of
passengers in the event of sudden braking or
an impact.
The contents of the boot may be thrown
forward - risk of severe injury!
Front seats
Correct driving position
Before taking to the road and to make the most
of the ergonomic layout of the instruments and
controls, carry out these adjustments in the
following order:
–

head restraint height.
–


seat backrest angle.
–


seat cushion height.
–


longitudinal seat position.
–


steering wheel height and reach.
–


rear view mirror and door mirrors.

Once these adjustments have been
made, check that the instrument panel
can be viewed correctly from your driving
position.

51
Ease of use and comfort
3AdjustmentsLongitudinal


► Raise the control and slide the seat forwards
or backwards.
Height
(driver only)

► If fitted to the vehicle, pull the control
upwards to raise or push it downwards to lower ,
as many times as necessary to obtain the
position required.
For more information on the Seat belts,
refer to the corresponding section.
Tilting the backrest

► Push the control backwards then use your
weight and your legs to adjust the backrest.
Lumbar
(driver only)

► Turn the knob to obtain the desired level of
lumbar support.
Armrest



► To put the armrest in the vertical position,
raise it until it locks into place.
►
Lower the armrest to return it to the position
for use.
The armrest can be removed from the passenger
seat.
Removing the armrest
►


Raise the armrest into the vertical position.

► Push the armrest shaft towards the backrest.
► While holding it in this position, rotate the
armrest towards the rear
.
►

Pull the armrest to detach it from the
backrest.
Refitting the armrest

52
Ease of use and comfort

► Slot the armrest into the backrest, ensuring
that you align the bayonet lugs with the holes.
►

Push the armrest shaft towards the backrest.
►


While holding it in this position, rotate the
armrest towards the front.

The armrest is once
again secured onto the backrest.
Storage compartment under
the seat




► Lift the passenger ’s seat cushion to access
the storage compartment.
Retractable position



► If the centre console inconveniences you,
remove the passenger's seat armrest.
►

Push the control rearwards fully to tilt and
guide the assembly

.
This position allows you to transport long loads
inside the vehicle with the doors closed.
When retracted, the maximum permitted weight
on the backrest is 50
kg.
►

T
o reposition the seat cushion, raise the
backrest until it locks in the raised position.
Heated seat control


► Approximately 30 seconds after starting the
engine, press the control.
It can be activated when the outside temperature
is below 20°C.
The temperature is controlled automatically
.
Pressing again interrupts operation.
If you press the control while the engine
is not running, the request will be
memorised for approximately 2 minutes.


With the two-seat front bench seat, the driver's
seat control switches the heating on or off for the
bench seat’s outer seat.
Do not use the function when the seat
is not occupied.
Reduce the heating intensity as soon as
possible.
When the seat and passenger compartment
have reached a satisfactory temperature,

53
Ease of use and comfort

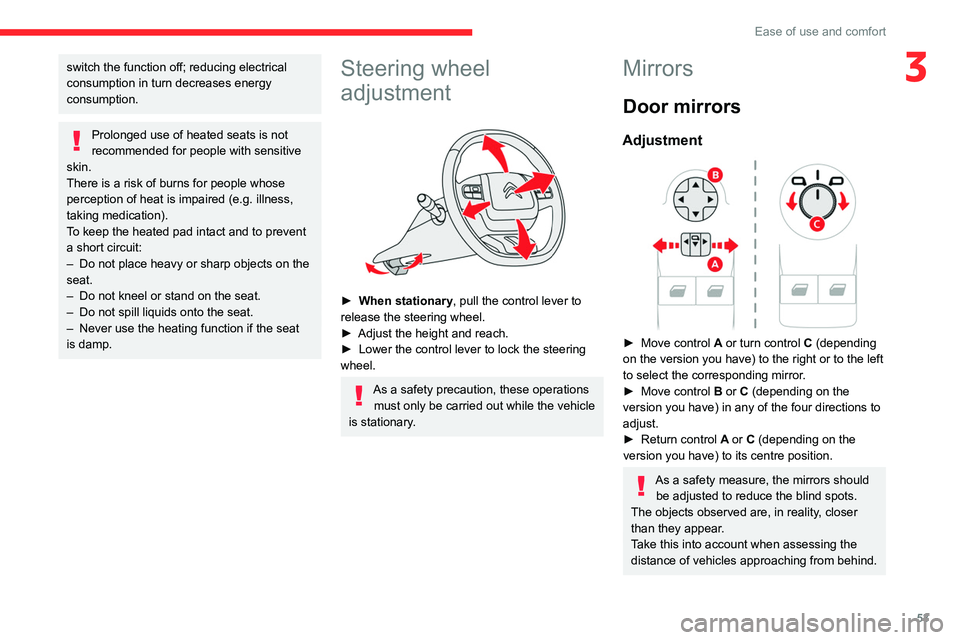

3switch the function off; reducing electrical
consumption in turn decreases energy
consumption.
Prolonged use of heated seats is not
recommended for people with sensitive
skin.
There is a risk of burns for people whose
perception of heat is impaired (e.g.
illness,
taking medication).
To keep the heated pad intact and to prevent
a short circuit:
–

Do not place heavy or sharp objects on the
seat.
–


Do not kneel or stand on the seat.
–


Do not spill liquids onto the seat.
–


Never use the heating function if the seat
is damp.
Steering wheel
adjustment


► When stationary , pull the control lever to
release the steering wheel.
►

Adjust the height and reach.
►


Lower the control lever to lock the steering
wheel.
As a safety precaution, these operations must only be carried out while the vehicle
is stationary.
Mirrors
Door mirrors
Adjustment

► Move control A or turn control C (depending
on the version you have) to the right or to the left
to select the corresponding mirror.
►

Move control
B or C (depending on the
version you have) in any of the four directions to
adjust.
►

Return control A

or C (depending on the
version you have) to its centre position.
As a safety measure, the mirrors should be adjusted to reduce the blind spots.
The objects observed are, in reality, closer
than they appear.
Take this into account when assessing the
distance of vehicles approaching from behind.

54
Ease of use and comfort
Manual folding
You can manually fold the mirrors (parking
obstruction, narrow garage, etc.)
►
T
urn the mirror towards the vehicle.
Electric folding
Depending on equipment, the door mirrors can
be folded electrically.
► From the inside, with the
ignition on, place control A
in the
central position.
►

Pull control A

backwards.
►

Lock the vehicle from the outside.
If the mirrors are folded using control A,
they will not unfold when the vehicle is
unlocked.
Electric unfolding
The door mirrors are unfolded electrically when
the vehicle is unlocked using the remote control
or key. Unless folding was selected with control
A, pull the control in the central position towards
the rear again.
Folding/unfolding when locking/unlocking
the vehicle can be deactivated. Contact a
CITROËN dealer or a qualified workshop.
If necessary, the mirrors can be folded
manually.
Heated mirrors



► Press one of these buttons.
For more information on Rear screen
demisting/de-icing , refer to the
corresponding section.
Interior rear view mirror
Equipped with an anti-dazzle system, which
darkens the mirror glass and reduces the
nuisance to the driver caused by the sun,
headlamps of other vehicles, etc.
Manual model
Day/night position

► Pull the lever to change to the anti-dazzle
"night" position.
► Push the lever to change to the normal "day"
position.
Adjustment
►

Adjust the mirror to the normal "day" position.
Automatic "electrochrome" model
The electrochrome system uses a sensor that
detects the level of exterior brightness and that
coming from the rear of the vehicle, in order to
automatically and gradually switch between day
and night usage.
To ensure optimum visibility while manoeuvring, the mirror automatically
brightens when reverse gear is engaged.
The system is deactivated if the load in the
boot exceeds the height of the load space
cover or if the load space cover has items
placed on it.
Child-monitoring mirror

55
Ease of use and comfort
3A child-monitoring mirror is installed above
the interior rear view mirror. It allows the
vehicle's rear passengers to be observed and
facilitates discussion between the front and rear
passengers without changing the mirror setting
and without turning around. It can be folded
easily to avoid dazzle.
2-seat front bench seat

Central seat
Table position

► To lower the backrest, pull the tab on the
lower edge of the seat.


The backrest of the central seat of the bench
seat tilts to form a work table, creating a mobile
office (for use while stationary).


The vehicle may also be fitted with a pivoting
table.
►
T
o return the backrest to the sitting position,
stow the table, then guide it until it locks.
Take care not to jam the tab under the seat
cushion while moving the backrest.


Never use the table while the vehicle is
being driven.
In the event of sudden braking or impact, any
objects on the table might become dangerous
projectiles that could cause injury.
Storage compartment under seats

► Lift the central seat to access the storage
compartment. This space can be secured by
fitting a padlock (not supplied).
Each time you lock the seat in the sitting
position, make sure that passengers
have access to the seat belt end pieces and
the associated straps.

56
Ease of use and comfort
Side seat
Retractable position

► Pull the tongue on the top edge of the seat
near the head restraint to tilt and guide the
assembly
.
It is placed in the floor of the front seat and thus
forms a continuous flat floor with the loading
space.
This position allows transporting long cargo
inside the vehicle with the doors closed.
When retracted, the maximum weight on the
backrest is 50 kg.
To replace the seat, lift the backrest until the seat
locks into position on the floor.
Never put your hand underneath the seat
cushion to guide the seat downwards or
upwards, you could get your fingers trapped.
Always just use the strap.
Before carrying out these manoeuvres, check
that nothing and nobody is obstructing the
moving elements and their locking.
Folded position

► Lift the yellow crank at the base of the seat to
unlock and lift the assembly into folded position
(seat raised against the backrest) until it locks.
This position allows the transport of high loads
inside the cab.
T
o replace the seat, push on the yellow crank
under the seat and lower the assembly until the
seat locks into position on the floor.
Never put your hand underneath the seat
cushion to guide the seat downwards or
upwards, you could get your fingers trapped.
Place your hand on the front of the seat
cushion.
Before carrying out these manipulations,
check that nothing and nobody is obstructing
the moving elements and their locking.
Rear bench seat (row 2)
For safety reasons, seat adjustments
must only be made when the vehicle is
stationary.
Folding the backrests
First steps:
► lower the head restraints,
►

if necessary
, move the front seats forward,
►

check that nothing or no person might
interfere with the folding of the backrests
(clothing, luggage, etc.),
►


check that the outer seat belts are lying flat
on the backrests.
The folding of the backrest is accompanied by a slight lowering of the
corresponding seat cushion.
When the backrest is released, the red
indicator is visible in the release grips on the
outer seats.


► Turn the backrest release handle 1.

57
Ease of use and comfort
3► Guide the backrest down to the horizontal
position.
Repositioning the backrests
First check that the outer seat belts are
lying vertically flat alongside the backrest
latching rings.
►

Put the backrest in the upright position and
push it firmly to latch it home.
►


Check that the red indicator in the release
grip

1 is no longer visible.
►

Ensure that the outer seat belts are not
trapped during the manoeuvre.
Rear seats (row 2)

Folding the backrests
First steps:
► lower the head restraints,
►

if necessary
, move the front seats forward,
►

check that nothing or no person might
interfere with the folding of the backrests
(clothing, luggage, etc.),
►


check that the outer seat belts are lying flat
on the backrests.
The folding of the backrest is accompanied by a slight lowering of the
corresponding seat cushion.
When the backrest is released, the red
indicator is visible in the release grips on the
outer seats.
Outer seat (left-hand or right-hand)

► Turn the backrest release handle 1.
► Guide the backrest down to the horizontal
position.
Central seat

► Pull the backrest release tab 1 .
► Guide the backrest down to the horizontal
position.
With the central seat, only the strap must
be used.
Repositioning the backrests
Outer seat (left-hand or right-hand)
First check that the outer seat belts are
lying vertically flat alongside the backrest
latching rings.
►

Put the backrest in the upright position and
push it firmly to latch it home.
►


Check that the red indicator on the release
grips

1 of the outer seats is no longer visible.
►

Ensure that the outer seat belts are not
trapped during the manoeuvre.
Check that the backrest of the upright
central seat is correctly aligned with the
backrests of the outer seats.
Central seat
►

Put the backrest in the upright position and
push it firmly to latch it home.
►


Check that the central seat belt is not trapped
during the manoeuvre.
Rear seats (row 3)

58
Ease of use and comfort
Access to row 3

► Using the row 2 seat grip, fold the backrest.
► T o reposition it, tilt the backrest backwards
until it locks into place.
Labels in row 3



While driving, it is prohibited to have a
passenger seated next to a seat in the fully
folded position.


If you want to load luggage onto the row 3
backrests while in the table position, the row 2
seats must also be folded down.
Longitudinal adjustment
XL


► Raise the control and slide the seat forwards
or backwards.
Table position
Placing the backrest in the table position ►
Lower the head restraint as far as it will go.

► Operate control
1 to fold the backrest onto
the seat cushion.
Repositioning the backrest
►

Unlock it by pulling control 1

.
►

Return it to its initial position
►


Check that the assembly is anchored
properly

.
Fully folded position
XL
Placing the seat in the fully folded position
►

Place the backrest in the table position.
