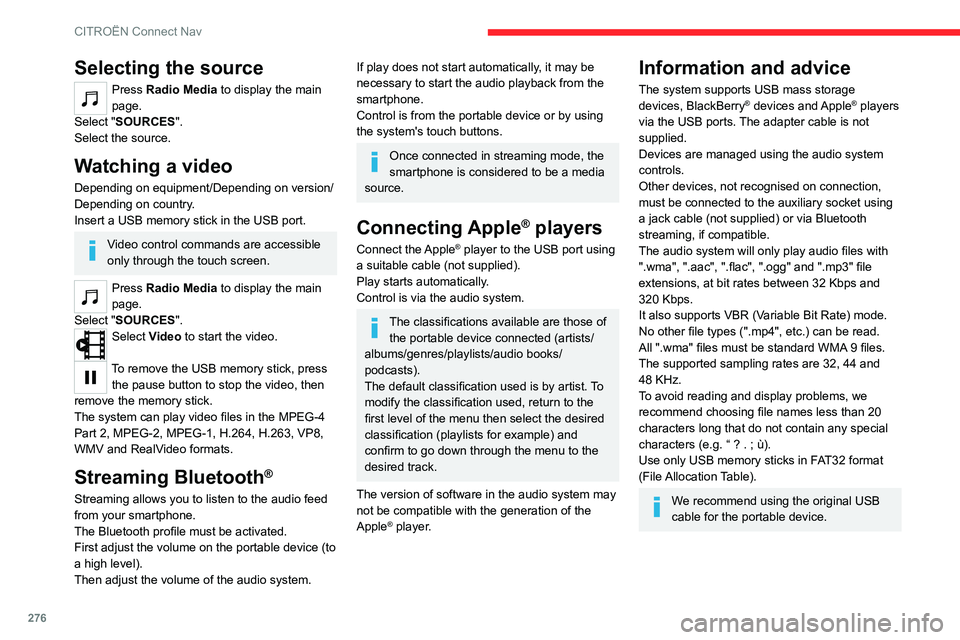

276
CITROËN Connect Nav
Selecting the source
Press Radio Media to display the main
page.
Select "SOURCES".
Select the source.
Watching a video
Depending on equipment/Depending on version/
Depending on country.
Insert a USB memory stick in the USB port.
Video control commands are accessible
only through the touch screen.
Press Radio Media to display the main
page.
Select "SOURCES".
Select Video to start the video.
To remove the USB memory stick, press the pause button to stop the video, then
remove the memory stick.
The system can play video files in the MPEG-4
Part 2, MPEG-2, MPEG-1, H.264, H.263, VP8,
WMV and RealVideo formats.
Streaming Bluetooth®
Streaming allows you to listen to the audio feed
from your smartphone.
The Bluetooth profile must be activated.
First adjust the volume on the portable device (to
a high level).
Then adjust the volume of the audio system.
If play does not start automatically, it may be
necessary to start the audio playback from the
smartphone.
Control is from the portable device or by using
the system's touch buttons.
Once connected in streaming mode, the
smartphone is considered to be a media
source.
Connecting Apple® players
Connect the Apple® player to the USB port using
a suitable cable (not supplied).
Play starts automatically.
Control is via the audio system.
The classifications available are those of the portable device connected (artists/
albums/genres/playlists/audio books/
podcasts).
The default classification used is by artist. To
modify the classification used, return to the
first level of the menu then select the desired
classification (playlists for example) and
confirm to go down through the menu to the
desired track.
The version of software in the audio system may
not be compatible with the generation of the
Apple
® player.
Information and advice
The system supports USB mass storage
devices, BlackBerry® devices and Apple® players
via the USB ports. The adapter cable is not
supplied.
Devices are managed using the audio system
controls.
Other devices, not recognised on connection,
must be connected to the auxiliary socket using
a jack cable (not supplied) or via Bluetooth
streaming, if compatible.
The audio system will only play audio files with
".wma", ".aac", ".flac", ".ogg" and ".mp3" file
extensions, at bit rates between 32 Kbps and
320 Kbps.
It also supports VBR (Variable Bit Rate) mode.
No other file types (".mp4", etc.) can be read.
All ".wma" files must be standard WMA 9 files.
The supported sampling rates are 32, 44 and
48 KHz.
To avoid reading and display problems, we
recommend choosing file names less than 20
characters long that do not contain any special
characters (e.g. “ ? .

; ù).
Use only USB memory sticks in FAT32 format
(File Allocation Table).
We recommend using the original USB
cable for the portable device.

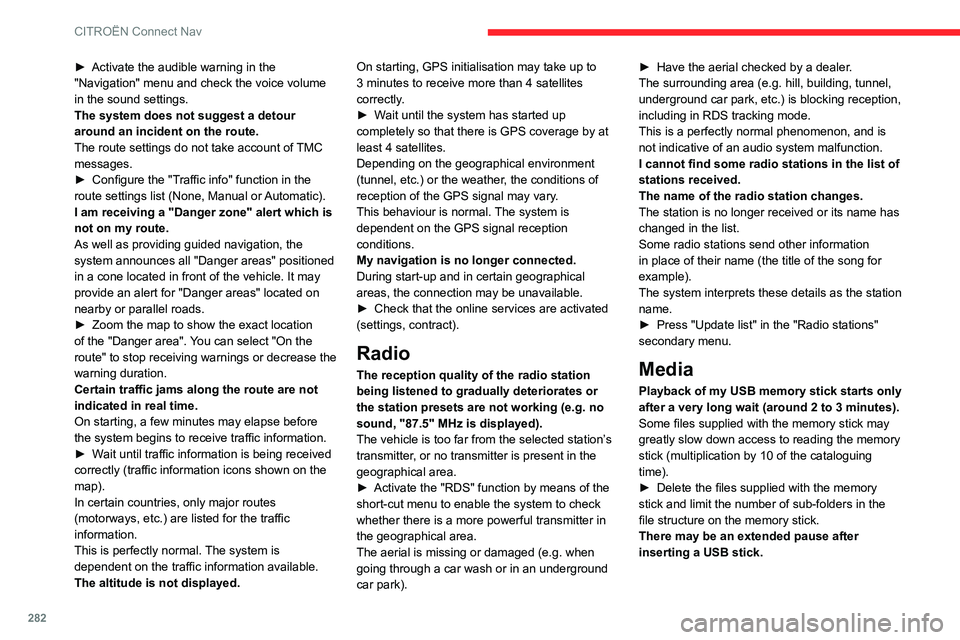

282
CITROËN Connect Nav
► Activate the audible warning in the
"Navigation" menu and check the voice volume
in the sound settings.
The system does not suggest a detour
around an incident on the route.
The route settings do not take account of
TMC
messages.
►

Configure the "T
raffic info" function in the
route settings list (None, Manual or Automatic).
I am receiving a "Danger zone" alert which is
not on my route.
As well as providing guided navigation, the
system announces all "Danger areas" positioned
in a cone located in front of the vehicle. It may
provide an alert for "Danger areas" located on
nearby or parallel roads.
►

Zoom the map to show the exact location
of the "Danger area".

You can select "On the
route" to stop receiving warnings or decrease the
warning duration.
Certain traffic jams along the route are not
indicated in real time.
On starting, a few minutes may elapse before
the system begins to receive traffic information.
►

W
ait until traffic information is being received
correctly (traffic information icons shown on the
map).
In certain countries, only major routes
(motorways, etc.) are listed for the traffic
information.
This is perfectly normal. The system is
dependent on the traffic information available.
The altitude is not displayed. On starting, GPS initialisation may take up to
3 minutes to receive more than 4 satellites
correctly.
►

W
ait until the system has started up
completely so that there is GPS coverage by at
least 4
satellites.
Depending on the geographical environment
(tunnel, etc.) or the weather, the conditions of
reception of the GPS signal may vary.
This behaviour is normal. The system is
dependent on the GPS signal reception
conditions.
My navigation is no longer connected.
During start-up and in certain geographical
areas, the connection may be unavailable.
►

Check that the online services are activated
(settings, contract).
Radio
The reception quality of the radio station
being listened to gradually deteriorates or
the station presets are not working (e.g.
no
sound, "87.5" MHz is displayed).
The vehicle is too far from the selected station’s
transmitter, or no transmitter is present in the
geographical area.
►

Activate the "RDS" function by means of the
short-cut menu to enable the system to check
whether there is a more powerful transmitter in
the geographical area.
The aerial is missing or damaged (e.g.

when
going through a car wash or in an underground
car park). ►

Have the aerial checked by a dealer
.
The surrounding area (e.g. hill, building, tunnel,
underground car park, etc.) is blocking reception,
including in RDS tracking mode.
This is a perfectly normal phenomenon, and is
not indicative of an audio system malfunction.
I cannot find some radio stations in the list of
stations received.
The name of the radio station changes.
The station is no longer received or its name has
changed in the list.
Some radio stations send other information
in place of their name (the title of the song for
example).
The system interprets these details as the station
name.
►
Press "Update list" in the "Radio stations"
secondary menu.
Media
Playback of my USB memory stick starts only
after a very long wait (around 2 to 3 minutes).
Some files supplied with the memory stick may
greatly slow down access to reading the memory
stick (multiplication by 10 of the cataloguing
time).
►

Delete the files supplied with the memory
stick and limit the number of sub-folders in the
file structure on the memory stick.
There may be an extended pause after
inserting a USB stick.

293
Alphabetical index
Running out of fuel (Diesel) 202
S
Safety, children 104, 106–108, 110, 114–116
Saturation of the particle filter (Diesel)
196
Screen, cold climate

188
Screen menu map

254
Screenwash

89
Screenwash, front

88
Screenwash, rear

89
SCR (Selective Catalytic Reduction)

197
Seat belts

99–102, 109
Seat, bench front, 2-seat

55–56, 100
Seat, rear bench

56, 58
Seats, front

50–52, 55–56
Seats, front bench

55–56
Seats, heated

52–53
Seats, Multiflex ~ Extenso Cab

68
Seats, rear

50, 55–58, 107
Selector, gear

130–132
Sensors (warnings)

140
Serial number, vehicle

236
Service indicator

20
Servicing

20, 195
Settings, equipment

29–30
Settings, system

244, 257, 280
Shield, snow

188
Sidelamps

83–85, 210–211
Side parking sensors

162
Side repeater

2 11
Silent vehicle warning sound (Electric)

95, 118
Sliding side door, electric 37, 44
Smartphone
62
Snow chains

137, 188
Snow screen

188
Socket, 12 V accessory

60–61
Socket, 220 V

62
Socket, auxiliary

241, 252, 275
Socket, Jack

275
Speed limiter

142–145, 152
Speed limit recognition

140, 142
Speedometer

10, 12, 140
Sport mode

134
Stability control (ESC)

95–98
Starting a Diesel engine

174
Starting the engine

119, 121
Starting the vehicle

120, 122, 127–129, 131
Starting using another battery

122, 215
Station, radio

239–240, 250–251, 274
Stay, bonnet

192
Steering mounted controls, audio

237–238, 248, 261
Steering wheel, adjustment

53
Stickers, customising ~ Stickers,
expressive

201
Stopping the vehicle

121–122,
127–129, 131–132
Stop & Start

28, 74, 78, 134–136, 174, 192, 195, 218
Storage

60
Storage boxes

63
Stowing rings

67
Sunshine sensor

73
Super-fast charging (Electric)

185–186, 236Surround Rear Vision 164
Switching off the engine
119, 121
Synchronising the remote control

41
T
Tables of engines 236
Tank, fuel
174–175
Technical data

227–231, 235, 236
Telephone

242–243, 255–256, 277–279
Time (setting)

244, 257, 281
TMC (Traffic info)

268
Tools

203
Topping-up AdBlue®

198
Touch screen

28–30, 81
Towbar

96, 189
Towed loads

227–231, 235, 236
Towing another vehicle

218–219
Towing eye

219
Traction battery charge

180
Traction battery (Electric)

30, 176–177, 236
Traction control (ASR)

96–98
Traffic information (TMC)

268
Trailer

96, 189
Trailer stability assist (TSA)

96
Trajectory control systems

95
Triangle, warning

67
Trip computer

27–28
Type of bulbs

210
Tyres

197, 236
Tyre under-inflation detection

136–137, 206
