5
Overview
Side control bar

1.Manual headlamp beam height adjustment
2. Stop & Start
3. Parking sensors
4. Additional heating/ventilation system (Diesel)
Temperature pre-conditioning (Electric)
5. Active Lane Departure Warning System
6. Tyre under-inflation detection
7. Electric child lock
8. Heated windscreen
9. Head-up display
Controls on the driver's door

1.Locking/unlocking the loading area (Citroën
Berlingo Van)
2. Electric child lock
Central control bar

1.Hazard warning lamps
2. Locking/unlocking from the inside
3. Hill Assist Descent
4. Eco mode
5. Advanced Grip Control
6. Electric parking brake
7. Starting/switching off the engine
8. DSC/ASR systems
Electric motor

1.Charging connectors
2. Traction battery
3. 12
V accessory battery
4. On-board charger
5. Electric motor
6. Charging cable
The charging connectors

1
allow 3 types of
charging:
–

Domestic chargin
g in mode 2 using a domestic
socket and associated charging cable

6
.
–

Accelerated charging in mode
3 using an
accelerated charging unit (Wallbox).
–

Superfast charging in mode
4 using a fast
public charger.
The 400
V traction battery 2 uses Lithium-Ion
technology. It stores and supplies the energy
required for the operation of the electric motor,
air conditioning and heating. Its charge level is

11 8
Driving
Noise (Electric)
On the outside
Due to the vehicle’s quiet operation when
driving, the driver must pay particular attention.
When manoeuvring, the driver must always
check the vehicle's immediate surroundings.
At speeds of up to 19 mph (30 km/h), the
pedestrian horn warns other road users of the
vehicle’s presence.
Cooling the traction battery
The cooling fan comes on during
charging to cool the on-board charger and the
traction battery.
On the inside
During use, you may hear certain perfectly
normal noises specific to electric vehicles, such
as:
–

T
raction battery relay when starting.
–

V
acuum pump when braking.
–

V
ehicle tyres or aerodynamics when driving.
–

Jolting and knocking noise during hill starts.
Towing
Driving with a trailer places greater
demands on the towing vehicle and
particular care must be taken.
Do not exceed the maximum towable
weights.
At altitude: reduce the maximum load by
10% per 1,000 metres of altitude; the lower
air density at high altitudes decreases engine
performance.
New vehicle: do not tow a trailer until the
vehicle has driven at least 620 miles
(1,000 kilometres).
If the outside temperature is high, let the
engine idle for 1 to 2 minutes after the
vehicle comes to a stop, to help it to cool.
Before setting off
Nose weight
â–º Distribute the load in the trailer so that the
heaviest items are as close as possible to the
axle and the nose weight (at the point where it
joins your vehicle) approaches the maximum
permitted without exceeding it.
Tyres
â–º Check the tyre pressures of the towing
vehicle and of the trailer , observing the
recommended pressures.
Lighting
â–º Check the electrical signalling on the trailer
and the headlamp beam height of your vehicle.
If a genuine CITROËN towing device is
used, the rear parking sensors will be
deactivated automatically to avoid the audible
signal.
When driving
Cooling
Towing a trailer uphill causes the coolant
temperature to increase. The maximum towable
load depends on the gradient and the exterior
temperature. The fan’s cooling capacity does not
increase with engine speed.
â–º

Reduce speed and lower the engine speed to
limit the amount of heating produced.
â–º


Pay constant attention to the coolant
temperature.
If this warning lamp and the STOP
warning lamp come on, stop the
vehicle and switch off the engine as soon as
possible.
Brakes
Using the engine brake is recommended to limit
the overheating of the brakes. Braking distances
are increased when towing a trailer.
Side wind
Bear in mind that the vehicle will be more
susceptible to wind when towing.

136
Driving
Restarting the engine (START mode)
The engine automatically restarts as soon as the
driver indicates the intention of moving off again:
With a manual gearbox: with the clutch pedal
fully depressed.
With an automatic gearbox:
–
With the selector in position D

or M: with the
brake pedal released.
–

With the selector in position N

and the brake
pedal released: with the selector at D or M.
–

With the selector in position P

and the brake
pedal depressed: with the selector at R, N, D
or M.
–

Reverse gear engaged.
Special cases
The engine will restart automatically if the
conditions for operation are met again and in the
following case:
–
V
ehicle speed exceeds 2 mph (3 km/h)
(depending on engine).
In this case, this indicator lamp flashes for
a few seconds, then goes off.
Malfunctions
Depending on the vehicle’s equipment:In the event of a system malfunction, this
warning lamp flashes on the instrument
panel.
The warning lamp in this button flashes and a message appears, accompanied by
an audible signal.
Have it checked by a CITROËN dealer or a
qualified workshop.
The vehicle stalls in STOP mode
All of the instrument panel warning lamps come
on if there is a fault.
Depending on version, a warning message
may also be displayed, prompting you to place
the gear selector in position N and depress the
brake pedal.
â–º

Switch off the ignition then start the engine
again with the key or the " ST

ART/STOP" button.
12 V battery
The Stop & Start system requires a
12 V battery of specific technology and
specification.
All work must be carried out only by a
CITROËN dealer or a qualified workshop
Tyre under-inflation detection
This system alerts the driver if one or more tyres
suffer a drop in pressure.
The alert is raised when the vehicle is moving,
not when stationary.
It compares the information given by the wheel
speed sensors with reference values, which
must be reinitialised every time the tyre
pressures are adjusted or a wheel changed.
It takes into account the last values stored
during the reinitialisation request. It is therefore
essential that the tyre pressure is correct during
the operation. This operation is the driver’s
responsibility.
The tyre under-inflation detection cannot, in any circumstances, replace the need
for vigilance on the part of the driver.
This system does not avoid the need to
regularly check the tyre pressures (including
the spare wheel), especially before a long
journey.
Driving with under-inflated tyres, particularly
in adverse conditions (heavy load, high
speed, long journey):
–

worsens road-holding.
–


lengthens braking distances.
–


causes premature wear of the tyres.
–


increases energy consumption.
The inflation pressures defined for the vehicle can be found on the tyre pressure
label.
For more information on the Identification
markings, refer to the corresponding section.
Checking tyre pressures
This check should be done monthly
when the tyres are "cold" (vehicle stopped for
1 hour or after a journey of less than 6 miles
(10

km) at moderate speeds).
Otherwise, add 0.3 bar to the pressures
shown on the label.

163
Driving
6bicycle carrier is connected to a towing device
installed in accordance with the
manufacturer's recommendations.
In this case, the outline of a trailer is displayed
at the rear of the image of the vehicle.
The parking sensors are deactivated while the
Park Assist function is measuring a space.
For more information on the Park
Assist
function, refer to the corresponding
section.
Operating limits
If the boot is heavily loaded, the vehicle may tilt,
affecting distance measurements.
Malfunction
In the event of a malfunction when
changing into reverse gear, this warning
lamp lights up on the instrument panel,
accompanied by the display of a message and
an audible signal (short beep).
Have it checked by a CITROËN dealer or a
qualified workshop.
Reversing camera

For more information, refer to the
General recommendations on the use
of driving and manoeuvring aids .With the ignition on, this system uses a camera
located near the third brake lamp to display
a view of the rear of your vehicle on the
reproduction screen (if it is a panel van or has a
solid partition).
The reversing camera is activated automatically
when reverse gear is engaged. The image
is displayed on the reproduction screen. The
reproduction screen switches off when the
gearbox is in neutral or in a forward gear.




The blue lines 1 represent the general direction
of the vehicle (the gap corresponds to the width
of your vehicle with the mirrors).
The red line 2 represents a distance of about
30
cm beyond the edge of your vehicle's rear
bumper.
The green lines 3 represent distances of about 1
and 2 metres beyond the edge of your vehicle's
rear bumper.
The turquoise blue curves 4 represent the
maximum turning circle.
Some objects may not be seen by the
camera.
Certain vehicles may be difficult to see
(dark colours, lamps off) when the
brightness of the screen is reduced using the
vehicle’s lighting dimmer.
The image quality may be affected by the surroundings, the exterior conditions
(rain, dirt, dust), the driving mode and the
lighting conditions (night, low sun).
In the presence of areas in shade, or in
conditions of bright sunlight or inadequate
lighting, the image may be darkened and with
lower contrast.
Obstacles may appear further away than
they actually are.
During parking manoeuvres and lane
changes, it is important to check the sides of
the vehicle using the mirrors.
The rear parking sensors also supplement the
information on the vehicle's surroundings.

200
Practical information
With an automatic gearbox
and electric parking brake
/
To release them
â–º With the engine running and while depressing
the brake pedal, set the gear selector to N
.
â–º

While depressing the brake pedal, switch off
the engine.
â–º


Release the brake pedal, then switch on the
ignition again.
â–º


While depressing the brake pedal, press the
control lever to release the parking brake.
â–º


Release the brake pedal, then switch off the
ignition.
Reverting to normal operation
â–º While depressing the brake pedal, restart the
engine and select mode P .
With drive selector and
electric parking brake
/
Release procedure
â–º With the vehicle stationary and the engine
running, depress the brake pedal and select
mode
N.
Within 5
seconds:
â–º Depress and hold the brake pedal, then
observe this order: switch off the engine and
move the push selector forwards or backwards.
â–º

Release the brake pedal, then switch on the
ignition.
â–º


Place your foot on the brake and press the
electric parking brake control to release it.
â–º


Release the brake pedal, then switch off the
ignition.
A message is displayed on the instrument panel to confirm the unlocking
of the wheels for 15
minutes.
When the vehicle is free-wheeling, the
audio system cannot be updated (message
displayed on the instrument panel).
After 15 minutes or reverting to normal
operation
â–º While depressing the brake pedal, restart the
engine and select mode P .
Advice on care and maintenance
General recommendations
Observe the following recommendations to avoid
damaging the vehicle.
Exterior
Never use a high-pressure jet wash in
the engine compartment - risk of
damaging the electrical components!
Do not wash the vehicle in bright sunshine or
extremely cold conditions.
When washing the vehicle in an
automatic roller-brush car wash, be sure
to lock the doors and, depending on version,
move the electronic key away.
When using a pressure washer, keep the jet
nozzle at a minimum distance of 30 cm from
the vehicle (particularly when cleaning areas
containing chipped paint, sensors or seals).
Promptly clean up any stains containing
chemicals liable to damage the vehicle's
paintwork (including tree resin, bird
droppings, insect secretions, pollen and tar).
Depending on the environment, clean the
vehicle frequently to remove salty deposits
(in coastal areas), soot (in industrial areas)
and mud/salts (in wet or cold areas). These
substances can be highly corrosive.
Contact a CITROËN dealer or a qualified
workshop for advice on removing stubborn
stains requiring special products (such as tar
or insect removers).
Preferably, have paint touch-ups performed
by a CITROËN dealer or a qualified
workshop.

285
Event data recorders
13Event data recorders
Electronic control units are installed in your
vehicle. Control units process data which is
received by vehicle sensors, for example, or
which they generate themselves or exchange
amongst themselves. Some control units are
necessary for the safe functioning of your
vehicle, others assist you while you drive (driver
assistance systems), while others provide
comfort or infotainment functions.
The following contains general information about
data processing in the vehicle. You will find
additional information as to which specific data is
uploaded, stored and passed on to third parties
and for what purpose in your vehicle under
the key word Data Protection closely linked
to the references for the affected functional
characteristics in the relevant owner's manual
or in the general terms of sale. These are also
available online.
Vehicle operating data
The control units process the data used for the
operation of the vehicle.
This data includes, for example:
–
Information about the state of the vehicle
(e.g.

speed, travel time, lateral acceleration,
wheel rotation rate, fastened seat belts display).
–

Environmental conditions (e.g.
temperature,
rain sensor, distance sensor).
As a general rule, this data is temporary, is
not stored for longer than one operating cycle and is only used within the vehicle itself. The
control units often record this data (including the
vehicle's key). This function allows either the
temporary or permanent storage of information
about the state of the vehicle, stresses on
components, servicing requirements, as well as
events and technical errors.
Depending on the vehicle's equipment level, the
data stored is as follows:
–

Operating state of system components
(e.g.
filling level, tyre pressures, battery charge
status).
–
Faults and malfunctions in important system
components (e.g.
lamps, brakes).
–
System reactions in specific driving situations
(e.g.
deployment of an airbag, triggering of
stability control and braking systems).
–
Information about events which have
damaged the vehicle.
–

For electric and rechargeable hybrid vehicles,
the traction battery charge level and the
estimated driving range.
In particular circumstances (e.g.
if the vehicle
has detected a malfunction), it may be necessary
to record data which would otherwise simply not
be stored.
When taking your vehicle in for servicing
(e.g.
repairs, maintenance), the stored operating
data may be read along with the vehicle's
identification number and used if necessary.
The personnel working for the servicing network
(e.g.
garages, manufacturers) or third parties
(e.g.
roadside assistance agents) may read the vehicle's data. This also applies to work
carried out under warranty and quality assurance
measures.
This data is generally read via the OBD
(On-Board Diagnostics) port fitted by law to
the vehicle. It is used to report on the technical
state of the vehicle or its components and
facilitates the diagnosis of malfunctions, in
compliance with warranty obligations and for
quality improvement. This data, in particular the
information relating to stress on components,
technical events, operator errors and other
malfunctions, is sent to the Manufacturer, if
necessary, along with the vehicle's identification
number. The Manufacturer's liability may also be
engaged. The Manufacturer may also use the
operating data taken from the vehicle for product
recalls. This data may also be used to check the
customer's warranty and any claims made under
warranty.
Any malfunctions stored in the vehicle may be
reset by an after-sales service company during
servicing or repair work, or at your request.
Comfort and infotainment
functions
Comfort settings and personalised settings
may
be saved in the vehicle and modified or
reinitialised at any time.
Depending on the vehicle's equipment level,
this
may
include:
–

Seat and steering wheel position settings.

288
Alphabetical index
A
ABS 95
Accelerated charging unit (Wallbox)
179
Accessories

92
Access to the 3rd row

58
Access to the spare wheel

206–207
Active Safety Brake

152–154
AdBlue®

197
AdBlue® tank

198
Additive, Diesel

195–196
Adjusting headlamps

88
Adjusting head restraints

59
Adjusting seat

51, 58
Adjusting the air distribution

75–76
Adjusting the air flow

75–76
Adjusting the date

258, 280
Adjusting the height and reach of
the steering wheel

53
Adjusting the lumbar support

51
Adjusting the temperature

75–76
Adjusting the time

244, 257, 281
Advanced Grip Control

97–98
Advice on care and maintenance

177, 200
Advice on driving

8, 117–118
Airbags

103, 105–107
Airbags, curtain

104–106
Airbags, front

104–105, 108
Airbags, lateral

104–105
Air conditioning

73, 76, 79
Air conditioning, digital

77
Air conditioning, dual-zone automatic

75–76
Air conditioning, electronic
(with display screen)
79
Air conditioning, manual

74–75
Air intake

75–76
Air vents

73
Alarm

45–46
Alarm, volumetric

46
Android Auto connection

272
Anti-lock braking system (ABS)

95
Antitheft / Immobiliser

33
Apple CarPlay connection

254, 271
Applications

272
Area, loading

34, 42, 67
Armrest

51
Armrest, front

60
Assistance call

92–93
Assistance, emergency braking

95, 154
Audible warning

95
Audio streaming (Bluetooth)

241, 253, 276
B
Battery, 12 V 187, 195, 214–217
Battery, ancillaries
214–215
Battery, charging

216–217
Battery, remote control

40, 81
Bench seat, one-piece, fixed

58
Blanking screen (snow shield)

188
Blind spot sensors

158
BlueHDi

195, 202
Bluetooth (hands-free)

242–243, 255, 277
Bluetooth (telephone) 242–243, 255–256,
277–278
Bluetooth touch screen audio system

28
Bodywork

201
Bonnet

192
Boot lid

37, 39
Bottle holder

60
Brake discs

196
Brake lamps

213
Brakes

196
Braking

133
Braking assistance system

95
Braking, automatic emergency

152–154
Braking, dynamic emergency

124–125
Brightness

244, 257
Bulbs

210
Bulbs (changing)

209–210
Bulbs (changing, type)

210
C
Cable, audio 275
Cable, Jack
275
Capacity, fuel tank

174–175
Cap, fuel filler

174–175
Care of the bodywork

201
CD

241
CD, MP3

241
Central locking

32, 37
Changing a bulb

209–210
Changing a fuse

214

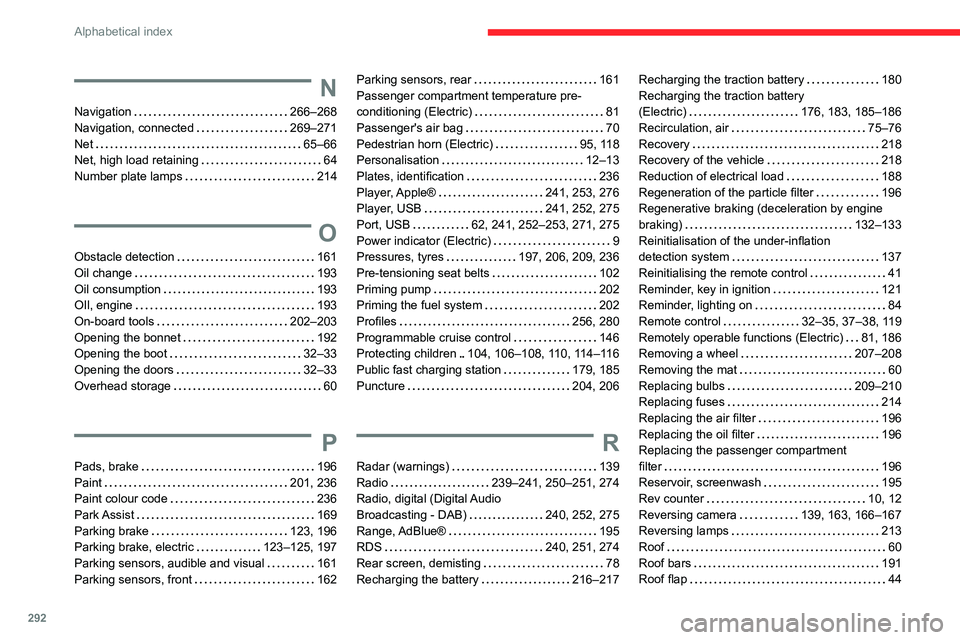

292
Alphabetical index
N
Navigation 266–268
Navigation, connected
269–271
Net

65–66
Net, high load retaining

64
Number plate lamps

214
O
Obstacle detection 161
Oil change
193
Oil consumption

193
OIl, engine

193
On-board tools

202–203
Opening the bonnet

192
Opening the boot

32–33
Opening the doors

32–33
Overhead storage

60
P
Pads, brake 196
Paint
201, 236
Paint colour code

236
Park Assist

169
Parking brake

123, 196
Parking brake, electric

123–125, 197
Parking sensors, audible and visual

161
Parking sensors, front

162
Parking sensors, rear 161
Passenger compartment temperature pre-
conditioning (Electric)

81
Passenger's air bag

70
Pedestrian horn (Electric)

95, 118
Personalisation

12–13
Plates, identification

236
Player, Apple®

241, 253, 276
Player, USB

241, 252, 275
Port, USB

62, 241, 252–253, 271, 275
Power indicator (Electric)

9
Pressures, tyres

197, 206, 209, 236
Pre-tensioning seat belts

102
Priming pump

202
Priming the fuel system

202
Profiles

256, 280
Programmable cruise control

146
Protecting children

104, 106–108, 110, 114–116
Public fast charging station

179, 185
Puncture

204, 206
R
Radar (warnings) 139
Radio
239–241, 250–251, 274
Radio, digital (Digital Audio
Broadcasting - DAB)

240, 252, 275
Range, AdBlue®

195
RDS

240, 251, 274
Rear screen, demisting

78
Recharging the battery

216–217
Recharging the traction battery 180
Recharging the traction battery
(Electric)

176, 183, 185–186
Recirculation, air

75–76
Recovery

218
Recovery of the vehicle

218
Reduction of electrical load

188
Regeneration of the particle filter

196
Regenerative braking (deceleration by engine
braking)

132–133
Reinitialisation of the under-inflation
detection system

137
Reinitialising the remote control

41
Reminder, key in ignition

121
Reminder, lighting on

84
Remote control

32–35, 37–38, 119
Remotely operable functions (Electric)

81, 186
Removing a wheel

207–208
Removing the mat

60
Replacing bulbs

209–210
Replacing fuses

214
Replacing the air filter

196
Replacing the oil filter

196
Replacing the passenger compartment
filter

196
Reservoir, screenwash

195
Rev counter

10, 12
Reversing camera

139, 163, 166–167
Reversing lamps

213
Roof

60
Roof bars

191
Roof flap

44
