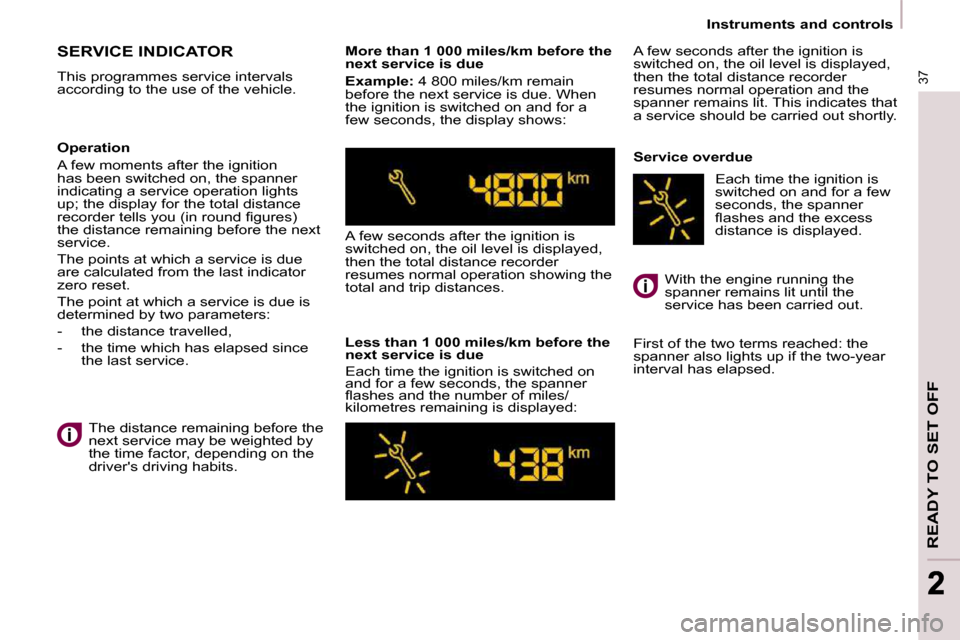

SERVICE INDICATOR
This programmes service intervals
according to the use of the vehicle. More than 1 000 miles/km before the
next service is due
Example: 4 800 miles/km remain
b e f o r e t h e n e x t s e r v i c e i s d u e . W h e n
the ignition is switched on and for a
few seconds, the display shows:
A few seconds after the ignition is
switched on, the oil level is displayed,
then the total distance recorder
resumes normal operation showing the
total and trip distances.
Less than 1 000 miles/km before the
next service is due
Each time the ignition is switched on
and for a few seconds, the spanner
fl a s h e s a n d t h e n u m b e r o f m i l e s /
kilometres remaining is displayed: A few seconds after the ignition is
switched on, the oil level is displayed,
then the total distance recorder
resumes normal operation and the
spanner remains lit. This indicates that
a service should be carried out shortly.
Service overdue
First of the two terms reached: the
spanner also lights up if the two-year
interval has elapsed.
Operation
A few moments after the ignition
has been switched on, the spanner
indicating a service operation lights
up; the display for the total distance
r e c o r d e r t e l l s y o u ( i n r o u n d fi g u r e s )
t h e d i s t a n c e r e m a i n i n g b e f o r e t h e n e x t
service.
The points at which a service is due
are calculated from the last indicator
zero reset.
The point at which a service is due is
determined by two parameters:
- the distance travelled,
- the time which has elapsed since
the last service.
The distance remaining before the
n e x t s e r v i c e m a y b e w e i g h t e d b y
the time factor, depending on the
driver's driving habits. With the engine running the
spanner remains lit until the
service has been carried out.
Each time the ignition is
switched on and for a few
seconds, the spanner
fl a s h e s a n d t h e e x c e s s
distance is displayed.
Page 22 of 196
38
Instruments and controls Trip recorder zero reset button
After this operation, if you wish
to disconnect the battery, lock
the vehicle and wait for at least
fi v e m i n u t e s , o t h e r w i s e t h e z e r o r e - s e t
will not be registered.
Zero re-set
Your CITROËN dealer carries out this
operation after each service.
However, if you carry out the service
yourself, the re-set procedure is as
follows:
- switch off the ignition,
- press and hold the trip recorder
reset button,
- switch on the ignition.
The display begins a countdown.
When the display shows "=0" , release
the button; the spanner disappears.

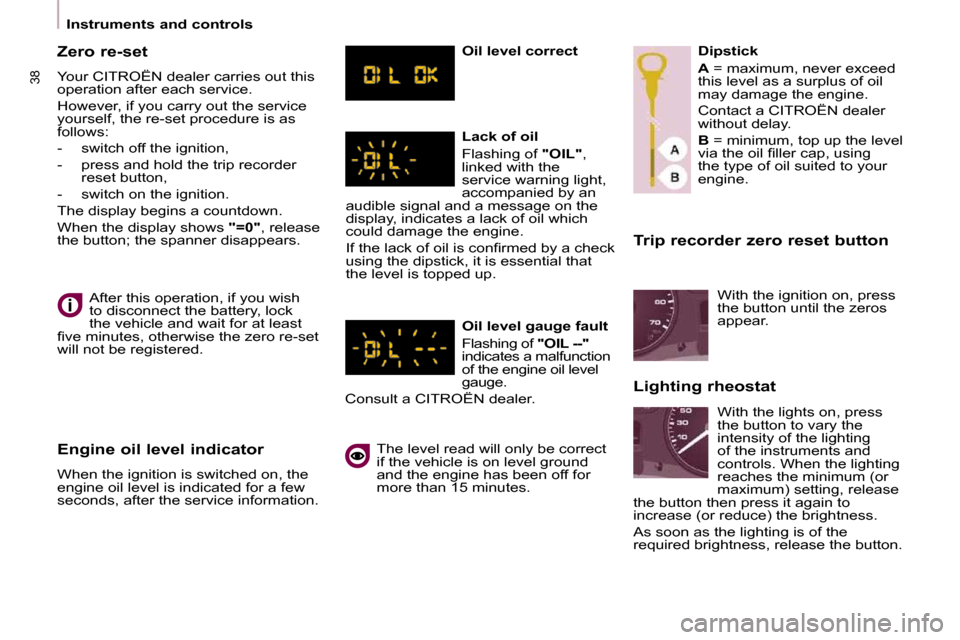

Engine oil level indicator
When the ignition is switched on, the
engine oil level is indicated for a few
seconds, after the service information. Oil level correct
Lack of oil
Flashing of
"OIL" ,
linked with the
service warning light,
accompanied by an
audible signal and a message on the
display, indicates a lack of oil which
could damage the engine.
I f t h e l a c k o f o i l i s c o n fi r m e d b y a c h e c k
using the dipstick, it is essential that
the level is topped up.
Oil level gauge fault
Flashing of "OIL --"
indicates a malfunction
of the engine oil level
gauge.
Consult a CITROËN dealer.
The level read will only be correct
if the vehicle is on level ground
and the engine has been off for
more than 15 minutes. Dipstick
A = m a x i m u m , n e v e r e x c e e d
this level as a surplus of oil
may damage the engine.
Contact a CITROËN dealer
without delay.
B = minimum, top up the level
v i a t h e o i l fi l l e r c a p , u s i n g
the type of oil suited to your
engine.

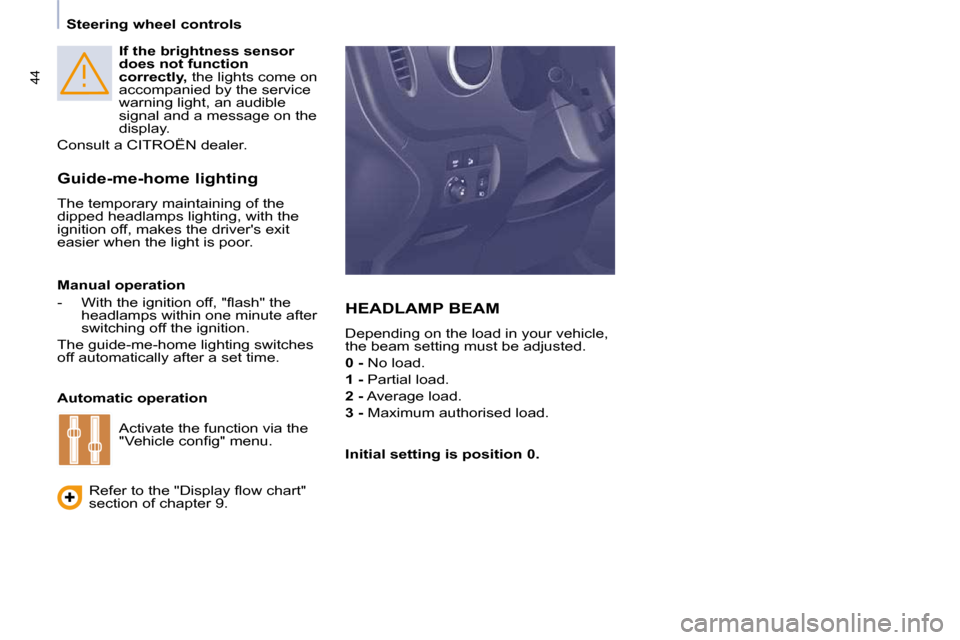

Lighting rheostat With the ignition on, press
the button until the zeros
appear.
With the lights on, press
the button to vary the
intensity of the lighting
of the instruments and
controls. When the lighting
reaches the minimum (or
m a x i m u m ) s e t t i n g , r e l e a s e
the button then press it again to
increase (or reduce) the brightness.
As soon as the lighting is of the
required brightness, release the button.
Page 23 of 196
39
READY TO SET OFF
22
Gearbox and steering wheel
GEARBOX

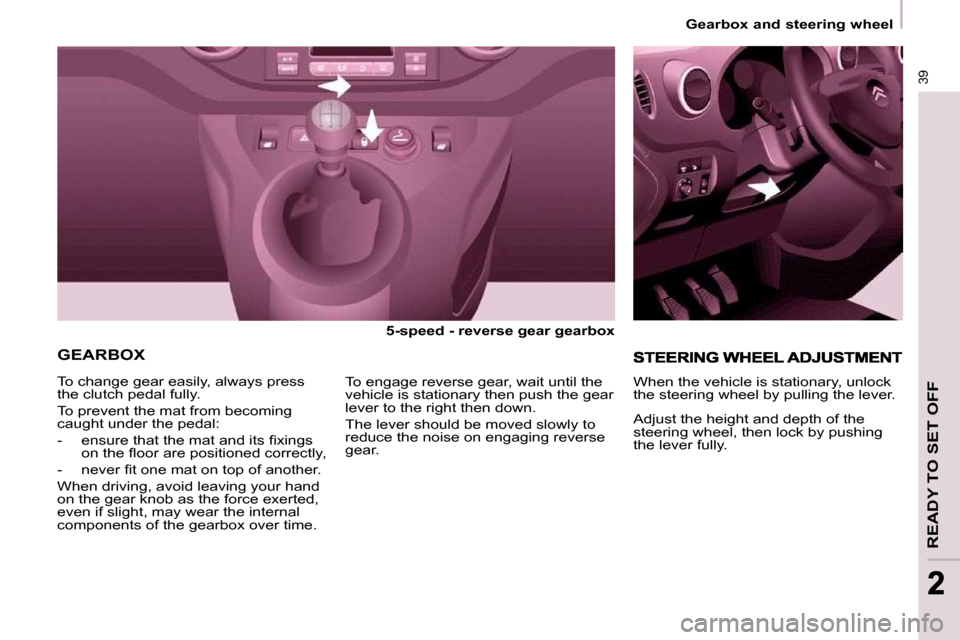

5-speed - reverse gear gearbox
To change gear easily, always press
the clutch pedal fully.
To prevent the mat from becoming
caught under the pedal:
- e n s u r e t h a t t h e m a t a n d i t s fi x i n g s o n t h e fl o o r a r e p o s i t i o n e d c o r r e c t l y ,
- n e v e r fi t o n e m a t o n t o p o f a n o t h e r .
When driving, avoid leaving your hand
o n t h e g e a r k n o b a s t h e f o r c e e x e r t e d ,
even if slight, may wear the internal
c o m p o n e n t s o f t h e g e a r b o x o v e r t i m e . To engage reverse gear, wait until the
vehicle is stationary then push the gear
lever to the right then down.
The lever should be moved slowly to
reduce the noise on engaging reverse
gear.
When the vehicle is stationary, unlock
the steering wheel by pulling the lever.
Adjust the height and depth of the
steering wheel, then lock by pushing
the lever fully.
Page 24 of 196
Starting and stopping Good practice when stopping
Good practice when starting
Diesel pre-heating warning
light
If the temperature is high
enough, the warning light
comes on for less than
one second, you can start
without waiting.
In cold weather, wait for this warning
light to switch off then operate the
starter (Starting position) until the

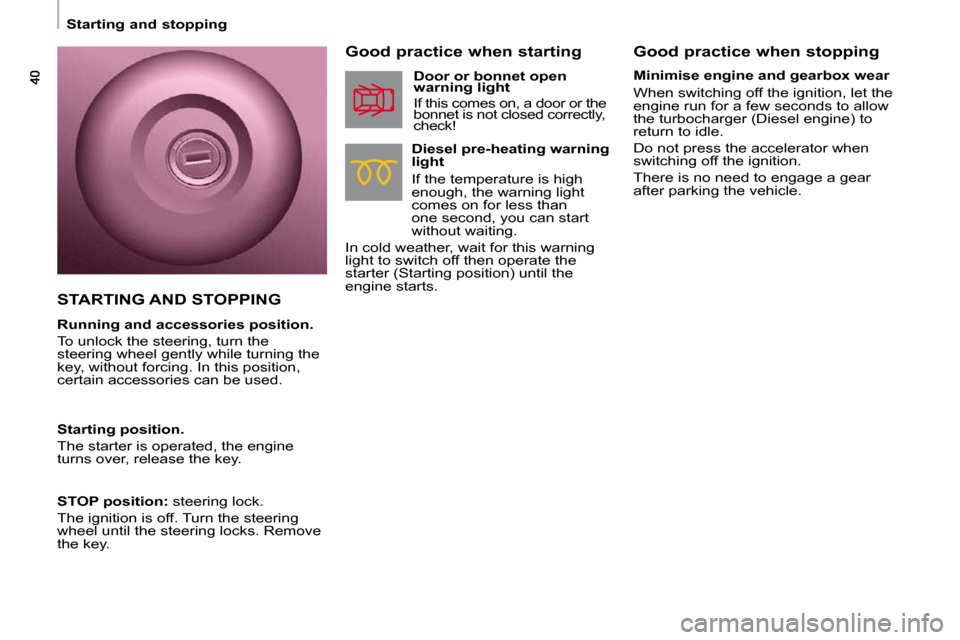

engine starts. Door or bonnet open
warning light
If this comes on, a door or the
bonnet is not closed correctly,
check!
Minimise engine and gearbox wear
When switching off the ignition, let the
engine run for a few seconds to allow
the turbocharger (Diesel engine) to
return to idle.
Do not press the accelerator when
switching off the ignition.
There is no need to engage a gear
after parking the vehicle.
STARTING AND STOPPING
Running and accessories position.
To unlock the steering, turn the
steering wheel gently while turning the
key, without forcing. In this position,
certain accessories can be used.
Starting position.
The starter is operated, the engine
turns over, release the key.
STOP position: steering lock.
The ignition is off. Turn the steering
wheel until the steering locks. Remove
the key.
Page 25 of 196
41
READY TO SET OFF
22
Starting and stopping

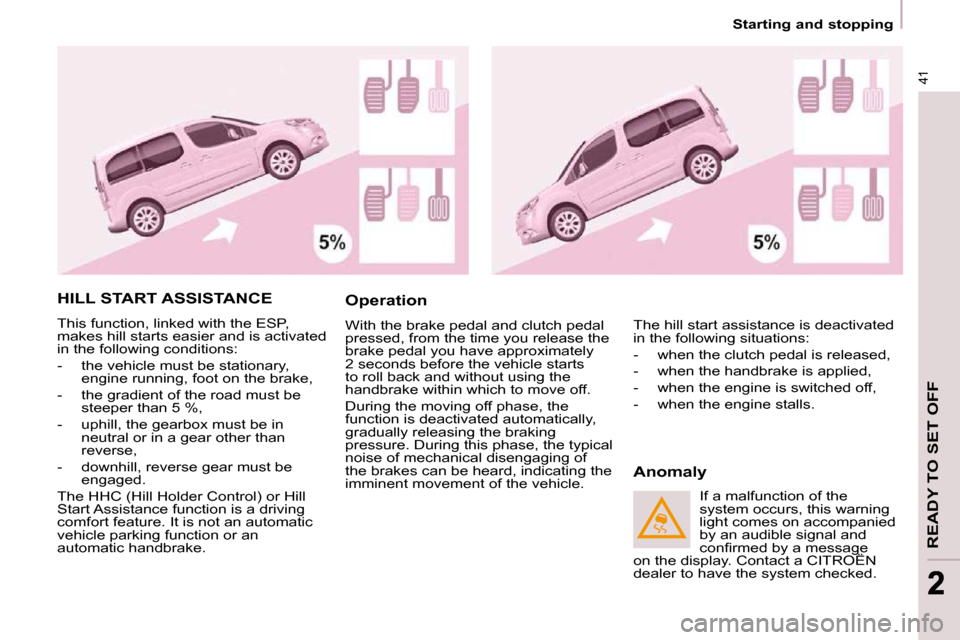

HILL START ASSISTANCE
This function, linked with the ESP,
makes hill starts easier and is activated
in the following conditions:
- the vehicle must be stationary, engine running, foot on the brake,
- the gradient of the road must be steeper than 5 %,
- u p h i l l , t h e g e a r b o x m u s t b e i n neutral or in a gear other than
reverse,
- downhill, reverse gear must be engaged.
The HHC (Hill Holder Control) or Hill
Start Assistance function is a driving
comfort feature. It is not an automatic
vehicle parking function or an
automatic handbrake. Operation
With the brake pedal and clutch pedal
pressed, from the time you release the
b r a k e p e d a l y o u h a v e a p p r o x i m a t e l y
2 seconds before the vehicle starts
to roll back and without using the
handbrake within which to move off.
During the moving off phase, the
function is deactivated automatically,
gradually releasing the braking
pressure. During this phase, the typical
noise of mechanical disengaging of
the brakes can be heard, indicating the
imminent movement of the vehicle.
Anomaly
The hill start assistance is deactivated
in the following situations:
- when the clutch pedal is released,
- when the handbrake is applied,
- when the engine is switched off,
- when the engine stalls.
If a malfunction of the
system occurs, this warning
light comes on accompanied
by an audible signal and
c o n fi r m e d b y a m e s s a g e
on the display. Contact a CITROËN
dealer to have the system checked.
Page 26 of 196
42
Steering wheel controls
DIRECTION INDICATORS
(green flashing)
"Motorway" function
P r e s s t h e c o n t r o l u p o r d o w n t o fl a s h
t h e c o r r e s p o n d i n g d i r e c t i o n i n d i c a t o r

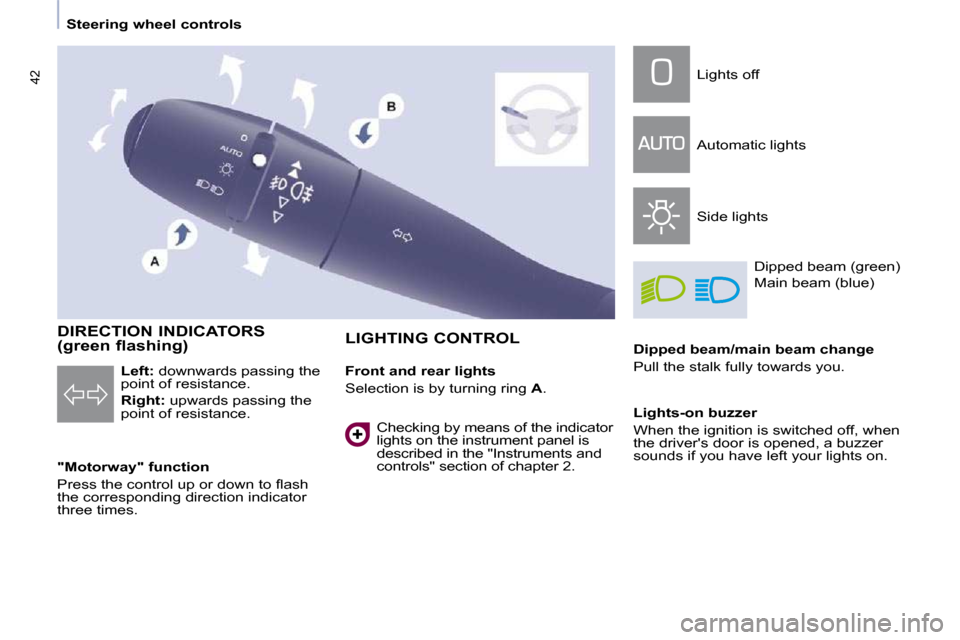

three times. LIGHTING CONTROL
