phone Citroen BERLINGO DAG 2009 2.G Owner's Manual

19
Accesses
READY TO SET OFF
2

When purchasing a second-hand
vehicle:
- have the keys memorised by a CITROËN dealer to ensure that
the keys in your possession are
the only ones which can start the
vehicle.
Good practice
Do not make any modifi cations to the
electronic immobiliser system.
Operating the remote control, even
when it is in your pocket, may result in
involuntary unlocking of the doors.
The simultaneous use of other
high frequency equipment (mobile
telephones, domestic alarms…), may
interfere with the operation of the
remote control temporarily.
The remote control does not operate
while the key is in the ignition, even if
the ignition is off.
As a safety precaution (with children
on board), remove the key from the
ignition when leaving the vehicle, even
for a short time. ELECTRONIC IMMOBILISER
All of the keys contain an electronic
immobiliser device.
This device locks the engine supply
system. It is activated automatically
when the key is removed from the
ignition.
After the ignition is switched on, a
dialogue is established between the
key and the electronic immobiliser
system.
The metal part of the key must be
unfolded correctly for correct dialogue
to take place.
If you lose your keys
Visit a CITROËN dealer with the
vehicle's V5 registration document and
your identifi cation document.
A CITROËN dealer will be able
to retrieve the key code and
the transponder code so that a
replacement key can be ordered.

9.2
11
22
10101111
131314141515
33445566778899
1212

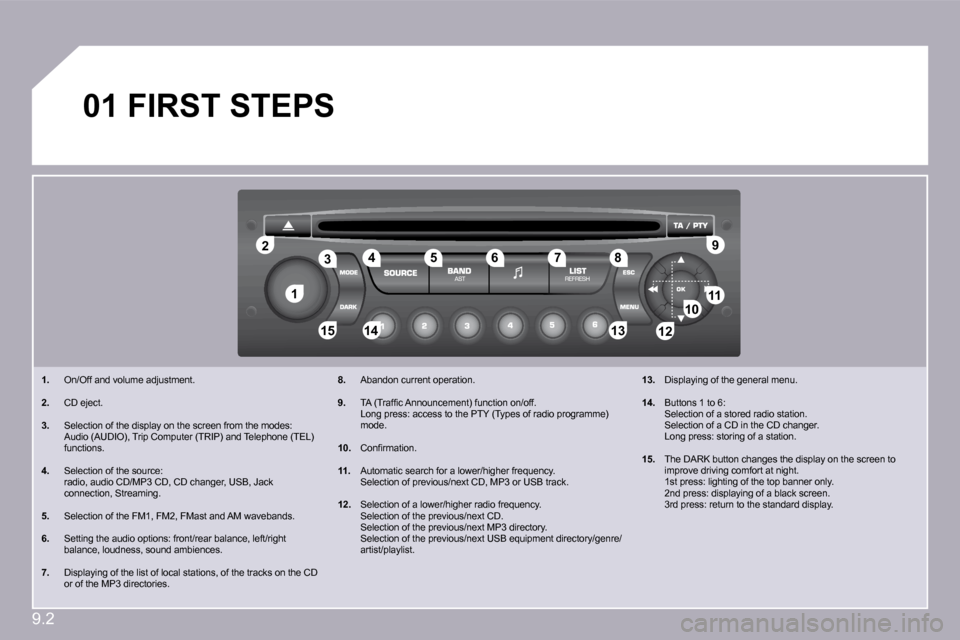

01 FIRST STEPS
1. On/Off and volume adjustment.
2. CD eject.
3. Selection of the display on the screen from the modes: Audio (AUDIO), Trip Computer (TRIP) and Telephone (TEL) functions.
4. Selection of the source: radio, audio CD/MP3 CD, CD changer, USB, Jack connection, Streaming.
5. Selection of the FM1, FM2, FMast and AM wavebands.
6. Setting the audio options: front/rear balance, left/right balance, loudness, sound ambiences.
7. Displaying of the list of local stations, of the tracks on the CD or of the MP3 directories.
8. Abandon current operation.
9. TA (Traffi c Announcement) function on/off. Long press: access to the PTY (Types of radio prog ramme) mode.
10. Confi rmation.
11. Automatic search for a lower/higher frequency. Selection of previous/next CD, MP3 or USB track.
12. Selection of a lower/higher radio frequency. Selection of the previous/next CD. Selection of the previous/next MP3 directory. Selection of the previous/next USB equipment direc tory/genre/ artist/playlist.
13. Displaying of the general menu.
14. Buttons 1 to 6: Selection of a stored radio station. Selection of a CD in the CD changer. Long press: storing of a station.
15. The DARK button changes the display on the screen to improve driving comfort at night. 1st press: lighting of the top banner only. 2nd press: displaying of a black screen. 3rd press: return to the standard display.

9.10
11
66
22
77
44
99
55
1010
33
88
Saisir code authentiication01OKDel23456789_

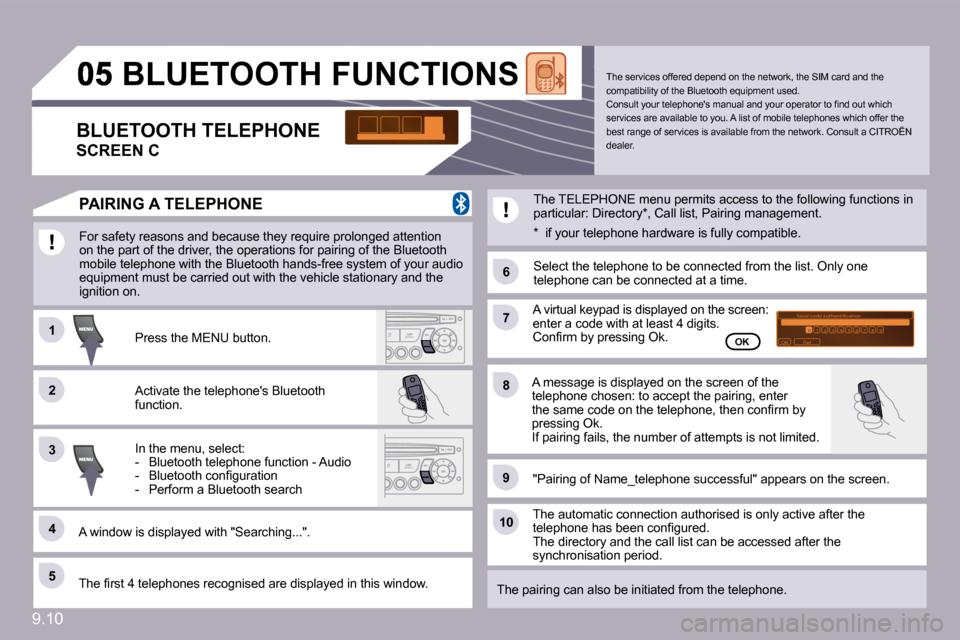

BLUETOOTH FUNCTIONS
For safety reasons and because they require prolonged attention on the part of the driver, the operations for pairing of the Bluetooth mobile telephone with the Bluetooth hands-free syst em of your audio equipment must be carried out with the vehicle stationary and the ignition on.
Activate the telephone's Bluetooth function.
A window is displayed with "Searching...".
Press the MENU button.
In the menu, select: - Bluetooth telephone function - Audio - Bluetooth confi guration - Perform a Bluetooth search
The services offered depend on the network, the SIM card and the compatibility of the Bluetooth equipment used. Consult your telephone's manual and your operator to fi nd out which services are available to you. A list of mobile telephones which offer the best range of services is available from the networ k. Consult a CITROËN dealer. BLUETOOTH TELEPHONE
SCREEN C
The TELEPHONE menu permits access to the following functions in particular: Directory * , Call list, Pairing management.
The fi rst 4 telephones recognised are displayed in this window.
A virtual keypad is displayed on the screen: enter a code with at least 4 digits. Confi rm by pressing Ok.
"Pairing of Name_telephone successful" appears on the screen.
Select the telephone to be connected from the list. Only one telephone can be connected at a time.
The automatic connection authorised is only active after the telephone has been confi gured. The directory and the call list can be accessed after the synchronisation period.
OK
PAIRING A TELEPHONE
The pairing can also be initiated from the telepho ne.
* if your telephone hardware is fully compatible.
A message is displayed on the screen of the telephone chosen: to accept the pairing, enter the same code on the telephone, then confi rm by pressing Ok. If pairing fails, the number of attempts is not limited.

9.11
11
22
11
11
22
33
22
YES

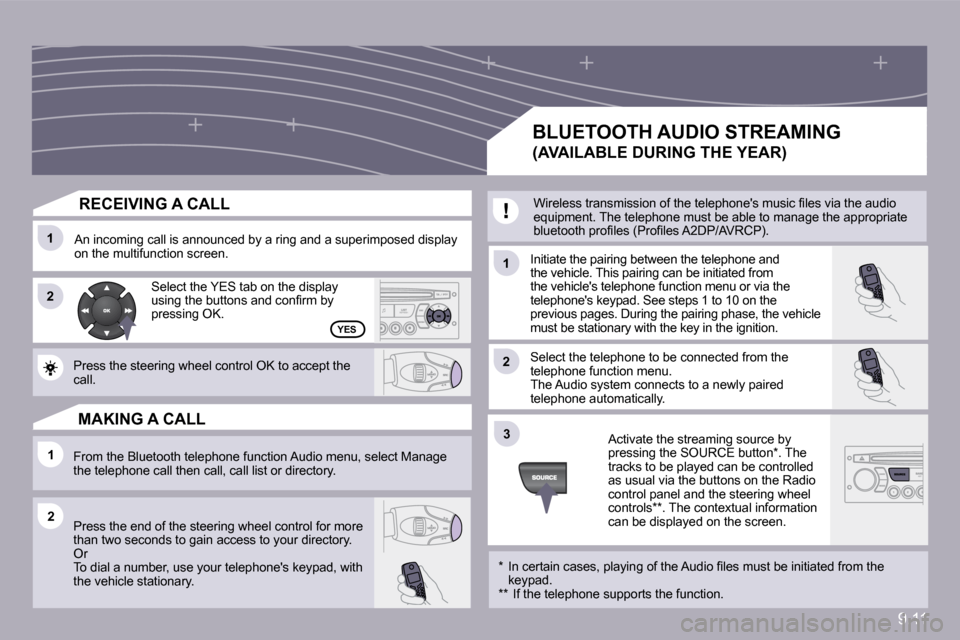

RECEIVING A CALL
An incoming call is announced by a ring and a superimposed display on the multifunction screen. Initiate the pairing between the telephone and the vehicle. This pairing can be initiated from the vehicle's telephone function menu or via the telephone's keypad. See steps 1 to 10 on the previous pages. During the pairing phase, the vehicle must be stationary with the key in the ignition.
Select the telephone to be connected from the telephone function menu. The Audio system connects to a newly paired telephone automatically.
Select the YES tab on the display using the buttons and confi rm by pressing OK.
Press the steering wheel control OK to accept the call.
From the Bluetooth telephone function Audio menu, select Manage the telephone call then call, call list or directory.
Press the end of the steering wheel control for mo re than two seconds to gain access to your directory. Or To dial a number, use your telephone's keypad, wit h the vehicle stationary.
MAKING A CALL
BLUETOOTH AUDIO STREAMING
(AVAILABLE DURING THE YEAR)
Wireless transmission of the telephone's music fi les via the audio equipment. The telephone must be able to manage the appropriate bluetooth profi les (Profi les A2DP/AVRCP).
* In certain cases, playing of the Audio fi les must be initiated from the keypad. ** If the telephone supports the function.
Activate the streaming source by pressing the SOURCE button * . The tracks to be played can be controlled as usual via the buttons on the Radio control panel and the steering wheel controls ** . The contextual information can be displayed on the screen.

9.12

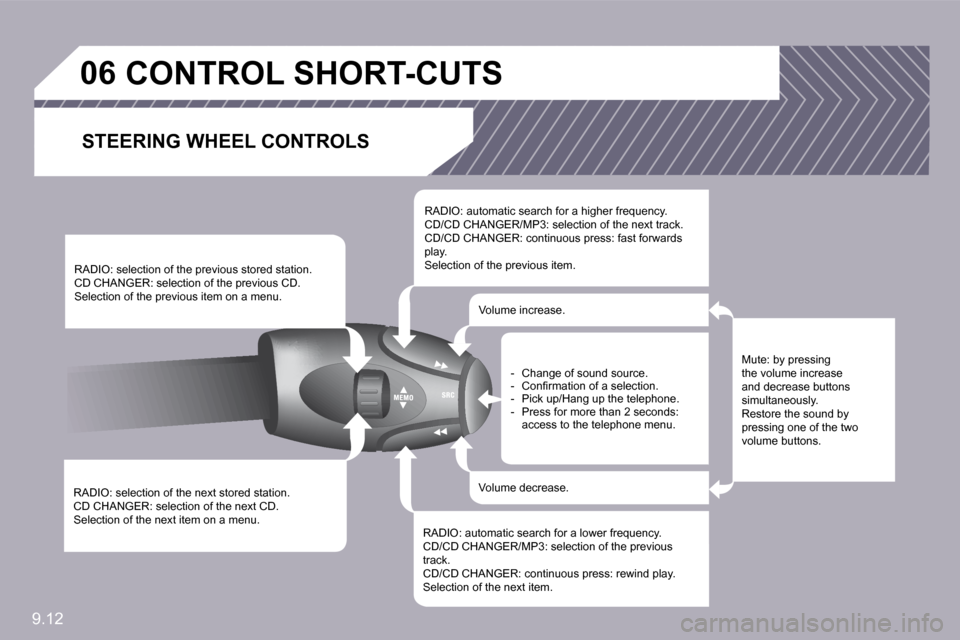

06 CONTROL SHORT-CUTS
STEERING WHEEL CONTROLS
RADIO: selection of the next stored station. CD CHANGER: selection of the next CD. Selection of the next item on a menu.
RADIO: selection of the previous stored station. CD CHANGER: selection of the previous CD. Selection of the previous item on a menu.
RADIO: automatic search for a higher frequency. CD/CD CHANGER/MP3: selection of the next track. CD/CD CHANGER: continuous press: fast forwards play. Selection of the previous item.
RADIO: automatic search for a lower frequency. CD/CD CHANGER/MP3: selection of the previous track. CD/CD CHANGER: continuous press: rewind play. Selection of the next item.
Volume increase.
Volume decrease.
Mute: by pressing the volume increase and decrease buttons simultaneously. Restore the sound by pressing one of the two volume buttons.
- Change of sound source. - Confi rmation of a selection. - Pick up/Hang up the telephone. - Press for more than 2 seconds: access to the telephone menu.

9. 18
The MyWay is protected in such a way that it will only operate in your vehicle. If it is to be installed in another vehicle, contact a CITROËN dealer for confi guration of operate in your vehicle. If it is to be installed in another le. If it i
the system.
Certain functions described in this handbook will become available during the course of the year.

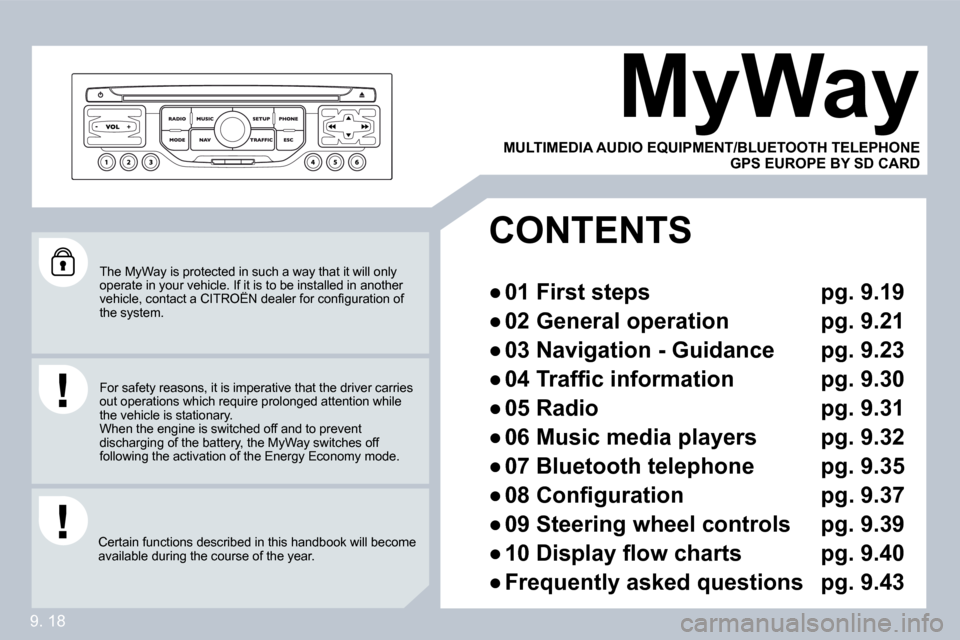

MyWay
MULTIMEDIA AUDIO EQUIPMENT/BLUETOOTH TELEPHONE GPS EUROPE BY SD CARD
CONTENTS

9. 21

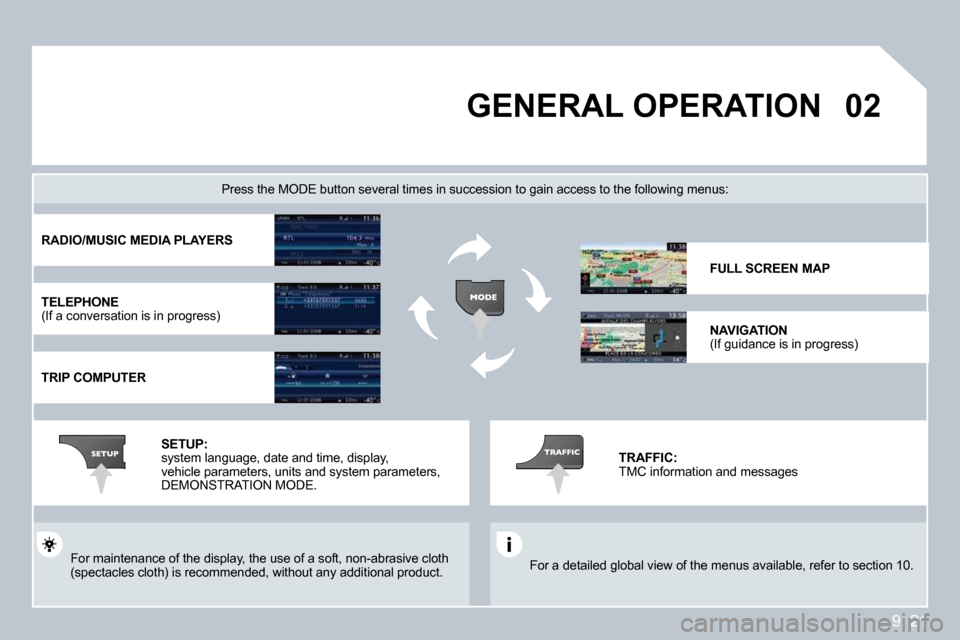

02 GENERAL OPERATION
For a detailed global view of the menus available, refer to section 10.
Press the MODE button several times in succession to gain access to the following menus:
For maintenance of the display, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended, without any addi tional product.
RADIO/MUSIC MEDIA PLAYERS
TELEPHONE (If a conversation is in progress)
TRIP COMPUTER
FULL SCREEN MAP
NAVIGATION (If guidance is in progress)
SETUP: system language, date and time, display, vehicle parameters, units and system parameters, DEMONSTRATION MODE.
TRAFFIC: TMC information and messages

9. 22
02
1
2
3
3
2
1
1
1
3
2
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
2
1
1
2
1
2
2
2
2
2
2
2
1
1
1
1
1
1
GENERAL OPERATION
A press on the OK dial to permits access to short-cut menus according to the display on the screen.
TRIP COMPUTER:
ALERT LOG
STATUS OF FUNCTIONS
MUSIC MEDIA PLAYERS:
TA
PLAY OPTIONS
normal
random track
repeat folder
track intro
SELECT MUSIC
NAVIGATION (IF GUIDANCE IS IN PROGRESS):
ABORT GUIDANCE
REPEAT ADVICE
BLOCK ROAD
ROUTE INFO
show dest.
trip info
route type
avoidance criteria
satellites
zoom/scroll
VOICE ADVICE
ROUTE OPTIONS
RADIO:
IN FM MODE
TA
RDS
radiotext
regional prog. (REG)
AM
IN AM MODE
TA
refresh AM list
FM
FULL SCREEN MAP:
ABORT/RESUME GUIDANCE
SET DESTINATION
POIS NEARBY
POSITION INFO
MAP SETTINGS
ZOOM/SCROLL
TELEPHONE:
END CALL
HOLD CALL
DIAL
DTMF TONES
PRIVATE MODE
MICRO OFF
DISPLAY ACCORDING TO THE CONTEXT

9. 25
03
5
6
7
1
2
3
4

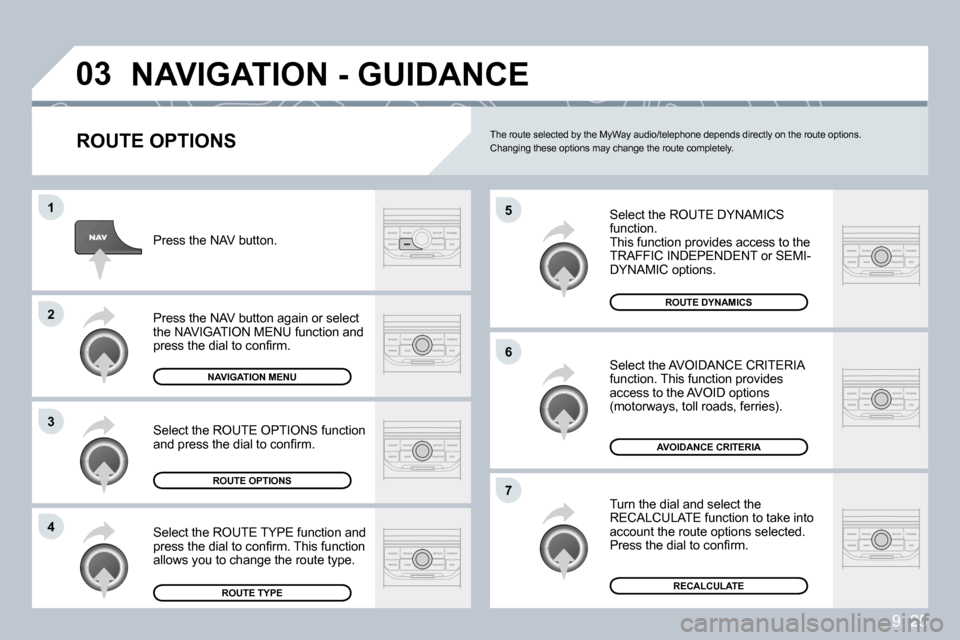

NAVIGATION - GUIDANCE
ROUTE OPTIONS
Select the ROUTE DYNAMICS function. This function provides access to the TRAFFIC INDEPENDENT or SEMI-DYNAMIC options.
Select the AVOIDANCE CRITERIA function. This function provides access to the AVOID options (motorways, toll roads, ferries).
Turn the dial and select the RECALCULATE function to take into account the route options selected. Press the dial to confi rm.
Press the NAV button.
Press the NAV button again or select the NAVIGATION MENU function and press the dial to confi rm.
Select the ROUTE TYPE function and press the dial to confi rm. This function allows you to change the route type.
Select the ROUTE OPTIONS function and press the dial to confi rm.
NAVIGATION MENU
ROUTE OPTIONS
ROUTE TYPE
ROUTE DYNAMICS
AVOIDANCE CRITERIA
RECALCULATE
The route selected by the MyWay audio/telephone depends directly on the route options. Changing these options may change the route comple tely.

9. 35
07
1
3
5
4
2
1
2
The services available depend on the network, the SIM card and the compatibility of the Bluetooth equipment used. Refer to your telephone's manual an d your operator to check which services you have access to. A list of mobile telephones which offer the best range of services is available from dealers.

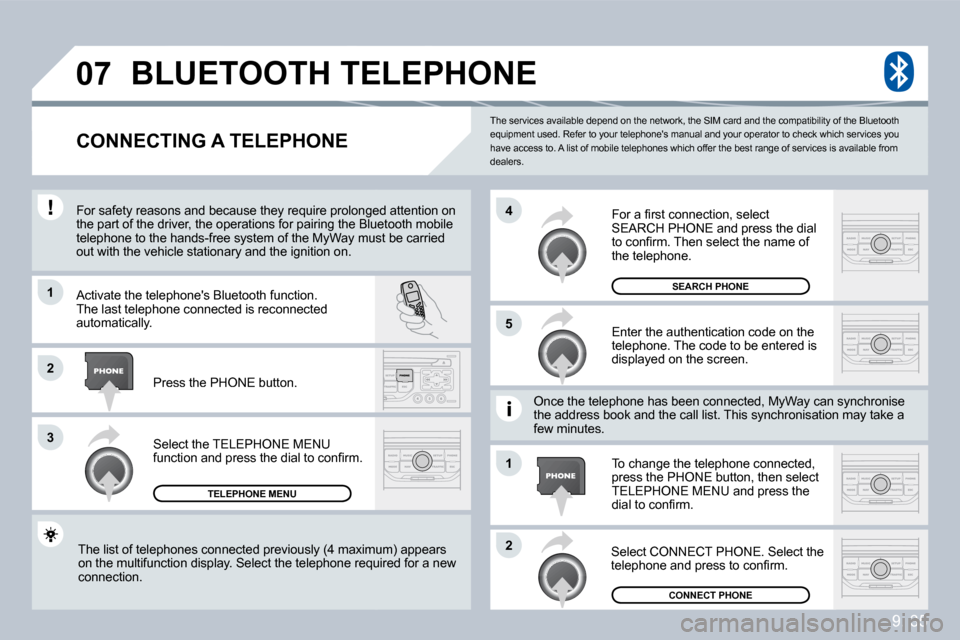

BLUETOOTH TELEPHONE
CONNECTING A TELEPHONE
For safety reasons and because they require prolon ged attention on For safety reasons and because they require prolonged attention on the part of the driver, the operations for pairing the Bluetooth mobile the part of the driver, the operations for pairing the Bluetooth mobile telephone to the hands-free system of the MyWay mus t must be carried out with the vehicle stationary and the ignition on.
Activate the telephone's Bluetooth function. The last telephone connected is reconnected automatically.
Select the TELEPHONE MENU function and press the dial to confi rm.
TELEPHONE MENU
Enter the authentication code on the telephone. The code to be entered is displayed on the screen.
To change the telephone connected, press the PHONE button, then select TELEPHONE MENU and press the dial to confi rm.
Once the telephone has been connected, MyWay can s can synchronise the address book and the call list. This synchronis ation ation may take a few minutes.
Select CONNECT PHONE. Select the telephone and press to confi rm. The list of telephones connected previously (4 max imum) appears The list of telephones connected previously (4 maximum) appears on the multifunction display. Select the telephone requir required for a new connection.
Press the PHONE button.
For a fi rst connection, select SEARCH PHONE and press the dial to confi rm. Then select the name of the telephone.
SEARCH PHONE
CONNECT PHONE
