TECHNICAL DATA
108 -
WEIGHTS AND TOWING LOADS (IN KG)
FOR DIESEL LUDOSPACE 4/5 SEAT VERSIONS
Engines
1.6 litre Turbo HDi 75
1.6 litre Turbo HDi
92
1.9 litre
Gearboxes
Manual
Manual
Manual
Length
L1
L2
L1
L2
L1
L2
Version (kg)
-
1 000
-
1 000
-
1 000
●
Kerb weight (in running order)
1 200
1 244
1 200
1 244
1 240
1 244
●
Gross vehicle weight (GVW)
1 735
2 170
1 735
2 170
1 840
2 210
●
Gross train weight (GTW)
2 535
2 970
2 535
2 970
2 940
3 005
●
Unbraked trailer
540
585
540
585
500
585
●
Braked trailer (within GTW)
1 100
1 100
1 100
1 100
1 100
795
●
Recommended nose weight
70
75
70
75
70
75
●
Recommended weight on roof rack
70
70
100
The GTW and towing load values indicated are valid up to a maximum altitude of 1 000 metres; the towing load mentioned
must be reduced by 10 % for each additional 1 000 metres.
The speed of a towing vehicle must not exceed 60 mph (100 km/h) (comply with the legislation in force in your country).
High ambient temperatures may result in a reduction in the performance of the vehicle in order to protect the engine; when
the exterior temperature is above 37 °C, limit the towed load.
109 TECHNICAL DATA
-

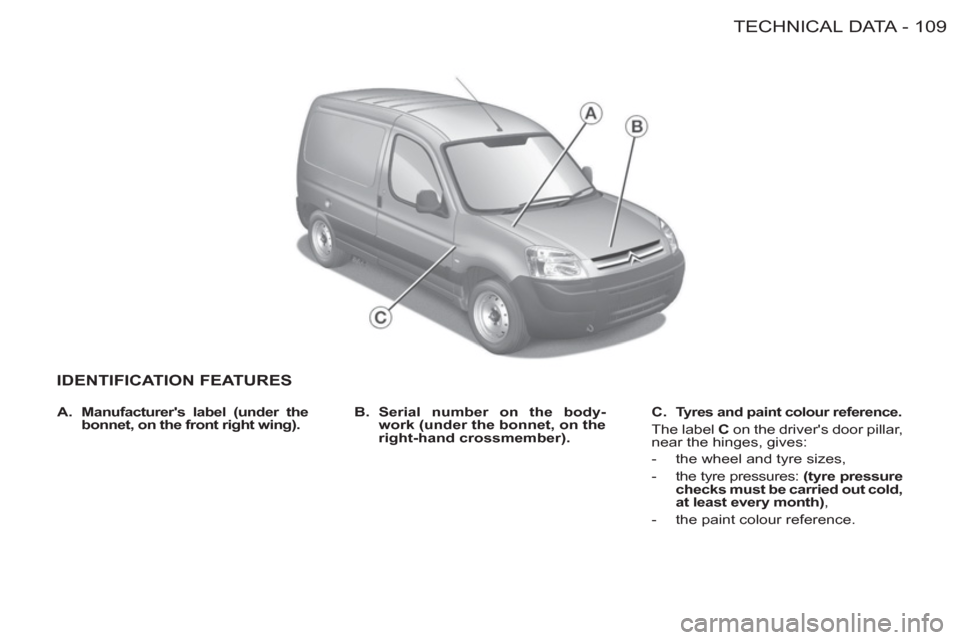

IDENTIFICATION FEATURES
B.
Serial number on the body-
work (under the bonnet, on the
right-hand crossmember).
C.
Tyres and paint colour reference.
The label C
on the driver's door pillar,
near the hinges, gives:
- the wheel and tyre sizes,
- the tyre pressures: (tyre pressure
checks must be carried out cold,
at least every month)
,
- the paint colour reference.
A. Manufacturer's label (under the
bonnet, on the front right wing).
VISUAL INDEX122 -
TECHNICAL DATA - MAINTENANCE
Levels ..............................72-75, 77
- dipstick,
- power steering fl uid,
- brake fl uid,
- coolant.
Petrol supply cut-off, Diesel fuel
priming ..................................... 78
Screenwash/headlamp wash,
fi lling reservoir .................... 55, 77
Bulbs, changing bulbs
- front .....................................82-85
- rear .....................................86-87 Dimensions ..........................98-101
Engine technical data ........102-103
Weights, loads ...................105-108
Identifi cation markings .............. 109
Opening the bonnet, stay ..... 16, 53
Under bonnet engine views ...72-75 Air/oil fi lters,
checks ...........................72-75, 78
Engine fuses ............................... 91
Battery .................................. 78, 92
