46 - 53  ACCESS AND STARTING
Keys 46
Alarm 48
Front and side doors 49
Rear doors 51
Opening the bonnet 53
Filling with fuel 53
54 - 57  VISIBILITY
Lights 54
Windscreen wiper stalk 55
Electric windows 56
Rear windows 56
Exterior mirrors 57
Interior mirror 57
4 - 18  FAMILIARISATION
19 - 27
MONITORING AND DISPLAY SCREENS
Instrument panel 20
Warning lamps 21
Temperature indicator 23
Instrument panel display 24
Service indicator 24
Distance recorder zero reset 26
Lighting rheostat 26
Clock 26
28 - 33  COMFORT
Display A 27
Ventilation 28
Heating 30
Air conditioning 32
34 - 45  SEATS
Front seats 34
Rear bench seat
(4/5 seat versions) 36
Child seats 37
Locations for child seats
attached with the seat belt 40
ISOFIX mountings 41
ISOFIX child seat 42
Seat belts 44 Eco-driving 17

MONITORING and DISPLAY SCREENS
20 -


1.
Seat belt not fastened warning
lamp

2.
Passenger's airbag deactivated
warning lamp

3.
Front and lateral airbags warning
lamp

4.
Front foglamps warning lamp

5.
Anti-lock braking system (ABS)
warning lamp

6.
Rear foglamp warning lamp

7.
Diesel pre-heater warning lamp

8.
Left hand direction indicator
9.
Total distance recorder, service
indicator and engine oil level
indicator

10.
Right hand direction indicator

11 .
Emission control system warning
lamp

12.
Main beam headlamps warning
lamp

13.
Parking brake, low brake fl uid
level and electronic brake force
distribution fault warning lamp

14.
Dipped beam headlamps
warning lamp

15.
Battery charge warning lamp

16.
Engine oil pressure and
temperature warning lamp
17.
Water in Diesel fi lter warning
lamp

18.
Low coolant level warning lamp

19.
Coolant temperature indicator

20.
Total distance recorder button

21.
Central (STOP) warning lamp

22.
Speedometer *

23.
Rev counter

24.
Lighting dimmer button

25.
Fuel gauge

26.
Low fuel level warning lamp

27.
Speed limiter/cruise control
screen

INSTRUMENT PANEL: PETROL - DIESEL


*
Version indicating in miles or kilo-
metres according to country of sale.

MONITORING and DISPLAY SCREENS
22 -

Battery charge warning
lamp
This comes on for a few sec-
onds when the ignition is
switched on. Illumination of this warn-
ing lamp, when the engine is running,
accompanied by an audible signal
and the message "Battery charge
fault"
in the screen, indicates one of
the following:


- malfunction of the charging circuit,

- loose battery or starter terminals,

- a cut or loose alternator belt,

- an alternator failure.
Consult a CITROËN dealer.


Emission control
system warning lamp
This comes on for a few
seconds each time the igni-
tion is switched on.
If it comes on with the engine running,
accompanied by an audible signal
and the message in the screen:


- "Antipollution fault",
this indi-
cates a fault with the emission
control system.

- "Catalytic converter fault",
this
indicates a fault with the injection
or ignition system. There is a risk of
damage to the catalytic converter
(petrol engine only).
Consult a CITROËN dealer.


Diesel engine
pre-heater warning
lamp

Wait until the warning lamp goes out
before starting the engine.
If the temperature is high enough,
the warning lamp comes on for less
than one second. You can start the
engine without waiting.


Low fuel level
warning lamp
This comes on for a few
seconds when the igni-
tion is switched on.
When the ignition is on, it is accom-
panied by an audible signal and the
message "Fuel level low"
in the
screen.
If it fl ashes with the fuel gauge nee-
dle in the lowest position, when the
ignition is on, this indicates a fault
with the fuel gauge.
When this warning lamp comes on,
you have enough fuel left to drive ap-
proximately 30 miles (50 km)
.
Capacity of the tank:


- approximately 55 litres for petrol
engines,

- approximately 60 litres for Diesel
engines.



Water in Diesel filter
warning lamp *

There is a risk of damage to the in-
jection system.
Contact a CITROËN dealer as soon
as possible.


Anti-lock braking
system (ABS) warning
lamp
This comes on for a few seconds each
time the ignition is switched on.
If the warning lamp remains on or
comes on above 8 mph (12 km/h),
this indicates an ABS fault.
However, the vehicle retains conven-
tional servo-assisted braking.
Illumination of this warning lamp,
accompanied by an audible signal
and the message "ABS fault"
in the
screen, indicates an ABS fault.
Consult a CITROËN dealer.

*
According to country.

23MONITORING and DISPLAY SCREENS
-

Seat belt not fastened
warning lamp *

When the ignition is switched
on, this warning lamp comes
on if the driver has not fastened their
seat belt.
Above 12 mph (20 km/h), the warn-
ing lamp fl ashes for two minutes.
Once the two minutes have elapsed,
the warning lamp remains on until
the driver fastens their seat belt.


Coolant temperature indicator



- needle in zone (A)
, the tempera-
ture is correct,

- needle in zone (B)
, the tempera-
ture is too high. The central STOP

warning light fl ashes, accompa-
nied by an audible signal and the
message "Engine coolant temp.
too high"
on the display.

You must stop.

Consult a CITROËN dealer.

* According to country.


Passenger's airbag
deactivated warning
lamp *

Illumination of this warning lamp
is accompanied by the message
"Passenger airbag deactivated"
in
the screen.
If the passenger's airbag is deacti-
vated, the warning lamp comes on
when the ignition is switched on and
it remains on.
Always consult a CITROËN dealer if
the warning lamp fl ashes.


Front and lateral
airbags warning lamp
This comes on for a few sec-
onds when the ignition is
switched on.
With the engine running, illumination
of this warning lamp accompanied by
an audible signal and the message
"Airbag fault"
in the multifunction
screen, indicates a fault with the air-
bags.
Consult a CITROËN dealer.

SEATS36-
To fold the rear bench seat:


- lower the head restraint,

- press control 1
to unlock the seat
back 2
,

- fold the seat back 2
onto the seat,

- place the seat in the "folded" po-
sition. When repositioning:


- tilt the folded seat rearwards,

- lift the seat back,

- check that the seat is locked cor-
rectly.

Take care not to trap the seat belts.
On the 4-seat version, each rear seat
has a fi xed rear head restraint and a
seat belt.
REAR BENCH SEAT(4/5 SEAT VERSIONS)
Head restraint

This is of the "comma-shape" type.
High position: press the two tabs at
the same time, lift the head restraint
and raise it.
Low position: push the two tabs at
the same time and press the top to
lower the head restraint.
To remove the head restraint: place
it in the high position, lift it then re-
move it.
Store it inside the vehicle, securing
it fi rmly.
To install the head restraint: engage
the rods of the head restraint in the
holes keeping it in line with the seat
back.

37SEATS-
GENERAL POINTS ON SEATBELTS
CHILD SEAT AT THE FRONT


"Forwards-facing"
When a "forwards-facing" child seat
is installed on the front passenger
seat
, adjust the vehicle's seat to the
intermediate longitudinal position
with the seat back upright and leave
the passenger's airbag activated.

Intermediate longitudinal
position
"Rearwards-facing"
When a "rearwards-facing" child seat
is installed on the front passenger
seat
, you must deactivate the pas-
senger's airbag * . Otherwise, the
child would risk being seriously
injured or killed if the airbag were
to infl ate
.

*
The rules for carrying children are
specifi c to each country. Refer to the
current legislation in your country.
The procedures for the use of child
seats and deactivation of the pas-
senger's airbag are common to the
entire CITROËN range.
In the absence of passenger airbag
deactivation, it is strictly forbidden to
install a child seat in the "forwards
facing" position on the front passenger
seat.
Although one of CITROËN's main
criteria when designing your vehicle,
the safety of your children also de-
pends on you.
For maximum safety, please follow
these precautions:


- all children under the age of 12
or less than one metre fi fty tall
must travel in approved child
seats suited to their weight
,
on seats fi tted with a seat belt or
ISOFIX mountings * .

- a child weighing less than 9 kg
must travel in the "rearwards-
facing" position in the front.

39SEATS-
CHILD SEATS RECOMMENDED BY CITROËN
CITROËN offers a complete range of recommended child seats which are secured using a three point seat belt
:


Group 0+: from birth to 13 kg



Groups 1, 2 and 3: from 9 to 36 kg






L1

"RÖMER Baby-Safe Plus"
Installed in the rearwards-facing
position.



L2

"KIDDY Comfort Pro"
The impact shield must be used for
carrying young children
(from 9 to 18 kg).


Groups 2 and 3: from 15 to 36 kg






L3

"RECARO Start''



L4

"KLIPPAN Optima"
From the age of 6 years
(approximately 22 kg),
the booster is used on its own.




L5

"RÖMER KIDFIX"
Can be fi tted to the vehicle's ISOFIX mountings.
The child is restrained by the seat belt.

SEATS
40-
(c) Consult the legislation in force in
your country before installing your
child on this seat.

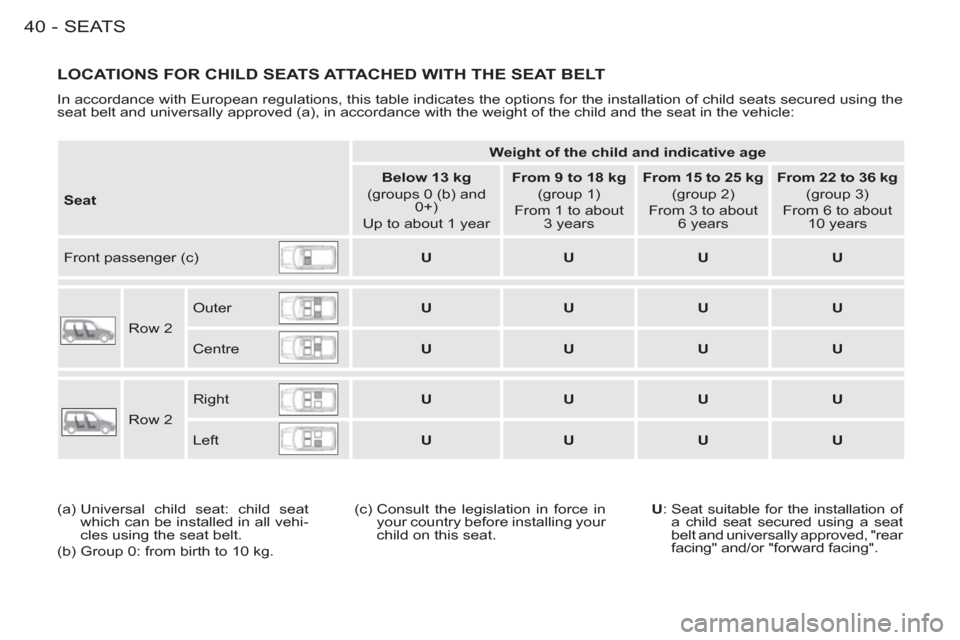

LOCATIONS FOR CHILD SEATS ATTACHED WITH THE SEAT BELT

In accordance with European regulations, this table indicates the options for the installation of child seats secured using the
seat belt and universally approved (a), in accordance with the weight of the child and the seat in the vehicle:



Weight of the child and indicative age




Seat



Below 13 kg

(groups 0 (b) and
0+)
Up to about 1 year

From 9 to 18 kg

(group 1)
From 1 to about
3 years

From 15 to 25 kg



(group 2)
From 3 to about
6 years

From 22 to 36 kg



(group 3)
From 6 to about
10 years
Front passenger (c)

U



U



U



U






Row 2 Outer

U



U



U



U


Centre

U



U



U



U






Row 2 Right

U



U



U



U


Left

U



U



U



U


(a) Universal child seat: child seat
which can be installed in all vehi-
cles using the seat belt.
(b) Group 0: from birth to 10 kg.
U
: Seat suitable for the installation of
a child seat secured using a seat
belt and universally approved, "rear
facing" and/or "forward facing".

SEATS
42-

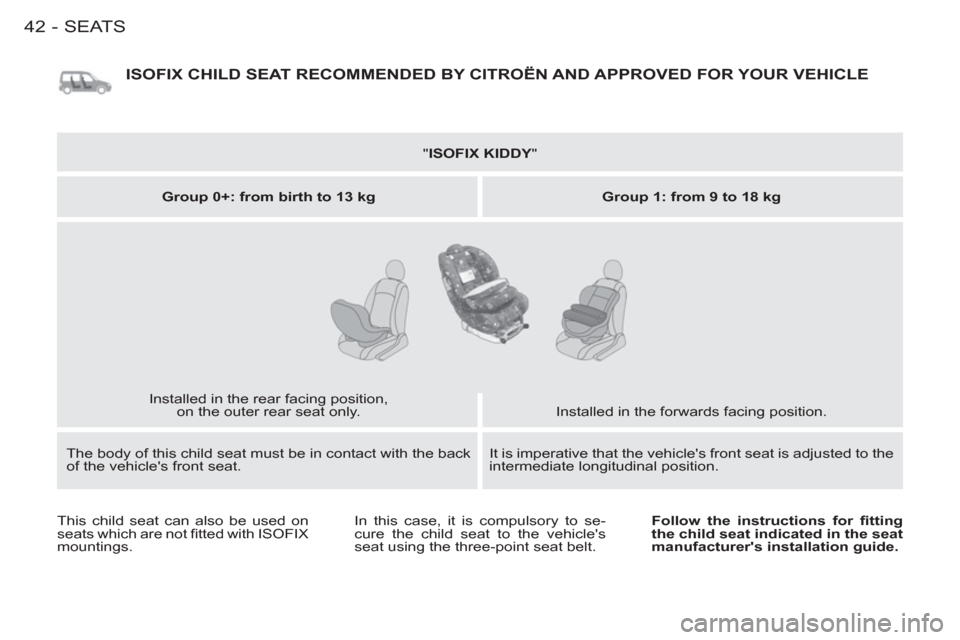

ISOFIX CHILD SEAT RECOMMENDED BY CITROËN AND APPROVED FOR YOUR VEHICLE


" ISOFIX KIDDY
"

Group 0+: from birth to 13 kg

Group 1: from 9 to 18 kg

Installed in the rear facing position,
on the outer rear seat only. Installed in the forwards facing position.
The body of this child seat must be in contact with the back
of the vehicle's front seat. It is imperative that the vehicle's front seat is adjusted to the
intermediate longitudinal position.
This child seat can also be used on
seats which are not fi tted with ISOFIX
mountings. In this case, it is compulsory to se-
cure the child seat to the vehicle's
seat using the three-point seat belt.
Follow the instructions for fi tting
the child seat indicated in the seat
manufacturer's installation guide.

43SEATS-
ADVICE ON CHILD SEATS Children under the age of 10 must not
travel in the "forward facing" position
on the front passenger seat, unless
the rear seats are already occupied
by other children, cannot be used or
are absent.
Deactivate the passenger's airbag
when a "rear facing" child seat is in-
stalled on the front seat. Otherwise,
the child would risk being seriously
injured or killed if the airbag were to
infl ate. As a safety precaution, do not leave:


- one or more children alone and
unsupervised in a vehicle,

- a child or an animal in a vehicle
which is exposed to the sun, with
the windows closed,

- the keys within reach of children
inside the vehicle.

Installing a booster seat
The chest part of the seat belt must
be positioned on the child's shoulder
without touching the neck.
Ensure that the lap part of the seat
belt passes correctly over the child's
thighs.
CITROËN recommends the use of
a booster seat which has a back, fi t-
ted with a seat belt guide at shoulder
level. To prevent accidental open-
ing of the doors, use the
"Child lock". The incorrect installation of a child
seat in a vehicle compromises the
child's protection in the event of an
accident.
Remember to fasten the seat belts
or the child seat harnesses keep-
ing the slack
in relation to the child's
body to a minimum
, even for short
journeys.
For optimum installation of the "for-
ward facing" child seat, ensure that
the back of the child seat is in contact
with the back of the vehicle's seat
and that the head restraint does not
cause any discomfort.
If the head restraint has to be removed,
ensure that it is stored or attached se-
curely to prevent it from being thrown
around the vehicle in the event of
sharp braking. Take care not to open the rear win-
dows by more than one third.
To protect young children from the
rays of the sun, fi t side blinds on the
rear windows.
