Seats
Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015
FRONT SEATS
Forwards/backwardsSeat height (driver)
To raise the seat, pull the control
upwards
  then   take   your   weight   off   the
seat

  cushion.
To lower the seat, pull the control
upwards then push on the seat
cushion.
Seat backrest angle
Lift the bar and slide the seat forwards
or   backwards.
The

following

adjustments

are

available: With

  your   back   pressed   against   the
seat

  backrest,   move   the   lever   forwards
and

  set   the   required   angle.
EASE OF USE and COMFORT
4

78
Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015
Seats
Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015
never drive with the head
restraints   removed;   they   must   be
in

  place   and   correctly   adjusted.
Adjustable armrest
Front heated seats control
Each front seat may be fitted with a control located on the side part of the
cushion.
Press  to   switch   on   the   cushion   heating.
Press
  again   to   switch   it   off.
Head restraint height
To raise the head restraint, slide it vertically
upwards.
To lower the head restraint, press the
button and slide the head restraint
vertically  downwards.
The
  adjustment   is   correct   when   the   upper
 edge of the head restraint is level with the


top
  of   the   head.
To
  remove   the   head   restraint,   press   the
 button

  and   pull   the   head   restraint   upwards.
To re-install the head restraint, engage
the
  rods   in   the   holes   making   sure   they   are
 aligned

  with   the   seat   back.
To access the vertical position, raise
the  armrest   until   it   locks.
Lower
  the   armrest   to   return   it   to   a
position

  for   use.
To
  remove   the   armrest,   press   the
release


button

from

the

vertical

position

and

  move   aside   the   armrest.
To
  put   the   armrest   back   in   place,   clip   it
in

  the   vertical   position.
If
  the   vehicle   is   fitted   with   the   additional
console

  and   an   armrest,   to   fold   the
passenger seat to the table position
remove

  the   console   or   the   armrest.

 87
Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015
Seats
Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015

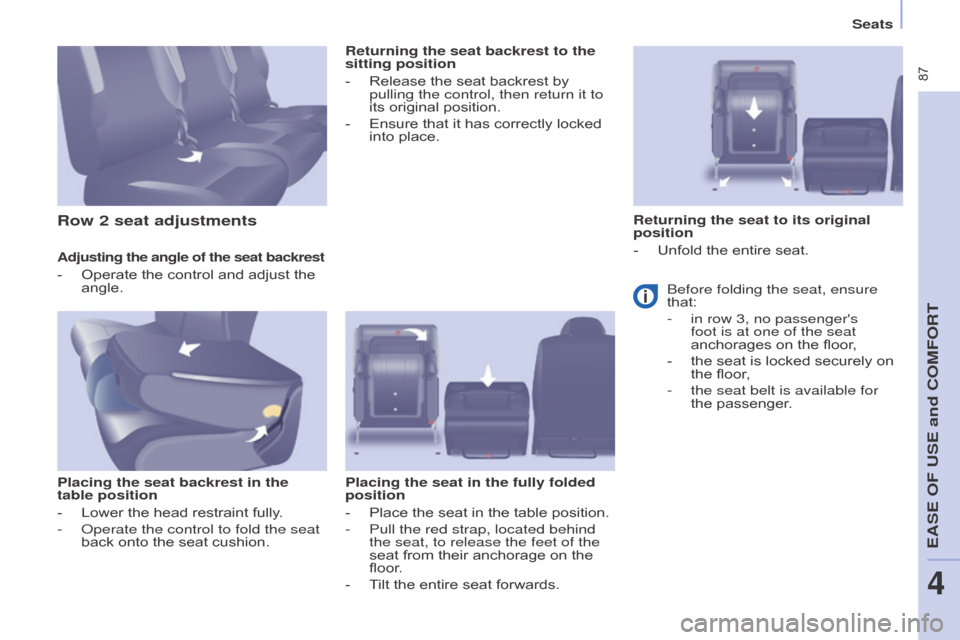

Adjusting the angle of the seat backrest
- Operate  the   control   and   adjust   the  angle.
Placing the seat backrest in the
table position
-

Lower
  the   head   restraint   fully.
-
o perate the control to fold the seat
back
  onto   the   seat   cushion.Returning the seat backrest to the
sitting position
-

Release
  the   seat   backrest   by
pullin

g the control, then return it to
its   original   position.
-
Ensure
  that   it   has   correctly   locked
into

  place.
Placing the seat in the fully folded
position
-
Place
  the   seat   in   the   table   position.
-

Pull the red strap, located behind
the seat, to release the feet of the
seat

  from   their   anchorage   on   the
floor

.
-

T
ilt   the   entire   seat   forwards.
Row 2 seat adjustmentsReturning the seat to its original
position
-
Unfold
  the   entire   seat.
Before folding the seat, ensure
that:
-

in row 3, no passenger's
foot is at one of the seat
anchorages

  on   the   floor,
-

the
  seat   is   locked   securely   on
the

  floor,
-

the seat belt is available for
the

  passenger.
EASE OF USE and COMFORT
4

88
Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015
Seats
Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015

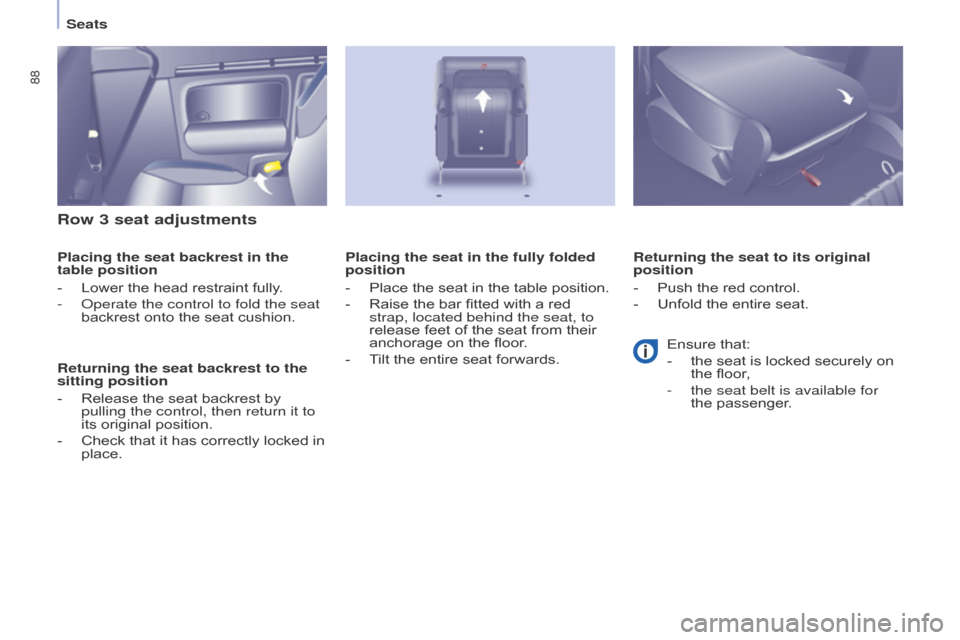

Row 3 seat adjustments
Placing the seat backrest in the
table position
-
Lower
  the   head   restraint   fully.
-
o perate the control to fold the seat
backrest
  onto   the   seat   cushion.
Returning the seat backrest to the
sitting position
-

Release
  the   seat   backrest   by
pullin

g the control, then return it to
its
  original   position.
-

Check
  that   it   has   correctly   locked   in
place. Returning the seat to its original
position
-


Push
  the   red   control.
-

Unfold
  the   entire   seat.
Placing the seat in the fully folded
position
-

Place
  the   seat   in   the   table   position.
-

Raise
  the   bar   fitted   with   a   red
strap, located behind the seat, to
release

  feet   of   the   seat   from   their
anchorage

  on   the   floor.
-

T
ilt   the   entire   seat   forwards.Ensure
  that:
-

the
  seat   is   locked   securely   on
the

  floor,
-

the seat belt is available for
the

  passenger.

11 2
Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015
SURVEILLANCE MIRROR
This mirror, placed on top of the central  mirror,   enables   the   driver   or
front passenger to observe all the rear
seats.
Fitted

  on   its   own   ball   joint,   it's   manual
adjustment

  is   simple   and   provides   a
view

  of   the   rear   interior   of   the   vehicle.
It
  can   also   be   adjusted   for   improved
visibility

  during   manoeuvres   or   when
overtaking.
REAR WINDOWS
To partially open the rear windows, tilt
the  lever   and   push   it   fully   to   lock   the
windows

  in   the   open   position.
Manual rear view mirror
The rear view mirror has two positions:
-
day
  (normal),
-

night
  (anti-dazzle).
To
  change   from   one   to   the   other,   push
or pull the lever on the lower edge of
the

  mirror.
Mirrors and windows

126
Berlingo-2-VP_en_Chap05_Securite_ed02-2015Berlingo-2-VP_en_Chap05_Securite_ed02-2015
SEAT BELTS
Height adjustment
Squeeze the control with the return and
slide  the   assembly   on   the   driver's   seat
side and on the individual passenger
seat

  side.
Fastening
Pull the strap, then insert the tongue
into  the   buckle.
Check
  that   the   seat   belt   is   fastened
correctly

  by   pulling   the   strap.
Seat belt(s) not fastened
warning lamp Unfastening
Press the red button.
When the vehicle is started,
this
  warning   lamp   comes   on
if a user at the front has not
fastened

  their   seat   belt.
Good practice
The driver must ensure that passengers use the seat belts correctly
and that they are all strapped in
securely  before   moving   off.
Wherever you are seated in the
vehicle, always fasten your seat belt,
even
  for   short   journeys.
The
  seat   belts   are   fitted   with   an   inertia
reel

  which   automatically   adjusts   the
length

  of   the   strap   to   your   size.
d

o not use accessories (clothes pegs,
clips,
  safety   pins,   etc.)   which   allow   the
seat

  belt   straps   to   fit   loosely.
Ensure that the seat belt has reeled in
correctly
  after   use.
After
  folding   or   moving   a   seat   or   a   rear
bench seat, ensure that the seat belt
has reeled in correctly and that the
buckle

  is   ready   to   accommodate   the
tongue.
d

epending on the nature and
seriousness
  of   any   impact,   the
pretensioning

  device   may   be   deployed
before

  and   independently   of   inflation
of

  the   airbags.   It   instantly   tightens
the seat belts against the body of the
occupants.
Deployment

  of   the   pretensioners   is
accompanied

  by   a   slight   discharge
of

  harmless   smoke   and   a   noise,   due
to the activation of the pyrotechnic
cartridge

  incorporated   in   the   system.
The

front

passenger's

seat

may

be

fitted


with


a


presence


detector

,

in


which


case you should not place anything
heavy on this seat as this could trigger
the


alert.
Seat belts

140
Berlingo-2-VP_en_Chap05_Securite_ed02-2015Berlingo-2-VP_en_Chap05_Securite_ed02-2015
SEATS WITH A SUPPORT LEG
Care must be taken when installing a child seat with a support leg in
the
  vehicle.   In   particular   you   should
look

  for   the   presence   of   a   storage
compartment

  below   the   rear   seat
footwells.
The centre rear seat does not have
a

  storage   compartment   below   the
footwell.


Y
ou   can   therefore   easily   fit   a
child seat with a support leg, whether
installed

  with   the   ISOFIX   mountings   or
using

  the   3   point   seat   belt.
Do not place the support leg on
the storage compartment cover;
it
  might   break   in   a   serious   impact.
Where

  the   adjustments   of   the   support
leg allow it, we suggest two other
possibilities

  for   installation.
At the bottom of the storage
compartment
If the support leg is long enough, you
can  adjust   it   so   that   it   contact   the
bottom

  of   the   storage   compartment.
Remove

  all   objects   from   the   storage
compartment

  before   installing   the
support

  leg.
Away from the storage
compartment area
If the support leg is long enough and
can  be   inclined   sufficiently   (always
by

  following   the   recommendations
given in the installation instructions for
the child seat), you can position the
support

  leg   so   that   it   contacts   the   floor
away

  from   the   storage   compartment.
Adjust

  the   longitudinal   position   of
the front or rear seat to obtain a
satisfactory position for the support leg
away

  from   the   storage   compartment.
If you cannot position the support
leg in the way described, you
should

  not   fit   a   child   seat   with
support

  leg   to   the   seat.
