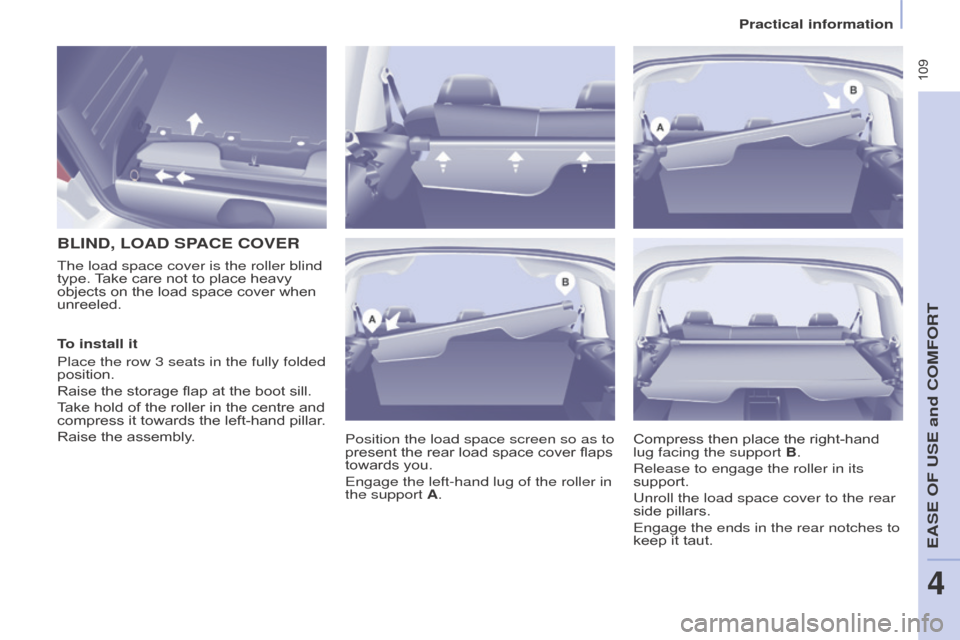

BLIND, LOAD SPACE COVER
Position the load space screen so as to
present  the   rear   load   space   cover   flaps
towards

  you.
Engage the left-hand lug of the roller in
the support A.
The load space cover is the roller blind
type.

T

ake

care

not

to

place

heavy

objects


on

the

load

space

cover

when

unreeled.
Compress
  then   place   the   right-hand  lug facing the support
B.
Release to engage the roller in its
support.
Unroll the load space cover to the rear
side
  pillars.
Engage the ends in the rear notches to
keep
  it   taut.
To install it
Place the row 3 seats in the fully folded
position.
Raise

the

storage

flap

at

the

boot

sill.
Take

hold

of

the

roller

in

the

centre

and

compress


it

towards

the

left-hand

pillar.
Raise

the

assembly.
EASE OF USE and COMFORT
4
Practical information

11 0
Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015
To remove it
From  the   boot,   pull   the   load   space
cover

  towards   you   to   release   it   from
the

  side   pillars.
Guide
  the   load   space   cover   as   it   rolls   up.
Remove
  the   clips   of   the   three   flaps
from

  the   base   of   each   row   2   head
restraint.
Compress

  the   roller   to   the   left   to
remove

  it   from   the   support   B.
Raise
  it   and   pivot   it   forwards. To store it
Store it in the recess at the boot sill,
with
  the   two   rear   flaps   uppermost.
First,
  compress   the   load   space   screen
to

  the   left.
Release.
Arrange
  the   two   flaps   and   close   the
storage

  flap.
The

roller

is

fitted

with

three

flaps

permitting


concealment

of

the

boot, whether the row 2 seats
are


in

the

normal

position

or

the

comfort


position.
Each

flap

has

two

clips

which

are

hooked


on

the

base

of

each

head

restraint.
Practical information

111
Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015
Adjusting electric door mirrors
- Move the control to the right or to
the left to select the corresponding
mirror.
-

Move the control in all four
directions

  to   adjust.
-

Return the control to the central
position.
MIRRORS
Heated mirrors
Adjusting manual door mirrors
Forced folding
If the mirror casing has come out of its initial location, with the vehicle
stationary  reposition   the   mirror   casing
manually

  or   use   the   electric   folding
control.Press the heated rear screen
button.
Move the lever in all four directions to
adjust.
When


the

vehicle

is

parked,

the

door

mirrors


can

be

folded

back

manually.
The

mirrors

are

not

equipped

with

automatic


heating.
Electric folding / unfolding
The mirrors can be folded or unfolded electrically
  from   the   inside,   with   the
vehicle

  parked   and   the   ignition   on:
-

Place the control in the central
position.
-


T
urn   the   control   downwards. The
  mirrors   that   have   electric   folding/
unfolding   can   be   heated.
EaSE oF USE and CoMFoRT
4
Mirrors and windows

11 2
Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015
SURVEILLANCE MIRROR
This mirror, placed on top of the central  mirror,   enables   the   driver   or
front passenger to observe all the rear
seats.
Fitted

  on   its   own   ball   joint,   it's   manual
adjustment

  is   simple   and   provides   a
view

  of   the   rear   interior   of   the   vehicle.
It
  can   also   be   adjusted   for   improved
visibility

  during   manoeuvres   or   when
overtaking.
REAR WINDOWS
To partially open the rear windows, tilt
the  lever   and   push   it   fully   to   lock   the
windows

  in   the   open   position.
Manual rear view mirror
The rear view mirror has two positions:
-
day
  (normal),
-

night
  (anti-dazzle).
To
  change   from   one   to   the   other,   push
or pull the lever on the lower edge of
the

  mirror.
Mirrors and windows

11 3
Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015Berlingo-2-VP_en_Chap04_Ergonomie_ed02-2015
ELECTRIC WINDOWS
Lower the window fully, then raise it, it
will  rise   in   steps   of   a   few   centimetres
each

  time   the   control   is   pressed.
Repeat the operation until the window
is

  fully   closed.
Continue to press the control for at
least one second after the window
closed
  position   has   been   reached.
The safety anti-pinch does not operate
during
  these   operations.
Safety anti-pinch
When the window rises and meets an obstacle,  it   stops   and   partially   lowers.
Manual mode
This mode is available depending  on   equipment;   it   is
identified

  by   this   symbol   on   the
control

  in   question.
Good practice
If the electric windows meet an obstacle  during   operation,   you   must
reverse

  the   movement   of   the   window.
T

o
do

this,

press

the

control

concerned.
When the driver operates the
passenger electric window controls,
they

  must   ensure   that   no   one   is
preventing correct closing of the
windows.
The

  driver   must   ensure   that   the
passengers use the electric windows
correctly

.
Be aware of children when operating
the
  windows.
Following
  several   consecutive   closing/
opening operations of the electric
window
  control,   a   protection   system
is triggered which only allows closing
of

  the   window.
After
  closing,   wait
approximately

  40   minutes.   Once   this
time

  has   elapsed,   the   control   becomes
operational

  again.
1.
d
river's side
2.

Passenger's side
Reinitialisation
Following reconnection of the battery,
or   in   the   event   of   a   malfunction,   the
safety

  anti-pinch   function   must   be
reinitialised. The electrical functions of the electric
windows
  are   deactivated:
-
approximately
  45   seconds   after   the
ignition is switched of

f,
-
after one of the front doors is
opened,

  if   the   ignition   is   off.
There

are

two

operating

modes:
Press or pull the control, without
passing

the

point

of

resistance.
The window stops when you release
the

control.
One-touch mode
Press or pull the control, beyond the
point
  of   resistance.
The window opens or closes fully when
the
  control   is   released.
Pressing or pulling the control again
stops
  the   movement   of   the   window.
EaSE oF USE and CoMFoRT
4
Mirrors and windows

11 4
Berlingo-2-VP_en_Chap05_Securite_ed02-2015
HAZARD WARNING LAMPS
H
ORN
Press the centre of the steering wheel.
PARKING BRAKE
Applying
Pull the parking brake lever up to immobilise
  your   vehicle.
Check
  that   the   parking   brake   is   applied
firmly

  before   leaving   the   vehicle.Pull
  on   the   parking   brake   lever,   only
with the vehicle stationary.
In the exceptional case of use of the
parking
  brake   when   the   vehicle   is
moving,

  apply   the   brake   by   pulling
gently

  to   avoid   locking   the   rear   wheels
(risk

  of   skidding).
Press this button, the direction
indicators

flash.
They

can

operate

with

the

ignition

off.
The

hazard

warning

lamps

should

only

be used in dangerous situations, when
stopping


in

an

emergency

or

when

driving


in

unusual

conditions.
When
  parking   on   a   slope,   direct   your
wheels

  towards   the   pavement   and   pull
the

  parking   brake   lever   up.
There is no advantage in engaging
a
  gear   after   parking   the   vehicle,
particularly

  if   the   vehicle   is   loaded.
If the parking brake is still on or has not been released properly, this is
indicated
  by   this   warning   lamp   which
 comes

  on   in   the   instrument   panel.
Automatic operation of hazard
warning lamps
When braking in an emergency, depending on the force of deceleration,
the  hazard   warning   lamps   come
on

  automatically.
They
  switch   off
automatically

  the   first   time   you
accelerate.
It

  is   also   possible   to   switch   them   off   by
pressing

  the   switch   on   the   dashboard.Releasing
Pull the lever up slightly and press the
button  to   lower   the   parking   brake   lever.
driving safely

11 5
Berlingo-2-VP_en_Chap05_Securite_ed02-2015
The audible (front and rear) and visual
(rear)  parking   sensor   system   consists
of

  proximity   sensors,   installed   in   the
rear

  bumper.
The sensors detect any obstacle which
enters
  its   field   of   operation:   person,
vehicle, tree, fence, behind the vehicle
during

  the   manoeuvre.
Certain
  objects   detected   at   the
beginning

  of   the   manoeuvre   will   no
longer be detected at the end of the
manoeuvre

  due   to   the   blind   spots
between

  and   below   the   sensors.
Examples:
  stake,   roadworks   cone   or
pavement

  post.
Engage reverse gear
P
ARKING


SENSORS
Display in the screen
An

audible

signal

confirms

the

activation


of

the

system

by

engaging

reverse


gear.
The

proximity

information

is

indicated

by


an

audible

signal

which

becomes
 more

rapid

as

the

vehicle

approaches
 the

obstacle.
When the distance between the rear
of the vehicle and the obstacle is less
than

approximately

thirty

centimetres,

the


audible

signal

becomes

continuous.
Parking sensors
SaFETY
5

11 6
Berlingo-2-VP_en_Chap05_Securite_ed02-2015
Activation / DeactivationMalfunction
In the event of a malfunction, the LED in
  the   button   comes   on,   accompanied
by

  an   audible   signal   and   a   message   in
the

  screen.
Contact
  a   CITROËN   dealer   or   qualified
workshop.
Good practice
In bad weather or in winter, ensure that
the  sensors   are   not   covered   with   mud,
ice

  or   snow.
The
  system   will   be   deactivated
automatically

  if   a   trailer   is   being   towed
or

  if   a   bicycle   carrier   is   fitted   (vehicle
fitted

  with   a   towbar   or   bicycle   carrier
recommended

  by   CITROËN).
You can activate or deactivate
the

system

by

pressing

this

button.
The activation or deactivation
of


the

system

is

stored

when

the


vehicle

stops.
Engage forward gear
In addition to the rear parking sensors, the   front   parking   sensors   are   triggered
when an obstacle is detected in
front of the vehicle and the speed
of

  the   vehicle   remains   below   6   mph
(10 km/h).The

  tone   from   the   speaker   (front
or rear) allows an obstacle to be
identified

  as   either   in   front   of   or
behind

  the   vehicle.
Stop the assistance
Change to neutral. The   parking   sensor   system
cannot,

  in   any   circumstances,
take

  the   place   of   the   vigilance   and
responsibility

  of   the   driver.
Parking sensors

 117
Berlingo-2-VP_en_Chap05_Securite_ed02-2015
REVERSING CAMERA
The reversing camera is activated automatically  when   reverse   gear   is
engaged.
The

  image   is   displayed   in   the   touch
screen

  tablet.
The
  reversing   camera   function   may   be
completed

  with   parking   sensors.
The
  reversing   camera   cannot   in
any

  circumstances   be   a   substitute
for vigilance on the part of the
driver

. High pressure jet washing
When washing your vehicle, do
not

direct

the

lance

within

30

cm

of

the

  camera   lens.
The
  superimposed   representation   of
guide

  lines   helps   with   the   manoeuvre.
They
  are   represented   by   lines   marked
"on the ground" and do not allow the
position

  of   the   vehicle   to   be   determined
relative

  to   tall   obstacles   (for   example:
other

  vehicles,   ...).
Some
  deformation   of   the   image   is
normal.The blue lines represent the general
direction of the vehicle (the dif

ference
corresponds to the width of your
vehicle
  without   the   mirrors).
The red lines represent a distance of
about
  30   cm   beyond   the   edge   of   your
vehicle's

  rear   bumper.
The green lines represent distances of
about
  1   and   2   metres   beyond   the   edge
of

  your   vehicle's   rear   bumper.
The turquoise blue curves represent
the
  maximum   turning   circle.
o

pening the tailgate causes the
display
  to   disappear.
Clean
  the   reversing   camera   regularly
using

  a   soft,   dry   cloth.
Parking sensors
SaFETY
5

ABS
ABS
11 8
Berlingo-2-VP_en_Chap05_Securite_ed02-2015

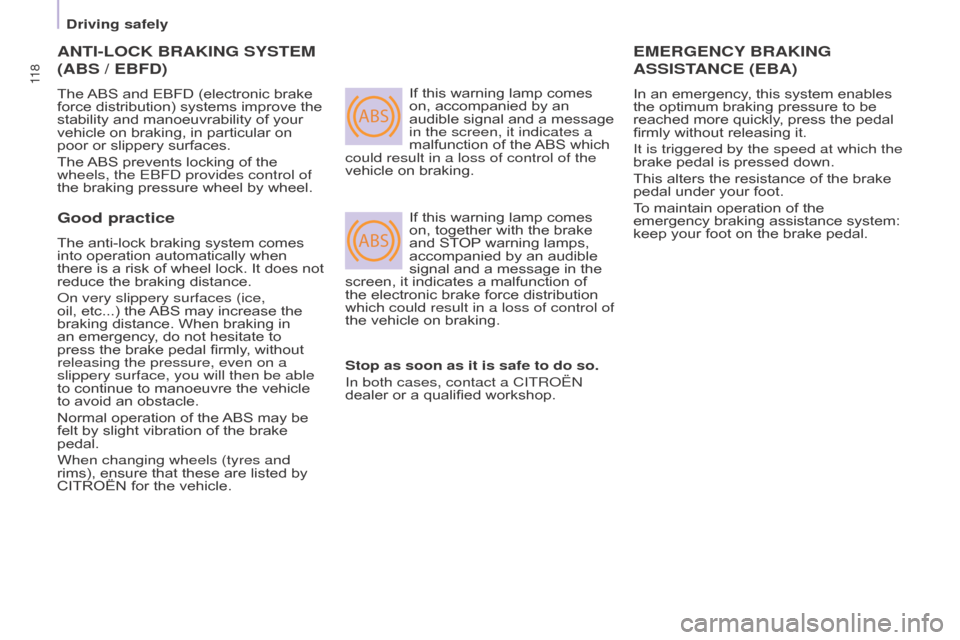

ANTI-LOCK BRAKING SYSTEM
(ABS / EBFD)
The ABS   and   EBFD   (electronic   brake  force
  distribution)   systems   improve   the
stability

  and   manoeuvrability   of   your
vehicle

  on   braking,   in   particular   on
poor

  or   slippery   surfaces.
The

ABS
  prevents   locking   of   the
wheels, the EBF

d provides control of
the
  braking   pressure   wheel   by   wheel.If
  this   warning   lamp   comes  on,
  accompanied   by   an
audible

  signal   and   a   message
in the screen, it indicates a
malfunction

  of   the
ABS
  which
could result in a loss of control of the
vehicle

  on   braking.
If
  this   warning   lamp   comes
on,

  together   with   the   brake
and

  STOP

warning   lamps,
accompanied

  by   an   audible
signal

  and   a   message   in   the
screen,

  it   indicates   a   malfunction   of
the

  electronic   brake   force   distribution
which could result in a loss of control of
the

  vehicle   on   braking.
EMERGENCY BRAKING
ASSIST

ANCE (EBA)
In an emergency, this system enables the  optimum   braking   pressure   to   be
reached

  more   quickly,   press   the   pedal
firmly

  without   releasing   it.
It is triggered by the speed at which the
brake
  pedal   is   pressed   down.
This
  alters   the   resistance   of   the   brake
pedal

  under   your   foot.
To
  maintain   operation   of   the
emergency

  braking   assistance   system:
keep

  your   foot   on   the   brake   pedal.
Good practice
The anti-lock braking system comes into  operation   automatically   when
there

  is   a   risk   of   wheel   lock.   It   does   not
reduce

  the   braking   distance.
o

n very slippery surfaces (ice,
oil, etc...)
  the
ABS
  may   increase   the
braking

  distance.   When   braking   in
an

  emergency,   do   not   hesitate   to
press

  the   brake   pedal   firmly,   without
releasing the pressure, even on a
slippery surface, you will then be able
to

  continue   to   manoeuvre   the   vehicle
to

  avoid   an   obstacle.
Normal
  operation   of   the
ABS
  may   be
felt

  by   slight   vibration   of   the   brake
pedal.
When changing wheels (tyres and
rims),

  ensure   that   these   are   listed   by
CITROËN

  for   the   vehicle. Stop as soon as it is safe to do so.
In both cases, contact a CITR
o Ë n
dealer
  or   a   qualified   workshop.
driving safely
