Citroen BERLINGO MULTISPACE RHD 2017 2.G Owner's Guide

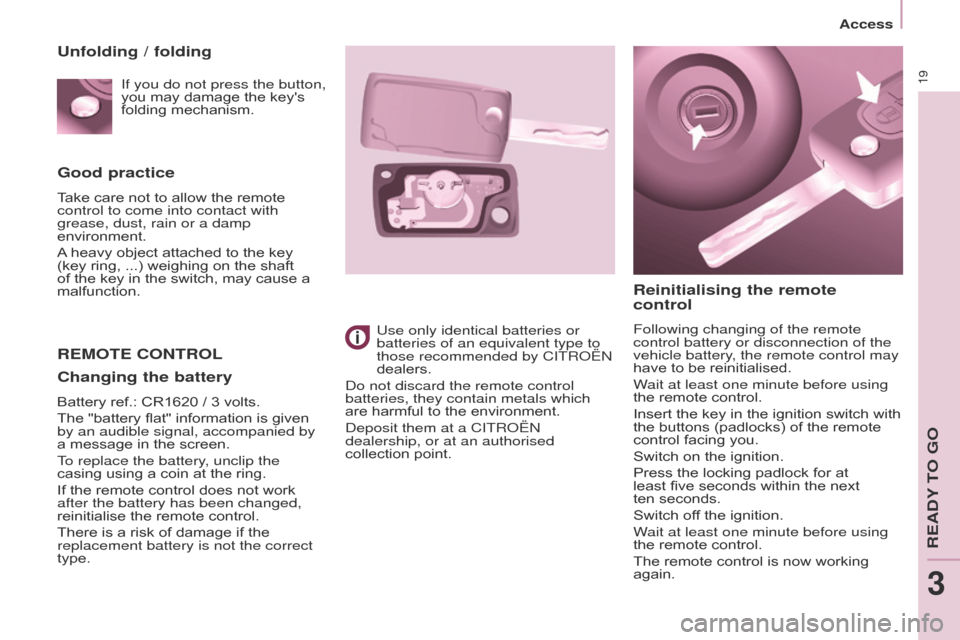

19
Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016
Good practice
Take care not to allow the remote control to come into contact with
grease, dust, rain or a damp
environment.
A

heavy   object   attached   to   the   key
(key

  ring,   ...)   weighing   on   the   shaft
of

  the   key   in   the   switch,   may   cause   a
malfunction.
REMOTE CONTROL
Reinitialising the remote

control
Following changing of the remote
control battery or disconnection of the
vehicle battery, the remote control may
have
  to   be   reinitialised.
Wait at least one minute before using
the
  remote   control.
Insert
  the   key   in   the   ignition   switch   with
the

  buttons   (padlocks)   of   the   remote
control

  facing   you.
Switch
  on   the   ignition.
Press
  the   locking   padlock   for   at
least

  five   seconds   within   the   next
ten seconds.
Switch

  off   the   ignition.
Wait at least one minute before using
the
  remote   control.
The
  remote   control   is   now   working
again.
Use only identical batteries or
batteries of an equivalent type to
those recommended by CITROËN
dealers.
Do not discard the remote control
batteries, they contain metals which
are


harmful

to

the

environment.
Deposit them at a CITROËN
dealership, or at an authorised
collection

point.
Unfolding / folding
Changing the battery
Battery ref.: CR1620 / 3 volts.
The   "battery   flat"   information   is   given
by an audible signal, accompanied by
a

  message   in   the   screen.
To replace the battery, unclip the
casing
  using   a   coin   at   the   ring.
If
  the   remote   control   does   not   work
after the battery has been changed,
reinitialise

  the   remote   control.
There
  is   a   risk   of   damage   if   the
replacement battery is not the correct
type.If you do not press the button,
you

  may   damage   the   key's
folding

  mechanism.
Access
READY TO GO
3

20
Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016
Don't forget
When  leaving   the   vehicle,   check   that
the lighting is of

f and nothing of value
is
  visible.
As a safety precaution (with children
on
  board),   remove   the   key   from   the
ignition when leaving the vehicle, even
for

  a   short   time.
Good practice
Do not make any modifications to the electronic  immobiliser   system.
Operating the remote control, even
when
  it   is   in   your   pocket,   may   result   in
involuntary

  unlocking   of   the   doors.
The simultaneous use of other
high frequency equipment (mobile
telephones, domestic alarms…), may
interfere with the operation of the
remote
  control   temporarily.
The remote control does not operate
while
  the   key   is   in   the   ignition,   even   if
the

  ignition   is   off.
ELECTRONIC
IMMOBILISER
If you lose your keys
Visit a CITROËN dealer with the
vehicle's  V5   registration   certificate   and
your

  identification   document.
A CITROËN dealer will be able
to
  retrieve   the   key   code   and
the transponder code so that a
replacement

  key   can   be   ordered.When purchasing a second-hand
vehicle,
  have   the   keys   memorised   by
a CITROËN dealer

, so as to be sure
that   the   keys   in   your   possession   are
the only ones that can be used to start
the

  vehicle.
ALARM
If fitted on your vehicle, this provides two
  types   of   protection:
-

exterior
  protection:   it   sounds   if   a
front/rear

  door   or   the   bonnet   is
opened.
-


interior
  protection:   it   sounds   if
the volume inside the passenger
compartment

  changes   (breaking   of
a window or a movement inside the
vehicle).
If


your

vehicle

is

fitted

with

a

separation

partition, the interior protection is not
active

  in   the   load   space.
Locking the vehicle with
complete alarm
Setting the alarm
- Switch off the ignition and get out of
the   vehicle.
-

Set
  the   alarm   within   five   minutes   of
getting

  out   of   the   vehicle,   by   locking
or

  deadlocking   using   the   remote
control.


The
  red   LED,   located   in   the
button,

  flashes   once   per   second.
All of the keys contain an electronic immobiliser  device.
This
  device   locks   the   engine   supply
system.

  It   is   activated   automatically
when

  the   key   is   removed   from   the
ignition.
After the ignition is switched on, a
dialogue

  is   established   between   the   key
and

  the   electronic   immobiliser   system.
The
  metal   part   of   the   key   must   be
unfolded correctly for correct dialogue
to

  take   place.
Access

21
Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016
FRONT DOORS
From the inside
Use the door opening control to unlock and  open   the   door   concerned.
From the outside
Use the remote control to lock/unlock the  vehicle.
Insert
  the   metal   part   of   the   key   in   the
lock

  on   the   driver's   side   if   the   remote
control

  does   not   work.
Disarming
- Unlock  the   vehicle   with   the   remote  control or switch on the ignition, the
red
  LED   goes   off.
Locking the vehicle with
exterior protection only
If, while you are away from the vehicle,
you wish to leave a window partially
open or a pet inside the vehicle, you
should
  choose   exterior   protection   only.
-

Switch
  off   the   ignition.
-

In the next ten seconds,
press the button until the
red
LED

is

on

continuously
.
- Get  out   of   the   vehicle.
-
Within
  the   next   five   minutes,   set
the

  alarm   by   locking   or   deadlocking
using the remote control (the red
LED

  flashes   once   a   second).
Triggering
The siren sounds, the direction indicators
flash  for   approximately   30   seconds   and
the

  red   LED   flashes   rapidly.
- To switch it off, insert the key and switch  on   the   ignition.
When the alarm has been triggered ten
times in succession (when triggered for the
eleventh
  time)   it   is   deactivated.   Repeat   the
procedure

  for   setting   the   alarm.
Locking the vehicle without
alarm
- Insert  the   key   in   the   lock   on   the  driver's
  door   and   lock   it.
Do not set the alarm when washing
your
  vehicle.
Failure of the remote control
When the alarm is set but the remote
control   does   not   operate:
-

Unlock the doors with the key and open   the   door.  The   alarm   is   triggered.
- Switch on the ignition in the
next  ten   seconds.  The   alarm   is
disarmed.
Incorrect operation
When the ignition is switched on, if the
red LED remains on for ten seconds,
there
  is   a   fault   in   the   siren   connection.
Contact a CITROËN dealer to have the
system
  checked.
Automatic setting of the alarm
Depending on the country in which
the vehicle is sold, the alarm is set
automatically approximately 2 minutes
after  the   last   door   is   closed.
To prevent triggering of the alarm when
a door is opened, you have to press
the
  remote   control   unlocking   button
again.Do

  not   make   any   modifications
to the alarm system as this could
cause

  faults.
Access
READY TO GO
3

22
Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016
SLIDING SIDE DOORS
From the outside
Pull the handle towards you then
towards the rear and open the side
door guiding the rearward sliding to
beyond the point of resistance to hold
it  open.
A mechanical system prevents opening
of the left-hand side door when the fuel
filler
  flap   is   open.
From the inside
Unlock the side door using this handle and open it, guiding the rearward
sliding  to   the   point   of   resistance.   Pass
this

  point   to   hold   the   door   open.
Close the side door using the handle
to start the sliding and pass the point
of
  resistance.
Then,
  use   the   shaped
recess at the top of the door pilla

r to
guide
  the   door   until   it   locks.
Do not use the grab handle to slide the
door.
Good practice
Take care not to block the guide space on   the   floor   to   allow   the   door   to   slide
correctly

.
If
  your   vehicle   is   parked   on   a   slope,
guide

  the   sliding   of   the   side   door.   In
fact, the door could open or close more
rapidly due to the slope of the ground
and

  could   cause   injury.
For safety and operation reasons, do
not drive with the sliding side doors
open.
Access

23
Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016
Operation in the event
of a battery failure
Front and side passenger doors
In the event of a battery or of the
central  locking   fault,   use   the   lock   to
lock

  the   doors   mechanically.
-

T
o open the door and get out of the
vehicle,
  pull   the   interior   control.
-

T
o   lock   the   door,   insert   the   key   in
the

  lock,   located   on   the   edge   of   the
door

, then turn it one eighth of a
turn.
Driver's door
-

Insert
  the   key   in   the   lock,   then   turn
it

  to   the   right   to   lock   or   to   the   left   to
unlock.
TAILGATE
From inside
(emergency control)
In  the   event   of   a   central   unlocking
operating

  fault,   this   permits   unlocking
of

  the   tailgate   from   the   inside.
Insert a small screwdriver in the
opening, between the tailgate and the
floor.

T
o   unlock   the   lock,   move   the
catch

  to   the   left   then   push   the   tailgate.
Opening
From outside
Locking/unlocking  is   by   means   of   the
remote

  control.
To open, press the control below the
trim
  then   raise   the   tailgate.
A pull strap is available to close the
tailgate
  from   the   high   position.
Guide the closing of the tailgate to the
balance point of its travel then push on
the
  tailgate   to   close   it   fully.
Access
READY TO GO
3

24
Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016
HINGED REAR DOORS
From outside
To open, pull the handle towards you.Pull the lever to open the right-hand
door
.
To close, start with the right-hand door
then   close   the   left-hand   door.
With   the   roof   rear   flap,   the   rear   bumper
has been reinforced to serve as a
footrest

  when   entering   the   vehicle.
The hinged rear doors are
asymmetrical   (2/3   -   1/3),   with   the
smaller

  door   on   the   right.
They   are   fitted   with   a   central   lock.
Tailgate screen
The opening rear screen allows you to
access the rear of the vehicle directly,
without
  having   to   open   the   tailgate.
Opening
After
  unlocking   the   vehicle   using   the
remote

  control   or   the   key,   press   the
control and raise the rear screen to
open

  it.
Closing
Close the rear screen by pressing
the centre of the glass until it is fully
closed.
The tailgate and tailgate screen
cannot both be open at the
same time, to prevent damage to
the screen.
Access

25
Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016
In practice
It is possible to drive with the right-
hand  door   open   to   make   it   easier   to
carry

  long   loads.
The
  left-hand   door   is
kept

  closed   by   the   distinctive   "yellow"
lock,

  positioned   at   the   base   of   the   door.
This closed door must not be used as
a

  load   retainer.
Driving with the right-hand door open
is
  a   special   dispensation.   Comply   with
the usual safety indications to warn
other

  drivers.
From inside
When present on the vehicle, pulling
this handle towards you opens the left-
hand  door.
Opening to approximately 180°
A check   strap   system   permits   extension  of the opening from approximately 90°
to
  approximately   180°.
Pull the yellow control when the door is
open.
The
  check   strap   will   engage   again
automatically

  on   closing.
When parked with the rear doors open to 90°,
the  doors   mask   the   rear
lamps.


T
o   signal   your
position to other road
users driving in the same
direction who may not
have seen your vehicle,
use a warning triangle
or other device required
by the legislation in your
country

.
Access
READY TO GO
3

26
Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016
REAR ROOF FLAP
Support bar
A support bar is provided for
transporting long loads, after opening
the  rear   roof   flap.
Fold
  back   the   support   bar   by   lifting   the
lever

.
Guide
  it   to   the   door   pillar.
Support the long loads to be
transported, lift them and reposition the
support
  bar   with   one   hand.
Ensure that it is secured correctly by
pressing the handle downwards past
the point of resistance and secure the
loads
  firmly. The rear bumper has been
reinforced to serve as a footrest
when
  entering   the   vehicle.
The   rear   doors   only   lock   when   the
support

  bar   is   installed.
When
  the   rear   roof   flap   is   open,   take
care when driving where height is
restricted.
Never rest loads directly on the rear
doors.
Comply with the usual indications, to
warn

  other   drivers.
Reserve
  the   use   of   the   rear   roof   flap
for

  short   journeys.
The side supports can be used as
hooking
  points.
-
lower
  the   black   paddle   to   secure
the

  rear   roof   flap.
Securing   the   rear   roof   flap   places   it   on
the seal correctly and ensures sealing
without

  noise.
This

rear

roof

flap

is

only

compatible

with


side-hinged

rear

doors.
To

open

the

rear

roof

flap:
-

raise


the

black

paddle

of

the

toggle,
-

relieve the toggle by pressing the
rear


roof

flap

(downwards)

then
 release

the

hook,
-
 lift

the

rear

roof

flap,
-

pass the point of resistance to
secure


the

rear

roof

flap

using

the

support


stays.
Never

drive

without

the

stays

in

place.
To

close

the

rear

roof

flap:
-

check


that

the

support

bar

is

secured correctly

,
-

lower


the

rear

roof

flap,
-

while


pressing

the

rear

roof

flap

(downwards),


take

hold

of

the

two


loops of the spring then place
the

hook

in

its

housing, Never attach any load to the rear roof
flap.
Never drive without the support bar in
place.
Access

27
Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016
CENTRAL LOCKING
An initial press permits
central
  locking   of   the   vehicle,
when all of the doors are
closed.
Door open warning lamp
The

  control   switch   LED:
-
flashes
  when   the   doors   are   locked
with the vehicle stationary and the
engine of

f,
-

comes on when the doors are
locked

  and   from   the   time   the
ignition

  is   switched   on.
Anti-intrusion security
If this warning lamp comes
on,  check   that   all   of   your
vehicle's doors are closed
correctly

.
Locking while driving
When the vehicle moves off, as soon
as you reach approximately 6 mph
(10 km/h),
  the   system   locks   the   doors.
 The

  characteristic   central   locking   noise
 is

  heard.
The
  LED   in   the   switch   on   the
 dashboard

  central   switch   panel   comes   on.
During the journey, opening a door results  in   complete   unlocking   of   the
vehicle.
Activating / deactivating the
function
With the ignition on, press
and hold this switch to
activate or deactivate the
function.
Driving


with

the

doors

locked

may

make


access

to

the

interior

more

difficult


in

an

emergency.
A second press permits central
unlocking

of

the

vehicle.
The control is inactive when the vehicle
has

been

locked

using

the

remote

control


or

the

key

from

the

outside.
The doors can still be opened from the
inside.
Access
READY TO GO
3

28
Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016
Instruments and controls
Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016
Dials
1. Distance  recorder   in   kilometres   /  miles.
2.

Display
  screen.
3.

Fuel gauge, coolant temperature
gauge.
4.


Rev
  counter.
5.

T
rip   distance   recorder   /   service
indicator

  reset.
6.

Instrument
  panel   lighting   dimmer.Level 1
INSTRUMENT PANELDisplay screens
Screens
The format of the information
presented in the screen depends on
the
  vehicle's   equipment   level.
Level 2
with the touch screen tablet
