Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016
Instruments and controls
Berlingo2VP_en_Chap03_Pret-a-partir_ed02-2016
Warning lamp isindicatesSolution - action
Front / lateral
airbag flashing
  or
remaining

  on.a
  failure   of   an   airbag.Have
  the   system   checked   by   a   CITROËN   dealer
or

  a   qualified   workshop   without   delay.
Chapter
  5,   "Airbags"   section.
Front
passenger's
airbag
deactivated on. the intentional deactivation
of this airbag in the
presence of a rearward
facing
  child   seat.Chapter
  5,   "Airbags"   or   "child   safety"   section.
Low fuel
level on with gauge
needle in the
red
  zone.When
  it   first   comes   on,
there remains around
8 litres

  of   fuel   in   the   tank.
The distance you can drive
on this fuel depends on
your style of driving and the
engine

  type.You
  must   fill   up   with   fuel   to   avoid   running   out.
This warning lamp comes on each time you
switch
  on   the   ignition   until   you   have   filled   up.
Capacity
  of   the   tank:   approximately   60   litres   (or
55

  litres   according   to   version).
Never
  risk   driving   until   the   tank   is   empty,   this
could

  damage   the   emissions   and   injection
systems.
flashing. cutting of

f of the fuel supply
following
  a   serious   impact.Restore
  the   supply.
Chapter
  7,   "Fuel"   section.
EOBD
emission
control
system flashing
  or
remaining

  on.a
  failure   of   the   system.There
  is   a   risk   of   damage   to   the   catalytic
converter

.   Have   it   checked   by   a   CITROËN
dealer

  or   a   qualified   workshop.
Battery
charge on.
a fault in the charging
circuit. Check
  the   battery   terminals,   …
Chapter
  8,   "Battery"   section.
flashing. placing of the active
functions on standby
(economy
  mode).Chapter
  8,   "Battery"   section.
remaining on,
in spite of the
checks. an
  ignition   or   injection
malfunction.Have

  it   checked   by   a   CITROËN   dealer   or   a
qualified

  workshop.

59
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
LED DAYTIME RUNNING LAMPS
Rear foglamps (amber,
2nd rotation of the ring
forwards).
Front foglamps (green,
1st
rotation of the ring
forwards). Rotate this ring forwards
to switch on and
rearwards   to   switch   off.
Their   state   is   confirmed   by
the warning lamps in the
instrument

  panel. Do not forget to switch them off
when   they   are   no   longer   needed.
Operation of the automatic illumination
of headlamps switches off the rear
foglamps, but the front foglamps
remain   on.
To switch off the front and
rear foglamps, turn the
ring rearwards twice in
succession.
Automatic illumination of headlamps
In foggy weather or in snow,
the sunshine sensor may detect
sufficient   light.
As a consequence, the lighting
will
  not   come   on   automatically.   If
necessary

, you must switch on
the dipped
  beam   headlamps   manually.
Do not cover the sunshine sensor
located on the windscreen, behind
the

mirror.   It   is   used   for   the   automatic
illu

mination of headlamps and for the
automatic
  rain   sensitive   wipers.
Activation The sidelamps
and dipped beam
headlamps switch
on automatically if
the light is poor, or
during operation of the windscreen
wipers.
They
  switch   off   as   soon   as   the
light becomes bright enough or the
windscreen

  wipers   stop.
On starting the vehicle, in daylight the
LED daytime running lamps come on
automatically.
If the sidelamps and headlamps are
switched on manually or automatically,
the

daytime

running

lamps

go

off.
Programming
For countries where exterior lighting by
day is not a legal requirement, you can
activate or deactivate the function via
the   configuration   menu.
If the user does not operate any
equipment for 30 minutes, the
Economy mode engages to avoid
discharging

the

battery.

Electrical

functions are put on standby and the
battery


warning

lamp

flashes.
Sidelamp operation is not affected by
Economy

mode.
In clear weather or in rain, both day
and night, rear foglamps dazzle and
their  use   is   prohibited.
Refer to chapter 8, "Battery
section".
Front and rear foglamps
They operate with the sidelamps and
dipped

beam

headlamps.
Turn the ring to the AUTO  position.  The activation of this function is
accompanied by a message in the
screen.
Deactivation
T
urn   the   ring   forwards   or   rearwards.
The deactivation of this function is
accompanied by a message in the
screen. This function is not compatible with
daytime
  running   lamps.
Steering mounted controls
EASE OF USE and COMFORT
4

105
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
12 volt socket (120 W max)
It is advisable to limit the use of this
socket  to   avoid   discharging   the   battery.
Protective net
Open the cover located in the hook support.
Fix the top of the net in the notches,
having
  first   turned   the   bar   1/4   of   a   turn.
Ensure that the end of the bar engages
correctly in the metal part of its
location.
Fix the straps in the locations provided
on
  the   floor.
Tighten
  the   net   using   the   straps.
Stowing rings
Use these rings to secure loads on the
floor.
The connection of an electrical
device not approved by CITROËN,
such as a USB charger, may
adversely affect the operation of
vehicle electrical systems, causing
faults such as poor telephone reception
or interference with displays in the
screens.
EASE OF USE and COMFORT
4
Practical information

106
Berlingo2VP_en_Chap04_Ergonomie_ed02-2016Berlingo2VP_en_Chap04_Ergonomie_ed02-2016
REAR FITTINGS
(7 SEAT VERSION )
Cup holder
Any liquid carried in a cup (mug or
other) on board which could spill,
presents   a   risk.
Take
  care.
12 volt socket (120 W max)
It is advisable to limit the use of this
socket   to   avoid   discharging   the   battery.
Stowing rings
Use the stowing rings on the floor to secure  and   retain   your   loads   firmly.
The seat belt anchorages must not be
used
  for   this   purpose.
It is recommended that the load is
immobilised

  by   securing   it   firmly
using the stowing rings on the
floor

.
Practical information

130
Berlingo2VP_en_Chap05_Securite_ed02-2016
130
Berlingo2VP_en_Chap05_Securite_ed02-2016
Advice
Sit  in   a   normal   upright   position.
Wear
  a   correctly   adjusted   seat   belt.
Do not allow anything to come between
the occupants and the airbags
(a
  child,   pet,   object...),   do   not   attach   or
fix

  anything   near   to   the   airbags   or   their
trajectories

  when   inflating   as   this   could
cause

  injuries   when   the   airbags   are
deployed.
Never

  modify   the   original   definition   of
your vehicle, particularly in the area
directly

  around   the   airbags.
After an accident or if the vehicle has
been
  stolen   or   broken   into,   have   the
airbag

  systems   checked.
All
  work   on   the   airbag   system   must   be
carried out by a CITROËN dealer or a
qualified

  workshop.
Even if all of the precautions
mentioned
  are   observed,   a   risk   of
injury

  or   of   minor   burns   to   the   head,
chest or arms when an airbag is
deployed

  cannot   be   ruled   out.
The

bag inflates

  almost   instantly   (within   a
few

  milliseconds)   then   deflates   within
the same time discharging the hot gas
via

  openings   provided   for   this   purpose.Front airbags
Do not drive holding the steering wheel
by
  its   spokes   or   resting   your   hands   on
the

  centre   part   of   the   wheel.
Passengers must not place their feet
on
  the   dashboard.
Do
  not   smoke   as   deployment   of   the
airbags

  can   cause   burns   or   the   risk   of
injury

  from   a   cigarette   or   pipe.
Never remove or pierce the steering
wheel
  or   hit   it   violently.
Do
  not   fit   or   attach   anything   to   the
steering wheel or dashboard, this could
cause

  injuries   with   deployment   of   the
airbags.
Lateral airbags
Use only approved covers on the
seats, compatible with the deployment
the

  lateral   airbags.   For   information
on the range of seat covers suitable
for your vehicle, you can contact a
CITROËN dealer

.
For more information on accessories,
refer to "Other accessories" in
section 6.
Do
  not   fix   or   attach   anything   to   the   seat
backs

  (clothing...).
This
  could   cause
injury

  to   the   chest   or   arms   if   the   lateral
airbag

  is   deployed.
Do not sit with the upper part of the
body any nearer to the door than
necessary.
Airbags only operate when the
ignition is switched on.
This

equipment

only

operates

once.

If a second impact occurs (during the
same or a subsequent accident), the
airbag


will

not

operate.
The deployment of an airbag or airbags
is accompanied by a slight discharge
of

smoke

and

a

noise,

due

to

the

activation of the pyrotechnic cartridge
incorporated


in

the

system.
This

smoke

is

not

harmful,

but

sensitive individuals may experience
some


irritation.
The noise of the detonation may result
in a slight loss of hearing for a short
time.
The passenger's front airbag must
be deactivated if a child seat is
installed

rearward

facing.
Chapter

5,

"Child

safety"

section.
Airbags

170
Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016

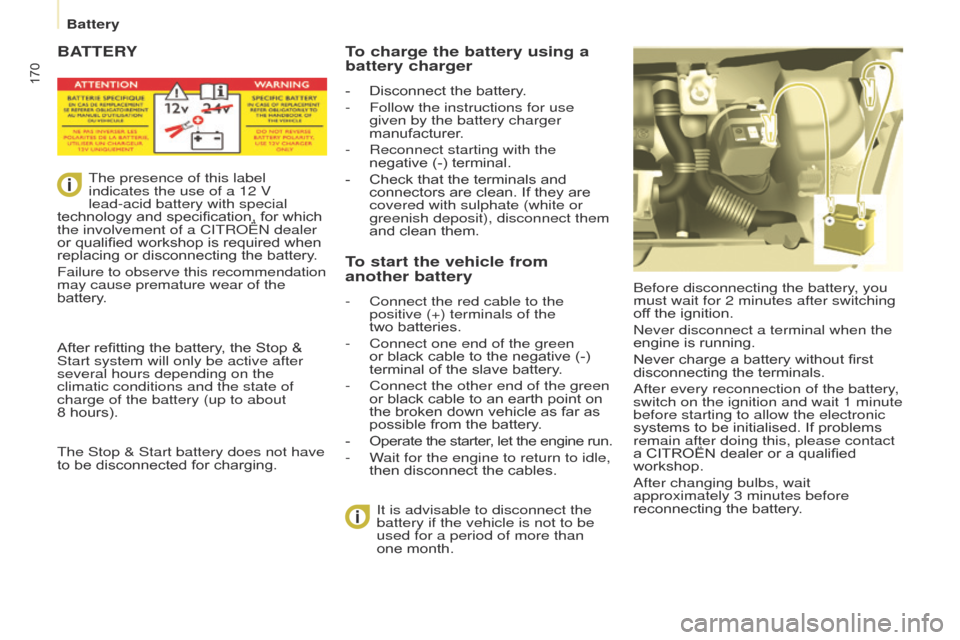

BATTERY
Before disconnecting the battery, you
must wait for 2 minutes after switching
off  the   ignition.
Never disconnect a terminal when the
engine
  is   running.
Never
  charge   a   battery   without   first
disconnecting

  the   terminals.
After every reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to allow the electronic
systems
  to   be   initialised.   If   problems
remain after doing this, please contact
a

  CITROËN   dealer   or   a   qualified
workshop.
After changing bulbs, wait
approximately 3 minutes before
reconnecting

  the   battery.
It is advisable to disconnect the
battery if the vehicle is not to be
used for a period of more than
one month.
To charge the battery using a
battery charger
- Disconnect  the   battery.
-
Follow the instructions for use
given by the battery charger
manufacturer

.
-

Reconnect starting with the
negative

  (-)   terminal.
-

Check
  that   the   terminals   and
connectors

  are   clean.   If   they   are
covered with sulphate (white or
greenish deposit), disconnect them
and

  clean   them.
To start the vehicle from
another battery
- Connect the red cable to the
positive (+) terminals of the
two batteries.
-

Connect one end of the green
or

  black   cable   to   the   negative   (-)
terminal

  of   the   slave   battery.
-

Connect the other end of the green
or

  black   cable   to   an   earth   point   on
the

  broken   down   vehicle   as   far   as
possible

  from   the   battery.
-
 Operate

  the   starter,   let   the   engine   run.
-

W
ait for the engine to return to idle,
then
  disconnect   the   cables.
The presence of this label
indicates the use of a 12 V
lead-acid battery with special
technology

and

specification,

for

which

the involvement of a CITROËN dealer
or


qualified

workshop

is

required

when

replacing


or

disconnecting

the

battery.
Failure to observe this recommendation
may cause premature wear of the
battery.
After

refitting

the

battery,

the

Stop &

Start system will only be active after
several hours depending on the
climatic conditions and the state of
charge of the battery (up to about
8 hours).
The Stop & Start battery does not have
to


be

disconnected

for

charging.
Battery

171
Berlingo2VP_en_Chap08_Aide-rapide_ed02-2016
ECONOMY MODE
After the engine has stopped, with
the
  key   in   the   ignition   position,   certain
functions (windscreen wiper

, electric
windows, courtesy lamps, audio
equipment,
  etc.)   can   only   be   used   for   a
cumulative duration of thirty minutes, to
prevent

  discharging   of   the   battery.
Once the thirty minutes have elapsed,
the active functions are put on standby
and
  the   battery   warning   lamp   flashes
accompanied by a message in the
screen.
T

o resume the use of these functions
immediately, start the engine and let it
run
  for   a   few   minutes.
The time available will then be double
the time for which the engine was left
running.
  However,   this   time   will   always
be

  between   five   and   thirty   minutes.
A


flat   battery   will   prevent   the
engine

  from   starting.
Battery
QUICK HELP
8

261
Berlingo2VP_en_Chap10a_SMEGplus_ed02-2016
QUESTIONANSWER SOLUTION
There is a difference in
sound quality between the
different
  audio   sources. For
  optimum   sound   quality,   the   audio   settings   for   Volume:,   Bass:,
T

reble:,   Ambience   and   Loudness   can   be   adapted   to   the   different
s

ound sources, which may result in audible differences when
changing
 s

ource. Check
  that   the   audio   settings   for   (Volume:,   Bass:,
T

reble:,   Ambience,   Loudness)   are   adapted   to   the
s

ources   listened   to.   It   is   advisable   to   set   the   audio
f

unctions   (Bass:,   Treble:,   Balance)   to   the   middle
p

osition, select the "None" musical ambience
and set the loudness correction to the "Inactive"
position
  in   radio   mode.
With the engine off, the
system switches off after a
few

minutes   of   use. When the engine is switched off, the system's operating time
depends
  on   the   state   of   charge   of   the   battery.
The
  switch-off   is   normal:   the   system   switches   to   economy   mode   and
s

witches   off   to   prevent   discharging   of   the   vehicle's   battery.Start the vehicle's engine to increase the battery
charge.
Audio and Telematics
TECHNOLOGY on BOARD
10
