FAMILIARISATION


Interior


LOAD SPACE

We recommend that the load is
properly secured using the lashing
rings on the fl oor and that heavy
objects are placed at the front (towards
the cab). Overhead storage compartment: 5 kg.
Folding seat, in the seat back folded
onto seat cushion position: 50 kg.
Transverse roof bars: 75 kg.
Roof rack: 120 kg.
Rear roof fl ap: 100 kg vertically.
75
76

Partitions

Removable fl ap
Maximum loads

Lashing rings
This can be removed for the loading of
long objects. 76

83


Parking sensors

SAFETY
4


Activation / Deactivation
Malfunction

In the event of a malfunction, when
reverse gear is engaged the LED in the
button comes on, accompanied by an
audible signal and a message in the
screen. Contact a CITROËN dealer or
a qualifi ed workshop.


Good practice

In bad weather or in winter, ensure that
the sensors are not covered with mud,
ice or snow.
The system will be deactivated
automatically if a trailer is being towed
or if a bicycle carrier is fi tted (vehicle
fi tted with a towbar or bicycle carrier
recommended by CITROËN).
The parking assistance cannot, in
any circumstances, take the place of
the vigilance and responsibility of the
driver. You can activate or deactivate
the system by pressing this
button.
The activation or deactivation
of the system is stored when
the vehicle stops.

You are advised to deactivate
the system if your vehicle is fi tted
with a rear ladder or if you are
transporting a load which exceeds
the length of the vehicle.

101


Towing a trailer

ACCESSORIE
S
5


Good Practice

In certain cases of particularly arduous
use (towing the maximum load up a
steep slope in high temperatures), the
engine automatically limits its power.
In this case, the air conditioning is
automatically cut off to save engine
power.

Tyres

Check the tyre pressures of the
towing vehicle (see the "Identifi cation
markings" section of chapter 8) and of
the trailer, observing the recommended
pressures.
See the "Levels" section of chapter 6. If the coolant temperature
warning lamp comes on, stop
the vehicle and switch off the
engine as soon as possible.

Brakes

Towing increases the braking distance.
Drive at a moderate speed, change
down early and brake gradually.

Towbar

We recommend the use of genuine
CITROËN towbars and their
harnesses, which have been tested
and approved from the design stage of
your vehicle, and that you entrust the
fi tting of this equipment to a CITROËN
dealer.
If this equipment is not fi tted by a
CITROËN dealer, it is imperative that
it is fi tted using the electrical pre-
equipment installed at the rear of the
vehicle and in accordance with the
manufacturer's instructions.
In accordance with the general
instructions a reminder of which has
been given above, we draw your
attention to the risk associated with
fi tting a towbar or electrical accessory
not recommended by CITROËN.
Fitting such equipment could result in
the failure of your vehicle's electronic
system. Please obtain information from
the Manufacturer before fi tting this type
of equipment.
Anti-theft alarm, window etching, fi rst
aid kit, high visibility vest, front and
rear parking sensors, warning triangle,
security bolts for alloy wheels...

Front seat covers compatible with
airbags, bench, rubber mats, carpet
mats, snow chains, blind, tailgate
bicycle carrier, ...

OTHER ACCESSORIES

These accessories and parts, having
been tested and approved for reliability
and safety, are all adapted to your
vehicle. A wide range of recommended
accessories and genuine parts is available.

Range of trade equipment
The parts department publishes an
accessory catalogue offering various
equipment and fi ttings, such as:
Load retainers (all models).
Loading roller.
Towbar, towbar harness: trailer towbar
which should preferably be fi tted by a
CITROËN dealer.
Separation partitions and grilles,
smooth, non-slip wooden protective
fl oor.
Protective grilles.


Side wind

Sensitivity to side wind is increased.
Drive smoothly and at a moderate
speed.
ABS/ESP

The ABS or ESP systems only control
the vehicle, not the trailer or caravan.

Rear parking sensors

The parking sensors system does not
function while the vehicle is towing.

Another range is also available,
structured around comfort, leisure and
maintenance:

11 5
7
Changing a wheel
QUICK HEL
P

1. PARKING THE VEHICLE



- The occupants must get out of the
vehicle and wait in a safe location.

- If possible, park the vehicle on
level, stable and non-slippery
ground.

- Apply the parking brake, switch
off the ignition and engage fi rst or
reverse gear.
- If available, place a chock under
the wheel diagonally opposite the
one to be changed.
If the vehicle is fi tted with a towbar,
it is sometimes necessary to raise
the vehicle slightly to make it easier
to remove the spare wheel from its
carrier.
On certain types of ground and/or
if considerable loads are being
transported, call a CITROËN dealer or
a qualifi ed workshop.

CHANGING A WHEEL

2. TOOLS



- The tools are stowed in a storage
compartment located under the
front seat. If necessary, move the
seat forward to access the storage
compartment from the rear.

- Unscrew the nut then take out the
jack and the wheelbrace.


1.
Wheelbrace.

2.
Jack.

3.
Alloy wheel embellisher remover.

4.
Chock.
The jack and the tool kit are specifi c to
your vehicle. Do not use them for other
purposes.

125
7
Changing a fuse
QUICK HEL
P

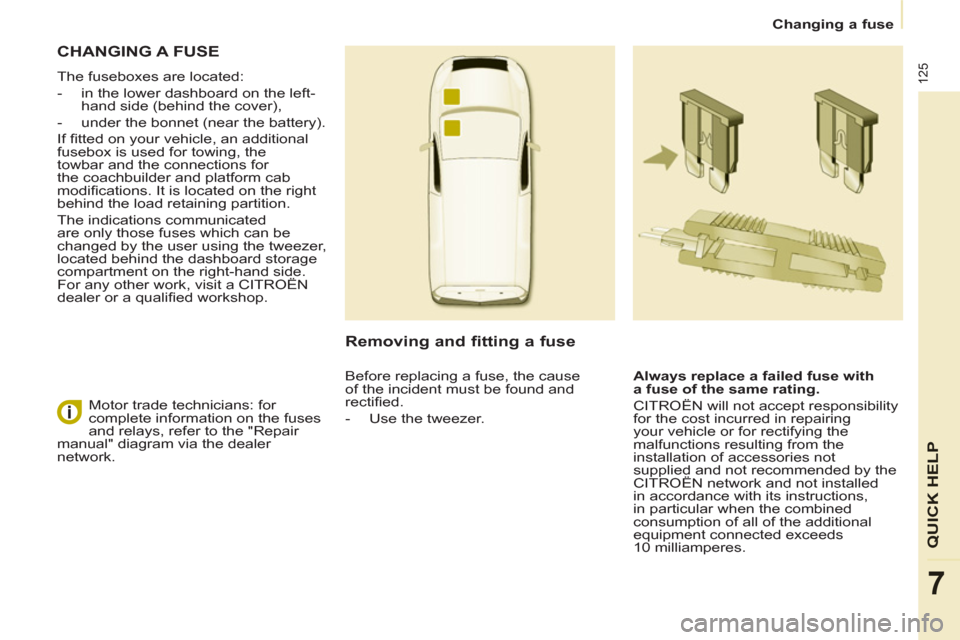

CHANGING A FUSE

The fuseboxes are located:


- in the lower dashboard on the left-
hand side (behind the cover),

- under the bonnet (near the battery).
If fi tted on your vehicle, an additional
fusebox is used for towing, the
towbar and the connections for
the coachbuilder and platform cab
modifi cations. It is located on the right
behind the load retaining partition.
The indications communicated
are only those fuses which can be
changed by the user using the tweezer,
located behind the dashboard storage
compartment on the right-hand side.
For any other work, visit a CITROËN
dealer or a qualifi ed workshop.


Removing and fitting a fuse


Always replace a failed fuse with
a fuse of the same rating.

CITROËN will not accept responsibility
for the cost incurred in repairing
your vehicle or for rectifying the
malfunctions resulting from the
installation of accessories not
supplied and not recommended by the
CITROËN network and not installed
in accordance with its instructions,
in particular when the combined
consumption of all of the additional
equipment connected exceeds
10 milliamperes. Motor trade technicians: for
complete information on the fuses
and relays, refer to the "Repair
manual" diagram via the dealer
network. Before replacing a fuse, the cause
of the incident must be found and
rectifi ed.


- Use the tweezer.

127
7
Changing a fuse
QUICK HEL
P

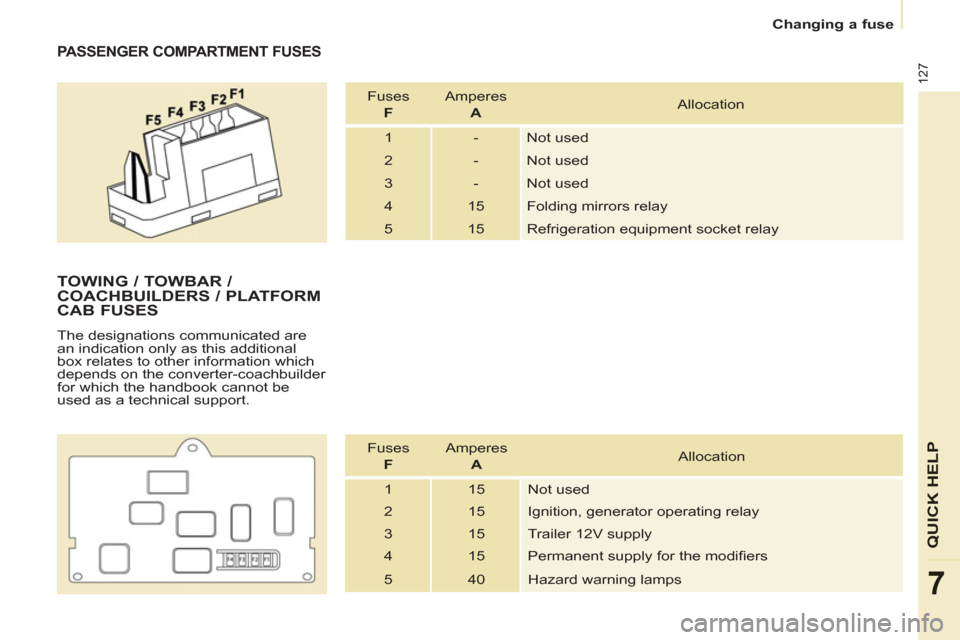

PASSENGER COMPARTMENT FUSES

Fuses
F
Amperes
A
Allocation
1 - Not used
2 - Not used
3 - Not used
4 15 Folding mirrors relay
5 15 Refrigeration equipment socket relay


TOWING / TOWBAR /
COACHBUILDERS / PLATFORM
CAB FUSES
The designations communicated are
an indication only as this additional
box relates to other information which
depends on the converter-coachbuilder
for which the handbook cannot be
used as a technical support.
Fuses
F
Amperes
A
Allocation
1 15 Not used
2 15 Ignition, generator operating relay
3 15 Trailer 12V supply
4 15 Permanent supply for the modifi ers
5 40 Hazard warning lamps

130


Having your vehicle towed



Without lifting (4 wheels on
the road)
You should always use a towing bar.

BEING TOWED
From the front



- Unclip the cover by pressing the
bottom part.

- Fully screw in the removable
towing eye.



From the rear



- Unclip the cover using a coin or the
fl at part of the towing eye,

- Fully screw in the removable
towing eye.

When towing with the engine
switched off, there is no braking or
steering assistance.


Lifting (2 wheels on
the road only)
It is preferable to raise the vehicle
using professional lifting equipment. The towing eye is stored in the tool kit,
located under the right-hand seat.

Vehicles fitted with a manual
gearbox (Diesel version)
In the case of vehicles fi tted with a
manual gearbox, the gear lever must
be in the neutral position, failure to
observe this special condition may
result in damage to transmission and
braking components and the absence
of braking assistance when the engine
is started again.

139


Exterior

VISUAL SEARCH
10

EXTERIOR


Remote control 17-18
Changing the battery,
reinitialisation 18
Key 17
Starting 46
Hill start assist 47
Central locking / unlocking 17, 26
Locking / unlocking the load
space 17, 26

Filler cap,
fuel tank 111-112
Fuel cut-off,
Diesel priming 112

Wiper blade 129
Door mirrors 78-79
Side repeater 122

Front lamps, foglamps, direction
indicators 48-49, 121-122
Headlamp beam height
adjustment 50
Changing front bulbs 120-122
Headlamp wash 52, 108
Snow cover 119

Front doors 20
Sliding side door 21
Key 17
Opening the bonnet 104

Infl ation, pressures 138
Towing, lifting 100-101, 130
Towbar 100-101
Rear parking sensors 82-83
Number plate lamp 124
Spare wheel, jack,
changing a wheel,
tools 115-119
Rear lamps, direction
indicators 48-49, 122-123
3rd brake lamp 124
Changing rear bulbs 123-124
Load space, opening 17, 26
Doors, tailgate 22-25
Accessories 101
Roof bars 77

Rear roof fl ap 24
Emergency control 25
Dimensions 132-136
Floor cab dimensions 136

Brakes, pads 81, 107, 109

Emergency braking 84
ABS, EBFD 84
ASR, ESP 85
"Grip control" 86-87
Tyre, pressures 138
Tyre under-infl ation detection 36

142
Interior

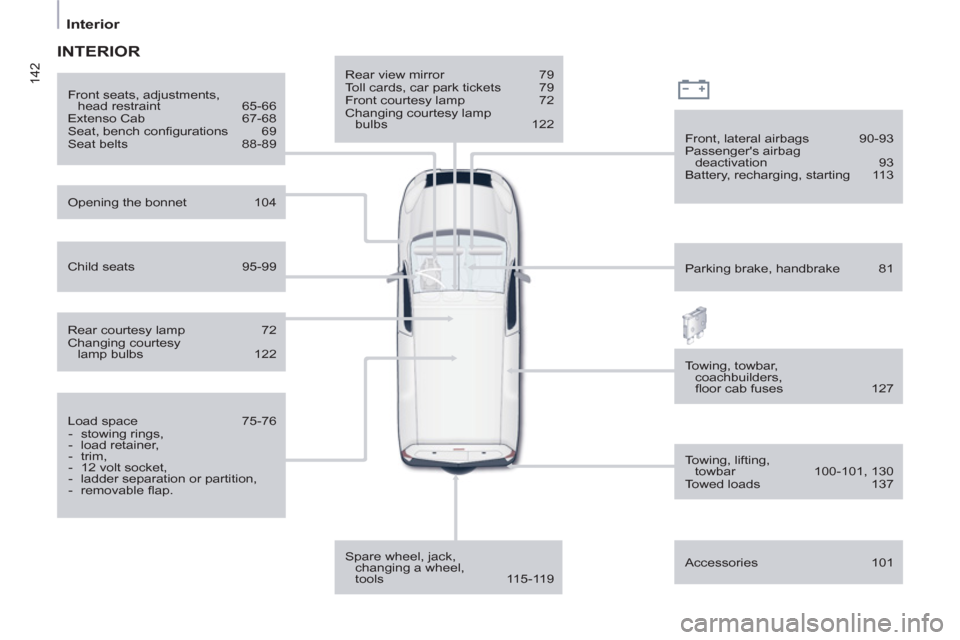

INTERIOR


Rear view mirror 79
Toll cards, car park tickets 79
Front courtesy lamp 72
Changing courtesy lamp
bulbs 122

Spare wheel, jack,
changing a wheel,
tools 115-119
Front, lateral airbags 90-93
Passenger's airbag
deactivation 93
Battery, recharging, starting 113

Parking brake, handbrake 81
Child seats 95-99
Front seats, adjustments,
head restraint 65-66
Extenso Cab 67-68
Seat, bench confi gurations 69
Seat belts 88-89

Towing, lifting,
towbar 100-101, 130
Towed loads 137
Rear courtesy lamp 72
Changing courtesy
lamp bulbs 122

Load space 75-76


- stowing rings,

- load retainer,

- trim,

- 12 volt socket,

- ladder separation or partition,

- removable fl ap.

Opening the bonnet 104

Accessories 101

Towing, towbar,
coachbuilders,
fl oor cab fuses 127
