Citroen BERLINGO RHD 2013 2.G Owner's Manual

129
QUICK HEL
P
7
Changing a fuse

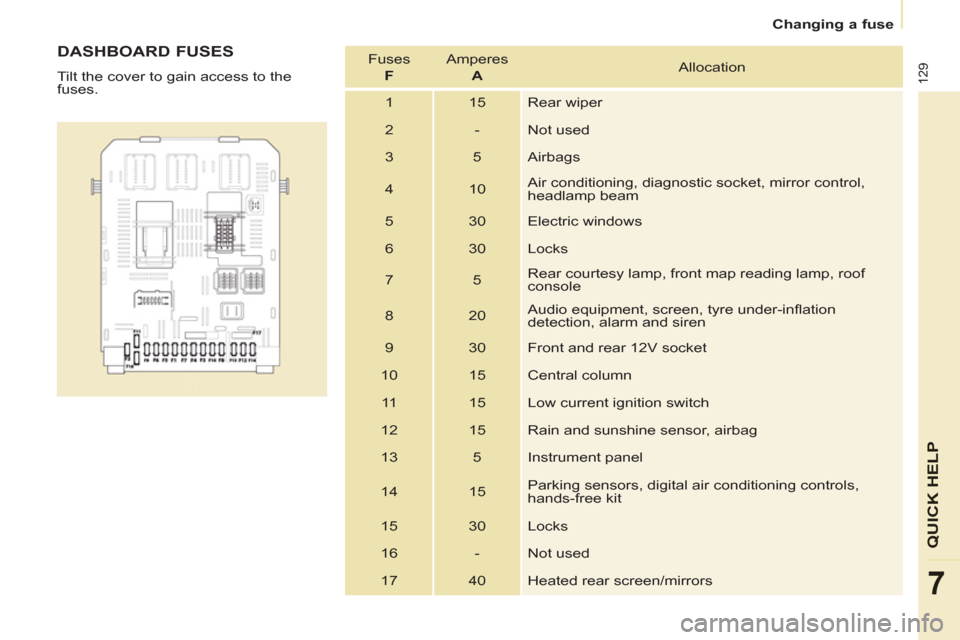

DASHBOARD FUSES

Tilt the cover to gain access to the
fuses. Fuses
F
Amperes
A
Allocation
1 15 Rear wiper
2 - Not used
3 5 Airbags
4 10 Air conditioning, diagnostic socket, mirror control,
headlamp beam
5 30 Electric windows
6 30 Locks
7 5 Rear courtesy lamp, front map reading lamp, roof
console
8 20 Audio equipment, screen, tyre under-infl ation
detection, alarm and siren
9 30 Front and rear 12V socket
10 15 Central column
11 15 Low current ignition switch
12 15 Rain and sunshine sensor, airbag
13 5 Instrument panel
14 15 Parking sensors, digital air conditioning controls,
hands-free kit
15 30 Locks
16 - Not used
17 40 Heated rear screen/mirrors

Changing a fuse

130

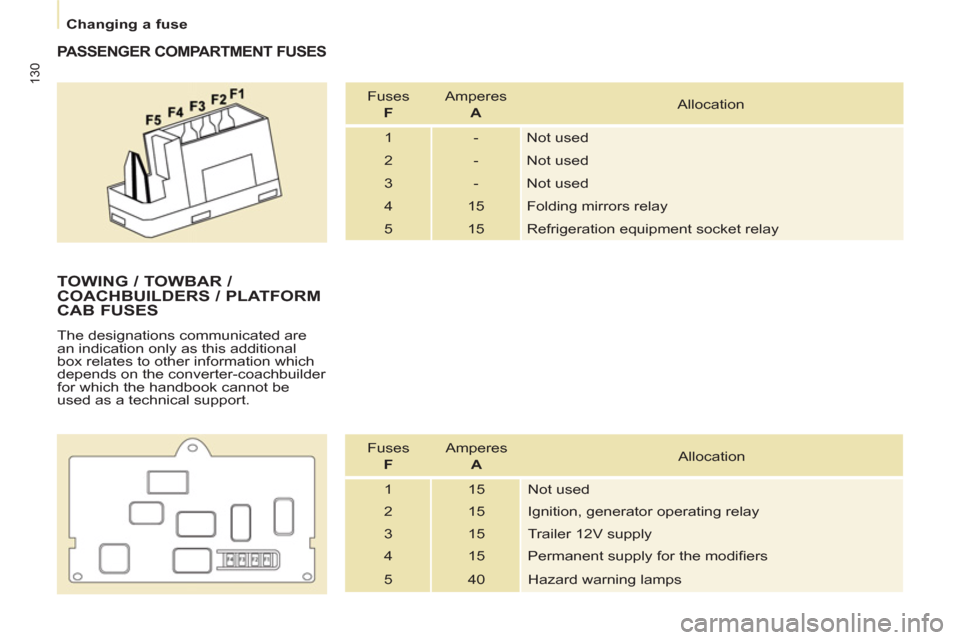

PASSENGER COMPARTMENT FUSES

Fuses
F
Amperes
A
Allocation
1 - Not used
2 - Not used
3 - Not used
4 15 Folding mirrors relay
5 15 Refrigeration equipment socket relay


TOWING / TOWBAR /
COACHBUILDERS / PLATFORM
CAB FUSES
The designations communicated are
an indication only as this additional
box relates to other information which
depends on the converter-coachbuilder
for which the handbook cannot be
used as a technical support.
Fuses
F
Amperes
A
Allocation
1 15 Not used
2 15 Ignition, generator operating relay
3 15 Trailer 12V supply
4 15 Permanent supply for the modifi ers
5 40 Hazard warning lamps

131
QUICK HELP
7
Changing a fuse

FUSES UNDER THE BONNET

After opening the bonnet, unclip and tilt
the box to gain access to the fuses. Fuses
F
Amperes
A
Allocation
1 20 Engine management
2 15 Horn
3 10 Front and rear screenwash pump
4 20 Headlamp wash pump or LED
5 15 Engine components
6 10 Steering wheel angle sensor, ESC
7 10 Brake switch, clutch switch
8 25 Starter
9 10 Headlamp beam motor, parc management unit
10 30 Engine components
11 40 Not used
12 30 Wipers
13 40 Built-in systems interface
14 30 Pump
15 10 Right-hand main beam headlamp
16 10 Left-hand main beam headlamp
17 15 Right-hand dipped beam headlamp
18 15 Left-hand dipped beam headlamp

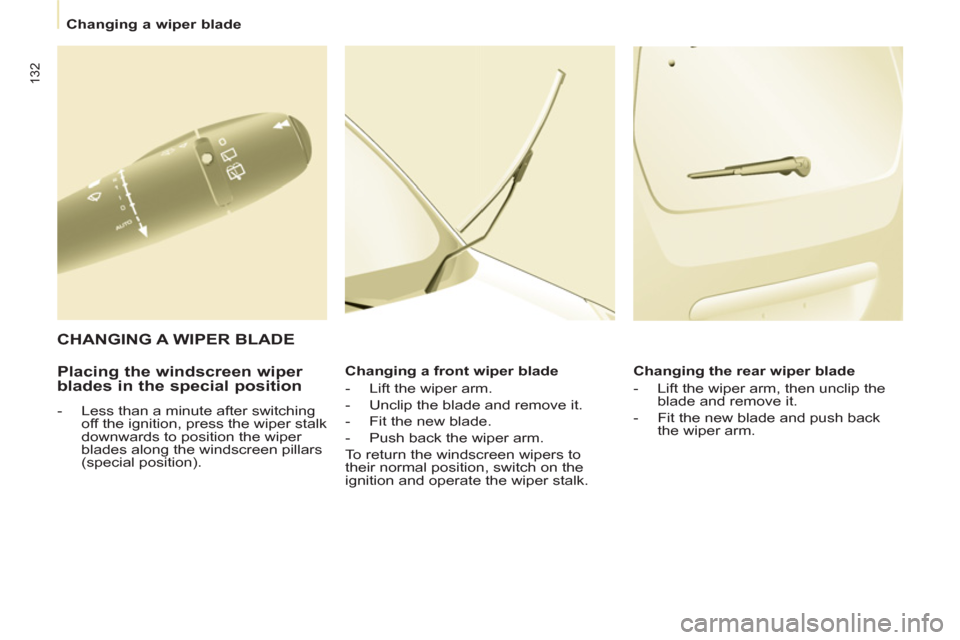

Changing a wiper blade

132


Placing the windscreen wiper
blades in the special position


- Less than a minute after switching
off the ignition, press the wiper stalk
downwards to position the wiper
blades along the windscreen pillars
(special position).
Changing a front wiper blade


- Lift the wiper arm.

- Unclip the blade and remove it.

- Fit the new blade.

- Push back the wiper arm.
To return the windscreen wipers to
their normal position, switch on the
ignition and operate the wiper stalk.
Changing the rear wiper blade


- Lift the wiper arm, then unclip the
blade and remove it.

- Fit the new blade and push back
the wiper arm.



CHANGING A WIPER BLADE

133
QUICK HEL
P
7

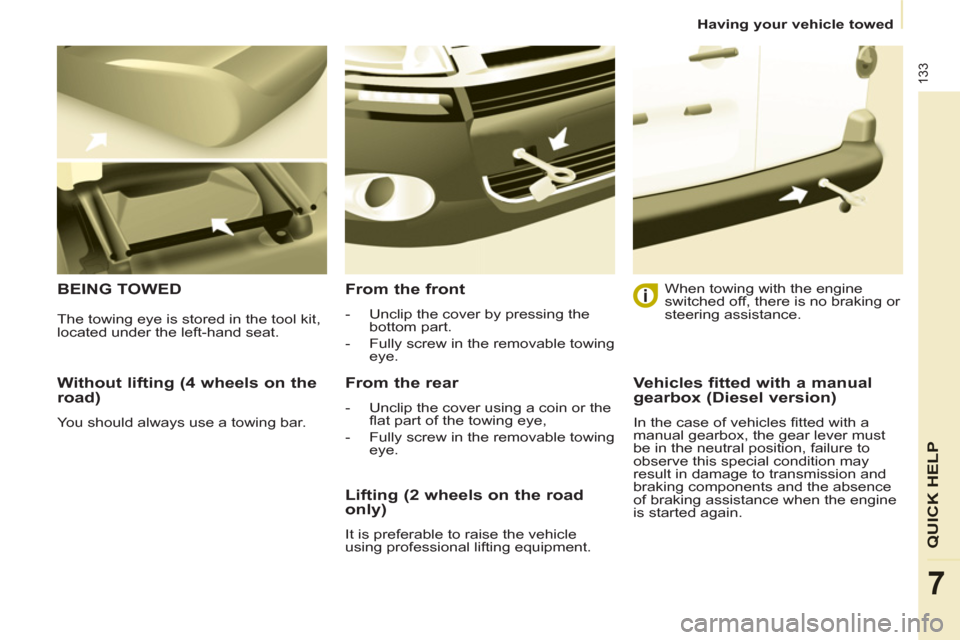

Having your vehicle towed

Without lifting (4 wheels on the
road)
You should always use a towing bar.

BEING TOWED
From the front



- Unclip the cover by pressing the
bottom part.

- Fully screw in the removable towing
eye.



From the rear



- Unclip the cover using a coin or the
fl at part of the towing eye,

- Fully screw in the removable towing
eye.

When towing with the engine
switched off, there is no braking or
steering assistance.


Lifting (2 wheels on the road
only)
It is preferable to raise the vehicle
using professional lifting equipment. The towing eye is stored in the tool kit,
located under the left-hand seat.

Vehicles fitted with a manual
gearbox (Diesel version)
In the case of vehicles fi tted with a
manual gearbox, the gear lever must
be in the neutral position, failure to
observe this special condition may
result in damage to transmission and
braking components and the absence
of braking assistance when the engine
is started again.

134

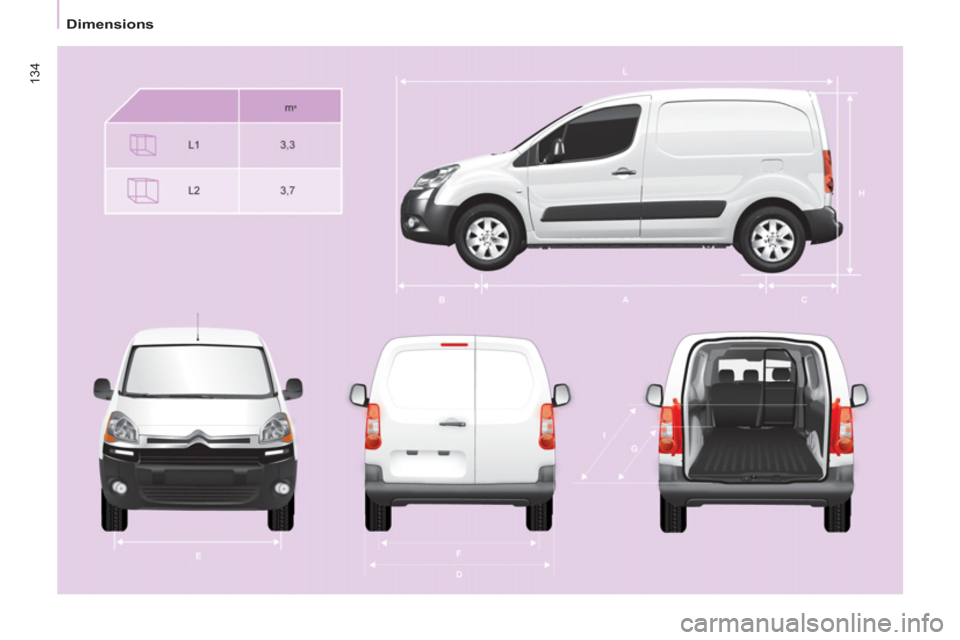

Dimensions

135

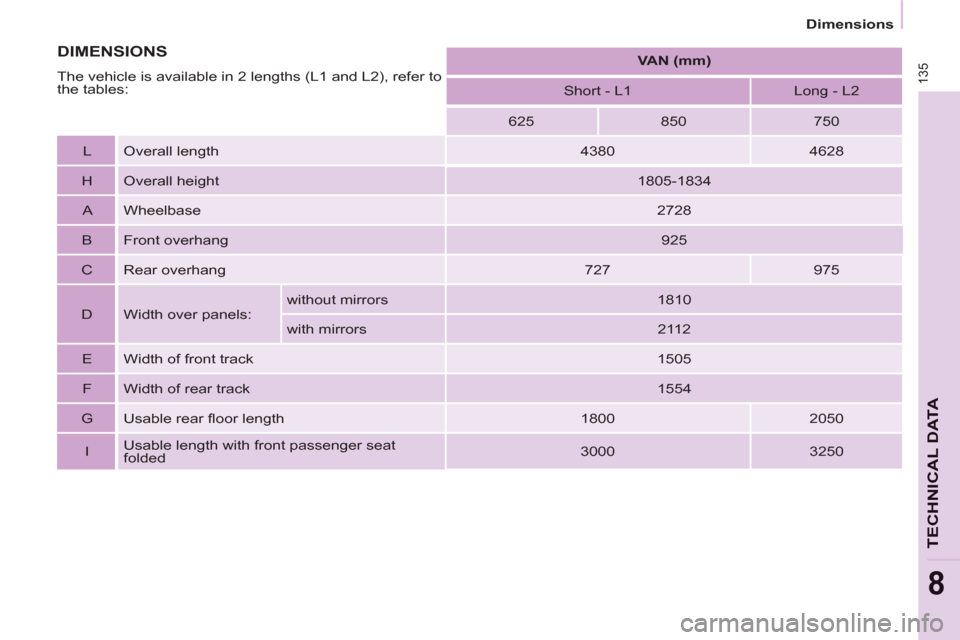

Dimensions
TECHNICAL DAT
A
8




VAN (mm)



Short - L1
Long - L2

625
850
750

L Overall length
4380
4628

H Overall height
1805-1834

A Wheelbase
2728

B Front overhang
925

C Rear overhang
727
975

D Width over panels: without mirrors
1810
with mirrors
2112

E Width of front track
1505

F Width of rear track
1554

G Usable rear fl oor length
1800
2050

I Usable length with front passenger seat
folded
3000
3250 DIMENSIONS DIMENSIONS

The vehicle is available in 2 lengths (L1 and L2), refer to
the tables:

136


Dimensions

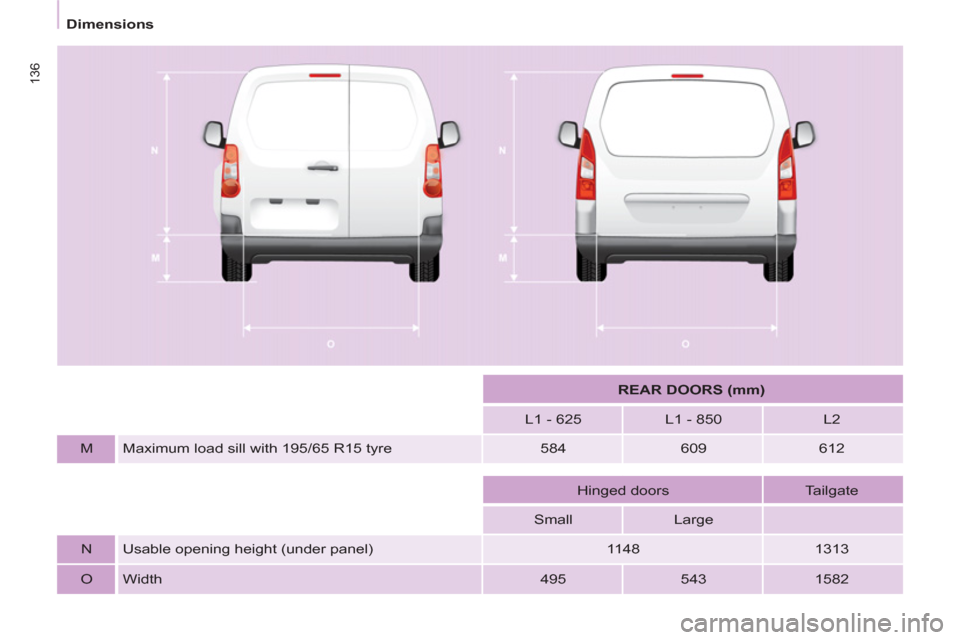

REAR DOORS (mm)



L1 - 625
L1 - 850
L2

M Maximum load sill with 195/65 R15 tyre
584
609
612









Hinged doors
Tailgate

Small
Large






N Usable opening height (under panel)
1148
1313

O Width
495
543
1582

137
Dimensions
TECHNICAL DAT
A
8

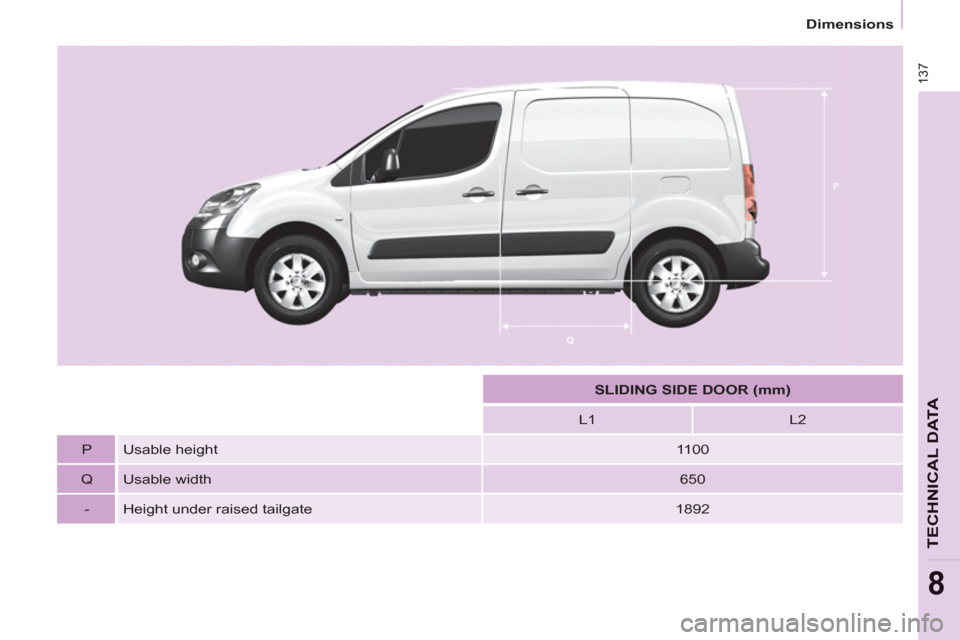

SLIDING SIDE DOOR (mm)



L1
L2

P
Usable height
1100

Q
Usable width
650

-
Height under raised tailgate
1892

138


Dimensions

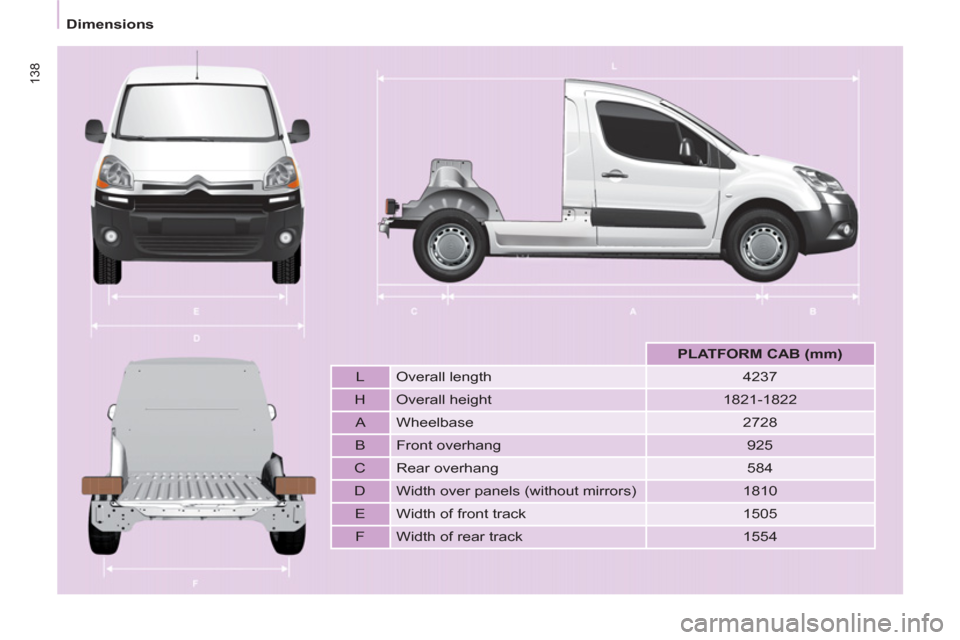

PLATFORM CAB (mm)



L Overall length
4237

H Overall height
1821-1822

A Wheelbase
2728

B Front overhang
925

C Rear overhang
584

D Width over panels (without mirrors)
1810

E Width of front track
1505

F Width of rear track
1554
